Page 141 of 164
ReferenceAt a glance Controls Driving tips Mobility
139
Lights up in red:
>Transmission limp-home pro-
gram active with restricted range
of gears, possibly with reduced
accelerationYou can continue your journey, but
moderate your speed and exercise
due caution. Have the system
checked without delay.
>Gears can be engaged without
depressing the brakeAlways depress the brake to engage a
gear.
>Automatic selector lever locked Overriding the selector lever lock,
page43.
Lights up in yellow: Have the system checked as soon as
possible.
>Automatic selector lever locked:
Selector lever locked in position P
with engine running and brake
depressed orOverriding the selector lever lock,
page43.
>brake signal malfunctioning: gear
can be engaged without depress-
ing the brakeTo engage a gear while the vehicle is
at a standstill, always depress the
brake. Before leaving the vehicle,
move the selector lever to position P
and switch off the engine.
Lights up in red:
Transmission overheating Bring the car to a stop and move the
selector lever to position P. Allow the
transmission to cool down. You can
continue your journey, but moderate
your speed and exercise due caution.
Have the system checked if the situa-
tion reoccurs.
Lights up in yellow:
Transmission too hot Avoid high engine loads. You can con-
tinue your journey, but moderate
your speed and exercise due caution.
Selector lever position P not engaged.
Vehicle not prevented from rolling
12Cause What to do
Page 142 of 164
Indicator and warning lamps
140
Selector lever position P not engaged.
Ignition cannot be switched offEngage selector lever position P when
you wish to switch off the ignition,
page39.
Lights up in red:
Electric steering wheel lock malfunc-
tioningThe engine can no longer be started. If
applicable, do not switch off the
engine. Contact your MINI Dealer.
Lights up in yellow:
Electric steering wheel lock engaged Move the steering wheel before start-
ing the engine.
Cruise control system failed Have the system checked.
Park Distance Control failed Have the system checked.
Bulb of exterior lighting system failed Have the exterior lighting checked as
soon as possible.
Low-beam headlamp or fog lamp
failedHave the lamps checked as soon as
possible.
High-beam headlamp failed Have the high-beam headlamps
checked.
Rear fog lamp failed Have the rear fog lamp checked.
Headlamp beam throw adjustment
system failedHave the headlamp beam throw
adjustment system checked.
Coolant level too low Add coolant immediately, page108.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot continue your
journey. Contact your MINI Dealer.
12Cause What to do
Page 143 of 164
ReferenceAt a glance Controls Driving tips Mobility
141

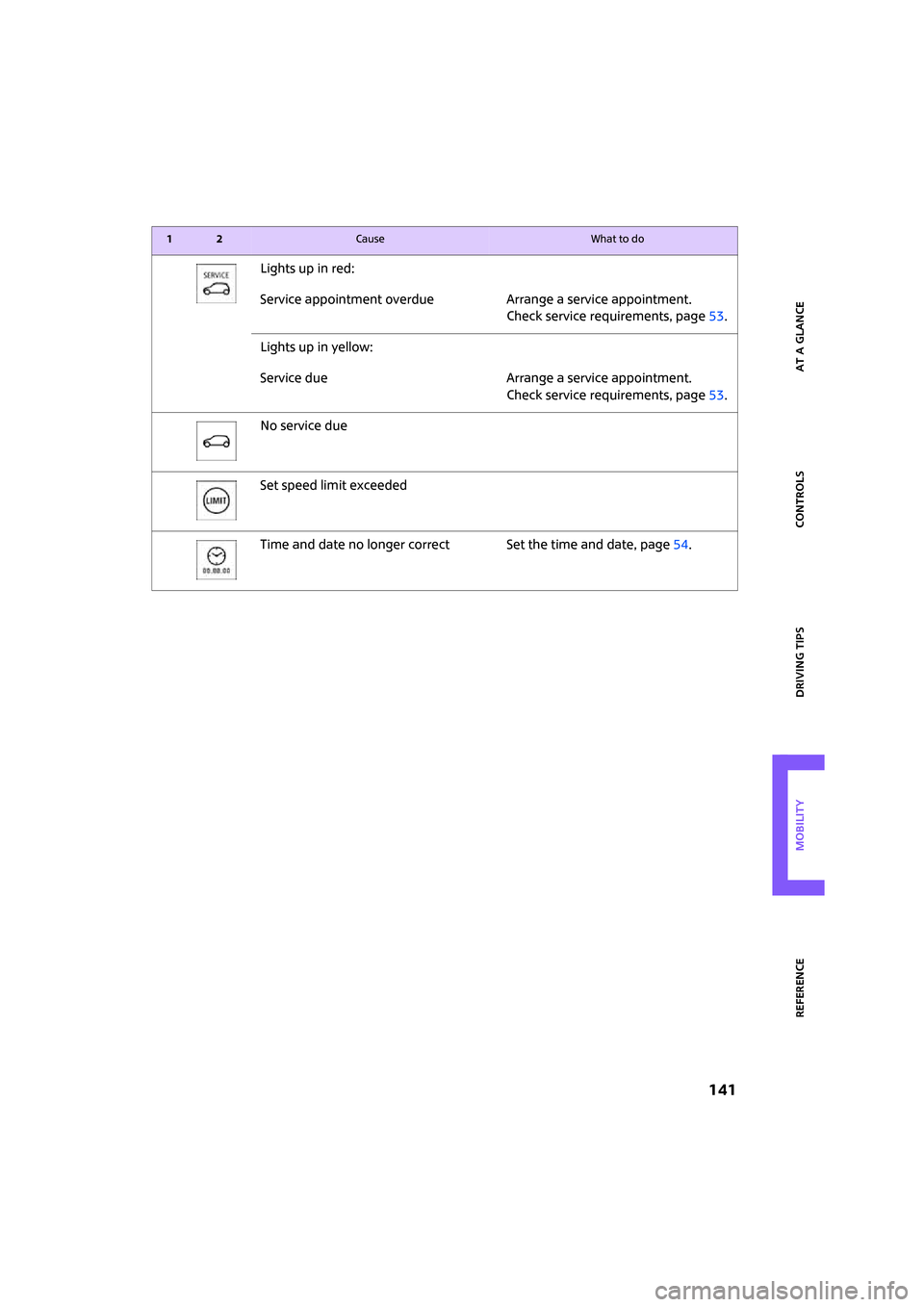

Lights up in red:
Service appointment overdue Arrange a service appointment.
Check service requirements, page53.
Lights up in yellow:
Service due Arrange a service appointment.
Check service requirements, page53.
No service due
Set speed limit exceeded
Time and date no longer correct Set the time and date, page54.
12Cause What to do
Page 144 of 164
Page 145 of 164
Reference Controls
Driving tips
Mobility At a glance
Reference
Page 146 of 164
Technical data
144
Technical data
Engine data
MINI/MINI Clubman
Cooper Cooper S
Displacement cu in/cmμ97.5/1,598 97.5/1,598
Number of cylinders 4 4
Maximum power output hp 118 172
At engine speed rpm 6,000 5,500
Maximum torque
with overboostlb ft/Nm 114/155
–177/240
192/260
At engine speed
with overboostrpm 4,250
–1,600-5,000
1,700-4,500
Overboost briefly raises the maximum torque at high rates of acceleration, e. g. when passing.
Page 147 of 164
ReferenceAt a glance Controls Driving tips Mobility
145
Dimensions
MINI
All dimensions given in inches/mm. Smallest turning circle diam.: 35 ft 2 in/10.7 m.
Figures following the semicolons: values that differ for the MINI Cooper S.
Page 148 of 164
Technical data
146
MINI Clubman
All dimensions given in inches/mm. Smallest turning circle diam.: 36 ft/11 m.
Figures following the semicolon: values that differ for the MINI Clubman Cooper S.
Page 149 of 164
ReferenceAt a glance Controls Driving tips Mobility
147
Weights
MINI
MINI COOPERMINI COOPER S
Curb weight, ready for travel, with all optional extras
>Manual transmission lbs/kg 2,546/1,155 2,668/1,210
>Automatic transmission lbs/kg 2,634/1,195 2,723/1,235
Approved gross weight
>Manual transmission lbs/kg 3,362/1,525 3,483/1,580
>Automatic transmission lbs/kg 3,450/1,565 3,538/1,605
Approved front axle load lbs/kg 1,929/875 1,984/900
Approved rear axle load lbs/kg 1,653/750 1,664/755
Approved roof load capacity lbs/kg 165/75 165/75
Cargo bay capacity cu ft/l 5.7/160 - 24.0/680 5.7/160 - 24.0/680
Page 150 of 164
Technical data
148
MINI Clubman
Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
MINI/MINI Clubman
MINI COOPERMINI COOPER S
Curb weight, ready for travel, with all optional extras
>Manual transmission lbs/kg 2,723/1,235 2,855/1,295
>Automatic transmission lbs/kg 2,800/1,270 2,900/1,315
Approved gross weight
>Manual transmission lbs/kg 3,539/1,605 3,671/1,665
>Automatic transmission lbs/kg 3,616/1,640 3,715/1,685
Approved front axle load
>Manual transmission lbs/kg 1,830/830 1,918/870
>Automatic transmission lbs/kg 1,907/865 1,962/890
Approved rear axle load lbs/kg 1,830/830 1,841/835
Approved roof load capacity lbs/kg 165/75 165/75
Cargo bay capacity cu ft/l 9.2/260-32.8/930 9.2/260-32.8/930
US gal/US quartsLitersNotes
Fuel tank Fuel grade: page95
MINI Cooper, MINI Cooper S 13.2/– approx. 50
including reserve of 2.1/– approx. 8
Window washer system incl.
headlamp washer system –/4.8 approx. 4.5 For more details: page46
