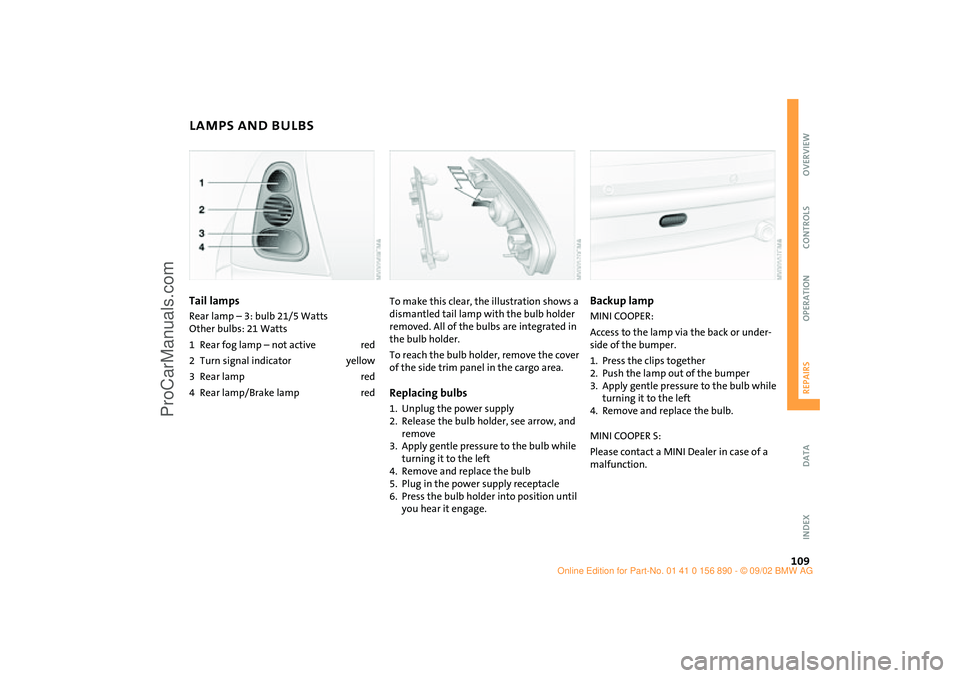

LAMPS AND BULBSTail lamps Rear lamp – 3: bulb 21/5 Watts
Other bulbs: 21 Watts
1Rear fog lamp – not active red
2Turn signal indicator yellow
3Rear lamp red
4Rear lamp/Brake lamp red
To make this clear, the illustration shows a
dismantled tail lamp with the bulb holder
removed. All of the bulbs are integrated in
the bulb holder.
To reach the bulb holder, remove the cover
of the side trim panel in the cargo area. Replacing bulbs1. Unplug the power supply
2. Release the bulb holder, see arrow, and
remove
3. Apply gentle pressure to the bulb while
turning it to the left
4. Remove and replace the bulb
5. Plug in the power supply receptacle
6. Press the bulb holder into position until
you hear it engage.
Backup lampMINI COOPER:
Access to the lamp via the back or under-
side of the bumper.
1. Press the clips together
2. Push the lamp out of the bumper
3. Apply gentle pressure to the bulb while
turning it to the left
4. Remove and replace the bulb.
MINI COOPER S:
Please contact a MINI Dealer in case of a
malfunction.
ba.book Seite 109 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 112 of 148
110

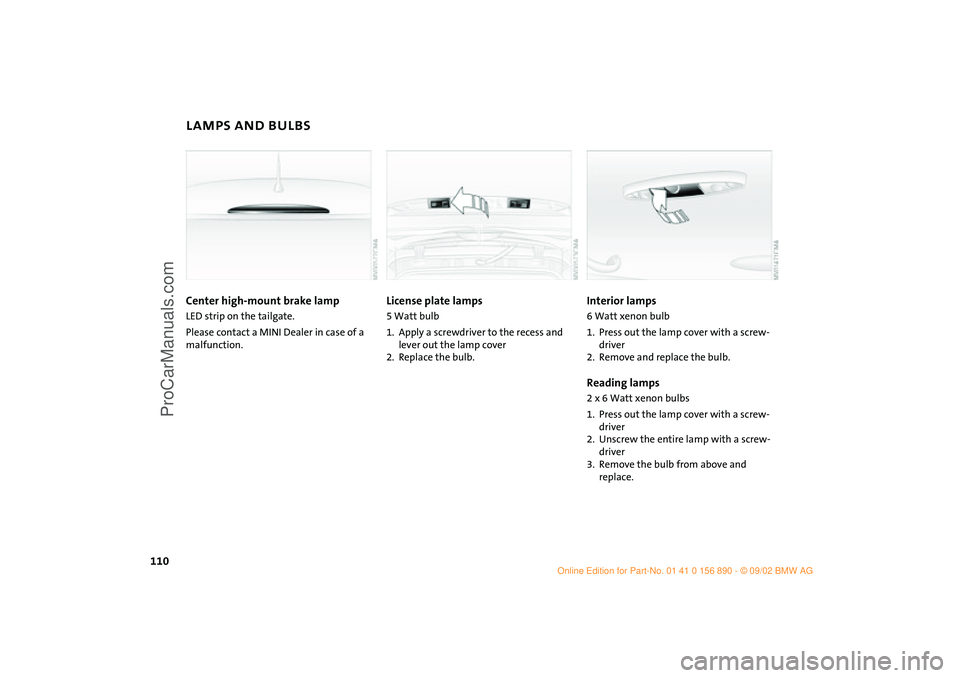

LAMPS AND BULBSCenter high-mount brake lamp LED strip on the tailgate.
Please contact a MINI Dealer in case of a
malfunction.
License plate lamps 5 Watt bulb
1. Apply a screwdriver to the recess and
lever out the lamp cover
2. Replace the bulb.
Interior lamps6 Watt xenon bulb
1. Press out the lamp cover with a screw-
driver
2. Remove and replace the bulb.Reading lamps2 x 6 Watt xenon bulbs
1. Press out the lamp cover with a screw-
driver
2. Unscrew the entire lamp with a screw-
driver
3. Remove the bulb from above and
replace.
ba.book Seite 110 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 113 of 148
111
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
LAMPS AND BULBSIlluminated vanity mirror Lamps in the vanity mirror in the sun visor.
Please contact a MINI Dealer in case of a
malfunction.
Cargo area lamps5 Watt bulb
1. Press the lamp cover to the left and out
with a screwdriver.
2. Remove and replace the bulb.
Footwell lamps 5 Watt bulb
1. Press out the lamp cover with a screw-
driver
2. Remove and replace the bulb.Glove compartment lamp5 Watt bulb1. Press out the lamp cover with a screw-
driver
2. Remove and replace the bulb.
ba.book Seite 111 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 114 of 148
112
REPAIRING A FLAT TIRE CHANGING TIRES – MINI WITH SPACE-SAVER SPARE TIRE
*
Safety measures in the event of a flat
tire:
Stop the vehicle as far as possible from
passing traffic. Switch on the hazard warn-
ing flashers.
Turn the steering wheel to the straight-
ahead wheel position and engage the
steering lock. Engage the parking brake and
shift into 1st or reverse gear – selector lever
in P.
All passengers should be outside the vehi-
cle and well away from your immediate
working area – behind a guardrail, for
instance.
If a warning triangle or portable hazard
warning lamp is available, set it up on the
roadside at an appropriate distance from
the rear of the vehicle. Comply with all
safety guidelines and regulations.<
In the event of a flat tire, different proce-
dures should be followed depending on the
equipment included in your MINI:
>Vehicles with space-saver spare tire, see
the next chapter
>Vehicles with Run Flat tires, see page 116
>Vehicles with MINI Mobility System, see
page 118.
Additional safety measures in the
event of a wheel change:
Change the wheel only on a level, firm sur-
face which is not slippery.
Avoid jacking the vehicle on a soft or slip-
pery support surface – on snow, ice, loose
gravel, etc. – as either the vehicle or the
jack could slip sideways.
Do not use a wooden block or similar object
as a support base for the jack, as this would
prevent it from extending to its full support
height and reduce its load-carrying capac-
ity.
Do not lie under the vehicle or start the
engine when the vehicle is supported by
the jack – risk of fatal injury.<
To change a space-saver tire, proceed as
follows:
>Remove the space-saver spare tire, see
page 113
>Prepare the vehicle, see page 114
>Jack up the vehicle, see page 114
>Fit the space-saver spare tire, see
page 115
>Tighten the lug bolts, see page 115
>Drive with space-saver spare tire, see
page 115.
Tire change setOn vehicles with a space-saver spare tire,
the tire change set is stored in the cargo
area under the floor mat.
1Chock, folding
2Hubcap remover
3Wheel stud wrench
4Jack
5Spanner
6Tow fitting
7Lifting handle
ba.book Seite 112 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 115 of 148
113
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
CHANGING TIRES – MINI WITH SPACE-SAVER SPARE TIRE
*

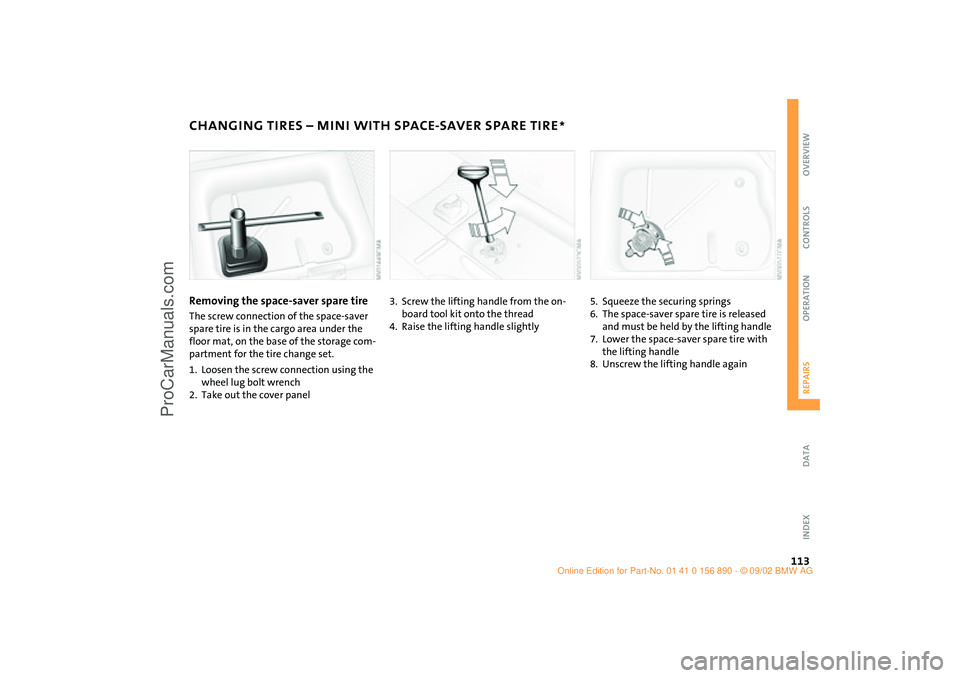

Removing the space-saver spare tire
The screw connection of the space-saver
spare tire is in the cargo area under the
floor mat, on the base of the storage com-
partment for the tire change set.
1. Loosen the screw connection using the
wheel lug bolt wrench
2. Take out the cover panel
3. Screw the lifting handle from the on-
board tool kit onto the thread
4. Raise the lifting handle slightly
5. Squeeze the securing springs
6. The space-saver spare tire is released
and must be held by the lifting handle
7. Lower the space-saver spare tire with
the lifting handle
8. Unscrew the lifting handle again
ba.book Seite 113 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 116 of 148
114
CHANGING TIRES – MINI WITH SPACE-SAVER SPARE TIRE
*
9. Pull out the space-saver spare tire
towards the rear underneath the vehi-
cle
10. Position the space-saver spare tire with
the valve facing upwards
11. Unscrew the valve extension from the
valve of the space-saver spare tire
12. Unscrew the dust cap from the exten-
sion and attach to the space-saver
spare tire.
Preparing the vehicle
Read and comply with the safety pre-
cautions provided on page 112.<
1. Secure the vehicle to prevent it from roll-
ing:
Place the folding chock behind the front
wheel on the other side of the vehicle;
on downward inclines, place it in front of
this wheel.
If the wheel is changed on a surface with
a more severe slope, take additional pre-
cautions to secure the vehicle from roll-
ing
2. Loosen the lug bolts by a half turn.
Jacking up the vehicle1. Place the jack at the jacking point closest
to the wheel.
The jack base must be perpendicular to
the surface beneath the jacking point
ba.book Seite 114 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 117 of 148
115
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
CHANGING TIRES – MINI WITH SPACE-SAVER SPARE TIRE
*
2. Insert the jack head for jacking up in the
square recess of the jacking point
3. Jack the vehicle up until the wheel you
are changing is raised from the ground.
The vehicle jack is designed for
changing wheels only. Do not
attempt to raise another vehicle model
with it or to raise any load of any kind. To
do so could cause accidents and personal
injury.<
Fitting the space-saver spare tire1. Unscrew the lug bolts and remove the
wheel
2. Remove accumulations of mud or dirt
from the mounting surfaces of the
wheel and hub. Clean the lug bolts
3. Fit the space-saver spare tire
4. Screw at least two lug bolts finger-tight
into opposite bolt holes
5. Screw in the remaining bolts
6. Tighten all the lug bolts firmly in a diag-
onal pattern
7. Lower the vehicle
8. Remove the jack.Tightening the lug boltsTighten the lug bolts in a diagonal pattern.
As soon as possible, have the secure
seating of the lug bolts – tightening
torque 88.5 lb ft / 120 Nm – checked using
a calibrated torque wrench. Otherwise, a
wheel coming loose can lead to a severe
accident.<
Replace the defective tire as soon as possi-
ble and have the new wheel/tire assembly
balanced.
Driving with the space-saver spare tireDrive cautiously. Do not exceed a speed of
50 mph / 80 km/h.
You must expect changes in vehicle hand-
ling such as delayed braking response,
longer braking distances, and changes in
self-steering properties when close to the
handling limits.
Only one space-saver spare tire may
be mounted at one time. Reinstall
wheels and tires of the same size and speci-
fication as soon as possible. Maintain pre-
scribed tire pressures, see page 85.<
Do not try to fit a full hubcap to the space-
saver spare tire, as the hubcap could be
damaged.
Check and correct the tire inflation
pressure at the earliest opportu-
nity.<
ba.book Seite 115 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 118 of 148
116
FLAT TIRE– RUN FLAT TIRES
*
You will recognize Run Flat tires by a circu-
lar symbol containing the letters RSC on
the side of the tire.
Run Flat tires consist of self-contained tires
and special rims. The tire reinforcement
ensures that the tire retains some residual
safety in the event of pressure drop and
driving remains possible to a restricted
degree.
The reinforcement on the flanks of
the Run Flat tires means that it is usu-
ally not possible to detect an air loss from
outside.<
Flat tire The yellow indicator lamp in the instru-
ment cluster lights up to indicate a flat tire.
In addition, a gong sounds, see pages 17,
64.
1. Reduce vehicle speed carefully to under
50 mph / 80 km/h, avoiding hard brake
applications and steering maneuvers.
2. Do not exceed a speed of 50 mph /
80 km/h.
3. Identify damaged tires; check tire infla-
tion pressures on all four wheels at the
next opportunity, see page 85
4. Correct the tire inflation pressure if you
wish to continue your journey and this is
permitted, see next text section
5. Have damaged tires changed by your
MINI Dealer, see page 88.Your MINI Dealer has the information
needed for working with Run Flat
tires and is equipped with the necessary
special tools. They provide advice if you
wish to replace the tires on your MINI, or re-
equip from summer to winter tires or vice
versa, also see pages 85, 88, 89.<
For safety reasons, do not have a
damaged safety tire repaired.<
ba.book Seite 116 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 119 of 148
117
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
FLAT TIRE – RUN FLAT TIRES
*

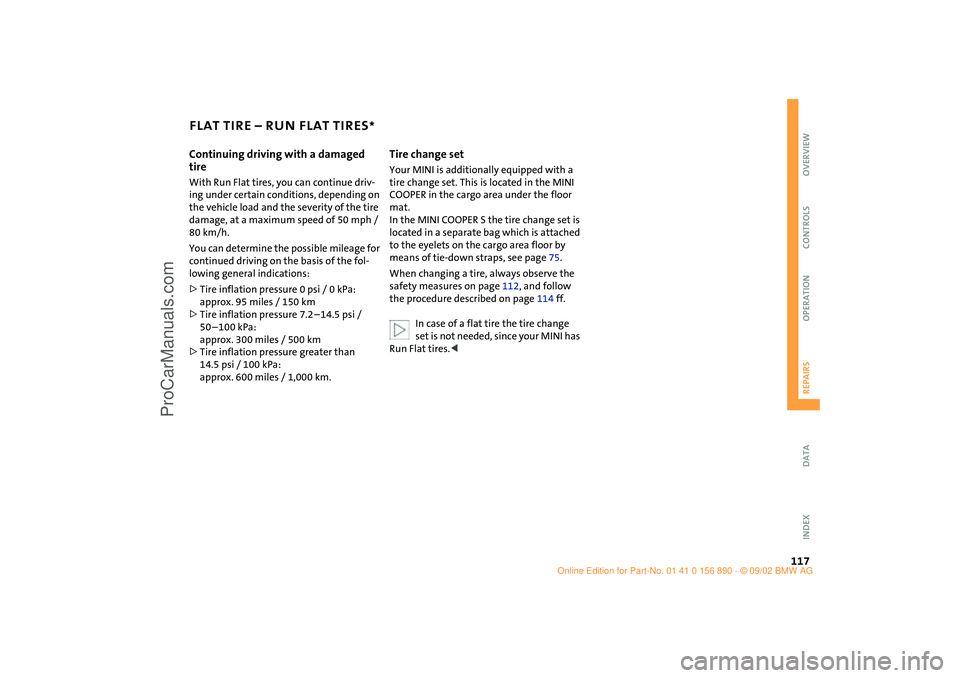

Continuing driving with a damaged
tire
With Run Flat tires, you can continue driv-
ing under certain conditions, depending on
the vehicle load and the severity of the tire
damage, at a maximum speed of 50 mph /
80 km/h.
You can determine the possible mileage for
continued driving on the basis of the fol-
lowing general indications:
>Tire inflation pressure 0 psi / 0 kPa:
approx. 95 miles / 150 km
>Tire inflation pressure 7.2 – 14.5 psi /
50 – 100 kPa:
approx. 300 miles / 500 km
>Tire inflation pressure greater than
14.5 psi / 100 kPa:
approx. 600 miles / 1,000 km.
Tire change setYour MINI is additionally equipped with a
tire change set. This is located in the MINI
COOPER in the cargo area under the floor
mat.
In the MINI COOPER S the tire change set is
located in a separate bag which is attached
to the eyelets on the cargo area floor by
means of tie-down straps, see page 75.
When changing a tire, always observe the
safety measures on page 112, and follow
the procedure described on page 114 ff.
In case of a flat tire the tire change
set is not needed, since your MINI has
Run Flat tires.<
ba.book Seite 117 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 120 of 148
118
FLAT TIRE – MINI MOBILITY SYSTEM
*
MINI Mobility System
To repair a flat tire you will find a MINI
Mobility System in your MINI. With the
help of this system you can apply a liquid
sealant on the inside of the tire, which seals
the damaged area and enables you to con-
tinue to drive. Using the MINI Mobility SystemIn order to repair a flat tire with the MINI
Mobility System, proceed as follows:
>Prepare for tire repair, see page 119
>Pump in liquid sealant, see page 119
>Reinflate the tire, see page 120
>Distribute liquid sealant, see page 120
>Check tire inflation pressure, see
page 121
>Drive on, see page 121.

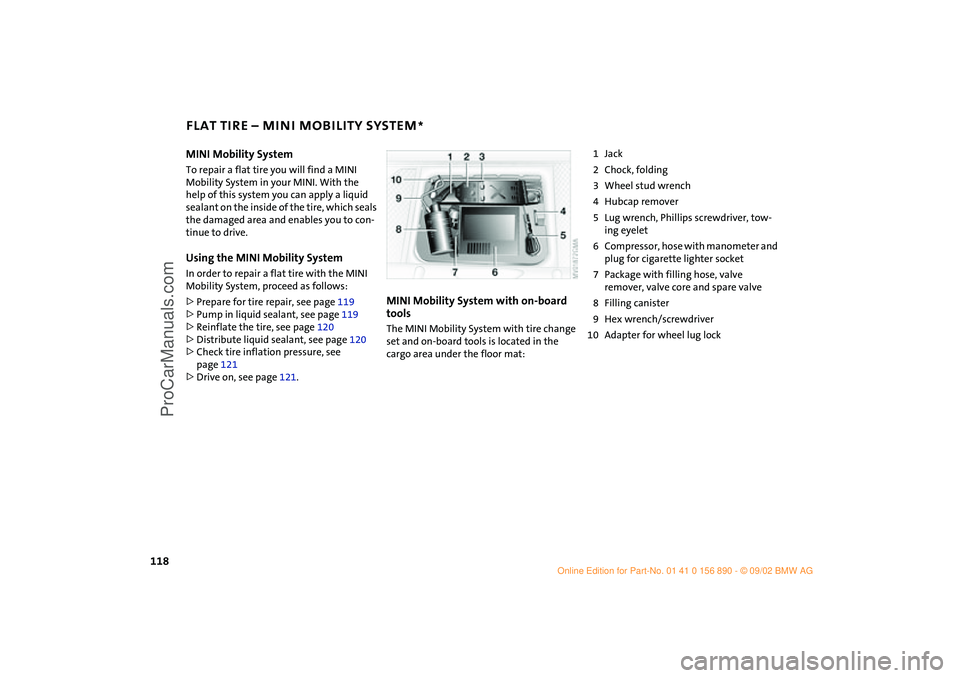

MINI Mobility System with on-board
toolsThe MINI Mobility System with tire change
set and on-board tools is located in the
cargo area under the floor mat:
1Jack
2Chock, folding
3Wheel stud wrench
4Hubcap remover
5Lug wrench, Phillips screwdriver, tow-
ing eyelet
6Compressor, hose with manometer and
plug for cigarette lighter socket
7Package with filling hose, valve
remover, valve core and spare valve
8Filling canister
9Hex wrench/screwdriver
10 Adapter for wheel lug lock
ba.book Seite 118 Montag, 5. August 2002 8:09 20
ProCarManuals.com
