MINI COOPER 2011 Owners Manual

Technical dataREFERENCE
189
Dimensions
MINI
All dimensions in inches/mm. Minimum turning radius dia.: 35 ft 10 in/10.7 m.
Information after the semicolon: different values for MINI Cooper S.

REFERENCETechnical data
190
MINI Convertible
All dimensions in inches/mm. Minimum turning radius dia.: 35 ft 10 in/10.7 m.
Information after the semicolon: different values for MINI Cooper S.

Technical dataREFERENCE
191
Weights
Never exceed either the approved axle loads or the gross vehicle weight.
MINI
CooperCooper SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
>Manual transmission lbs./kg 2 ,535/1,150 2,668/1,210 2,668/1,210
> Automatic
transmission lbs./kg 2,612/1,185 2,712/1,230
–
Approved gross weight
> Manual transmission lbs./kg 3 ,384/1,535 3,494/1,585 3,516/1,595
> Automatic
transmission lbs./kg 3,461/1,570 3,538/1,605
–
Approved front axle load
> Manual transmission lbs./k g 1,830/830 1,918/870 1,918/870
> Automatic
transmission lbs./kg 1,907/865 1,962/890
–
Approved rear axle load lb s./kg 1,664/755 1,664/755 1,676/760
Approved roof load
capacity lbs./kg
165/75 165/75 165/75
Cargo area capacity cu ft/ liters5.7 - 24.0/
160 - 680 5.7 - 24.0/
160 - 680 5.7 - 24.0/
160 - 680

REFERENCETechnical data
192
MINI Convertible
CooperCooper SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
> Manual transmission lbs./kg 2,7 01/1,225 2,811/1,275 2,811/1,275
> Automatic
transmission lbs./kg 2,778/1,260 2,855/1,295
–
Approved gross weight
> Manual transmission lbs./kg 3,5 60/1,615 3,671/1,665 3,693/1,675
> Automatic
transmission lbs./kg 3,638/1,650 3,737/1,695
–
Approved front axle load
> Manual transmission
> Automatic
transmission lbs./kg 1,863/845 1,951/885
1,962/890
lbs./kg 1,940/880 2,017/915 –
Approved rear axle load lb s./kg 1,786/810 1,786/810 1,797/815
Cargo area capacity cu ft/ liters6.0-23.3/
170-660 6.0-23.3/
170-660 6.0-23.3/
170-660

Technical dataREFERENCE
193

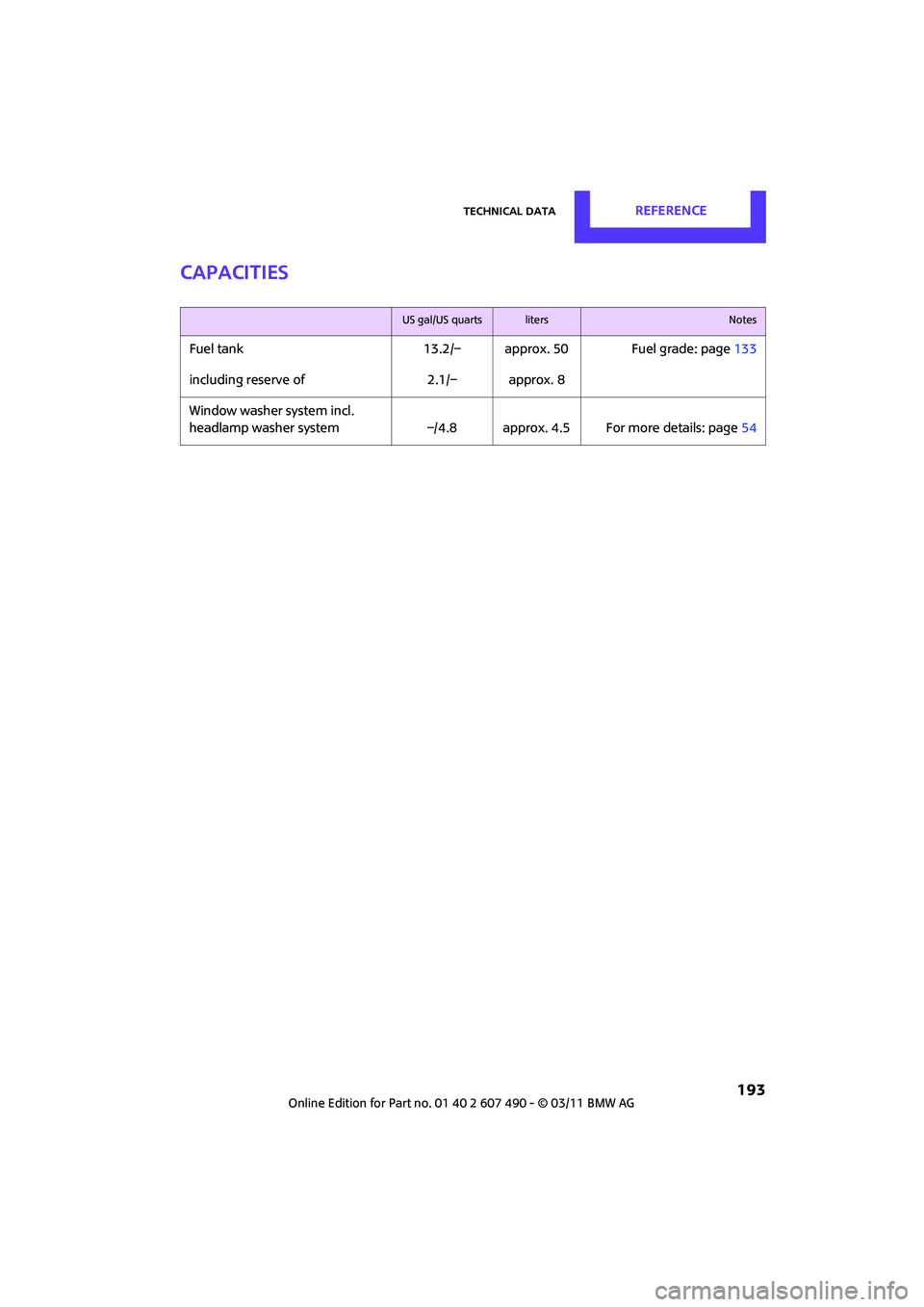

Capacities
US gal/US quartslitersNotes
Fuel tank13.2/– approx. 50 Fuel grade: page 133
including reserve of 2.1/– approx. 8
Window washer system incl.
headlamp washer system –/4.8 approx. 4.5 For more details: page 54

194
REFERENCEEverything from A to Z
Everything from A to Z
INDEX
A
ABS Antilock Brake System67
Accessories, refer to Your individual vehicle 4
Acknowledgment signals for
locking/unlocking vehicle 23
Activated-charcoa l filter for
automatic climate control 88
Adaptive Light Control 80
Additives
– coolant 149
– engine oil 149
Adjusting temperature inside the car, refer to Air
conditioner 85
Adjusting temperature inside the car, refer to Automatic
climate control 86
Airbags 75
– sitting safely 37
– warning lamp 77
Air conditioner 84
Air conditioning mode
– air conditioner 85
– automatic cl imate control86
– ventilation 88
Air distribution
– automatic 87
– individual 86
– manual 86
Air flow rate 85,87
– air conditioning system 85
– automatic cl imate control87
– heating, ventilation 85
Airing, refer to Ventilation88
Air outlets, refer to Air vents 84
Air pressure, checking, refer to
Tire inflation pressure 134Air recirculation, refer to
Recirculated-air
mode 85,87
Air supply
– air conditioner 85
– automatic climate control 86
– ventilation 88
Air vents 84
AKI, refer to Fuel grade 133
Alarm system 27
All-season tires, refer to Winter tires 145
Always Open Timer 58
Ambient air, refer to Recirculated-air
mode 85,87
Ambient lighting 83
Antenna, care 153
Antifreeze
– coolant 14
9
– washer fluid 53
Antilock Brake System ABS 67
Anti-theft alarm system, refer
to Alarm system 27
Anti-theft system 21
Approved axle loads, refer to
Weights 191
Approved engine oils 149
Approved gross vehicle
weight, refer to Weights 191
Armrest, refer to Center armrest 92
Ashtray 93
Assistant systems, refer to
– Dynamic Stability Control
DSC 67
Audio device, external 91Automatic
– air distribution
87
– air flow rate 87
– cruise control 54
– headlamp control 78
Automatic climate control 84
– automatic air distribution 87
Automatic station search 107
Automatic station storage 108
Automatic transmission with Steptronic 48
– interlock 49
– overriding selector lever lock 50
– shiftlock 49
– sport program 49
AUTO program for automatic climate control 87
Auto radio, refer to Radio MINI Boost CD 106
AUX-IN, refer to External audio device 91
AUX In connection 106
Average fuel consumption 57
– setting the units 61
Average speed 57
Axle loads, refer to Weights 191
B
Background lighting, refer to
Ambient lighting 83
Backrests, refer to Seats 38
Backup lamps
– replacing bulb 161,162
Band-aids, refer to First aid pouch 169
Bar, refer to Tow-starting, towing away 172

Everything from A to ZREFERENCE
195
Base plate for telephone or mobile phone
– refer to Snap-in adapter 129
Battery 167
– charging 168
– disposal 30,168
– jump-starting 169
– temporary power failure 168
Battery renewal
– remote control 30
Being towed 171
Bell
– volume 106
Belts, refer to Safety belts 40
Belt tensioner, refer to Safety belts 40
Beverage holders, refer to Cupholders 93
Black ice, refer to External
temperature warning 57
Blower, refer to Air flow rate 85,87
Bluetooth, activating/ deactivating 120
Bottle holders, refer to
Cupholders 93
Brake Assist 67
Brake fluid, refer to Service
requirements 62
Brake lamps
– replacing bulbs 162
Brake pads, breaking in 96
Brake rotors 98
– brakes 96
– breaking in 96
Brakes
– ABS 67
– breaking in 96
– MINI Maintenance
System 151
– parking brake 48
– service requirements 62
Brakes, refer to Braking safely 97 Brake system
96
– breaking in 96
– disc brakes 98
– MINI Maintenance
System 151
Breakdown service, refer to Roadside Assistance 169
Breaking in the clutch 96
Break-in period 96
Bulb changing, refer to Lamps
and bulbs 158
Button for starting the engine 46
Buttons on the steering wheel 11
C
California Proposition 65
warning 5
Call
– accepting 124
– ending 124
– rejecting 124
Calling, refer to Phone
numbers, dialing 124
Can holders, refer to Cupholders 93
Capacities 193
Car battery, refer to Vehicle
battery 167
Car care 153
Care 153
– car-care products 153
– car washes 153
– CD/DVD drives 156
– external 153
– high-pressure washers 154
– internal 155
– leather 155
– manual washing 154
– upholstery and fabrics 155
– windows 154
– wiper blades 154
Cargo, securing 101 Cargo area
98
– capacity 191
– Comfort Access 29
– cover 98
– lamp 82
– opening from outside 26
Cargo area, expanding 98
Cargo area lamp 82
Cargo area lid, refer to Liftgate 26
Cargo loading 100
– securing cargo 101
– stowing cargo 101
– vehicle 98
Car key, refer to Keys/remote controls 20
Carpets, care 156
Car phone
– installation location, refer to
Center armrest 92
– refer to separate Owner's Manual
Car phone, refer to Telephone 118
Car wash, care 153
Car washes 153
Catalytic converter, refer to Hot exhaust system 96
CD player 111
– changing the track 112
– fast forward/reverse 112
– playing a track 112
– ran
dom order 112
– starting 111
– volume 106
Center armrest 92
Center brake lamp 163
Center console, refer to Around the center
console 14
Central locking system 21
– Comfort Access 28
– from inside 25
– from outside 21
Changing bulbs 158
Changing wheels 165

REFERENCEEverything from A to Z
196
Chassis number, refer to Engine compartment 147
Check Control 64
Child restraint fixing system
LATCH 44
Child restraint systems 43
Child seats 43
Chrome parts, care 155
Chrome parts, refer to Care 153
Cigarette lighter 93
Cleaning headlamps 53
– washer fluid 54
Clock
– 12 h/24 h mode 61
– setting time 63
Closing
– from inside 25
– from outside 21
Clothes hooks 92
Cockpit 10
Cold start, refer to Starting the
engine 47
Comfort Access 28
– replacing the battery 30
– what to observe before entering a car wash 29
Comfort area, refer to Around
the center console 14
Compartment for remote
control, refer to Ignition
lock 46
Compressed audio files 111
Computer 57
Condensation, refer to When the vehicle is parked 98
Condition Based Service CBS 151
Configuring settings, refer to
Personal Profile 20
Connecting vacuum cleaner, refer to Connecting electrical
appliances 93
Consumption, refer to Average fuel consumption 57
Control Display
– settings 59 Controls and displays
10
Convenient access, refer to Comfort Access 28
Convenient operation
– convertible top 24
– windows 22
Convenient start, refer to
Starting the engine 47
Convertible top 32
Coolant 149
– checking level 149
– filling 149
Coolant temperature 149
Cooling, maximum 87
Cooli

ng fluid, refer to
Coolant 149
Copyright 2
Cornering light, refer to Adaptive Light Control 80
Cruising range 57
Cupholders 93
Curb weight, refer to
Weights 191
Current fuel consumption 57
D
Dashboard, refer to Cockpit 10
Dashboard instruments, refer to Displays 12
Dashboard lighting, refer to Instrument lighting 82
Data 188
– capacities 193
– dimensions 189
– engine 188
– weights 191
Data memory 152
Date
– setting 64
Date setting 107
Daytime running lights 79
DBC Dynamic Brake Control, refer to Brake Assist 67
Deactivating front passenger
airbags 76 Deadlocking, refer to
Locking 22
Defect
– door lock 25
– fuel filler flap 132
Defogging windows 86,88
Defrosting windows 86,88
Defrosting windows and removing condensation
– air conditioner 86
– automatic climate control 88
Defrosting windshield, refer to Defrosting windows 86,88
Defrost positi on, refer to
Defrosting windows 86,88
Differential, breaking in 96
Digital radio, refer to HD Radio 109
Dimensions 189
Dipstick, engine oil 147
Directional indicators, refer to Turn signals 51
Displacement, refer to Engine data 188
Display lighting, refer to
Instrument lighting 82
Displays 12
– instrument cluster 12
Displays, care 156
Displays and controls 10
Disposal
– of coolant 149
– remote control battery 30
– vehicle battery 168
Distance remaining to service, refer to Service
requirements 62
Distance warning, refer

to Park
Distance Control PDC 66
Door key, refer to Integrated key/remote control 20
Door lock 24
Door lock, confirmation signals 23
Doors, manual operation 25
DOT Quality Grades 142

Everything from A to ZREFERENCE
197
Drinks holders, refer to Cupholders 93
Drive-off assistan t, refer to Hill
Assist 69
Driving dynamics control, refer to Sport button 69
Driving lamps, refer to Parking
lamps/low beams 78
Driving notes 96
Driving off on inclines, refer to
Hill Assist 69
Driving stability control systems 67
Driving through water 97
Driving tips, refer to Driving notes 96
Dry air, refer to Cooling function 88
DSC Dynamic Stability
Control 67
DTC Dynamic Traction Control 68
Dynamic Brake Control DBC, refer to Brake Assist 67
Dynamic Stability Control
DSC 67
Dynamic Traction Control DTC 68
E
Eject button 112
Electrical malfunction
– convertible top 34
– door lock 25
– fuel filler flap 132
– liftgate 26
Electric power windows
– initializing 31
Electronic brake-force distribution 67
Electronic Stability Program
ESP, refer to Dynamic
Stability Control DSC 67Emergency operation, refer to
Manual operation
– convertible top 34
– door lock 25
– fuel filler flap 132
– liftgate 26
– transmission lock, automatic
transmission 50
Emergency services, refer to Roadside Assistance 169
Engine
– breaking in 96
– data 188
– overheated, refer to Coolant temperature 149
– speed 188
– starting 47
– starting, Comfort Access 28
– switching off 47
Engine compartment 147
Engine coolant, refer to Coolant 149
Engine oil
– adding 148
– additives, refer to Approved
engine oils 149
– alternative oil types 149
– approved engine oils 149
– capacity 148
– checking level 147
– dipstick 147
– intervals between changes, refer to Service
requirements 62
– MINI Maintenance System 151
Engine oil level, checking 147
Engine output, refer to Engine data 188
Engine starting, refer to Starting the engine 47
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC 67
Exhaust system, refer to Hot
exhaust system 96 Exterior mirrors
41
– adjusting 41
– automatic heating 41
– folding in and out 41
External audio
device91,106
External temperature display
– change units of measure 61
– in the on-board computer 61
Eyes
– for tow-starting and towing
away 171
– for tying down loads 101
F
Failure messages, refer to
Check Control 64
Failure of an electrical consumer 168
Fastening safety be lts, refer to
Safety belts 40
Fast forward
– CD 112
Fault messages, refer to Check
Control 64
Filter
– microfilter/activated- charcoal filter for automatic
climate control 88
– microfilter for air
conditioner 86
Fine wood, care 156
First aid pouch 169
Fixture for remote control, refer to Ignition lock 46
Flash when locking/
unlocking 23
Flat tire
– run-flat tires 144
– Tire Pressure Monitor TPM 72
Flat Tire Monitor FTM 69
– indicating a flat tire 71
– initializing the system 70
– snow chains 70
– system limits 70
Flat tires, refer to Tire condition 143

REFERENCEEverything from A to Z
198
Floor mats, care156
Fog lamps
– replacing bulb 160,162
Folding rear seat backrest 98
Folding roof , refer to
Convertible top with
integrated sliding sunroof 32
Footbrake, refer to Braking safely 97
Footwell lamps 82
For your own safety 5
Front airbags 75
Front fog lamps 81
– indicator lamp 173
– replacing bulb 160
Front seat adjustment 38
Frost on windows, refer to Defrosting windows 86,88
FTM, refer to Flat Tire
Monitor 69
Fuel 133
– gauge 56
– high-quality brands 133
– quality 133
– specifications 133
– tank volume 193
Fuel clock, refer to Fuel gauge 56
Fuel consumption display
– average fuel consumption 57
Fuel display, refer to Fuel gauge 56
Fuel filler flap 132
– releasing in the event of electrical malfunction 132
Fuses 168
G
Garage door opener, refer to
Integrated universal remote
control 89
Gasoline
– refer to Average fuel consumption 57 Gasoline, refer to Required
fuel 133
Gasoline display, refer to Fuel gauge 56
Gear indicator
– automatic transmission with Steptronic 48
Gear shifting
– automatic transmission 49
– manual transmission 48
Gearshift lever
– automatic transmission with Steptronic 49
– manual transmission 48
General driving notes 96
Glass roof, electric 30
– convenient operation 22,24
– opening, closing 30
– remote control 22
– tilting 30
Glove compartment 91
Grills, refer to Air vents 84
Gross vehicle weight, refer to Weights 191
H
Halogen lamps
– replacing bulb 159
Handbrake, refe r to Parking
brake 48
Hands-free system 14,126
Hazard warning flashers 14
HD Radio 109
Head airbags 75
Headlamp control,
automatic 78
Headlamp flasher 51
– indicator lamp 11,173
Headlamp glass lens 159
Headlamps
– replacing bulb 159
Headlamps, care 154
Head Light, refer to Adaptive Light Control 80
Head restraints 39
– sitting safely 37 Heated
– mirrors
41
– rear window 85,88
– seats 40
Heating 84
– mirrors 41
– rear window 85,88
– seats 40
Heavy loads, refer to Stowing cargo 101
Height, refer to Dimensions 189
Height adjustment
– seats 38
– steering wheel 42
High beams 81
– headlamp flasher 81
– indicator lamp 173
– replacing bulb 159
High water, refer to Driving through water 97
Hill Assist 69
Hills 97
Holders for cups 93
Homepage 4
Hood 146
Horn 10
Hot exhaust system 96
Hydroplaning 97
I
IBOC, refer to HD Radio 109
Ignition 46
– switched off 47
– switched on 46
Ignition key, refer to Integrated key/remote
control 20
Ignition key position 1, refer to Radio readiness 46
Ignition key position 2, refer to
Ignition on 46
Ignition lock 46
Imprint 2
Incoming call 124
