MITSUBISHI 380 2005 Workshop Manual SEAT BELT WARNING TONE ALARM CIRCUIT DIAGRAMS90-114

Page 692 of 1500

MITSUBISHI 380 2005 Workshop Manual DOOR AJAR WARNING TONE ALARM CIRCUIT DIAGRAMS90-115 DOOR AJAR WARNING TONE ALARMM1901016600311

Page 693 of 1500

MITSUBISHI 380 2005 Workshop Manual DOOR AJAR WARNING TONE ALARM CIRCUIT DIAGRAMS90-116

Page 694 of 1500

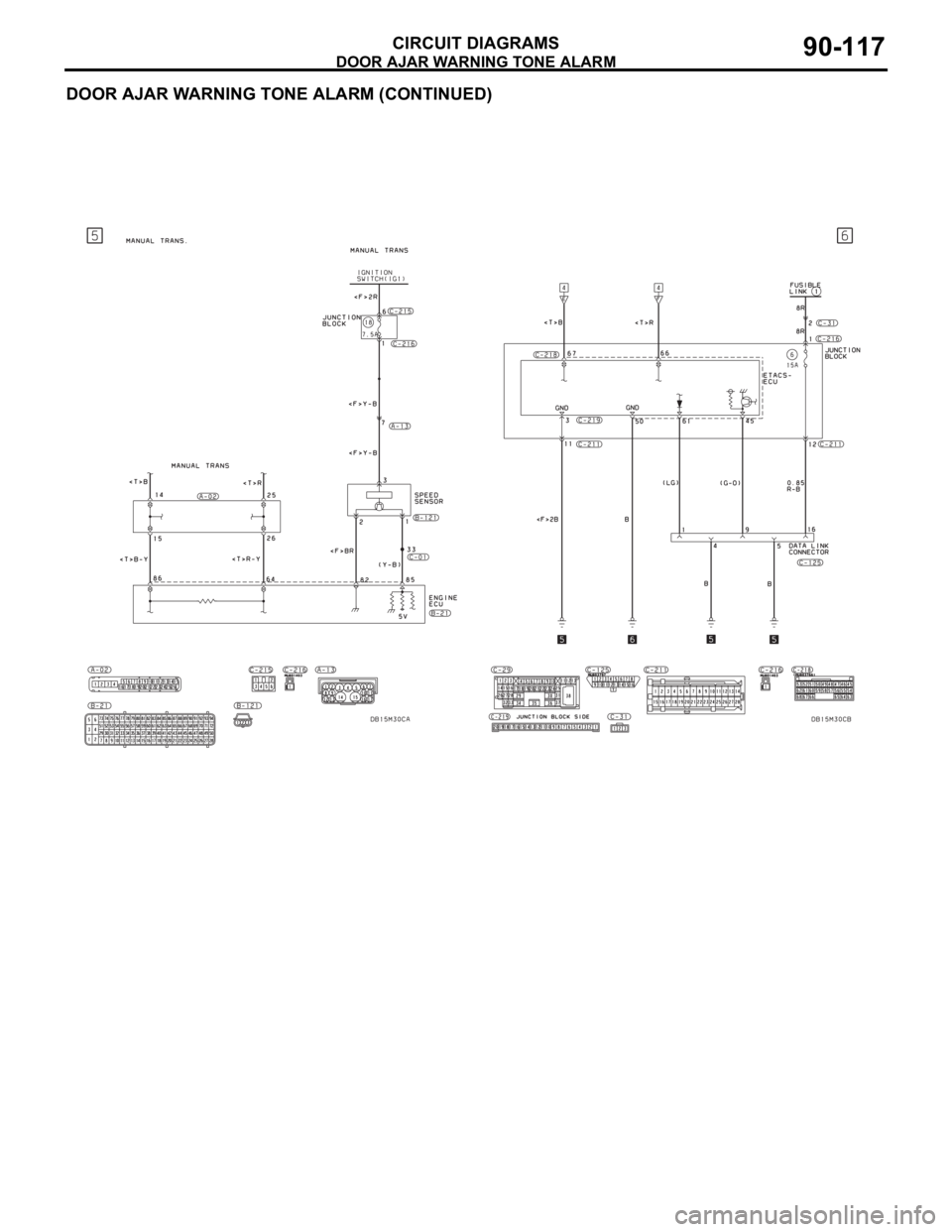

MITSUBISHI 380 2005 Workshop Manual DOOR AJAR WARNING TONE ALARM CIRCUIT DIAGRAMS90-117 DOOR AJAR WARNING TONE ALARM (CONTINUED)

Page 695 of 1500

MITSUBISHI 380 2005 Workshop Manual RHEOSTAT CIRCUIT DIAGRAMS90-118 RHEOSTATM1901011100894

Page 696 of 1500

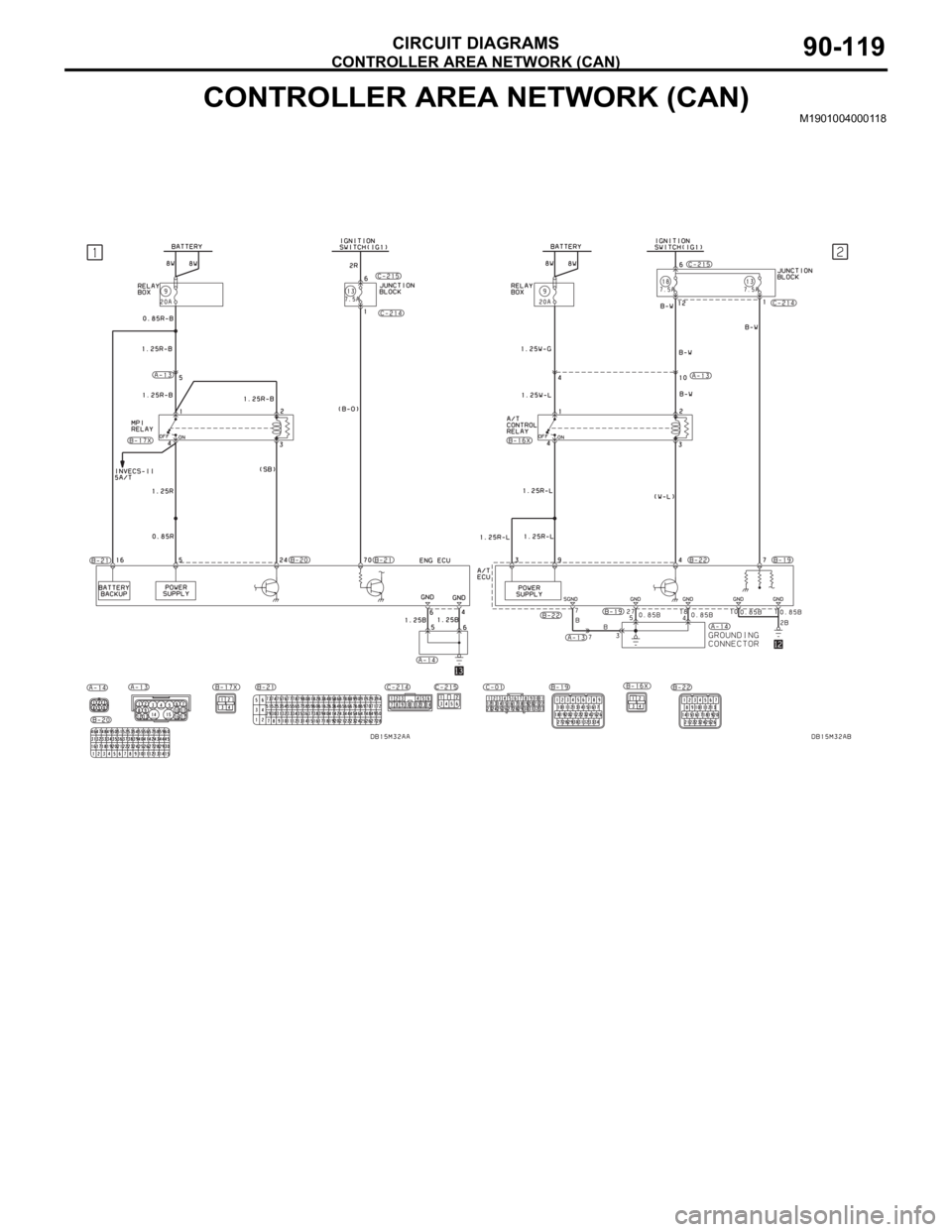

MITSUBISHI 380 2005 Workshop Manual CONTROLLER AREA NETWORK (CAN) CIRCUIT DIAGRAMS90-119 CONTROLLER AREA NETWORK (CAN)M1901004000118

Page 697 of 1500

MITSUBISHI 380 2005 Workshop Manual CONTROLLER AREA NETWORK (CAN) CIRCUIT DIAGRAMS90-120

Page 698 of 1500

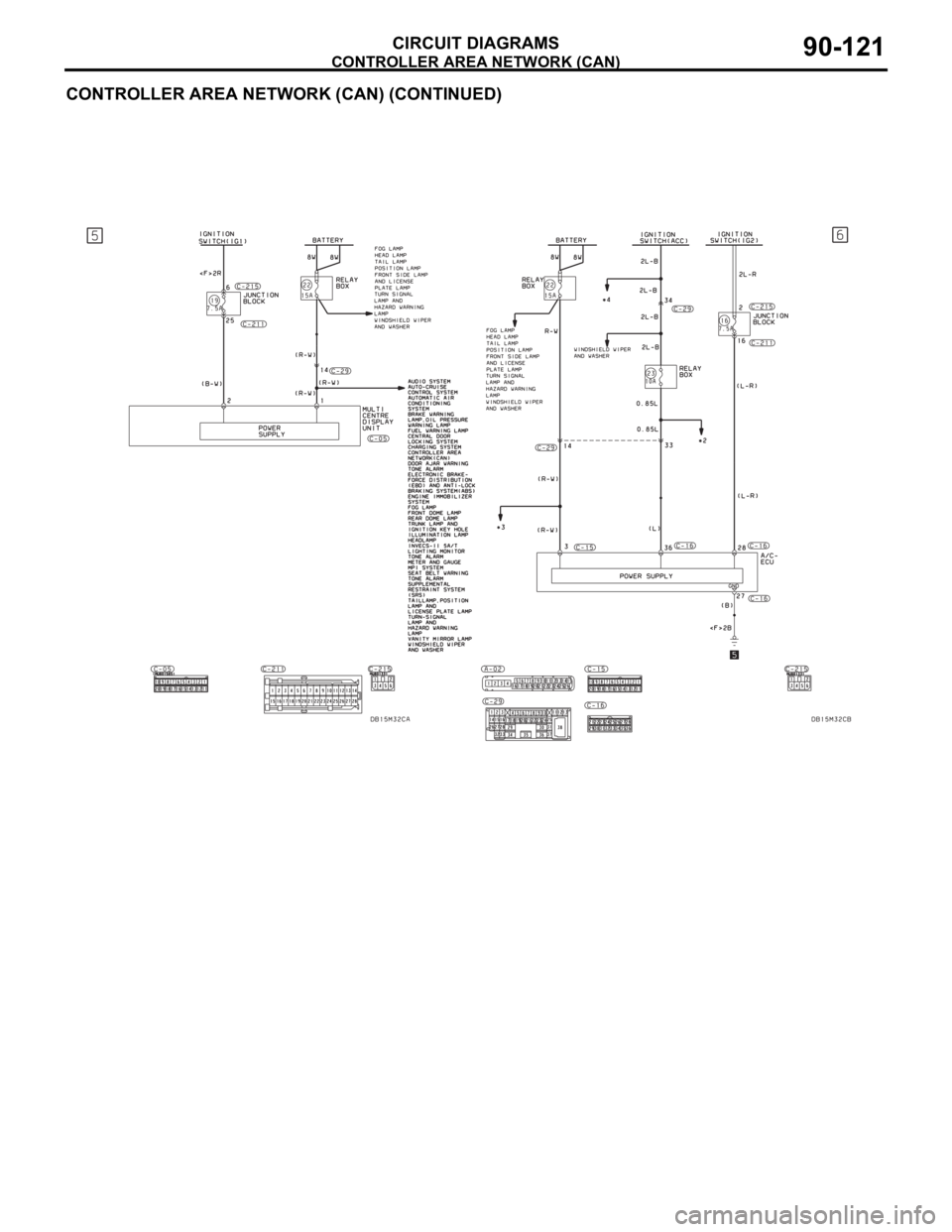

MITSUBISHI 380 2005 Workshop Manual CONTROLLER AREA NETWORK (CAN) CIRCUIT DIAGRAMS90-121 CONTROLLER AREA NETWORK (CAN) (CONTINUED)

Page 699 of 1500

MITSUBISHI 380 2005 Workshop Manual CONTROLLER AREA NETWORK (CAN) CIRCUIT DIAGRAMS90-122

Page 700 of 1500

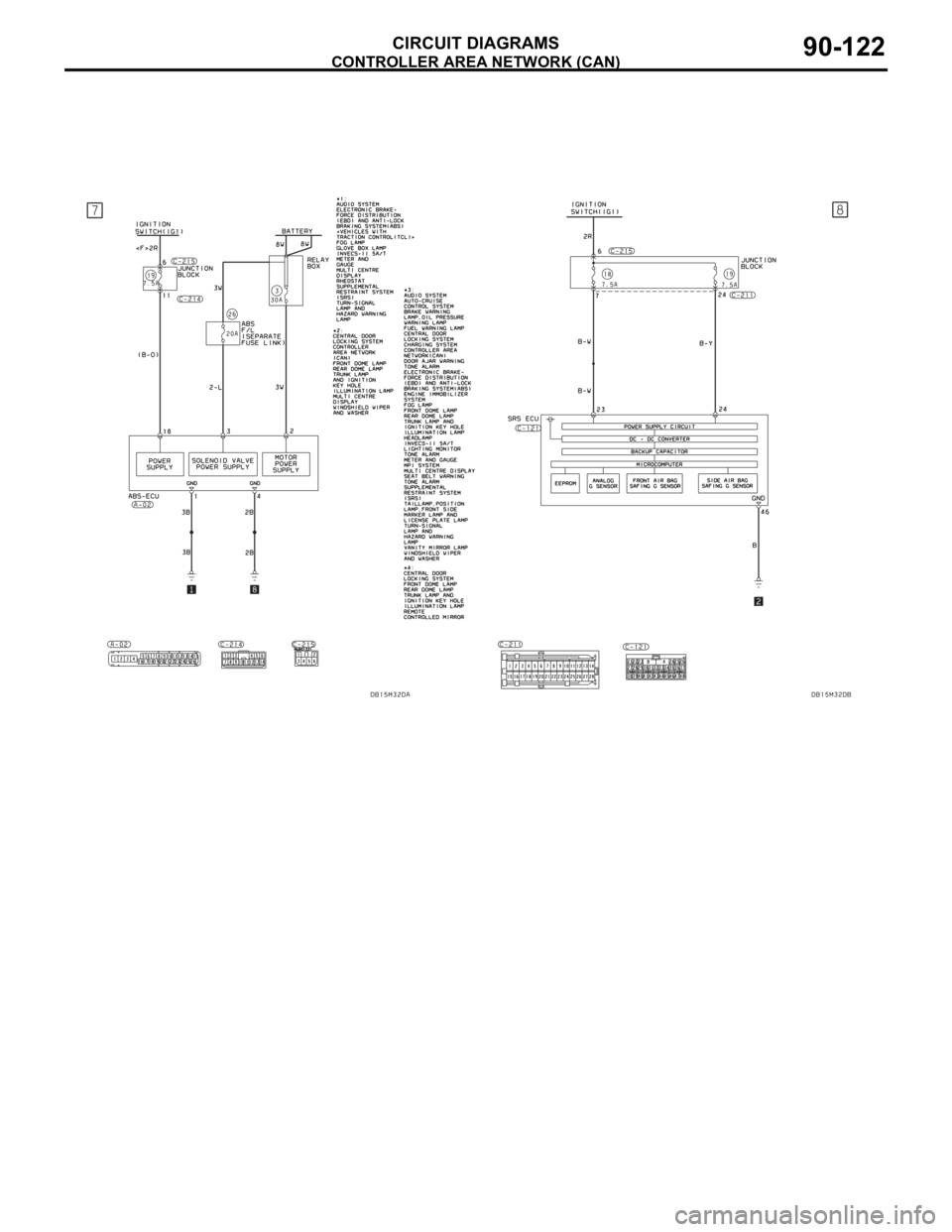

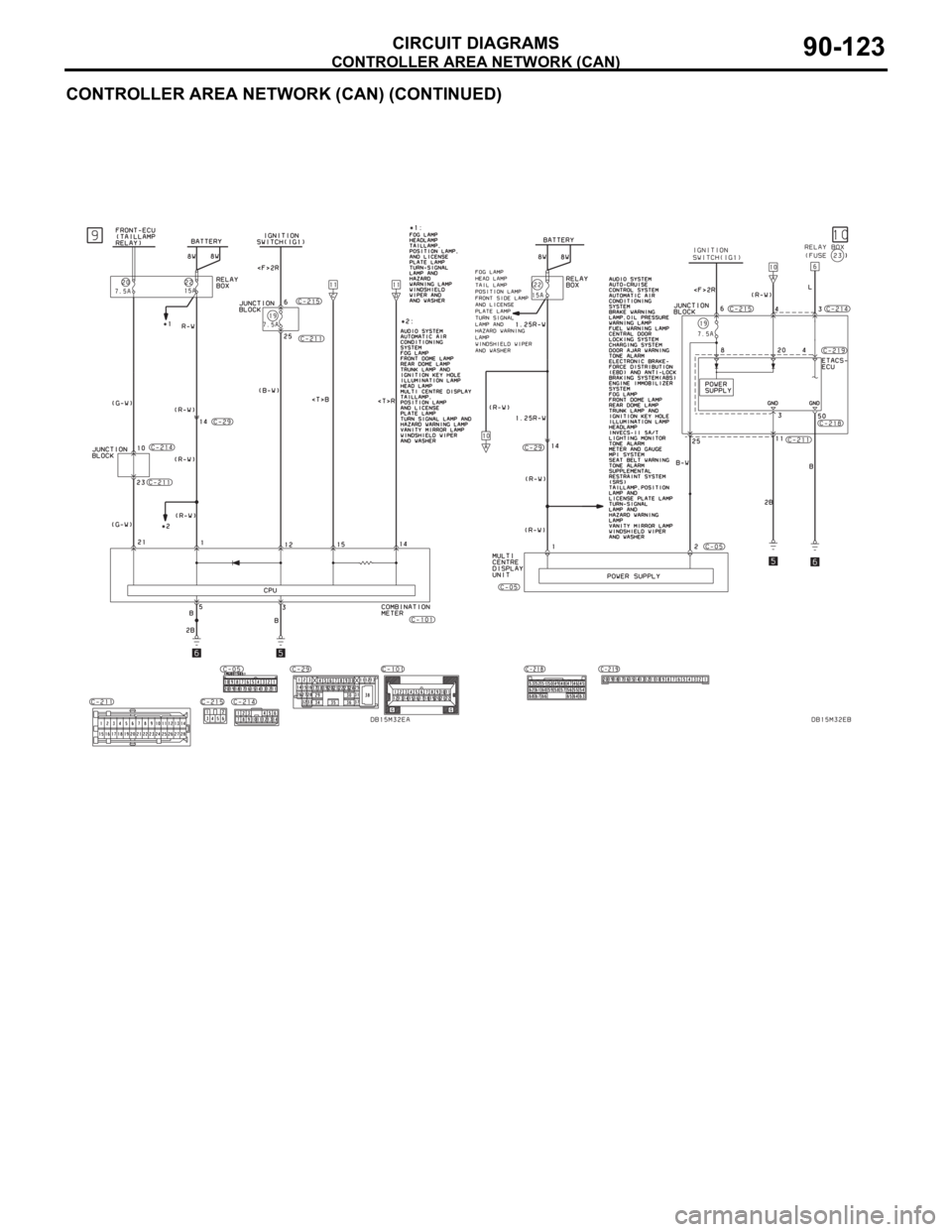

MITSUBISHI 380 2005 Workshop Manual CONTROLLER AREA NETWORK (CAN) CIRCUIT DIAGRAMS90-123 CONTROLLER AREA NETWORK (CAN) (CONTINUED)
