MITSUBISHI ASX 2012 Owner's Manual (in English)

No. Symbol Electrical system Capaci-
ties
6 Door locks 20 A
7 Radio 15 A
8 Control unit relay 7.5 A
9 Interior lamps
(Room lamps) 15 A
10 Hazard warning
flasher 15 A
11 Rear window wiper 15 A
12 Instruments 7.5 A
13 Cigarette lighter/
Accessory socket 15 A
14 Ignition switch 10 A
15 Sunroof 20 A
16 Outside rear-view
mirrors 10 A
17 4-wheel drive sys-
tem 10 A
18 Reversing lamps
(Backup lamps) 7.5 A
19 Accessory socket 15 A
20 Electric window
control 30 A
*1
21 Rear window de-
mister 30 A
*1
*1 : Fusible link No. Symbol Electrical system Capaci-
ties
22 Heated door mirror 7.5 A
23 Passenger’s power
seat 25 (20) A
24 Driver’s power seat 25 (20) A
25 Heated seat 30 A
*1 : Fusible link l
Some fuses may not be installed on your ve-
hicle, depending on the vehicle model or spec-
ifications.
l The table above shows the main equipment
corresponding to each fuse. Engine compartment fuse location table
Engine compartment fuse location
Behind of the fuse block cover
No. Symbol Electrical system Capaci-
ties
1 Front fog lamps 15 A
2 Engine 7.5 A
3 Automatic trans-
mission 20 A
4 Horn 10 A
*1 : Fusible link Maintenance
8-21 8
OGWE12E1

No. Symbol Electrical system Capaci-
ties
5 Alternator 7.5 A
6 Headlamp washer 20 A
7 Air conditioning 10 A
8 ETV/Oil cooler fan
(Twin Clutch SST) 15 A
9 Security horn 20 A
10 Wiper de-icer 15 A
11 — ——
12 Electric tailgate 30 A
13 Daytime running
lamps 10 A
14 Headlamp high-
beam (left) 10 A
15 Headlamp high-
beam (right) 10 A
16 Head-
lamp low
beam (left) Dis-
charge 20 A
17 Head-
lamp low
beam
(right) Dis-
charge 20 A
*1 : Fusible link No. Symbol Electrical system Capaci-
ties
18 Head-
lamp low
beam (left) Halogen 10 A
19 Head-
lamp low
beam
(right) Halogen 10 A
20 ENG/POWER 10 A
21 Ignition coil 10 A
22 ENG/POWER 20 A
Fuel line heater 25 A
23 Fuel pump 15 A
24 Starter
30 A*1
25 — ——
26 Anti-lock brake
system 40 A
*1
27 Anti-lock brake
system 30 A
*1
28 Air conditioning
condenser fan mo- tor 30 A
*1
29 Radiator fan motor
40 A*1
*1 : Fusible link No. Symbol Electrical system Capaci-
ties
30 IOD IOD 30 A
31 Audio system amp 30 A
32 Diesel 30 A
33 — Spare fuse 10 A
34 — Spare fuse 15 A
35 — Spare fuse 20 A
*1 : Fusible link l
Some fuses may not be installed on your ve-
hicle, depending on the vehicle model or spec-
ifications.
l The table above shows the main equipment
corresponding to each fuse.
The fuse box does not contain spare 7.5 A, 25 A or
30 A fuses. If one of these fuses burns out, substi-
tute with the following fuse.
7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a fuse of
the correct capacity as soon as possible. Maintenance
8-22
8
OGWE12E1

Identification of fuse
Capacity Colour
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
25 A Natural (White)
30 A Green (fuse type)/
Pink (fusible link type)
40 A Green (fusible link type) Fuse replacement
E01007800630
1. Before replacing a fuse, always turn off the
electrical circuit concerned and turn the igni-
tion switch to the “LOCK” position or put
the operation mode in OFF.
2. Remove the fuse puller (A) from the inside of the fuse box in the engine compartment. 3. Referring

to the fuse load capacity table,
check the fuse pertaining to the problem. B- Fuse is OK
C- Blown fuse
NOTE l If

any system does not function but the fuse
corresponding to that system is normal, there
may be a fault in the system elsewhere. We
recommend you to have your vehicle checked.
4. Use the fuse puller to insert a new fuse with the same capacity. Make sure you insert the
fuse into the same location in the fuse block. CAUTION
l
If
the newly inserted fuse blows again af-
ter a short time, we recommend you to
have the electrical system checked to find
the cause and rectify it.
l Never use a fuse with a larger capacity
than specified or a substitute (such as a ca-
ble or foil). Doing so could cause the cir-
cuit wires to overheat and create a fire. Maintenance
8-23 8
OGWE12E1

Replacement of lamp bulbs
E01003100488
Before
replacing a bulb, ensure the lamp is off. Do
not touch the glass part of the new bulb with your
bare fingers; the skin oil left on the glass will evap-
orate when the bulb gets hot and the vapour will
condense on the reflector and dim the surface. CAUTION
l
Bulbs
are extremely hot immediately af-
ter being turned off.
When replacing a bulb, wait for it to cool
sufficiently before touching it. You could
otherwise be burnt.
NOTE l If

you are unsure of how to carry out the
work as required, we recommend you to con-
sult a specialist.
l Be careful not to scratch the vehicle body
when removing a lamp or lens.
l When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon
as when window glass mists up on a humid
day, and does not indicate a functional prob-
lem.
When the lamp is switched on, the heat will
remove the fog. However, if water gathers in-
side the lamp, we recommend you to have
the lamp checked.
Bulb capacity E01003200290
When replacing a bulb, use a new bulb with the
same wattage and colour. Outside
E01003302758
Front 1- Front turn-signal lamps: 21 W (WY21W)
2-

Headlamps, high-beam: 60 W (HB3)
3- Type 1 Front fog lamps: 35 W (H8)
Daytime running lamps: 13 W (P13W)
Type 2 Daytime running lamps: 13 W (P13W)
Type 3 Front fog lamps: 55 W (H11)
4- Headlamps, low beam Halogen: 55 W (H11)
High intensity discharge *2
: 35 W
5- Position lamps: 5 W (W5W)
6- Side turn-signal lamps (on fender) *1
,*2
: 5 W
7- Side turn-signal lamps (on outside rear-view
mirror) *1
*1 : if so equipped
*2 : Have the lamps bulbs replaced at a
MITSUBISHI MOTORS

Authorized
Service Point.
Codes in parentheses indicate bulb types. WARNING
l Always
consult a specialist when repair-
ing or replacing the bulbs of high intensi-
ty discharge headlamps.
This is because the power circuit, bulbs
and electrodes generate a high voltage
that could cause an electric shock.
NOTE l An

LED, not a bulb, is used in the side turn-
signal lamp (on outside rear-view mirror).
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for re-
pair or replacement.
l For the side turn-signal lamp (on fender), it
is not possible to repair or replace just the bulb.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for re-
pair or replacement.
Rear 8- High-mounted stop lamp
9-

Licence plate lamps: 5 W (W5W)
10- Rear fog lamp: 21 W (W21W)
11- Reversing lamps: 16 W (W16W) Maintenance
8-24
8
OGWE12E1

12- Rear turn-signal lamps: 21 W (W21W)
13-
Stop and tail lamps
Codes in parentheses indicate bulb types.
NOTE l An LED, not a bulb, is used in the stop lamp/
tail lamp and high-mounted stop lamp. Con-
tact a MITSUBISHI MOTORS Authorized
Service Point when there is a need for repair
or replacement.
Inside E010034017491- Room lamp (rear)*: 8 W
2-

Vanity mirror lamps*: 3 W
3- Room lamp (front) & map lamps: 8 W
4- Luggage room lamp: 5 W
5- Glove box lamp: 1.4 W
*: if so equipped Headlamps (low beam, except for vehi-
cles

with high intensity discharge head-
lamps) E01009300280
1. When replacing the bulb on the left side of
the vehicle in the case of diesel-powered ve-
hicles, remove the bolt (A) holding down the
relay box and move the relay box towards
the rear of the vehicle. *: Front of the vehicle
2. When
replacing the bulb on the right side of
the vehicle in the case of diesel-powered ve-
hicles, remove the clips (B) by prying with a straight blade (or minus) screwdriver, and re-
move the side cover. *: Front of the vehicle
3.
Turn the cap (C) anticlockwise to remove it. *: Front of the vehicle Maintenance
8-25 8
OGWE12E1

4. Turn the bulb (D) anticlockwise to remove it.
*: Front of the vehicle
5. While holding down the tab (E), pull out the
socket (F). 6. To
install the bulb, perform the removal

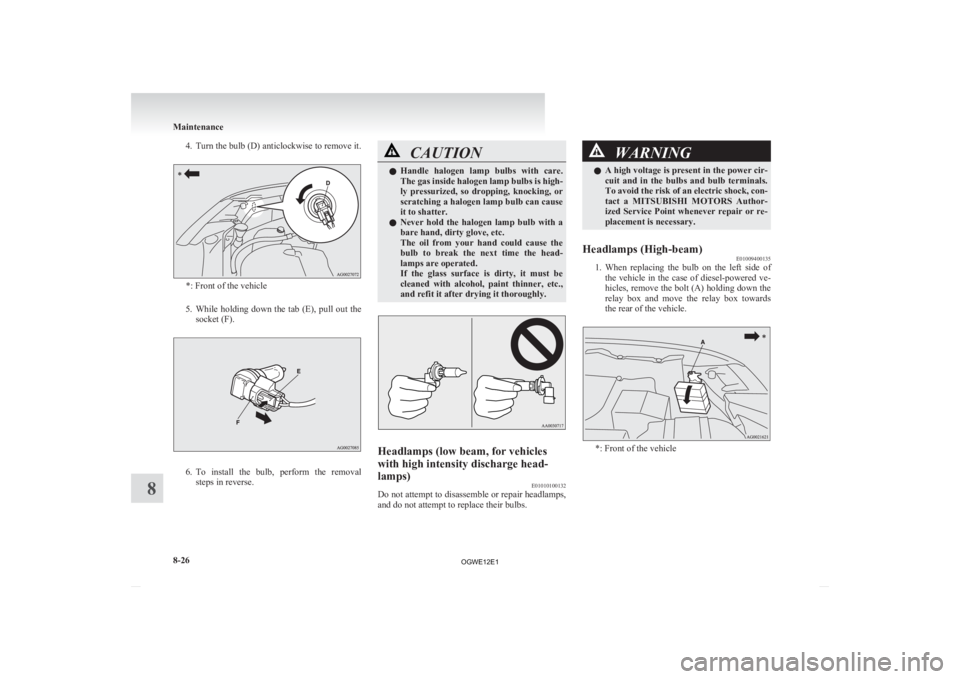

steps in reverse. CAUTION
l
Handle
halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the head-
lamps are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying it thoroughly. Headlamps (low beam, for vehicles
with high intensity discharge head-
lamps)
E01010100132
Do not attempt to disassemble or repair headlamps,
and do not attempt to replace their bulbs. WARNING
l A high voltage is present in the power cir-
cuit
and in the bulbs and bulb terminals.
To avoid the risk of an electric shock, con-
tact a MITSUBISHI MOTORS Author-
ized Service Point whenever repair or re-
placement is necessary.
Headlamps (High-beam) E01009400135
1. When
replacing the bulb on the left side of
the vehicle in the case of diesel-powered ve-
hicles, remove the bolt (A) holding down the
relay box and move the relay box towards
the rear of the vehicle. *: Front of the vehicleMaintenance
8-26
8
OGWE12E1

2. Turn the cap (B) anticlockwise to remove it.
*: Front of the vehicle
3. Turn the bulb (C) anticlockwise to remove it. *: Front of the vehicle 4. While
holding down the tab (D), pull out the
socket (E). 5. To
install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle
halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the head-
lamps are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,

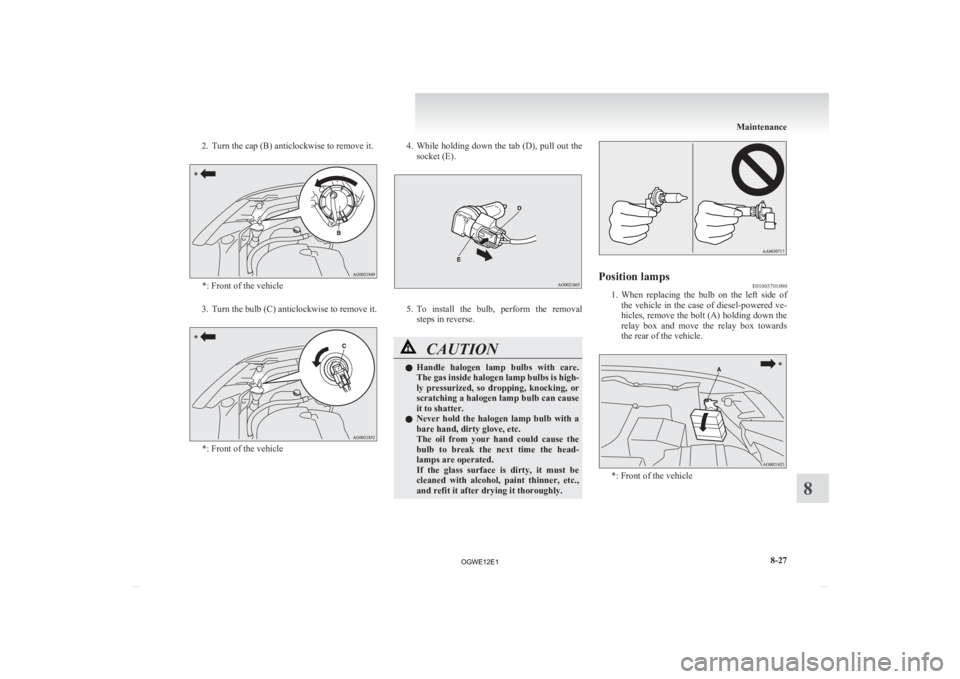

and refit it after drying it thoroughly. Position lamps
E01003701090
1. When
replacing the bulb on the left side of
the vehicle in the case of diesel-powered ve-
hicles, remove the bolt (A) holding down the
relay box and move the relay box towards
the rear of the vehicle. *: Front of the vehicle Maintenance
8-27 8
OGWE12E1

2. When replacing the bulb on the right side of
the vehicle in the case of diesel-powered ve-
hicles, remove the clips (B) by prying with a
straight blade (or minus) screwdriver, and re-
move the side cover. *: Front of the vehicle
3. Turn
the socket (C) anticlockwise to remove
it. *: Front of the vehicle 4. Pull the bulb out of the socket.
5. To
install the bulb, perform the removal
steps in reverse.
Front turn-signal lamps E01003800922
To remove
1.
Remove the upper cover.For information regarding how to remove the
upper cover, refer to “Removing and instal-
ling the upper cover and duct” on page 8-08. 2. Remove

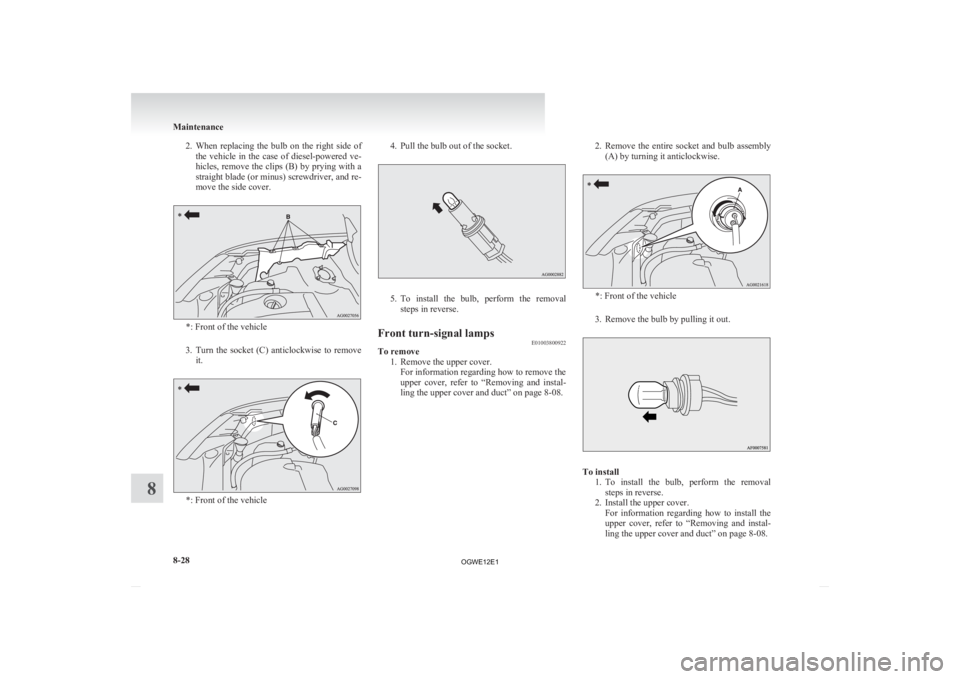

the entire socket and bulb assembly
(A) by turning it anticlockwise. *: Front of the vehicle
3.
Remove the bulb by pulling it out. To install
1. To
install the bulb, perform the removal
steps in reverse.
2. Install the upper cover. For information regarding how to install the
upper cover, refer to “Removing and instal-
ling the upper cover and duct” on page 8-08. Maintenance
8-28
8
OGWE12E1

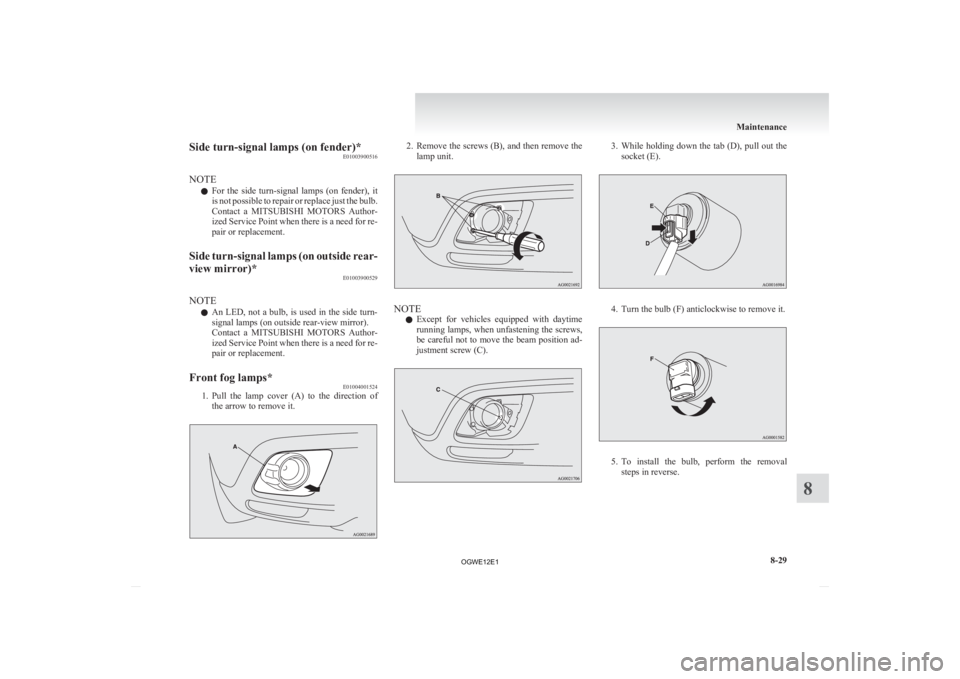

Side turn-signal lamps (on fender)*
E01003900516
NOTE l For
the side turn-signal lamps (on fender), it
is not possible to repair or replace just the bulb.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for re-
pair or replacement.
Side turn-signal lamps (on outside rear-
view mirror)* E01003900529
NOTE l An

LED, not a bulb, is used in the side turn-
signal lamps (on outside rear-view mirror).
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for re-
pair or replacement.

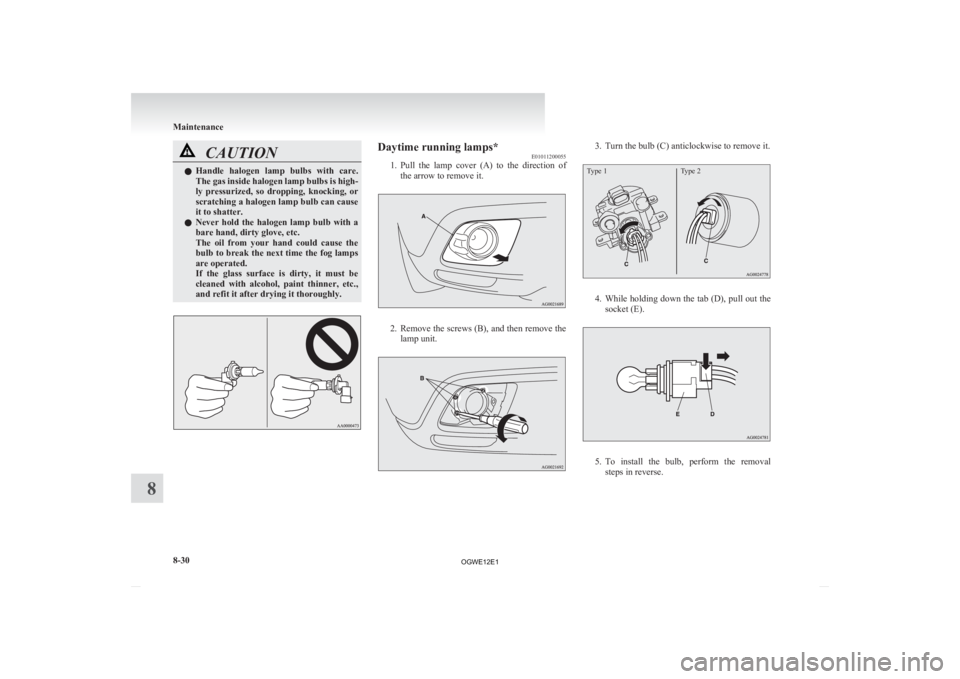

Front fog lamps* E01004001524
1. Pull
the lamp cover (A) to the direction of
the arrow to remove it. 2. Remove
the screws (B), and then remove the
lamp unit. NOTE
l Except

for vehicles equipped with daytime
running lamps, when unfastening the screws,
be careful not to move the beam position ad-
justment screw (C). 3. While
holding down the tab (D), pull out the
socket (E). 4. Turn the bulb (F) anticlockwise to remove it.
5. To
install the bulb, perform the removal
steps in reverse. Maintenance
8-29 8
OGWE12E1

CAUTION
l
Handle halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the fog lamps
are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying it thoroughly. Daytime running lamps*
E01011200055
1. Pull

the lamp cover (A) to the direction of
the arrow to remove it. 2. Remove
the screws (B), and then remove the
lamp unit. 3. Turn the bulb (C) anticlockwise to remove it.
Type 1
Type 2 4. While
holding down the tab (D), pull out the
socket (E). 5. To
install the bulb, perform the removal
steps in reverse. Maintenance
8-30
8
OGWE12E1
