MITSUBISHI ASX 2012 Owner's Manual (in English)

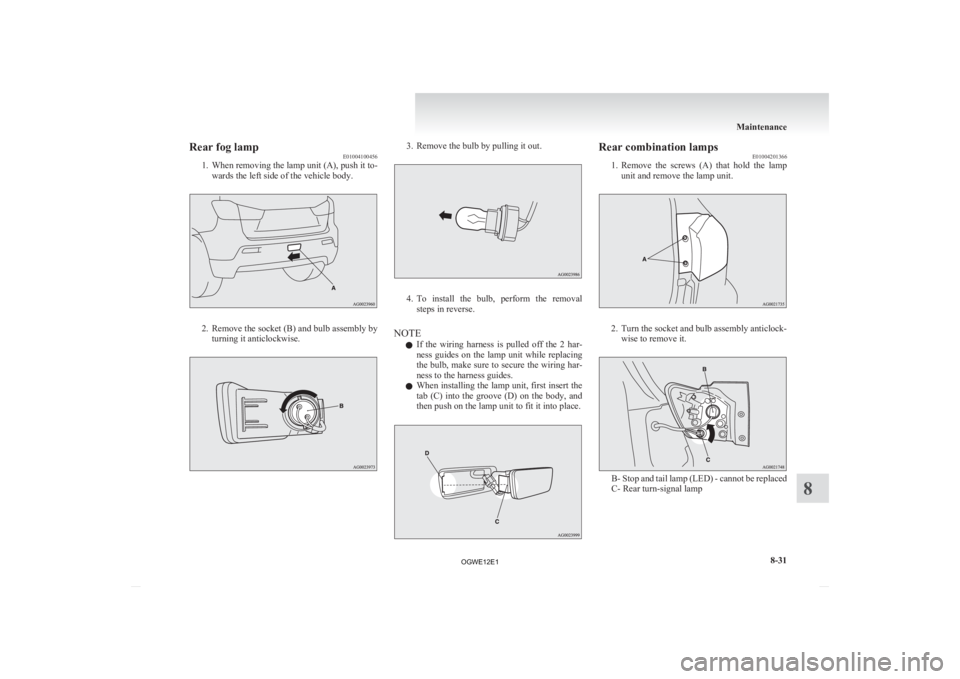

Rear fog lamp
E01004100456
1.
When removing the lamp unit (A), push it to-wards the left side of the vehicle body. 2. Remove
the socket (B) and bulb assembly by
turning it anticlockwise. 3. Remove the bulb by pulling it out.
4. To
install the bulb, perform the removal
steps in reverse.
NOTE l If the wiring harness is pulled off the 2 har-
ness guides on the lamp unit while replacing
the bulb, make sure to secure the wiring har-
ness to the harness guides.
l When installing the lamp unit, first insert the
tab (C) into the groove (D) on the body, and
then push on the lamp unit to fit it into place. Rear combination lamps
E01004201366
1. Remove

the screws (A) that hold the lamp
unit and remove the lamp unit. 2. Turn the socket and bulb assembly anticlock-
wise to remove it. B- Stop and tail lamp (LED) - cannot be replaced
C- Rear turn-signal lamp Maintenance
8-31 8
OGWE12E1

NOTE
l An
LED, not a bulb, is used in the stop lamp/
tail lamp.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for re-
pair or replacement.
3. Pull the bulb out of the socket. 4. To
install the bulb, perform the removal
steps in reverse.
NOTE l When mounting the lamp unit, align the
groove (D) on the lamp unit with the clip on
the body and the pin (E) on the unit with the
hole in the body. Reversing lamps
E01004400332
1. Open the tailgate.
2. Insert

a straight blade (or minus) screwdriver
into the notch of the cover and pry gently to
remove the cover. NOTE
l Wrap

a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
cover. 3. Remove
the socket and bulb assembly by turn-
ing it anticlockwise. 4. Remove the bulb by pulling it out.
5. To
install the bulb, perform the removal
steps in reverse.
NOTE l When installing the lid, align the tab on the
lid with the hole on the vehicle side. Maintenance
8-32
8
OGWE12E1

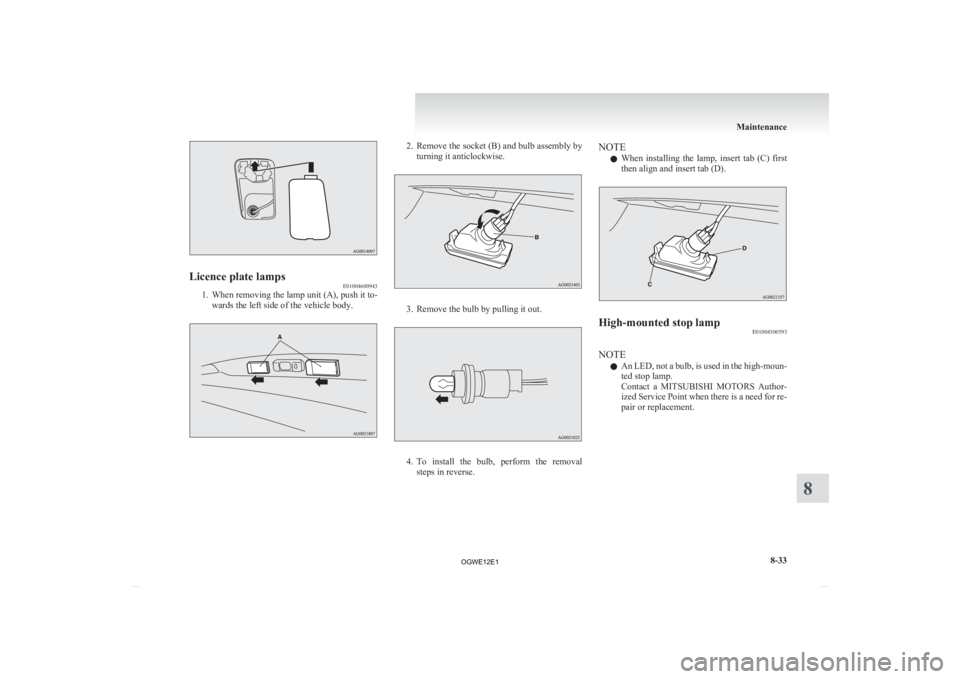

Licence plate lamps
E01004600943
1. When removing the lamp unit (A), push it to-
wards the left side of the vehicle body. 2. Remove the socket (B) and bulb assembly by
turning it anticlockwise. 3. Remove the bulb by pulling it out.
4. To
install the bulb, perform the removal
steps in reverse. NOTE
l When

installing the lamp, insert tab (C) first
then align and insert tab (D). High-mounted stop lamp
E01004500593
NOTE l An

LED, not a bulb, is used in the high-moun-
ted stop lamp.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for re-
pair or replacement. Maintenance
8-33 8
OGWE12E1

OGWE12E1

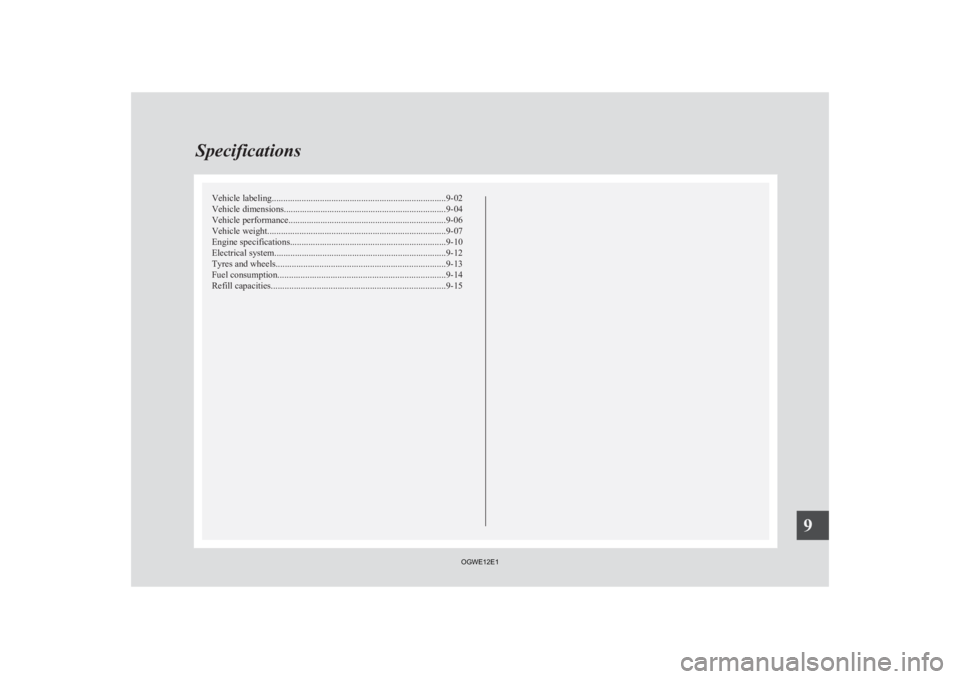

Vehicle labeling
............................................................................ 9-02
Vehicle dimensions....................................................................... 9-04
Vehicle performance.....................................................................9-06
Vehicle weight .............................................................................. 9-07
Engine specifications .................................................................... 9-10
Electrical system ........................................................................... 9-12
Tyres and wheels.......................................................................... 9-13
Fuel consumption ......................................................................... 9-14
Refill capacities ............................................................................ 9-15Specifications
9
OGWE12E1

Vehicle labeling
E01100103069
Vehicle identification number
The
vehicle identification number is stamped on
the bulkhead as shown in the illustration. Vehicle information code plate
The

vehicle information code plate is riveted as
shown in the illustration.
Type 1
Type 2 The plate shows model code, engine model, trans-
mission model and body colour code, etc.
Please

use this number when ordering replacement
parts. 1- Model code
2-

Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code
7- Exterior code Vehicle identification number plate
(RHD vehicles only)
The

vehicle identification number is stamped on
the plate riveted to the left front corner of the vehi-
cle body. It is visible from outside of the vehicle
through the windscreen. Engine number
The

engine number is stamped on the engine cylin-
der block as shown in the illustrations.
Petrol-powered vehicles
1600 models *: Front of the vehicleSpecifications
9-02
9
OGWE12E1

1800 models, 2000 models*: Front of the vehicle
Diesel-powered vehicles *: Front of the vehicle Specifications
9-03 9
OGWE12E1

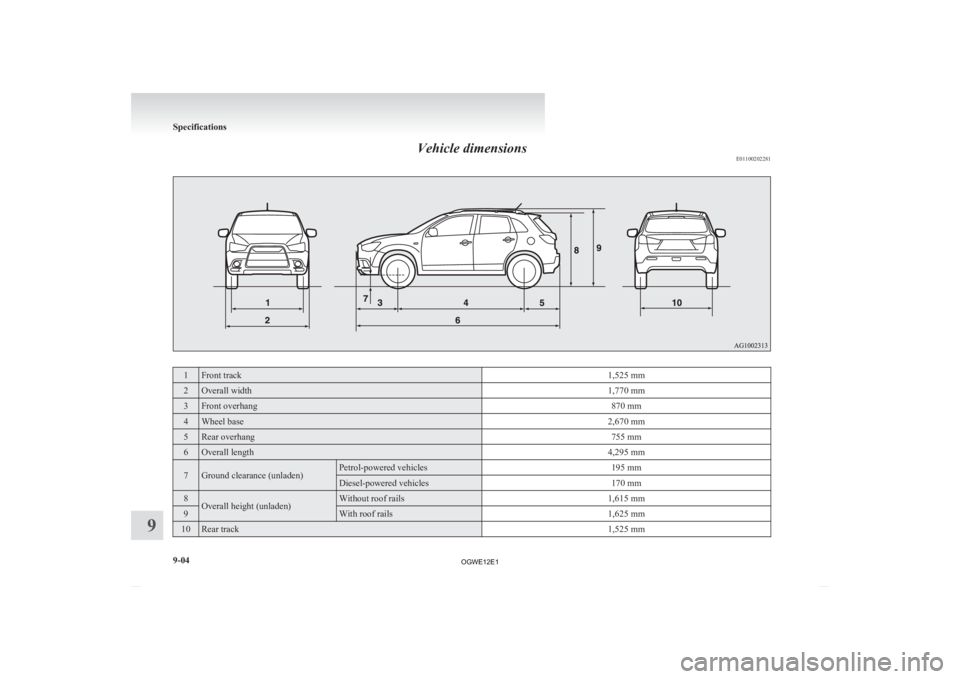

Vehicle dimensions
E011002022811 Front track
1,525 mm2 Overall width
1,770 mm3 Front overhang
870 mm4 Wheel base
2,670 mm5 Rear overhang
755 mm6 Overall length
4,295 mm7 Ground clearance (unladen) Petrol-powered vehicles
195 mmDiesel-powered vehicles
170 mm8
Overall height (unladen) Without roof rails
1,615 mm9 With roof rails
1,625 mm10 Rear track
1,525 mmSpecifications
9-04
9
OGWE12E1

Minimum turning radius Body
5.63 mWheel
5.3 m Specifications
9-05 9
OGWE12E1

Vehicle performance
E01100301924
Petrol-powered vehicles Maximum speed 1600 models
183 km/h (114 mph)1800 models
186 km/h (116 mph)2000 models 2WD
194 km/h (121 mph) 4WD M/T
192 km/h (120 mph) CVT
188 km/h (117 mph)Diesel-powered vehicles
Maximum speed 2WD
200 km/h (124 mph), 189 km/h (117 mph)*4WD
198 km/h (123 mph), 185 km/h (115 mph)*
* : 85 kW engine (Low CO 2 emissions) Specifications
9-06
9
OGWE12E1
