1. Map lamp & room lamp (front) p. 7-72Sunshade switch* p. 3-41
Microphone (for Bluetooth® 2.0 interface)* p. 7-48
2. Sun visors p. 7-69 Vanity mirror p. 7-69
Card holder p. 7-69
3. Room lamp (rear)* p. 7-73
4. Assist grip p. 7-80 Coat hook p. 7-80
5. Rear shelf panel p. 7-79
6. Armrest* p. 4-06 Cup holder* p. 7-78
7. Rear seat p. 4-06
8. Armrest* p. 4-05 Auxiliary Audio connector (RCA) p. 7-36
USB input terminal* p. 7-66
Accessory socket p. 7-71
9. Bottle holder p. 7-79
10. Supplemental restraint system - airbag (for front passenger’s seat) p. 4-24, 4-29
Interior
1-09
OGAE14E1Overview1RHD1 2
3
4
5
6
7
8
9 10
Page 12 of 418

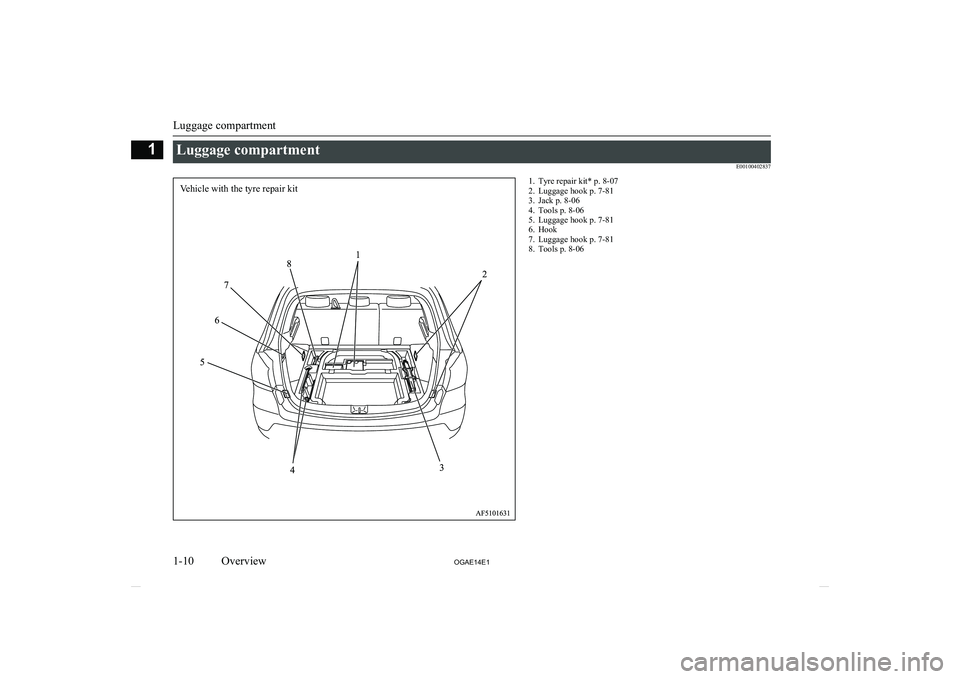

Luggage compartmentE001004028371. Tyre repair kit* p. 8-072. Luggage hook p. 7-81
3. Jack p. 8-06
4. Tools p. 8-06
5. Luggage hook p. 7-81
6. Hook
7. Luggage hook p. 7-81
8. Tools p. 8-06
Luggage compartment
1-10 OGAE14E1Overview1Vehicle with the tyre repair kit
Page 13 of 418

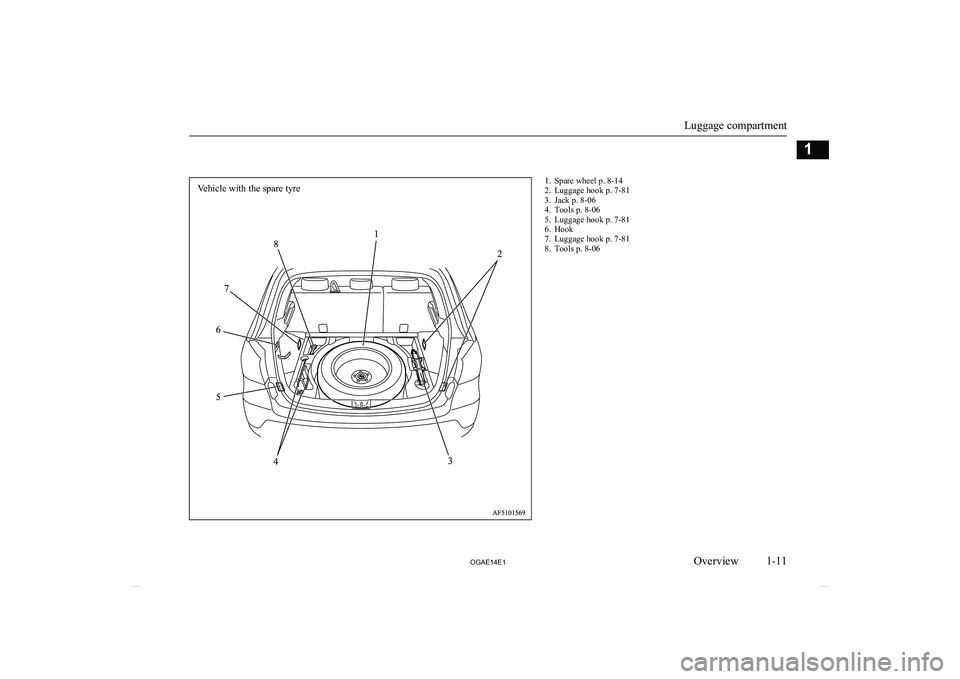

1. Spare wheel p. 8-14
2. Luggage hook p. 7-81
3. Jack p. 8-06
4. Tools p. 8-06
5. Luggage hook p. 7-81
6. Hook
7. Luggage hook p. 7-81
8. Tools p. 8-06
Luggage compartment
1-11
OGAE14E1Overview1Vehicle with the spare tyre
Page 14 of 418
ExteriorE001005054221. Electric window control p. 3-392. Fuel tank filler p. 2-03
3. Outside rear-view mirror p. 6-09 Side turn-signal lamps* p. 5-54, 10-26, 10-31
4. Side turn-signal lamps* p. 5-54, 10-26, 10-31
5. Position lamps p. 5-47, 10-26, 10-30
6. Headlamps, low beam p. 5-47, 10-26, 10-27, 10-29
7. Front fog lamps* p. 5-55, 10-26, 10-31 Daytime running lamps* p. 10-26, 10-32
8. Headlamps, high-beam p. 5-47, 10-26, 10-29
9. Front turn-signal lamps p. 5-54, 10-26, 10-30
10. Bonnet p. 10-03
11. Windscreen wipers p. 5-56
Exterior
1-12 OGAE14E1Overview1111
2
3
4
5
6
7
8
9 10
Page 15 of 418
1. Keyless entry system* p. 3-04Keyless operation system* p. 3-07
Locking and unlocking the doors p. 3-25
2. Changing tyres p. 8-13 Tyre inflation pressures p. 10-13
Tyre rotation p. 10-14
Tyre chains p. 10-15
Size of tyres and wheels p. 11-12
3. Turn-signal lamps/Hazard warning lamps p. 5-54, 5-54, 10-26, 10-34
4. Stop lamps/Tail lamps p. 5-47, 10-26, 10-34
5. Corner sensors* p. 6-58
6. Reversing lamps p. 5-47, 10-26, 10-35
7. Back sensors* p. 6-57
8. Rear fog lamp* p. 5-55, 10-26, 10-33
9. Licence plate lamps p. 5-47, 10-26, 10-36
10. Rear-view camera* p. 6-61
11. Rear window wiper p. 5-60
12. Rear spoiler p. 9-04
13. High-mounted stop lamp p. 10-26
14. Antenna p. 7-46
15. Tailgate p. 3-30
Exterior
1-13
OGAE14E1Overview112
3
4
5
6
7
8
9
10 11
12
13
14
15
Page 16 of 418
OGAE14E1
Page 17 of 418

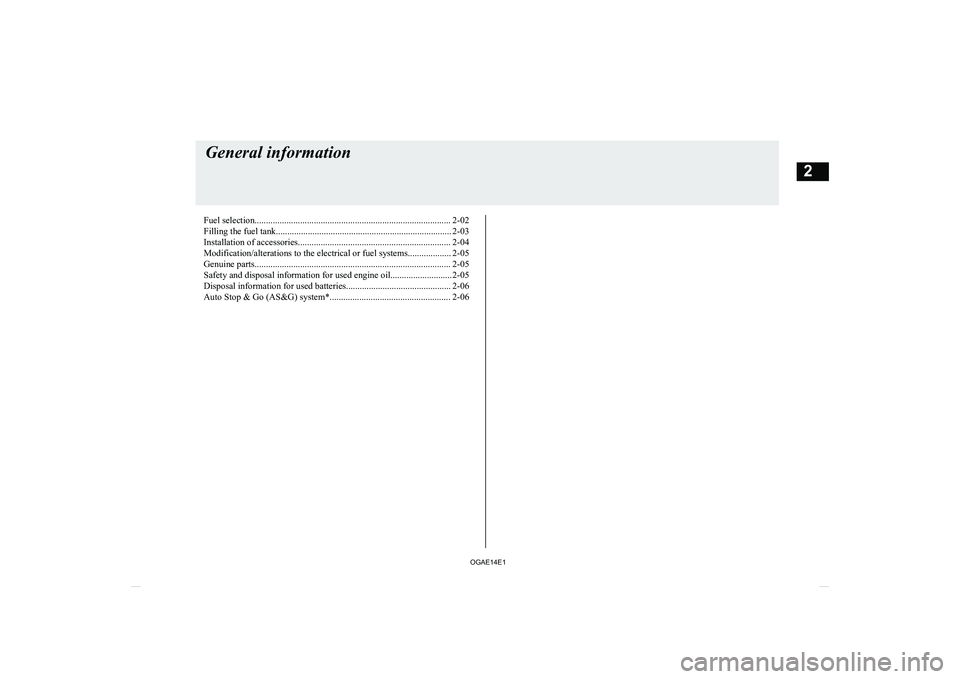

Fuel selection...................................................................................... 2-02Filling the fuel tank............................................................................. 2-03Installation of accessories................................................................... 2-04
Modification/alterations to the electrical or fuel systems................... 2-05
Genuine parts...................................................................................... 2-05 Safety and disposal information for used engine oil........................... 2-05
Disposal information for used batteries.............................................. 2-06
Auto Stop & Go (AS&G) system*..................................................... 2-06General information
OGAE14E12
Page 18 of 418
Fuel selectionE00200103076
Recom-
mended
fuel
Petrol-powered vehicles Unleaded petrol octanenumber (EN228) 1600 models, 1800 mod-
els 95 RON or higher
2000 models 90 RON or higher
Diesel-powered vehicles Cetane number (EN590)51 or higherCAUTIONl For petrol-powered vehicles, the use of lea-
ded fuel can result in serious damage to the engine and catalytic converter. Do not use leaded fuel.
l Diesel-powered vehicles are designed to use
only diesel fuel that meets the EN590 stand-
ard.
Use of any other type of diesel fuel (bio die-
sel, methylester, etc.) would adversely affect the engine’s performance and durability.NOTEl Petrol-powered vehicles have the knock con-
trol system so that you can use unleaded pet-
rol 90 RON as an emergent measure in case unleaded petrol 95 RON or higher is notavailable on journey, etc.
In such a case, you don’t need to adjust the
engine specially. In case of using unleaded petrol 90 RON, the engine performance lev-
el is reduced.
l For diesel fuel, due to the separation of par-
affin, the fluidity of the fuel decreases con- siderably as the temperature falls.
Because of this fact there are two kinds of
fuel: “summer” and “winter”.
This must be considered in winter use.
Select either of the two kinds of fuel in ac- cordance with ambient temperature. Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel
When travelling abroad, find out in advance
about the fuels served in local service sta- tions.NOTEl Repeatedly driving short distances at low
speeds can cause deposits to form in the fuel system and engine, resulting in poor starting
and poor acceleration. If these problems oc-
cur, you are advised to add a detergent addi- tive to the gasoline when you refuel the ve- hicle. The additive will remove the deposits,thereby returning the engine to a normal
condition. Be sure to use a MITSUBISHI
MOTORS GENUINE FUEL SYSTEM
CLEANER. Using an unsuitable additive
could make the engine malfunction. For de- tails, please contact a MITSUBISHI
MOTORS Authorized Service Point.
l Poor quality petrol can cause problems such
as difficult starting, stalling, engine noise
and hesitation. If you experience these prob- lems, try another brand and/or grade of pet-
rol.
If the check engine warning lamp flashes,
have the system checked as soon as possible at a MITSUBISHI MOTORS Authorized
Service Point.E10 type petrol
E00203200022
The petrol engines are compatible with E10
type petrol (containing 10 % ethanol) con- forming to European standards EN 228.
Fuel selection
2-02 OGAE14E1General information2
Page 19 of 418
CAUTIONlDo not use more than 10 % concentration of
ethanol (grain alcohol) by volume.
Use of more than 10 % concentration may
lead to damage to your vehicle fuel system,
engine, engine sensors and exhaust system.Filling the fuel tank
E00200203699WARNINGlWhen handling fuel, comply with the safe-
ty regulations displayed by garages and
filling stations.
l Gasoline is highly flammable and explo-
sive. You could be burned or seriously in-
jured when handling it. When refueling
your vehicle, always turn the engine off and keep away from flames, sparks, andsmoking materials. Always handle fuel in
well-ventilated outdoor areas.
l Before removing the fuel cap, be sure to
get rid of your body’s static electricity by touching a metal part of the car or the fuel pump. Any static electricity on your
body could create a spark that ignites fuel vapour.
l Perform the whole refueling process
(opening the fuel tank filler door, remov-
ing the fuel cap, etc.) by yourself. Do not let any other person come near the fuel
tank filler. If you allowed a person to help you and that person was carrying static electricity, fuel vapour could be ignited.WARNINGl Do not move away from the fuel tank fill-
er until refueling is finished. If you moved away and did something else (for exam-
ple, sitting on a seat) part-way through the refueling process, you could pick up afresh charge of static electricity.
l If the tank cap must be replaced, use only
a MITSUBISHI MOTORS original part.
Fuel tank capacity
2WD models: 58 litres (For vehicles with ve-
hicle identification numbers that begin with
“4”)
2WD models: 63 litres (For vehicles with ve-
hicle identification numbers that begin with
“J”)
4WD models: 60 litres
NOTEl For the location of the vehicle identification
number, refer to “Vehicle identification
number” on page 11-02.
Refueling
1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear
left side of your vehicle.
Open the fuel tank filler door by pulling
the release lever located on the side of
the driver’s seat.
3. Remove the fuel cap.
Filling the fuel tank
2-03
OGAE14E1General information2 LHD RHD
Page 20 of 418

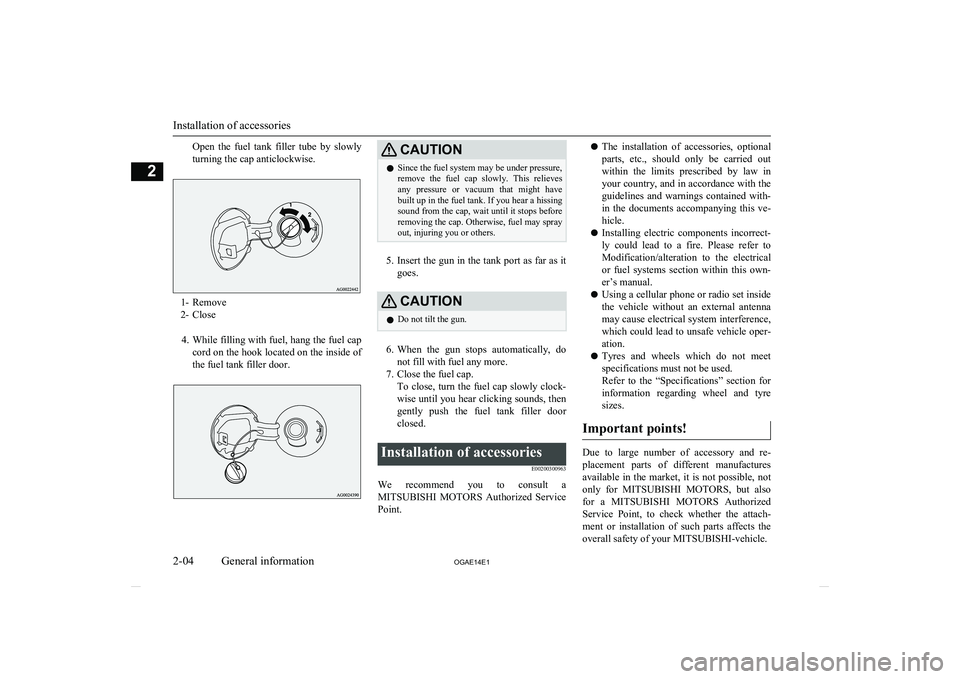

Open the fuel tank filler tube by slowly
turning the cap anticlockwise.
1- Remove
2- Close
4. While filling with fuel, hang the fuel cap
cord on the hook located on the inside of
the fuel tank filler door.
CAUTIONl Since the fuel system may be under pressure,
remove the fuel cap slowly. This relieves any pressure or vacuum that might have
built up in the fuel tank. If you hear a hissing sound from the cap, wait until it stops before
removing the cap. Otherwise, fuel may spray
out, injuring you or others.
5. Insert the gun in the tank port as far as it
goes.
CAUTIONl Do not tilt the gun.
6.
When the gun stops automatically, do
not fill with fuel any more.
7. Close the fuel cap. To close, turn the fuel cap slowly clock-
wise until you hear clicking sounds, then
gently push the fuel tank filler door
closed.
Installation of accessories
E00200300963
We recommend you to consult aMITSUBISHI MOTORS Authorized Service
Point.
l The installation of accessories, optional
parts, etc., should only be carried out
within the limits prescribed by law in your country, and in accordance with the
guidelines and warnings contained with-
in the documents accompanying this ve- hicle.
l Installing electric components incorrect-
ly could lead to a fire. Please refer to Modification/alteration to the electrical
or fuel systems section within this own- er’s manual.
l Using a cellular phone or radio set inside
the vehicle without an external antenna
may cause electrical system interference,
which could lead to unsafe vehicle oper- ation.
l Tyres and wheels which do not meet
specifications must not be used.
Refer to the “Specifications” section for information regarding wheel and tyre
sizes.
Important points!
Due to large number of accessory and re- placement parts of different manufactures
available in the market, it is not possible, not only for MITSUBISHI MOTORS , but also
for a MITSUBISHI MOTORS Authorized
Service Point, to check whether the attach- ment or installation of such parts affects theoverall safety of your MITSUBISHI-vehicle.
Installation of accessories
2-04 OGAE14E1General information2
