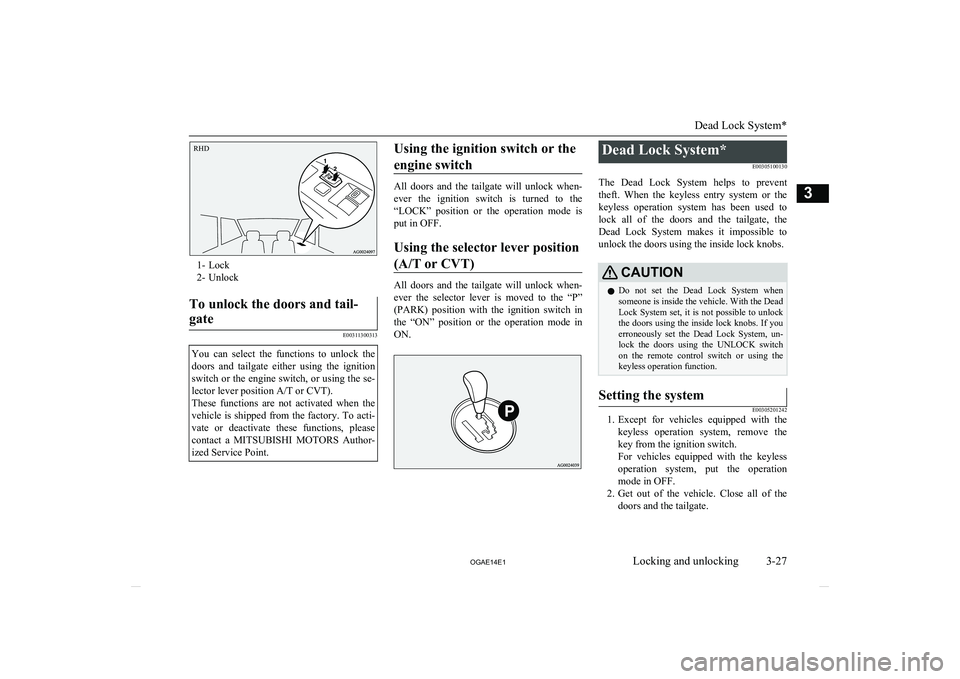

MITSUBISHI ASX 2014 (in English) Workshop Manual

1- Lock
2- Unlock
To unlock the doors and tail-
gate
E00311300313
You can select the functions to unlock the doors and tailgate either using the ignition
switch or the engine switch, or using the se- lector lever position A/T or CVT).
These functions are not activated when the vehicle is shipped from the factory. To acti-
vate or deactivate these functions, please contact a MITSUBISHI MOTORS Author-
ized Service Point.Using the ignition switch or the
engine switch
All doors and the tailgate will unlock when-
ever the ignition switch is turned to the
“LOCK” position or the operation mode is put in OFF.
Using the selector lever position
(A/T or CVT)
All doors and the tailgate will unlock when-
ever the selector lever is moved to the “P” (PARK) position with the ignition switch inthe “ON” position or the operation mode in
ON.
Dead Lock System*
E00305100130
The Dead Lock System helps to prevent theft. When the keyless entry system or the
keyless operation system has been used to lock all of the doors and the tailgate, the
Dead Lock System makes it impossible to unlock the doors using the inside lock knobs.CAUTIONl Do not set the Dead Lock System when
someone is inside the vehicle. With the Dead
Lock System set, it is not possible to unlock the doors using the inside lock knobs. If you
erroneously set the Dead Lock System, un-
lock the doors using the UNLOCK switch on the remote control switch or using the
keyless operation function.Setting the system
E00305201242
1. Except for vehicles equipped with the
keyless operation system, remove the
key from the ignition switch.
For vehicles equipped with the keyless operation system, put the operation
mode in OFF.
2. Get out of the vehicle. Close all of the
doors and the tailgate.
Dead Lock System*
3-27
OGAE14E1Locking and unlocking3RHD

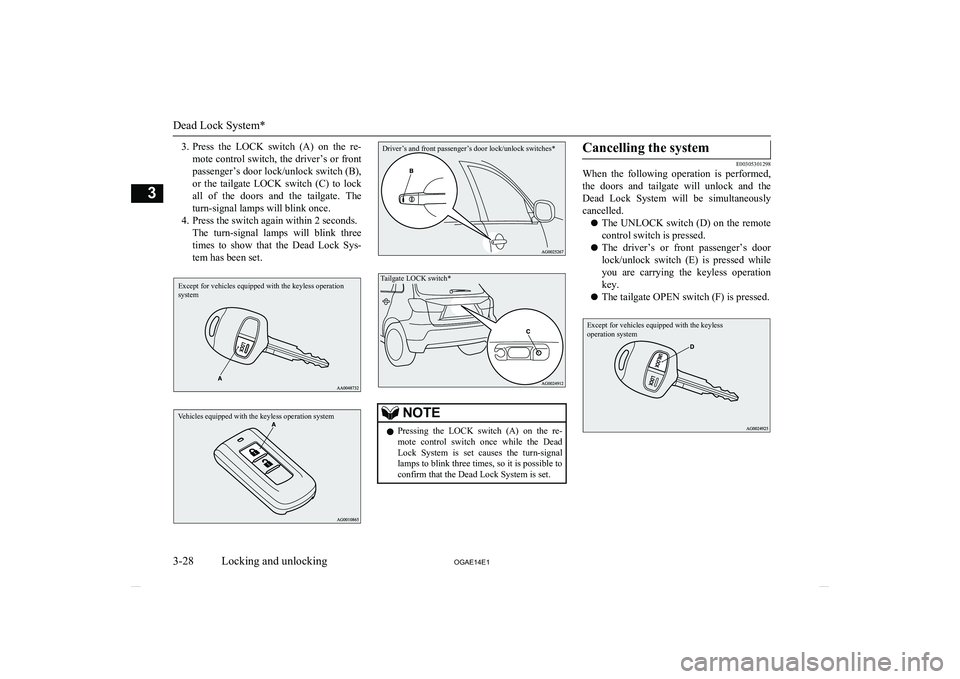

3.Press the LOCK switch (A) on the re-
mote control switch, the driver’s or front
passenger’s door lock/unlock switch (B),
or the tailgate LOCK switch (C) to lock
all of the doors and the tailgate. The turn-signal lamps will blink once.
4. Press the switch again within 2 seconds. The turn-signal lamps will blink three
times to show that the Dead Lock Sys- tem has been set.Except for vehicles equipped with the keyless operation
systemVehicles equipped with the keyless operation systemDriver’s and front passenger’s door lock/unlock switches*Tailgate LOCK switch*
NOTEl Pressing the LOCK switch (A) on the re-
mote control switch once while the DeadLock System is set causes the turn-signal
lamps to blink three times, so it is possible to
confirm that the Dead Lock System is set.Cancelling the system
E00305301298
When the following operation is performed,
the doors and tailgate will unlock and the Dead Lock System will be simultaneously cancelled.
l The UNLOCK switch (D) on the remote
control switch is pressed.
l The driver’s or front passenger’s door
lock/unlock switch (E) is pressed while
you are carrying the keyless operation key.
l The tailgate OPEN switch (F) is pressed.
Except for vehicles equipped with the keyless
operation system
Dead Lock System*
3-28 OGAE14E1Locking and unlocking3

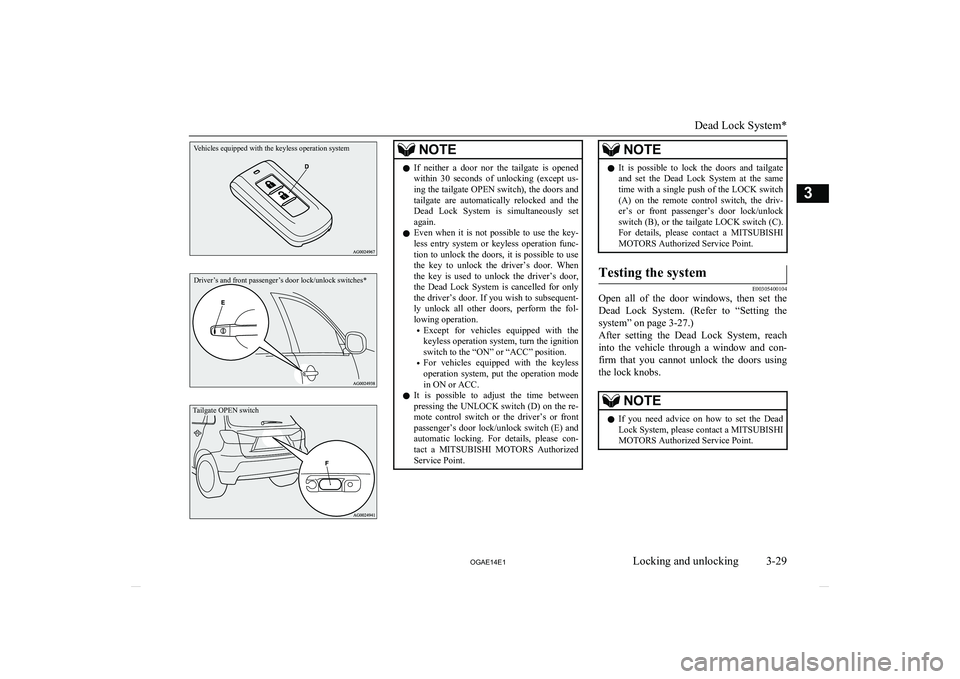

Vehicles equipped with the keyless operation systemDriver’s and front passenger’s door lock/unlock switches*Tailgate OPEN switch
NOTElIf neither a door nor the tailgate is opened
within 30 seconds of unlocking (except us-ing the tailgate OPEN switch), the doors and
tailgate are automatically relocked and the Dead Lock System is simultaneously set
again.
l Even when it is not possible to use the key-
less entry system or keyless operation func-
tion to unlock the doors, it is possible to use the key to unlock the driver’s door. When
the key is used to unlock the driver’s door, the Dead Lock System is cancelled for only
the driver’s door. If you wish to subsequent- ly unlock all other doors, perform the fol-
lowing operation.
• Except for vehicles equipped with the
keyless operation system, turn the ignitionswitch to the “ON” or “ACC” position.
• For vehicles equipped with the keyless
operation system, put the operation mode in ON or ACC.
l It is possible to adjust the time between
pressing the UNLOCK switch (D) on the re- mote control switch or the driver’s or front
passenger’s door lock/unlock switch (E) and automatic locking. For details, please con- tact a MITSUBISHI MOTORS Authorized
Service Point.NOTEl It is possible to lock the doors and tailgate
and set the Dead Lock System at the sametime with a single push of the LOCK switch (A) on the remote control switch, the driv-
er’s or front passenger’s door lock/unlock
switch (B), or the tailgate LOCK switch (C).
For details, please contact a MITSUBISHI
MOTORS Authorized Service Point.Testing the system
E00305400104
Open all of the door windows, then set the
Dead Lock System. (Refer to “Setting the system” on page 3-27.)
After setting the Dead Lock System, reach
into the vehicle through a window and con-
firm that you cannot unlock the doors using the lock knobs.
NOTEl If you need advice on how to set the Dead
Lock System, please contact a MITSUBISHIMOTORS Authorized Service Point.
Dead Lock System*
3-29
OGAE14E1Locking and unlocking3

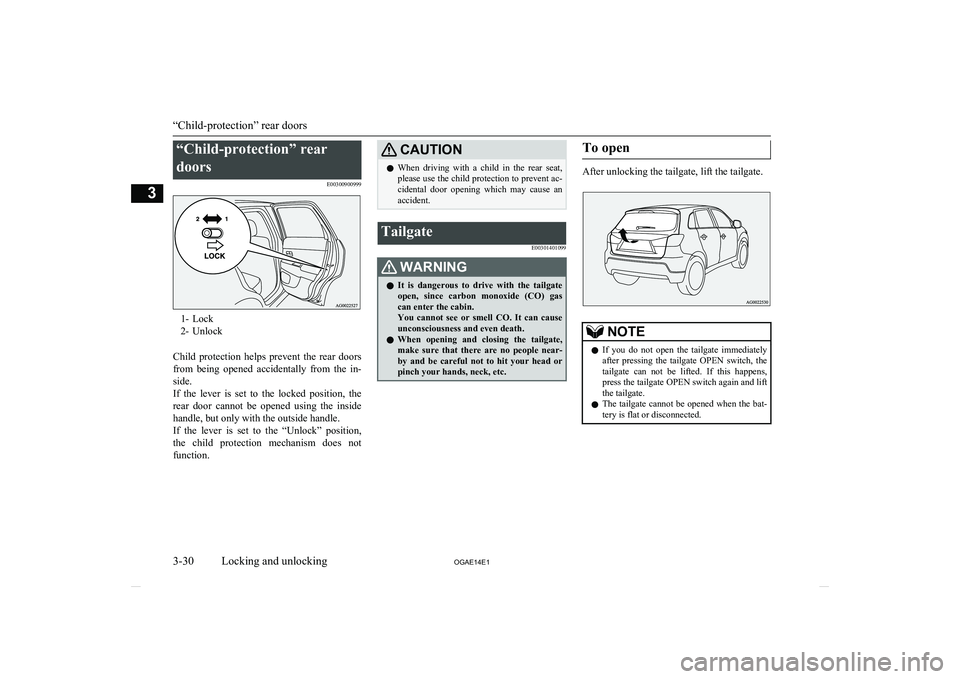

“Child-protection” reardoors E00300900999
1- Lock
2- Unlock
Child protection helps prevent the rear doors
from being opened accidentally from the in- side.
If the lever is set to the locked position, the
rear door cannot be opened using the inside handle, but only with the outside handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not
function.
CAUTIONl When driving with a child in the rear seat,
please use the child protection to prevent ac-
cidental door opening which may cause an accident.Tailgate
E00301401099WARNINGlIt is dangerous to drive with the tailgate
open, since carbon monoxide (CO) gas can enter the cabin.
You cannot see or smell CO. It can cause
unconsciousness and even death.
l When opening and closing the tailgate,
make sure that there are no people near-
by and be careful not to hit your head or
pinch your hands, neck, etc.To open
After unlocking the tailgate, lift the tailgate.
NOTEl If you do not open the tailgate immediately
after pressing the tailgate OPEN switch, thetailgate can not be lifted. If this happens, press the tailgate OPEN switch again and lift
the tailgate.
l The tailgate cannot be opened when the bat-
tery is flat or disconnected.
“Child-protection” rear doors
3-30 OGAE14E1Locking and unlocking3

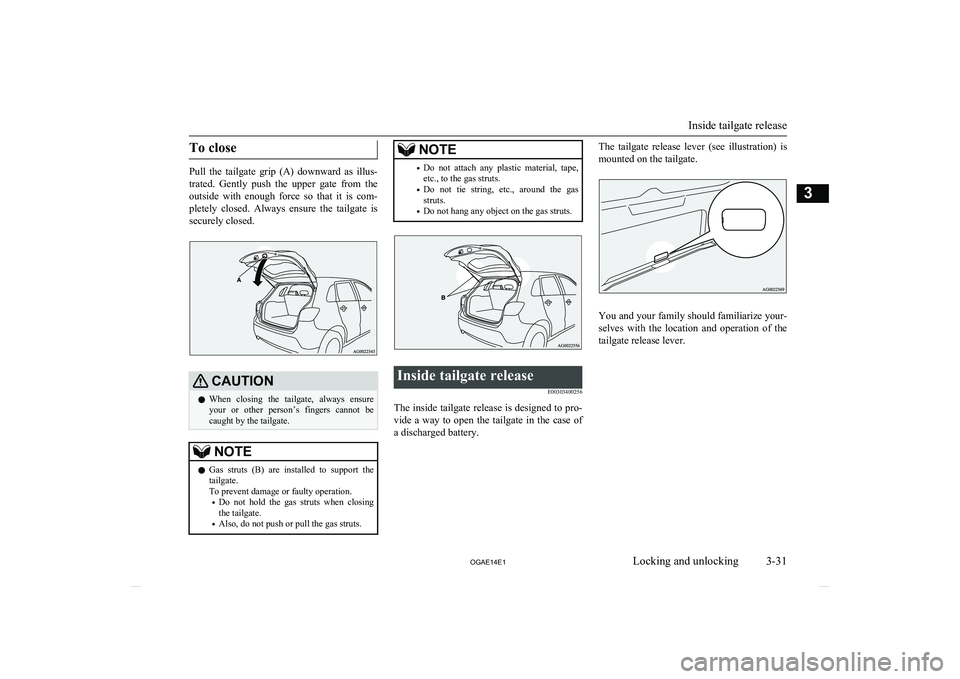

To close
Pull the tailgate grip (A) downward as illus-trated. Gently push the upper gate from the
outside with enough force so that it is com-
pletely closed. Always ensure the tailgate is securely closed.
CAUTIONl When closing the tailgate, always ensure
your or other person’s fingers cannot be
caught by the tailgate.NOTEl Gas struts (B) are installed to support the
tailgate.
To prevent damage or faulty operation.
• Do not hold the gas struts when closing
the tailgate.
• Also, do not push or pull the gas struts.NOTE•Do not attach any plastic material, tape,
etc., to the gas struts.
• Do not tie string, etc., around the gas
struts.
• Do not hang any object on the gas struts.Inside tailgate release
E00303400256
The inside tailgate release is designed to pro-
vide a way to open the tailgate in the case of
a discharged battery.
The tailgate release lever (see illustration) is
mounted on the tailgate.
You and your family should familiarize your-
selves with the location and operation of the tailgate release lever.
Inside tailgate release
3-31
OGAE14E1Locking and unlocking3

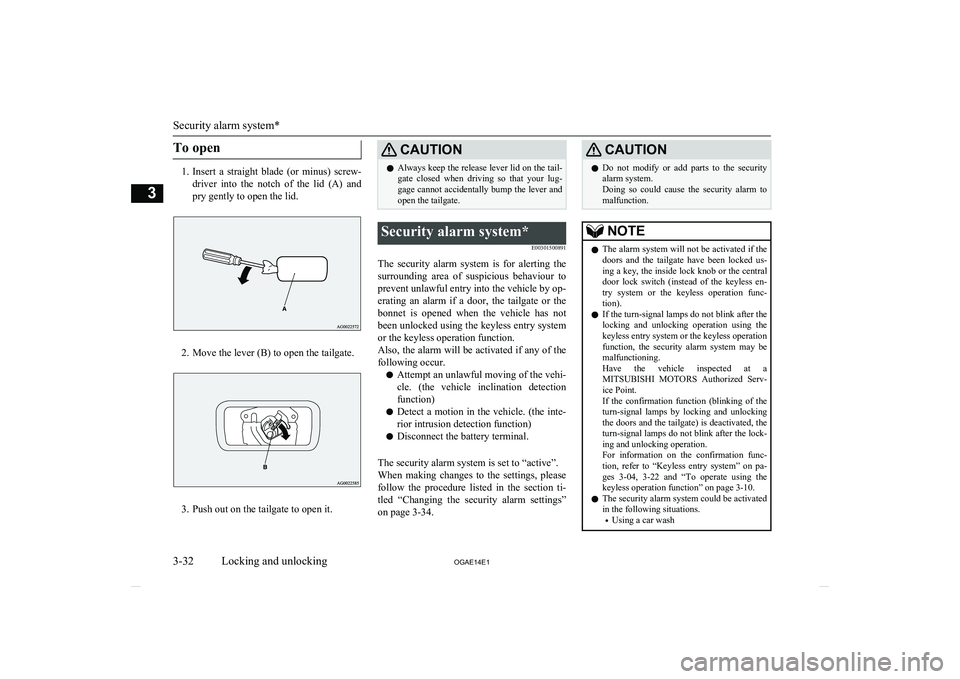

To open
1.Insert a straight blade (or minus) screw-
driver into the notch of the lid (A) and pry gently to open the lid.
2. Move the lever (B) to open the tailgate.
3. Push out on the tailgate to open it.
CAUTIONl Always keep the release lever lid on the tail-
gate closed when driving so that your lug- gage cannot accidentally bump the lever andopen the tailgate.Security alarm system*
E00301500891
The security alarm system is for alerting thesurrounding area of suspicious behaviour to
prevent unlawful entry into the vehicle by op- erating an alarm if a door, the tailgate or the bonnet is opened when the vehicle has not
been unlocked using the keyless entry system or the keyless operation function.
Also, the alarm will be activated if any of the
following occur.
l Attempt an unlawful moving of the vehi-
cle. (the vehicle inclination detection function)
l Detect a motion in the vehicle. (the inte-
rior intrusion detection function)
l Disconnect the battery terminal.
The security alarm system is set to “active”.
When making changes to the settings, please
follow the procedure listed in the section ti- tled “Changing the security alarm settings”
on page 3-34.
CAUTIONl Do not modify or add parts to the security
alarm system.
Doing so could cause the security alarm to malfunction.NOTEl The alarm system will not be activated if the
doors and the tailgate have been locked us-ing a key, the inside lock knob or the central
door lock switch (instead of the keyless en- try system or the keyless operation func-
tion).
l If the turn-signal lamps do not blink after the
locking and unlocking operation using the keyless entry system or the keyless operation
function, the security alarm system may be malfunctioning.
Have the vehicle inspected at a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
If the confirmation function (blinking of the turn-signal lamps by locking and unlocking
the doors and the tailgate) is deactivated, the
turn-signal lamps do not blink after the lock- ing and unlocking operation.
For information on the confirmation func- tion, refer to “Keyless entry system” on pa-
ges 3-04 , 3-22 and “To operate using the
keyless operation function” on page 3-10.
l The security alarm system could be activated
in the following situations.
• Using a car wash
Security alarm system*
3-32
OGAE14E1Locking and unlocking3

NOTE•Taking the vehicle on a ferry
• Parking in an automated car park
• Leaving someone or a pet in the vehicle
• Leaving a window open
• Leaving an unstable object such as a stuf-
fed toy or accessory in the vehicle
• Suffering a continuous impact or vibra-
tion by hail, thunder, etc.
According to the situations, deactivate the
vehicle inclination detection function and the interior intrusion detection function.
Refer to “To deactivate the vehicle inclina-
tion detection function and the interior intru-
sion detection function” on page 3-37.
l The sensitivity of the interior intrusion de-
tection function can be adjusted. For details, please contact a MITSUBISHI MOTORS
Authorized Service Point.The security alarm has four
modes:
System preparation mode (ap-
prox. 20 seconds)
(The buzzer sounds intermittently and the se- curity indicator (A) blinks.)
The system preparation time extends fromthe point at which all of the doors and the
tailgate are locked by pressing the LOCK
switch on the remote control switch or the
keyless operation function to the point at which the system armed mode goes into ef- fect.
During this time, it is possible to temporarily
open a door or the tailgate without using the
keyless entry system or the keyless operation function and without causing the alarm tosound (for example, when you forget some-
thing inside the vehicle or realize that a win- dow is open).
System armed mode
(The security indicator continues to blink with the indicator’s reduced lit-up duration
time.)
Once the system preparation mode has ended,
the system armed mode starts.
If an unlawful opening of any of the doors, tailgate or bonnet is detected during the sys-
tem armed mode, the alarm will be activated to warn people around the vehicle of an ab-
normal condition.
Also, if unlawful moving of the vehicle is at-
tempted or a vehicle intrusion is detected, the alarm will be activated.
Alarm activation
The turn-signal lamps blink and the siren sounds for approximately 30 seconds.
Refer to “Alarm activation” on page 3-38.
Security alarm system*
3-33
OGAE14E1Locking and unlocking3

NOTElThe alarm will resume if unlawful actions
are taken again, even if the alarm has stop-
ped.
System cancellation
It is possible to cancel the system activation
during the system preparation mode or the system armed mode.
In addition, it is possible to cancel the alarm
once it has been activated.
Refer to “Cancelling the system” on page 3-37, “Cancelling the alarm” on page 3-38.
NOTEl When lending the vehicle to another person
or allowing the vehicle to be driven bysomeone who is unfamiliar with the securityalarm system, be sure to give the person a
proper explanation of the security alarm sys- tem.
If a person who is unfamiliar with the securi-
ty alarm system accidentally unlocked the vehicle, causing the alarm to sound, the
alarm would be a nuisance to people nearby.Changing the security alarm
settings
E00301600267
It is possible to set the security alarm to the “active” mode or “inactive” mode.
Follow the procedure below. 1. Except for vehicles equipped with the
keyless operation system, remove the
key from the ignition switch. For vehi-
cles equipped with the keyless operation
system, put the operation mode in OFF.
2. Place the lamp switch in the “OFF” posi- tion, and leave the driver’s door open.3. Pull the windscreen wiper and washer
switch towards you and hold it there. (Since the ignition switch is in the
“LOCK” position or the operation mode
is in OFF, washer fluid will not be
sprayed.)
4. After approximately 10 seconds, the
buzzer will make a sound. Keep the windscreen wiper and washer switch
pulled towards you. (If the windscreen
wiper and washer switch was released,
the setting change mode would be can-
celled. To start over, perform the proce- dure again from step 3.)
5. When the buzzer stops, with the wind-
screen wiper and washer switch still
pulled towards you, press the UNLOCK switch (A) on the remote control switch to select the security alarm settings
mode.
Security alarm system*
3-34 OGAE14E1Locking and unlocking3

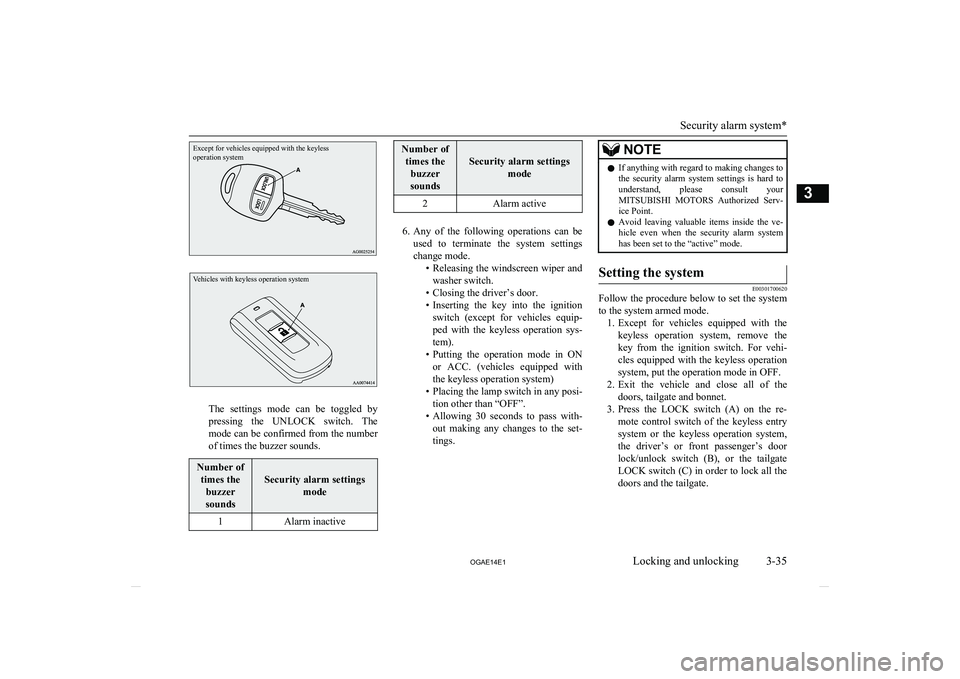

Except for vehicles equipped with the keyless
operation systemVehicles with keyless operation system
The settings mode can be toggled by
pressing the UNLOCK switch. The mode can be confirmed from the number
of times the buzzer sounds.
Number of
times the buzzer
sounds
Security alarm settings mode
1Alarm inactiveNumber oftimes the buzzer
sounds
Security alarm settings mode
2Alarm active
6.Any of the following operations can be
used to terminate the system settings change mode. •Releasing the windscreen wiper and
washer switch.
• Closing the driver’s door.
• Inserting the key into the ignition
switch (except for vehicles equip-
ped with the keyless operation sys- tem).
• Putting the operation mode in ON
or ACC. (vehicles equipped with the keyless operation system)
• Placing the lamp switch in any posi-
tion other than “OFF”.
• Allowing 30 seconds to pass with-
out making any changes to the set-
tings.
NOTEl If anything with regard to making changes to
the security alarm system settings is hard to understand, please consult yourMITSUBISHI MOTORS Authorized Serv-
ice Point.
l Avoid leaving valuable items inside the ve-
hicle even when the security alarm system
has been set to the “active” mode.Setting the system
E00301700620
Follow the procedure below to set the system
to the system armed mode. 1. Except for vehicles equipped with the
keyless operation system, remove the key from the ignition switch. For vehi-
cles equipped with the keyless operation
system, put the operation mode in OFF.
2. Exit the vehicle and close all of the
doors, tailgate and bonnet.
3. Press the LOCK switch (A) on the re-
mote control switch of the keyless entry
system or the keyless operation system, the driver’s or front passenger’s door
lock/unlock switch (B), or the tailgate LOCK switch (C) in order to lock all the doors and the tailgate.
Security alarm system*
3-35
OGAE14E1Locking and unlocking3

Except for vehicles with the keyless operation systemVehicles with the keyless operation systemDriver’s and front passenger’s door look/unlock switches*Tailgate LOCK switch*
By locking the vehicle using the keylessentry system or the keyless operation
function, the system preparation mode is activated.
The buzzer makes an intermittent beep-
ing sound and the security indicator (D) in the audio panel blinks for confirma-
tion.
NOTEl The system preparation mode is not activa-
ted when the doors and the tailgate havebeen locked using a method other than the
keyless entry system or the keyless operation
function (namely a key, the inside lock knob or the central door lock switch).
l If the bonnet is open, the security indicator
illuminates, and the system does not enter the system preparation mode.
When the bonnet is closed, the system enters the system preparation mode, and after ap- proximately 20 seconds the system enters
the system armed mode.
4. After approximately 20 seconds, the
buzzer stops, and when the blinking of the security indicator starts to slow
down, the system armed mode goes into effect.
The security indicator continues to blink
during the system armed mode.
NOTEl The security alarm system can be activated
when people are riding inside the vehicle or when the windows are open. To prevent ac-cidental activation of the alarm, do not set
the system to the system armed mode while people are riding in the vehicle.
Security alarm system*
3-36 OGAE14E1Locking and unlocking3
