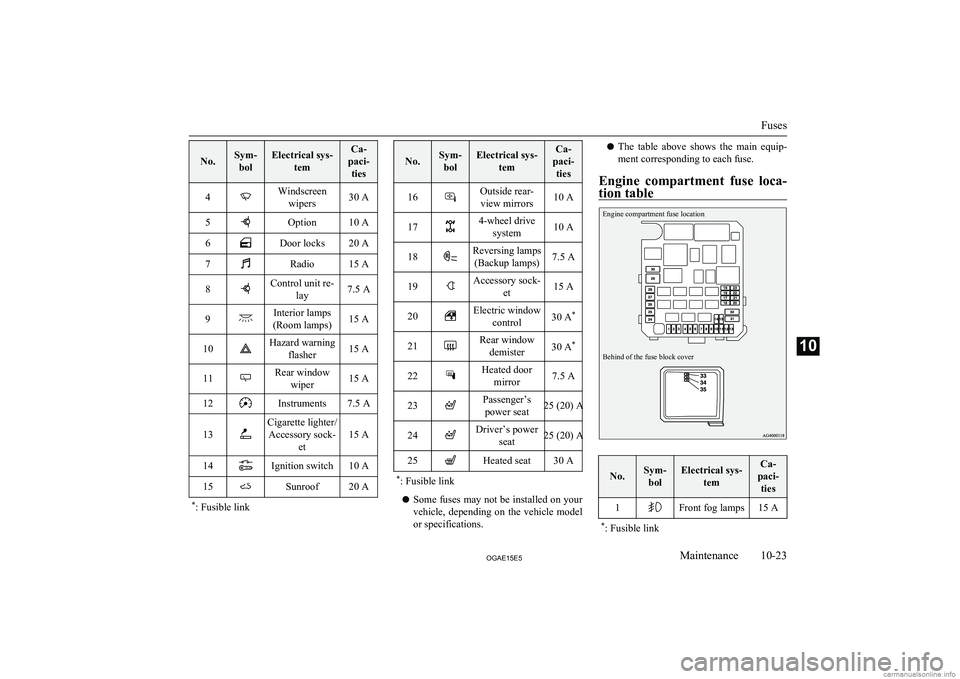

MITSUBISHI ASX 2015  Owners Manual (in English) No.Sym-bolElectrical sys- temCa-
paci- ties4Windscreen wipers30 A5Option10 A6Door locks20 A7Radio15 A8Control unit re- lay7.5 A9Interior lamps
(Room lamps)15 A10Hazard warning flasher15 A11Rear window

Page 382 of 452

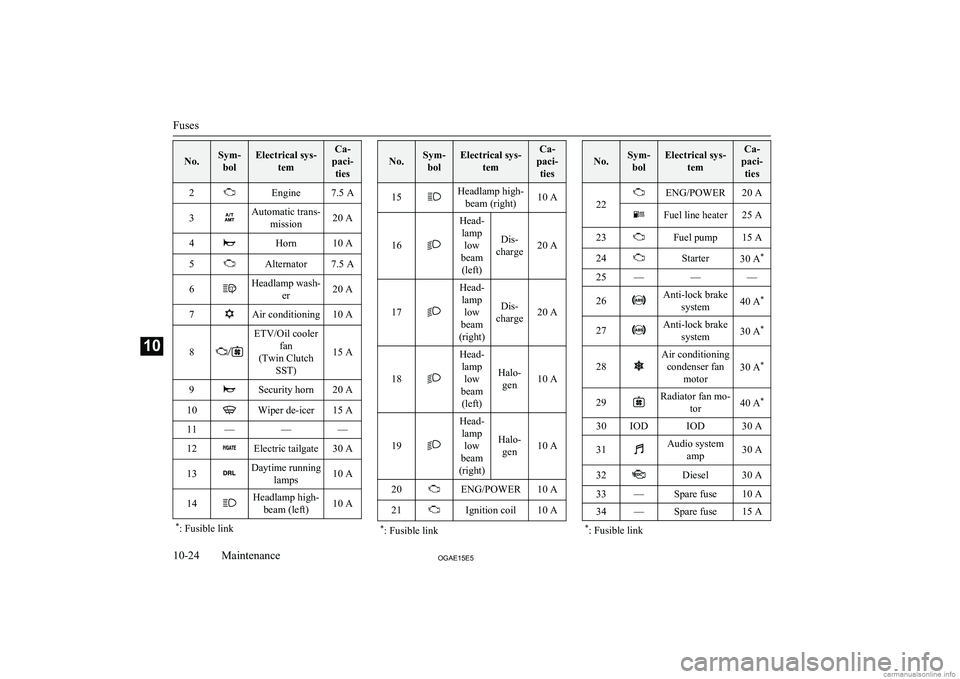

MITSUBISHI ASX 2015  Owners Manual (in English) No.Sym-bolElectrical sys- temCa-
paci- ties2Engine7.5 A3Automatic trans- mission20 A4Horn10 A5Alternator7.5 A6Headlamp wash- er20 A7Air conditioning10 A
8
ETV/Oil coolerfan
(Twin Clutch SST)
15 A
9Sec

Page 383 of 452

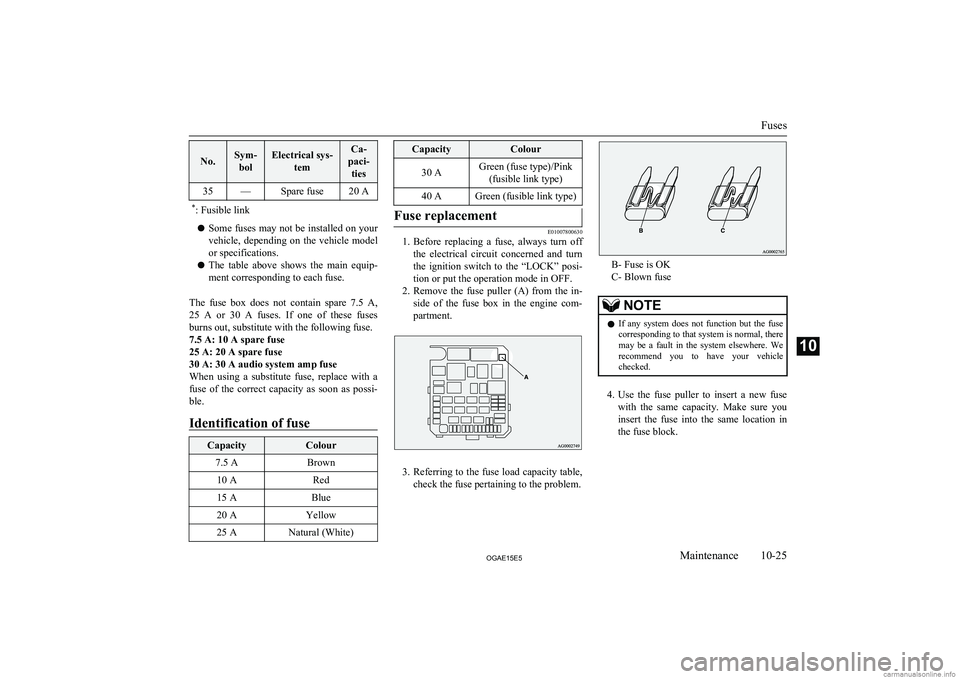

MITSUBISHI ASX 2015  Owners Manual (in English) No.Sym-bolElectrical sys- temCa-
paci- ties35—Spare fuse20 A* : Fusible link
l Some fuses may not be installed on your
vehicle,  depending  on  the  vehicle  model
or specifications.
l The  table  a

Page 384 of 452

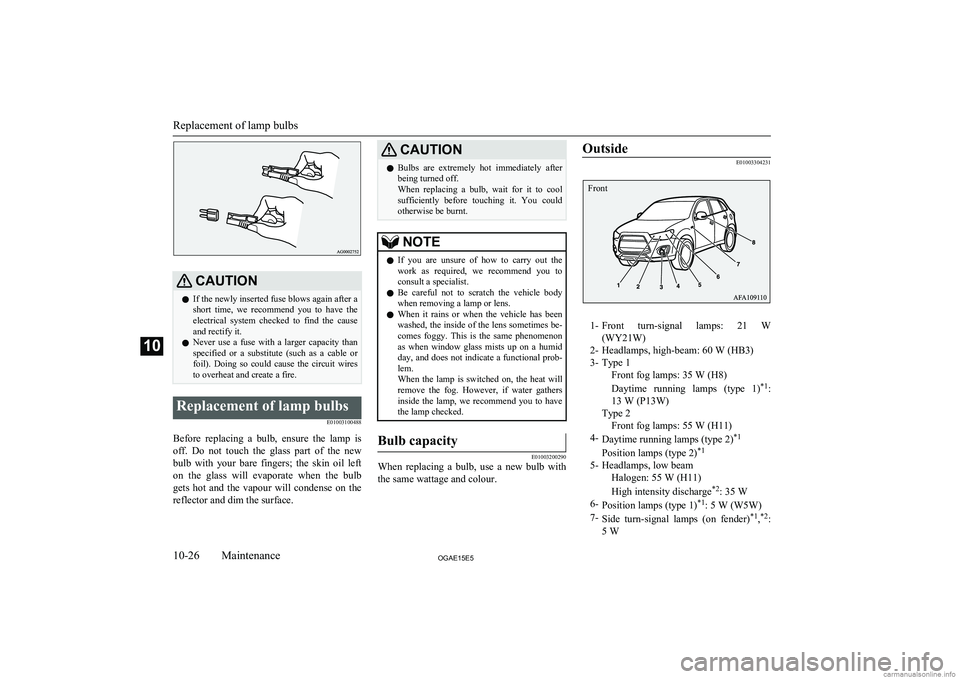

MITSUBISHI ASX 2015  Owners Manual (in English) CAUTIONlIf the newly inserted fuse blows again after a
short  time,  we  recommend  you  to  have  the electrical  system  checked  to  find  the  causeand rectify it.
l Never  use  a  fuse  with  a

Page 385 of 452

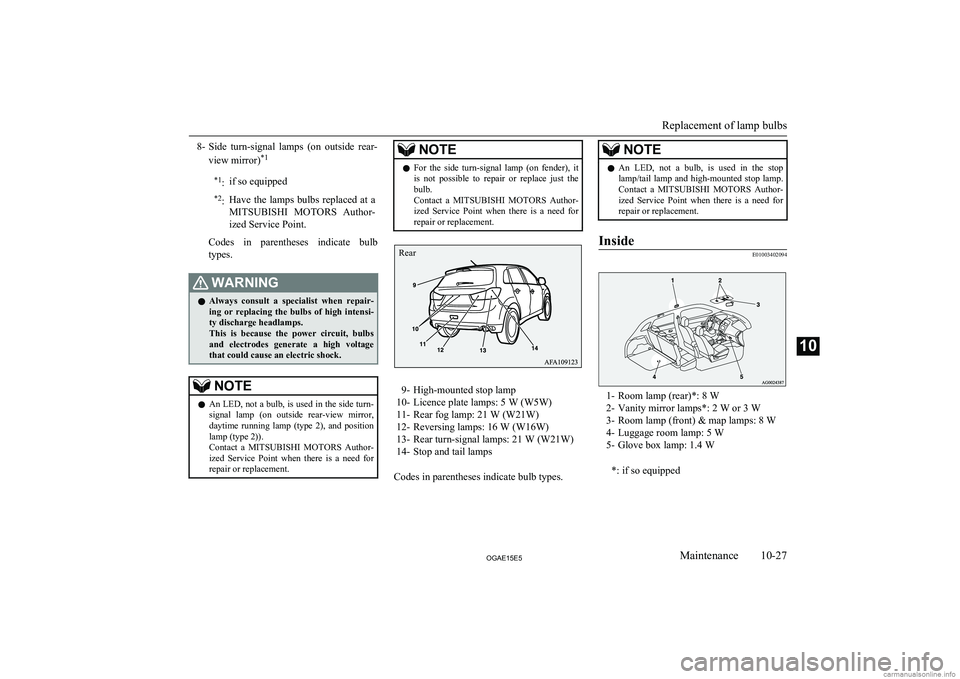

MITSUBISHI ASX 2015  Owners Manual (in English) 8-Side  turn-signal  lamps  (on  outside  rear-
view mirror) *1*1
:if so equipped*2:Have  the  lamps  bulbs  replaced  at  a
MITSUBISHI  MOTORS  Author-
ized Service Point.
Codes  in  parentheses  ind

Page 386 of 452

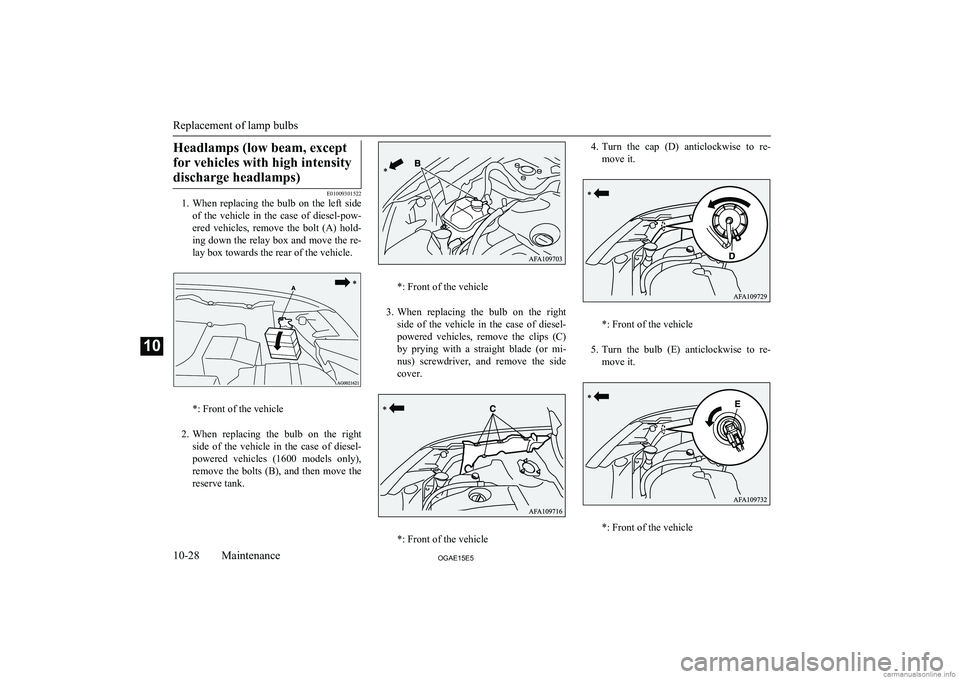

MITSUBISHI ASX 2015  Owners Manual (in English) Headlamps (low beam, exceptfor vehicles with high intensity discharge headlamps)
E01009301522
1. When  replacing  the  bulb  on  the  left  side
of  the  vehicle  in  the  case  of  diesel-pow- ered

Page 387 of 452

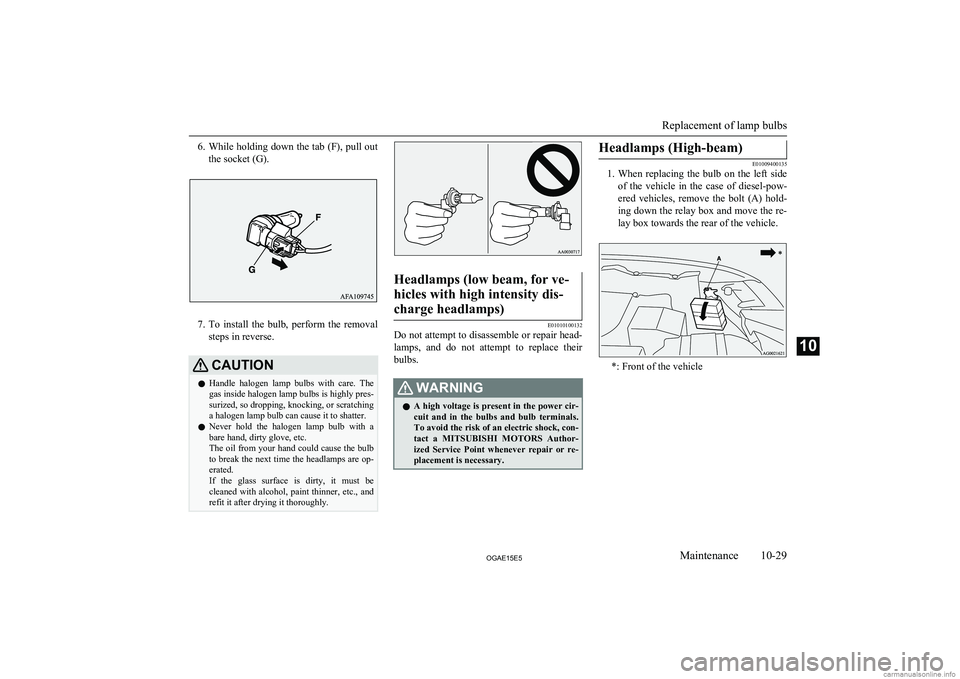

MITSUBISHI ASX 2015  Owners Manual (in English) 6.While holding down the tab (F), pull out
the socket (G).
7. To  install  the  bulb,  perform  the  removal
steps in reverse.
CAUTIONl Handle  halogen  lamp  bulbs  with  care.  The
gas inside haloge

Page 388 of 452

MITSUBISHI ASX 2015  Owners Manual (in English) 2.Turn  the  cap  (B)  anticlockwise  to  re-
move it.
*: Front of the vehicle
3. Turn  the  bulb  (C)  anticlockwise  to  re-
move it.
*: Front of the vehicle
4. While holding down the tab (D), pull

Page 389 of 452

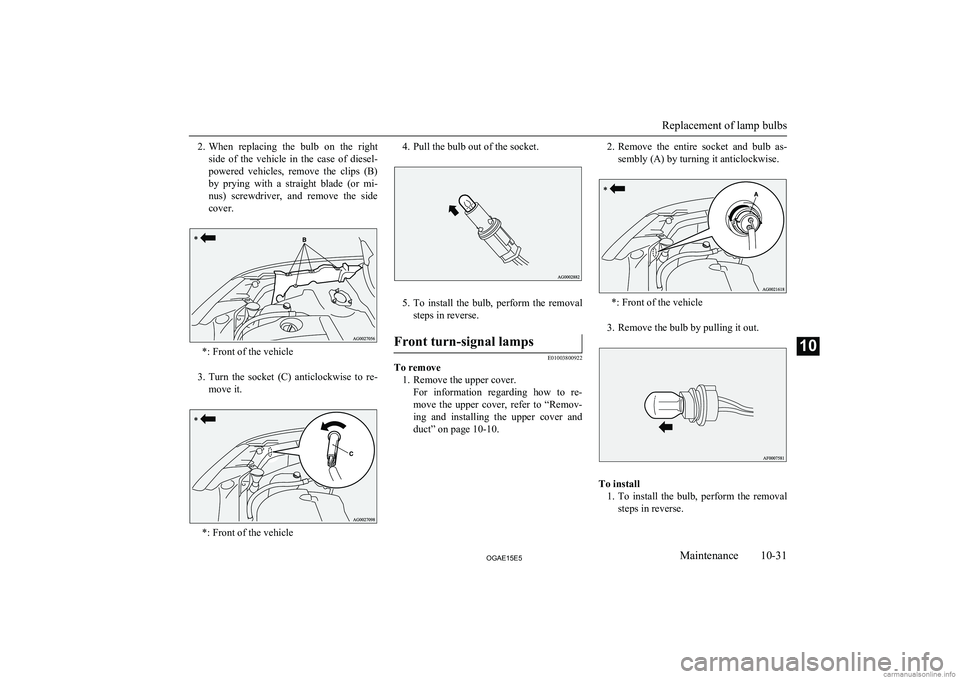

MITSUBISHI ASX 2015  Owners Manual (in English) 2.When  replacing  the  bulb  on  the  right
side  of  the  vehicle  in  the  case  of  diesel-
powered  vehicles,  remove  the  clips  (B)
by  prying  with  a  straight  blade  (or  mi- nus)  screwdr

Page 390 of 452

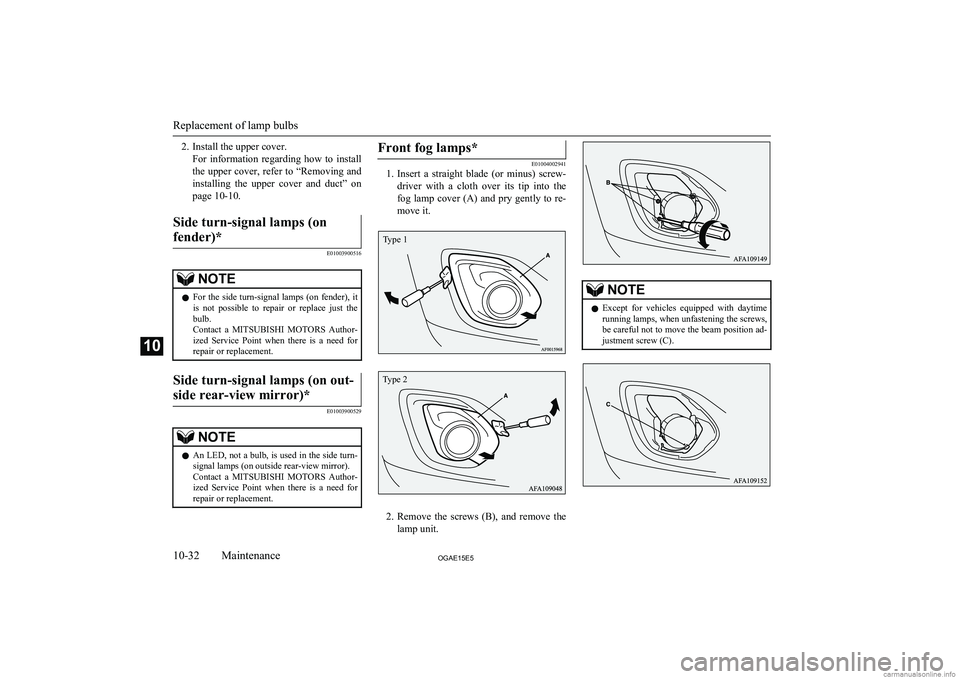

MITSUBISHI ASX 2015  Owners Manual (in English) 2. Install the upper cover.For  information  regarding  how  to  install
the upper cover, refer to “Removing and
installing  the  upper  cover  and  duct”  on page 10-10.Side turn-signal lamps (on
