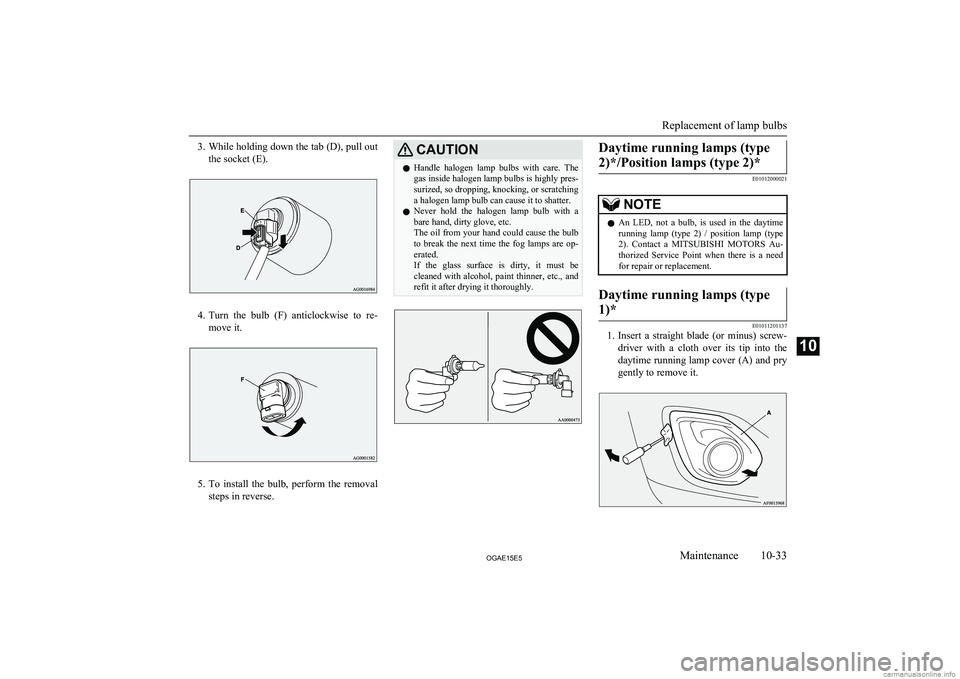

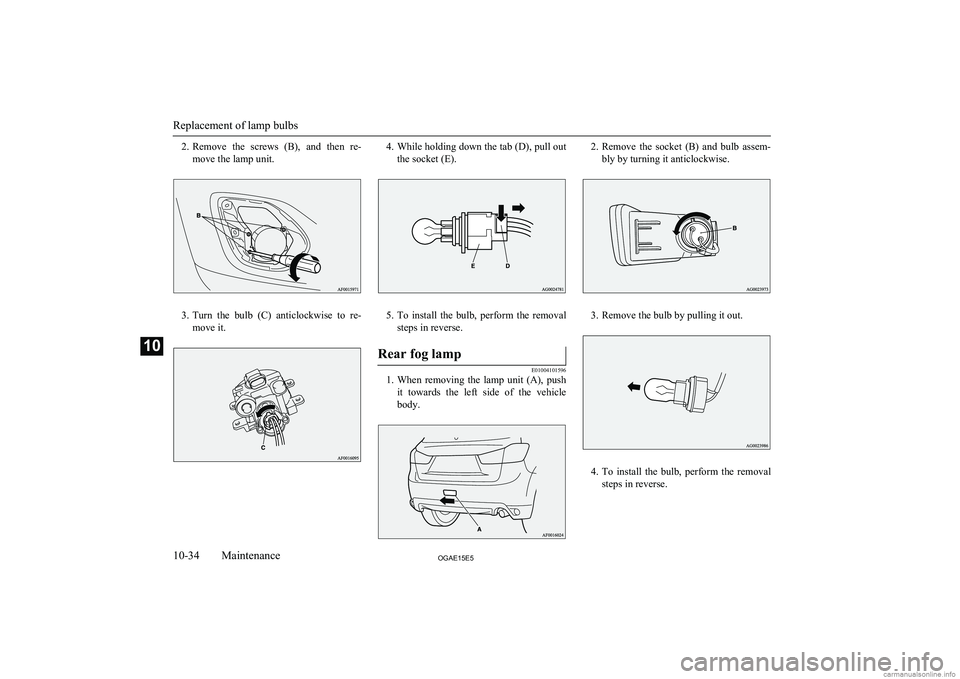

MITSUBISHI ASX 2015  Owners Manual (in English) 3.While holding down the tab (D), pull out
the socket (E).
4. Turn  the  bulb  (F)  anticlockwise  to  re-
move it.
5. To  install  the  bulb,  perform  the  removal
steps in reverse.
CAUTIONl Handle

Page 392 of 452

MITSUBISHI ASX 2015  Owners Manual (in English) 2.Remove  the  screws  (B),  and  then  re-
move the lamp unit.
3. Turn  the  bulb  (C)  anticlockwise  to  re-
move it.
4. While holding down the tab (D), pull out
the socket (E).
5. To  install  the

Page 393 of 452

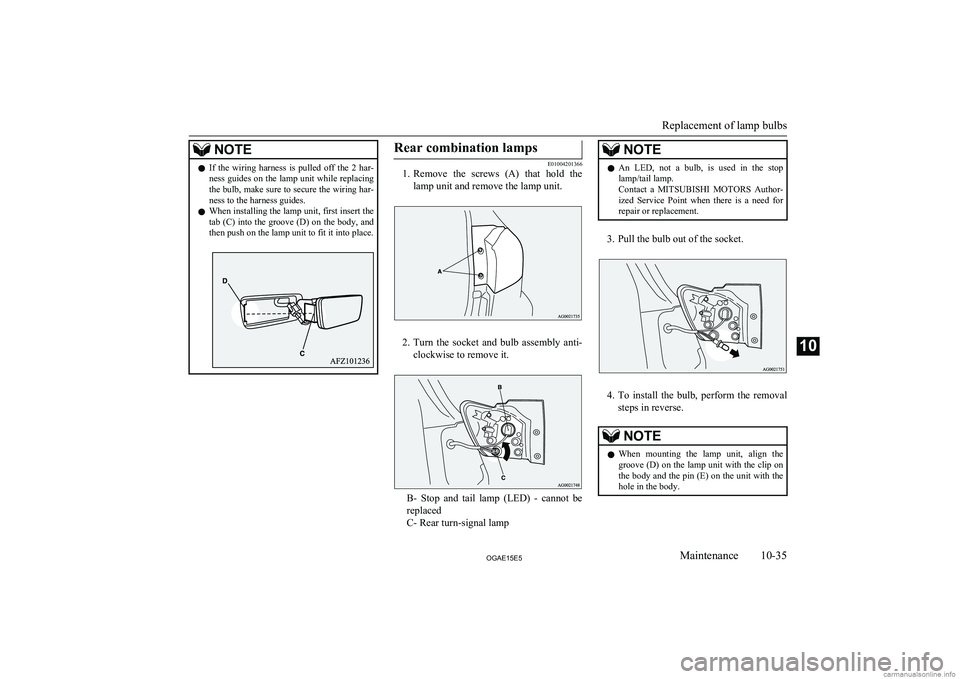

MITSUBISHI ASX 2015  Owners Manual (in English) NOTElIf  the  wiring  harness  is  pulled  off  the  2  har-
ness guides on the lamp unit while replacingthe bulb, make sure to secure the wiring har-
ness to the harness guides.
l When installing the

Page 394 of 452

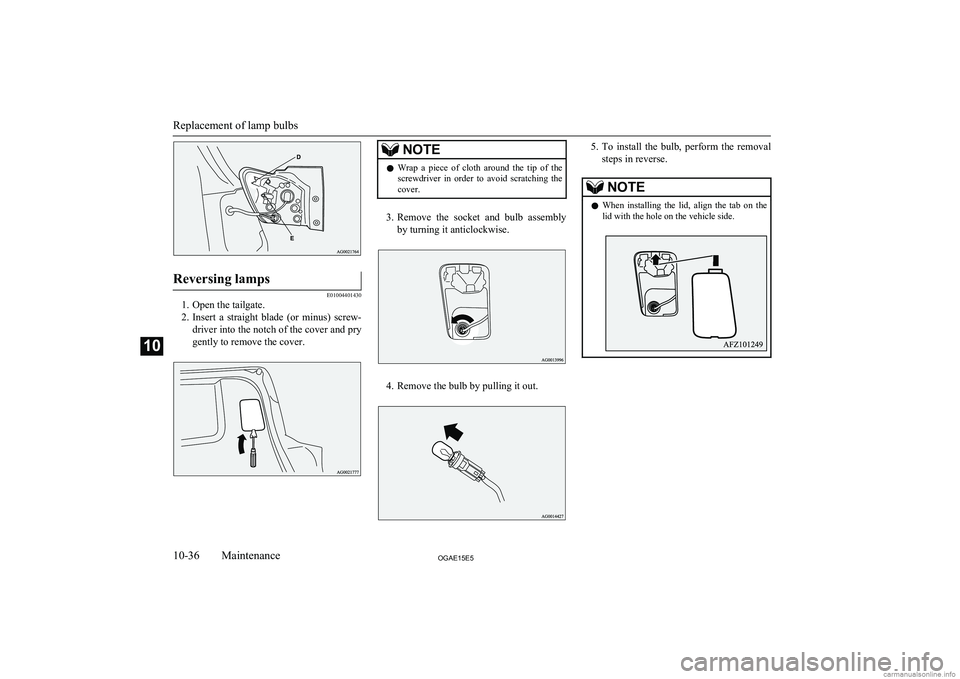

MITSUBISHI ASX 2015  Owners Manual (in English) Reversing lamps
E01004401430
1. Open the tailgate.
2. Insert  a  straight  blade  (or  minus)  screw-
driver into the notch of the cover and pry
gently to remove the cover.
NOTEl Wrap  a  piece  of  c

Page 395 of 452

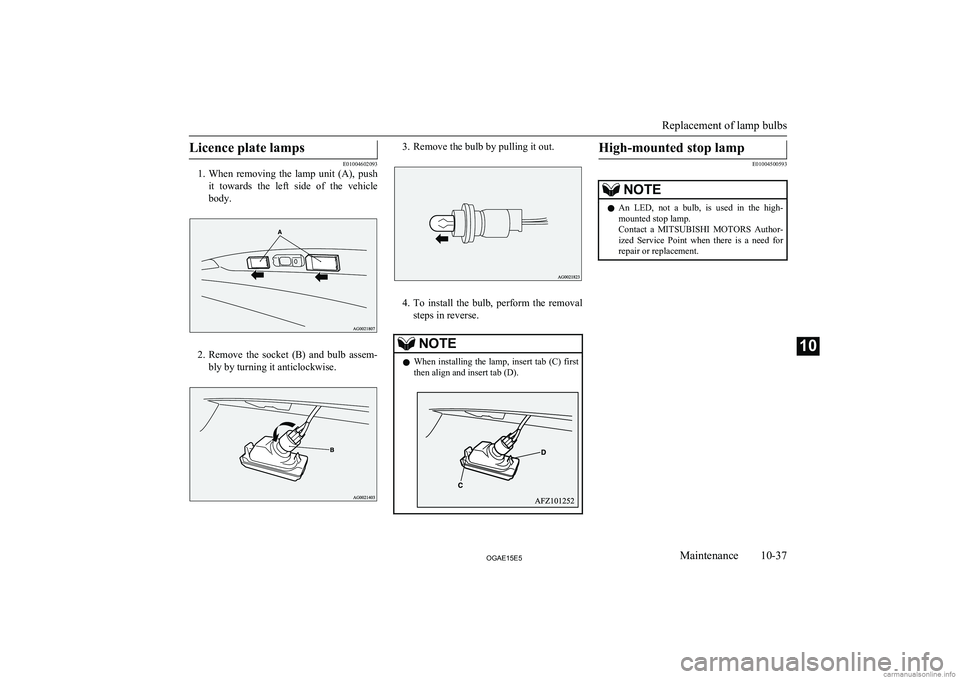

MITSUBISHI ASX 2015  Owners Manual (in English) Licence plate lamps
E01004602093
1. When  removing  the  lamp  unit  (A),  push
it  towards  the  left  side  of  the  vehicle
body.
2. Remove  the  socket  (B)  and  bulb  assem-
bly by turning it an

Page 396 of 452

MITSUBISHI ASX 2015  Owners Manual (in English)


























  OGAE15E5

Page 397 of 452

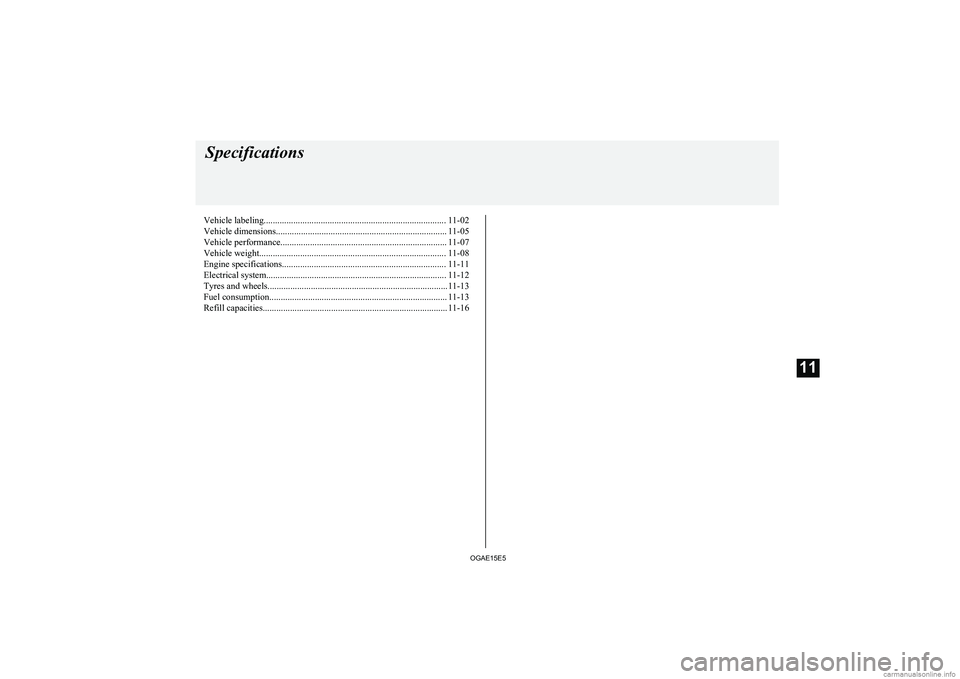

MITSUBISHI ASX 2015  Owners Manual (in English) Vehicle labeling................................................................................ 11-02
Vehicle dimensions........................................................................... 11-

Page 398 of 452

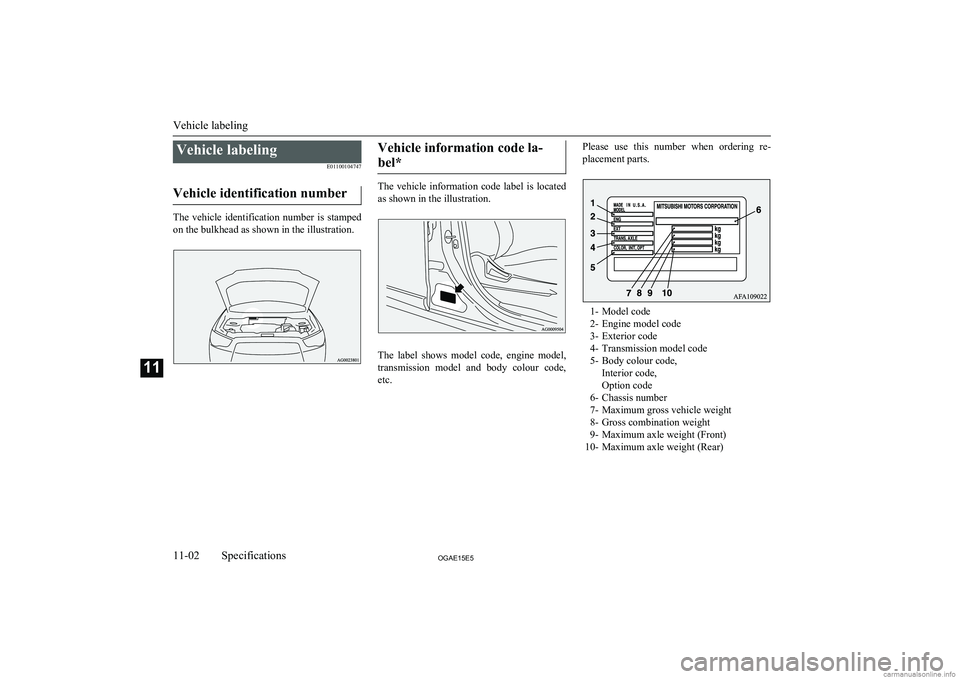

MITSUBISHI ASX 2015  Owners Manual (in English) Vehicle labelingE01100104747
Vehicle identification number
The  vehicle  identification  number  is  stamped on the bulkhead as shown in the illustration.
Vehicle information code la-
bel*
The  vehicl

Page 399 of 452

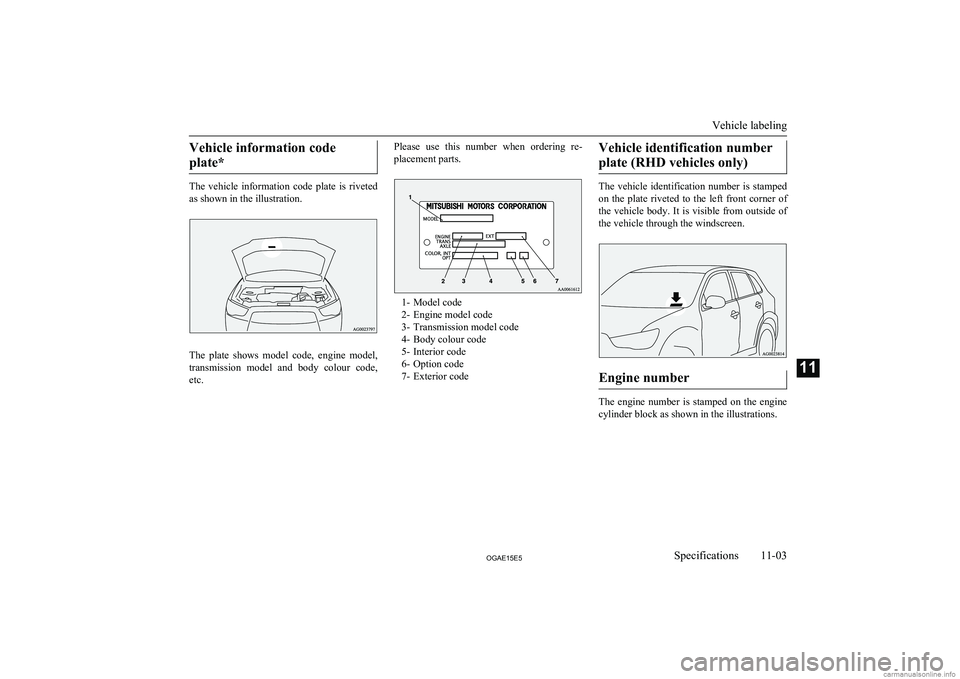

MITSUBISHI ASX 2015  Owners Manual (in English) Vehicle information codeplate*
The  vehicle  information  code  plate  is  riveted
as shown in the illustration.
The  plate  shows  model  code,  engine  model,
transmission  model  and  body  colour

Page 400 of 452

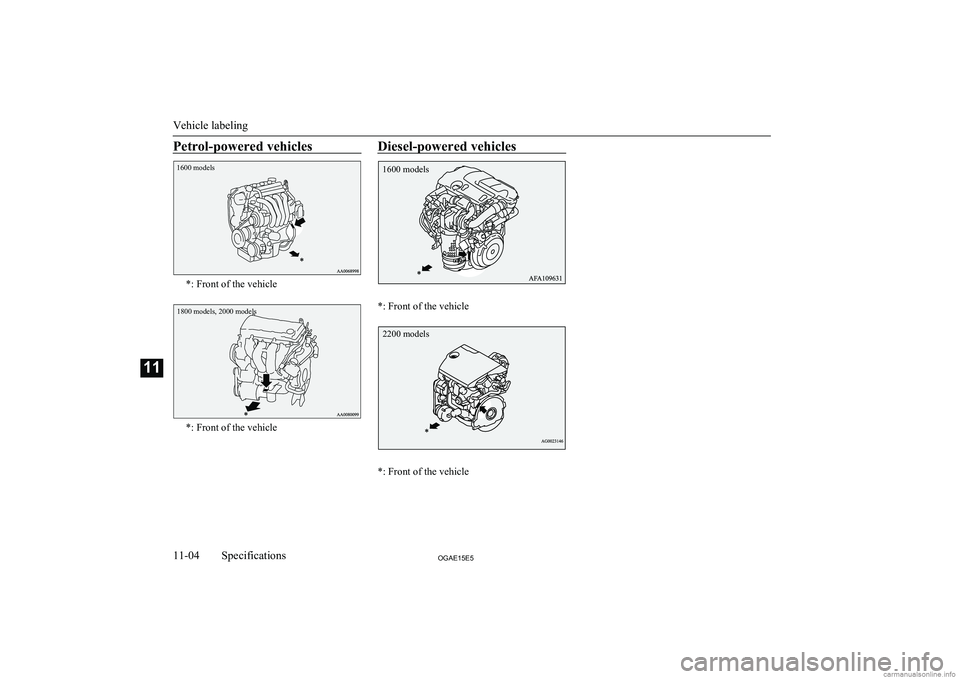

MITSUBISHI ASX 2015  Owners Manual (in English) Petrol-powered vehicles1600 models
*: Front of the vehicle
1800 models, 2000 models
*: Front of the vehicle
Diesel-powered vehicles
*: Front of the vehicle
*: Front of the vehicle
Vehicle labeling
11-
