MITSUBISHI ASX 2015 Owner's Manual (in English)

Item

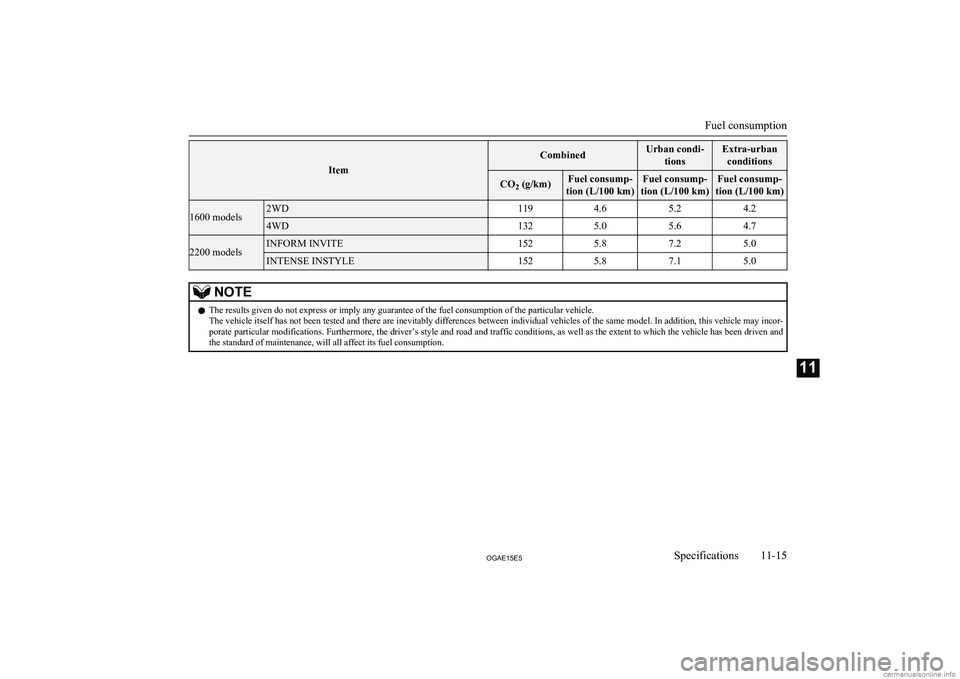

CombinedUrban condi-tionsExtra-urbanconditionsCO 2 (g/km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)1600 models2WD1194.65.24.24WD1325.05.64.72200 modelsINFORM INVITE1525.87.25.0INTENSE INSTYLE1525.87.15.0NOTEl The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its fuel consumption.

Fuel consumption
11-15OGAE15E5Specifications11

Refill capacitiesE01101306434
Refill capacities

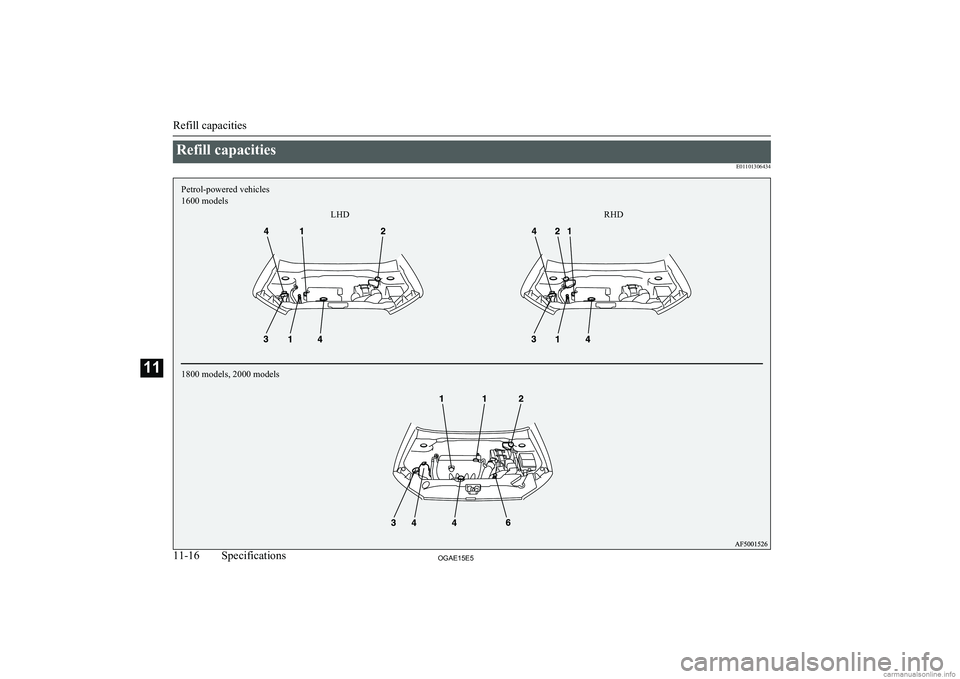

11-16OGAE15E5Specifications11Petrol-powered vehicles 1600 modelsRHD
LHD
1800 models, 2000 models

Refill capacities

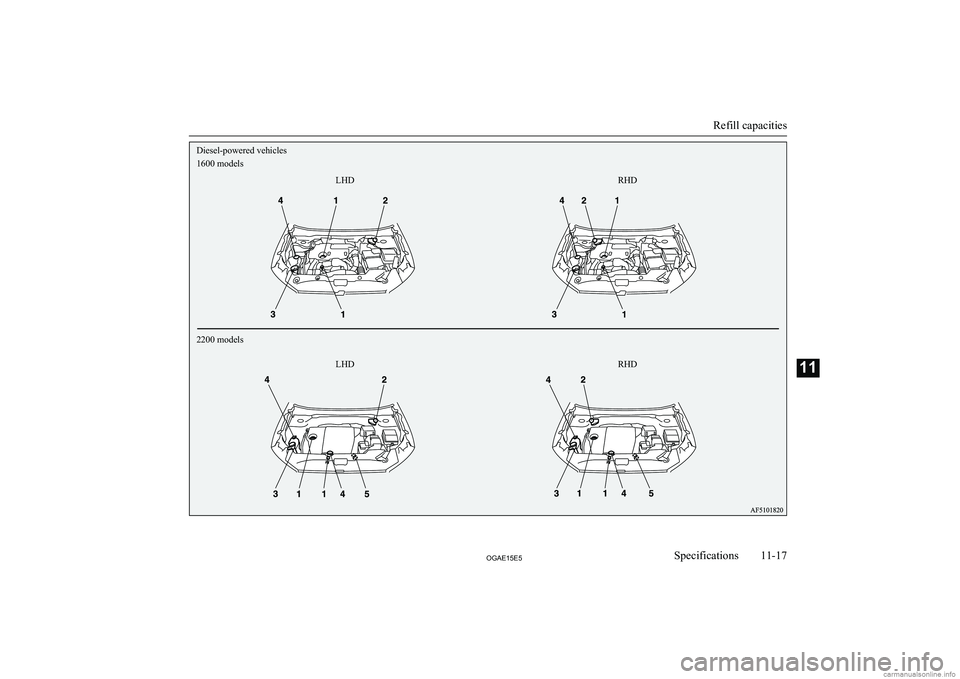

11-17OGAE15E5Specifications11Diesel-powered vehicles
1600 models
2200 modelsLHD
LHD RHD
RHD

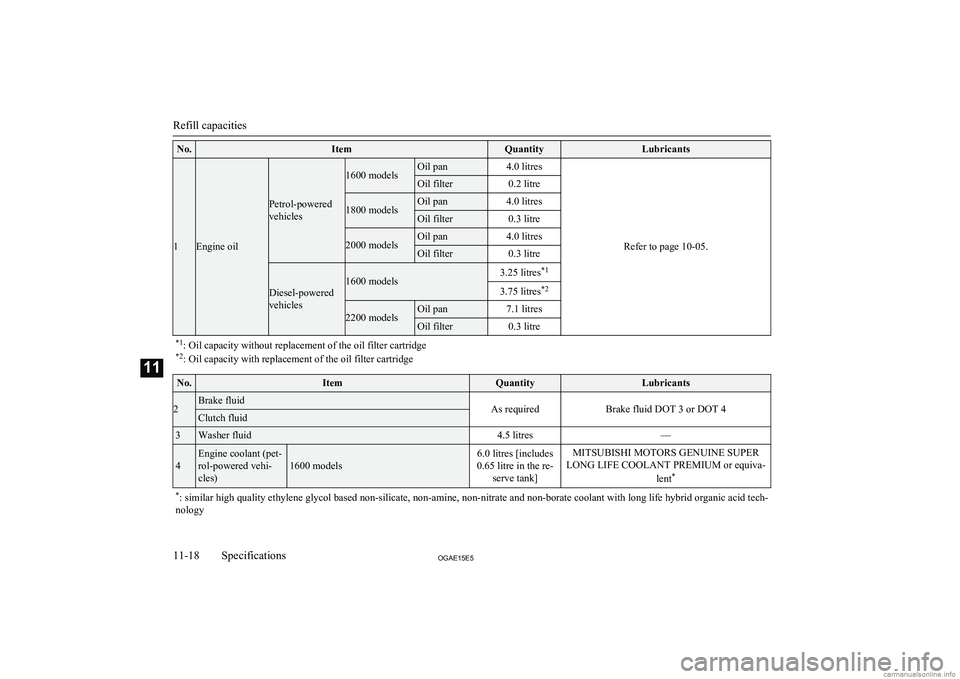

No.ItemQuantityLubricants
1Engine oil
Petrol-powered
vehicles
1600 modelsOil pan4.0 litres
Refer to page 10-05.
Oil filter0.2 litre1800 modelsOil pan4.0 litresOil filter0.3 litre2000 modelsOil pan4.0 litresOil filter0.3 litre
Diesel-powered
vehicles1600 models3.25 litres *13.75 litres*22200 modelsOil pan7.1 litresOil filter0.3 litre*1
: Oil capacity without replacement of the oil filter cartridge
*2 : Oil capacity with replacement of the oil filter cartridgeNo.ItemQuantityLubricants2Brake fluidAs requiredBrake fluid DOT 3 or DOT 4Clutch fluid3Washer fluid4.5 litres—
4
Engine coolant (pet-
rol-powered vehi-
cles)
1600 models
6.0 litres [includes
0.65 litre in the re- serve tank]MITSUBISHI MOTORS GENUINE SUPER
LONG LIFE COOLANT PREMIUM or equiva-
lent**
: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid tech-
nology
Refill capacities
11-18OGAE15E5Specifications11

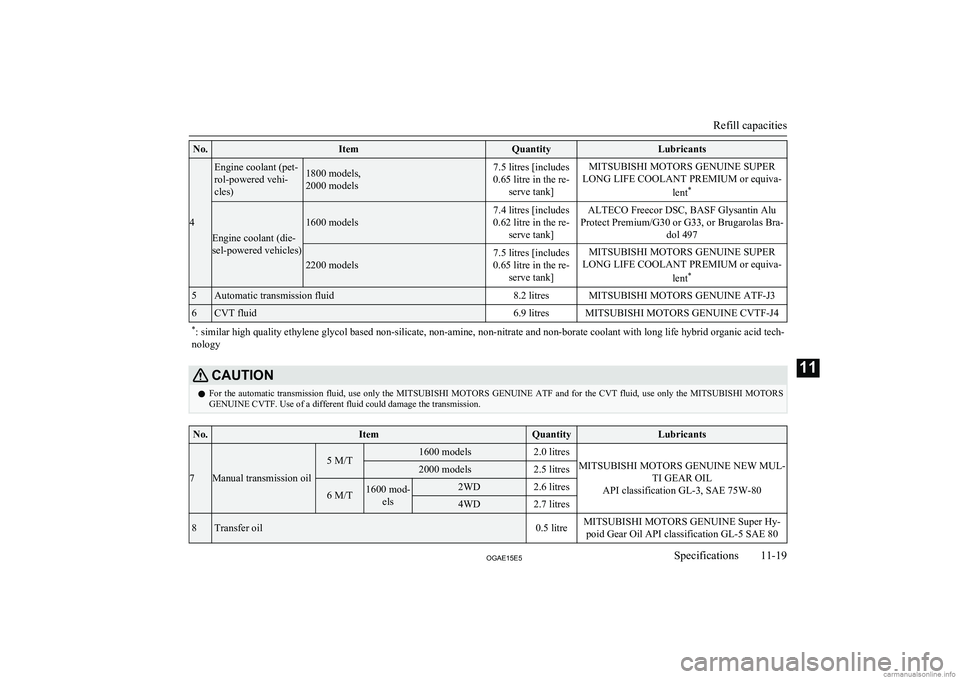

No.ItemQuantityLubricants
4
Engine coolant (pet-
rol-powered vehi-
cles)1800 models,
2000 models7.5 litres [includes
0.65 litre in the re- serve tank]MITSUBISHI MOTORS GENUINE SUPER
LONG LIFE COOLANT PREMIUM or equiva-
lent*
Engine coolant (die-
sel-powered vehicles)
1600 models
7.4 litres [includes
0.62 litre in the re- serve tank]ALTECO Freecor DSC, BASF Glysantin Alu
Protect Premium/G30 or G33, or Brugarolas Bra- dol 497
2200 models
7.5 litres [includes
0.65 litre in the re- serve tank]MITSUBISHI MOTORS GENUINE SUPER
LONG LIFE COOLANT PREMIUM or equiva-
lent*5Automatic transmission fluid8.2 litresMITSUBISHI MOTORS GENUINE ATF-J36CVT fluid6.9 litresMITSUBISHI MOTORS GENUINE CVTF-J4*
: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid tech-
nologyCAUTIONl For the automatic transmission fluid, use only the
MITSUBISHI MOTORS GENUINE ATF and for the CVT fluid, use only the MITSUBISHI MOTORS
GENUINE CVTF. Use of a different fluid could damage the transmission.No.ItemQuantityLubricants
7Manual transmission oil
5 M/T1600 models2.0 litres
MITSUBISHI MOTORS GENUINE NEW MUL-
TI GEAR OIL
API classification GL-3, SAE 75W-80
2000 models2.5 litres6 M/T1600 mod- els2WD2.6 litres4WD2.7 litres8Transfer oil0.5 litreMITSUBISHI MOTORS GENUINE Super Hy-poid Gear Oil API classification GL-5 SAE 80
Refill capacities
11-19OGAE15E5Specifications11

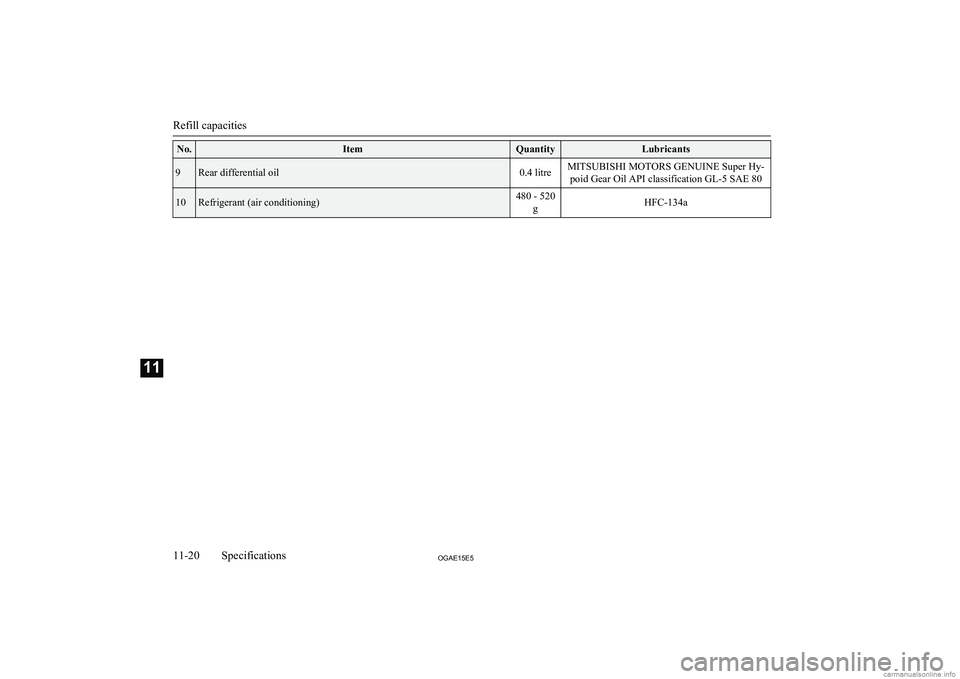

No.ItemQuantityLubricants9Rear differential oil0.4 litreMITSUBISHI MOTORS GENUINE Super Hy-poid Gear Oil API classification GL-5 SAE 8010Refrigerant (air conditioning)480 - 520 gHFC-134a

Refill capacities
11-20OGAE15E5Specifications11

4
4-wheel drive operation.....................................6-41A
Accessory (Installation).....................................2-04
Accessory socket............................................... 7-74
Active stability control (ASC)...........................6-51
Additional equipment...................................... 10-19
Air conditioning................................................ 7-03 Important operation tips for the airconditioning................................................. 7-11
Air purifier.........................................................7-12
Airbag................................................................ 4-24
Antenna............................................................. 7-47
Anti-lock brake system (ABS).......................... 6-48 Display.......................................................... 6-49
Warning lamp................................................6-49
Ashtray.............................................................. 7-72
Assist grips........................................................ 7-83
Audio CD player...................................................... 7-12
LW/MW/FM radio........................................ 7-12
Troubleshooting............................................ 7-45
Auto Stop & Go (AS&G) system......................6-19
Automatic transmission Fluid............................................................ 11-16
Selector lever operation........................ 6-26,6-32
Selector lever position.......................... 6-28,6-34
Sports mode.......................................... 6-29,6-36
B
Battery............................................................. 10-09
Charge warning lamp.................................... 5-46
Discharged battery (Emergency starting)..... 8-02
Disposal information for used batteries........ 2-06
Specification............................................... 11-12
Bluetooth® 2.0 interface................................... 7-48
Bonnet............................................................. 10-03
Bottle holder...................................................... 7-81
Brake assist system............................................6-47
Brake Anti-lock brake............................................. 6-48
Braking.......................................................... 6-44
Fluid.................................................. 10-09,11-16
Parking brake................................................ 6-06
Bulb capacity................................................... 10-26
C
Capacities........................................................ 11-16
Card holder................................................7-72,7-79
Cargo loads........................................................6-71
Catalytic converter.......................................... 10-02
Cautions on handling of 4-wheel drive vehicles................................................... 6-43
CD player.......................................................... 7-12
Central door locks............................................. 3-26
Charge warning lamp........................................ 5-46
Chassis number............................................... 11-02
Check engine warning lamp.............................. 5-45
Child restraint.................................................... 4-15
Caution for installing the child re- straint on vehicles with a front
passenger airbag.................................. 4-15,4-27
Child-protection rear doors............................... 3-30
Cigarette lighter................................................. 7-73
Cleaning
Exterior of your vehicle................................ 9-03
Interior of your vehicle................................. 9-02
Clutch
Fluid............................................................ 10-09
Coat hook.......................................................... 7-83
Combination headlamps and dipper switch...... 5-48
Coolant (engine)....................................10-07,11-16
Cruise control.................................................... 6-54
Cup holder......................................................... 7-81
D
Daytime running lamps (type 1)........................5-51Bulb capacity.............................................. 10-26
Replacement................................................ 10-33
Daytime running lamps (type 2)........................5-51
Bulb capacity.............................................. 10-26
Replacement................................................ 10-33
Demister (rear window).................................... 5-63
Diesel particulate filter (DPF)........................... 6-17Digital clock Time Setting.................................................. 7-43
Dimensions...................................................... 11-05
Dipper (High/Low beam change)......................5-52
Doors Central door locks......................................... 3-26Child-protection............................................ 3-30 Dead Lock System........................................ 3-27
Alphabetical index
