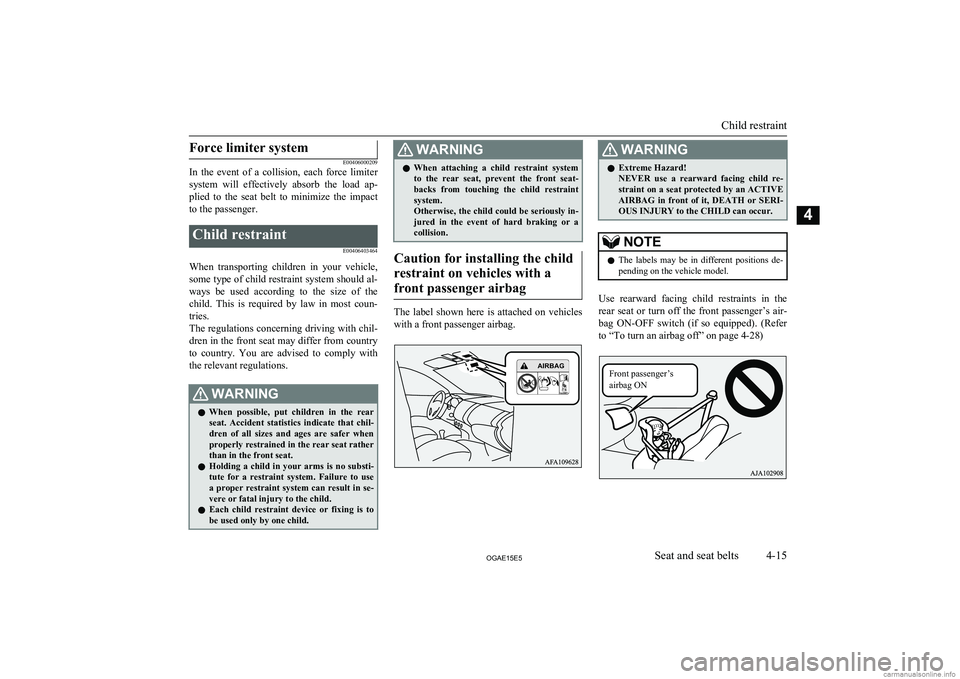

Page 81 of 452
Force limiter system
E00406000209
In the event of a collision, each force limiter
system will effectively absorb the load ap- plied to the seat belt to minimize the impact
to the passenger.Child restraint
E00406403464
When transporting children in your vehicle,some type of child restraint system should al-
ways be used according to the size of the child. This is required by law in most coun-
tries.
The regulations concerning driving with chil- dren in the front seat may differ from country
to country. You are advised to comply with the relevant regulations.
WARNINGl When possible, put children in the rear
seat. Accident statistics indicate that chil- dren of all sizes and ages are safer when
properly restrained in the rear seat rather than in the front seat.
l Holding a child in your arms is no substi-
tute for a restraint system. Failure to use
a proper restraint system can result in se- vere or fatal injury to the child.
l Each child restraint device or fixing is to
be used only by one child.WARNINGl When attaching a child restraint system
to the rear seat, prevent the front seat- backs from touching the child restraintsystem.
Otherwise, the child could be seriously in-
jured in the event of hard braking or a
collision.
Caution for installing the child
restraint on vehicles with a
front passenger airbag
The label shown here is attached on vehicles with a front passenger airbag.
WARNINGl Extreme Hazard!
NEVER use a rearward facing child re- straint on a seat protected by an ACTIVEAIRBAG in front of it, DEATH or SERI- OUS INJURY to the CHILD can occur.NOTEl The labels may be in different positions de-
pending on the vehicle model.
Use rearward facing child restraints in the
rear seat or turn off the front passenger’s air- bag ON-OFF switch (if so equipped). (Refer
to “To turn an airbag off” on page 4-28)
Child restraint
4-15OGAE15E5Seat and seat belts4 Front passenger’s
airbag ON

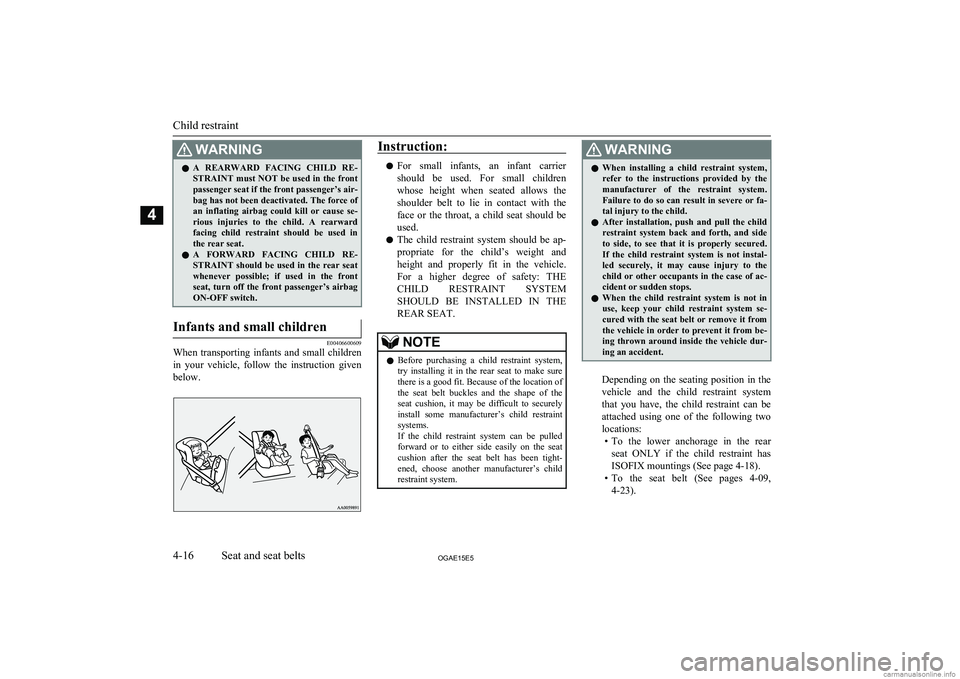

Page 82 of 452
WARNINGlA REARWARD FACING CHILD RE-
STRAINT must NOT be used in the front passenger seat if the front passenger’s air-
bag has not been deactivated. The force of an inflating airbag could kill or cause se-
rious injuries to the child. A rearward facing child restraint should be used in
the rear seat.
l A FORWARD FACING CHILD RE-
STRAINT should be used in the rear seat
whenever possible; if used in the front seat, turn off the front passenger’s airbag
ON-OFF switch.Infants and small children
E00406600609
When transporting infants and small children
in your vehicle, follow the instruction given below.
Instruction:
l For small infants, an infant carrier
should be used. For small children whose height when seated allows the shoulder belt to lie in contact with the
face or the throat, a child seat should be used.
l The child restraint system should be ap-
propriate for the child’s weight and
height and properly fit in the vehicle. For a higher degree of safety: THE
CHILD RESTRAINT SYSTEM
SHOULD BE INSTALLED IN THE REAR SEAT.
NOTEl Before purchasing a child restraint system,
try installing it in the rear seat to make surethere is a good fit. Because of the location of the seat belt buckles and the shape of theseat cushion, it may be difficult to securely
install some manufacturer’s child restraint
systems.
If the child restraint system can be pulled forward or to either side easily on the seatcushion after the seat belt has been tight-
ened, choose another manufacturer’s child restraint system.WARNINGl When installing a child restraint system,
refer to the instructions provided by themanufacturer of the restraint system.Failure to do so can result in severe or fa-tal injury to the child.
l After installation, push and pull the child
restraint system back and forth, and side to side, to see that it is properly secured.
If the child restraint system is not instal-
led securely, it may cause injury to the
child or other occupants in the case of ac- cident or sudden stops.
l When the child restraint system is not in
use, keep your child restraint system se-
cured with the seat belt or remove it from the vehicle in order to prevent it from be- ing thrown around inside the vehicle dur-
ing an accident.
Depending on the seating position in the
vehicle and the child restraint system
that you have, the child restraint can be attached using one of the following two
locations: • To the lower anchorage in the rear
seat ONLY if the child restraint has
ISOFIX mountings (See page 4-18).
• To the seat belt (See pages 4-09,
4-23).
Child restraint
4-16OGAE15E5Seat and seat belts4
Page 83 of 452

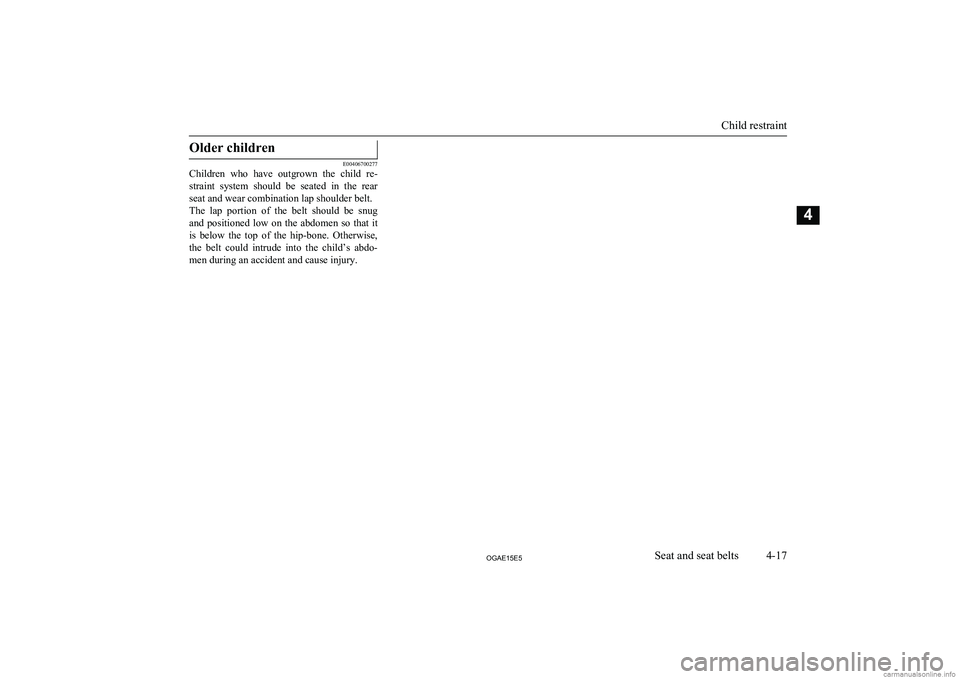

Older children
E00406700277
Children who have outgrown the child re-
straint system should be seated in the rear
seat and wear combination lap shoulder belt.
The lap portion of the belt should be snug and positioned low on the abdomen so that it
is below the top of the hip-bone. Otherwise, the belt could intrude into the child’s abdo-
men during an accident and cause injury.
Child restraint
4-17OGAE15E5Seat and seat belts4

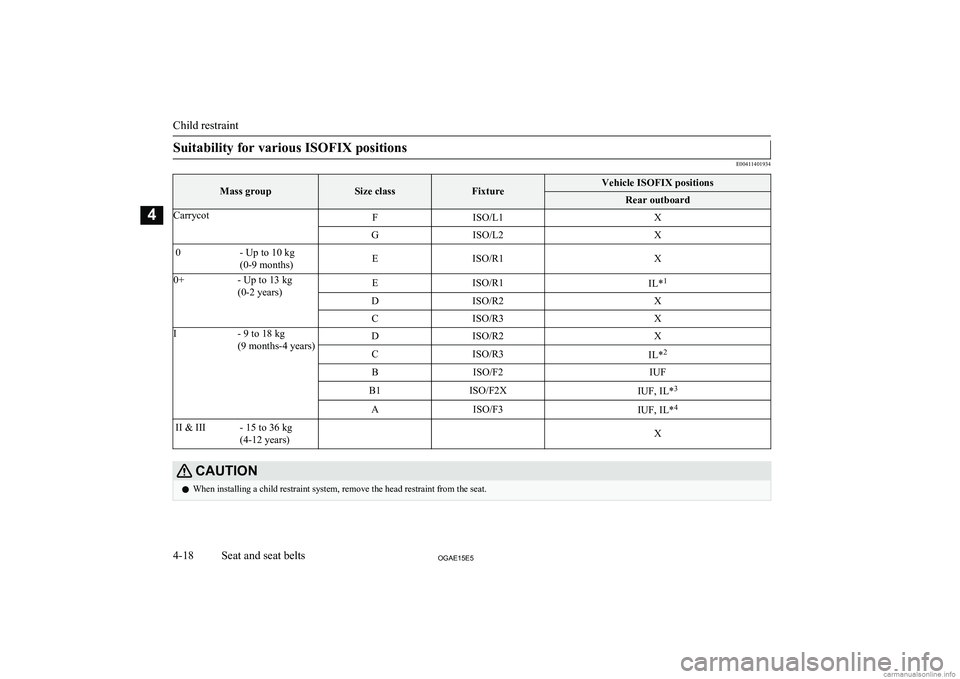

Page 84 of 452
Suitability for various ISOFIX positions
E00411401934Mass groupSize classFixtureVehicle ISOFIX positionsRear outboardCarrycotFISO/L1XGISO/L2X0- Up to 10 kg
(0-9 months)EISO/R1X0+- Up to 13 kg
(0-2 years)EISO/R1IL* 1DISO/R2XCISO/R3XI- 9 to 18 kg
(9 months-4 years)DISO/R2XCISO/R3IL* 2BISO/F2IUFB1ISO/F2XIUF, IL* 3AISO/F3IUF, IL*4II & III- 15 to 36 kg
(4-12 years) XCAUTIONl When installing a child restraint system, remove the head restraint from the seat.
Child restraint
4-18OGAE15E5Seat and seat belts4

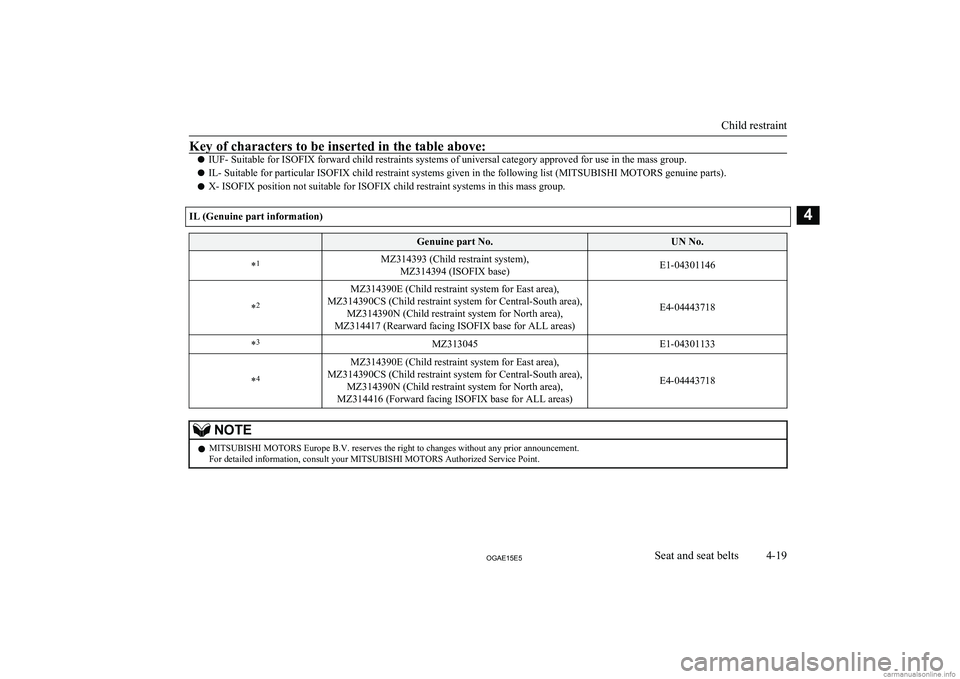

Page 85 of 452
Key of characters to be inserted in the table above:
lIUF- Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
l IL- Suitable for particular ISOFIX child restraint systems given in the following list (MITSUBISHI MOTORS genuine parts).
l X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group.IL (Genuine part information) Genuine part No.UN No.*1MZ314393 (Child restraint system),
MZ314394 (ISOFIX base)E1-04301146
*2
MZ314390E (Child restraint system for East area),
MZ314390CS (Child restraint system for Central-South area), MZ314390N (Child restraint system for North area),
MZ314417 (Rearward facing ISOFIX base for ALL areas)
E4-04443718
* 3MZ313045E1-04301133
*4
MZ314390E (Child restraint system for East area),
MZ314390CS (Child restraint system for Central-South area), MZ314390N (Child restraint system for North area),
MZ314416 (Forward facing ISOFIX base for ALL areas)
E4-04443718
NOTEl MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.
Child restraint
4-19OGAE15E5Seat and seat belts4
Page 86 of 452

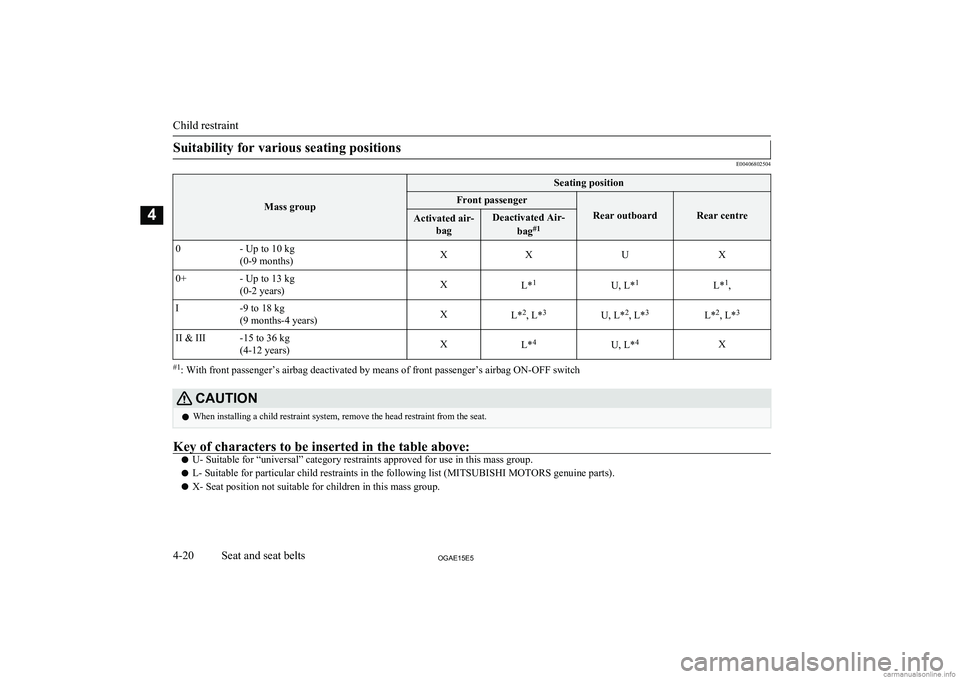

Suitability for various seating positions
E00406802504Mass group
Seating positionFront passenger
Rear outboardRear centre
Activated air-bagDeactivated Air-
bag#10- Up to 10 kg
(0-9 months)XXUX0+- Up to 13 kg
(0-2 years)XL* 1U, L* 1L*1
,I-9 to 18 kg
(9 months-4 years)XL* 2
, L* 3U, L* 2
, L* 3L*2
, L* 3II & III-15 to 36 kg
(4-12 years)XL* 4U, L* 4X
#1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch
CAUTIONl When installing a child restraint system, remove the head restraint from the seat.Key of characters to be inserted in the table above:
l
U- Suitable for “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.
Child restraint
4-20OGAE15E5Seat and seat belts4

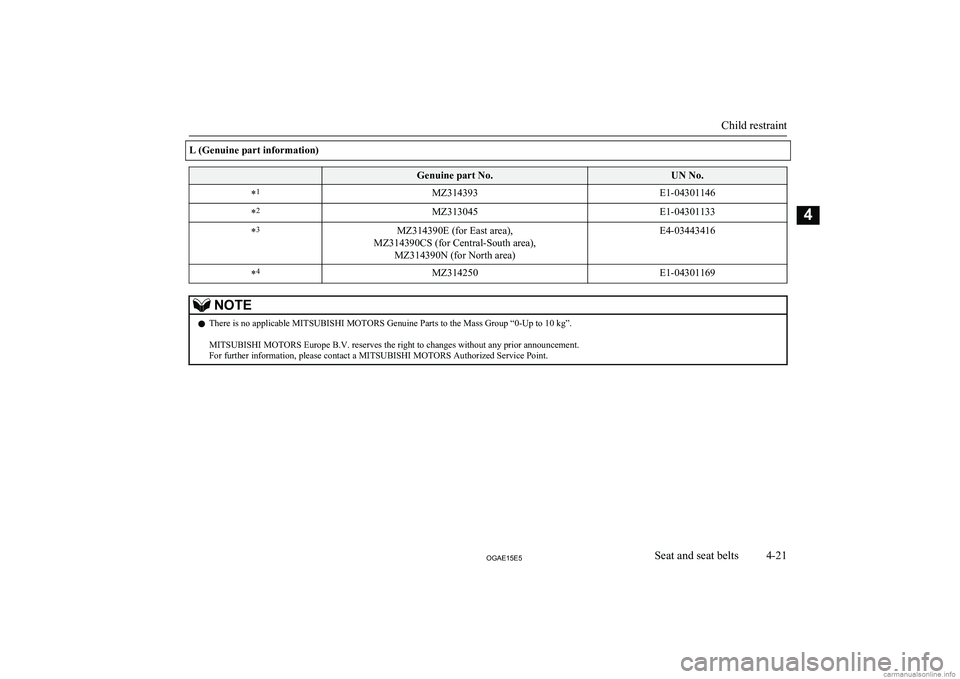

Page 87 of 452
L (Genuine part information) Genuine part No.UN No.*1MZ314393E1-04301146*2MZ313045E1-04301133*3MZ314390E (for East area),
MZ314390CS (for Central-South area), MZ314390N (for North area)E4-03443416*4MZ314250E1-04301169NOTEl
There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.
MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.
Child restraint
4-21OGAE15E5Seat and seat belts4

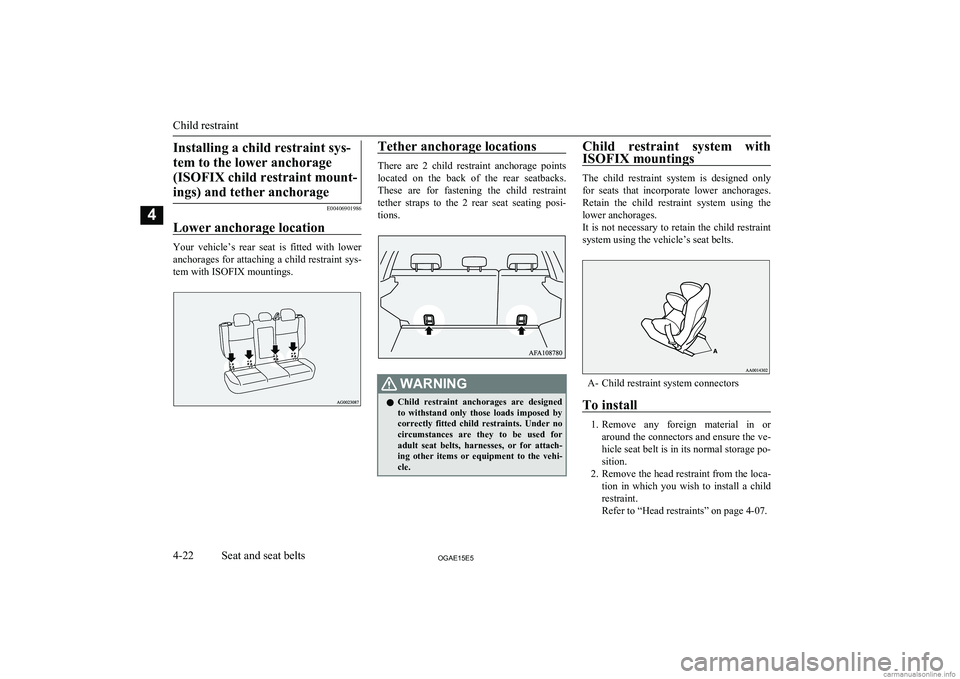

Page 88 of 452
Installing a child restraint sys-tem to the lower anchorage (ISOFIX child restraint mount-ings) and tether anchorage
E00406901986
Lower anchorage location
Your vehicle’s rear seat is fitted with lower
anchorages for attaching a child restraint sys- tem with ISOFIX mountings.
Tether anchorage locations
There are 2 child restraint anchorage points located on the back of the rear seatbacks.
These are for fastening the child restraint tether straps to the 2 rear seat seating posi-
tions.
WARNINGl Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses, or for attach-
ing other items or equipment to the vehi- cle.Child restraint system with
ISOFIX mountings
The child restraint system is designed only
for seats that incorporate lower anchorages.
Retain the child restraint system using the lower anchorages.
It is not necessary to retain the child restraint
system using the vehicle’s seat belts.
A- Child restraint system connectors
To install
1. Remove any foreign material in or
around the connectors and ensure the ve- hicle seat belt is in its normal storage po-
sition.
2. Remove the head restraint from the loca-
tion in which you wish to install a child
restraint.
Refer to “Head restraints” on page 4-07.
Child restraint
4-22OGAE15E5Seat and seat belts4

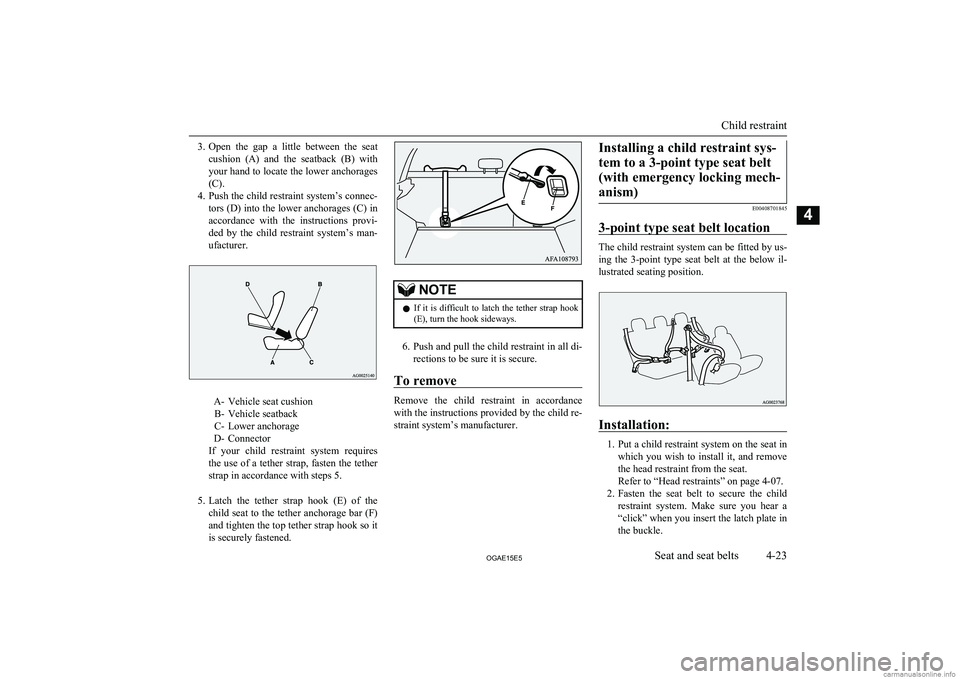

Page 89 of 452
3.Open the gap a little between the seat
cushion (A) and the seatback (B) with your hand to locate the lower anchorages
(C).
4. Push the child restraint system’s connec-
tors (D) into the lower anchorages (C) in accordance with the instructions provi-
ded by the child restraint system’s man-
ufacturer.
A- Vehicle seat cushion B- Vehicle seatback
C- Lower anchorage
D- Connector
If your child restraint system requires
the use of a tether strap, fasten the tether strap in accordance with steps 5.
5. Latch the tether strap hook (E) of the
child seat to the tether anchorage bar (F)
and tighten the top tether strap hook so it is securely fastened.
NOTEl If it is difficult to latch the tether strap hook
(E), turn the hook sideways.
6. Push and pull the child restraint in all di-
rections to be sure it is secure.
To remove
Remove the child restraint in accordance
with the instructions provided by the child re-
straint system’s manufacturer.
Installing a child restraint sys-
tem to a 3-point type seat belt(with emergency locking mech- anism)
E00408701845
3-point type seat belt location
The child restraint system can be fitted by us- ing the 3-point type seat belt at the below il-
lustrated seating position.
Installation:
1. Put a child restraint system on the seat in
which you wish to install it, and remove
the head restraint from the seat.
Refer to “Head restraints” on page 4-07.
2. Fasten the seat belt to secure the child
restraint system. Make sure you hear a “click” when you insert the latch plate in
the buckle.
Child restraint
4-23OGAE15E5Seat and seat belts4

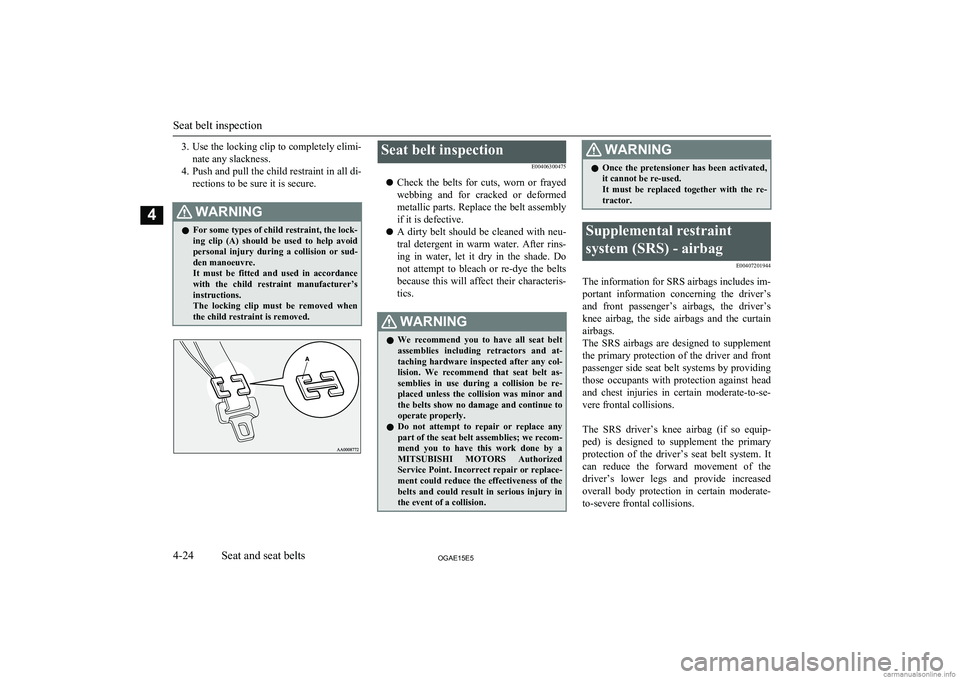

Page 90 of 452
3.Use the locking clip to completely elimi-
nate any slackness.
4. Push and pull the child restraint in all di-
rections to be sure it is secure.WARNINGl For some types of child restraint, the lock-
ing clip (A) should be used to help avoid personal injury during a collision or sud-den manoeuvre.
It must be fitted and used in accordance
with the child restraint manufacturer’s instructions.
The locking clip must be removed when the child restraint is removed.Seat belt inspection
E00406300475
l Check the belts for cuts, worn or frayed
webbing and for cracked or deformed metallic parts. Replace the belt assembly
if it is defective.
l A dirty belt should be cleaned with neu-
tral detergent in warm water. After rins-
ing in water, let it dry in the shade. Do
not attempt to bleach or re-dye the belts
because this will affect their characteris-
tics.WARNINGl We recommend you to have all seat belt
assemblies including retractors and at- taching hardware inspected after any col- lision. We recommend that seat belt as-
semblies in use during a collision be re- placed unless the collision was minor and
the belts show no damage and continue to operate properly.
l Do not attempt to repair or replace any
part of the seat belt assemblies; we recom- mend you to have this work done by aMITSUBISHI MOTORS Authorized
Service Point. Incorrect repair or replace- ment could reduce the effectiveness of the
belts and could result in serious injury in
the event of a collision.WARNINGl Once the pretensioner has been activated,
it cannot be re-used.
It must be replaced together with the re- tractor.Supplemental restraint
system (SRS) - airbag E00407201944
The information for SRS airbags includes im-
portant information concerning the driver’s and front passenger’s airbags, the driver’s knee airbag, the side airbags and the curtain
airbags.
The SRS airbags are designed to supplement the primary protection of the driver and frontpassenger side seat belt systems by providingthose occupants with protection against head
and chest injuries in certain moderate-to-se- vere frontal collisions.
The SRS driver’s knee airbag (if so equip-
ped) is designed to supplement the primary
protection of the driver’s seat belt system. It can reduce the forward movement of the
driver’s lower legs and provide increased overall body protection in certain moderate-
to-severe frontal collisions.
Seat belt inspection
4-24OGAE15E5Seat and seat belts4
