MITSUBISHI ASX 2018 (in English) User Guide

1. Map lamp & room lamp (front) p. 7-73Sunshade switch* p. 3-41
Microphone (for Bluetooth ®
2.0 interface)* p. 7-47
2. Sun visors p. 7-70 Vanity mirror p. 7-70
Card holder p. 7-70
3. Room lamp (rear)* p. 7-74
4. Assist grip p. 7-80 Coat hook p. 7-81
5. Rear shelf panel p. 7-80
6. Armrest* p. 4-06 Cup holder* p. 7-79
7. Rear seat p. 4-06
8. Armrest Accessory socket p. 7-72
9. Bottle holder p. 7-79
10. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 4-24, 4-29
Interior
1-09OGAE18E1Overview1

Luggage compartmentE001004029961. Tyre repair kit p. 8-072. Luggage hook p. 7-81
3. Jack p. 8-07
4. Tools p. 8-06
5. Luggage hook p. 7-81
6. Hook
7. Luggage hook p. 7-81
8. Tools p. 8-06
Luggage compartment
1-10OGAE18E1Overview1Vehicle with tyre repair kit

1. Spare wheel p. 8-14
2. Luggage hook p. 7-81
3. Jack p. 8-07
4. Tools p. 8-06
5. Luggage hook p. 7-81
6. Hook
7. Luggage hook p. 7-81
8. Tools p. 8-06
Luggage compartment

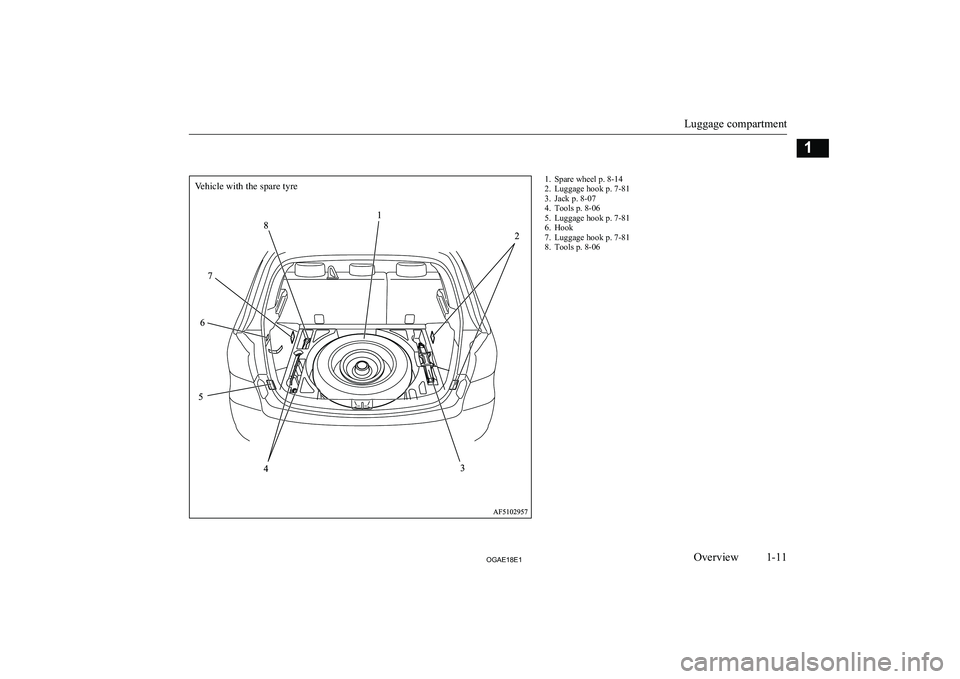

1-11OGAE18E1Overview1Vehicle with the spare tyre

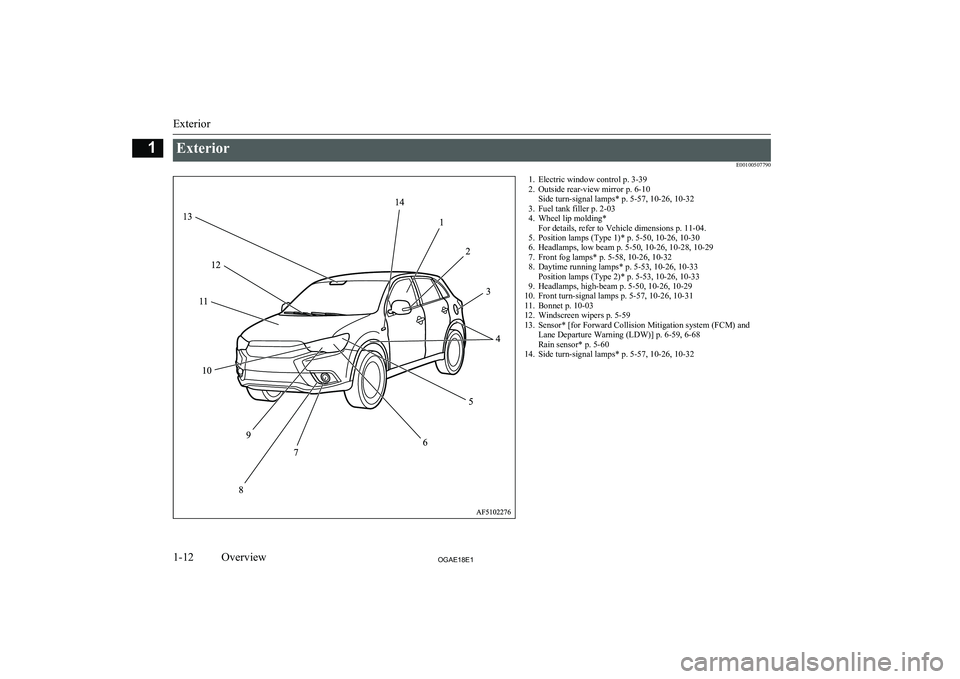

ExteriorE001005077901. Electric window control p. 3-392. Outside rear-view mirror p. 6-10 Side turn-signal lamps* p. 5-57, 10-26, 10-32
3. Fuel tank filler p. 2-03
4. Wheel lip molding* For details, refer to Vehicle dimensions p. 11-04.
5. Position lamps (Type 1)* p. 5-50, 10-26, 10-30
6. Headlamps, low beam p. 5-50, 10-26, 10-28, 10-29
7. Front fog lamps* p. 5-58, 10-26, 10-32
8. Daytime running lamps* p. 5-53, 10-26, 10-33 Position lamps (Type 2)* p. 5-53, 10-26, 10-33
9. Headlamps, high-beam p. 5-50, 10-26, 10-29
10. Front turn-signal lamps p. 5-57, 10-26, 10-31
11. Bonnet p. 10-03
12. Windscreen wipers p. 5-59
13. Sensor* [for Forward Collision Mitigation system (FCM) and Lane Departure Warning (LDW)] p. 6-59, 6-68
Rain sensor* p. 5-60
14. Side turn-signal lamps* p. 5-57, 10-26, 10-32
Exterior
1-12OGAE18E1Overview1

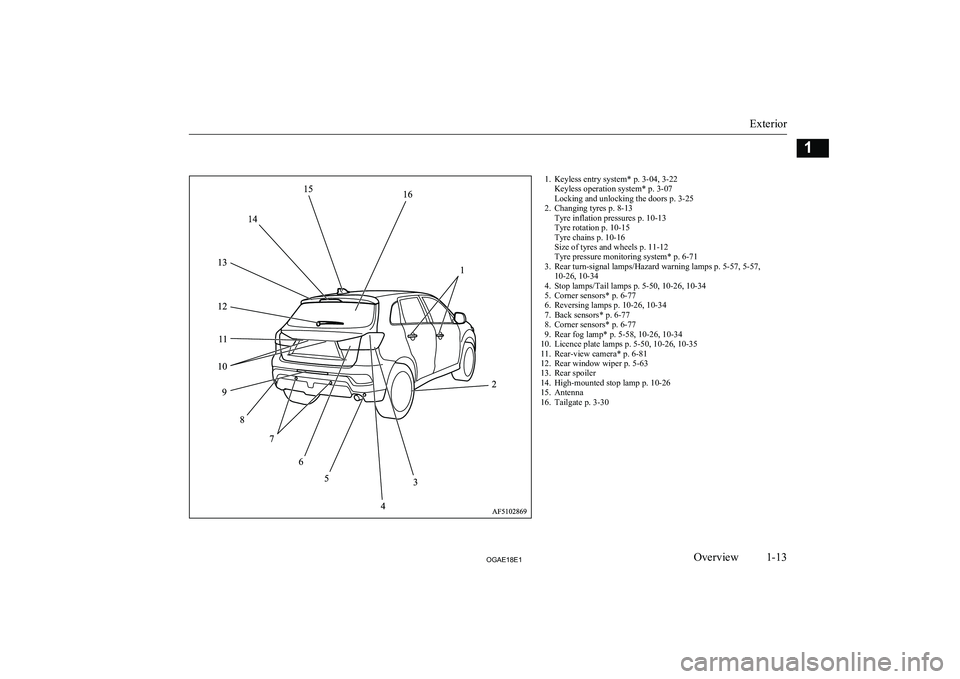

1. Keyless entry system* p. 3-04, 3-22Keyless operation system* p. 3-07
Locking and unlocking the doors p. 3-25
2. Changing tyres p. 8-13 Tyre inflation pressures p. 10-13
Tyre rotation p. 10-15
Tyre chains p. 10-16
Size of tyres and wheels p. 11-12
Tyre pressure monitoring system* p. 6-71
3. Rear turn-signal lamps/Hazard warning lamps p. 5-57, 5-57, 10-26, 10-34
4. Stop lamps/Tail lamps p. 5-50, 10-26, 10-34
5. Corner sensors* p. 6-77
6. Reversing lamps p. 10-26, 10-34
7. Back sensors* p. 6-77
8. Corner sensors* p. 6-77
9. Rear fog lamp* p. 5-58, 10-26, 10-34
10. Licence plate lamps p. 5-50, 10-26, 10-35
11. Rear-view camera* p. 6-81
12. Rear window wiper p. 5-63
13. Rear spoiler
14. High-mounted stop lamp p. 10-26
15. Antenna
16. Tailgate p. 3-30
Exterior
1-13OGAE18E1Overview1

OGAE18E1

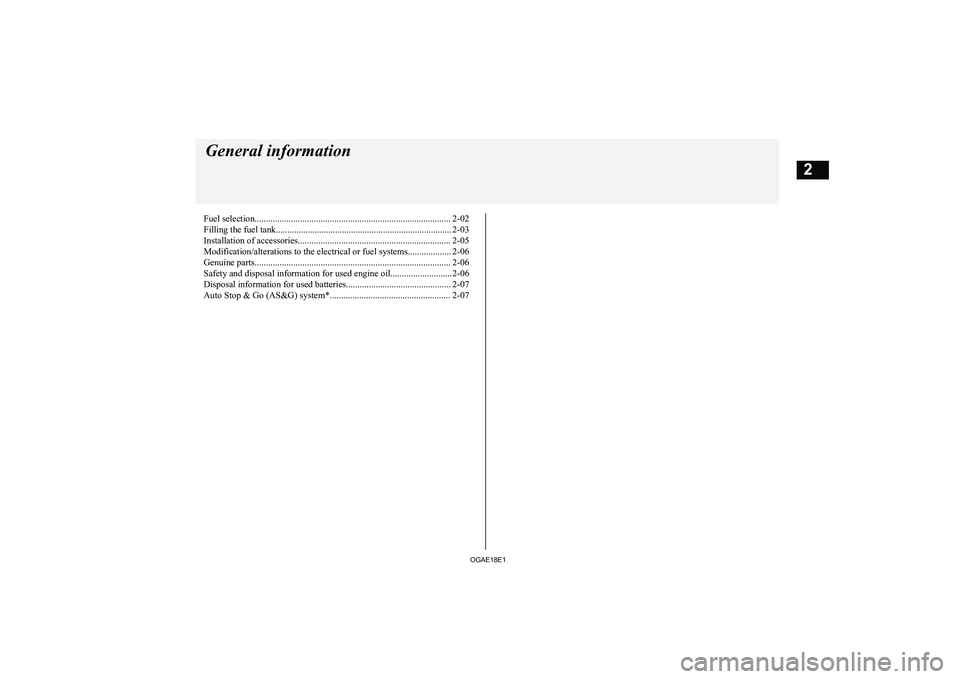

Fuel selection...................................................................................... 2-02Filling the fuel tank............................................................................. 2-03Installation of accessories................................................................... 2-05
Modification/alterations to the electrical or fuel systems................... 2-06
Genuine parts...................................................................................... 2-06 Safety and disposal information for used engine oil........................... 2-06
Disposal information for used batteries.............................................. 2-07
Auto Stop & Go (AS&G) system*..................................................... 2-07General information
OGAE18E12

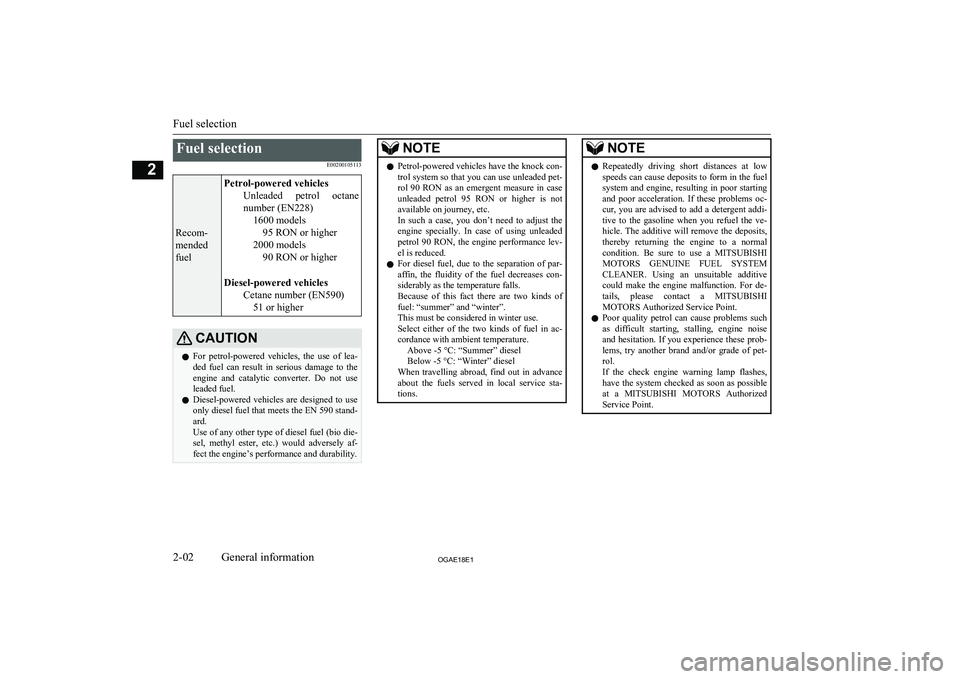

Fuel selectionE00200105113
Recom-
mended
fuel
Petrol-powered vehicles Unleaded petrol octanenumber (EN228) 1600 models95 RON or higher
2000 models 90 RON or higher
Diesel-powered vehicles Cetane number (EN590)51 or higherCAUTIONl For petrol-powered vehicles, the use of lea-
ded fuel can result in serious damage to the engine and catalytic converter. Do not use leaded fuel.
l Diesel-powered vehicles are designed to use
only diesel fuel that meets the EN 590 stand-
ard.
Use of any other type of diesel fuel (bio die-
sel, methyl ester, etc.) would adversely af- fect the engine’s performance and durability.NOTEl Petrol-powered vehicles have the knock con-
trol system so that you can use unleaded pet-
rol 90 RON as an emergent measure in case unleaded petrol 95 RON or higher is notavailable on journey, etc.
In such a case, you don’t need to adjust the
engine specially. In case of using unleaded petrol 90 RON, the engine performance lev-
el is reduced.
l For diesel fuel, due to the separation of par-
affin, the fluidity of the fuel decreases con- siderably as the temperature falls.
Because of this fact there are two kinds of
fuel: “summer” and “winter”.
This must be considered in winter use.
Select either of the two kinds of fuel in ac- cordance with ambient temperature. Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel
When travelling abroad, find out in advance
about the fuels served in local service sta- tions.NOTEl Repeatedly driving short distances at low
speeds can cause deposits to form in the fuel system and engine, resulting in poor starting
and poor acceleration. If these problems oc-
cur, you are advised to add a detergent addi- tive to the gasoline when you refuel the ve- hicle. The additive will remove the deposits,thereby returning the engine to a normal
condition. Be sure to use a MITSUBISHI
MOTORS GENUINE FUEL SYSTEM
CLEANER. Using an unsuitable additive
could make the engine malfunction. For de- tails, please contact a MITSUBISHI
MOTORS Authorized Service Point.
l Poor quality petrol can cause problems such
as difficult starting, stalling, engine noise
and hesitation. If you experience these prob- lems, try another brand and/or grade of pet-
rol.
If the check engine warning lamp flashes,
have the system checked as soon as possible at a MITSUBISHI MOTORS Authorized
Service Point.
Fuel selection
2-02OGAE18E1General information2

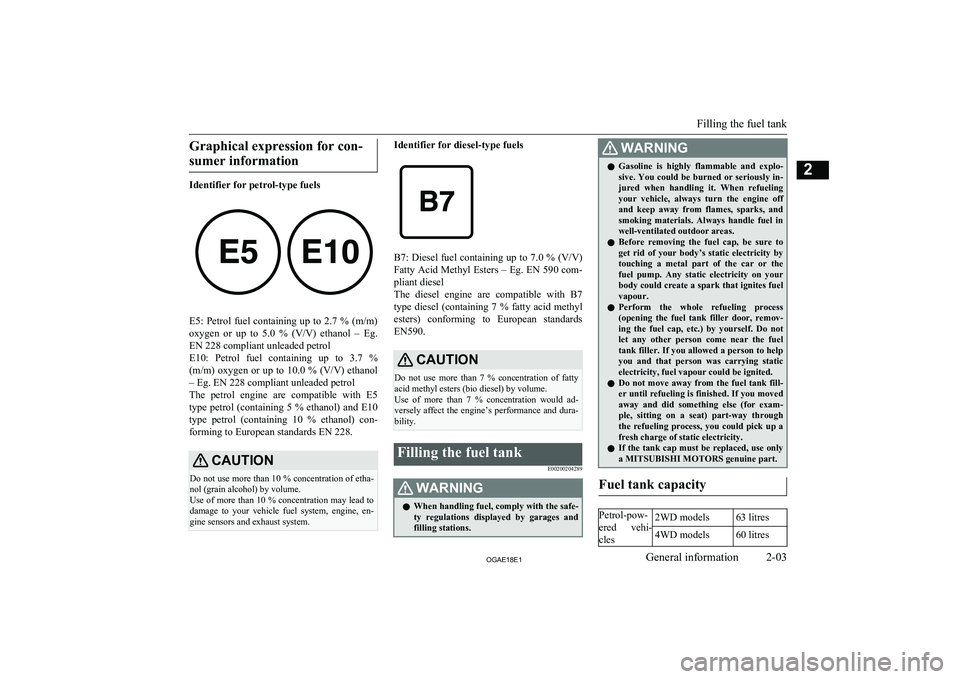

Graphical expression for con-sumer information
Identifier for petrol-type fuels
E5: Petrol fuel containing up to 2.7 % (m/m) oxygen or up to 5.0 % (V/V) ethanol – Eg.
EN 228 compliant unleaded petrol
E10: Petrol fuel containing up to 3.7 % (m/m) oxygen or up to 10.0 % (V/V) ethanol
– Eg. EN 228 compliant unleaded petrol
The petrol engine are compatible with E5
type petrol (containing 5 % ethanol) and E10 type petrol (containing 10 % ethanol) con-forming to European standards EN 228.
CAUTIONDo not use more than 10 % concentration of etha- nol (grain alcohol) by volume.
Use of more than 10 % concentration may lead to damage to your vehicle fuel system, engine, en-
gine sensors and exhaust system.Identifier for diesel-type fuels
B7: Diesel fuel containing up to 7.0 % (V/V)
Fatty Acid Methyl Esters – Eg. EN 590 com-pliant diesel
The diesel engine are compatible with B7
type diesel (containing 7 % fatty acid methyl
esters) conforming to European standards EN590.
CAUTIONDo not use more than 7 % concentration of fatty acid methyl esters (bio diesel) by volume.
Use of more than 7 % concentration would ad-
versely affect the engine’s performance and dura- bility.Filling the fuel tank
E00200204289WARNINGlWhen handling fuel, comply with the safe-
ty regulations displayed by garages and
filling stations.WARNINGl Gasoline is highly flammable and explo-
sive. You could be burned or seriously in-
jured when handling it. When refueling
your vehicle, always turn the engine off and keep away from flames, sparks, andsmoking materials. Always handle fuel in
well-ventilated outdoor areas.
l Before removing the fuel cap, be sure to
get rid of your body’s static electricity by
touching a metal part of the car or the fuel pump. Any static electricity on your
body could create a spark that ignites fuel vapour.
l Perform the whole refueling process
(opening the fuel tank filler door, remov-
ing the fuel cap, etc.) by yourself. Do not let any other person come near the fuel tank filler. If you allowed a person to help
you and that person was carrying static electricity, fuel vapour could be ignited.
l Do not move away from the fuel tank fill-
er until refueling is finished. If you moved
away and did something else (for exam- ple, sitting on a seat) part-way through
the refueling process, you could pick up a fresh charge of static electricity.
l If the tank cap must be replaced, use only
a MITSUBISHI MOTORS genuine part.
Fuel tank capacity
Petrol-pow-
ered vehi- cles2WD models63 litres4WD models60 litres
Filling the fuel tank
2-03OGAE18E1General information2

Diesel-powered vehicles60 litres

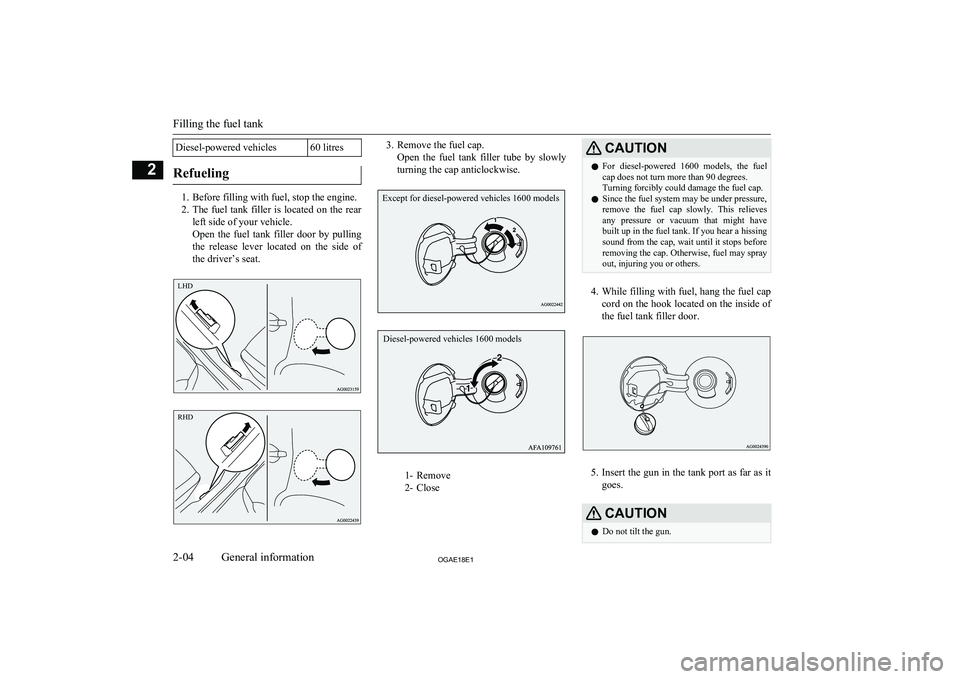

Refueling
1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear
left side of your vehicle.
Open the fuel tank filler door by pulling the release lever located on the side of the driver’s seat.
3. Remove the fuel cap. Open the fuel tank filler tube by slowly
turning the cap anticlockwise.
1- Remove
2- Close
CAUTIONl For diesel-powered 1600 models, the fuel
cap does not turn more than 90 degrees.
Turning forcibly could damage the fuel cap.
l Since the fuel system may be under pressure,
remove the fuel cap slowly. This relieves
any pressure or vacuum that might have built up in the fuel tank. If you hear a hissingsound from the cap, wait until it stops before
removing the cap. Otherwise, fuel may spray
out, injuring you or others.
4. While filling with fuel, hang the fuel cap
cord on the hook located on the inside of
the fuel tank filler door.
5. Insert the gun in the tank port as far as it
goes.
CAUTIONl Do not tilt the gun.
Filling the fuel tank
2-04OGAE18E1General information2LHD RHD Except for diesel-powered vehicles 1600 models Diesel-powered vehicles 1600 models
