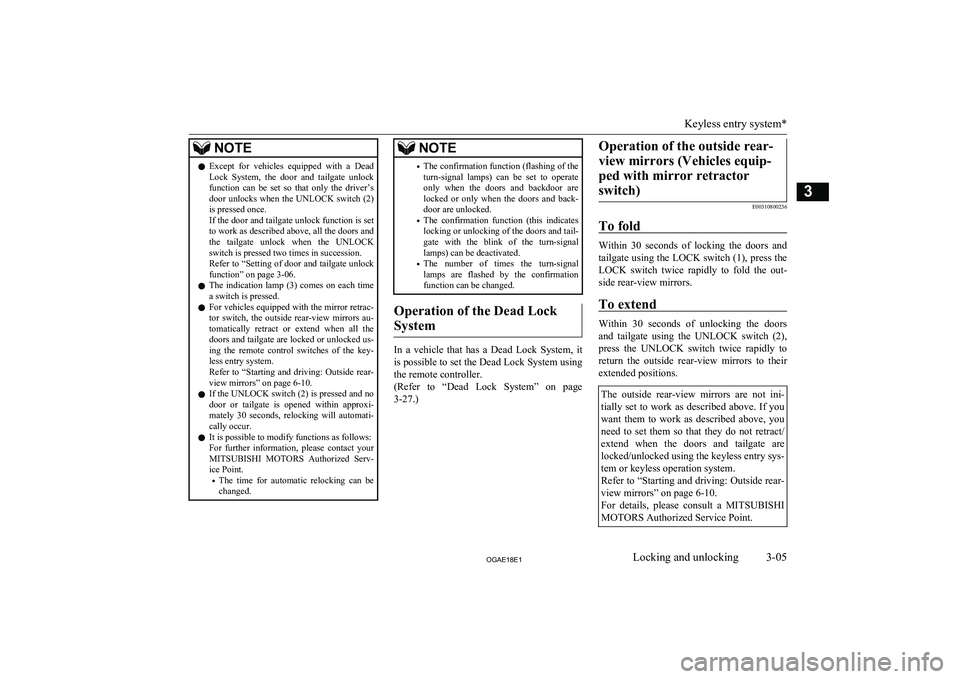

NOTElExcept for vehicles equipped with a Dead
Lock System, the door and tailgate unlock function can be set so that only the driver’sdoor unlocks when the UNLOCK switch (2) is pressed once.
If the door and tailgate unlock function is set
to work as described above, all the doors and the tailgate unlock when the UNLOCK
switch is pressed two times in succession.
Refer to “Setting of door and tailgate unlock function” on page 3-06.
l The indication lamp (3) comes on each time
a switch is pressed.
l For vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au- tomatically retract or extend when all the
doors and tailgate are locked or unlocked us- ing the remote control switches of the key- less entry system.
Refer to “Starting and driving: Outside rear- view mirrors” on page 6-10.
l If the UNLOCK switch (2) is pressed and no
door or tailgate is opened within approxi-mately 30 seconds, relocking will automati-
cally occur.
l It is possible to modify functions as follows:
For further information, please contact your MITSUBISHI MOTORS Authorized Serv-
ice Point.
• The time for automatic relocking can be
changed.NOTE• The confirmation function (flashing of the
turn-signal lamps) can be set to operate
only when the doors and backdoor are locked or only when the doors and back- door are unlocked.
• The confirmation function (this indicates
locking or unlocking of the doors and tail-
gate with the blink of the turn-signal lamps) can be deactivated.
• The number of times the turn-signal
lamps are flashed by the confirmation function can be changed.
Operation of the Dead Lock
System
In a vehicle that has a Dead Lock System, it
is possible to set the Dead Lock System using the remote controller.
(Refer to “Dead Lock System” on page 3-27.)
Operation of the outside rear-
view mirrors (Vehicles equip-ped with mirror retractorswitch)
E00310800236
To fold
Within 30 seconds of locking the doors and tailgate using the LOCK switch (1), press the LOCK switch twice rapidly to fold the out- side rear-view mirrors.
To extend
Within 30 seconds of unlocking the doors
and tailgate using the UNLOCK switch (2),
press the UNLOCK switch twice rapidly to
return the outside rear-view mirrors to their
extended positions.
The outside rear-view mirrors are not ini-
tially set to work as described above. If you
want them to work as described above, you need to set them so that they do not retract/ extend when the doors and tailgate are
locked/unlocked using the keyless entry sys-
tem or keyless operation system.
Refer to “Starting and driving: Outside rear-
view mirrors” on page 6-10.
For details, please consult a MITSUBISHI
MOTORS Authorized Service Point.
Keyless entry system*
3-05OGAE18E1Locking and unlocking3

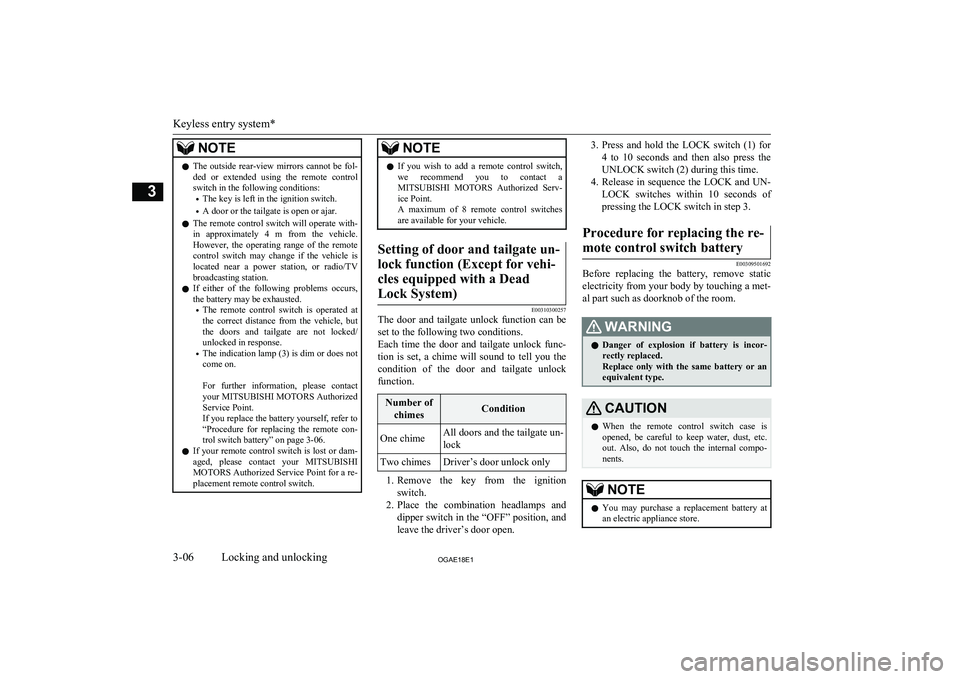

NOTElThe outside rear-view mirrors cannot be fol-
ded or extended using the remote control
switch in the following conditions:
• The key is left in the ignition switch.
• A door or the tailgate is open or ajar.
l The remote control switch will operate with-
in approximately 4 m from the vehicle.
However, the operating range of the remote control switch may change if the vehicle is located near a power station, or radio/TV
broadcasting station.
l If either of the following problems occurs,
the battery may be exhausted.
• The remote control switch is operated at
the correct distance from the vehicle, but
the doors and tailgate are not locked/ unlocked in response.
• The indication lamp (3) is dim or does not
come on.

For further information, please contact your MITSUBISHI MOTORS Authorized
Service Point.
If you replace the battery yourself, refer to
“Procedure for replacing the remote con-
trol switch battery” on page 3-06.
l If your remote control switch is lost or dam-
aged, please contact your MITSUBISHI
MOTORS Authorized Service Point for a re-
placement remote control switch.NOTEl If you wish to add a remote control switch,
we recommend you to contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
A maximum of 8 remote control switches
are available for your vehicle.Setting of door and tailgate un-
lock function (Except for vehi- cles equipped with a Dead
Lock System)
E00310300257
The door and tailgate unlock function can be set to the following two conditions.
Each time the door and tailgate unlock func-
tion is set, a chime will sound to tell you the
condition of the door and tailgate unlock function.
Number of
chimesConditionOne chimeAll doors and the tailgate un-lockTwo chimesDriver’s door unlock only
1. Remove the key from the ignition
switch.
2. Place the combination headlamps and
dipper switch in the “OFF” position, and leave the driver’s door open.
3. Press and hold the LOCK switch (1) for
4 to 10 seconds and then also press the
UNLOCK switch (2) during this time.
4. Release in sequence the LOCK and UN-
LOCK switches within 10 seconds of pressing the LOCK switch in step 3.Procedure for replacing the re-
mote control switch battery
E00309501692
Before replacing the battery, remove static electricity from your body by touching a met-
al part such as doorknob of the room.
WARNINGl Danger of explosion if battery is incor-
rectly replaced.
Replace only with the same battery or an
equivalent type.CAUTIONl When the remote control switch case is
opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-
nents.NOTEl You may purchase a replacement battery at
an electric appliance store.
Keyless entry system*
3-06OGAE18E1Locking and unlocking3

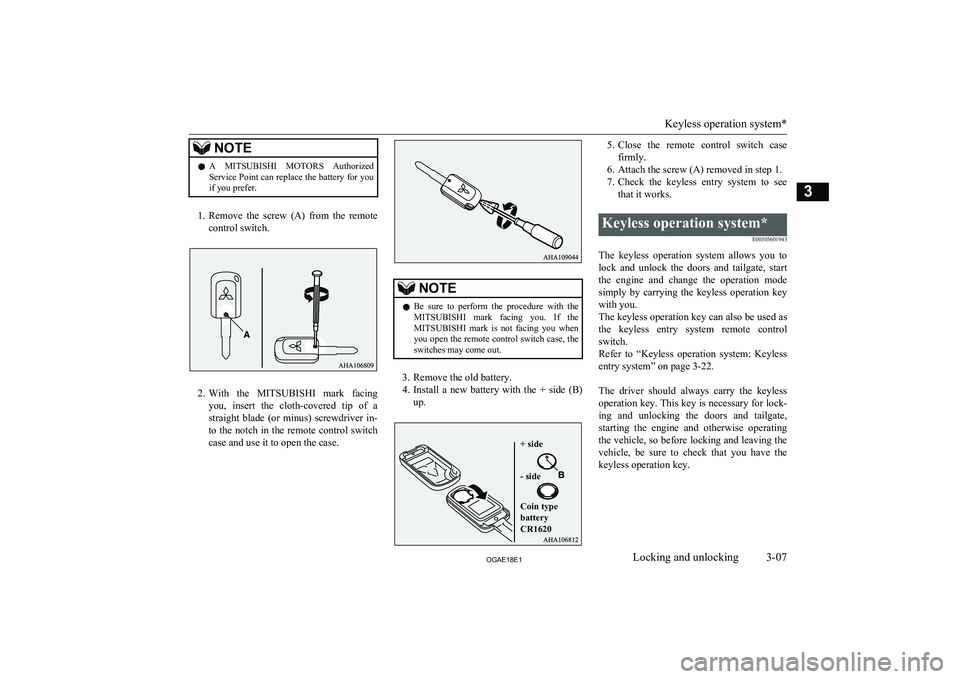

NOTElA
MITSUBISHI MOTORS Authorized
Service Point can replace the battery for you if you prefer.
1. Remove the screw (A) from the remote
control switch.
2. With the MITSUBISHI mark facing
you, insert the cloth-covered tip of a
straight blade (or minus) screwdriver in-
to the notch in the remote control switch
case and use it to open the case.
NOTEl Be sure to perform the procedure with the
MITSUBISHI mark facing you. If the
MITSUBISHI mark is not facing you when
you open the remote control switch case, the switches may come out.
3. Remove the old battery.
4. Install a new battery with the + side (B)
up.
5. Close the remote control switch case
firmly.
6. Attach the screw (A) removed in step 1.
7. Check the keyless entry system to see
that it works.Keyless operation system*
E00305601943
The keyless operation system allows you tolock and unlock the doors and tailgate, start
the engine and change the operation mode simply by carrying the keyless operation key
with you.
The keyless operation key can also be used as the keyless entry system remote control
switch.
Refer to “Keyless operation system: Keyless entry system” on page 3-22.

The driver should always carry the keyless
operation key. This key is necessary for lock- ing and unlocking the doors and tailgate,
starting the engine and otherwise operating the vehicle, so before locking and leaving the vehicle, be sure to check that you have the
keyless operation key.
Keyless operation system*
3-07OGAE18E1Locking and unlocking3 + side - side Coin type battery
CR1620

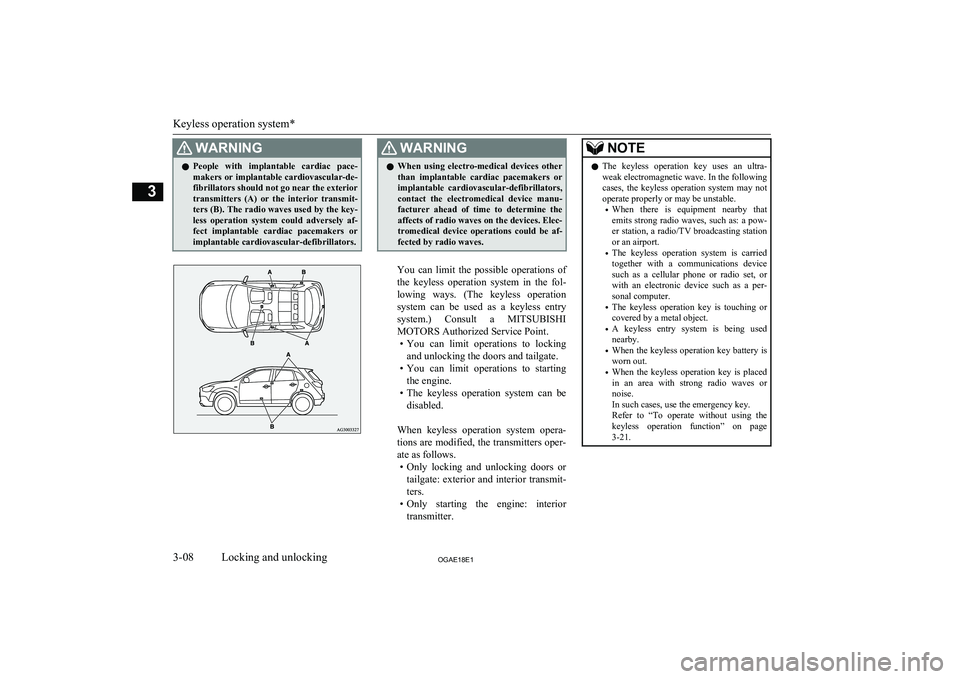

WARNINGlPeople with implantable cardiac pace-
makers or implantable cardiovascular-de- fibrillators should not go near the exterior
transmitters (A) or the interior transmit-
ters (B). The radio waves used by the key-
less operation system could adversely af- fect implantable cardiac pacemakers orimplantable cardiovascular-defibrillators.WARNINGl When using electro-medical devices other
than implantable cardiac pacemakers or implantable cardiovascular-defibrillators,
contact the electromedical device manu- facturer ahead of time to determine theaffects of radio waves on the devices. Elec-
tromedical device operations could be af- fected by radio waves.
You can limit the possible operations of
the keyless operation system in the fol-
lowing ways. (The keyless operation system can be used as a keyless entry system.) Consult a MITSUBISHI
MOTORS Authorized Service Point. • You can limit operations to locking
and unlocking the doors and tailgate.
• You can limit operations to starting
the engine.
• The keyless operation system can be
disabled.

When keyless operation system opera-
tions are modified, the transmitters oper- ate as follows. • Only locking and unlocking doors or
tailgate: exterior and interior transmit- ters.
• Only starting the engine: interior
transmitter.
NOTEl The keyless operation key uses an ultra-
weak electromagnetic wave. In the following
cases, the keyless operation system may not
operate properly or may be unstable.
• When there is equipment nearby that
emits strong radio waves, such as: a pow-
er station, a radio/TV broadcasting station or an airport.
• The keyless operation system is carried
together with a communications device such as a cellular phone or radio set, or
with an electronic device such as a per- sonal computer.
• The keyless operation key is touching or
covered by a metal object.
• A keyless entry system is being used
nearby.
• When the keyless operation key battery is
worn out.
• When the keyless operation key is placed
in an area with strong radio waves or noise.
In such cases, use the emergency key.
Refer to “To operate without using the
keyless operation function” on page 3-21.
Keyless operation system*
3-08OGAE18E1Locking and unlocking3

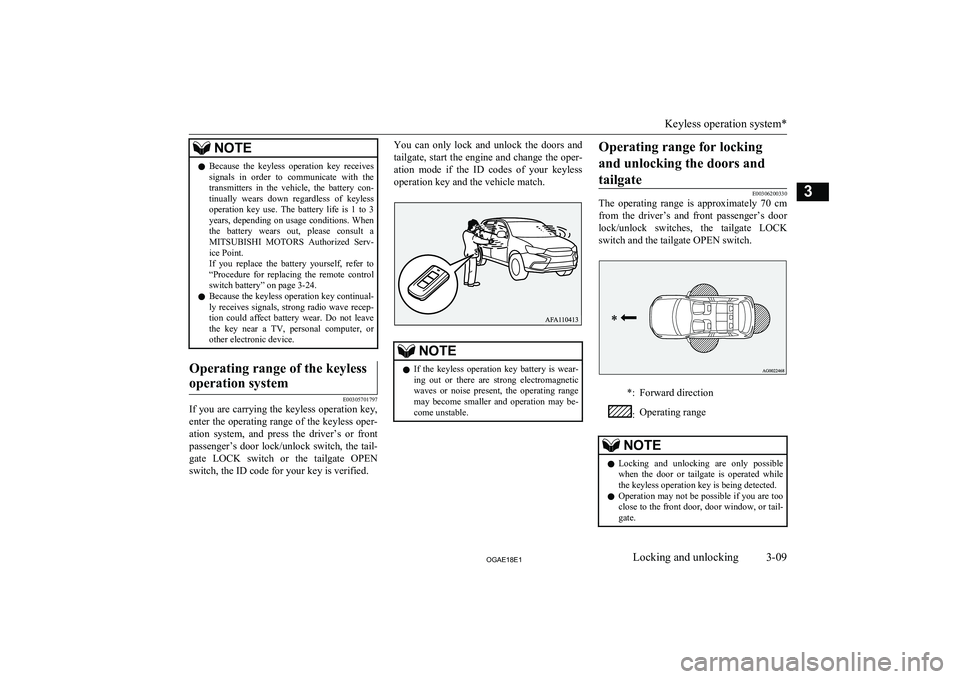

NOTElBecause the keyless operation key receives
signals in order to communicate with the transmitters in the vehicle, the battery con-tinually wears down regardless of keylessoperation key use. The battery life is 1 to 3
years, depending on usage conditions. When the battery wears out, please consult aMITSUBISHI MOTORS Authorized Serv-
ice Point.
If you replace the battery yourself, refer to “Procedure for replacing the remote control
switch battery” on page 3-24.
l Because the keyless operation key continual-
ly receives signals, strong radio wave recep-
tion could affect battery wear. Do not leave the key near a TV, personal computer, or
other electronic device.Operating range of the keyless
operation system
E00305701797
If you are carrying the keyless operation key, enter the operating range of the keyless oper-
ation system, and press the driver’s or front
passenger’s door lock/unlock switch, the tail-
gate LOCK switch or the tailgate OPEN switch, the ID code for your key is verified.
You can only lock and unlock the doors and
tailgate, start the engine and change the oper-ation mode if the ID codes of your keyless operation key and the vehicle match.NOTEl If the keyless operation key battery is wear-
ing out or there are strong electromagnetic
waves or noise present, the operating range
may become smaller and operation may be-
come unstable.Operating range for locking
and unlocking the doors andtailgate
E00306200330
The operating range is approximately 70 cm
from the driver’s and front passenger’s door
lock/unlock switches, the tailgate LOCK
switch and the tailgate OPEN switch.
*:Forward direction:Operating rangeNOTEl Locking and unlocking are only possible
when the door or tailgate is operated while
the keyless operation key is being detected.
l Operation may not be possible if you are too
close to the front door, door window, or tail-
gate.
Keyless operation system*
3-09OGAE18E1Locking and unlocking3

NOTElEven if the keyless operation key is within
70 cm of the driver’s or front passenger’s door lock/unlock switch, the tailgate LOCK
switch or the tailgate OPEN switch, if the
key is near to the ground or high up, the sys- tem may not operate.
l If the keyless operation key is within the op-
erating range, even someone not carrying the
key can lock and unlock the doors and tail- gate by pressing the driver’s or front passen-ger’s door lock/unlock switch, the tailgate LOCK switch or the tailgate OPEN switch.Operating range for starting the

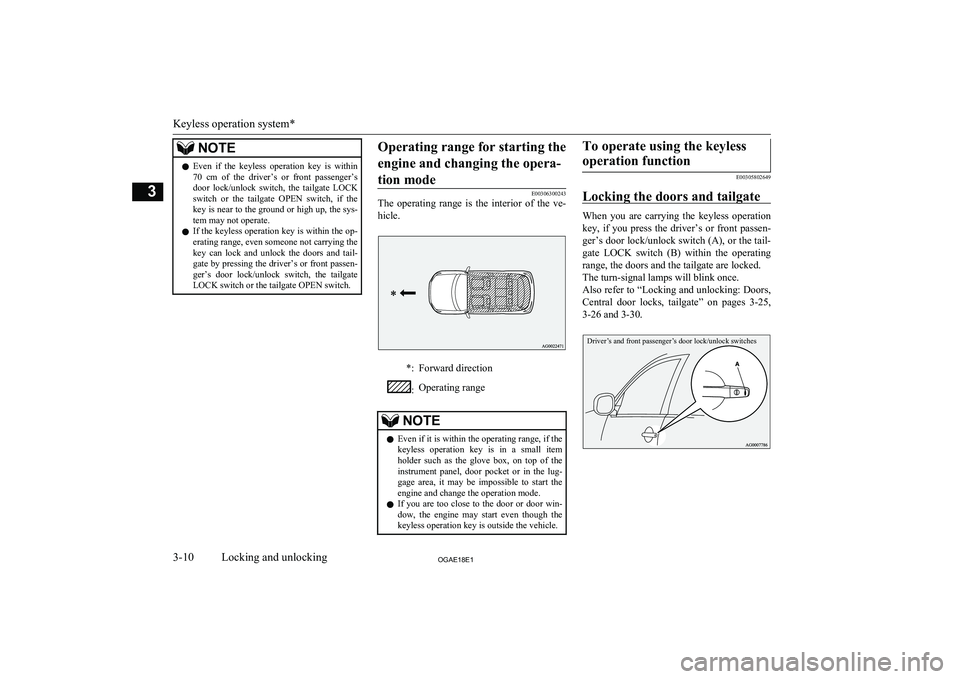

engine and changing the opera-tion mode
E00306300243
The operating range is the interior of the ve-
hicle.
*:Forward direction:Operating rangeNOTEl Even if it is within the operating range, if the
keyless operation key is in a small item
holder such as the glove box, on top of the instrument panel, door pocket or in the lug-gage area, it may be impossible to start the
engine and change the operation mode.
l If you are too close to the door or door win-
dow, the engine may start even though thekeyless operation key is outside the vehicle.To operate using the keyless
operation function
E00305802649

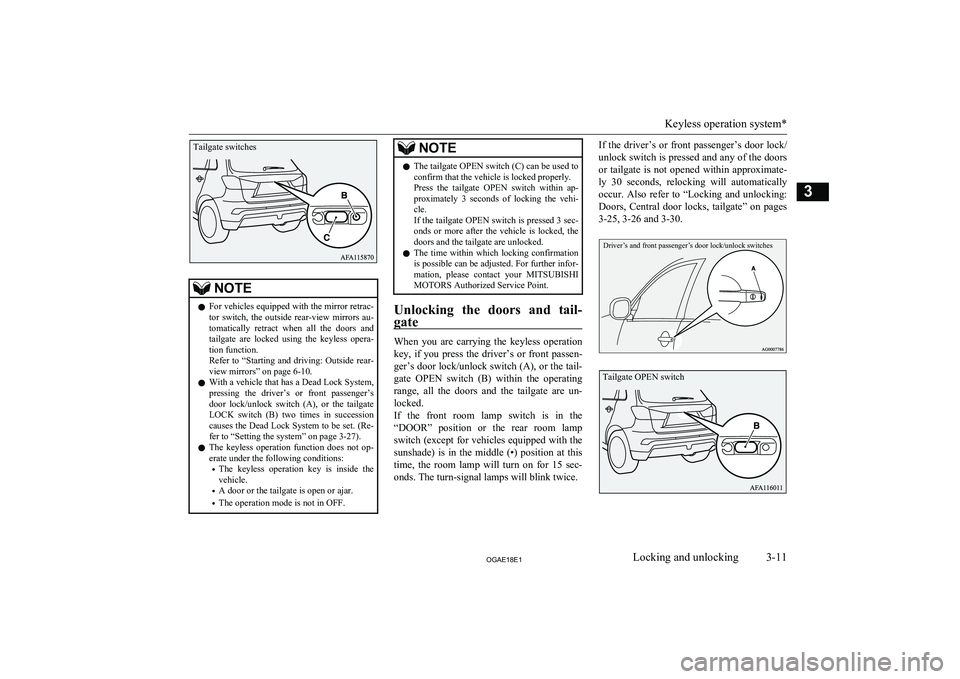

Locking the doors and tailgate
When you are carrying the keyless operation
key, if you press the driver’s or front passen- ger’s door lock/unlock switch (A), or the tail-
gate LOCK switch (B) within the operating range, the doors and the tailgate are locked.
The turn-signal lamps will blink once.
Also refer to “Locking and unlocking: Doors, Central door locks, tailgate” on pages 3-25,
3-26 and 3-30.
Driver’s and front passenger’s door lock/unlock switches
Keyless operation system*
3-10OGAE18E1Locking and unlocking3

NOTElFor vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au-
tomatically retract when all the doors and
tailgate are locked using the keyless opera- tion function.
Refer to “Starting and driving: Outside rear- view mirrors” on page 6-10.
l With a vehicle that has a Dead Lock System,
pressing the driver’s or front passenger’s door lock/unlock switch (A), or the tailgateLOCK switch (B) two times in succession
causes the Dead Lock System to be set. (Re-
fer to “Setting the system” on page 3-27).
l The keyless operation function does not op-
erate under the following conditions:
• The keyless operation key is inside the
vehicle.
• A door or the tailgate is open or ajar.
• The operation mode is not in OFF.NOTEl The tailgate OPEN switch (C) can be used to
confirm that the vehicle is locked properly.
Press the tailgate OPEN switch within ap-
proximately 3 seconds of locking the vehi- cle.
If the tailgate OPEN switch is pressed 3 sec- onds or more after the vehicle is locked, the
doors and the tailgate are unlocked.
l The time within which locking confirmation
is possible can be adjusted. For further infor- mation, please contact your MITSUBISHI
MOTORS Authorized Service Point.
Unlocking the doors and tail-
gate
When you are carrying the keyless operation
key, if you press the driver’s or front passen- ger’s door lock/unlock switch (A), or the tail-gate OPEN switch (B) within the operating
range, all the doors and the tailgate are un- locked.
If the front room lamp switch is in the
“DOOR” position or the rear room lamp switch (except for vehicles equipped with thesunshade) is in the middle (•) position at this time, the room lamp will turn on for 15 sec-
onds. The turn-signal lamps will blink twice.
If the driver’s or front passenger’s door lock/
unlock switch is pressed and any of the doors
or tailgate is not opened within approximate- ly 30 seconds, relocking will automatically
occur. Also refer to “Locking and unlocking: Doors, Central door locks, tailgate” on pages
3-25, 3-26 and 3-30.Driver’s and front passenger’s door lock/unlock switches
Keyless operation system*
3-11OGAE18E1Locking and unlocking3Tailgate switches Tailgate OPEN switch

NOTElFor vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au-
tomatically extend when all the doors and tailgate are unlocked using the keyless oper-
ation function.
Refer to “Starting and driving: Outside rear- view mirrors” on page 6-10.
l Except for vehicles equipped with a Dead
Lock System, the keyless operation functioncan be set so that only the driver’s door un- locks when the driver’s door lock/unlock
switch is pressed.
If the keyless operation function is set to
work as described above, all the doors and the tailgate unlock when the driver’s doorlock/unlock switch is pressed two times in
succession.
Refer to “Setting of door and tailgate unlock function” on page 3-24.
l The keyless operation function does not op-
erate under the following conditions:
• The keyless operation key is inside the
vehicle.
• A door or the tailgate is open or ajar.
• The operation mode is not in OFF.
l The doors and the tailgate cannot be un-
locked by using the tailgate OPEN switch
for about 3 seconds after locking.
l The time within which locking confirmation
is possible can be adjusted. For further infor- mation, please contact your MITSUBISHI
MOTORS Authorized Service Point.NOTEl The time between unlocking and automatic
locking can be adjusted. Consult a MITSUBISHI MOTORS Authorized Serv-
ice Point.
Operation confirmation when locking and
unlocking
Operation can be confirmed as shown below. However, the room lamp will only illuminate if the front room lamp switch is in the
“DOOR” position or the rear room lamp switch (except for vehicles equipped with thesunshade) is in the middle (•) position.
When lock-
ing:The turn-signal lamps will
blink once.When un-
locking:The room lamp illuminates
for approximately 15 sec-
onds, the turn-signal lamps
blink twice.NOTEl Functions can be modified as stated below.
For further information, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
• Set the confirmation function (blinking of
the turn-signal lamps) to operate onlywhen the vehicle is locked or only when
the vehicle is unlocked.NOTE• Disable the operation confirmation func-
tion (blinking of the turn-signal lamps).
• Change the number of blinks for the oper-
ation confirmation function (blinks of the
turn-signal lamps).
Operation of the Dead Lock
System
With a vehicle that has a Dead Lock System, it is possible to set the Dead Lock System us-
ing the driver’s or front passenger’s door lock/unlock switch, or the tailgate LOCK
switch.
(Refer to “Dead Lock System” on page 3-27.)
Electronic immobilizer (Anti-
theft starting system)
E00306401603
The electronic immobilizer has been de-
signed to significantly reduce the possibility of vehicle theft. The purpose of the system is
to immobilize the vehicle if an invalid start is attempted. A valid start attempt can only beachieved (subject to certain conditions) using
a keyless operation system “registered” to the immobilizer system.
All of the keys provided with your new vehi-
cle have been programmed into the vehicle’s
electronics. Refer to “Engine switch” on page 3-13.
Keyless operation system*
3-12OGAE18E1Locking and unlocking3

NOTElIf the engine does not start, contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
l If you lose one of the keyless operation
keys, contact a MITSUBISHI MOTORS
Authorized Service Point as soon as possi- ble.
To obtain a replacement or extra spare key,
take your vehicle and all remaining keys to
your MITSUBISHI MOTORS Authorized
Service Point. All the keys have to be re-reg- istered in the immobilizer computer unit.
The immobilizer can register up to 4 differ- ent keys.Engine switch

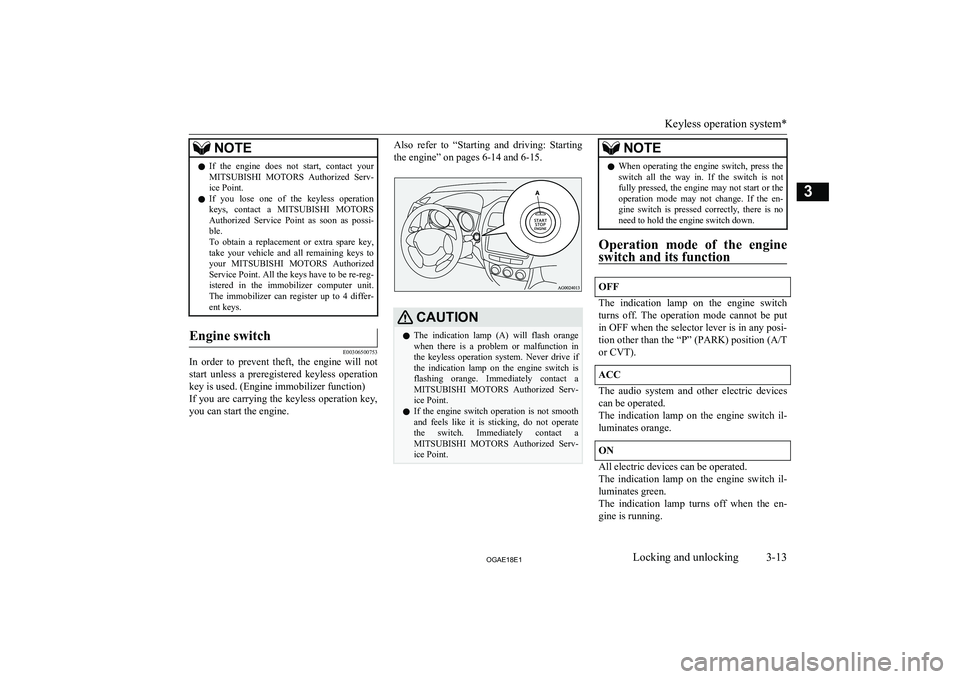

E00306500753
In order to prevent theft, the engine will not
start unless a preregistered keyless operation
key is used. (Engine immobilizer function)
If you are carrying the keyless operation key, you can start the engine.
Also refer to “Starting and driving: Starting
the engine” on pages 6-14 and 6-15.CAUTIONl The indication lamp (A) will flash orange
when there is a problem or malfunction inthe keyless operation system. Never drive if
the indication lamp on the engine switch is
flashing orange. Immediately contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
l If the engine switch operation is not smooth
and feels like it is sticking, do not operate the switch. Immediately contact a
MITSUBISHI MOTORS Authorized Serv-
ice Point.NOTEl When operating the engine switch, press the
switch all the way in. If the switch is not fully pressed, the engine may not start or theoperation mode may not change. If the en-
gine switch is pressed correctly, there is no need to hold the engine switch down.
Operation mode of the engine
switch and its function
OFF
The indication lamp on the engine switch
turns off. The operation mode cannot be put
in OFF when the selector lever is in any posi- tion other than the “P” (PARK) position ( A/T
or CVT).
ACC
The audio system and other electric devices can be operated.
The indication lamp on the engine switch il-
luminates orange.
ON
All electric devices can be operated. The indication lamp on the engine switch il-
luminates green.
The indication lamp turns off when the en-
gine is running.
Keyless operation system*
3-13OGAE18E1Locking and unlocking3

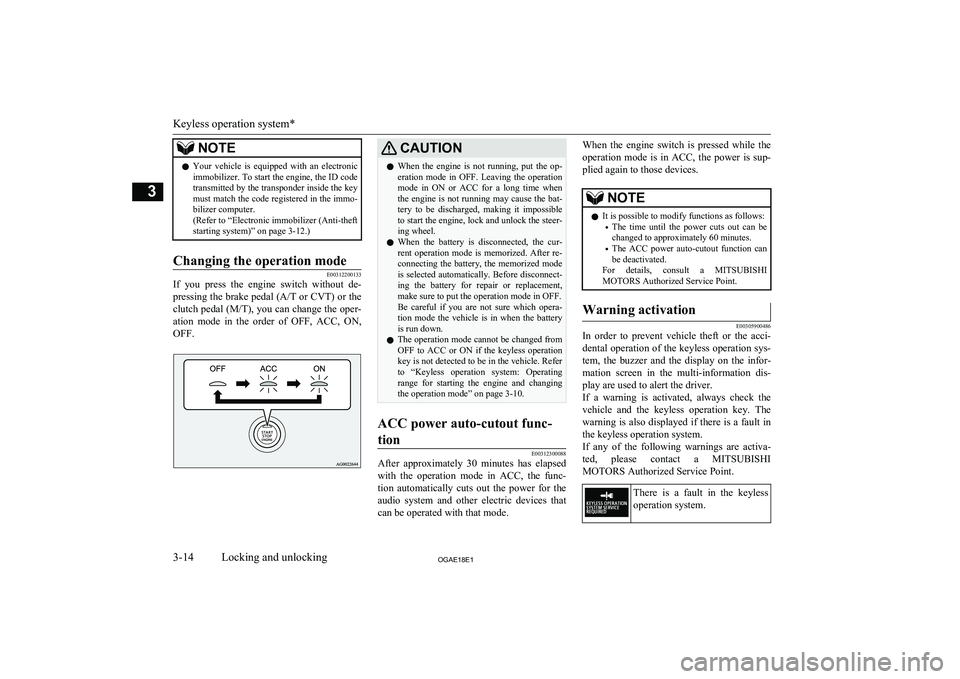

NOTElYour vehicle is equipped with an electronic
immobilizer. To start the engine, the ID codetransmitted by the transponder inside the key must match the code registered in the immo-bilizer computer.
(Refer to “Electronic immobilizer (Anti-theft
starting system)” on page 3-12.)Changing the operation mode
E00312200133
If you press the engine switch without de-
pressing the brake pedal ( A/T or CVT ) or the
clutch pedal ( M/T), you can change the oper-
ation mode in the order of OFF, ACC, ON, OFF.
CAUTIONl When the engine is not running, put the op-
eration mode in OFF. Leaving the operation mode in ON or ACC for a long time when
the engine is not running may cause the bat- tery to be discharged, making it impossible
to start the engine, lock and unlock the steer- ing wheel.
l When the battery is disconnected, the cur-
rent operation mode is memorized. After re- connecting the battery, the memorized modeis selected automatically. Before disconnect-
ing the battery for repair or replacement,
make sure to put the operation mode in OFF.
Be careful if you are not sure which opera- tion mode the vehicle is in when the battery
is run down.
l The operation mode cannot be changed from
OFF to ACC or ON if the keyless operation
key is not detected to be in the vehicle. Refer
to “Keyless operation system: Operating
range for starting the engine and changing the operation mode” on page 3-10.ACC power auto-cutout func-
tion
E00312300088
After approximately 30 minutes has elapsed
with the operation mode in ACC, the func- tion automatically cuts out the power for the
audio system and other electric devices that
can be operated with that mode.
When the engine switch is pressed while the
operation mode is in ACC, the power is sup-
plied again to those devices.NOTEl It is possible to modify functions as follows:
• The time until the power cuts out can be
changed to approximately 60 minutes.
• The ACC power auto-cutout function can
be deactivated.
For details, consult a MITSUBISHI
MOTORS Authorized Service Point.Warning activation
E00305900486
In order to prevent vehicle theft or the acci-
dental operation of the keyless operation sys-
tem, the buzzer and the display on the infor- mation screen in the multi-information dis-
play are used to alert the driver.
If a warning is activated, always check the vehicle and the keyless operation key. The warning is also displayed if there is a fault in
the keyless operation system.
If any of the following warnings are activa-
ted, please contact a MITSUBISHI
MOTORS Authorized Service Point.
There is a fault in the keyless
operation system.
Keyless operation system*
3-14OGAE18E1Locking and unlocking3
