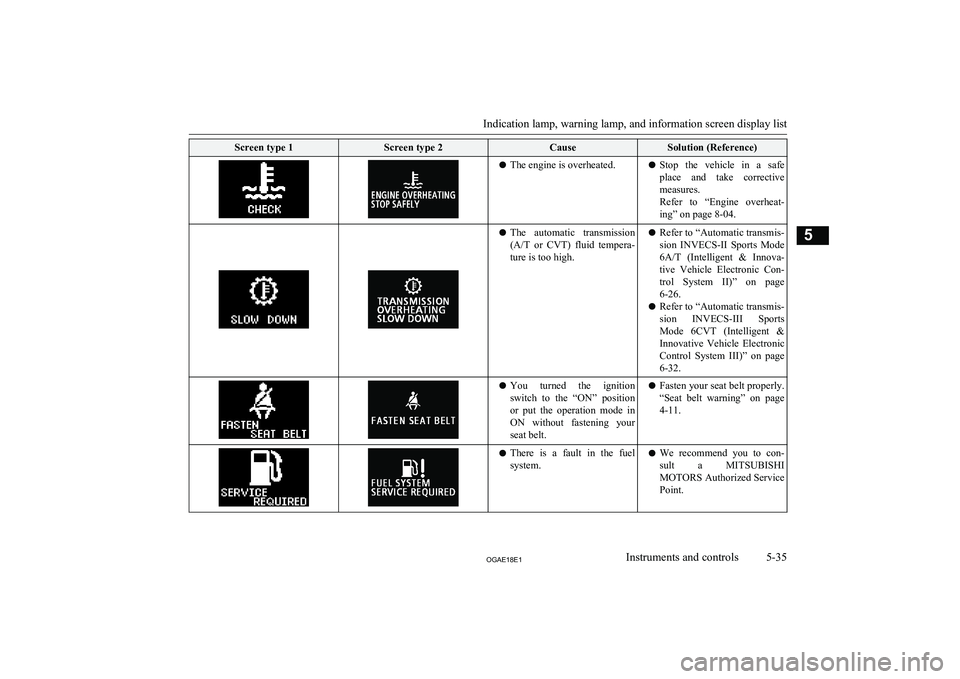

Screen type 1Screen type 2CauseSolution (Reference)lThe engine is overheated.lStop the vehicle in a safe
place and take corrective measures.
Refer to “Engine overheat-
ing” on page 8-04.l The automatic transmission
(A/T or CVT) fluid tempera-
ture is too high.l Refer to “Automatic transmis-
sion INVECS-II Sports Mode
6A/T (Intelligent & Innova-
tive Vehicle Electronic Con-
trol System II)” on page 6-26.
l Refer to “Automatic transmis-
sion INVECS-III Sports
Mode 6CVT (Intelligent & Innovative Vehicle Electronic
Control System III)” on page 6-32.l You turned the ignition
switch to the “ON” positionor put the operation mode in
ON without fastening your
seat belt.l Fasten your seat belt properly.
“Seat belt warning” on page
4-11.l There is a fault in the fuel
system.l We recommend you to con-
sult a MITSUBISHI
MOTORS Authorized Service
Point.
Indication lamp, warning lamp, and information screen display list
5-35OGAE18E1Instruments and controls5

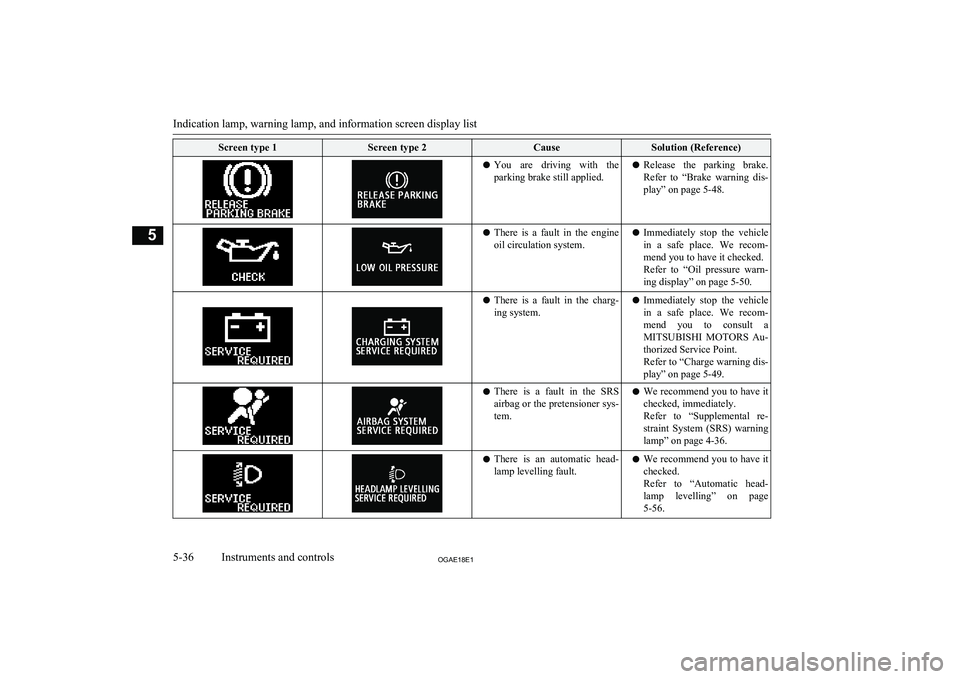

Screen type 1Screen type 2CauseSolution (Reference)lYou are driving with the
parking brake still applied.l Release the parking brake.
Refer to “Brake warning dis- play” on page 5-48.l There is a fault in the engine
oil circulation system.l Immediately stop the vehicle
in a safe place. We recom- mend you to have it checked.
Refer to “Oil pressure warn-
ing display” on page 5-50.l There is a fault in the charg-
ing system.l Immediately stop the vehicle
in a safe place. We recom-mend you to consult a
MITSUBISHI MOTORS Au-
thorized Service Point.
Refer to “Charge warning dis-
play” on page 5-49.l There is a fault in the SRS
airbag or the pretensioner sys-tem.l We recommend you to have it
checked, immediately.
Refer to “Supplemental re-
straint System (SRS) warning
lamp” on page 4-36.l There is an automatic head-
lamp levelling fault.l We recommend you to have it
checked.
Refer to “Automatic head-
lamp levelling” on page 5-56.
Indication lamp, warning lamp, and information screen display list
5-36OGAE18E1Instruments and controls5

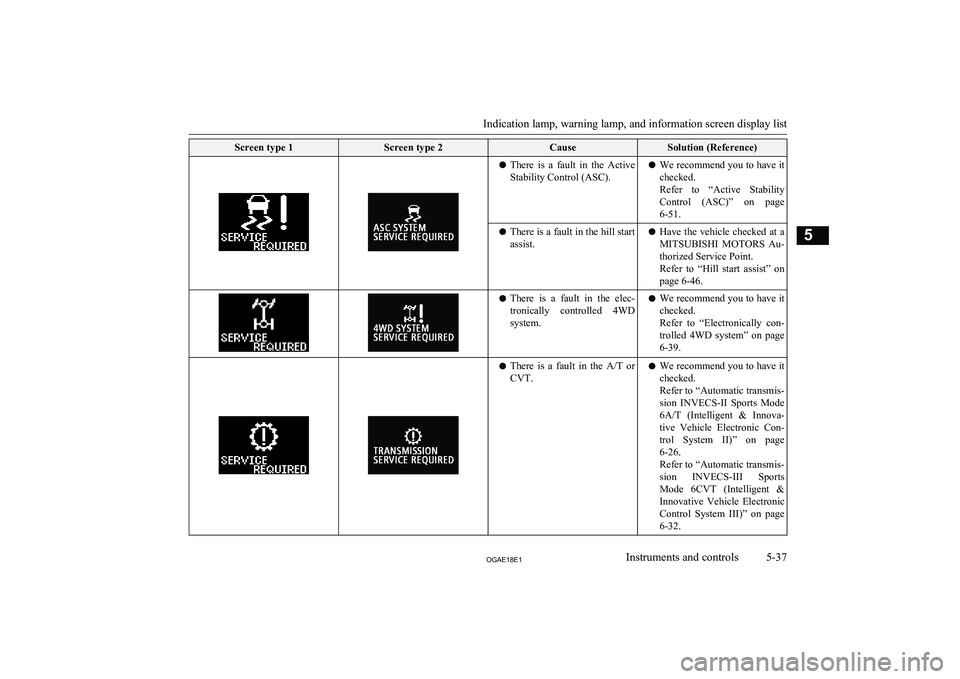

Screen type 1Screen type 2CauseSolution (Reference)lThere is a fault in the Active
Stability Control (ASC).l We recommend you to have it
checked.
Refer to “Active Stability Control (ASC)” on page
6-51.l There is a fault in the hill start
assist.l Have the vehicle checked at a
MITSUBISHI MOTORS Au-
thorized Service Point.
Refer to “Hill start assist” on page 6-46.l There is a fault in the elec-
tronically controlled 4WD
system.l We recommend you to have it
checked.
Refer to “Electronically con- trolled 4WD system” on page
6-39.l There is a fault in the
A/T or
CVT.l We recommend you to have it
checked.
Refer to “Automatic transmis-
sion INVECS-II Sports Mode
6A/T (Intelligent & Innova-
tive Vehicle Electronic Con- trol System II)” on page6-26.
Refer to “Automatic transmis-
sion INVECS-III Sports
Mode 6CVT (Intelligent & Innovative Vehicle Electronic
Control System III)” on page
6-32.
Indication lamp, warning lamp, and information screen display list
5-37OGAE18E1Instruments and controls5

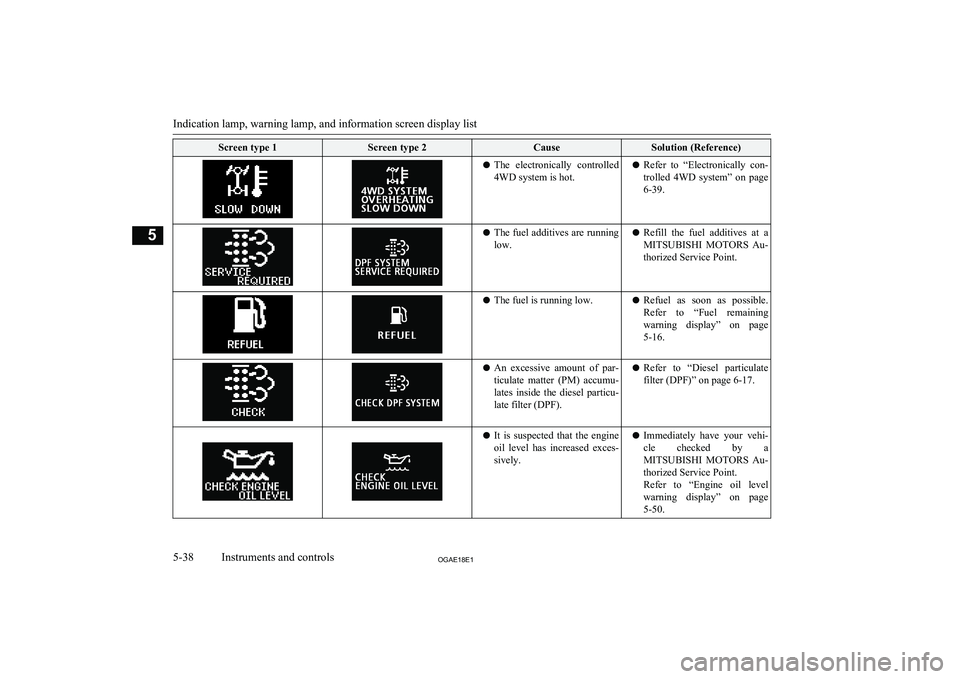

Screen type 1Screen type 2CauseSolution (Reference)lThe electronically controlled
4WD system is hot.l Refer to “Electronically con-
trolled 4WD system” on page 6-39.l The fuel additives are running
low.l Refill the fuel additives at a
MITSUBISHI MOTORS Au-
thorized Service Point.l The fuel is running low.lRefuel as soon as possible.
Refer to “Fuel remaining
warning display” on page 5-16.l An excessive amount of par-
ticulate matter (PM) accumu- lates inside the diesel particu-
late filter (DPF).l Refer to “Diesel particulate
filter (DPF)” on page 6-17.l It is suspected that the engine
oil level has increased exces- sively.l Immediately have your vehi-
cle checked by a
MITSUBISHI MOTORS Au-
thorized Service Point.
Refer to “Engine oil level warning display” on page5-50.
Indication lamp, warning lamp, and information screen display list
5-38OGAE18E1Instruments and controls5

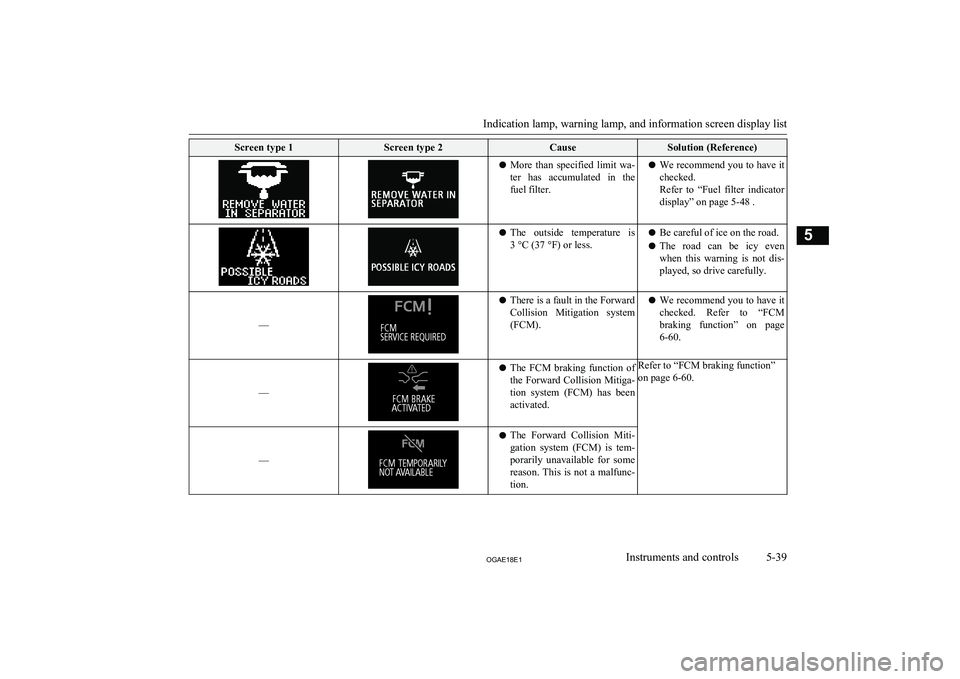

Screen type 1Screen type 2CauseSolution (Reference)lMore than specified limit wa-
ter has accumulated in the fuel filter.l We recommend you to have it
checked.
Refer to “Fuel filter indicator display” on page 5-48 .l The outside temperature is
3 °C (37 °F) or less.l Be careful of ice on the road.
l The road can be icy even
when this warning is not dis- played, so drive carefully.
—
l There is a fault in the Forward
Collision Mitigation system (FCM).l We recommend you to have it
checked. Refer to “FCM
braking function” on page
6-60.
—
l The FCM braking function of
the Forward Collision Mitiga- tion system (FCM) has been
activated.Refer to “FCM braking function”
on page 6-60.
—
l The Forward Collision Miti-
gation system (FCM) is tem-
porarily unavailable for some
reason. This is not a malfunc- tion.
Indication lamp, warning lamp, and information screen display list
5-39OGAE18E1Instruments and controls5

Screen type 1Screen type 2CauseSolution (Reference)
—

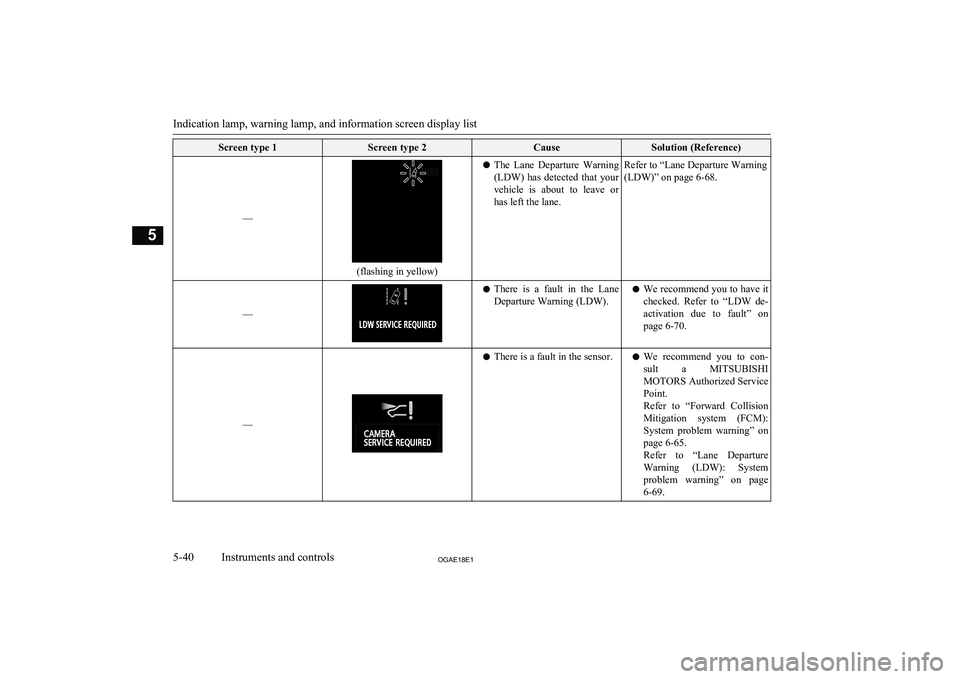

(flashing in yellow)
lThe Lane Departure Warning
(LDW) has detected that your
vehicle is about to leave or has left the lane.Refer to “Lane Departure Warning
(LDW)” on page 6-68.
—
l There is a fault in the Lane
Departure Warning (LDW).l We recommend you to have it
checked. Refer to “LDW de- activation due to fault” on
page 6-70.
—
l There is a fault in the sensor.l We recommend you to con-
sult a MITSUBISHI
MOTORS Authorized Service
Point.
Refer to “Forward Collision Mitigation system (FCM):System problem warning” on page 6-65.
Refer to “Lane Departure
Warning (LDW): System problem warning” on page 6-69.
Indication lamp, warning lamp, and information screen display list
5-40OGAE18E1Instruments and controls5

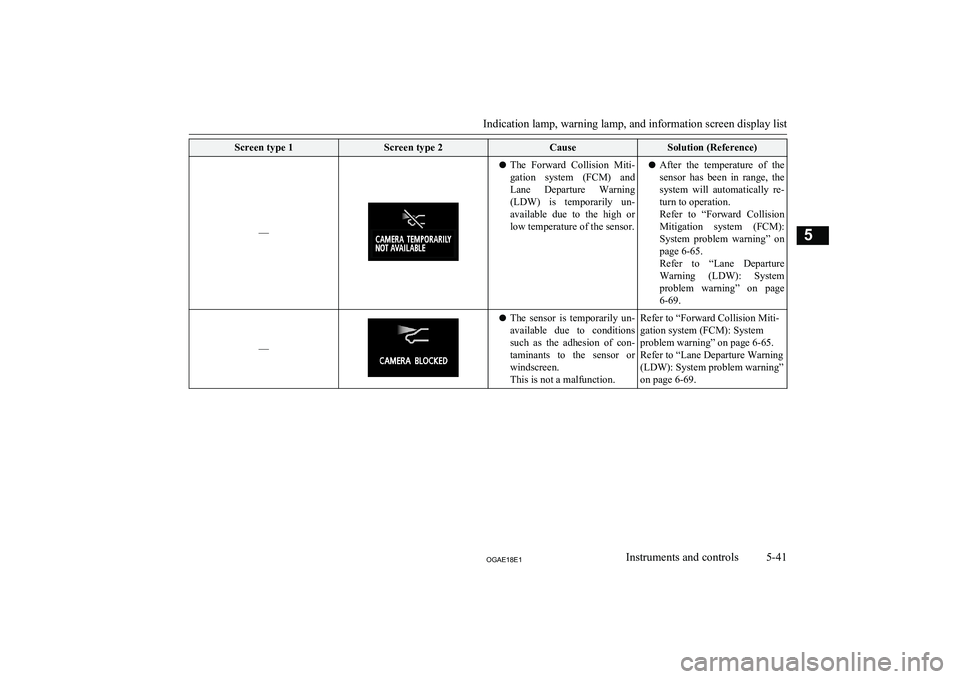

Screen type 1Screen type 2CauseSolution (Reference)
—
lThe Forward Collision Miti-
gation system (FCM) and
Lane Departure Warning (LDW) is temporarily un-available due to the high orlow temperature of the sensor.l After the temperature of the
sensor has been in range, the system will automatically re-
turn to operation.
Refer to “Forward Collision Mitigation system (FCM):System problem warning” on page 6-65.
Refer to “Lane Departure
Warning (LDW): System problem warning” on page 6-69.
—
l The sensor is temporarily un-
available due to conditionssuch as the adhesion of con-
taminants to the sensor or windscreen.
This is not a malfunction.Refer to “Forward Collision Miti-
gation system (FCM): System
problem warning” on page 6-65.
Refer to “Lane Departure Warning
(LDW): System problem warning”
on page 6-69.

Indication lamp, warning lamp, and information screen display list
5-41OGAE18E1Instruments and controls5

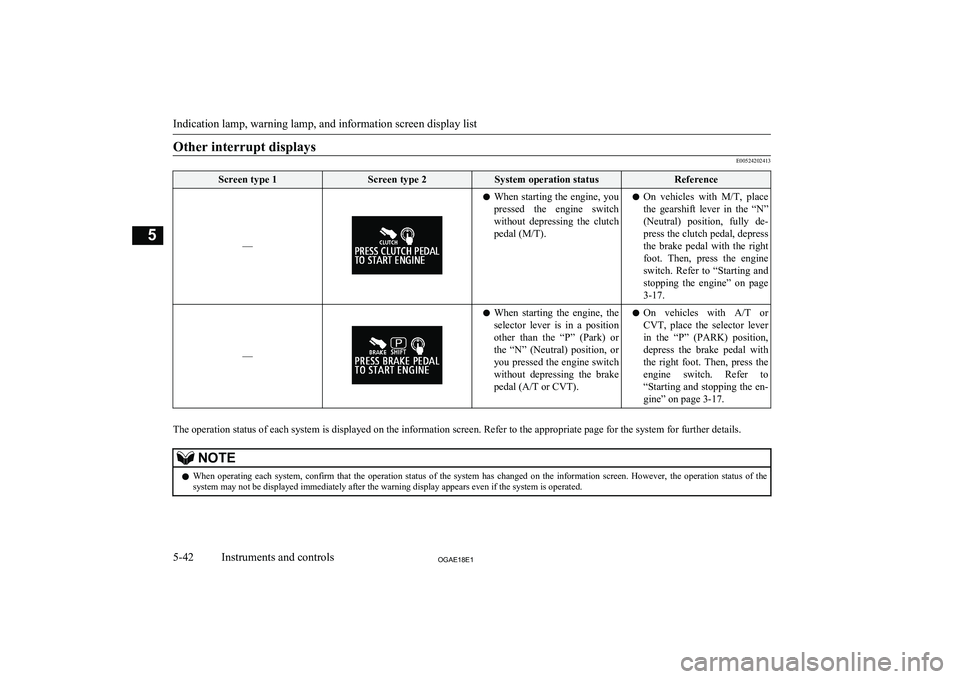

Other interrupt displays
E00524202413
Screen type 1Screen type 2System operation statusReference
––
lWhen starting the engine, you
pressed the engine switch without depressing the clutch pedal (M/T).l On vehicles with
M/T, place
the gearshift lever in the “N” (Neutral) position, fully de- press the clutch pedal, depressthe brake pedal with the rightfoot. Then, press the engine
switch. Refer to “Starting and stopping the engine” on page
3-17.
––
l When starting the engine, the
selector lever is in a position
other than the “P” (Park) or the “N” (Neutral) position, or you pressed the engine switch
without depressing the brake pedal (A/T or CVT).l On vehicles with
A/T or
CVT, place the selector lever in the “P” (PARK) position,
depress the brake pedal with the right foot. Then, press the engine switch. Refer to
“Starting and stopping the en- gine” on page 3-17.

The operation status of each system is displayed on the information screen. Refer to the appropriate page for the system for further details.
NOTEl When operating each system, confirm that the operation status of the system has changed on the information screen. However, the operation status of the
system may not be displayed immediately after the warning display appears even if the system is operated.
Indication lamp, warning lamp, and information screen display list
5-42OGAE18E1Instruments and controls5

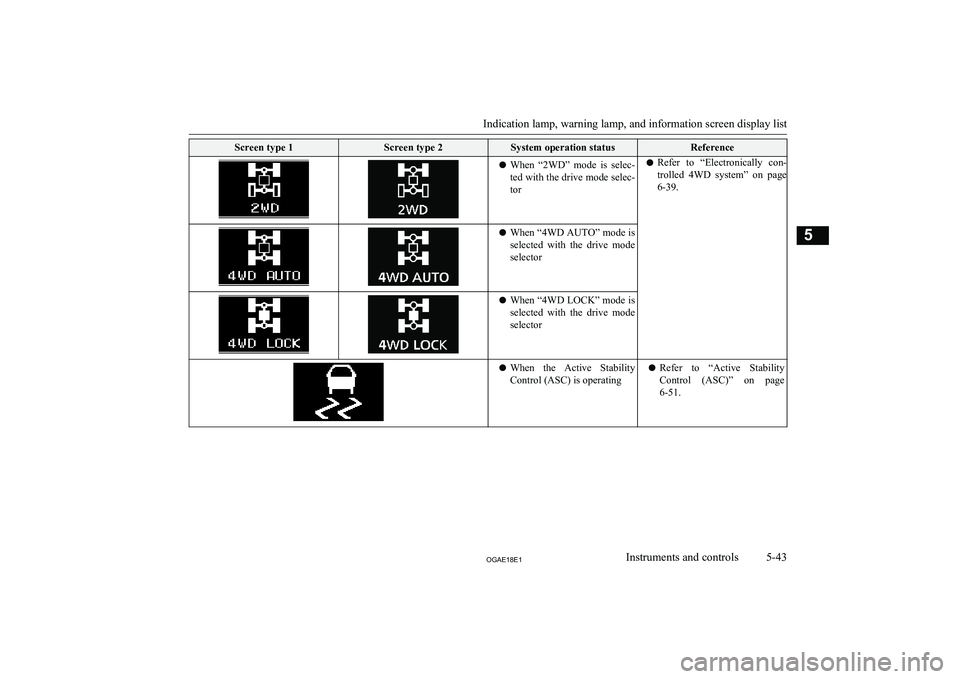

Screen type 1Screen type 2System operation statusReferencelWhen “2WD” mode is selec-
ted with the drive mode selec-torl Refer to “Electronically con-
trolled 4WD system” on page
6-39.l When “4WD AUTO” mode is
selected with the drive mode selectorl When “4WD LOCK” mode is
selected with the drive mode selectorl When the Active Stability
Control (ASC) is operatingl Refer to “Active Stability
Control (ASC)” on page
6-51.
Indication lamp, warning lamp, and information screen display list
5-43OGAE18E1Instruments and controls5

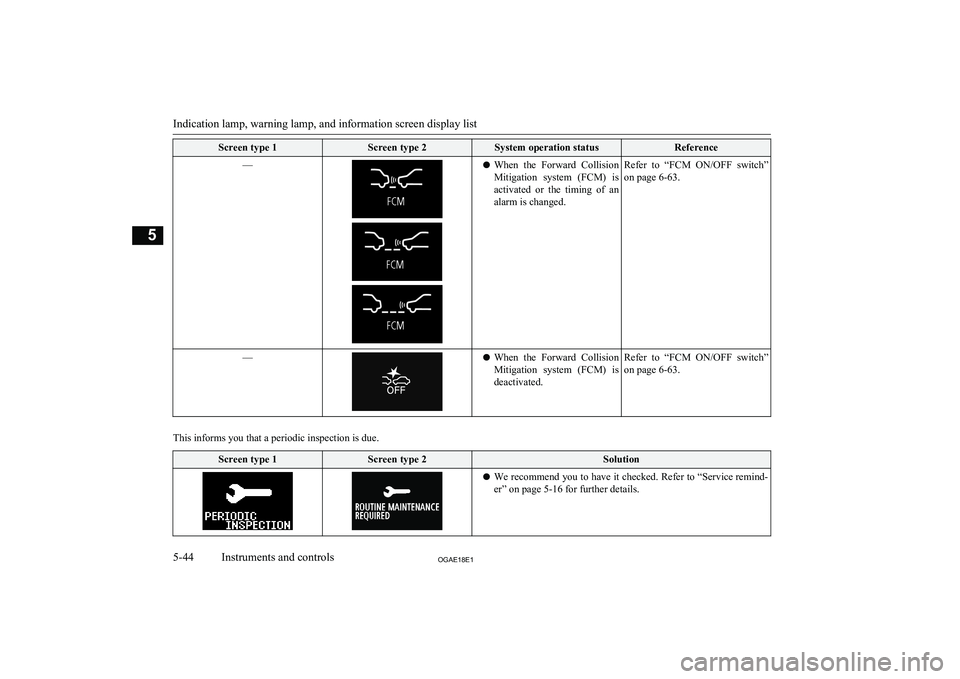

Screen type 1Screen type 2System operation statusReference—lWhen the Forward Collision
Mitigation system (FCM) is
activated or the timing of an alarm is changed.Refer to “FCM ON/OFF switch”
on page 6-63.—l When the Forward Collision
Mitigation system (FCM) is
deactivated.Refer to “FCM ON/OFF switch” on page 6-63.

This informs you that a periodic inspection is due.
Screen type 1Screen type 2Solutionl We recommend you to have it checked. Refer to
“Service remind-
er” on page 5-16 for further details.
Indication lamp, warning lamp, and information screen display list
5-44OGAE18E1Instruments and controls5
