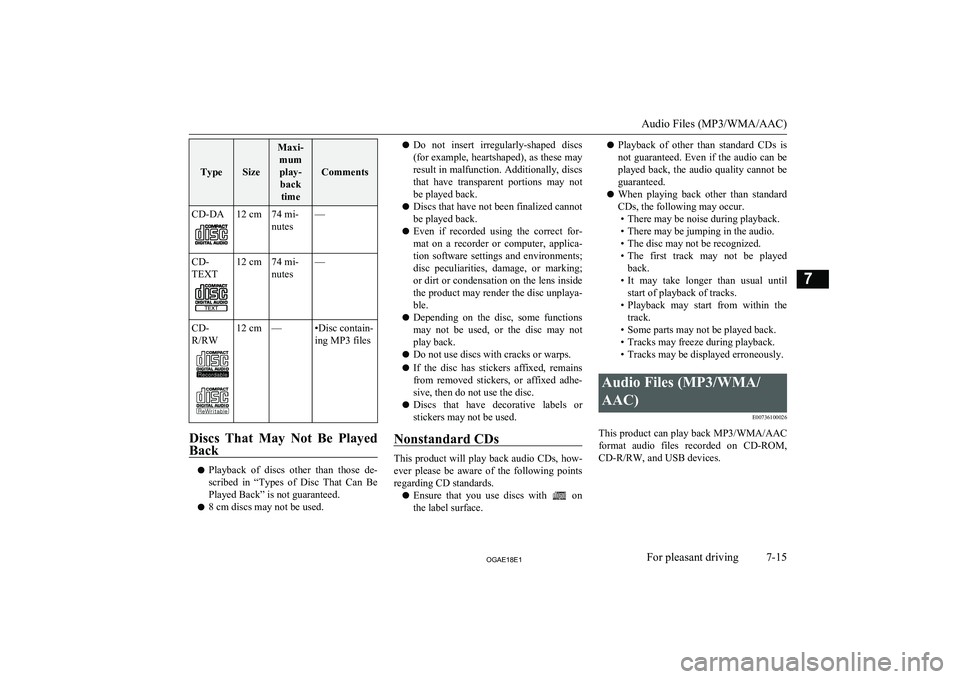

TypeSize
Maxi-mumplay- back time
Comments
CD-DA12 cm74 mi-
nutes—CD-
TEXT12 cm74 mi-
nutes—CD-
R/RW12 cm—•Disc contain-
ing MP3 files
Discs That May Not Be Played
Back
l Playback of discs other than those de-
scribed in “Types of Disc That Can Be
Played Back” is not guaranteed.
l 8 cm discs may not be used.
lDo not insert irregularly-shaped discs
(for example, heartshaped), as these may
result in malfunction. Additionally, discs that have transparent portions may notbe played back.
l Discs that have not been finalized cannot
be played back.
l Even if recorded using the correct for-
mat on a recorder or computer, applica- tion software settings and environments;
disc peculiarities, damage, or marking;
or dirt or condensation on the lens inside the product may render the disc unplaya-
ble.
l Depending on the disc, some functions
may not be used, or the disc may not play back.
l Do not use discs with cracks or warps.
l If the disc has stickers affixed, remains
from removed stickers, or affixed adhe- sive, then do not use the disc.
l Discs that have decorative labels or
stickers may not be used.
Nonstandard CDs
This product will play back audio CDs, how-
ever please be aware of the following points regarding CD standards.
l Ensure that you use discs with

on
the label surface.
l Playback of other than standard CDs is
not guaranteed. Even if the audio can be played back, the audio quality cannot be
guaranteed.
l When playing back other than standard
CDs, the following may occur. • There may be noise during playback.
• There may be jumping in the audio.
• The disc may not be recognized.
• The first track may not be played
back.
• It may take longer than usual until
start of playback of tracks.
• Playback may start from within the
track.
• Some parts may not be played back.
• Tracks may freeze during playback.
• Tracks may be displayed erroneously.Audio Files (MP3/WMA/
AAC) E00736100026
This product can play back MP3/WMA/AAC
format audio files recorded on CD-ROM, CD-R/RW, and USB devices.

Audio Files (MP3/WMA/AAC)
7-15OGAE18E1For pleasant driving7

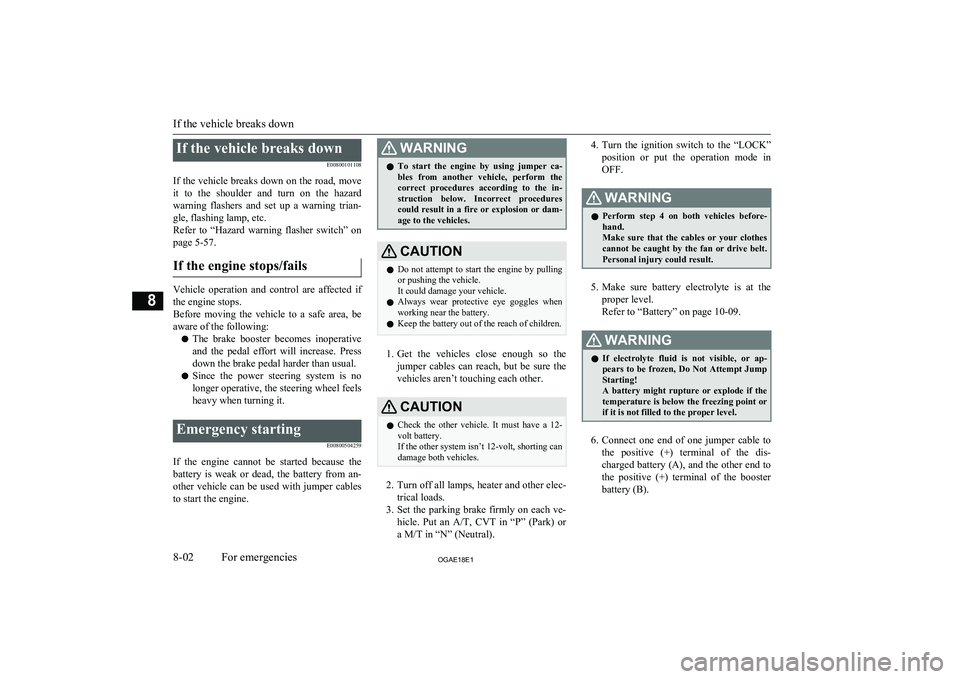

If the vehicle breaks downE00800101108
If the vehicle breaks down on the road, move it to the shoulder and turn on the hazard
warning flashers and set up a warning trian- gle, flashing lamp, etc.
Refer to “Hazard warning flasher switch” on
page 5-57.
If the engine stops/fails
Vehicle operation and control are affected if
the engine stops.
Before moving the vehicle to a safe area, be
aware of the following:
l The brake booster becomes inoperative
and the pedal effort will increase. Press down the brake pedal harder than usual.
l Since the power steering system is no
longer operative, the steering wheel feels
heavy when turning it.
Emergency starting
E00800504259
If the engine cannot be started because thebattery is weak or dead, the battery from an-other vehicle can be used with jumper cables to start the engine.
WARNINGl To start the engine by using jumper ca-
bles from another vehicle, perform thecorrect procedures according to the in-
struction below. Incorrect procedures could result in a fire or explosion or dam-
age to the vehicles.CAUTIONl Do not attempt to start the engine by pulling
or pushing the vehicle.
It could damage your vehicle.
l Always wear protective eye goggles when
working near the battery.
l Keep the battery out of the reach of children.
1.
Get the vehicles close enough so the
jumper cables can reach, but be sure the vehicles aren’t touching each other.
CAUTIONl Check the other vehicle. It must have a 12-
volt battery.
If the other system isn’t 12-volt, shorting can
damage both vehicles.
2. Turn off all lamps, heater and other elec-
trical loads.
3. Set the parking brake firmly on each ve-
hicle. Put an A/T, CVT in “P” (Park) or
a M/T in “N” (Neutral).
4. Turn the ignition switch to the “LOCK”
position or put the operation mode in
OFF.WARNINGl Perform step 4 on both vehicles before-
hand.
Make sure that the cables or your clothes
cannot be caught by the fan or drive belt.
Personal injury could result.
5. Make sure battery electrolyte is at the
proper level.
Refer to “Battery” on page 10-09.
WARNINGl If electrolyte fluid is not visible, or ap-
pears to be frozen, Do Not Attempt Jump
Starting!
A battery might rupture or explode if the temperature is below the freezing point orif it is not filled to the proper level.
6. Connect one end of one jumper cable to
the positive (+) terminal of the dis-charged battery (A), and the other end to
the positive (+) terminal of the booster
battery (B).

If the vehicle breaks down
8-02OGAE18E1For emergencies8

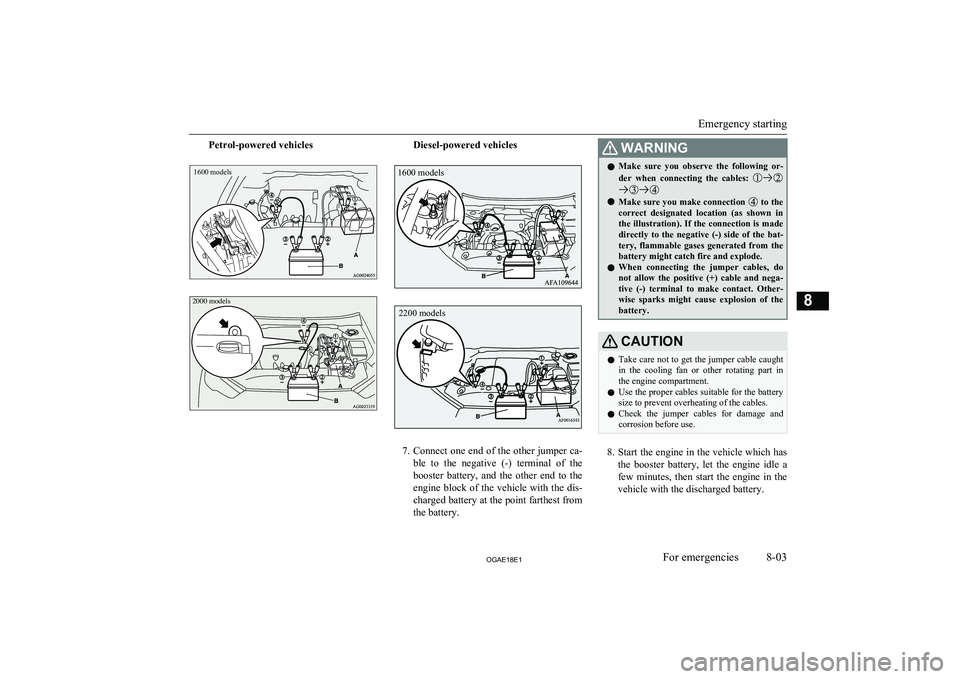

Petrol-powered vehicles1600 modelsDiesel-powered vehicles
7.Connect one end of the other jumper ca-
ble to the negative (-) terminal of the
booster battery, and the other end to the engine block of the vehicle with the dis-
charged battery at the point farthest from the battery.
WARNINGl Make sure you observe the following or-
der when connecting the cables:
l Make sure you make connection to the
correct designated location (as shown in the illustration). If the connection is made
directly to the negative (-) side of the bat- tery, flammable gases generated from the
battery might catch fire and explode.
l When connecting the jumper cables, do
not allow the positive (+) cable and nega-
tive (-) terminal to make contact. Other- wise sparks might cause explosion of the battery.
CAUTIONl Take care not to get the jumper cable caught
in the cooling fan or other rotating part in
the engine compartment.
l Use the proper cables suitable for the battery
size to prevent overheating of the cables.
l Check the jumper cables for damage and
corrosion before use.
8. Start the engine in the vehicle which has
the booster battery, let the engine idle a
few minutes, then start the engine in the vehicle with the discharged battery.
Emergency starting
8-03OGAE18E1For emergencies82000 models 1600 models 2200 models

Electronic immobilizer (Anti-theftstarting system)................................................ 3-03
Electronically controlled 4WD system............. 6-39
Emergency starting............................................8-02
Emergency stop signal system.......................... 6-48
Engine specifications.......................................11-10
Engine switch.................................................... 3-13
Engine Coolant..............................................10-07,11-15
Number....................................................... 11-03
Oil............................................................... 10-05
Oil and oil filter........................................... 11-15
Overheating................................................... 8-04
Specifications.............................................. 11-10
Used engine oils safety instructions and disposal information............................. 2-06
Exterior and interior lamp operation............... 10-18
F
Fluid capacities and lubricants........................ 11-15
Fluid Automatic transmission fluid...................... 11-15
Brake fluid........................................ 10-09,11-15
Clutch fluid................................................. 10-09
Engine coolant.................................. 10-07,11-15
Washer fluid..................................... 10-08,11-15
For cold and snowy weather............................10-19
Forward Collision Mitigation System (FCM)... 6-59
Front fog lamps Bulb location and capacity.......................... 10-26Replacement................................................ 10-32
Switch........................................................... 5-58
Front room lamp
Bulb location and capacity............... 10-26,10-27
Front seat........................................................... 4-03
Front turn-signal lamps Bulb location and capacity.......................... 10-26
Replacement................................................ 10-31
Fuel consumption............................................ 11-12
Fuel
Filling the fuel tank....................................... 2-03Fuel selection................................................ 2-02
Modification/alterations to the electrical or fuel systems............................. 2-06
Tank capacity................................................ 2-03
Fuses................................................................ 10-19
Fusible links.................................................... 10-19
G
General maintenance....................................... 10-18
General vehicle data........................................ 11-04
Genuine parts.....................................................2-06
Glove box lamp Bulb location and capacity.......................... 10-27
H
Hazard warning flasher switch.......................... 5-57
Hazard warning indication lamps......................5-46
Head restraints................................................... 4-07
Headlamp levelling switch................................ 5-55
Headlamp washer switch...................................5-64
Headlamps Bulb location and capacity.......................... 10-26Headlamp flasher.......................................... 5-54Replacement..................................... 10-28,10-29
Switch........................................................... 5-50
Heated mirror.................................................... 6-12
Heated seats....................................................... 4-06
Heater................................................................ 7-03
High-mounted stop lamp Bulb location and capacity.......................... 10-26Replacement................................................ 10-36
Hill start assist................................................... 6-46
Hinges and latches lubrication........................ 10-19
Horn switch....................................................... 5-65
I
If the vehicle breaks down................................ 8-02
Ignition switch................................................... 6-12
Indication lamps................................................ 5-46
Information screen display................................ 5-48
Inside rear-view mirror......................................6-08
Inside tailgate release........................................ 3-31
Inspection and maintenance following rough road operation........................................ 6-43
Instruments........................................................ 5-02
Interior lamps.................................................... 7-73
J
Jack.................................................................... 8-07Storage.......................................................... 8-06
Jump starting (Emergency starting).................. 8-02
K
Key slot............................................................. 3-20
Keyless entry system.................................3-04,3-22
