MITSUBISHI ASX 2018 Owner's Manual (in English)

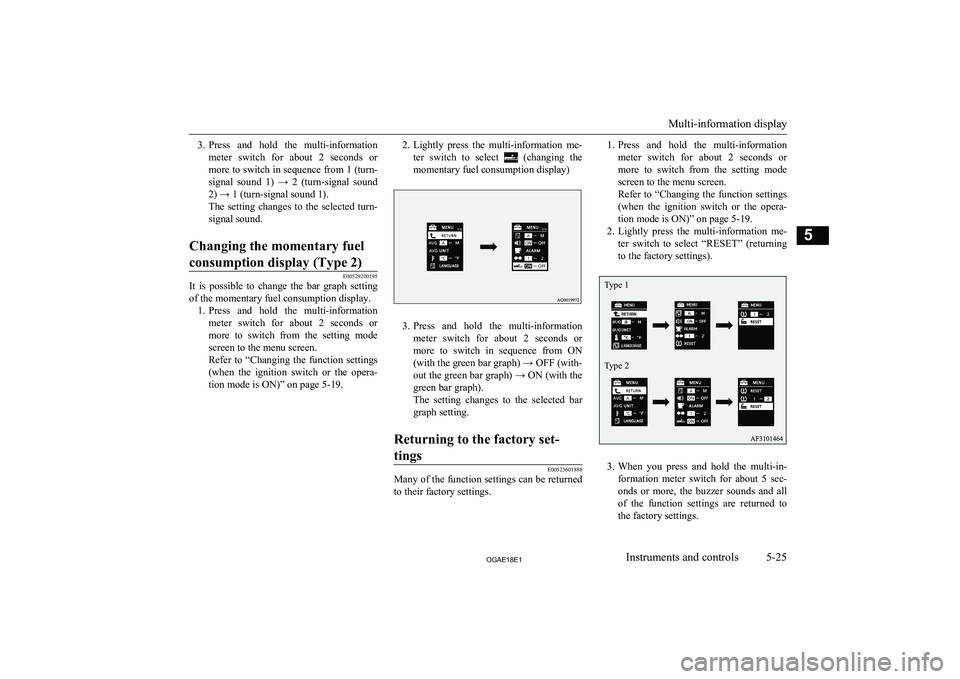

3.Press and hold the multi-information
meter switch for about 2 seconds or more to switch in sequence from 1 (turn- signal sound 1) → 2 (turn-signal sound
2) → 1 (turn-signal sound 1).
The setting changes to the selected turn- signal sound.Changing the momentary fuel
consumption display (Type 2)
E00529200195
It is possible to change the bar graph setting of the momentary fuel consumption display. 1. Press and hold the multi-information
meter switch for about 2 seconds ormore to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (when the ignition switch or the opera-
tion mode is ON)” on page 5-19.
2. Lightly press the multi-information me-
ter switch to select
(changing the
momentary fuel consumption display)
3. Press and hold the multi-information
meter switch for about 2 seconds or more to switch in sequence from ON(with the green bar graph) → OFF (with-
out the green bar graph) → ON (with the green bar graph).
The setting changes to the selected bar
graph setting.
Returning to the factory set-
tings
E00523601888
Many of the function settings can be returned
to their factory settings.
1. Press and hold the multi-information
meter switch for about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (when the ignition switch or the opera- tion mode is ON)” on page 5-19.
2. Lightly press the multi-information me-
ter switch to select “RESET” (returning to the factory settings).
3. When you press and hold the multi-in-
formation meter switch for about 5 sec-
onds or more, the buzzer sounds and all of the function settings are returned to
the factory settings.
Multi-information display
5-25OGAE18E1Instruments and controls5 Type 1
Type 2

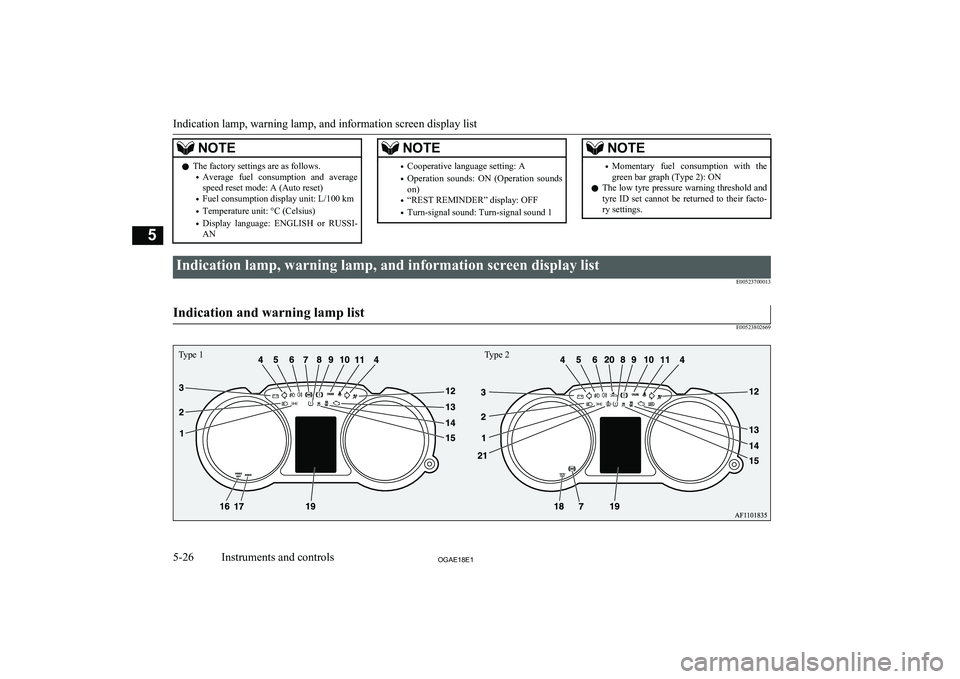

NOTElThe factory settings are as follows.
• Average fuel consumption and average
speed reset mode: A (Auto reset)
• Fuel consumption display unit: L/100 km
• Temperature unit: °C (Celsius)
• Display language: ENGLISH or RUSSI-
ANNOTE• Cooperative language setting: A
• Operation sounds: ON (Operation sounds
on)
• “REST REMINDER” display: OFF
• Turn-signal sound: Turn-signal sound 1NOTE•Momentary fuel consumption with the
green bar graph (Type 2): ON
l The low tyre pressure warning threshold and
tyre ID set cannot be returned to their facto- ry settings.Indication lamp, warning lamp, and information screen display list
E00523700013
Indication and warning lamp list
E00523802669
Indication lamp, warning lamp, and information screen display list
5-26OGAE18E1Instruments and controls5 Type 1Type 2

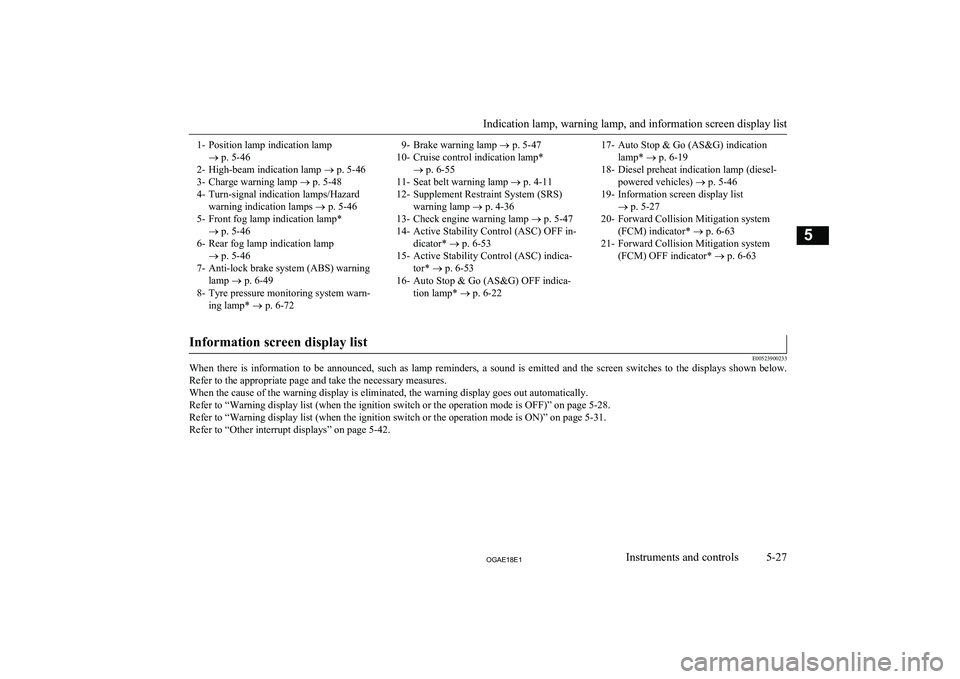

1- Position lamp indication lamp® p. 5-46
2- High-beam indication lamp ® p. 5-46
3- Charge warning lamp ® p. 5-48
4- Turn-signal indication lamps/Hazard warning indication lamps ® p. 5-46
5- Front fog lamp indication lamp* ® p. 5-46
6- Rear fog lamp indication lamp ® p. 5-46
7- Anti-lock brake system (ABS) warning lamp ® p. 6-49
8- Tyre pressure monitoring system warn- ing lamp* ® p. 6-729- Brake warning lamp ® p. 5-47
10- Cruise control indication lamp* ® p. 6-55
11- Seat belt warning lamp ® p. 4-11
12- Supplement Restraint System (SRS) warning lamp ® p. 4-36
13- Check engine warning lamp ® p. 5-47
14- Active Stability Control (ASC) OFF in- dicator* ® p. 6-53
15- Active Stability Control (ASC) indica- tor* ® p. 6-53
16- Auto Stop & Go (AS&G) OFF indica- tion lamp* ® p. 6-2217- Auto Stop & Go (AS&G) indication
lamp* ® p. 6-19
18- Diesel preheat indication lamp (diesel- powered vehicles) ® p. 5-46
19- Information screen display list ® p. 5-27
20- Forward Collision Mitigation system (FCM) indicator* ® p. 6-63
21- Forward Collision Mitigation system (FCM) OFF indicator* ® p. 6-63

Information screen display list
E00523900233
When there is information to be announced, such as lamp reminders, a sound is emitted and the screen switches to the displays shown below.
Refer to the appropriate page and take the necessary measures.When the cause of the warning display is eliminated, the warning display goes out automatically.Refer to “Warning display list (when the ignition switch or the operation mode is OFF)” on page 5-28.
Refer to “Warning display list (when the ignition switch or the operation mode is ON)” on page 5-31.
Refer to “Other interrupt displays” on page 5-42.
Indication lamp, warning lamp, and information screen display list
5-27OGAE18E1Instruments and controls5

NOTElA warning may be displayed on the information screen and the buzzer may sound in the following rare cases.
This is caused by the system picking up interference such as noise or strong electromagnetic waves, and is not a functional problem.
• An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a radar station.
• Abnormal voltage or a static electricity discharge is generated by the operation of installed electrical equipment (including after-market parts).
If the warning display appears many times, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.

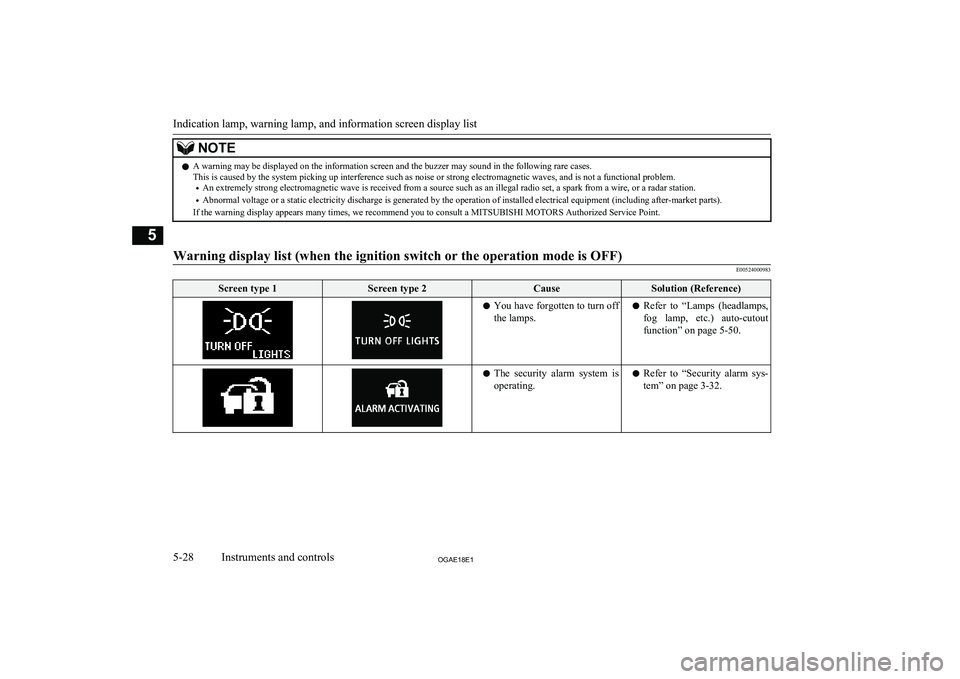

Warning display list (when the ignition switch or the operation mode is OFF)
E00524000983
Screen type 1Screen type 2CauseSolution (Reference)l You have forgotten to turn off
the lamps.l Refer to “Lamps (headlamps,
fog lamp, etc.) auto-cutout
function” on page 5-50.l The security alarm system is
operating.l Refer to “Security alarm sys-
tem” on page 3-32.
Indication lamp, warning lamp, and information screen display list
5-28OGAE18E1Instruments and controls5

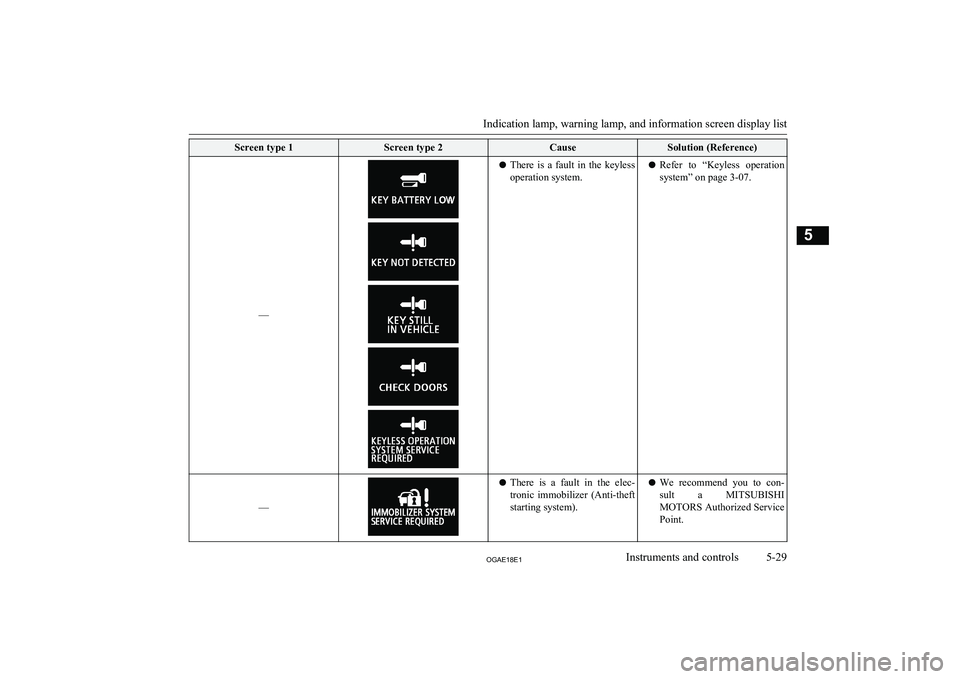

Screen type 1Screen type 2CauseSolution (Reference)
––
lThere is a fault in the keyless
operation system.l Refer to “Keyless operation
system” on page 3-07.
––
l There is a fault in the elec-
tronic immobilizer (Anti-theft
starting system).l We recommend you to con-
sult a MITSUBISHI
MOTORS Authorized Service
Point.
Indication lamp, warning lamp, and information screen display list
5-29OGAE18E1Instruments and controls5

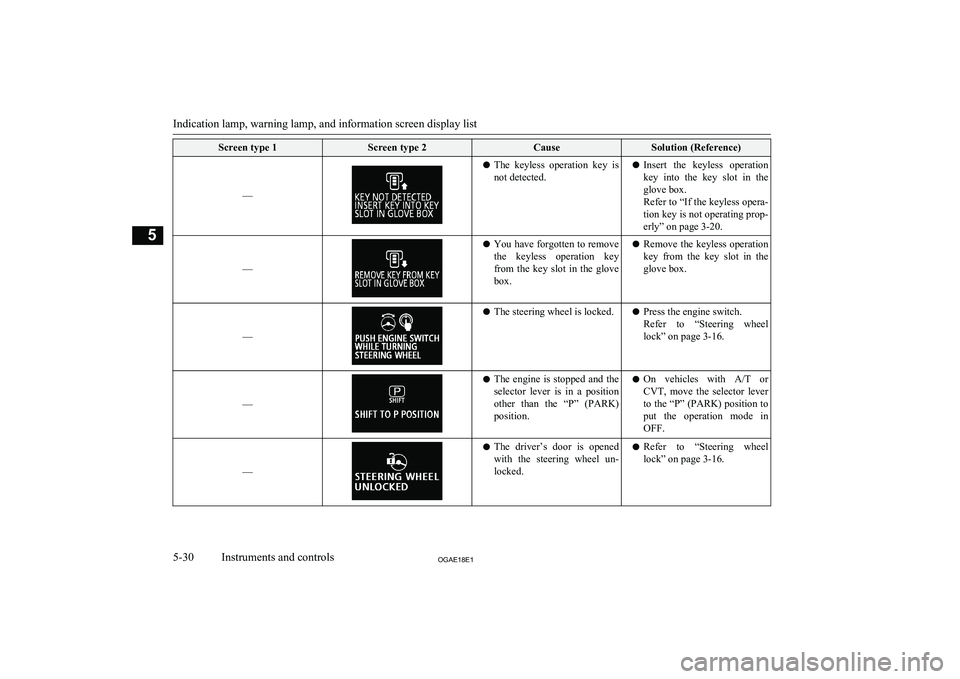

Screen type 1Screen type 2CauseSolution (Reference)
––
lThe keyless operation key is
not detected.l Insert the keyless operation
key into the key slot in the
glove box.
Refer to “If the keyless opera-
tion key is not operating prop- erly” on page 3-20.
––
l You have forgotten to remove
the keyless operation key
from the key slot in the glove box.l Remove the keyless operation
key from the key slot in the glove box.
––
l The steering wheel is locked.l Press the engine switch.
Refer to “Steering wheel
lock” on page 3-16.
––
l The engine is stopped and the
selector lever is in a position
other than the “P” (PARK)
position.l On vehicles with
A/T or
CVT, move the selector lever
to the “P” (PARK) position to
put the operation mode in
OFF.
––
l The driver’s door is opened
with the steering wheel un- locked.l Refer to “Steering wheel
lock” on page 3-16.
Indication lamp, warning lamp, and information screen display list
5-30OGAE18E1Instruments and controls5

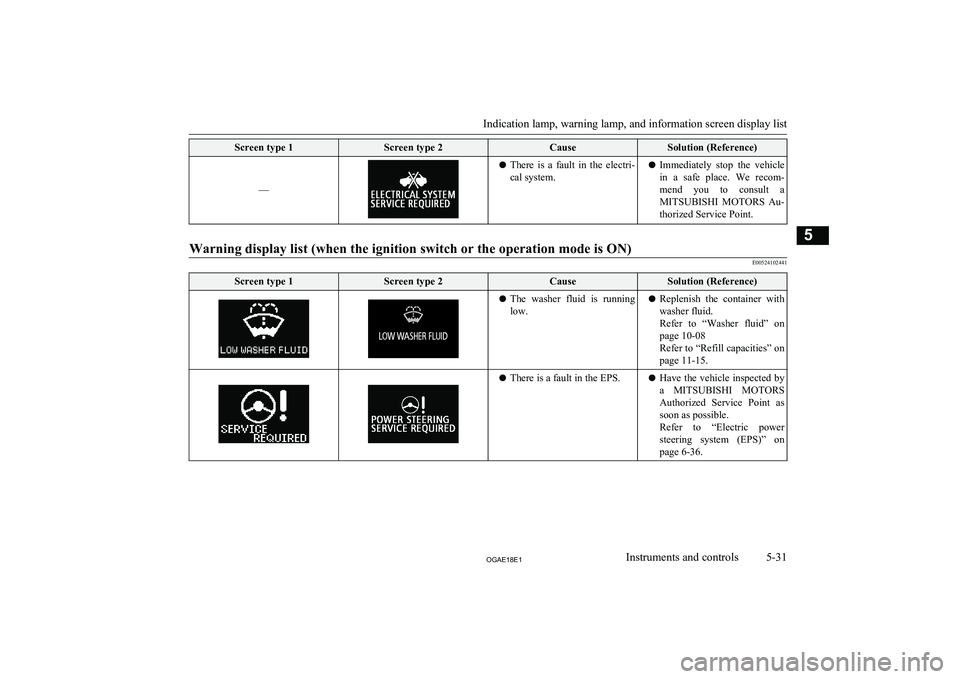

Screen type 1Screen type 2CauseSolution (Reference)
––
lThere is a fault in the electri-
cal system.l Immediately stop the vehicle
in a safe place. We recom-mend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.

Warning display list (when the ignition switch or the operation mode is ON)
E00524102441
Screen type 1Screen type 2CauseSolution (Reference)l The washer fluid is running
low.l Replenish the container with
washer fluid.
Refer to “Washer fluid” on
page 10-08
Refer to “Refill capacities” on page 11-15.l There is a fault in the EPS.l Have the vehicle inspected by
a MITSUBISHI MOTORS
Authorized Service Point as soon as possible.
Refer to “Electric power
steering system (EPS)” on
page 6-36.
Indication lamp, warning lamp, and information screen display list
5-31OGAE18E1Instruments and controls5

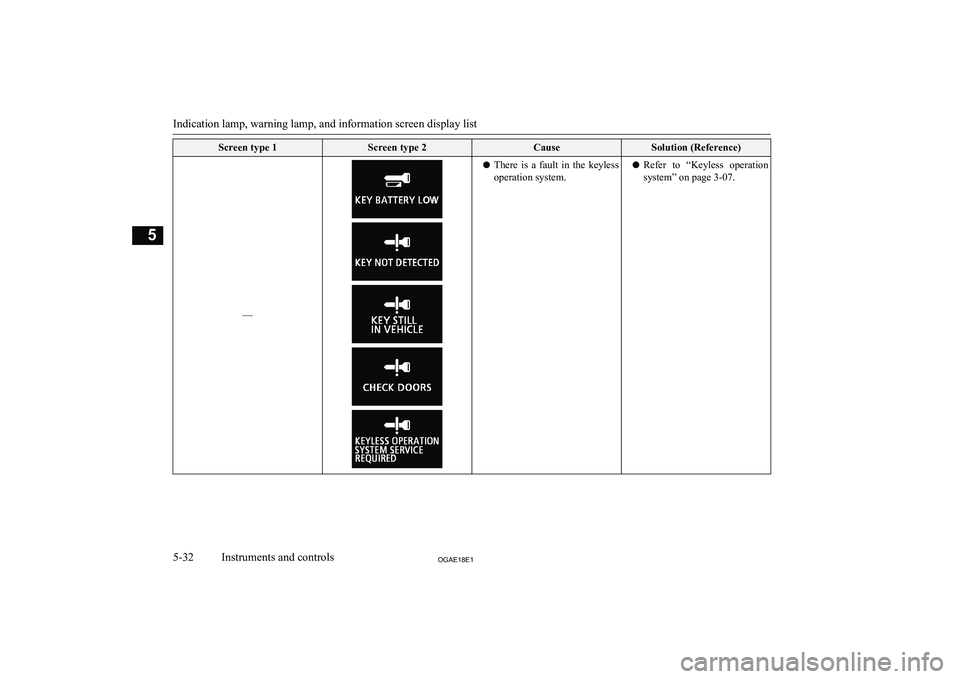

Screen type 1Screen type 2CauseSolution (Reference)
––
lThere is a fault in the keyless
operation system.l Refer to “Keyless operation
system” on page 3-07.
Indication lamp, warning lamp, and information screen display list
5-32OGAE18E1Instruments and controls5

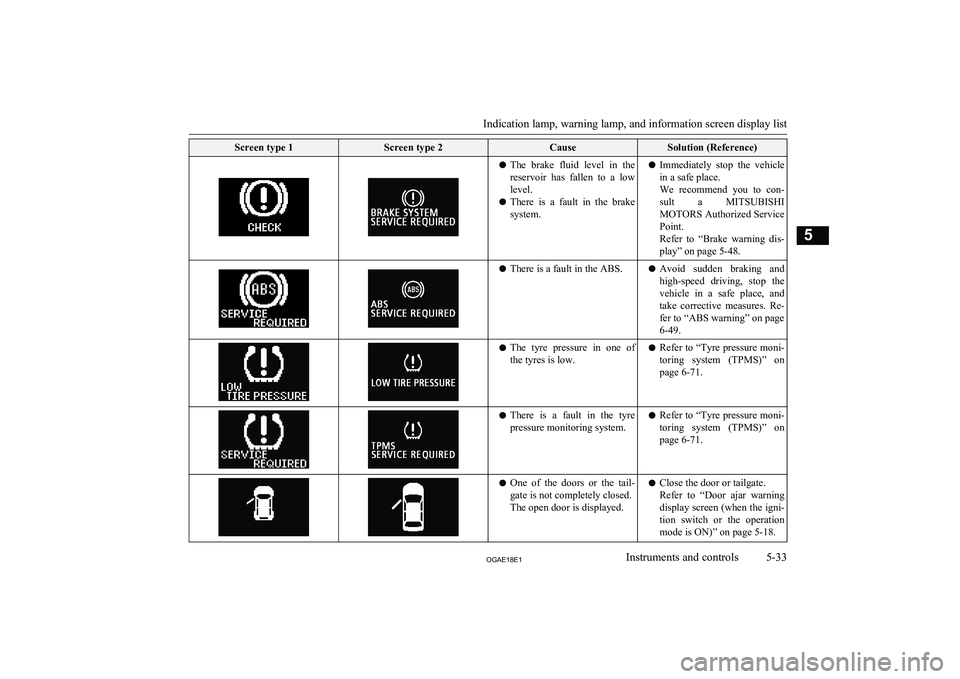

Screen type 1Screen type 2CauseSolution (Reference)lThe brake fluid level in the
reservoir has fallen to a low level.
l There is a fault in the brake
system.l Immediately stop the vehicle
in a safe place.
We recommend you to con-
sult a MITSUBISHI
MOTORS Authorized Service
Point.
Refer to “Brake warning dis-
play” on page 5-48.l There is a fault in the ABS.l Avoid sudden braking and
high-speed driving, stop the vehicle in a safe place, and take corrective measures. Re-fer to “ABS warning” on page
6-49.l The tyre pressure in one of
the tyres is low.l Refer to “Tyre pressure moni-
toring system (TPMS)” on
page 6-71.l There is a fault in the tyre
pressure monitoring system.l Refer to “Tyre pressure moni-
toring system (TPMS)” on
page 6-71.l One of the doors or the tail-
gate is not completely closed.
The open door is displayed.l Close the door or tailgate.
Refer to “Door ajar warning
display screen (when the igni- tion switch or the operation
mode is ON)” on page 5-18.
Indication lamp, warning lamp, and information screen display list
5-33OGAE18E1Instruments and controls5

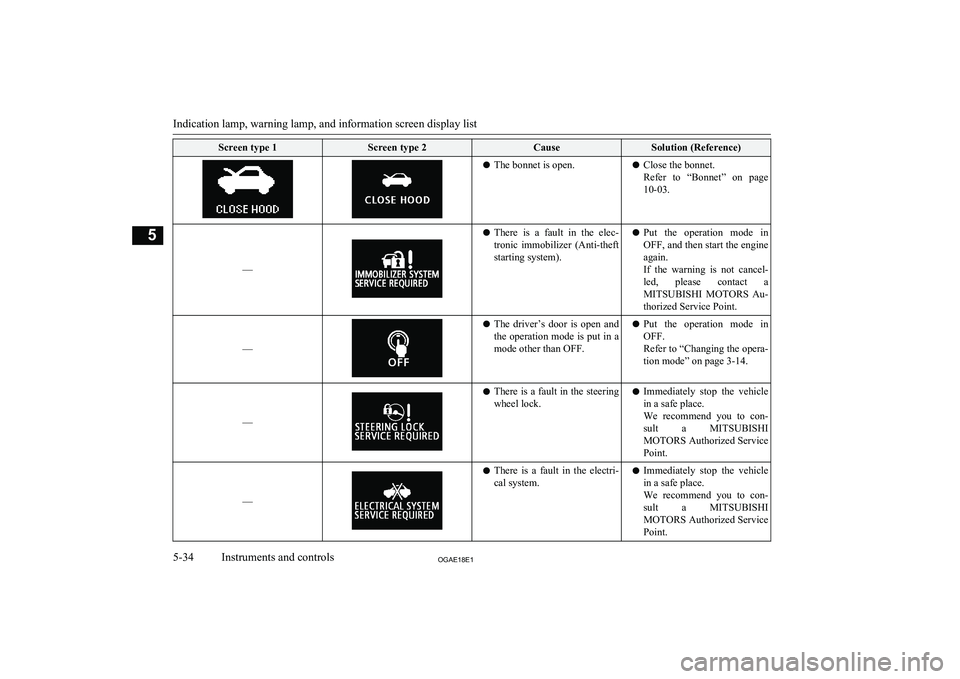

Screen type 1Screen type 2CauseSolution (Reference)lThe bonnet is open.lClose the bonnet.
Refer to “Bonnet” on page 10-03.
––
l There is a fault in the elec-
tronic immobilizer (Anti-theft
starting system).l Put the operation mode in
OFF, and then start the engine again.
If the warning is not cancel-
led, please contact a
MITSUBISHI MOTORS Au-
thorized Service Point.
––
l The driver’s door is open and
the operation mode is put in a
mode other than OFF.l Put the operation mode in
OFF.
Refer to “Changing the opera- tion mode” on page 3-14.
––
l There is a fault in the steering
wheel lock.l Immediately stop the vehicle
in a safe place.
We recommend you to con-
sult a MITSUBISHI
MOTORS Authorized Service
Point.
––
l There is a fault in the electri-
cal system.l Immediately stop the vehicle
in a safe place.
We recommend you to con-
sult a MITSUBISHI
MOTORS Authorized Service
Point.
Indication lamp, warning lamp, and information screen display list
5-34OGAE18E1Instruments and controls5
