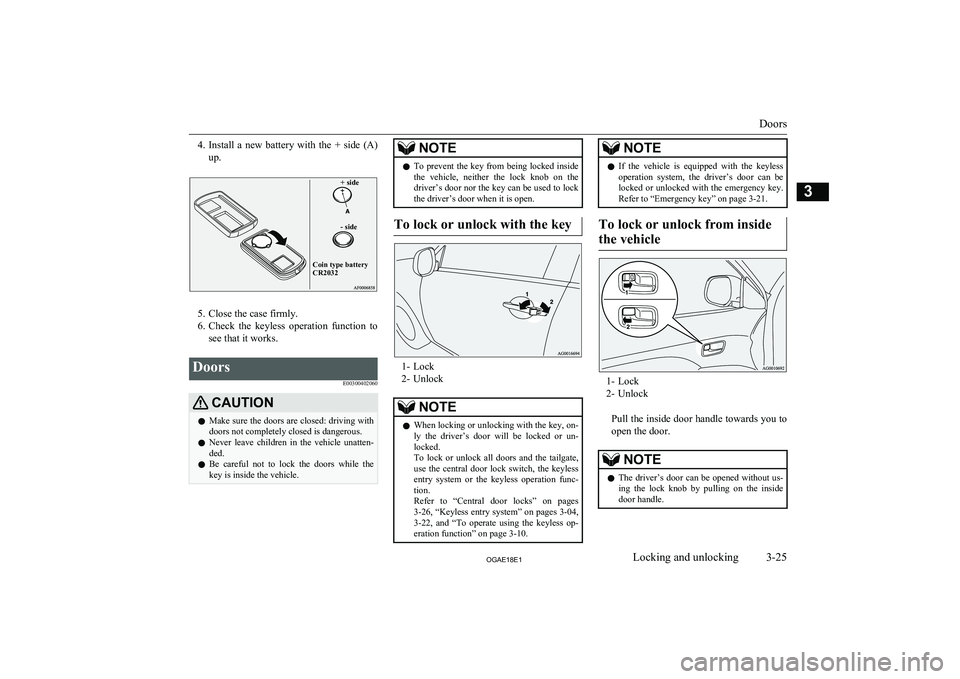

4.Install a new battery with the + side (A)
up.+ side- sideCoin type battery CR2032
5. Close the case firmly.
6. Check the keyless operation function to
see that it works.
Doors
E00300402060CAUTIONlMake sure the doors are closed: driving with
doors not completely closed is dangerous.
l Never leave children in the vehicle unatten-
ded.
l Be careful not to lock the doors while the
key is inside the vehicle.NOTEl To prevent the key from being locked inside
the vehicle, neither the lock knob on the
driver’s door nor the key can be used to lock the driver’s door when it is open.
To lock or unlock with the key
1- Lock
2- Unlock
NOTEl When locking or unlocking with the key, on-
ly the driver’s door will be locked or un-
locked.
To lock or unlock all doors and the tailgate,
use the central door lock switch, the keyless entry system or the keyless operation func- tion.
Refer to “Central door locks” on pages
3-26 , “Keyless entry system” on pages 3-04,
3-22 , and “To operate using the keyless op-
eration function” on page 3-10.NOTEl If the vehicle is equipped with the keyless
operation system, the driver’s door can be locked or unlocked with the emergency key.
Refer to “Emergency key” on page 3-21.
To lock or unlock from inside
the vehicle
1- Lock
2- Unlock
Pull the inside door handle towards you toopen the door.
NOTEl The driver’s door can be opened without us-
ing the lock knob by pulling on the inside
door handle.
Doors
3-25OGAE18E1Locking and unlocking3
Page 52 of 514

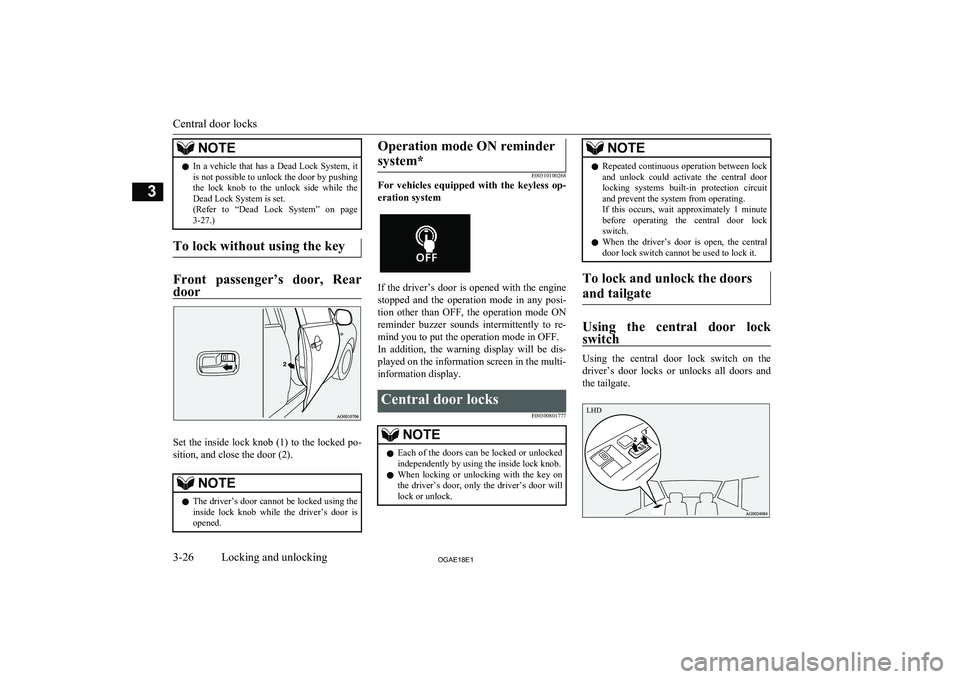

NOTElIn a vehicle that has a Dead Lock System, it
is not possible to unlock the door by pushingthe lock knob to the unlock side while the Dead Lock System is set.
(Refer to “Dead Lock System” on page
3-27.)
To lock without using the key
Front passenger’s door, Rear
door
Set the inside lock knob (1) to the locked po-
sition, and close the door (2).
NOTEl The driver’s door cannot be locked using the
inside lock knob while the driver’s door is
opened.Operation mode ON reminder
system*
E00310100268
For vehicles equipped with the keyless op-
eration system
If the driver’s door is opened with the engine stopped and the operation mode in any posi-
tion other than OFF, the operation mode ON reminder buzzer sounds intermittently to re-
mind you to put the operation mode in OFF.
In addition, the warning display will be dis- played on the information screen in the multi-information display.
Central door locks
E00300801777NOTElEach of the doors can be locked or unlocked
independently by using the inside lock knob.
l When locking or unlocking with the key on
the driver’s door, only the driver’s door will
lock or unlock.NOTEl Repeated continuous operation between lock
and unlock could activate the central door
locking systems built-in protection circuit
and prevent the system from operating.
If this occurs, wait approximately 1 minute before operating the central door lockswitch.
l When the driver’s door is open, the central
door lock switch cannot be used to lock it.
To lock and unlock the doors
and tailgate
Using the central door lock
switch
Using the central door lock switch on the
driver’s door locks or unlocks all doors and the tailgate.
Central door locks
3-26OGAE18E1Locking and unlocking3 LHD
Page 53 of 514

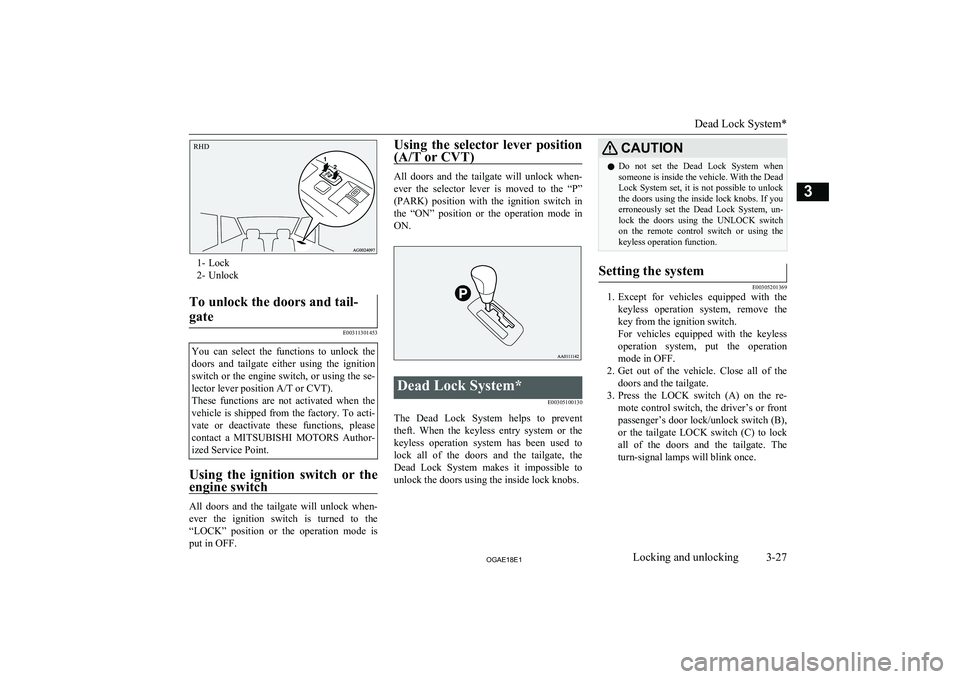

1- Lock
2- Unlock
To unlock the doors and tail-
gate
E00311301453
You can select the functions to unlock the doors and tailgate either using the ignition
switch or the engine switch, or using the se- lector lever position A/T or CVT).
These functions are not activated when the vehicle is shipped from the factory. To acti-
vate or deactivate these functions, please contact a MITSUBISHI MOTORS Author-
ized Service Point.
Using the ignition switch or the engine switch
All doors and the tailgate will unlock when-
ever the ignition switch is turned to the
“LOCK” position or the operation mode is
put in OFF.
Using the selector lever position
(A/T or CVT)
All doors and the tailgate will unlock when-
ever the selector lever is moved to the “P” (PARK) position with the ignition switch inthe “ON” position or the operation mode in
ON.
Dead Lock System*
E00305100130
The Dead Lock System helps to preventtheft. When the keyless entry system or the
keyless operation system has been used to lock all of the doors and the tailgate, the
Dead Lock System makes it impossible to unlock the doors using the inside lock knobs.
CAUTIONl Do not set the Dead Lock System when
someone is inside the vehicle. With the Dead
Lock System set, it is not possible to unlock
the doors using the inside lock knobs. If you
erroneously set the Dead Lock System, un- lock the doors using the UNLOCK switch on the remote control switch or using the
keyless operation function.Setting the system
E00305201369
1. Except for vehicles equipped with the
keyless operation system, remove the
key from the ignition switch.
For vehicles equipped with the keyless operation system, put the operation
mode in OFF.
2. Get out of the vehicle. Close all of the
doors and the tailgate.
3. Press the LOCK switch (A) on the re-
mote control switch, the driver’s or front passenger’s door lock/unlock switch (B),
or the tailgate LOCK switch (C) to lock
all of the doors and the tailgate. The
turn-signal lamps will blink once.
Dead Lock System*
3-27OGAE18E1Locking and unlocking3RHD
Page 54 of 514

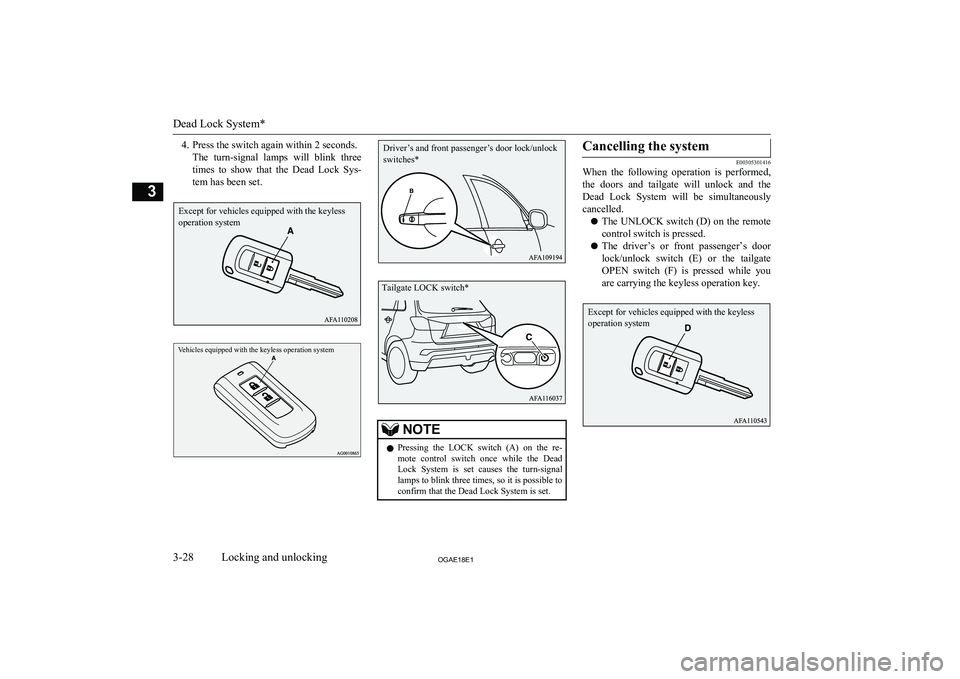

4. Press the switch again within 2 seconds.The turn-signal lamps will blink threetimes to show that the Dead Lock Sys-
tem has been set.Vehicles equipped with the keyless operation system
NOTEl Pressing the LOCK switch (A) on the re-
mote control switch once while the DeadLock System is set causes the turn-signal
lamps to blink three times, so it is possible to
confirm that the Dead Lock System is set.Cancelling the system
E00305301416
When the following operation is performed,
the doors and tailgate will unlock and the Dead Lock System will be simultaneously cancelled.
l The UNLOCK switch (D) on the remote
control switch is pressed.
l The driver’s or front passenger’s door
lock/unlock switch (E) or the tailgate
OPEN switch (F) is pressed while you
are carrying the keyless operation key.
Dead Lock System*
3-28OGAE18E1Locking and unlocking3Except for vehicles equipped with the keyless operation system Driver’s and front passenger’s door lock/unlock
switches* Tailgate LOCK switch* Except for vehicles equipped with the keyless operation system
Page 55 of 514

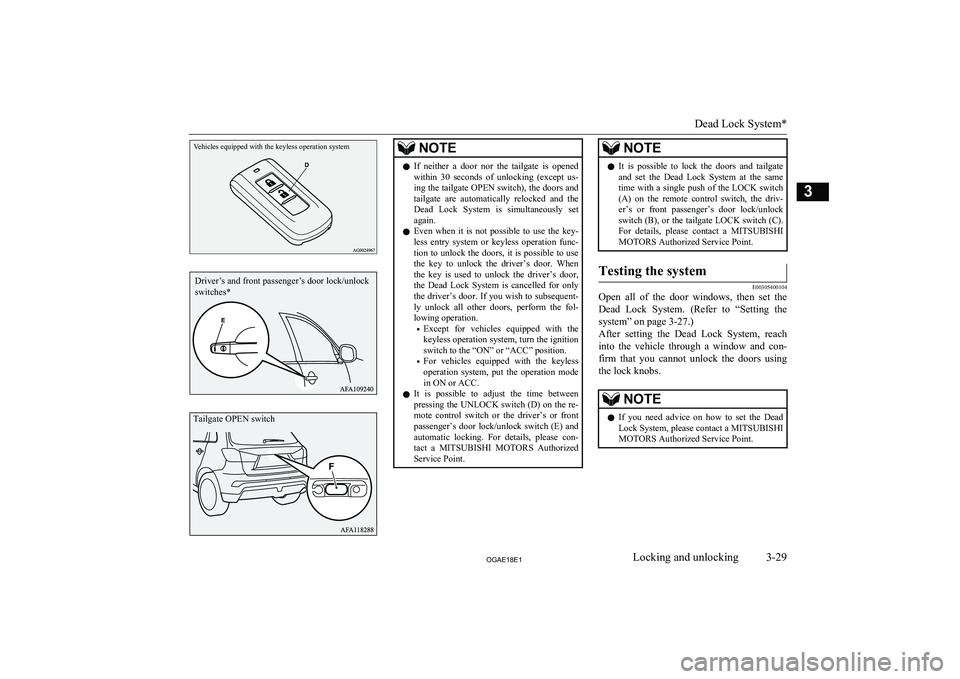

Vehicles equipped with the keyless operation system
NOTElIf neither a door nor the tailgate is opened
within 30 seconds of unlocking (except us-ing the tailgate OPEN switch), the doors and
tailgate are automatically relocked and the Dead Lock System is simultaneously set
again.
l Even when it is not possible to use the key-
less entry system or keyless operation func-
tion to unlock the doors, it is possible to use the key to unlock the driver’s door. When
the key is used to unlock the driver’s door, the Dead Lock System is cancelled for only
the driver’s door. If you wish to subsequent- ly unlock all other doors, perform the fol-
lowing operation.
• Except for vehicles equipped with the
keyless operation system, turn the ignitionswitch to the “ON” or “ACC” position.
• For vehicles equipped with the keyless
operation system, put the operation mode in ON or ACC.
l It is possible to adjust the time between
pressing the UNLOCK switch (D) on the re- mote control switch or the driver’s or front
passenger’s door lock/unlock switch (E) and automatic locking. For details, please con- tact a MITSUBISHI MOTORS Authorized
Service Point.NOTEl It is possible to lock the doors and tailgate
and set the Dead Lock System at the sametime with a single push of the LOCK switch (A) on the remote control switch, the driv-
er’s or front passenger’s door lock/unlock
switch (B), or the tailgate LOCK switch (C).
For details, please contact a MITSUBISHI
MOTORS Authorized Service Point.Testing the system
E00305400104
Open all of the door windows, then set the
Dead Lock System. (Refer to “Setting the system” on page 3-27.)
After setting the Dead Lock System, reach
into the vehicle through a window and con-
firm that you cannot unlock the doors using the lock knobs.
NOTEl If you need advice on how to set the Dead
Lock System, please contact a MITSUBISHIMOTORS Authorized Service Point.
Dead Lock System*
3-29OGAE18E1Locking and unlocking3Driver’s and front passenger’s door lock/unlock
switches* Tailgate OPEN switch
Page 56 of 514
“Child-protection” reardoors E00300900999
1- Lock
2- Unlock
Child protection helps prevent the rear doors
from being opened accidentally from the in- side.
If the lever is set to the locked position, the
rear door cannot be opened using the inside handle, but only with the outside handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not
function.
CAUTIONl When driving with a child in the rear seat,
please use the child protection to prevent ac-
cidental door opening which may cause an accident.Tailgate
E00301402836WARNINGlThe luggage compartment was not de-
signed for people to ride in it. Do not let
passengers ride in or let children play in
the luggage compartment. Riding or play- ing in the luggage compartment could re-
sult in a serious accident.
l It is dangerous to drive with the tailgate
open, since carbon monoxide (CO) gas
contained in engine exhaust gases can en- ter the cabin.
You cannot see or smell CO. It can cause
unconsciousness and even death.
In addition, if the tailgate opens when
driving, luggage could fall onto the road and cause an accident.
l When opening and closing the tailgate,
make sure that there are no people near-
by and that there is sufficient space be-
hind and above the vehicle. In addition, be careful not to hit your head or pinch
your hands, neck, etc.WARNINGl When there is a build up of snow or ice, it
should be removed before opening the tailgate. If you open the tailgate without
removing it, there is a possibility that the tailgate may close suddenly due to theweight of that snow or ice.
l When you open the tailgate make sure
that the tailgate is opened fully and re- mains fully open. If you only open the tail-
gate halfway there is a risk that the tail- gate may drop and slam shut. If you open
the tailgate while your vehicle is parked on an incline it is more difficult to do so than on the flat and also it may drop and
slam shut.CAUTIONl Do not stand behind the exhaust pipe when
loading and unloading luggage. The heat
from the exhaust could lead to burns.
l To avoid damage to the tailgate, make sure
the area above and behind the tailgate is
clear before opening it.NOTEl Locking/unlocking with the central door
lock switch, the keyless entry system, or the
keyless operation function also locks/ unlocks the tailgate.
“Child-protection” rear doors
3-30OGAE18E1Locking and unlocking3
Page 57 of 514

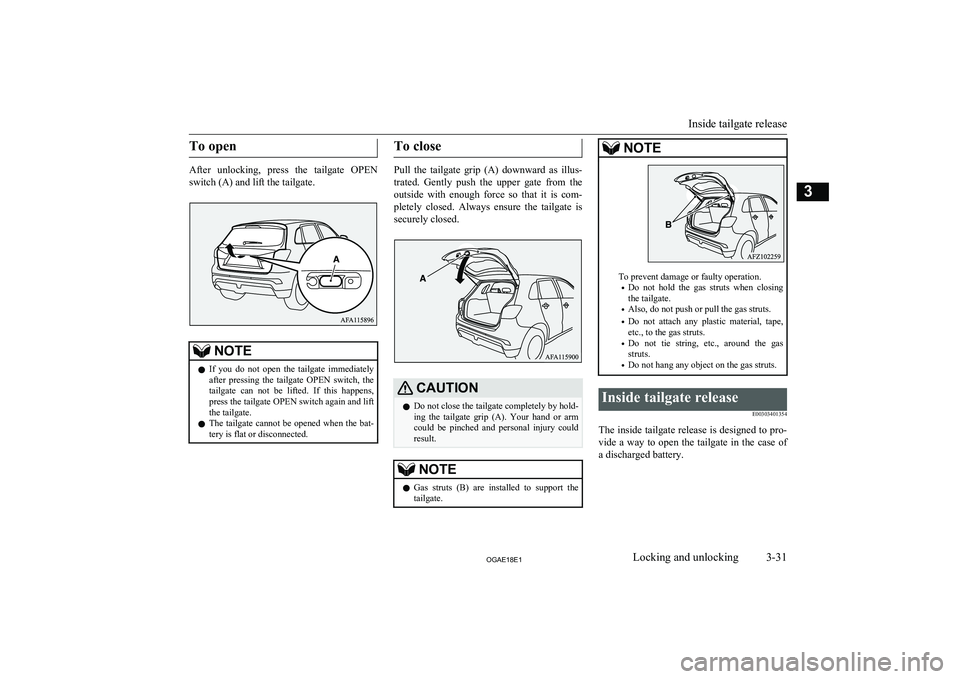

To open
After unlocking, press the tailgate OPENswitch (A) and lift the tailgate.
NOTEl If you do not open the tailgate immediately
after pressing the tailgate OPEN switch, thetailgate can not be lifted. If this happens, press the tailgate OPEN switch again and lift
the tailgate.
l The tailgate cannot be opened when the bat-
tery is flat or disconnected.To close
Pull the tailgate grip (A) downward as illus-
trated. Gently push the upper gate from the
outside with enough force so that it is com-
pletely closed. Always ensure the tailgate is securely closed.
CAUTIONl Do not close the tailgate completely by hold-
ing the tailgate grip (A). Your hand or arm
could be pinched and personal injury could result.NOTEl Gas struts (B) are installed to support the
tailgate.NOTE
To prevent damage or faulty operation.
• Do not hold the gas struts when closing
the tailgate.
• Also, do not push or pull the gas struts.
• Do not attach any plastic material, tape,
etc., to the gas struts.
• Do not tie string, etc., around the gas
struts.
• Do not hang any object on the gas struts.

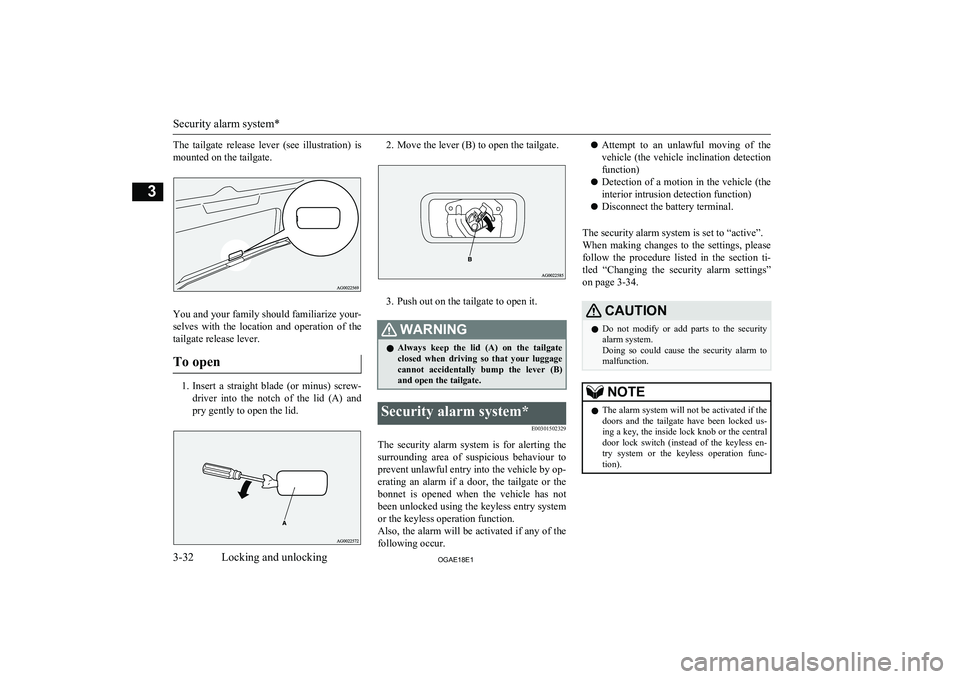

Inside tailgate release
E00303401354
The inside tailgate release is designed to pro-
vide a way to open the tailgate in the case of a discharged battery.
Inside tailgate release
3-31OGAE18E1Locking and unlocking3
Page 58 of 514
The tailgate release lever (see illustration) ismounted on the tailgate.
You and your family should familiarize your-
selves with the location and operation of the tailgate release lever.
To open
1. Insert a straight blade (or minus) screw-
driver into the notch of the lid (A) and
pry gently to open the lid.
2. Move the lever (B) to open the tailgate.
3. Push out on the tailgate to open it.
WARNINGl Always keep the lid (A) on the tailgate
closed when driving so that your luggage
cannot accidentally bump the lever (B)
and open the tailgate.Security alarm system*
E00301502329
The security alarm system is for alerting thesurrounding area of suspicious behaviour to
prevent unlawful entry into the vehicle by op- erating an alarm if a door, the tailgate or the bonnet is opened when the vehicle has not
been unlocked using the keyless entry system or the keyless operation function.
Also, the alarm will be activated if any of the
following occur.
l Attempt to an unlawful moving of the
vehicle (the vehicle inclination detection
function)
l Detection of a motion in the vehicle (the
interior intrusion detection function)
l Disconnect the battery terminal.
The security alarm system is set to “active”.
When making changes to the settings, please follow the procedure listed in the section ti-
tled “Changing the security alarm settings”
on page 3-34.CAUTIONl Do not modify or add parts to the security
alarm system.
Doing so could cause the security alarm to malfunction.NOTEl The alarm system will not be activated if the
doors and the tailgate have been locked us-ing a key, the inside lock knob or the central
door lock switch (instead of the keyless en- try system or the keyless operation func-
tion).
Security alarm system*
3-32OGAE18E1Locking and unlocking3
Page 59 of 514
NOTElIf the turn-signal lamps do not blink after the
locking and unlocking operation using thekeyless entry system or the keyless operation
function, the security alarm system may be malfunctioning.
Have the vehicle inspected at a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
If the confirmation function (blinking of the
turn-signal lamps by locking and unlocking
the doors and the tailgate) is deactivated, the turn-signal lamps do not blink after the lock- ing and unlocking operation.
For information on the confirmation func- tion, refer to “Keyless entry system” on pa-
ges 3-04 , 3-22 and “To operate using the
keyless operation function” on page 3-10.
l The security alarm system could be activated
in the following situations.
• Using a car wash
• Taking the vehicle on a ferry
• Parking in an automated car park
• Leaving someone or a pet in the vehicle
• Leaving a window open
• Leaving an unstable object such as a stuf-
fed toy or accessory in the vehicle
• Suffering a continuous impact or vibra-
tion by hail, thunder, etc.
According to the situations, deactivate the
vehicle inclination detection function and the interior intrusion detection function.
Refer to “To deactivate the vehicle inclina-
tion detection function and the interior intru-
sion detection function” on page 3-37.NOTEl The sensitivity of the interior intrusion de-
tection function can be adjusted. For details,
please contact a MITSUBISHI MOTORS
Authorized Service Point.
The security alarm has four
modes:
System preparation mode (ap- prox. 20 seconds)
(The buzzer sounds intermittently and the se-curity indicator (A) blinks.)
The system preparation time extends from
the point at which all of the doors and the
tailgate are locked by pressing the LOCK
switch on the remote control switch or the
keyless operation function to the point at which the system armed mode goes into ef- fect.
During this time, it is possible to temporarily open a door or the tailgate without using the
keyless entry system or the keyless operation function and without causing the alarm tosound (for example, when you forget some-
thing inside the vehicle or realize that a win-
dow is open).
System armed mode
(The security indicator continues to blink with the indicator’s reduced lit-up duration
time.)
Once the system preparation mode has ended,
the system armed mode starts.
If an unlawful opening of any of the doors, tailgate or bonnet is detected during the sys-
tem armed mode, the alarm will be activated
to warn people around the vehicle of an ab-
normal condition.
Also, if unlawful moving of the vehicle is at-
tempted or a vehicle intrusion is detected, the alarm will be activated.
Security alarm system*
3-33OGAE18E1Locking and unlocking3
Page 60 of 514

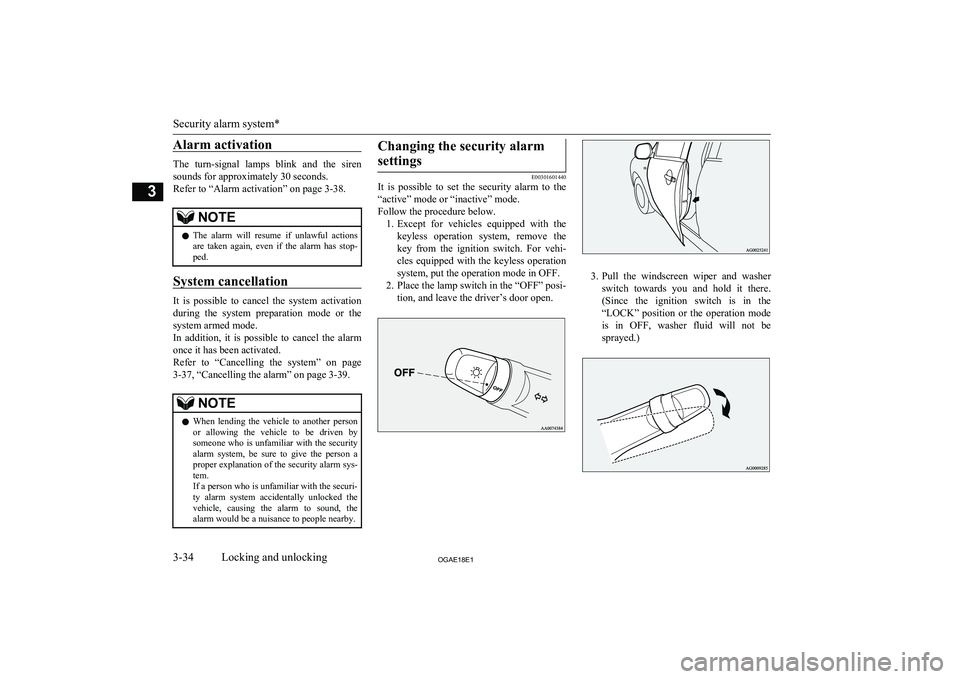

Alarm activation
The turn-signal lamps blink and the siren
sounds for approximately 30 seconds.
Refer to “Alarm activation” on page 3-38.
NOTEl The alarm will resume if unlawful actions
are taken again, even if the alarm has stop-
ped.
System cancellation
It is possible to cancel the system activation
during the system preparation mode or the system armed mode.
In addition, it is possible to cancel the alarm
once it has been activated.
Refer to “Cancelling the system” on page 3-37, “Cancelling the alarm” on page 3-39.
NOTEl When lending the vehicle to another person
or allowing the vehicle to be driven bysomeone who is unfamiliar with the securityalarm system, be sure to give the person a
proper explanation of the security alarm sys- tem.
If a person who is unfamiliar with the securi-
ty alarm system accidentally unlocked the vehicle, causing the alarm to sound, the
alarm would be a nuisance to people nearby.Changing the security alarm
settings
E00301601440
It is possible to set the security alarm to the
“active” mode or “inactive” mode.
Follow the procedure below. 1. Except for vehicles equipped with the
keyless operation system, remove the
key from the ignition switch. For vehi-
cles equipped with the keyless operation
system, put the operation mode in OFF.
2. Place the lamp switch in the “OFF” posi- tion, and leave the driver’s door open.
3. Pull the windscreen wiper and washer
switch towards you and hold it there. (Since the ignition switch is in the
“LOCK” position or the operation mode
is in OFF, washer fluid will not be
sprayed.)
Security alarm system*
3-34OGAE18E1Locking and unlocking3
