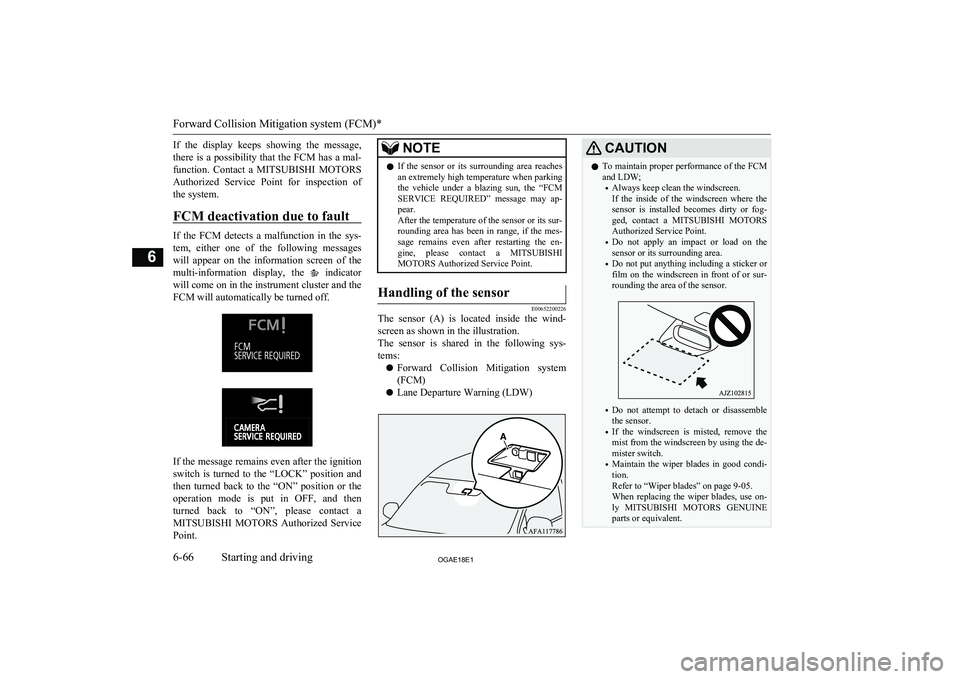

If the display keeps showing the message,
there is a possibility that the FCM has a mal-
function. Contact a MITSUBISHI MOTORS
Authorized Service Point for inspection of the system.
FCM deactivation due to fault
If the FCM detects a malfunction in the sys-
tem, either one of the following messages
will appear on the information screen of the multi-information display, the
indicator
will come on in the instrument cluster and the FCM will automatically be turned off.
If the message remains even after the ignition
switch is turned to the “LOCK” position and then turned back to the “ON” position or the
operation mode is put in OFF, and then turned back to “ON”, please contact a MITSUBISHI MOTORS Authorized Service
Point.
NOTEl If the sensor or its surrounding area reaches
an extremely high temperature when parking the vehicle under a blazing sun, the “FCMSERVICE REQUIRED” message may ap-
pear.
After the temperature of the sensor or its sur-
rounding area has been in range, if the mes-
sage remains even after restarting the en-
gine, please contact a MITSUBISHI
MOTORS Authorized Service Point.Handling of the sensor
E00652200226
The sensor (A) is located inside the wind-
screen as shown in the illustration.
The sensor is shared in the following sys- tems:
l Forward Collision Mitigation system
(FCM)
l Lane Departure Warning (LDW)
CAUTIONlTo maintain proper performance of the FCM
and LDW;
• Always keep clean the windscreen.
If the inside of the windscreen where the
sensor is installed becomes dirty or fog- ged, contact a MITSUBISHI MOTORS
Authorized Service Point.
• Do not apply an impact or load on the
sensor or its surrounding area.
• Do not put anything including a sticker or
film on the windscreen in front of or sur- rounding the area of the sensor.
• Do not attempt to detach or disassemble
the sensor.
• If the windscreen is misted, remove the
mist from the windscreen by using the de-
mister switch.
• Maintain the wiper blades in good condi-
tion.
Refer to “Wiper blades” on page 9-05.
When replacing the wiper blades, use on-
ly MITSUBISHI MOTORS GENUINE
parts or equivalent.
Forward Collision Mitigation system (FCM)*
6-66OGAE18E1Starting and driving6

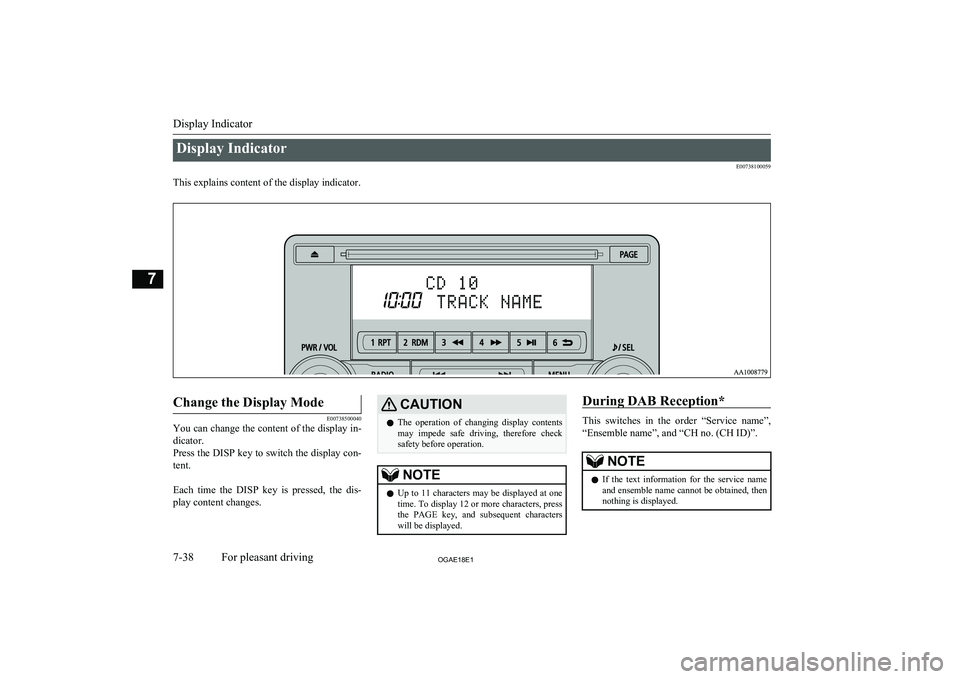

Display IndicatorE00738100059
This explains content of the display indicator.

Change the Display Mode
E00738500040
You can change the content of the display in-
dicator.
Press the DISP key to switch the display con- tent.

Each time the DISP key is pressed, the dis- play content changes.
CAUTIONl The operation of changing display contents
may impede safe driving, therefore check safety before operation.NOTEl Up to 11 characters may be displayed at one
time. To display 12 or more characters, pressthe PAGE key, and subsequent characters will be displayed.During DAB Reception*
This switches in the order “Service name”,
“Ensemble name”, and “CH no. (CH ID)”.
NOTEl If the text information for the service name
and ensemble name cannot be obtained, then
nothing is displayed.
Display Indicator
7-38OGAE18E1For pleasant driving7

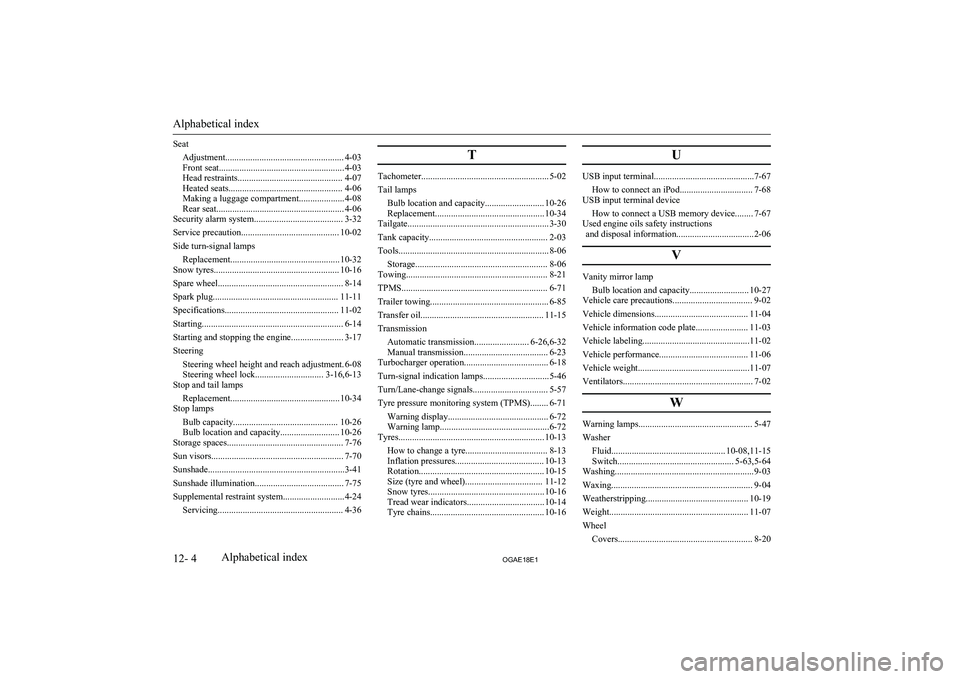

SeatAdjustment.................................................... 4-03
Front seat....................................................... 4-03
Head restraints.............................................. 4-07
Heated seats.................................................. 4-06
Making a luggage compartment....................4-08
Rear seat........................................................ 4-06
Security alarm system....................................... 3-32
Service precaution........................................... 10-02
Side turn-signal lamps Replacement................................................ 10-32
Snow tyres....................................................... 10-16
Spare wheel....................................................... 8-14
Spark plug....................................................... 11-11
Specifications.................................................. 11-02
Starting.............................................................. 6-14
Starting and stopping the engine....................... 3-17
Steering Steering wheel height and reach adjustment. 6-08
Steering wheel lock.............................. 3-16,6-13
Stop and tail lamps
Replacement................................................ 10-34
Stop lamps
Bulb capacity.............................................. 10-26
Bulb location and capacity.......................... 10-26
Storage spaces................................................... 7-76
Sun visors.......................................................... 7-70
Sunshade............................................................3-41
Sunshade illumination....................................... 7-75
Supplemental restraint system...........................4-24 Servicing....................................................... 4-36
T
Tachometer........................................................ 5-02
Tail lamps Bulb location and capacity.......................... 10-26
Replacement................................................ 10-34
Tailgate.............................................................. 3-30
Tank capacity.................................................... 2-03
Tools.................................................................. 8-06 Storage.......................................................... 8-06
Towing.............................................................. 8-21
TPMS................................................................ 6-71
Trailer towing.................................................... 6-85
Transfer oil...................................................... 11-15
Transmission Automatic transmission........................ 6-26,6-32
Manual transmission..................................... 6-23
Turbocharger operation..................................... 6-18
Turn-signal indication lamps.............................5-46
Turn/Lane-change signals................................. 5-57
Tyre pressure monitoring system (TPMS)........ 6-71 Warning display............................................ 6-72
Warning lamp................................................6-72
Tyres................................................................ 10-13
How to change a tyre.................................... 8-13
Inflation pressures....................................... 10-13
Rotation....................................................... 10-15
Size (tyre and wheel).................................. 11-12
Snow tyres................................................... 10-16
Tread wear indicators.................................. 10-14
Tyre chains.................................................. 10-16
U
USB input terminal............................................7-67
How to connect an iPod................................ 7-68
USB input terminal device
How to connect a USB memory device........ 7-67
Used engine oils safety instructions and disposal information..................................2-06
V
Vanity mirror lampBulb location and capacity.......................... 10-27
Vehicle care precautions................................... 9-02
Vehicle dimensions......................................... 11-04
Vehicle information code plate....................... 11-03 Vehicle labeling...............................................11-02
Vehicle performance....................................... 11-06
Vehicle weight.................................................11-07
Ventilators......................................................... 7-02
W
Warning lamps.................................................. 5-47
Washer Fluid.................................................. 10-08,11-15
Switch................................................... 5-63,5-64
Washing.............................................................9-03
Waxing.............................................................. 9-04
Weatherstripping............................................. 10-19
Weight............................................................. 11-07
Wheel Covers........................................................... 8-20
Alphabetical index
12- 4 OGAE18E1Alphabetical index
