MITSUBISHI ASX 2018 Owner's Manual (in English)

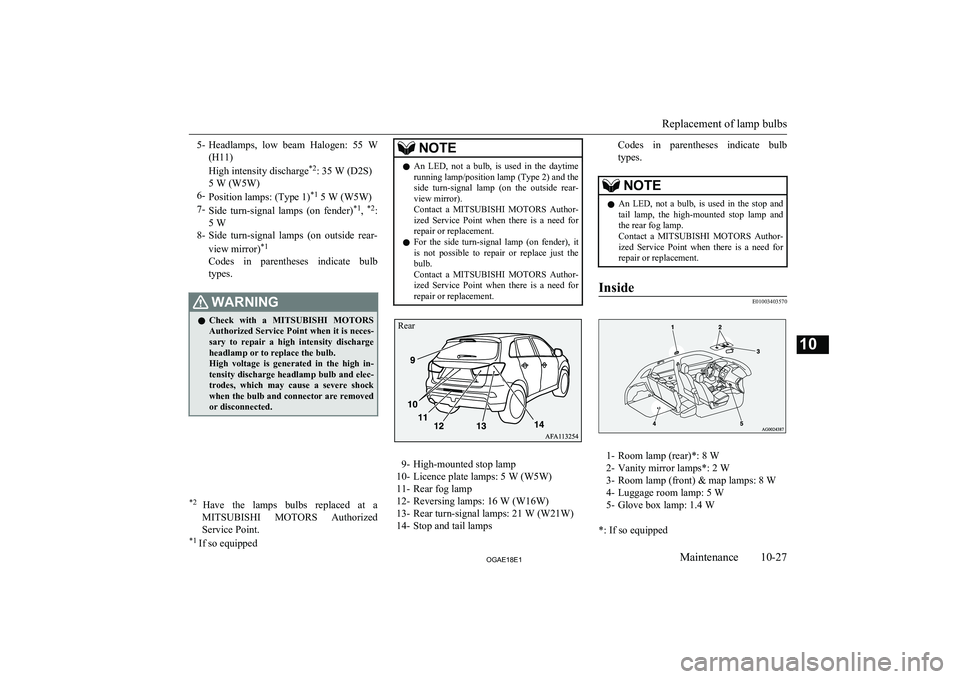

5-Headlamps, low beam Halogen: 55 W
(H11)
High intensity discharge *2
: 35 W (D2S)
5 W (W5W)
6- Position lamps: (Type 1) *1
5 W (W5W)
7- Side turn-signal lamps (on fender) *1
, *2
:
5 W
8- Side turn-signal lamps (on outside rear-
view mirror) *1
Codes in parentheses indicate bulb types.WARNINGl Check with a
MITSUBISHI MOTORS
Authorized Service Point when it is neces-
sary to repair a high intensity discharge headlamp or to replace the bulb.
High voltage is generated in the high in-
tensity discharge headlamp bulb and elec- trodes, which may cause a severe shock
when the bulb and connector are removed
or disconnected.*2 Have the lamps bulbs replaced at a
MITSUBISHI MOTORS Authorized
Service Point.
*1 If so equippedNOTEl An LED, not a bulb, is used in the daytime
running lamp/position lamp (Type 2) and the
side turn-signal lamp (on the outside rear- view mirror).
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.
l For the side turn-signal lamp (on fender), it
is not possible to repair or replace just the bulb.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.
9- High-mounted stop lamp
10- Licence plate lamps: 5 W (W5W)
11- Rear fog lamp
12- Reversing lamps: 16 W (W16W) 13- Rear turn-signal lamps: 21 W (W21W)14- Stop and tail lamps
Codes in parentheses indicate bulb
types.NOTEl An LED, not a bulb, is used in the stop and
tail lamp, the high-mounted stop lamp and the rear fog lamp.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.Inside
E01003403570
1- Room lamp (rear)*: 8 W
2- Vanity mirror lamps*: 2 W
3- Room lamp (front) & map lamps: 8 W
4- Luggage room lamp: 5 W
5- Glove box lamp: 1.4 W
*: If so equipped
Replacement of lamp bulbs
10-27OGAE18E1Maintenance10 Rear

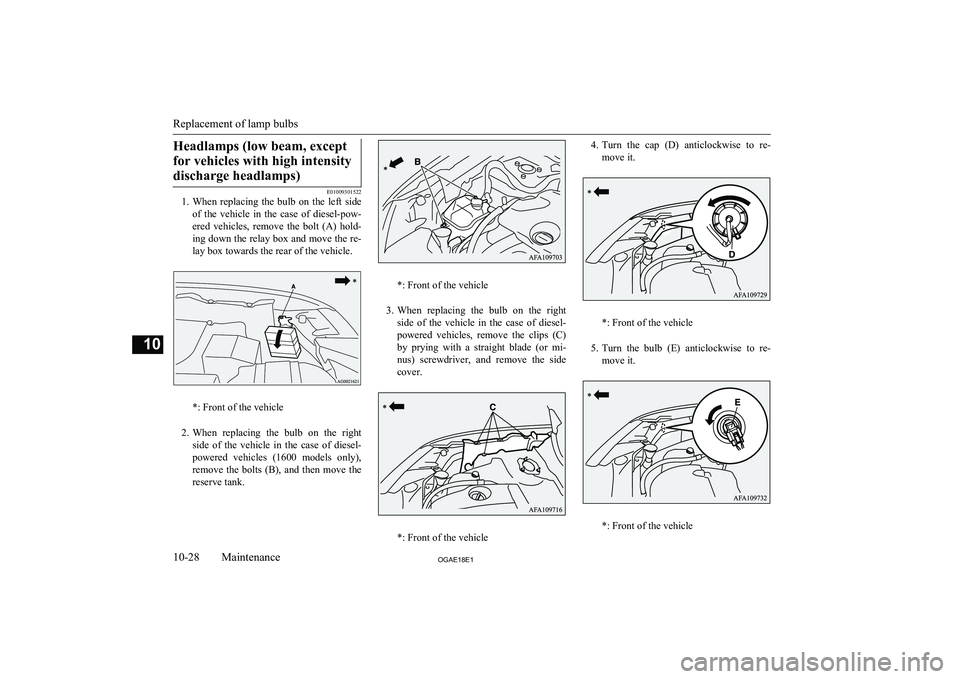

Headlamps (low beam, exceptfor vehicles with high intensity discharge headlamps)
E01009301522
1. When replacing the bulb on the left side
of the vehicle in the case of diesel-pow- ered vehicles, remove the bolt (A) hold-
ing down the relay box and move the re- lay box towards the rear of the vehicle.
*: Front of the vehicle
2. When replacing the bulb on the right
side of the vehicle in the case of diesel-
powered vehicles (1600 models only), remove the bolts (B), and then move thereserve tank.
*: Front of the vehicle
3. When replacing the bulb on the right
side of the vehicle in the case of diesel-
powered vehicles, remove the clips (C)
by prying with a straight blade (or mi- nus) screwdriver, and remove the side
cover.
*: Front of the vehicle
4. Turn the cap (D) anticlockwise to re-
move it.
*: Front of the vehicle
5. Turn the bulb (E) anticlockwise to re-
move it.
*: Front of the vehicle
Replacement of lamp bulbs
10-28OGAE18E1Maintenance10

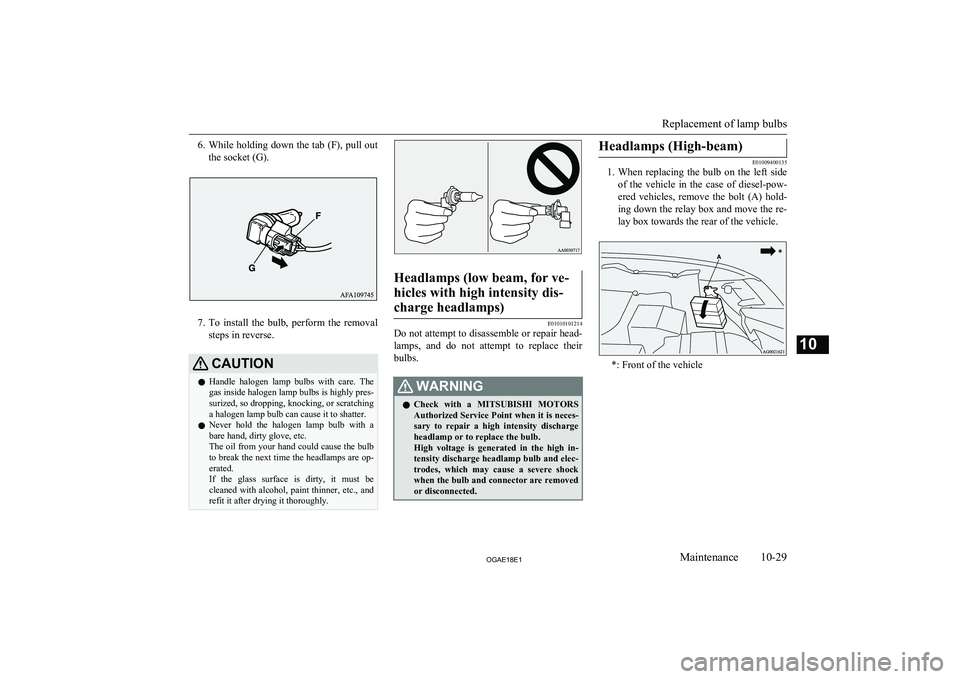

6.While holding down the tab (F), pull out
the socket (G).
7. To install the bulb, perform the removal
steps in reverse.
CAUTIONl Handle halogen lamp bulbs with care. The
gas inside halogen lamp bulbs is highly pres- surized, so dropping, knocking, or scratching
a halogen lamp bulb can cause it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb to break the next time the headlamps are op-
erated.
If the glass surface is dirty, it must be cleaned with alcohol, paint thinner, etc., and
refit it after drying it thoroughly.Headlamps (low beam, for ve-
hicles with high intensity dis- charge headlamps)
E01010101214
Do not attempt to disassemble or repair head- lamps, and do not attempt to replace their
bulbs.
WARNINGl Check with a
MITSUBISHI MOTORS
Authorized Service Point when it is neces-
sary to repair a high intensity discharge headlamp or to replace the bulb.
High voltage is generated in the high in-
tensity discharge headlamp bulb and elec- trodes, which may cause a severe shock
when the bulb and connector are removed
or disconnected.Headlamps (High-beam)
E01009400135
1. When replacing the bulb on the left side
of the vehicle in the case of diesel-pow-
ered vehicles, remove the bolt (A) hold-
ing down the relay box and move the re- lay box towards the rear of the vehicle.
*: Front of the vehicle
Replacement of lamp bulbs
10-29OGAE18E1Maintenance10

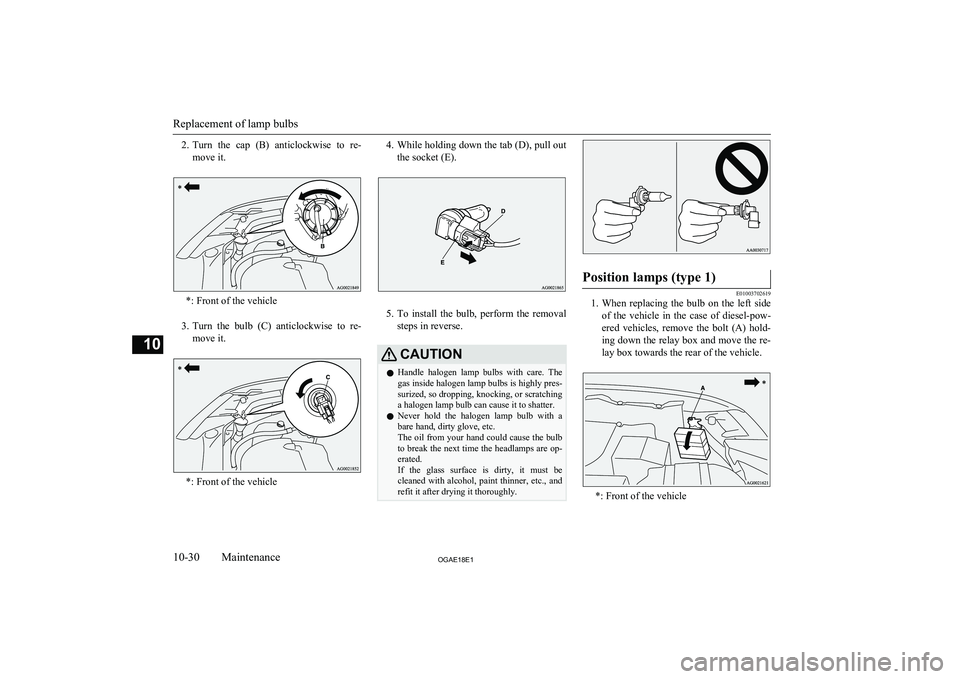

2.Turn the cap (B) anticlockwise to re-
move it.
*: Front of the vehicle
3. Turn the bulb (C) anticlockwise to re-
move it.
*: Front of the vehicle
4. While holding down the tab (D), pull out
the socket (E).
5. To install the bulb, perform the removal
steps in reverse.
CAUTIONl Handle halogen lamp bulbs with care. The
gas inside halogen lamp bulbs is highly pres- surized, so dropping, knocking, or scratching
a halogen lamp bulb can cause it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb to break the next time the headlamps are op-
erated.
If the glass surface is dirty, it must be cleaned with alcohol, paint thinner, etc., and
refit it after drying it thoroughly.Position lamps (type 1)
E01003702619
1. When replacing the bulb on the left side
of the vehicle in the case of diesel-pow-
ered vehicles, remove the bolt (A) hold-
ing down the relay box and move the re- lay box towards the rear of the vehicle.
*: Front of the vehicle
Replacement of lamp bulbs
10-30OGAE18E1Maintenance10

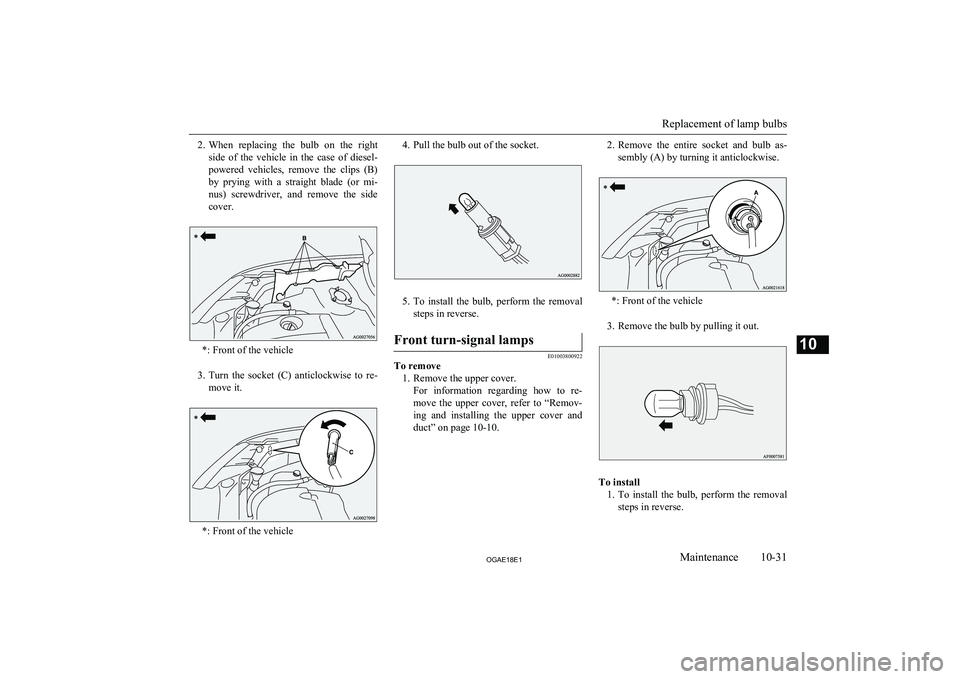

2.When replacing the bulb on the right
side of the vehicle in the case of diesel-
powered vehicles, remove the clips (B)
by prying with a straight blade (or mi- nus) screwdriver, and remove the side
cover.
*: Front of the vehicle
3. Turn the socket (C) anticlockwise to re-
move it.
*: Front of the vehicle
4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal
steps in reverse.
Front turn-signal lamps
E01003800922
To remove 1. Remove the upper cover. For information regarding how to re-move the upper cover, refer to “Remov-
ing and installing the upper cover and duct” on page 10-10.
2. Remove the entire socket and bulb as-
sembly (A) by turning it anticlockwise.
*: Front of the vehicle
3. Remove the bulb by pulling it out.
To install 1. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
10-31OGAE18E1Maintenance10

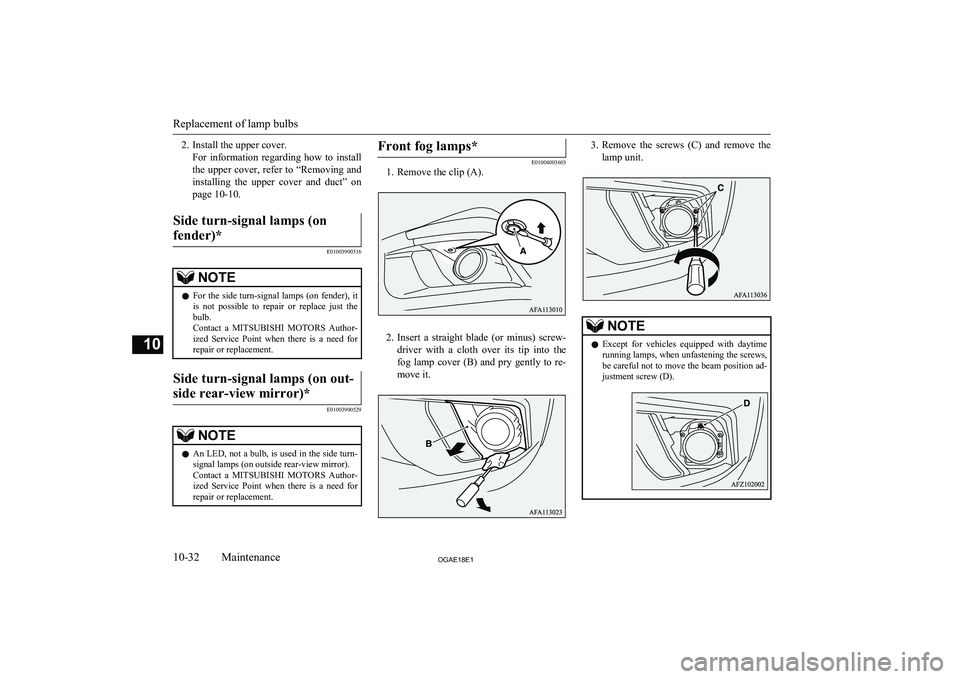

2. Install the upper cover.For information regarding how to install
the upper cover, refer to “Removing and
installing the upper cover and duct” on page 10-10.Side turn-signal lamps (on
fender)*
E01003900516
NOTEl For the side turn-signal lamps (on fender), it
is not possible to repair or replace just thebulb.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.Side turn-signal lamps (on out-
side rear-view mirror)*
E01003900529
NOTEl An LED, not a bulb, is used in the side turn-
signal lamps (on outside rear-view mirror).
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.Front fog lamps*
E01004003603
1. Remove the clip (A).
2. Insert a straight blade (or minus) screw-
driver with a cloth over its tip into the fog lamp cover (B) and pry gently to re-
move it.
3. Remove the screws (C) and remove the
lamp unit.NOTEl Except for vehicles equipped with daytime
running lamps, when unfastening the screws,be careful not to move the beam position ad-
justment screw (D).
Replacement of lamp bulbs
10-32OGAE18E1Maintenance10

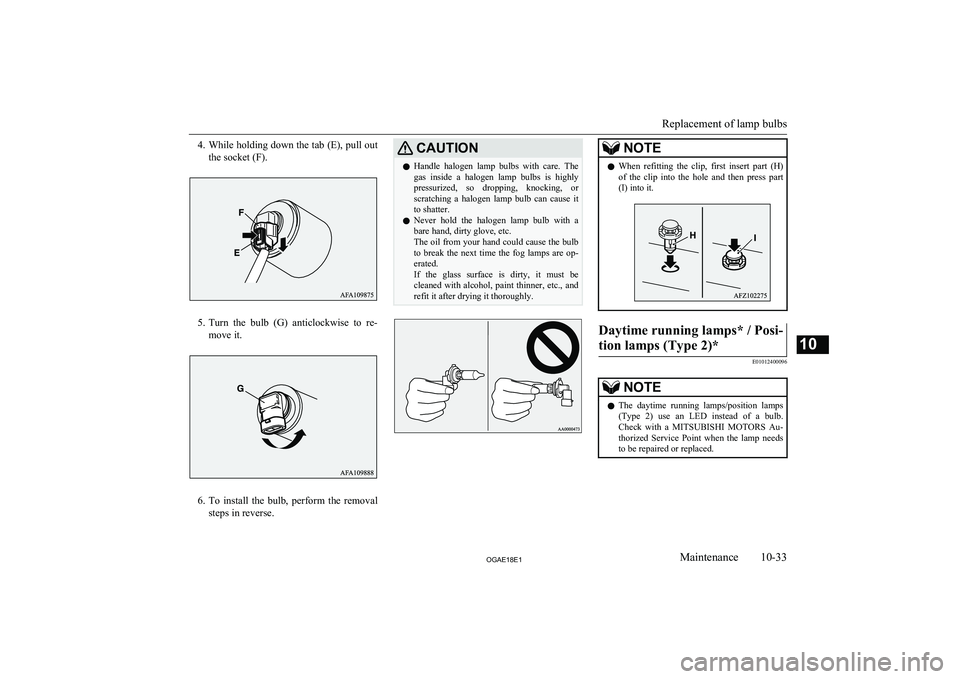

4.While holding down the tab (E), pull out
the socket (F).
5. Turn the bulb (G) anticlockwise to re-
move it.
6. To install the bulb, perform the removal
steps in reverse.
CAUTIONl Handle halogen lamp bulbs with care. The
gas inside a halogen lamp bulbs is highly
pressurized, so dropping, knocking, or scratching a halogen lamp bulb can cause it
to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb to break the next time the fog lamps are op- erated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc., and refit it after drying it thoroughly.NOTEl When refitting the clip, first insert part (H)
of the clip into the hole and then press part(I) into it.Daytime running lamps* / Posi-
tion lamps (Type 2)*
E01012400096
NOTEl The daytime running lamps/position lamps
(Type 2) use an LED instead of a bulb.Check with a MITSUBISHI MOTORS Au-
thorized Service Point when the lamp needs to be repaired or replaced.
Replacement of lamp bulbs
10-33OGAE18E1Maintenance10

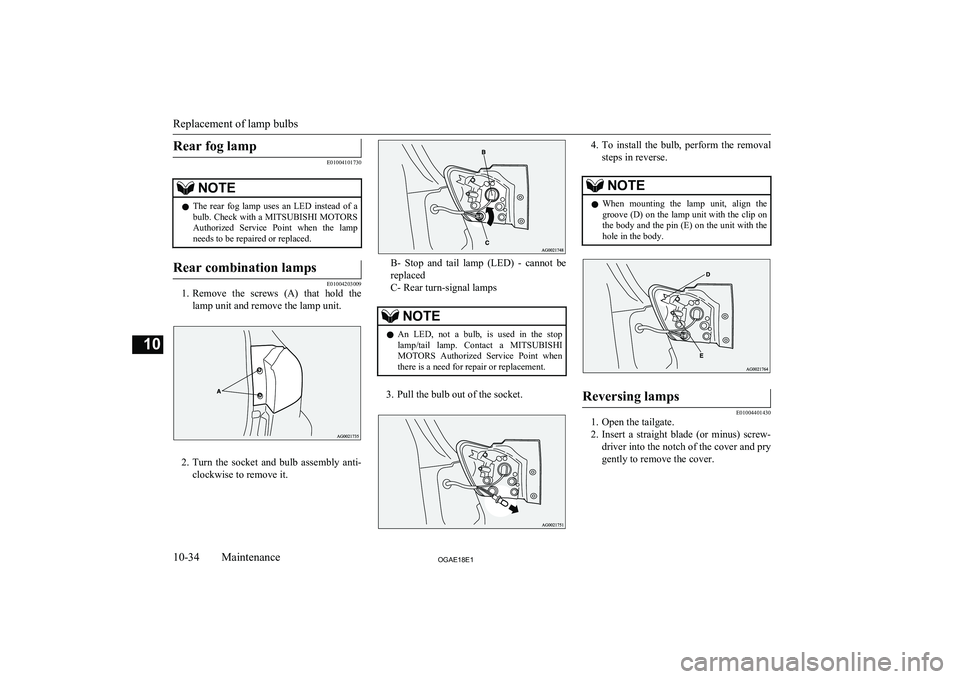

Rear fog lamp
E01004101730
NOTElThe rear fog lamp uses an LED instead of a
bulb. Check with a MITSUBISHI MOTORS
Authorized Service Point when the lamp
needs to be repaired or replaced.Rear combination lamps
E01004203009
1. Remove the screws (A) that hold the
lamp unit and remove the lamp unit.
2. Turn the socket and bulb assembly anti-
clockwise to remove it.
B- Stop and tail lamp (LED) - cannot be
replaced
C- Rear turn-signal lamps
NOTEl An LED, not a bulb, is used in the stop
lamp/tail lamp. Contact a MITSUBISHI
MOTORS Authorized Service Point when
there is a need for repair or replacement.
3. Pull the bulb out of the socket.
4. To install the bulb, perform the removal
steps in reverse.NOTEl When mounting the lamp unit, align the
groove (D) on the lamp unit with the clip onthe body and the pin (E) on the unit with the
hole in the body.Reversing lamps
E01004401430
1. Open the tailgate.
2. Insert a straight blade (or minus) screw-
driver into the notch of the cover and pry
gently to remove the cover.
Replacement of lamp bulbs
10-34OGAE18E1Maintenance10

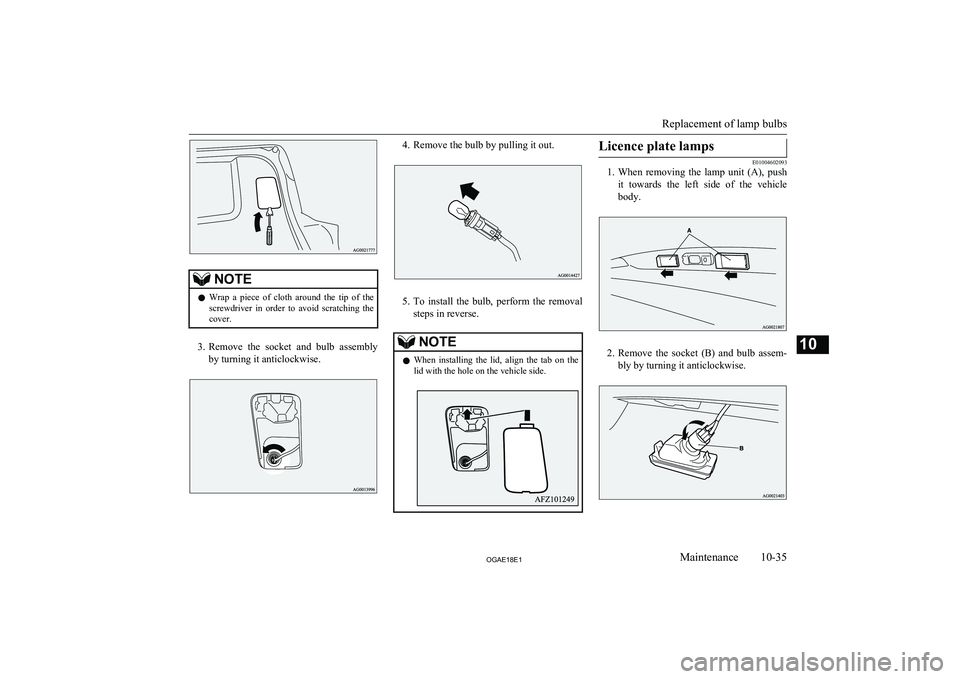

NOTElWrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
cover.
3. Remove the socket and bulb assembly
by turning it anticlockwise.
4. Remove the bulb by pulling it out.
5. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lid, align the tab on the
lid with the hole on the vehicle side.Licence plate lamps
E01004602093
1. When removing the lamp unit (A), push
it towards the left side of the vehicle body.
2. Remove the socket (B) and bulb assem-
bly by turning it anticlockwise.
Replacement of lamp bulbs
10-35OGAE18E1Maintenance10

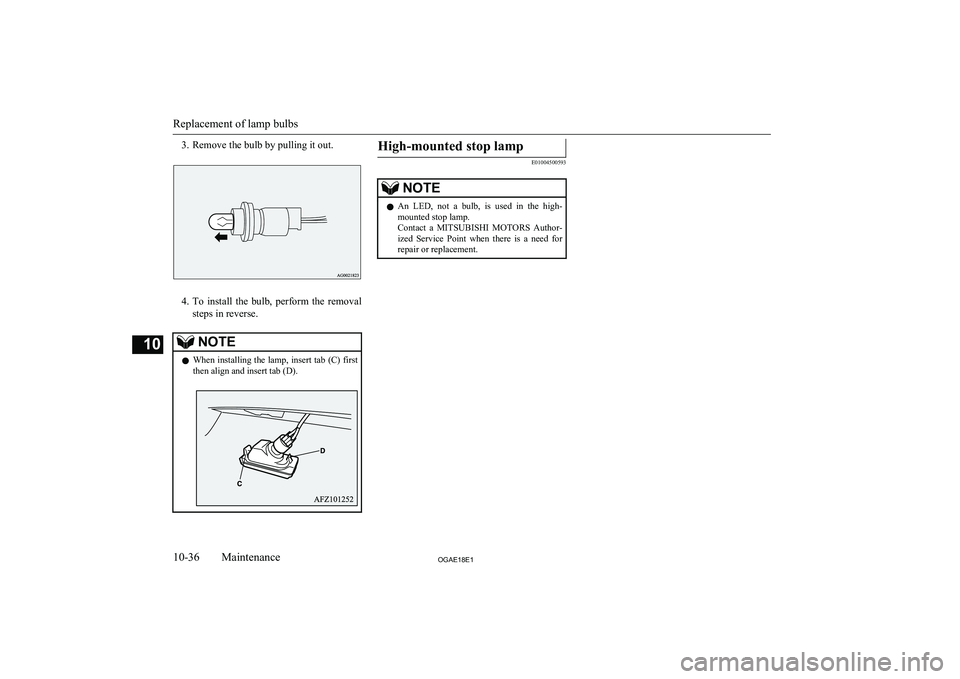

3. Remove the bulb by pulling it out.
4.To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lamp, insert tab (C) first
then align and insert tab (D).High-mounted stop lamp
E01004500593
NOTEl An LED, not a bulb, is used in the high-
mounted stop lamp.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.
Replacement of lamp bulbs
10-36OGAE18E1Maintenance10
