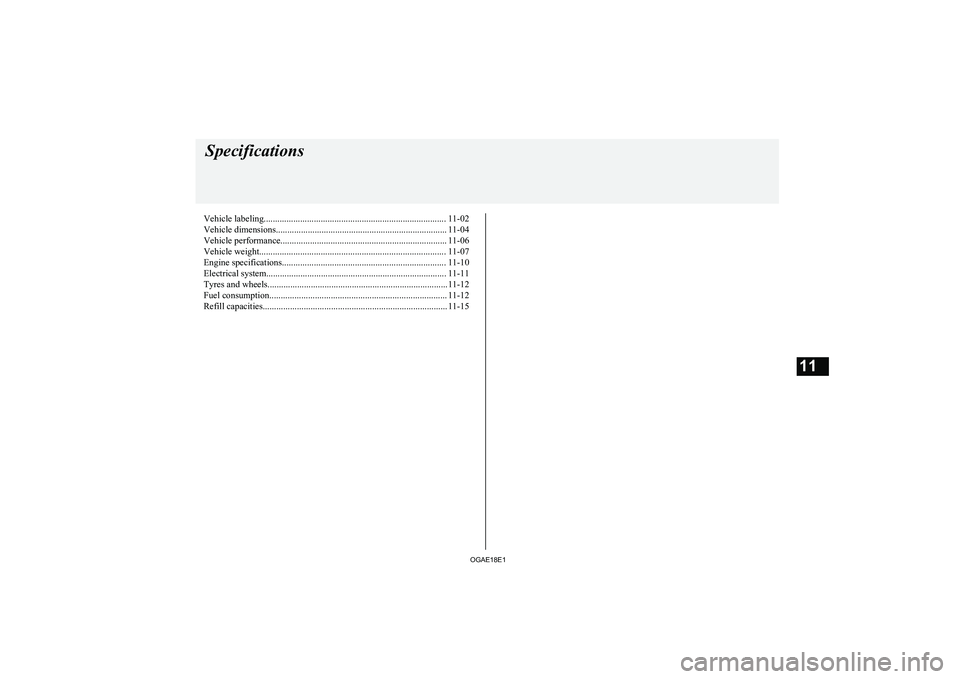

Vehicle labeling................................................................................ 11-02
Vehicle dimensions........................................................................... 11-04
Vehicle performance......................................................................... 11-06 Vehicle weight.................................................................................. 11-07
Engine specifications........................................................................ 11-10
Electrical system............................................................................... 11-11
Tyres and wheels...............................................................................11-12
Fuel consumption.............................................................................. 11-12
Refill capacities................................................................................. 11-15Specifications
OGAE18E111

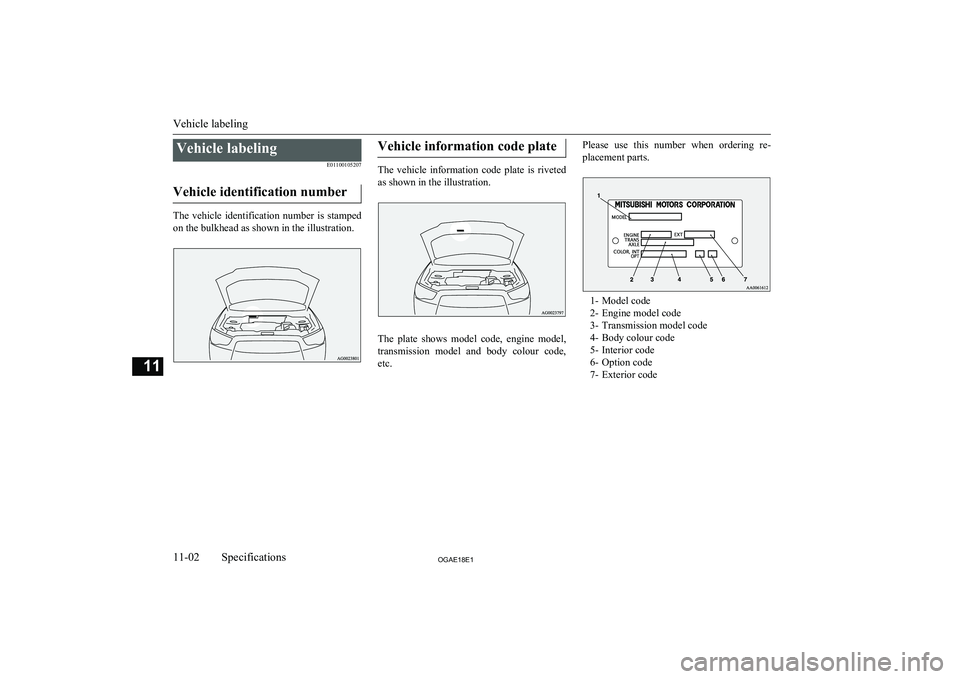

Vehicle labelingE01100105207
Vehicle identification number
The vehicle identification number is stamped on the bulkhead as shown in the illustration.
Vehicle information code plate
The vehicle information code plate is riveted as shown in the illustration.
The plate shows model code, engine model,
transmission model and body colour code, etc.
Please use this number when ordering re-
placement parts.
1- Model code
2- Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code
7- Exterior code
Vehicle labeling
11-02OGAE18E1Specifications11

Vehicle identification numberplate (RHD vehicles only)
The vehicle identification number is stamped on the plate riveted to the left front corner of the vehicle body. It is visible from outside of
the vehicle through the windscreen.

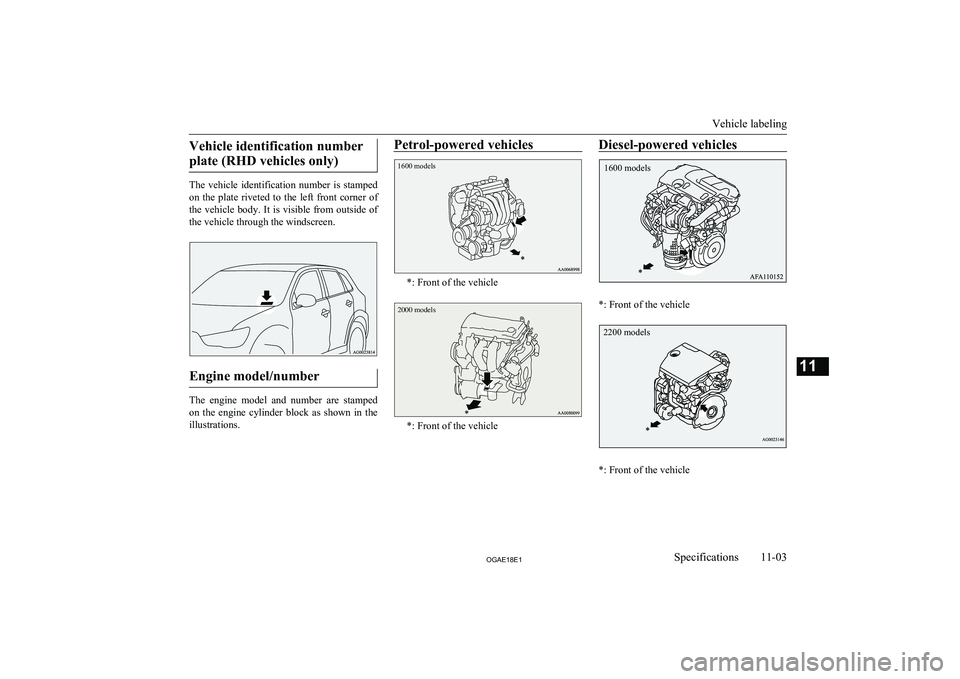

Engine model/number
The engine model and number are stamped on the engine cylinder block as shown in the
illustrations.
Petrol-powered vehicles1600 models
*: Front of the vehicle
*: Front of the vehicle
Diesel-powered vehicles
*: Front of the vehicle
*: Front of the vehicle
Vehicle labeling
11-03OGAE18E1Specifications11 2000 models 1600 models 2200 models

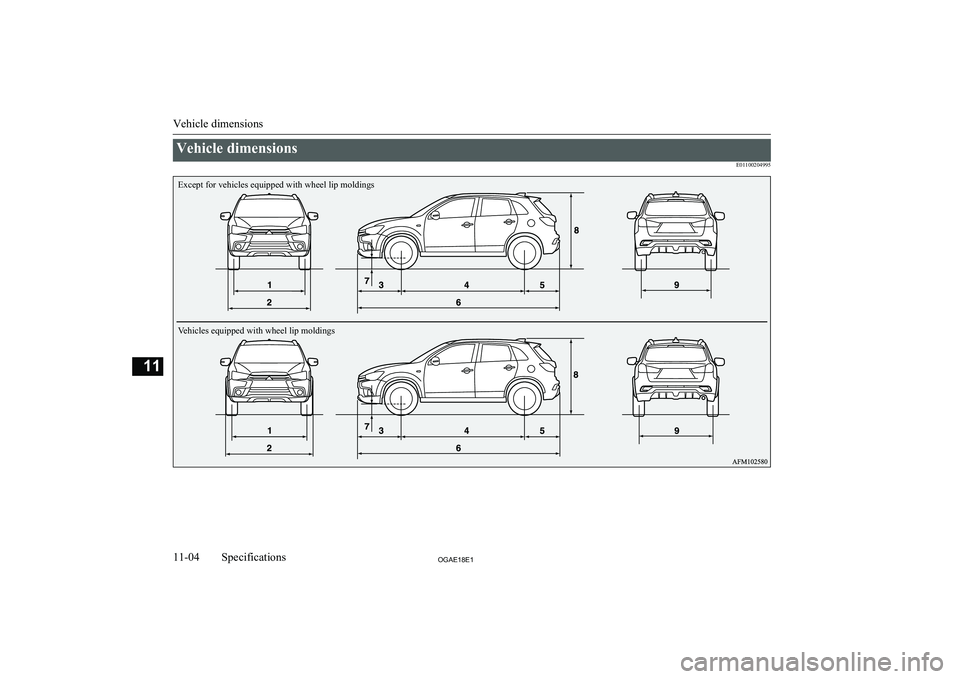

Vehicle dimensionsE01100204995
Vehicle dimensions
11-04OGAE18E1Specifications11Except for vehicles equipped with wheel lip moldings
Vehicles equipped with wheel lip moldings

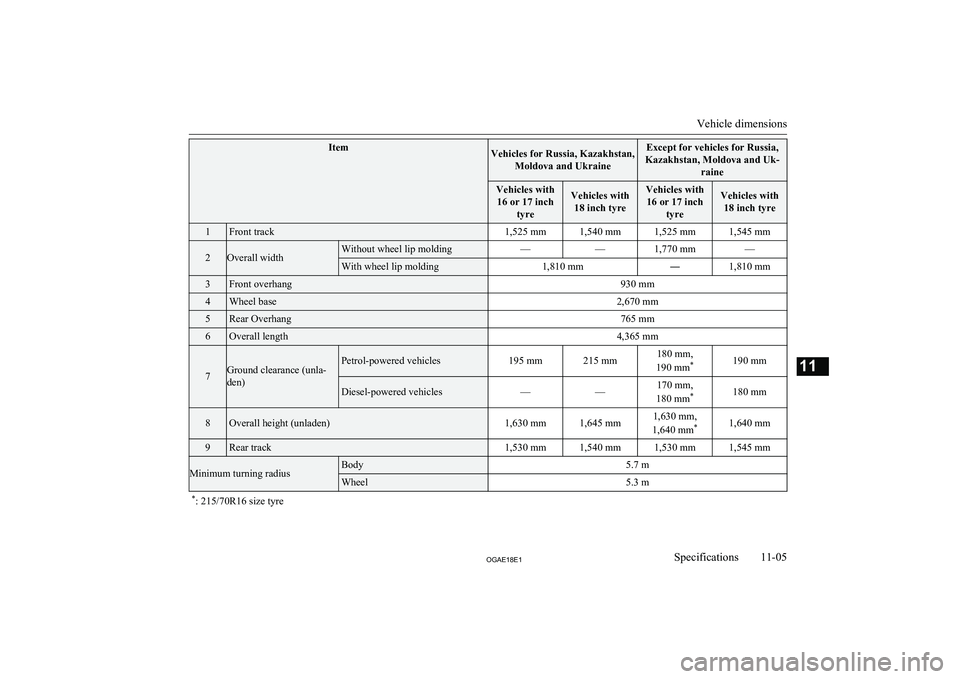

ItemVehicles for Russia, Kazakhstan,Moldova and UkraineExcept for vehicles for Russia,
Kazakhstan, Moldova and Uk- raineVehicles with16 or 17 inch tyreVehicles with18 inch tyreVehicles with16 or 17 inch tyreVehicles with18 inch tyre1Front track1,525 mm1,540 mm1,525 mm1,545 mm2Overall widthWithout wheel lip molding——1,770 mm—With wheel lip molding1,810 mm―1,810 mm3Front overhang930 mm4Wheel base2,670 mm5Rear Overhang765 mm6Overall length4,365 mm
7Ground clearance (unla-
den)
Petrol-powered vehicles195 mm215 mm180 mm,
190 mm *190 mmDiesel-powered vehicles——170 mm,
180 mm *180 mm8Overall height (unladen)1,630 mm1,645 mm1,630 mm,
1,640 mm *1,640 mm9Rear track1,530 mm1,540 mm1,530 mm1,545 mmMinimum turning radiusBody5.7 mWheel5.3 m*
: 215/70R16 size tyre
Vehicle dimensions
11-05OGAE18E1Specifications11

NOTElThe overall width varies depending on whether the vehicle is equipped with wheel lip moldings.
To determine whether your vehicle is equipped with wheel lip moldings, refer to “Exterior” on page 1-12.

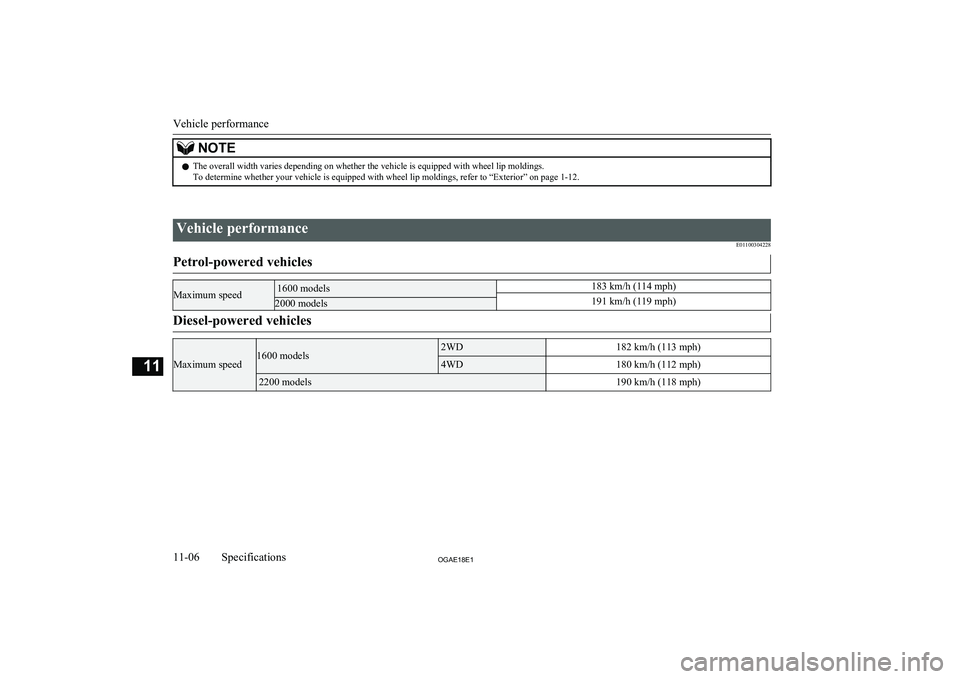

Vehicle performance
E01100304228Petrol-powered vehiclesMaximum speed1600 models183 km/h (114 mph)2000 models191 km/h (119 mph)Diesel-powered vehicles
Maximum speed1600 models2WD182 km/h (113 mph)4WD180 km/h (112 mph)2200 models190 km/h (118 mph)

Vehicle performance
11-06OGAE18E1Specifications11

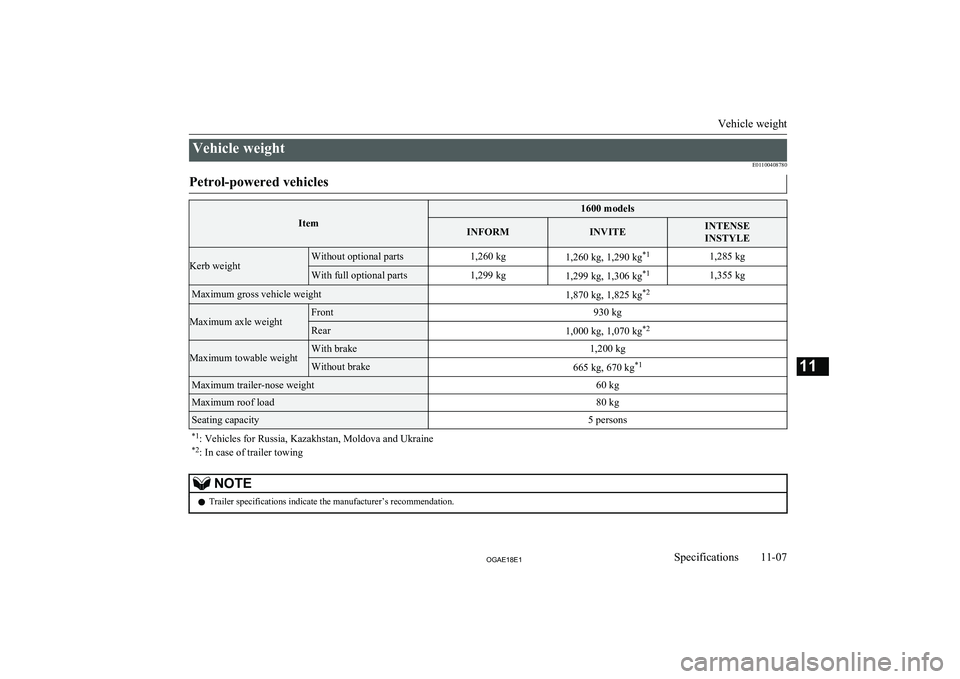

Vehicle weightE01100408780Petrol-powered vehicles
Item
1600 modelsINFORMINVITEINTENSE
INSTYLE
Kerb weight
Without optional parts1,260 kg1,260 kg, 1,290 kg *11,285 kgWith full optional parts1,299 kg1,299 kg, 1,306 kg*11,355 kgMaximum gross vehicle weight1,870 kg, 1,825 kg*2Maximum axle weight
Front930 kgRear1,000 kg, 1,070 kg*2Maximum towable weight
With brake1,200 kgWithout brake665 kg, 670 kg*1Maximum trailer-nose weight60 kgMaximum roof load80 kgSeating capacity5 persons*1
: Vehicles for Russia, Kazakhstan, Moldova and Ukraine
*2 : In case of trailer towingNOTEl Trailer specifications indicate the manufacturer’s recommendation.
Vehicle weight
11-07OGAE18E1Specifications11

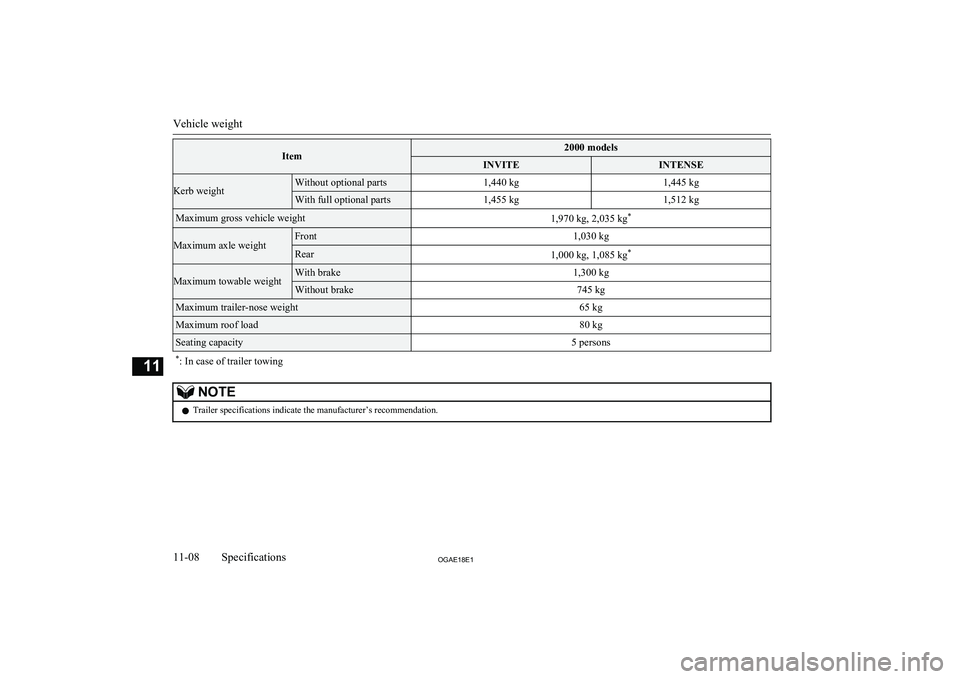

Item2000 modelsINVITEINTENSEKerb weightWithout optional parts1,440 kg1,445 kgWith full optional parts1,455 kg1,512 kgMaximum gross vehicle weight1,970 kg, 2,035 kg*Maximum axle weight
Front1,030 kgRear1,000 kg, 1,085 kg *Maximum towable weightWith brake1,300 kgWithout brake745 kgMaximum trailer-nose weight65 kgMaximum roof load80 kgSeating capacity5 persons*
: In case of trailer towingNOTEl Trailer specifications indicate the manufacturer’s recommendation.
Vehicle weight
11-08OGAE18E1Specifications11

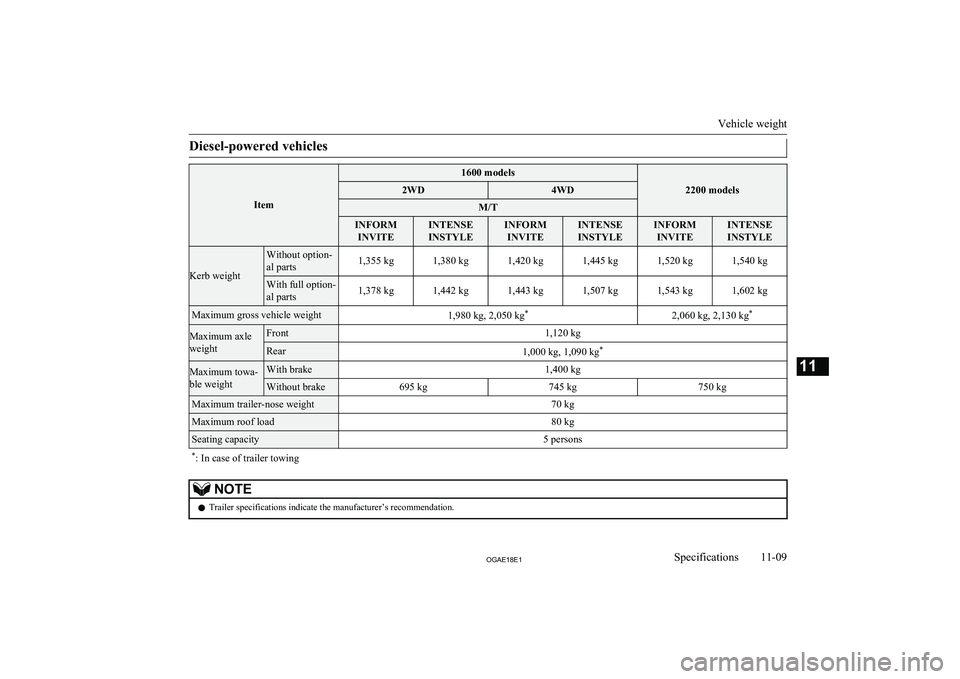

Diesel-powered vehicles
Item
1600 models
2200 models
2WD4WDM/TINFORMINVITEINTENSE
INSTYLEINFORM INVITEINTENSE
INSTYLEINFORM INVITEINTENSE
INSTYLE
Kerb weight
Without option-
al parts1,355 kg1,380 kg1,420 kg1,445 kg1,520 kg1,540 kgWith full option-
al parts1,378 kg1,442 kg1,443 kg1,507 kg1,543 kg1,602 kgMaximum gross vehicle weight1,980 kg, 2,050 kg *2,060 kg, 2,130 kg*Maximum axle
weightFront1,120 kgRear1,000 kg, 1,090 kg *Maximum towa-
ble weightWith brake1,400 kgWithout brake695 kg745 kg750 kgMaximum trailer-nose weight70 kgMaximum roof load80 kgSeating capacity5 persons* : In case of trailer towingNOTEl Trailer specifications indicate the manufacturer’s recommendation.

Vehicle weight
11-09OGAE18E1Specifications11

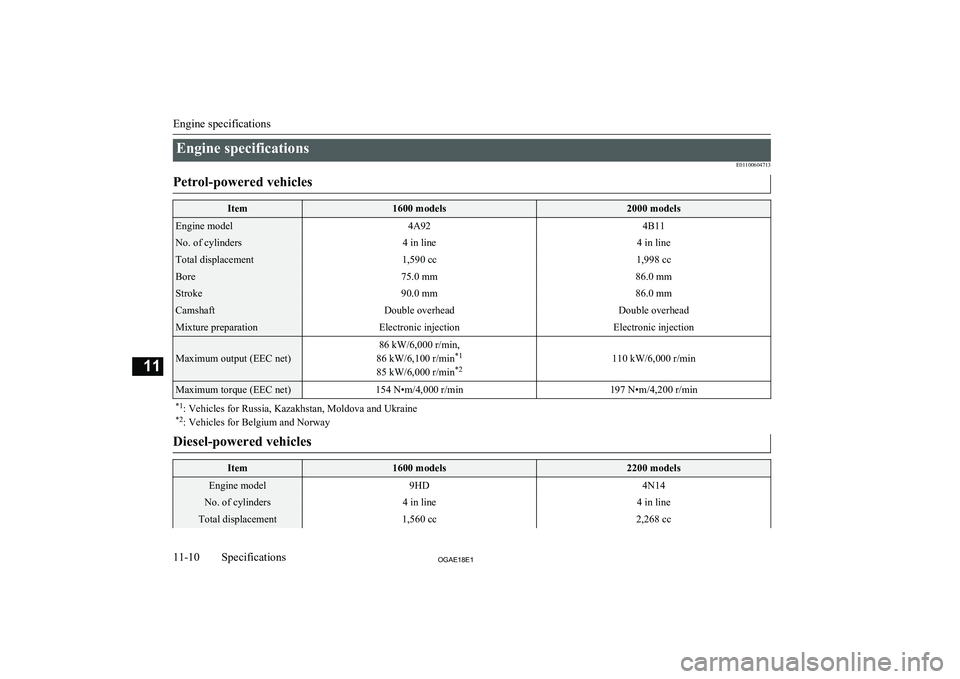

Engine specificationsE01100604713Petrol-powered vehiclesItem1600 models2000 modelsEngine model4A924B11No. of cylinders4 in line4 in lineTotal displacement1,590 cc1,998 ccBore75.0 mm86.0 mmStroke90.0 mm86.0 mmCamshaftDouble overheadDouble overheadMixture preparationElectronic injectionElectronic injection
Maximum output (EEC net)
86 kW/6,000 r/min,
86 kW/6,100 r/min *1
85 kW/6,000 r/min *2
110 kW/6,000 r/min
Maximum torque (EEC net)154 N•m/4,000 r/min197 N•m/4,200 r/min*1
: Vehicles for Russia, Kazakhstan, Moldova and Ukraine
*2 : Vehicles for Belgium and NorwayDiesel-powered vehiclesItem1600 models2200 modelsEngine model9HD4N14No. of cylinders4 in line4 in lineTotal displacement1,560 cc2,268 cc
Engine specifications
