MITSUBISHI ASX 2018 Owner's Manual (in English)

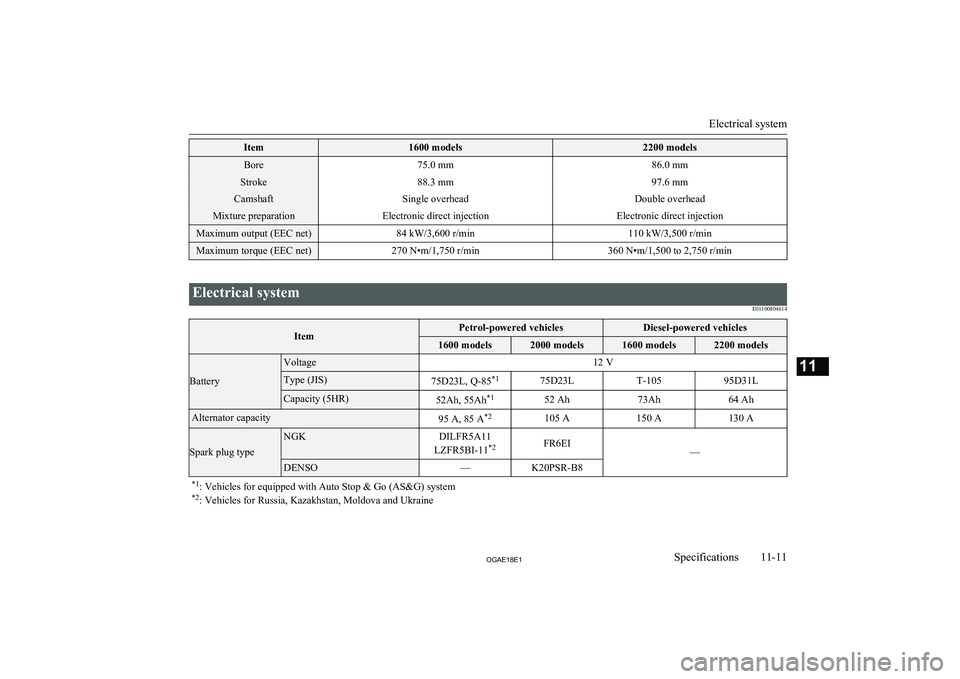

Item1600 models2200 modelsBore75.0 mm86.0 mmStroke88.3 mm97.6 mmCamshaftSingle overheadDouble overheadMixture preparationElectronic direct injectionElectronic direct injectionMaximum output (EEC net)84 kW/3,600 r/min110 kW/3,500 r/minMaximum torque (EEC net)270 N•m/1,750 r/min360 N•m/1,500 to 2,750 r/min

Electrical systemE01100804614ItemPetrol-powered vehiclesDiesel-powered vehicles1600 models2000 models1600 models2200 models
Battery
Voltage12 VType (JIS)75D23L, Q-85*175D23LT-10595D31LCapacity (5HR)52Ah, 55Ah*152 Ah73Ah64 AhAlternator capacity95 A, 85 A*2105 A150 A130 A
Spark plug type
NGKDILFR5A11
LZFR5BI-11 *2FR6EI—
DENSO—K20PSR-B8*1
: Vehicles for equipped with Auto Stop & Go (AS&G) system
*2 : Vehicles for Russia, Kazakhstan, Moldova and Ukraine
Electrical system
11-11OGAE18E1Specifications11

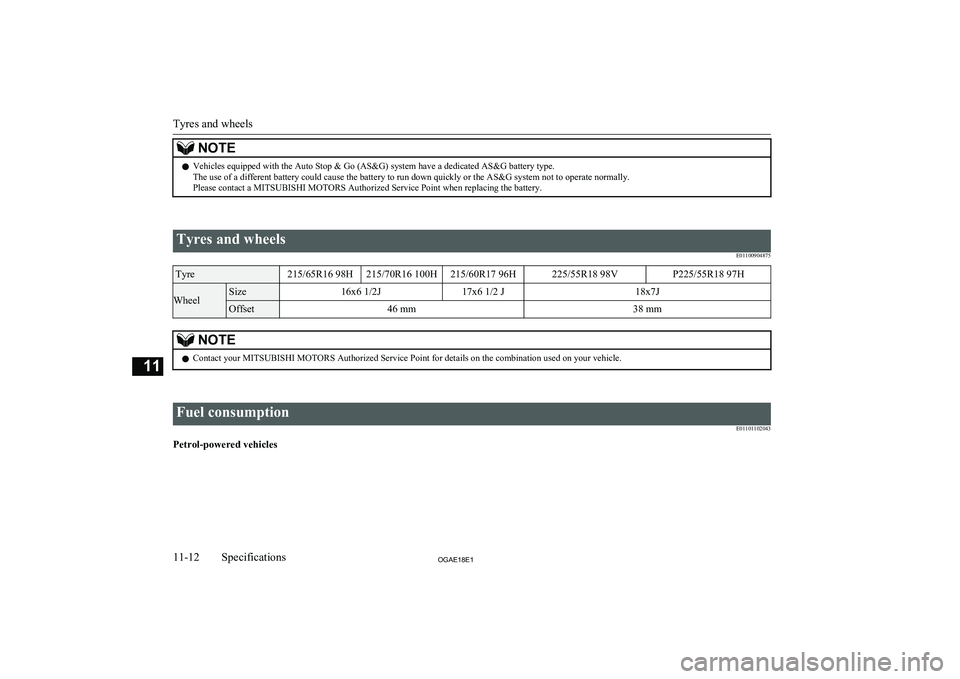

NOTElVehicles equipped with the Auto Stop & Go (AS&G) system have a dedicated AS&G battery type.
The use of a different battery could cause the battery to run down quickly or the AS&G system not to operate normally.
Please contact a MITSUBISHI MOTORS Authorized Service Point when replacing the battery.

Tyres and wheels
E01100904875Tyre215/65R16 98H215/70R16 100H215/60R17 96H225/55R18 98VP225/55R18 97HWheelSize16x6 1/2J17x6 1/2 J18x7JOffset46 mm38 mmNOTElContact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.

Fuel consumption
E01101102043
Petrol-powered vehicles
Tyres and wheels
11-12OGAE18E1Specifications11

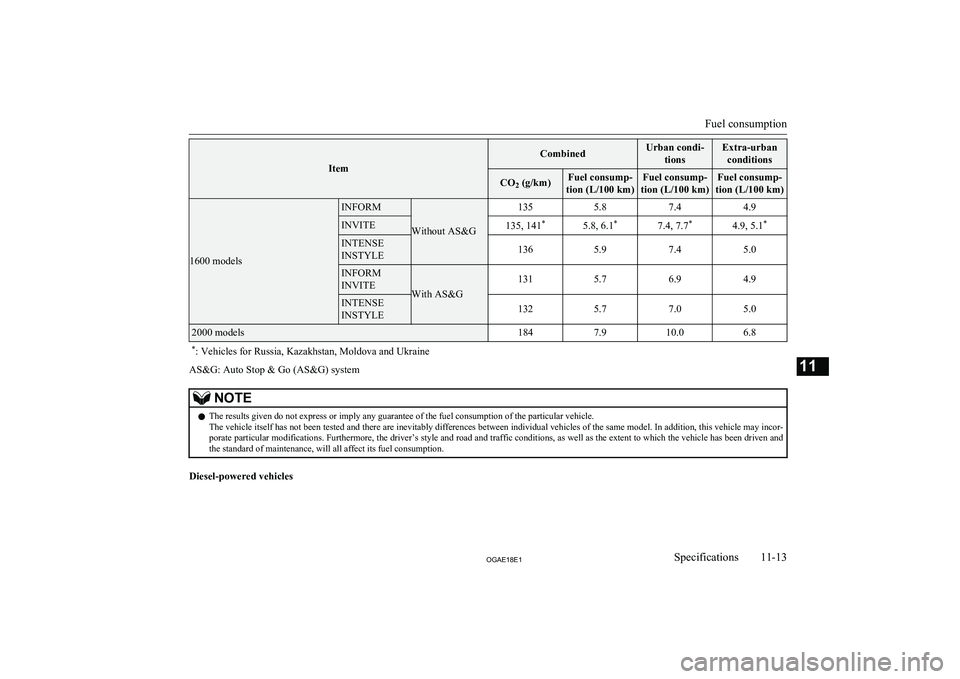

Item
CombinedUrban condi-tionsExtra-urbanconditionsCO 2 (g/km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)
1600 models
INFORM
Without AS&G
1355.87.44.9INVITE135, 141 *5.8, 6.1*7.4, 7.7*4.9, 5.1*INTENSE
INSTYLE1365.97.45.0INFORM
INVITE
With AS&G
1315.76.94.9INTENSE
INSTYLE1325.77.05.02000 models1847.910.06.8* : Vehicles for Russia, Kazakhstan, Moldova and Ukraine
AS&G: Auto Stop & Go (AS&G) system
NOTEl The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its fuel consumption.
Diesel-powered vehicles
Fuel consumption
11-13OGAE18E1Specifications11

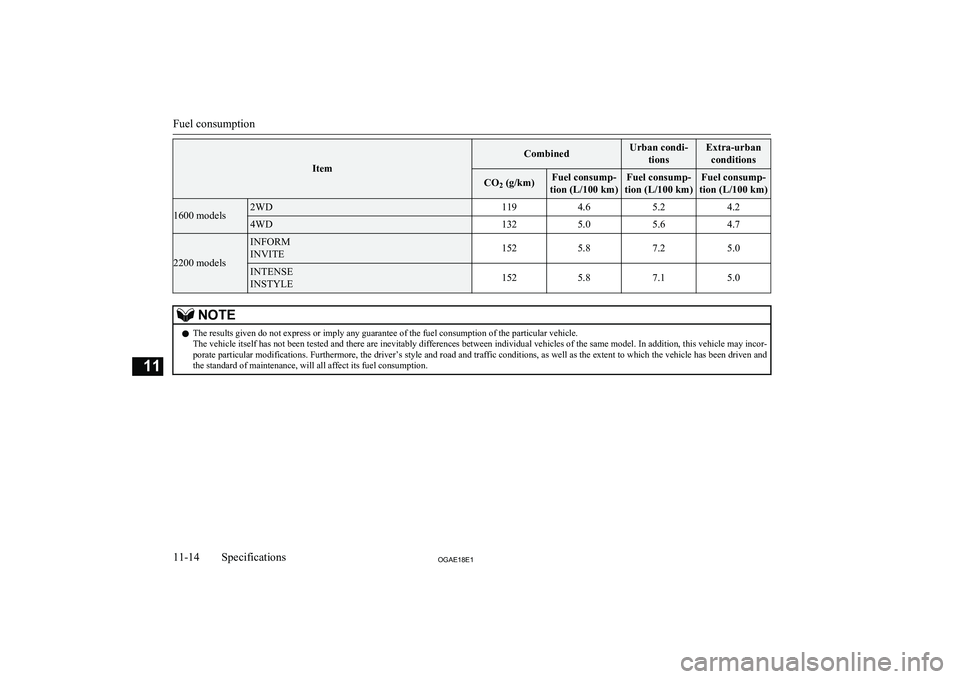

Item
CombinedUrban condi-tionsExtra-urbanconditionsCO 2 (g/km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)1600 models2WD1194.65.24.24WD1325.05.64.7
2200 models
INFORM
INVITE1525.87.25.0INTENSE
INSTYLE1525.87.15.0NOTEl The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its fuel consumption.

Fuel consumption
11-14OGAE18E1Specifications11

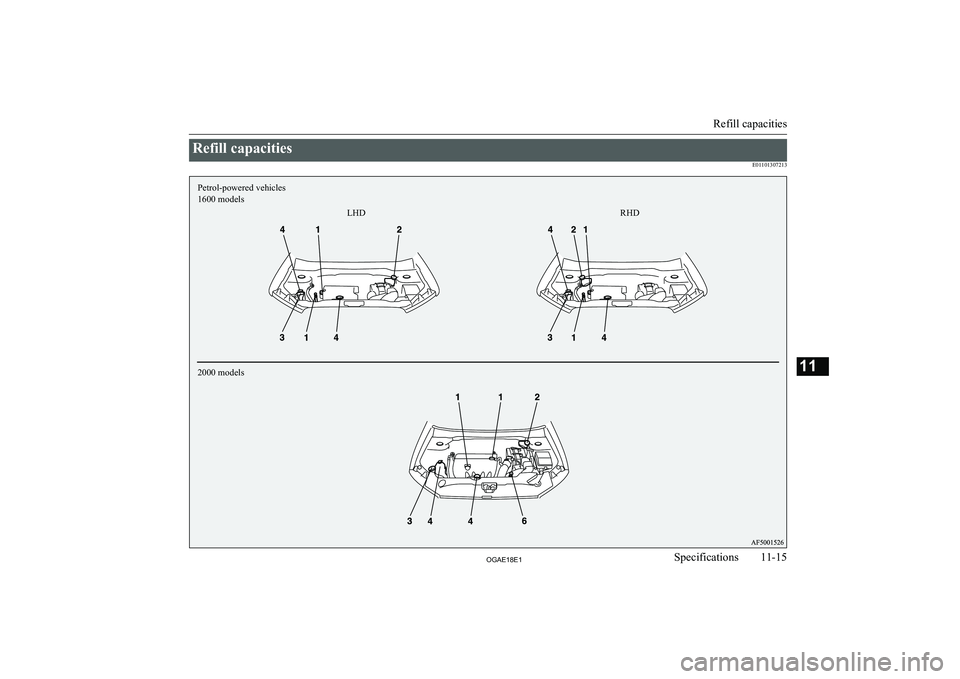

Refill capacitiesE01101307213
Refill capacities
11-15OGAE18E1Specifications11Petrol-powered vehicles 1600 modelsRHD
LHD
2000 models

Refill capacities

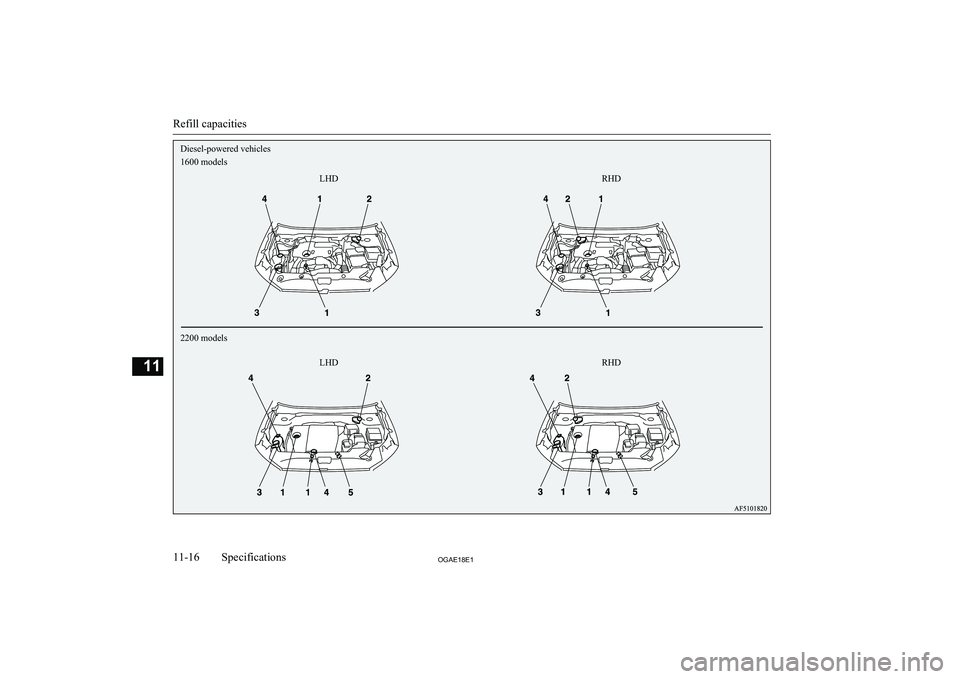

11-16OGAE18E1Specifications11Diesel-powered vehicles
1600 models
2200 modelsLHD
LHD RHD
RHD

No.ItemQuantityLubricants
1Engine oil
Petrol-powered
vehicles1600 modelsOil pan4.0 litres
Refer to page 10-05.
Oil filter0.2 litre2000 modelsOil pan4.0 litresOil filter0.3 litre
Diesel-powered
vehicles1600 models3.25 litres *13.75 litres*22200 modelsOil pan7.1 litresOil filter0.3 litre*1
: Oil capacity without replacement of the oil filter cartridge
*2 : Oil capacity with replacement of the oil filter cartridgeNo.ItemQuantityLubricants2Brake fluidAs requiredBrake fluid DOT 3 or DOT 4Clutch fluid3Washer fluid4.5 litres—
4Engine coolant (pet-
rol-powered vehicles)
1600 models
6.0 litres [includes
0.65 litre in the re- serve tank]
MITSUBISHI MOTORS GENUINE SUPER
LONG LIFE COOLANT PREMIUM or equiva-
lent*2000 models
7.5 litres [includes
0.65 litre in the re- serve tank]*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid tech-
nology

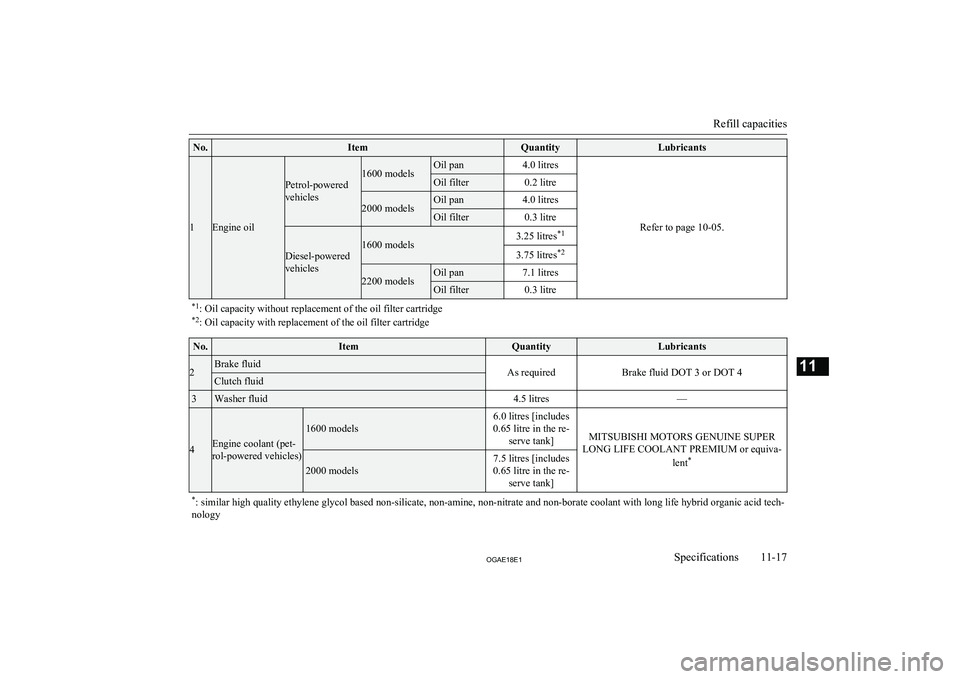

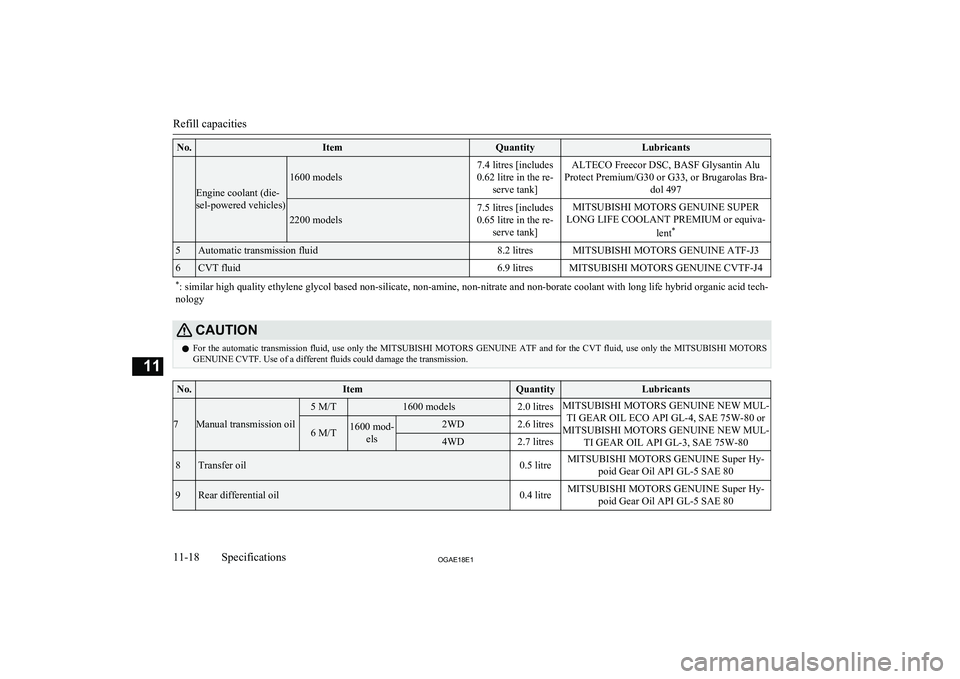

Refill capacities
11-17OGAE18E1Specifications11

No.ItemQuantityLubricants
Engine coolant (die-
sel-powered vehicles)
1600 models
7.4 litres [includes
0.62 litre in the re- serve tank]ALTECO Freecor DSC, BASF Glysantin Alu
Protect Premium/G30 or G33, or Brugarolas Bra- dol 497
2200 models
7.5 litres [includes
0.65 litre in the re- serve tank]MITSUBISHI MOTORS GENUINE SUPER
LONG LIFE COOLANT PREMIUM or equiva-
lent*5Automatic transmission fluid8.2 litresMITSUBISHI MOTORS GENUINE ATF-J36CVT fluid6.9 litresMITSUBISHI MOTORS GENUINE CVTF-J4*
: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid tech-
nologyCAUTIONl For the automatic transmission fluid, use only the
MITSUBISHI MOTORS GENUINE ATF and for the CVT fluid, use only the MITSUBISHI MOTORS
GENUINE CVTF. Use of a different fluids could damage the transmission.No.ItemQuantityLubricants
7Manual transmission oil
5 M/T1600 models2.0 litresMITSUBISHI MOTORS GENUINE NEW MUL-
TI GEAR OIL ECO API GL-4, SAE 75W-80 or
MITSUBISHI MOTORS GENUINE NEW MUL- TI GEAR OIL API GL-3, SAE 75W-806 M/T1600 mod-els2WD2.6 litres4WD2.7 litres8Transfer oil0.5 litreMITSUBISHI MOTORS GENUINE Super Hy- poid Gear Oil API GL-5 SAE 809Rear differential oil0.4 litreMITSUBISHI MOTORS GENUINE Super Hy-poid Gear Oil API GL-5 SAE 80
Refill capacities
11-18OGAE18E1Specifications11

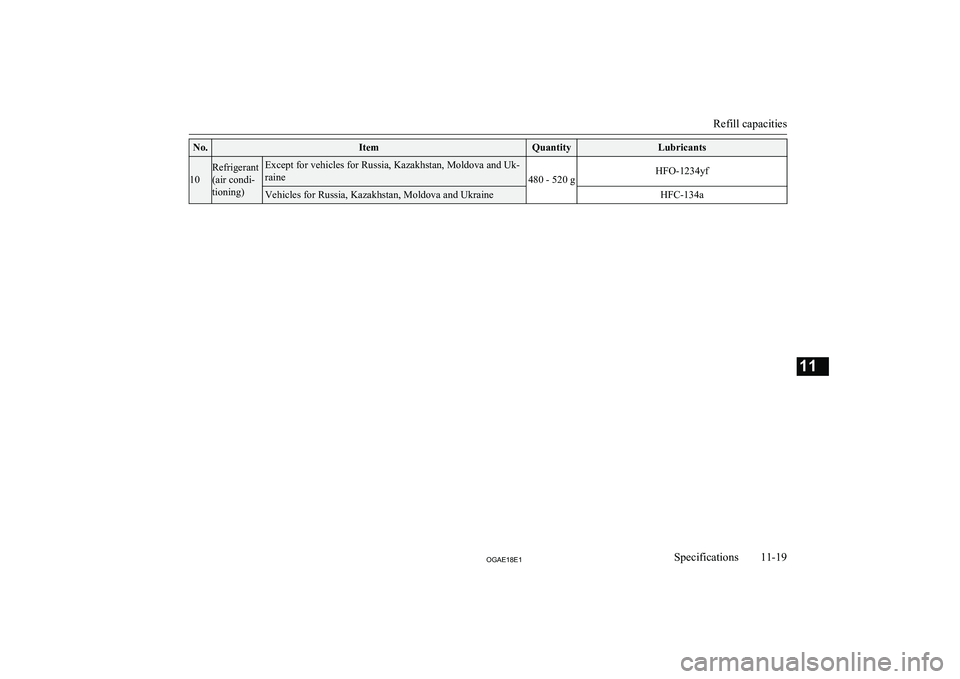

No.ItemQuantityLubricants
10
Refrigerant
(air condi-
tioning)Except for vehicles for Russia, Kazakhstan, Moldova and Uk-
raine
480 - 520 gHFO-1234yfVehicles for Russia, Kazakhstan, Moldova and UkraineHFC-134a

Refill capacities
11-19OGAE18E1Specifications11
