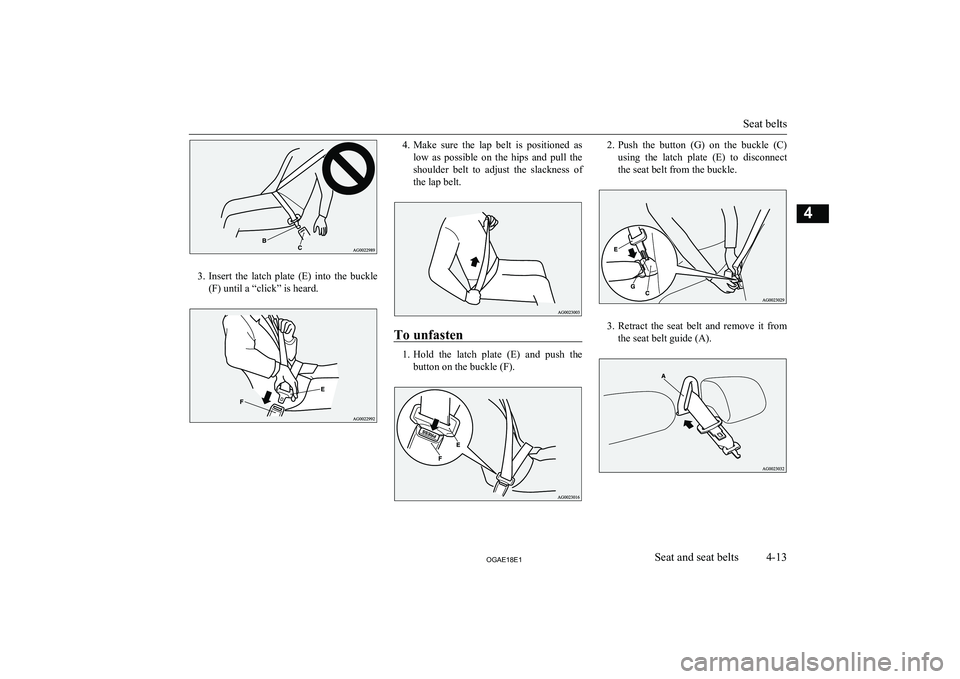

3.Insert the latch plate (E) into the buckle
(F) until a “click” is heard.
4. Make sure the lap belt is positioned as
low as possible on the hips and pull the shoulder belt to adjust the slackness of
the lap belt.
To unfasten
1. Hold the latch plate (E) and push the
button on the buckle (F).
2. Push the button (G) on the buckle (C)
using the latch plate (E) to disconnect
the seat belt from the buckle.
3. Retract the seat belt and remove it from
the seat belt guide (A).
Seat belts
4-13OGAE18E1Seat and seat belts4

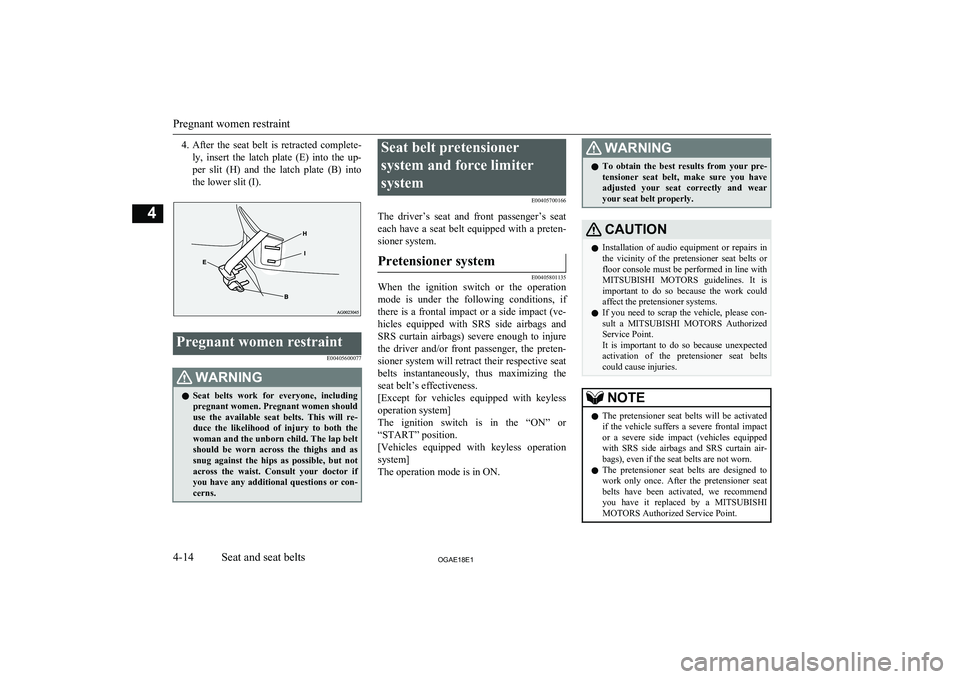

4.After the seat belt is retracted complete-
ly, insert the latch plate (E) into the up-
per slit (H) and the latch plate (B) into the lower slit (I).Pregnant women restraint
E00405600077WARNINGlSeat belts work for everyone, including
pregnant women. Pregnant women shoulduse the available seat belts. This will re-
duce the likelihood of injury to both the woman and the unborn child. The lap belt should be worn across the thighs and as
snug against the hips as possible, but not across the waist. Consult your doctor if
you have any additional questions or con- cerns.Seat belt pretensioner
system and force limiter
system E00405700166
The driver’s seat and front passenger’s seat each have a seat belt equipped with a preten- sioner system.Pretensioner system
E00405801135
When the ignition switch or the operationmode is under the following conditions, if there is a frontal impact or a side impact (ve-
hicles equipped with SRS side airbags and SRS curtain airbags) severe enough to injure
the driver and/or front passenger, the preten-
sioner system will retract their respective seat belts instantaneously, thus maximizing the
seat belt’s effectiveness.
[Except for vehicles equipped with keyless operation system]
The ignition switch is in the “ON” or
“START” position.
[Vehicles equipped with keyless operation system]
The operation mode is in ON.
WARNINGl To obtain the best results from your pre-
tensioner seat belt, make sure you have
adjusted your seat correctly and wear your seat belt properly.CAUTIONl Installation of audio equipment or repairs in
the vicinity of the pretensioner seat belts or
floor console must be performed in line with MITSUBISHI MOTORS guidelines. It is
important to do so because the work could affect the pretensioner systems.
l If you need to scrap the vehicle, please con-
sult a MITSUBISHI MOTORS Authorized
Service Point.
It is important to do so because unexpected activation of the pretensioner seat belts
could cause injuries.NOTEl The pretensioner seat belts will be activated
if the vehicle suffers a severe frontal impact or a severe side impact (vehicles equipped
with SRS side airbags and SRS curtain air- bags), even if the seat belts are not worn.
l The pretensioner seat belts are designed to
work only once. After the pretensioner seat belts have been activated, we recommend
you have it replaced by a MITSUBISHI
MOTORS Authorized Service Point.
Pregnant women restraint
4-14OGAE18E1Seat and seat belts4

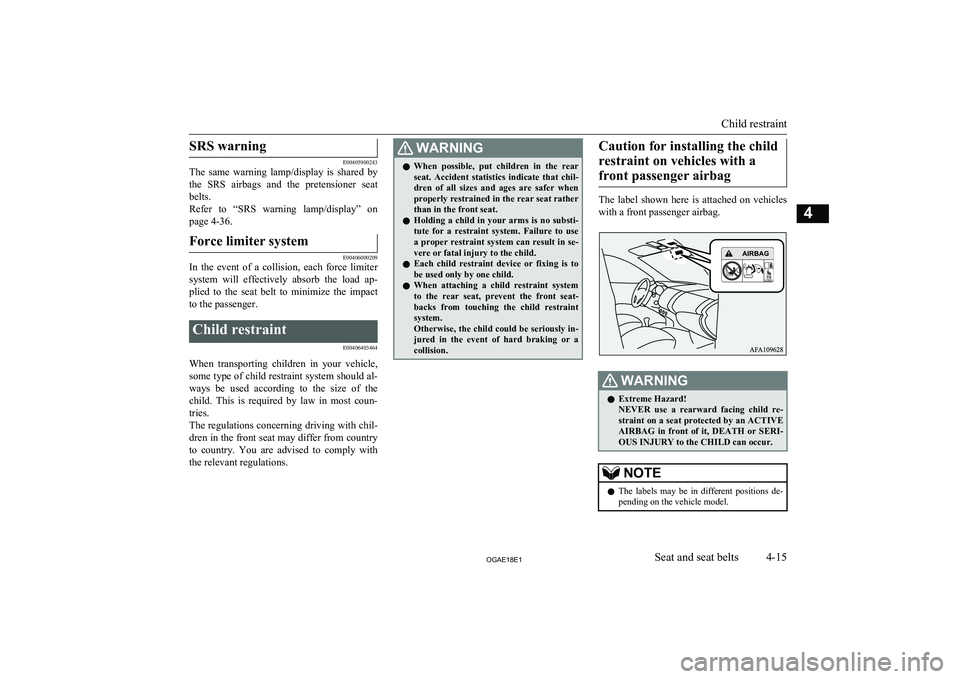

SRS warning
E00405900243
The same warning lamp/display is shared by
the SRS airbags and the pretensioner seat
belts.
Refer to “SRS warning lamp/display” on page 4-36.
Force limiter system
E00406000209
In the event of a collision, each force limitersystem will effectively absorb the load ap- plied to the seat belt to minimize the impact
to the passenger.
Child restraint
E00406403464
When transporting children in your vehicle,some type of child restraint system should al-
ways be used according to the size of the child. This is required by law in most coun-
tries.
The regulations concerning driving with chil-
dren in the front seat may differ from country
to country. You are advised to comply with the relevant regulations.
WARNINGl When possible, put children in the rear
seat. Accident statistics indicate that chil- dren of all sizes and ages are safer when
properly restrained in the rear seat rather than in the front seat.
l Holding a child in your arms is no substi-
tute for a restraint system. Failure to use
a proper restraint system can result in se- vere or fatal injury to the child.
l Each child restraint device or fixing is to
be used only by one child.
l When attaching a child restraint system
to the rear seat, prevent the front seat- backs from touching the child restraintsystem.
Otherwise, the child could be seriously in-
jured in the event of hard braking or a
collision.Caution for installing the child
restraint on vehicles with a front passenger airbag
The label shown here is attached on vehicles with a front passenger airbag.
WARNINGl Extreme Hazard!
NEVER use a rearward facing child re- straint on a seat protected by an ACTIVEAIRBAG in front of it, DEATH or SERI- OUS INJURY to the CHILD can occur.NOTEl The labels may be in different positions de-
pending on the vehicle model.
Child restraint
4-15OGAE18E1Seat and seat belts4

Use rearward facing child restraints in the
rear seat or turn off the front passenger’s air- bag ON-OFF switch (if so equipped). (Refer
to “To turn an airbag off” on page 4-28)WARNINGl A REARWARD FACING CHILD RE-
STRAINT must NOT be used in the front passenger seat if the front passenger’s air-
bag has not been deactivated. The force of an inflating airbag could kill or cause se-
rious injuries to the child. A rearward facing child restraint should be used in
the rear seat.
l A FORWARD FACING CHILD RE-
STRAINT should be used in the rear seat
whenever possible; if used in the front seat, turn off the front passenger’s airbag
ON-OFF switch.Infants and small children
E00406600609
When transporting infants and small children
in your vehicle, follow the instruction given below.
Instruction:
l For small infants, an infant carrier
should be used. For small children whose height when seated allows the shoulder belt to lie in contact with the
face or the throat, a child seat should be used.
l The child restraint system should be ap-
propriate for the child’s weight and
height and properly fit in the vehicle. For a higher degree of safety: THECHILD RESTRAINT SYSTEM
SHOULD BE INSTALLED IN THE REAR SEAT.
NOTEl Before purchasing a child restraint system,
try installing it in the rear seat to make surethere is a good fit. Because of the location of the seat belt buckles and the shape of theseat cushion, it may be difficult to securely
install some manufacturer’s child restraint
systems.
If the child restraint system can be pulled forward or to either side easily on the seatcushion after the seat belt has been tight-
ened, choose another manufacturer’s child restraint system.WARNINGl When installing a child restraint system,
refer to the instructions provided by themanufacturer of the restraint system.Failure to do so can result in severe or fa-tal injury to the child.
l After installation, push and pull the child
restraint system back and forth, and side to side, to see that it is properly secured.
If the child restraint system is not instal-
led securely, it may cause injury to the
child or other occupants in the case of ac- cident or sudden stops.
l When the child restraint system is not in
use, keep your child restraint system se-
cured with the seat belt or remove it from the vehicle in order to prevent it from be- ing thrown around inside the vehicle dur-
ing an accident.
Child restraint
4-16OGAE18E1Seat and seat belts4Front passenger’s
airbag ON

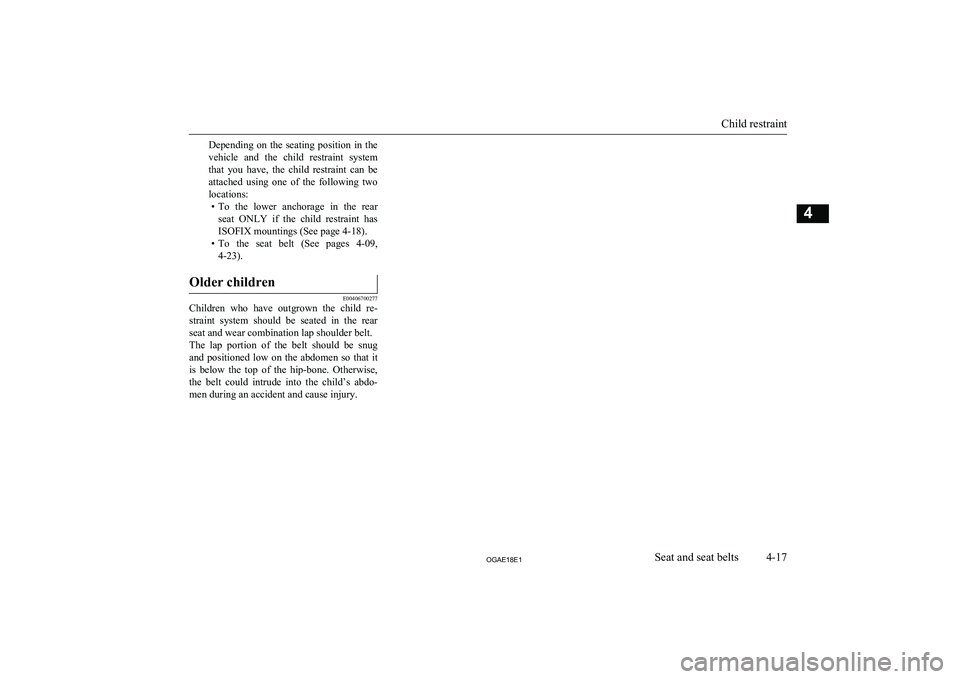

Depending on the seating position in the
vehicle and the child restraint system
that you have, the child restraint can be attached using one of the following two
locations: • To the lower anchorage in the rear
seat ONLY if the child restraint has
ISOFIX mountings (See page 4-18).
• To the seat belt (See pages 4-09,
4-23).Older children
E00406700277
Children who have outgrown the child re- straint system should be seated in the rear
seat and wear combination lap shoulder belt.
The lap portion of the belt should be snug and positioned low on the abdomen so that it
is below the top of the hip-bone. Otherwise, the belt could intrude into the child’s abdo-
men during an accident and cause injury.
Child restraint
4-17OGAE18E1Seat and seat belts4

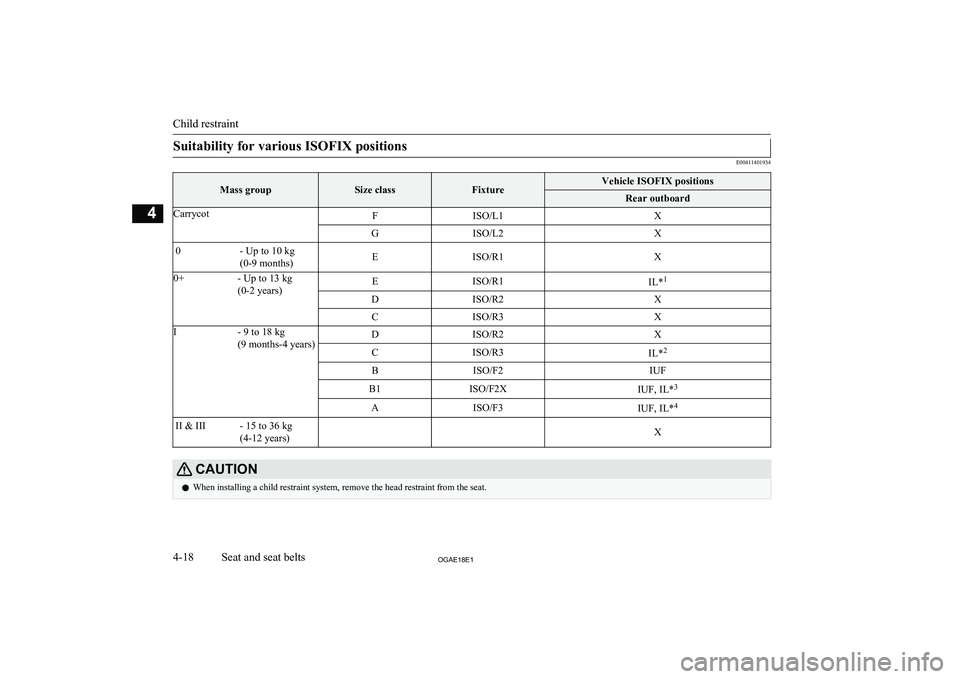

Suitability for various ISOFIX positions
E00411401934Mass groupSize classFixtureVehicle ISOFIX positionsRear outboardCarrycotFISO/L1XGISO/L2X0- Up to 10 kg
(0-9 months)EISO/R1X0+- Up to 13 kg
(0-2 years)EISO/R1IL* 1DISO/R2XCISO/R3XI- 9 to 18 kg
(9 months-4 years)DISO/R2XCISO/R3IL* 2BISO/F2IUFB1ISO/F2XIUF, IL* 3AISO/F3IUF, IL*4II & III- 15 to 36 kg
(4-12 years) XCAUTIONl When installing a child restraint system, remove the head restraint from the seat.
Child restraint
4-18OGAE18E1Seat and seat belts4

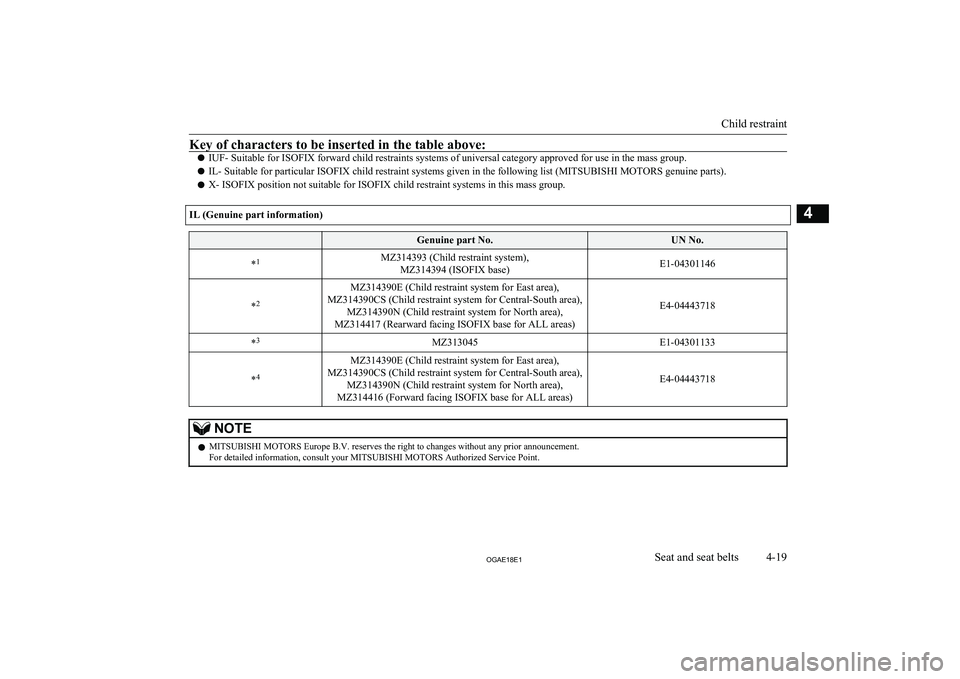

Key of characters to be inserted in the table above:
lIUF- Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass group.
l IL- Suitable for particular ISOFIX child restraint systems given in the following list (MITSUBISHI MOTORS genuine parts).
l X- ISOFIX position not suitable for ISOFIX child restraint systems in this mass group.IL (Genuine part information) Genuine part No.UN No.*1MZ314393 (Child restraint system),
MZ314394 (ISOFIX base)E1-04301146
*2
MZ314390E (Child restraint system for East area),
MZ314390CS (Child restraint system for Central-South area), MZ314390N (Child restraint system for North area),
MZ314417 (Rearward facing ISOFIX base for ALL areas)
E4-04443718
* 3MZ313045E1-04301133
*4
MZ314390E (Child restraint system for East area),
MZ314390CS (Child restraint system for Central-South area), MZ314390N (Child restraint system for North area),
MZ314416 (Forward facing ISOFIX base for ALL areas)
E4-04443718
NOTEl MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For detailed information, consult your MITSUBISHI MOTORS Authorized Service Point.

Child restraint
4-19OGAE18E1Seat and seat belts4

Suitability for various seating positions
E00406803051Mass group
Seating positionFront passenger
Rear outboardRear centre
Activated air-bagDeactivated Air-
bag#10- Up to 10 kg
(0-9 months)XXUX0+- Up to 13 kg
(0-2 years)XL* 1U, L* 1L*1
,I-9 to 18 kg
(9 months-4 years)XL* 2
, L* 3U, L* 2
, L* 3L*2
, L* 3II & III-15 to 36 kg
(4-12 years)XL* 4U, L* 4X
#1
: With front passenger’s airbag deactivated by means of front passenger’s airbag ON-OFF switch
CAUTIONl When installing a child restraint system, remove the head restraint from the seat.Key of characters to be inserted in the table above:
l
U- Suitable for “universal” category restraints approved for use in this mass group.
l L- Suitable for particular child restraints in the following list (MITSUBISHI MOTORS genuine parts).
l X- Seat position not suitable for children in this mass group.
Child restraint
4-20OGAE18E1Seat and seat belts4

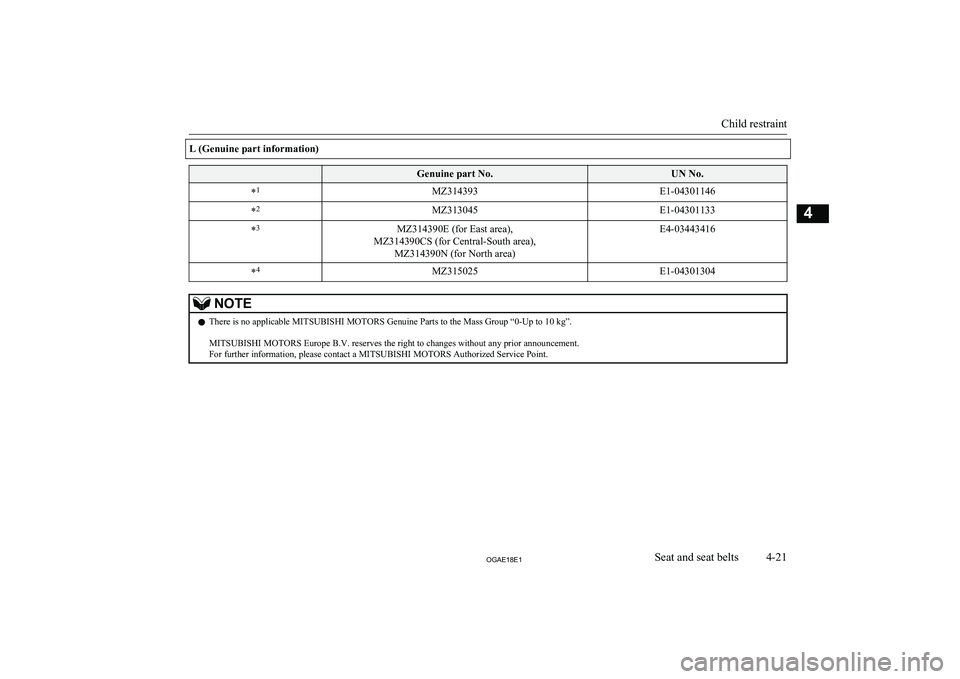

L (Genuine part information) Genuine part No.UN No.*1MZ314393E1-04301146*2MZ313045E1-04301133*3MZ314390E (for East area),
MZ314390CS (for Central-South area), MZ314390N (for North area)E4-03443416*4MZ315025E1-04301304NOTEl
There is no applicable MITSUBISHI MOTORS Genuine Parts to the Mass Group “0-Up to 10 kg”.

MITSUBISHI MOTORS Europe B.V. reserves the right to changes without any prior announcement.
For further information, please contact a MITSUBISHI MOTORS Authorized Service Point.

Child restraint
4-21OGAE18E1Seat and seat belts4

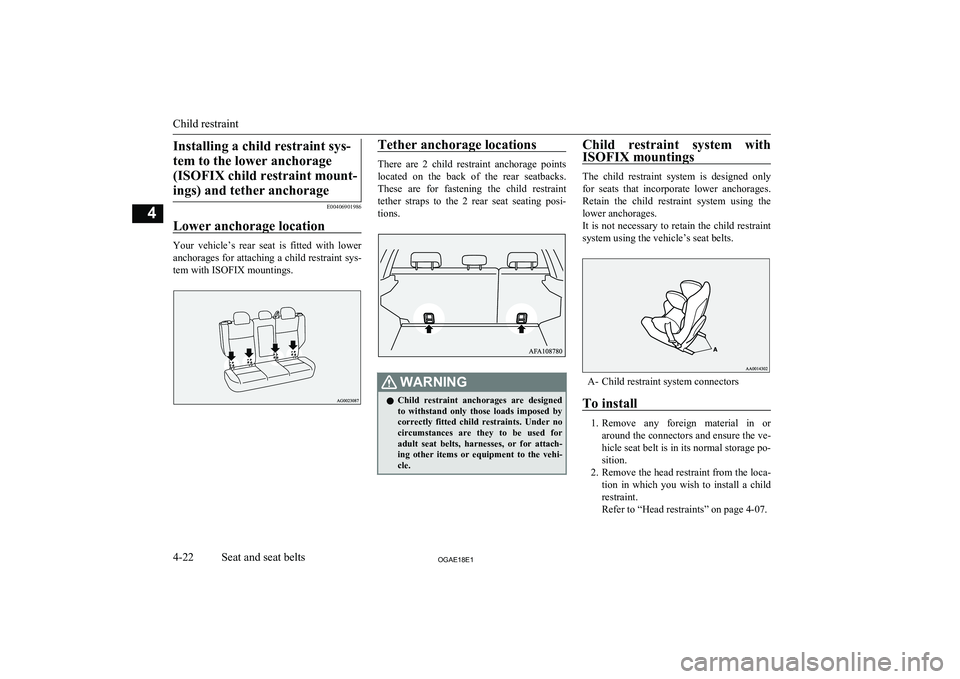

Installing a child restraint sys-tem to the lower anchorage (ISOFIX child restraint mount-ings) and tether anchorage
E00406901986
Lower anchorage location
Your vehicle’s rear seat is fitted with lower
anchorages for attaching a child restraint sys- tem with ISOFIX mountings.
Tether anchorage locations
There are 2 child restraint anchorage points located on the back of the rear seatbacks.
These are for fastening the child restraint tether straps to the 2 rear seat seating posi-
tions.
WARNINGl Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses, or for attach-
ing other items or equipment to the vehi- cle.Child restraint system with
ISOFIX mountings
The child restraint system is designed only
for seats that incorporate lower anchorages.
Retain the child restraint system using the lower anchorages.
It is not necessary to retain the child restraint
system using the vehicle’s seat belts.
A- Child restraint system connectors
To install
1. Remove any foreign material in or
around the connectors and ensure the ve- hicle seat belt is in its normal storage po-
sition.
2. Remove the head restraint from the loca-
tion in which you wish to install a child
restraint.
Refer to “Head restraints” on page 4-07.
