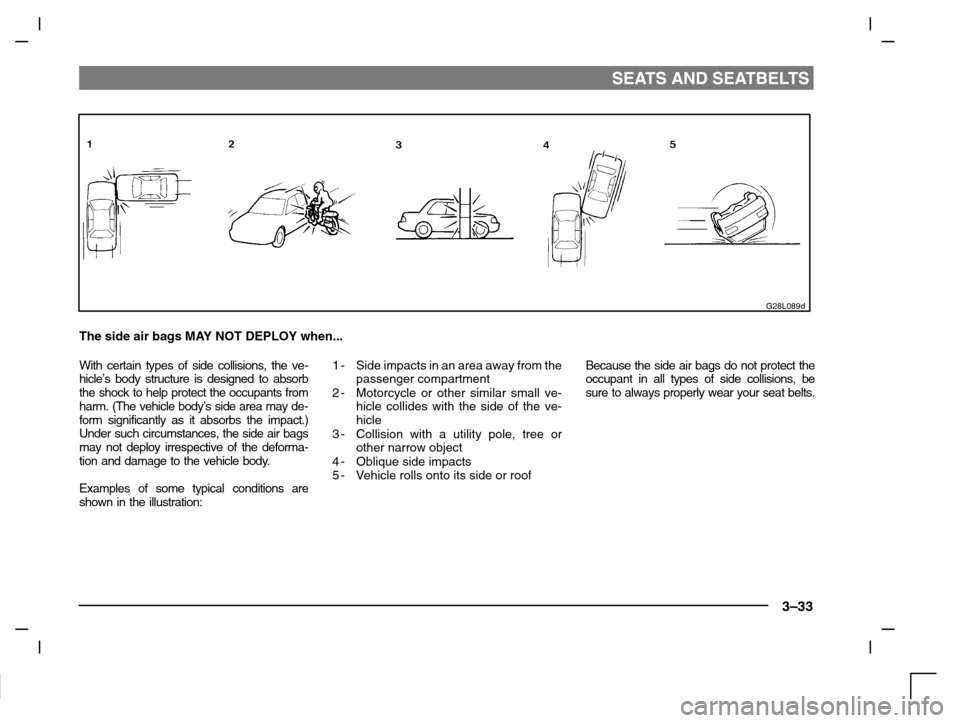

SEATS AND SEATBELTS
3–33
G28L089d
The side air bags MAY NOT DEPLOY when...
With certain types of side collisions, the ve-
hicle’s body structure is designed to absorb
the shock to help protect the occupants from
harm. (The vehicle body’s side area may de-
form significantly as it absorbs the impact.)
Under such circumstances, the side air bags
may not deploy irrespective of the deforma-
tion and damage to the vehicle body.
Examples of some typical conditions are
shown in the illustration:1-Side impacts in an area away from the
passenger compartment
2-Motorcycle or other similar small ve-
hicle collides with the side of the ve-
hicle
3-Collision with a utility pole, tree or
other narrow object
4-Oblique side impacts
5-Vehicle rolls onto its side or roofBecause the side air bags do not protect the
occupant in all types of side collisions, be
sure to always properly wear your seat belts.
Page 62 of 280

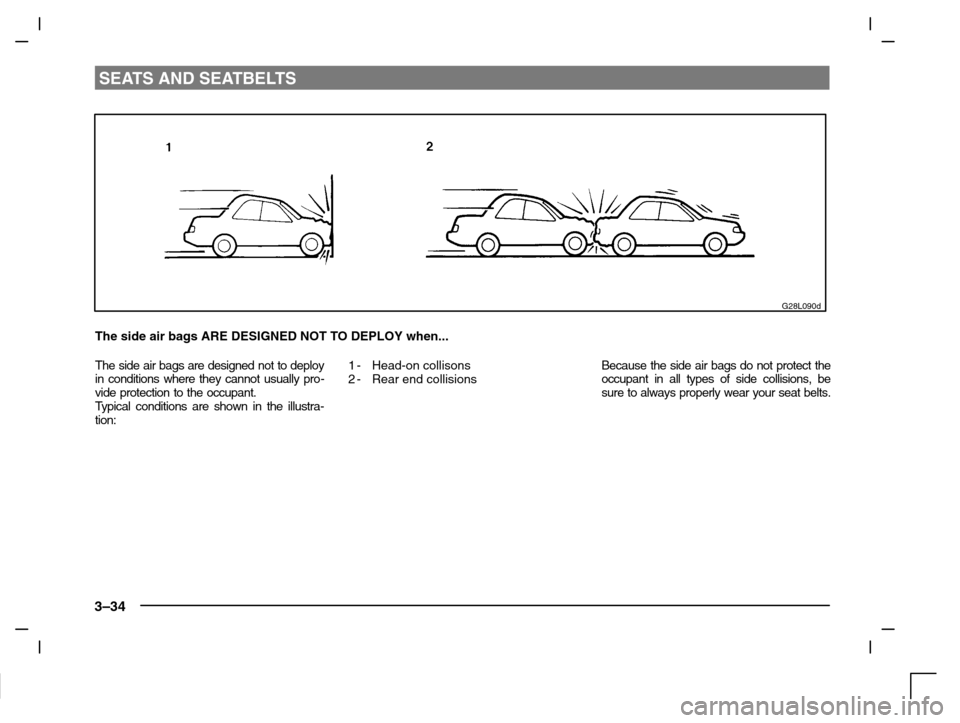

SEATS AND SEATBELTS
3–34
G28L090d
The side air bags ARE DESIGNED NOT TO DEPLOY when...
The side air bags are designed not to deploy
in conditions where they cannot usually pro-
vide protection to the occupant.
Typical conditions are shown in the illustra-
tion:1-Head-on collisons
2-Rear end collisionsBecause the side air bags do not protect the
occupant in all types of side collisions, be
sure to always properly wear your seat belts.
Page 63 of 280

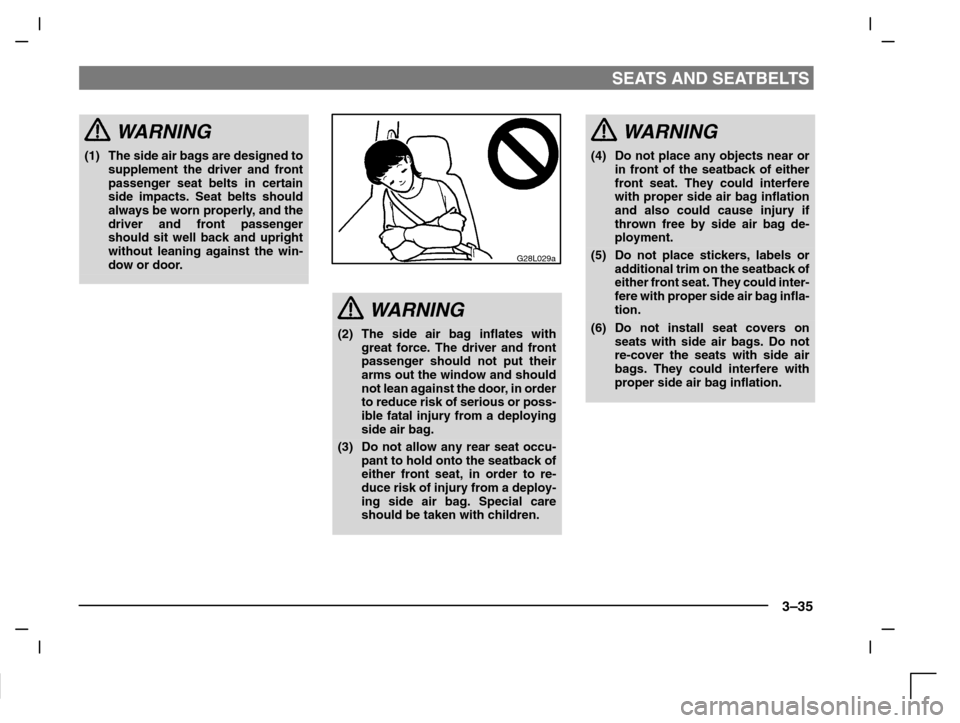

SEATS AND SEATBELTS
3–35
WARNING
(1) The side air bags are designed to
supplement the driver and front
passenger seat belts in certain
side impacts. Seat belts should
always be worn properly, and the
driver and front passenger
should sit well back and upright
without leaning against the win-
dow or door.
G28L029a
WARNING
(2) The side air bag inflates with
great force. The driver and front
passenger should not put their
arms out the window and should
not lean against the door, in order
to reduce risk of serious or poss-
ible fatal injury from a deploying
side air bag.
(3) Do not allow any rear seat occu-
pant to hold onto the seatback of
either front seat, in order to re-
duce risk of injury from a deploy-
ing side air bag. Special care
should be taken with children.
WARNING
(4) Do not place any objects near or
in front of the seatback of either
front seat. They could interfere
with proper side air bag inflation
and also could cause injury if
thrown free by side air bag de-
ployment.
(5) Do not place stickers, labels or
additional trim on the seatback of
either front seat. They could inter-
fere with proper side air bag infla-
tion.
(6) Do not install seat covers on
seats with side air bags. Do not
re-cover the seats with side air
bags. They could interfere with
proper side air bag inflation.

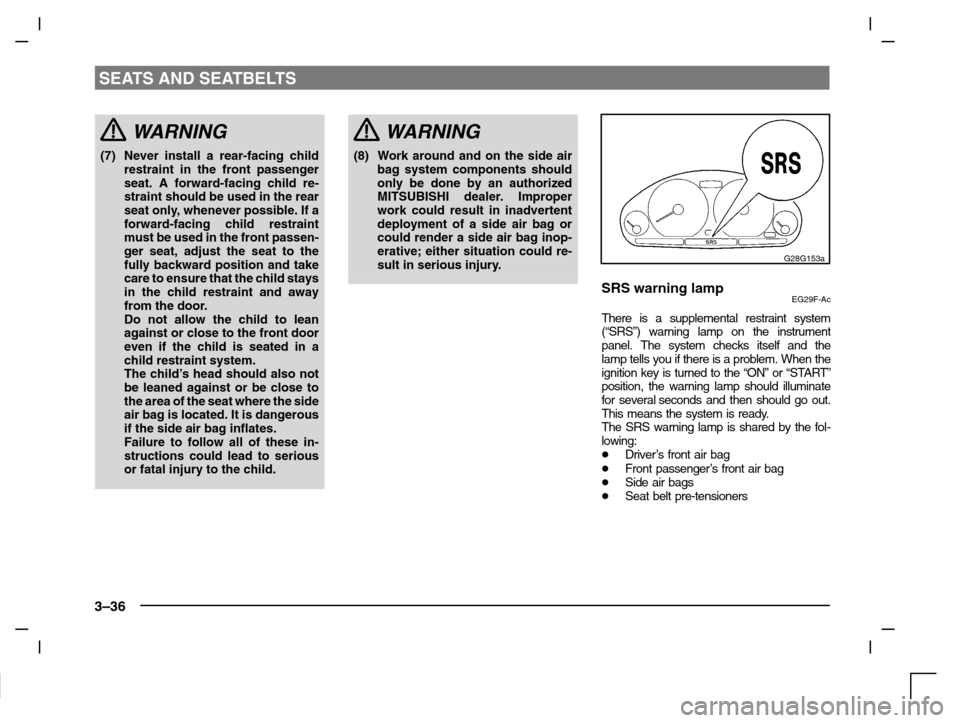

Page 64 of 280
SEATS AND SEATBELTS
3–36
WARNING
(7) Never install a rear-facing child
restraint in the front passenger
seat. A forward-facing child re-
straint should be used in the rear
seat only, whenever possible. If a
forward-facing child restraint
must be used in the front passen-
ger seat, adjust the seat to the
fully backward position and take
care to ensure that the child stays
in the child restraint and away
from the door.
Do not allow the child to lean
against or close to the front door
even if the child is seated in a
child restraint system.
The child’s head should also not
be leaned against or be close to
the area of the seat where the side
air bag is located. It is dangerous
if the side air bag inflates.
Failure to follow all of these in-
structions could lead to serious
or fatal injury to the child.
WARNING
(8) Work around and on the side air
bag system components should
only be done by an authorized
MITSUBISHI dealer. Improper
work could result in inadvertent
deployment of a side air bag or
could render a side air bag inop-
erative; either situation could re-
sult in serious injury.
G28G153a
SRS warning lampEG29F-Ac
There is a supplemental restraint system
(“SRS”) warning lamp on the instrument
panel. The system checks itself and the
lamp tells you if there is a problem. When the
ignition key is turned to the “ON” or “START”
position, the warning lamp should illuminate
for several seconds and then should go out.
This means the system is ready.
The SRS warning lamp is shared by the fol-
lowing:
Driver’s front air bag
Front passenger’s front air bag
Side air bags
Seat belt pre-tensioners
Page 65 of 280

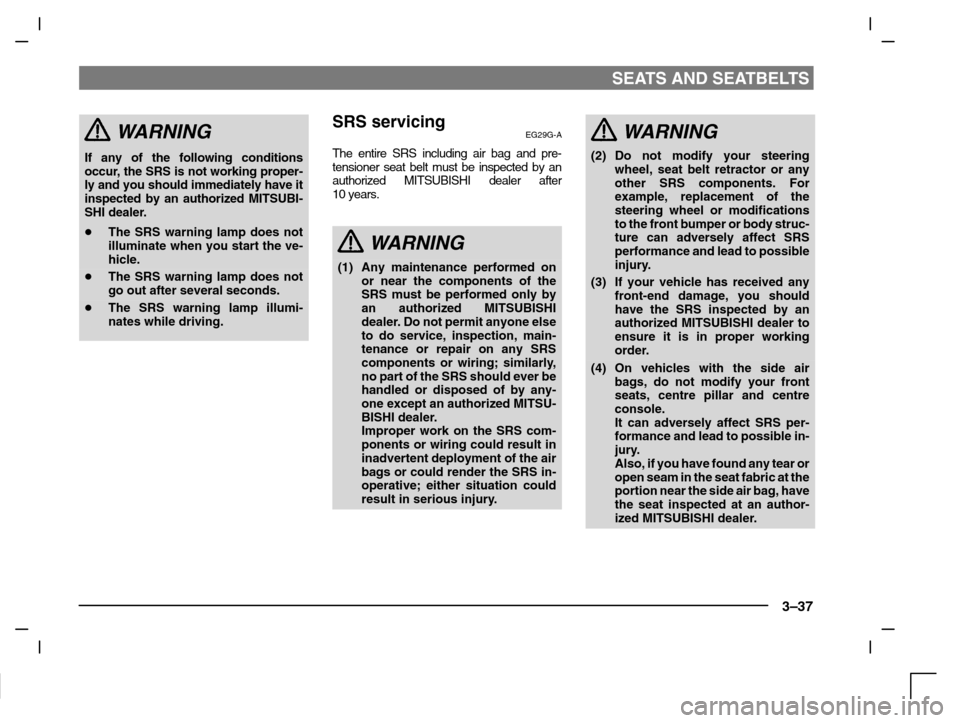

SEATS AND SEATBELTS
3–37
WARNING
If any of the following conditions
occur, the SRS is not working proper-
ly and you should immediately have it
inspected by an authorized MITSUBI-
SHI dealer.
The SRS warning lamp does not
illuminate when you start the ve-
hicle.
The SRS warning lamp does not
go out after several seconds.
The SRS warning lamp illumi-
nates while driving.
SRS servicingEG29G-A
The entire SRS including air bag and pre-
tensioner seat belt must be inspected by an
authorized MITSUBISHI dealer after
10 years.
WARNING
(1) Any maintenance performed on
or near the components of the
SRS must be performed only by
an authorized MITSUBISHI
dealer. Do not permit anyone else
to do service, inspection, main-
tenance or repair on any SRS
components or wiring; similarly,
no part of the SRS should ever be
handled or disposed of by any-
one except an authorized MITSU-
BISHI dealer.
Improper work on the SRS com-
ponents or wiring could result in
inadvertent deployment of the air
bags or could render the SRS in-
operative; either situation could
result in serious injury.
WARNING
(2) Do not modify your steering
wheel, seat belt retractor or any
other SRS components. For
example, replacement of the
steering wheel or modifications
to the front bumper or body struc-
ture can adversely affect SRS
performance and lead to possible
injury.
(3) If your vehicle has received any
front-end damage, you should
have the SRS inspected by an
authorized MITSUBISHI dealer to
ensure it is in proper working
order.
(4) On vehicles with the side air
bags, do not modify your front
seats, centre pillar and centre
console.
It can adversely affect SRS per-
formance and lead to possible in-
jury.
Also, if you have found any tear or
open seam in the seat fabric at the
portion near the side air bag, have
the seat inspected at an author-
ized MITSUBISHI dealer.
Page 66 of 280

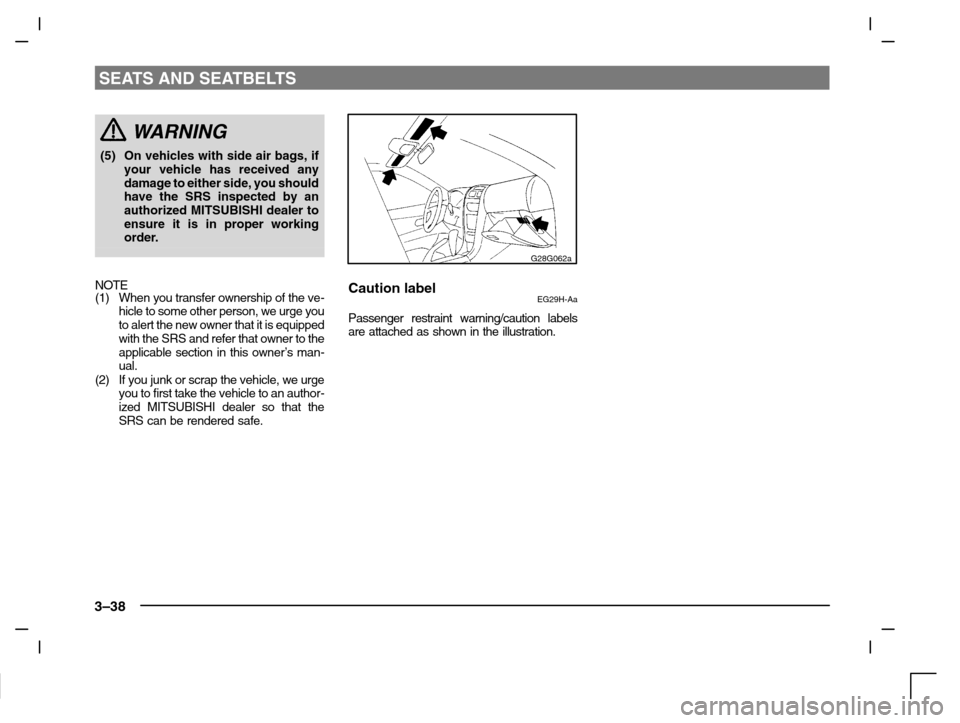

SEATS AND SEATBELTS
3–38
WARNING
(5) On vehicles with side air bags, if
your vehicle has received any
damage to either side, you should
have the SRS inspected by an
authorized MITSUBISHI dealer to
ensure it is in proper working
order.
NOTE
(1) When you transfer ownership of the ve-
hicle to some other person, we urge you
to alert the new owner that it is equipped
with the SRS and refer that owner to the
applicable section in this owner’s man-
ual.
(2) If you junk or scrap the vehicle, we urge
you to first take the vehicle to an author-
ized MITSUBISHI dealer so that the
SRS can be rendered safe.
G28G062a
Caution labelEG29H-Aa
Passenger restraint warning/caution labels
are attached as shown in the illustration.
Page 67 of 280
Instruments and controls
Instruments 4–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer 4–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer/Tripmeter 4–3. . . . . . . . . . . . . . . . . . . . . . .
Tachometer 4–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel gauge 4–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water temperature gauge 4–5. . . . . . . . . . . . . . . . . .
Indication and warning lamps 4–6. . . . . . . . . . . . . .
Combination headlamps, dipper and turn
signal switch 4–12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlamp levelling switch 4–13. . . . . . . . . . . . . . . . .
Windscreen wiper and washer switch 4–15. . . . . .
Rear window wiper and washer switch
(Hatchback) 4–16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlamp washer switch* 4–17. . . . . . . . . . . . . . . . .
Hazard warning flasher switch 4–18. . . . . . . . . . . . .
Rear window demister switch 4–19. . . . . . . . . . . . .
Front fog lamp switch* 4–20. . . . . . . . . . . . . . . . . . . .
Rear fog lamp switch 4–21. . . . . . . . . . . . . . . . . . . . .
Rheostat
(meter illumination control) 4–21. . . . . . . . . . . . . . . .
Horn switch 4–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Room lamps 4–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi centre display 4–24. . . . . . . . . . . . . . . . . . . . . .
Digital clock 4–26. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 68 of 280

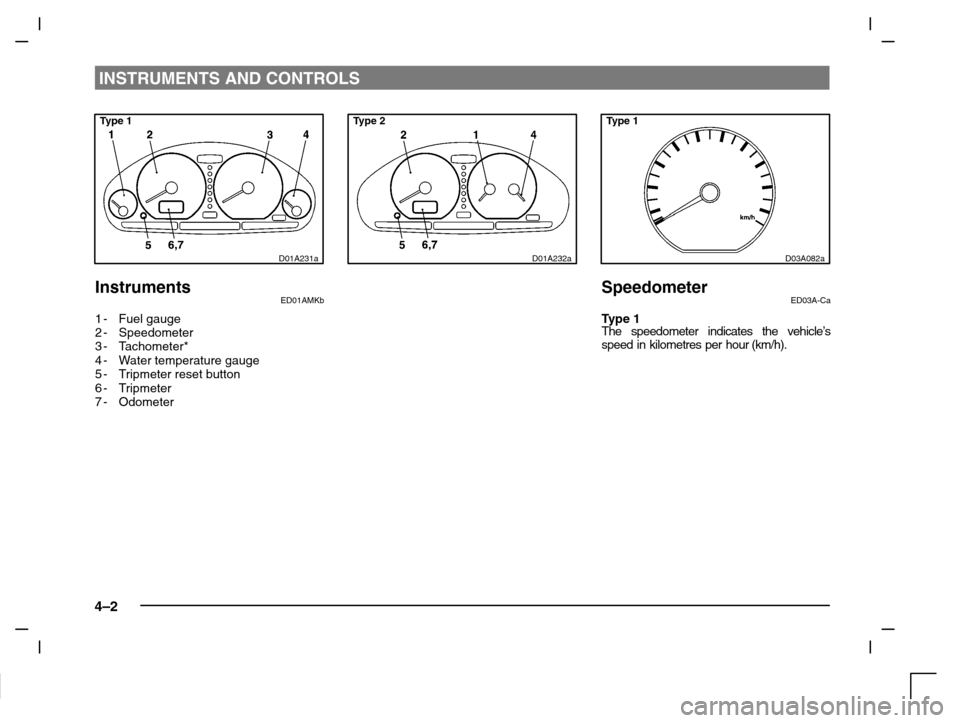

INSTRUMENTS AND CONTROLS
4–2
Type 1
D01A231a
InstrumentsED01AMKb
1-Fuel gauge
2-Speedometer
3-Tachometer*
4-Water temperature gauge
5-Tripmeter reset button
6-Tripmeter
7-Odometer
Type 2
D01A232a
Type 1
D03A082a
SpeedometerED03A-Ca
Type 1The speedometer indicates the vehicle’s
speed in kilometres per hour (km/h).
Page 69 of 280

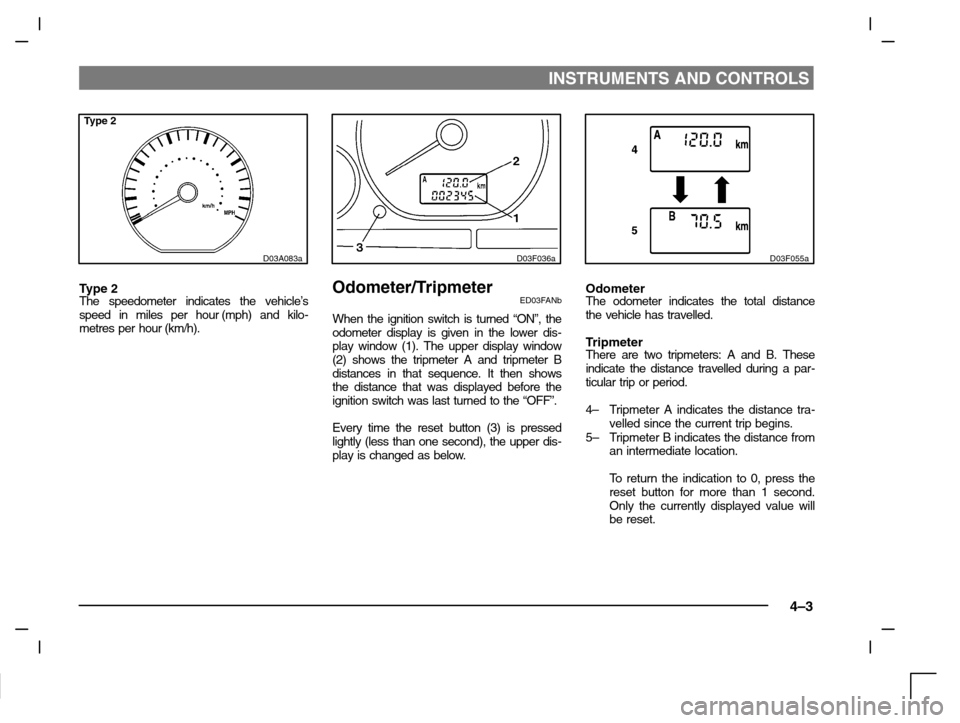

INSTRUMENTS AND CONTROLS
4–3
Type 2
D03A083a
Type 2The speedometer indicates the vehicle’s
speed in miles per hour (mph) and kilo-
metres per hour (km/h).
D03F036a
Odometer/TripmeterED03FANb
When the ignition switch is turned “ON”, the
odometer display is given in the lower dis-
play window (1). The upper display window
(2) shows the tripmeter A and tripmeter B
distances in that sequence. It then shows
the distance that was displayed before the
ignition switch was last turned to the “OFF”.
Every time the reset button (3) is pressed
lightly (less than one second), the upper dis-
play is changed as below.
D03F055a
OdometerThe odometer indicates the total distance
the vehicle has travelled.
TripmeterThere are two tripmeters: A and B. These
indicate the distance travelled during a par-
ticular trip or period.
4– Tripmeter A indicates the distance tra-
velled since the current trip begins.
5– Tripmeter B indicates the distance from
an intermediate location.
To r e t u r n the indication to 0, press the
reset button for more than 1 second.
Only the currently displayed value will
be reset.
Page 70 of 280

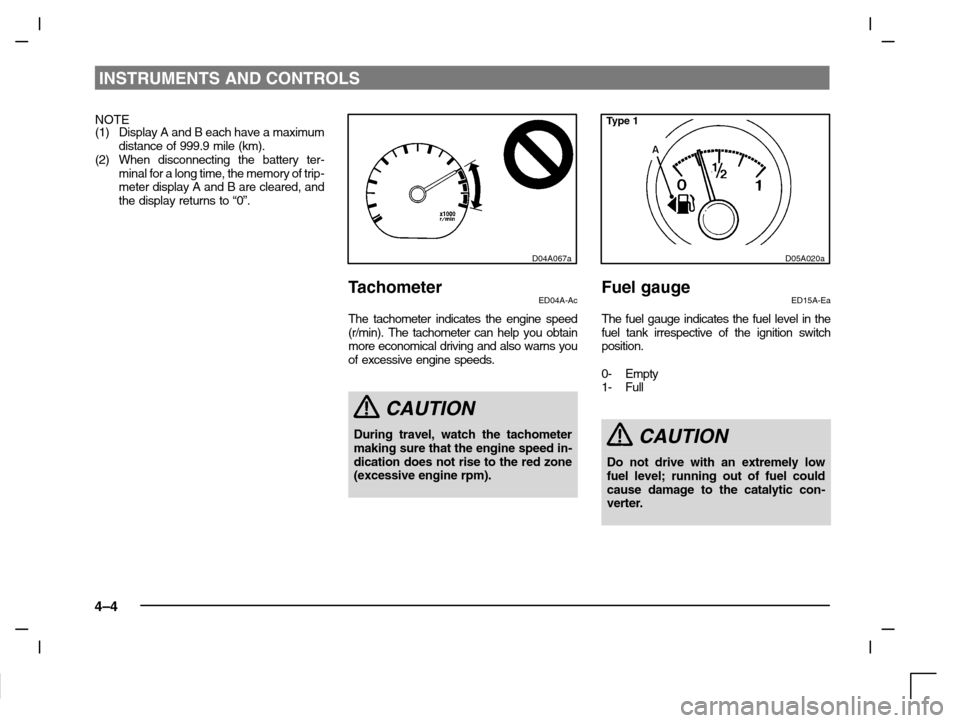

INSTRUMENTS AND CONTROLS
4–4
NOTE
(1) Display A and B each have a maximum
distance of 999.9 mile (km).
(2) When disconnecting the battery ter-
minal for a long time, the memory of trip-
meter display A and B are cleared, and
the display returns to “0”.
D04A067a
TachometerED04A-Ac
The tachometer indicates the engine speed
(r/min). The tachometer can help you obtain
more economical driving and also warns you
of excessive engine speeds.
CAUTION
During travel, watch the tachometer
making sure that the engine speed in-
dication does not rise to the red zone
(excessive engine rpm).
Type 1
D05A020a
Fuel gaugeED15A-Ea
The fuel gauge indicates the fuel level in the
fuel tank irrespective of the ignition switch
position.
0- Empty
1- Full
CAUTION
Do not drive with an extremely low
fuel level; running out of fuel could
cause damage to the catalytic con-
verter.
