INSTRUMENTS AND CONTROLS
4–24
D92A015d

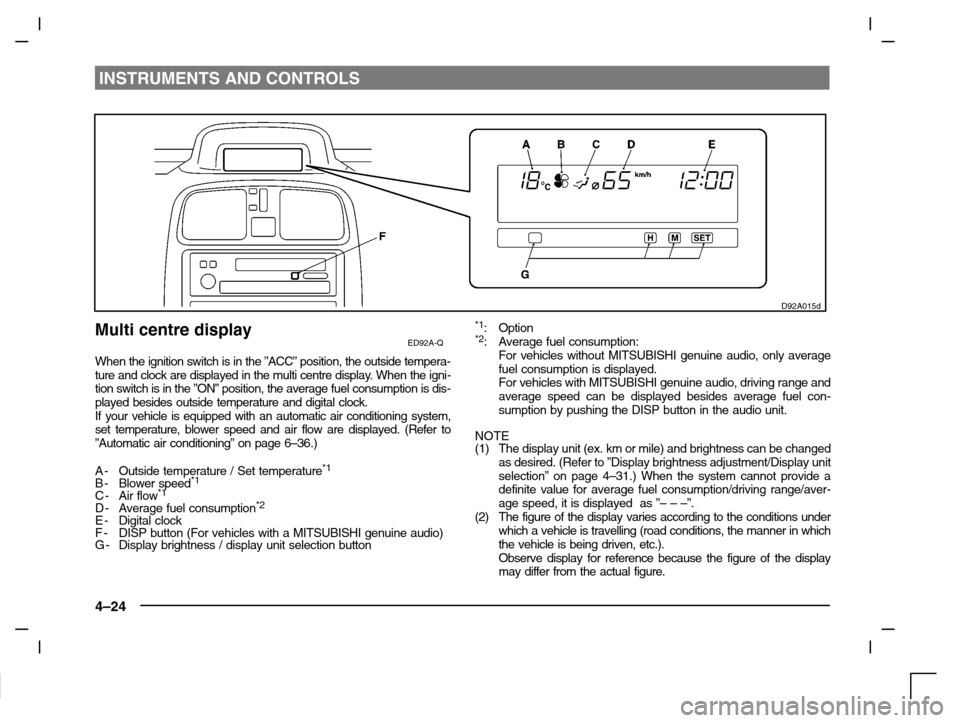

Multi centre displayED92A-Q
When the ignition switch is in the ”ACC” position, the outside tempera-
ture and clock are displayed in the multi centre display. When the igni-
tion switch is in the ”ON” position, the average fuel consumption is dis-
played besides outside temperature and digital clock.
If your vehicle is equipped with an automatic air conditioning system,
set temperature, blower speed and air flow are displayed. (Refer to
”Automatic air conditioning” on page 6–36.)
A- Outside temperature / Set temperature
*1
B-Blower speed*1
C- Air flow*1
D- Average fuel consumption*2
E- Digital clock
F-DISP button (For vehicles with a MITSUBISHI genuine audio)
G- Display brightness / display unit selection button
*1:Option*2:Average fuel consumption:
For vehicles without MITSUBISHI genuine audio, only average
fuel consumption is displayed.
For vehicles with MITSUBISHI genuine audio, driving range and
average speed can be displayed besides average fuel con-
sumption by pushing the DISP button in the audio unit.
NOTE
(1) The display unit (ex. km or mile) and brightness can be changed
as desired. (Refer to ”Display brightness adjustment/Display unit
selection” on page 4–31.) When the system cannot provide a
definite value for average fuel consumption/driving range/aver-
age speed, it is displayed as ”– – –”.
(2) The figure of the display varies according to the conditions under
which a vehicle is travelling (road conditions, the manner in which
the vehicle is being driven, etc.).
Observe display for reference because the figure of the display
may differ from the actual figure.
Page 92 of 280
INSTRUMENTS AND CONTROLS
4–26
G15B086d

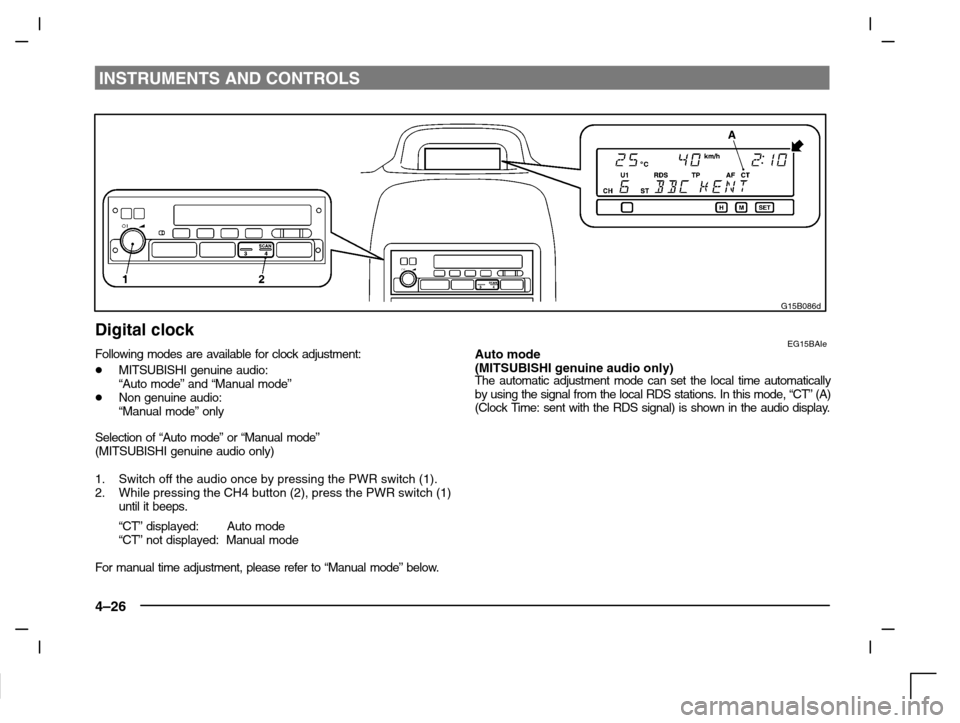

Digital clockEG15BAIeFollowing modes are available for clock adjustment:
MITSUBISHI genuine audio:
“Auto mode” and “Manual mode”
Non genuine audio:
“Manual mode” only
Selection of “Auto mode” or “Manual mode”
(MITSUBISHI genuine audio only)
1. Switch off the audio once by pressing the PWR switch (1).
2. While pressing the CH4 button (2), press the PWR switch (1)
until it beeps.
“CT” displayed: Auto mode
“CT” not displayed: Manual mode
For manual time adjustment, please refer to “Manual mode” below.
Auto mode
(MITSUBISHI genuine audio only)
The automatic adjustment mode can set the local time automatically
by using the signal from the local RDS stations. In this mode, “CT” (A)
(Clock Time: sent with the RDS signal) is shown in the audio display.
Page 99 of 280
INSTRUMENTS AND CONTROLS
4–33
D92J002a

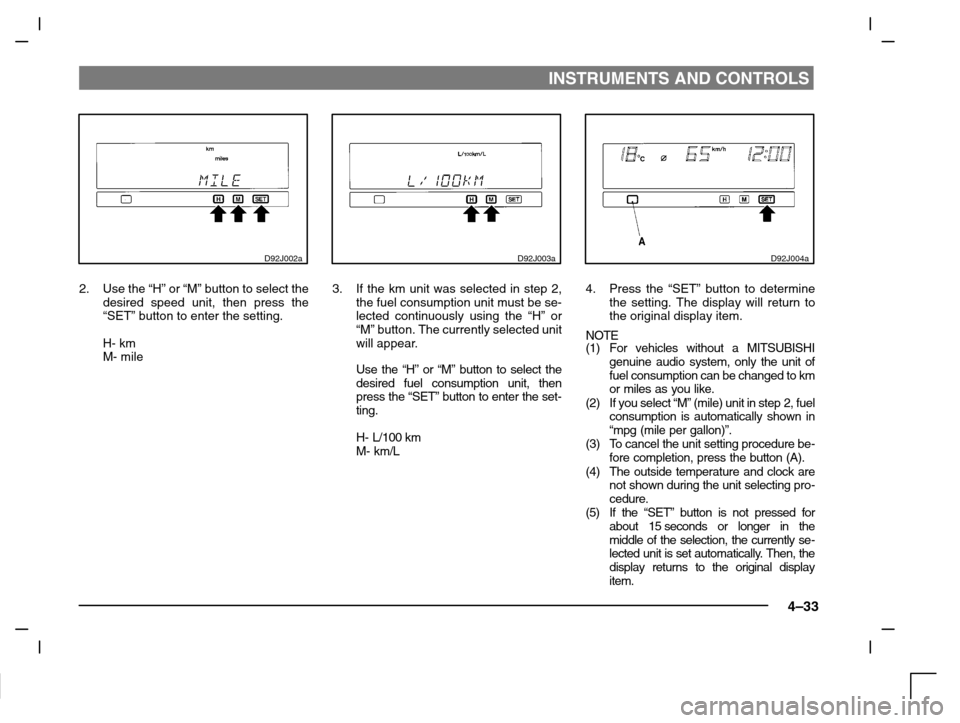

2. Use the “H” or “M” button to select the
desired speed unit, then press the
“SET” button to enter the setting.
H- km
M- mile
D92J003a
3. If the km unit was selected in step 2,
the fuel consumption unit must be se-
lected continuously using the “H” or
“M” button. The currently selected unit
will appear.
Use the “H” or “M” button to select the
desired fuel consumption unit, then
press the “SET” button to enter the set-
ting.
H- L/100 km
M- km/L
D92J004a
4. Press the “SET” button to determine
the setting. The display will return to
the original display item.
NOTE
(1) For vehicles without a MITSUBISHI
genuine audio system, only the unit of
fuel consumption can be changed to km
or miles as you like.
(2) If you select “M” (mile) unit in step 2, fuel
consumption is automatically shown in
“mpg (mile per gallon)”.
(3) To cancel the unit setting procedure be-
fore completion, press the button (A).
(4) The outside temperature and clock are
not shown during the unit selecting pro-
cedure.
(5) If the “SET” button is not pressed for
about 15 seconds or longer in the
middle of the selection, the currently se-
lected unit is set automatically. Then, the
display returns to the original display
item.
Page 171 of 280
FOR PLEASANT DRIVING
6–31

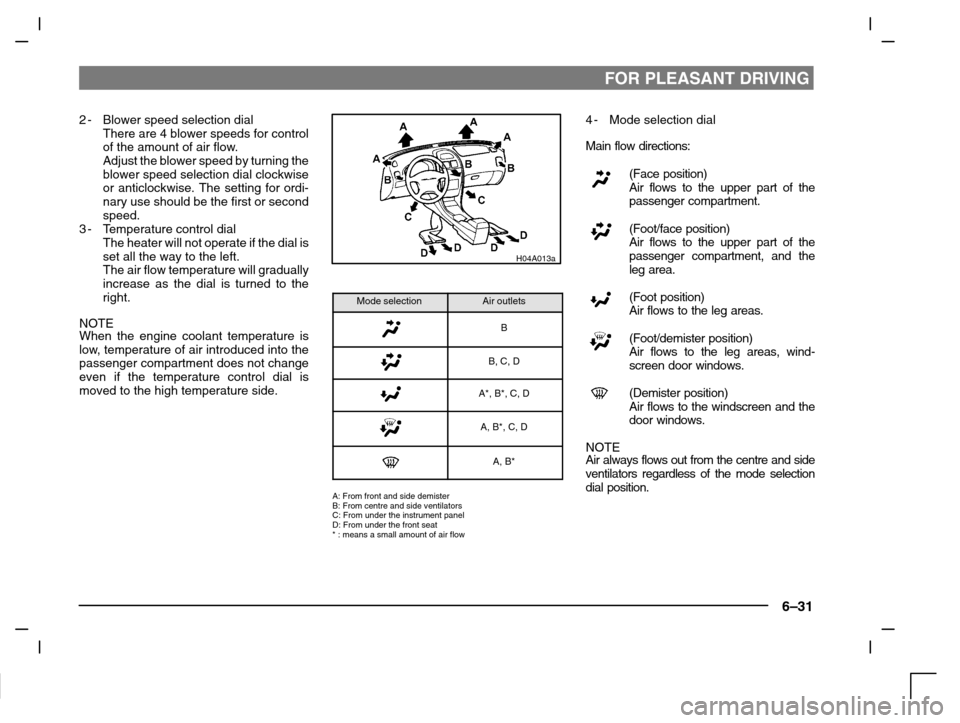

2-Blower speed selection dial
There are 4 blower speeds for control
of the amount of air flow.
Adjust the blower speed by turning the
blower speed selection dial clockwise
or anticlockwise. The setting for ordi-
nary use should be the first or second
speed.
3-Temperature control dial
The heater will not operate if the dial is
set all the way to the left.
The air flow temperature will gradually
increase as the dial is turned to the
right.
NOTE
When the engine coolant temperature is
low, temperature of air introduced into the
passenger compartment does not change
even if the temperature control dial is
moved to the high temperature side.
H04A013a
Mode selectionAir outlets
B
B, C, D
A*, B*, C, D
A, B*, C, D
A, B*
A: From front and side demister
B: From centre and side ventilators
C: From under the instrument panel
D: From under the front seat
* : means a small amount of air flow
4-Mode selection dial
Main flow directions:
(Face position)
Air flows to the upper part of the
passenger compartment.
(Foot/face position)
Air flows to the upper part of the
passenger compartment, and the
leg area.
(Foot position)
Air flows to the leg areas.
(Foot/demister position)
Air flows to the leg areas, wind-
screen door windows.
(Demister position)
Air flows to the windscreen and the
door windows.
NOTE
Air always flows out from the centre and side
ventilators regardless of the mode selection
dial position.
Page 172 of 280
FOR PLEASANT DRIVING
6–32

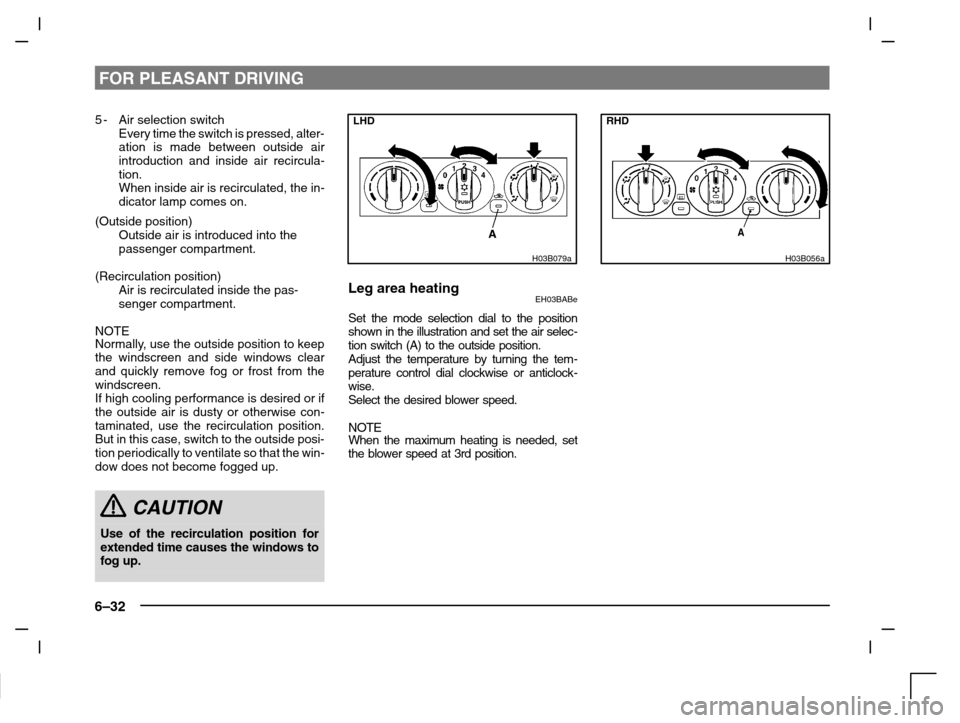

5-Air selection switch
Every time the switch is pressed, alter-
ation is made between outside air
introduction and inside air recircula-
tion.
When inside air is recirculated, the in-
dicator lamp comes on.
(Outside position)
Outside air is introduced into the
passenger compartment.
(Recirculation position)
Air is recirculated inside the pas-
senger compartment.
NOTE
Normally, use the outside position to keep
the windscreen and side windows clear
and quickly remove fog or frost from the
windscreen.
If high cooling performance is desired or if
the outside air is dusty or otherwise con-
taminated, use the recirculation position.
But in this case, switch to the outside posi-
tion periodically to ventilate so that the win-
dow does not become fogged up.
CAUTION
Use of the recirculation position for
extended time causes the windows to
fog up.
LHD
H03B079a
Leg area heatingEH03BABe
Set the mode selection dial to the position
shown in the illustration and set the air selec-
tion switch (A) to the outside position.
Adjust the temperature by turning the tem-
perature control dial clockwise or anticlock-
wise.
Select the desired blower speed.
NOTEWhen the maximum heating is needed, set
the blower speed at 3rd position.
RHD
H03B056a
Page 175 of 280
FOR PLEASANT DRIVING
6–35
LHD
H03E059a

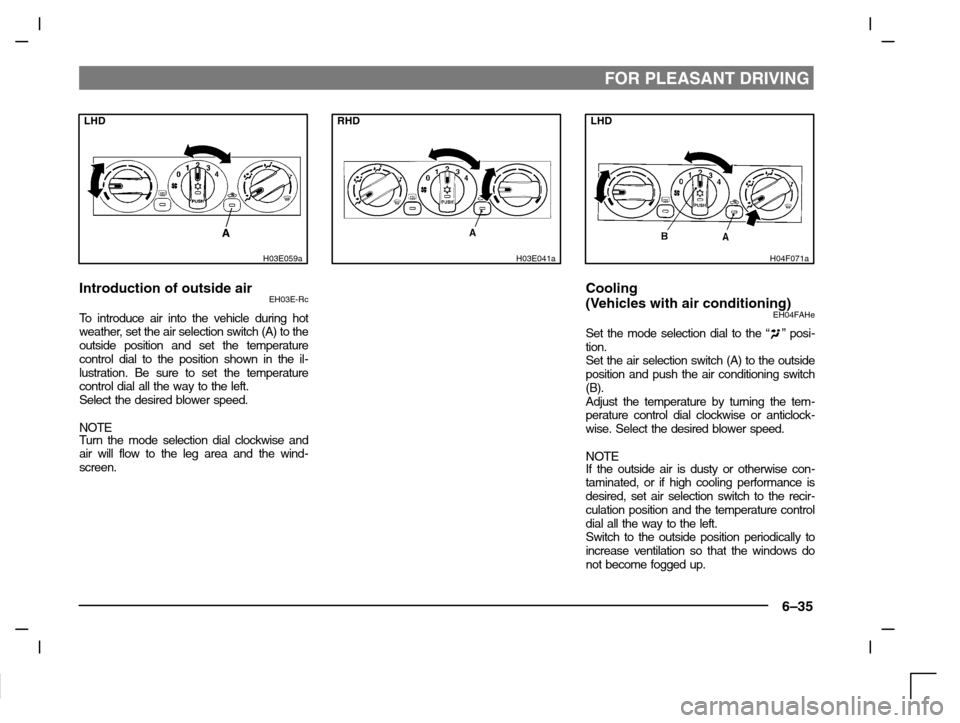

Introduction of outside airEH03E-Rc
To introduce air into the vehicle during hot
weather, set the air selection switch (A) to the
outside position and set the temperature
control dial to the position shown in the il-
lustration. Be sure to set the temperature
control dial all the way to the left.
Select the desired blower speed.
NOTE
Turn the mode selection dial clockwise and
air will flow to the leg area and the wind-
screen.
RHD
H03E041a
LHD
H04F071a
Cooling
(Vehicles with air conditioning)
EH04FAHe
Set the mode selection dial to the “” posi-
tion.
Set the air selection switch (A) to the outside
position and push the air conditioning switch
(B).
Adjust the temperature by turning the tem-
perature control dial clockwise or anticlock-
wise. Select the desired blower speed.
NOTEIf the outside air is dusty or otherwise con-
taminated, or if high cooling performance is
desired, set air selection switch to the recir-
culation position and the temperature control
dial all the way to the left.
Switch to the outside position periodically to
increase ventilation so that the windows do
not become fogged up.
Page 182 of 280
FOR PLEASANT DRIVING
6–42
H03D172a

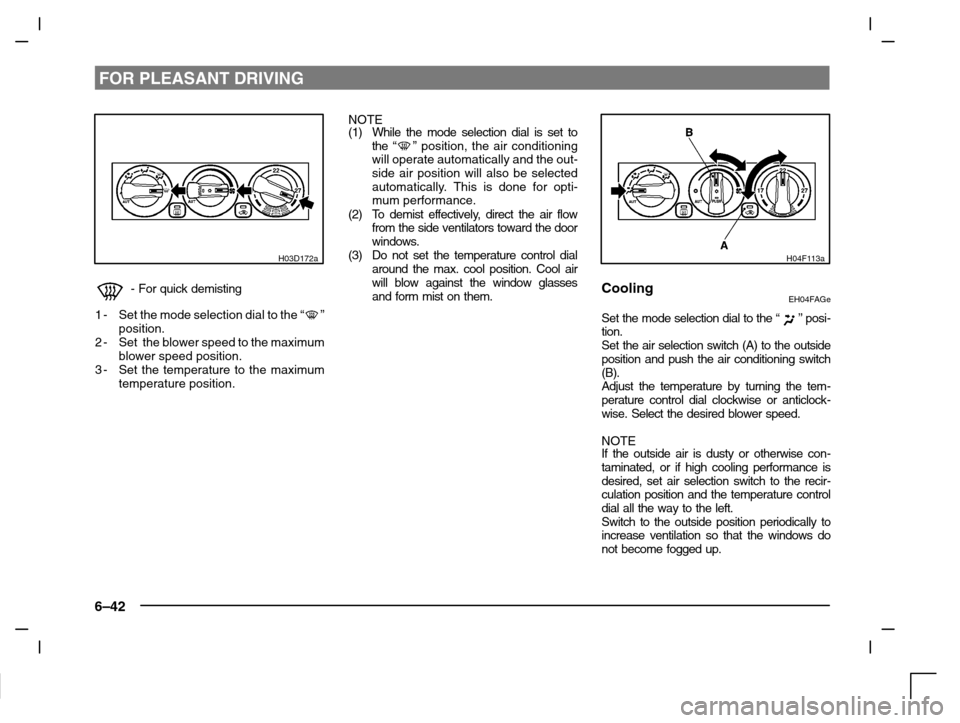

-For quick demisting
1-Set the mode selection dial to the “
”
position.
2-Set the blower speed to the maximum
blower speed position.
3-Set the temperature to the maximum
temperature position.NOTE
(1) While the mode selection dial is set to
the “
” position, the air conditioning
will operate automatically and the out-
side air position will also be selected
automatically. This is done for opti-
mum performance.
(2) To demist effectively, direct the air flow
from the side ventilators toward the door
windows.
(3) Do not set the temperature control dial
around the max. cool position. Cool air
will blow against the window glasses
and form mist on them.
H04F113a
CoolingEH04FAGe
Set the mode selection dial to the “” posi-
tion.
Set the air selection switch (A) to the outside
position and push the air conditioning switch
(B).
Adjust the temperature by turning the tem-
perature control dial clockwise or anticlock-
wise. Select the desired blower speed.
NOTE
If the outside air is dusty or otherwise con-
taminated, or if high cooling performance is
desired, set air selection switch to the recir-
culation position and the temperature control
dial all the way to the left.
Switch to the outside position periodically to
increase ventilation so that the windows do
not become fogged up.
