GENERAL INFORMATION
HEATER, AIR CONDITIONER AND VENTILATION55-4

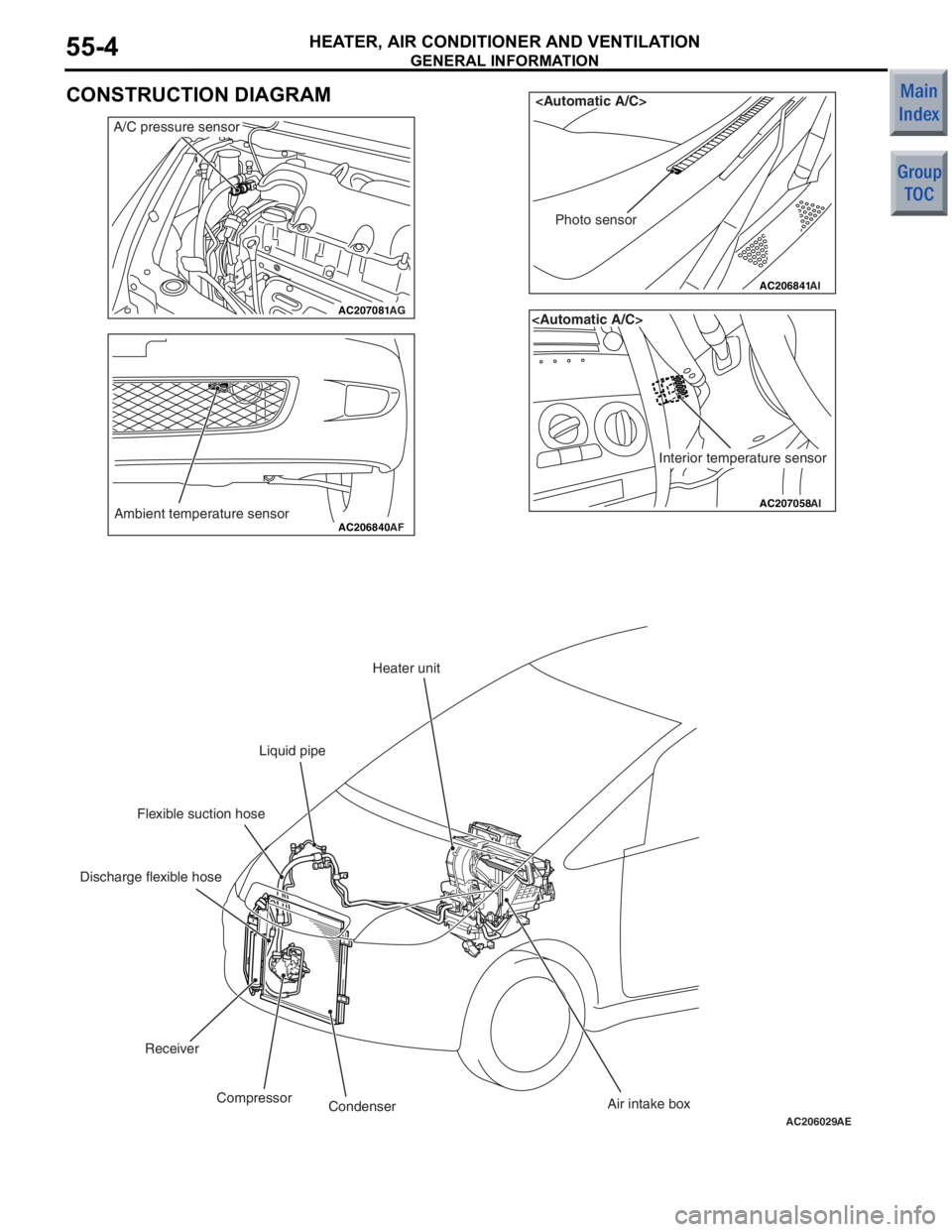

CONSTRUCTION DIAGRAM
AC207081AG
A/C pressure sensor
AC206840Ambient temperature sensorAF
AC206841

AI
Photo sensor
AC207058
Interior temperature sensor
AI

AC206029AE
Heater unit
Liquid pipe
Flexible suction hose
Discharge flexible hose
Receiver Compressor Condenser Air intake box

A/C-ECU
HEATER, AIR CONDITIONER AND VENTILATION55-8
A/C-ECU
M2551001200179
CONTROL SYSTEM
The manual and automatic A/Cs have the following
control functions.
ControlManual A/CAutomatic A/C
Automatic wind temperature change controlApplicableApplicable
Automatic outside/inside air selection controlApplicableApplicable
Idle-up controlApplicableApplicable
Cooling fun load controlApplicableApplicable
Cooling controlApplicableApplicable
Detection control for refrigerant leaksApplicableApplicable
MAX A/C controlNot applicableApplicable
Estimation control for compressor torqueApplicableApplicable
Defroster linked controlNot applicableApplicable
AUTOMATIC CHANGE CONTROL OF
BLOW WIND TEMPERATURE
(COMPRESSOR
ENERGY-CONSERVATION CONTROL)
Optimum ON/OFF control of the compressor is
achieved according to the outside/inside air mode,
air temperature (air temperature sensor), and insula
-
tion.
OUTSIDE/INSIDE AIR AUTO SWITCHING
CONTROL
When the A/C is turned on in high ambient tempera-
ture, the recirculation function is automatically acti-
vated to cool down the passenger compartment and
improve fuel consumption.
COOLING FUN LOAD CONTROL
Depending on the A/C load, the cooling fan cycle
time is controlled and the exterior noise in the inter
-
mediary stage is decreased. Also, the load of the
alternator is decreased to improve the fuel economy.
COOLING CONTROL
If air temperature is high, the CVT rotates at a high
speed to prevent deterioration in cooling perform
-
ance.
DETECTION CONTROL FOR
REFRIGERANT LEAKS
When it is judged from the air temperature (air tem-
perature sensor) and the refrigerant pressure (A/C
pressure sensor) that the refrigerant amount is the
specified value or less, or the refrigerant pressure is
abnormal, the compressor is forced to be cut off to
protect the A/C system.
MAX A/C CONTROL AUTOMATIC A/C>
When MAX COOL position is set, automatically the
mode is changed to the inside air mode before the
A/C is turned ON, thereby facilitating the operation
for obtaining maximum cooling performance.
ESTIMATION CONTROL FOR
COMPRESSOR TORQUE
Communication between the engine⋅CVT-ECU and
A/C-ECU is made to control the engine according to
the compressor torque for higher drivability and
reduction in fuel consumption.
FORCIBLE DEFROSTER CONTROL

When the defroster vents are selected, the A/C is
automatically turned ON. At this time, the out
-
side/inside air selection damper is operated to the
fresh-air position to defrost the windshield glass
quickly.

A/C-ECU
HEATER, AIR CONDITIONER AND VENTILATION55-9
COMMUNICATION
The A/C receives the following kinds of signals
through CAN communication.
SignalTransmitter ECU
Engine coolant
temperature signalEngine-CVT-ECU
or Engine-ECU
NOTE: . For further details on CAN, refer to GROUP
54C, CAN
P.54C-2.
DIAGNOSTIC FUNCTION
Code No.Diagnostic itemService data display
contents when
diagnosis code is set
B1011Ambient temperature sensor system (short circuit)20°C
B1012Ambient temperature sensor system (open circuit)
B1021Air thermo sensor system (short circuit)−6°C
B1022Air thermo sensor system (open circuit)
B1082Automatic/manual types abnormal error−
U1073Bus off error−
U1100Engine-CVT-ECU time-out
U1101
U1102ABS-ECU time-out
U1106EPS-ECU time-out
U1109ETACS-ECU time-out
U1120Failure information on engine-CVT-ECU (related to engine)
U1206Flag invalid

A/C-ECU
HEATER, AIR CONDITIONER AND VENTILATION55-10
SERVICE DATA OUTPUT
Item No.Check items
02Ambient temperature sensor
03Air thermo sensor
04A/C pressure sensor
05Water temperature sensor
07Set temperature
08Set temperature (control part set value)
15Outside/Inside air selection damper
20Blower motor
21Blower motor (Target)
30A/C switch
31A/C switch (control part set value)
35Rear window defogger switch (control part set value)
36Blower switch
37Outside/Inside air selection switch
40Abnormal low pressure judgement
41Refrigerant leaks judgement
42DEF position flag
43Forcible DEF position flag
44Forcible DEF DRY flag
ACTUATOR TEST
Item No.Check items
30Outside/Inside air selection damper control motor
31
40Rear defogger switch
41
09Condenser fan
0B
50Idle-up requirement
51
52

GENERAL INFORMATION
MULTIPOINT FUEL INJECTION (MPI) <4A9>13A-2
GENERAL INFORMATION
M2132000100990
Although the control systems are basically the same
as those of the 4G1-Non-Turbo engine used in the
COLT, the following improvements have been added.
ImprovementRemark
Dual oxygen sensor is used Higher reliability of air-fuel ratio control
Fan relay control is changedAbolish the two stage control of the fan rotating speed.

GENERAL INFORMATION
MULTIPOINT FUEL INJECTION (MPI) <4A9>13A-3
SYSTEM BLOCK DIAGRAM
AK600486
Barometric pressure sensorThrottle valve control servo
Manifold absolute pressure
sensor
Engine coolant
temperature sensor
No.1 injector
No.2 injector
No.3 injector
No.4 injector
No.1 Ignition coil
No.2 Ignition coil
No.3 Ignition coil
No.4 Ignition coil
Engine control relay
Throttle valve control servo relay
A/C compressor relay
Fuel pump relay
Alternator G terminal
Cooling fan control relay
Purge control solenoid valve
Diagnostic output terminal
Intake air temperature sensor
Accelerator pedal
position sensor (main) Throttle position sensor (sub)
Camshaft position sensor
Crank angle sensor
Oxygen sensor (front)
Oxygen sensor (rear)
Alternator FR terminal
Inhibitor switch
Detonation sensor
Ignition switch-IG
Ignition switch-ST
Stop lamp switch
Power supply
Accelerator pedel
position sensor (sub) Throttle position sensor (main)
Throttle valve control unitEngine control unit
Engine-ECU or
Engine-CVT-ECU
Throttle opening feedback control Oxygen sensor heater (front)
Oxygen sensor heater (rear)
[1] Fuel injection control
[2] Throttle valve opening control
and idle speed control
[3] MIVEC (Mitsubishi Innovative
Valve timing Electronic
control system)
[4] Ignition timing control
[5] Engine control relay control
[6] Throttle valve control servo
relay control
[7] Fuel pump relay control
[8] Oxygen sensor heater
control
[9] Fan relay control
[10] A/C compressor relay
control
[11] Alternator control
[12] Purge control
[13] EGR control
[14] Diagnostic output
[15] RAM data transmission
Oil feeder control valve
(for MIVEC)
EGR valve
(Stepper motor)
AB

GENERAL INFORMATION
MULTIPOINT FUEL INJECTION (MPI) <4A9>13A-4
CONTROL SYSTEM DIAGRAM

AK600525
1 Oxygen sensor
(front)4 Intake air temperature
sensor
3 Manifold absolute
presssure sensor
2 Oxygen sensor (rear) 3 Throttle valve control
servo
10 Throttle position sensor
(main)
2 Purge control
solenoid valve
8 Engine coolant
temperature sensor
9 Detonation sensor
7 Crank angle sensor
6 Camshaft position sensor
4 Oil feeder control valve
1 Injector
AB
M
1 Oxygen sensor (front)
2 Oxygen sensor (rear)
3 Manifold absolute
presssure sensor
4 Intake air temperature
sensor
5 Throttle position
sensor
(sub)
6 Camshaft position
sensor
7 Crank angle sensor
8 Engine coolant
temperature sensor
9 Detonation sensor
10 Throttle position
sensor (main) 1 Injector
2 Purge control
solenoid valve
3 Throttle valve control
servo
4 Oil feeder control
valve
Power supply
Ignition switch-IG
Ignition switch-ST
Accelerator pedal
position sensor
(main)
Accelerator pedal
position sensor
(sub)
Alternator FR
terminal
Stop lamp switchEngine-ECUEngine control relay
Fuel pump relay
A/C compressor relay
Throttle valve
control servo relay
Ignition coil
Cooling fan
control relay
Diagnosis output
Alternator G terminal
Oxygen sensor heater
(front)
Oxygen sensor heater
(rear)
Canister Air
inlet
Catalytic converter From fuel
pump
5 Throttle position sensor
(sub)
Barometric
pressure
sensor

GENERAL INFORMATION
MULTIPOINT FUEL INJECTION (MPI) <4A9>13A-5

AK403079
1 Oxygen sensor
(front)4 Intake air temperature
sensor
3 Manifold absolute
presssure sensor
2 Oxygen sensor (rear) 4 Throttle valve control
servo
10 Throttle position sensor
(main)
2 EGR valve
(stepper motor) 3 Purge control
solenoid valve
8 Engine coolant
temperature sensor
9 Detonation sensor
7 Crank angle sensor
6 Camshaft position sensor
5 Oil feeder control valve
1 Injector
AC
1 Oxygen sensor (front)
2 Oxygen sensor (rear)
3 Manifold absolute
presssure sensor
4 Intake air temperature
sensor
5 Throttle position
sensor (sub)
6 Camshaft position
sensor
7 Crank angle sensor
8 Engine coolant
temperature sensor
9 Detonation sensor
10 Throttle position
sensor (main) 1 Injector
2 EGR valve
(stepper motor)
3 Purge control
solenoid valve
4 Throttle valve control
servo
5 Oil feeder control
valve
Power supply
Ignition switch-IG
Ignition switch-ST
Accelerator pedal
position sensor
(main)
Accelerator pedal
position sensor
(sub)
Inhibitor switch
Alternator FR
terminal
Stop lamp switchEngine-
CVT-ECUEngine control relay
Fuel pump relay
A/C compressor relay
Throttle valve
control servo relay
Ignition coil
Cooling fan
control relay
Diagnosis output
Alternator G terminal
Oxygen sensor heater
(front)
Oxygen sensor heater
(rear)
Canister Air
inlet
Catalytic converter From fuel
pump
5 Throttle position sensor
(sub)
Barometric
pressure
sensor

GENERAL INFORMATION
MULTIPOINT FUEL INJECTION (MPI) <4A9>13A-6
List of Component Functions
NameFunction
ECU
Engine-ECU or engine-CVT-ECU The signals that are input by the sensors enable the
actuators to be controlled in accordance with the
driving conditions.
Sensors
Ignition switch-IGThis signal indicates the ON/OFF condition of the
ignition switch. When this signal is input, the
engine-ECU or engine-CVT-ECU
supplies power to the crank angle sensor, camshaft
position sensor, etc.
Ignition switch-STThis signal indicates that the engine is cranking.
Based on this signal, the engine-ECU or
engine-CVT-ECU controls the fuel injection,
throttle valve position, and the injection timing that
are suited for starting the engine.
Manifold absolute pressure sensor Uses a pressure conversion element to detect the
pressure in the intake manifold, converts it into a
voltage signal, and outputs it to the
engine-ECU or engine-CVT-ECU. The
engine-ECU or engine-CVT-ECU
optimally corrects the fuel injection amount and the
like based on this signal.
Oxygen sensor This sensor, which contains zirconia and platinum
electrodes, detects the level of oxygen concentration
in the exhaust gases. The engine-ECU or
engine-CVT-ECU determines whether the
air-fuel ratio is at the optimal stoichiometric ratio in
accordance with this oxygen concentration level.
Barometric pressure sensorThis sensor detects the altitude of the vehicle. It
enables the engine-ECU or engine-CVT-ECU
to make fuel injection volume corrections in
order to achieve an appropriate air-fuel ratio.
Intake air temperature sensorThis sensor, which contains a thermistor, detects the
temperature of the intake air. The engine-ECU
or engine-CVT-ECU makes fuel injection
volume corrections that suit the intake air
temperature, in accordance with the voltage that is
output by this sensor.
Engine coolant temperature sensorThis sensor, which contains a thermistor, detects the
temperature of the engine coolant. The engine-ECU
or engine-CVT-ECU determines the
warm-up condition of the engine in accordance with
the voltage that is output by this sensor, in order to
control the fuel injection volume, idle speed, and
ignition timing.

GENERAL INFORMATION
MULTIPOINT FUEL INJECTION (MPI) <4A9>13A-7
Throttle position sensor This sensor detects the position of the throttle valve
and inputs it into the engine-ECU or
engine-CVT-ECU . Based on the voltage that
is output by this sensor, the engine-ECU or
engine-CVT-ECU effects throttle valve
feedback control.
Accelerator pedal position sensor This sensor detects the position of the accelerator
and inputs it into the engine-ECU or
engine-CVT-ECU . Based on the voltage that
is output by this sensor, which determines the
accelerator position (and the intention of the driver),
the engine-ECU or engine-CVT-ECU
effects appropriate fuel injection and throttle valve
position controls.
Camshaft position sensorThis sensor detects the top-dead-center (TDC) of the
compression stroke of each cylinder.
Crank angle sensorThis sensor detects the crank angle and inputs it into
the engine-ECU or engine-CVT-ECU .
The engine-ECU or engine-CVT-ECU
effects injector control and other controls in
accordance with the signals received from this
sensor.
Detonation sensorThis sensor, which contains a piezoelectric element,
detects the vibration of the cylinder block that results
from knocking. The engine-ECU or
engine-CVT-ECU detects only the knocking
of the engine from these vibrations, in order to retard
the ignition timing in accordance with the strength of
the knocks.
Alternator FR terminalThis terminal is used for detecting the duty cycle ratio
that energizes the alternator field coil.
Inhibitor switch This is a contact point type switch that inputs a signal
into the engine-CVT-ECU to determine whether the
shift lever is in the neutral position.
Stop lamp switchThis is a contact point type switch that detects how
the brake pedal is depressed.
Actuators
Engine control relayThis relay turns ON and OFF the engine-ECU
or engine-CVT-ECU power circuit.
Throttle valve control servo relayThis relay turns ON and OFF the actuation power
circuit for the throttle valve control servo in the
engine-ECU or engine-CVT-ECU .
InjectorThe injectors inject fuel in accordance with the
injection signals received from the engine-ECU
or engine-CVT-ECU .
Ignition coil (with power transistor)Applies ignition coil primary current intermittently in
accordance with the ignition signals received from
the engine-ECU or engine-CVT-ECU ,
in order to generate high voltage for ignition.
Name Function
