Locking and unlocking1-9
1

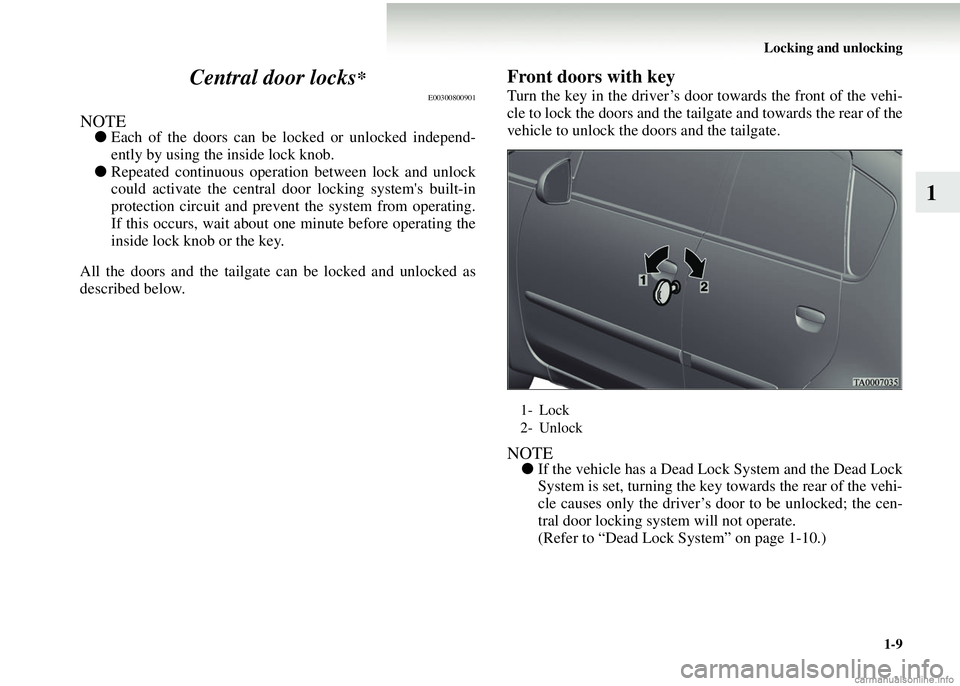

Central door locks
*
E00300800901
NOTE●
Each of the doors can be locked or unlocked independ-
ently by using the inside lock knob.
● Repeated continuous operation between lock and unlock
could activate the central do or locking system's built-in
protection circuit and prevent the system from operating.
If this occurs, wait about one minute before operating the
inside lock knob or the key.
All the doors and the tailgate can be locked and unlocked as
described below.
Front doors with key
Turn the key in the driver’s door towards the front of the vehi-
cle to lock the doors and the tail gate and towards the rear of the
vehicle to unlock the doors and the tailgate.
NOTE● If the vehicle has a Dead Lock System and the Dead Lock
System is set, turning the key towards the rear of the vehi-
cle causes only the driver’s door to be unlocked; the cen-
tral door locking system will not operate.
(Refer to “Dead Lock System” on page 1-10.)
1- Lock
2- Unlock

1-10 Locking and unlocking
1

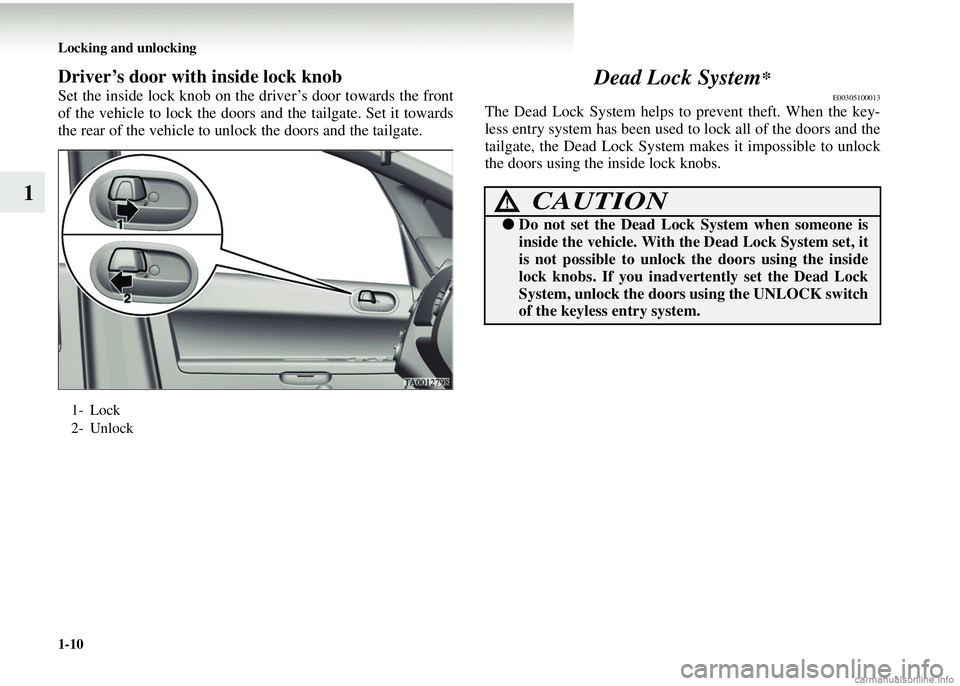

Driver’s door with inside lock knob
Set the inside lock knob on the driver’s door towards the front
of the vehicle to lock the doors and the tailgate. Set it towards
the rear of the vehicle to unlock the doors and the tailgate.
Dead Lock System*
E00305100013
The Dead Lock System helps to prevent theft. When the key-
less entry system has been used to lock all of the doors and the
tailgate, the Dead Lock System makes it impossible to unlock
the doors using the inside lock knobs.
1- Lock
2- Unlock
CAUTION!
● Do not set the Dead Lock System when someone is
inside the vehicle. With th e Dead Lock System set, it
is not possible to unlock the doors using the inside
lock knobs. If you inadvertently set the Dead Lock
System, unlock the doors using the UNLOCK switch
of the keyless entry system.

Locking and unlocking1-11
1

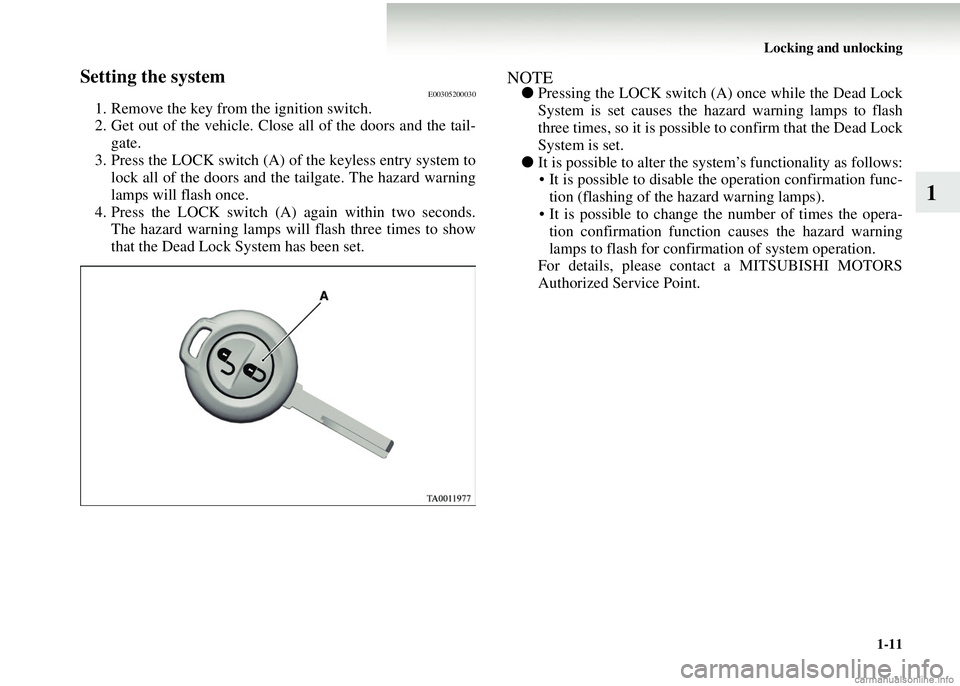

Setting the systemE00305200030
1. Remove the key from the ignition switch.
2. Get out of the vehicle. Close all of the doors and the tail-gate.
3. Press the LOCK switch (A) of the keyless entry system to lock all of the doors and the tailgate. The hazard warning
lamps will flash once.
4. Press the LOCK switch (A) again within two seconds. The hazard warning lamps will flash three times to show
that the Dead Lock System has been set.
NOTE● Pressing the LOCK switch (A ) once while the Dead Lock
System is set causes the hazard warning lamps to flash
three times, so it is possible to confirm that the Dead Lock
System is set.
● It is possible to alter the system’s functionality as follows:
• It is possible to disable the operation confirmation func-
tion (flashing of the hazard warning lamps).
• It is possible to change th e number of times the opera-
tion confirmation function causes the hazard warning
lamps to flash for confirma tion of system operation.
For details, please cont act a MITSUBISHI MOTORS
Authorized Service Point.

1-12 Locking and unlocking
1

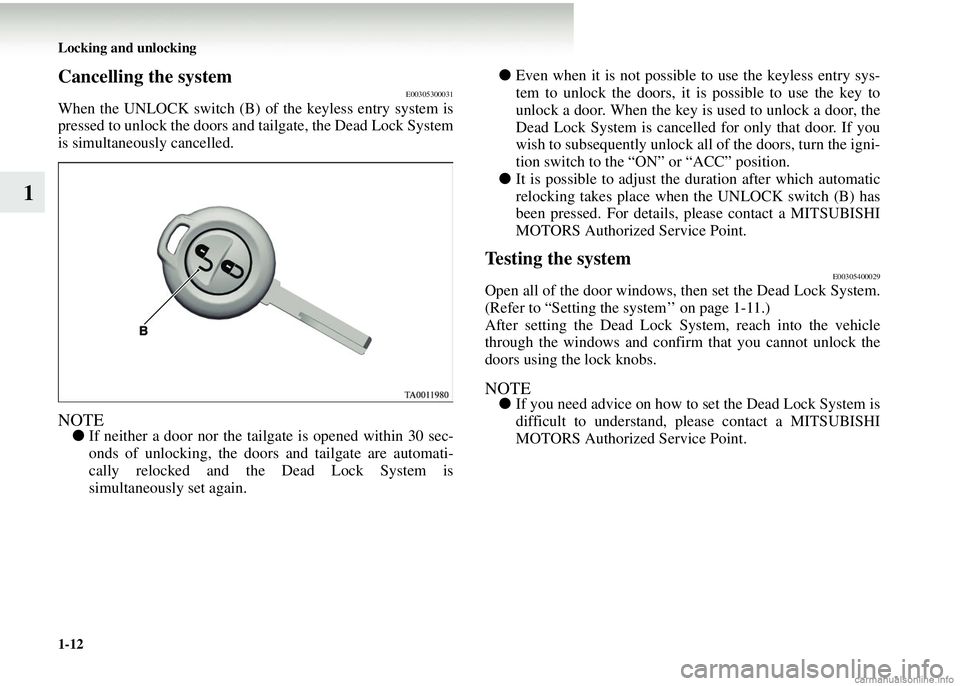

Cancelling the systemE00305300031
When the UNLOCK switch (B) of the keyless entry system is
pressed to unlock the doors and tailgate, the Dead Lock System
is simultaneously cancelled.
NOTE● If neither a door nor the tailgate is opened within 30 sec-
onds of unlocking, the doors and tailgate are automati-
cally relocked and the Dead Lock System is
simultaneously set again. ●
Even when it is not possible to use the keyless entry sys-
tem to unlock the doors, it is possible to use the key to
unlock a door. When the key is used to unlock a door, the
Dead Lock System is cancell ed for only that door. If you
wish to subsequently unlock all of the doors, turn the igni-
tion switch to the “ON” or “ACC” position.
● It is possible to adjust the duration after which automatic
relocking takes place when the UNLOCK switch (B) has
been pressed. For details, please contact a MITSUBISHI
MOTORS Authorized Service Point.
Testing the systemE00305400029
Open all of the door windows, then set the Dead Lock System.
(Refer to “Setting the sy stem’’ on page 1-11.)
After setting the Dead Lock Sy stem, reach into the vehicle
through the windows and confirm that you cannot unlock the
doors using the lock knobs.
NOTE● If you need advice on how to set the Dead Lock System is
difficult to understand, please contact a MITSUBISHI
MOTORS Authorized Service Point.

1-14 Locking and unlocking
1Tailgate
E00301400698
NOTE●
For vehicles with central doo r locks, locking/unlocking of
the driver’s door by using the key, inside lock knob (driver
side) or keyless entry system also locks/unlocks the tail-
gate.
To lock or unlock from outside the vehicle (except
for vehicles with keyless entry system)
WARNING!
● It is dangerous to drive wi th the tailgate open as car-
bon monoxide (CO) gas can enter the cabin.
You cannot see or smell CO. It can cause uncon-
sciousness and even death.
● When opening and closing the tailgate, make sure
that there are no people nearby and be careful not to
hit your head or pinch your hands, neck, etc.
CAUTION!
● Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
3-door models

Locking and unlocking1-15
1
To lock or unlock from inside the vehicle
On vehicles with central door lo ck system, the tailgate can be
locked or unlocked by using the inside lock knob (driver side),
regardless of the position of the ignition key.
If the tailgate is locked or unlo cked with the inside lock knob
(driver side), it can still be locked or unlocked with the key.
NOTE● Repeated continuou s operation between lock and unlock
could cause the central door locks’ built-in protection cir-
cuit to prevent the system from operating. If this occurs,
wait about one minute before operating the knob.
1- Insert (or remove) the key
2- Unlock
3- Lock
5-door models
1- Lock
2- Unlock

1-18 Locking and unlocking
1Electric window control
E00302200042
The electric windows can only be operated with the ignition
switch in the “ON” position.
Electric window control switchE00302300968
Each door window opens or
closes while the corresponding
switch is operated.
LHD
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window (5-door models)*
4- Rear right door window (5-door models)*
5- Lock switch
WARNING!
● Before operating the elect ric window control, make
sure that nothing will be trapped (head, hand, fin-
ger, etc.).
● Never leave the vehicle without removing the key.
●Never leave a child (or ot her person who might not
be capable of safely op erating the electric window
control) in the vehicle alone.
RHD

Seat and seat belts2-25
2

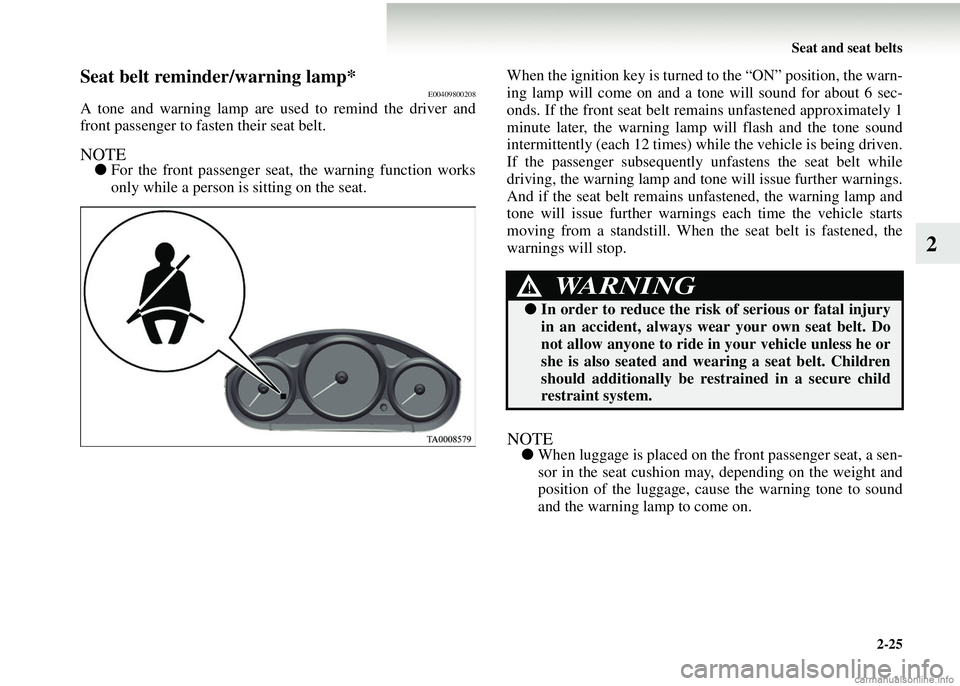

Seat belt reminder/warning lamp*E00409800208
A tone and warning lamp are used to remind the driver and
front passenger to fasten their seat belt.
NOTE●For the front passenger seat, the warning function works
only while a person is sitting on the seat. When the ignition key is turned to the “ON” position, the warn-
ing lamp will come on and a tone will sound for about 6 sec-
onds. If the front seat belt rema
ins unfastened approximately 1
minute later, the warning lamp will flash and the tone sound
intermittently (each 12 times) while the vehicle is being driven.
If the passenger subsequently unfastens the seat belt while
driving, the warning lamp and tone will issue further warnings.
And if the seat belt remains unfastened, the warning lamp and
tone will issue further warnings each time the vehicle starts
moving from a standstill. When th e seat belt is fastened, the
warnings will stop.
NOTE● When luggage is placed on th e front passenger seat, a sen-
sor in the seat cushion may, depending on the weight and
position of the luggage, cause the warning tone to sound
and the warning lamp to come on.
WARNING!
● In order to reduce the risk of serious or fatal injury
in an accident, always wear your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and we aring a seat belt. Children
should additionally be re strained in a secure child
restraint system.

2-36 Seat and seat belts
2
Suitability for various seating positionsE00406800571
Vehicles with rear bench seat*
*1: With front passenger’s air bag deactivated by means of front passenger’s air bag ON-OFF switch
Key of letters to be inserted in the above table:
●U - Suitable for “universal” category restraints approved for use in this mass group.
● UF - Suitable for forward-facing “ universal” category restraints approved for use in this mass group.
● L - Suitable for particular child restraints (MITSUBI SHI MOTORS genuine parts).
● B - Built-in restraint approved for this mass group.
● X - Seat position not suitable for children in this mass group.
Mass Group
Seating Position
Front Passenger
Rear OutboardRear CentreWithout Air Bag
With Air Bag
Activated
Air BagDeactivated
Air Bag*1
0 - Up to 10 kg (0-9 months) UX UXX
0+ - Up to 13 kg (0-2 years) U, L*
2UFU, L*2L*2X
I - 9 to 18 kg (9 months - 4 years) U, L*
3UF, L*3U, L*3L*3L*3
II & III - 15 to 36 kg (4-12 years) UUF U
L*4X

2-38 Seat and seat belts
2
Vehicles with rear separated seat (5-door models)*
*1: With front passenger’s air bag deactivated by means of front passenger’s air bag ON-OFF switch
Key of letters to be inserted in the above table:
●U - Suitable for “universal” category restraints approved for use in this mass group.
● UF - Suitable for forward-facing “ universal” category restraints approved for use in this mass group.
● L - Suitable for particular child restraints (MITSUBI SHI MOTORS genuine parts).
● B - Built-in restraint approved for this mass group.
● X - Seat position not suitable for children in this mass group.
Mass Group
Seating Position
Front Passenger
Rear OutboardRear CentreWithout Air Bag
With Air Bag
Activated
Air BagDeactivated
Air Bag*1
0 - Up to 10 kg (0-9 months) UX UUX
0+ - Up to 13 kg (0-2 years) U, L*
2UFU, L*2U, L*2X
I - 9 to 18 kg (9 months - 4 years) U, L*
3UF, L*3U, L*3U, L*3L*3
II & III - 15 to 36 kg (4-12 years) UUF U
U, L*4X
