key MITSUBISHI COLT 2008 Owner's Manual (in English)

Overview
Exterior
E00100502157
Electric window control
P. 1 - 1 8
Locking and unlocking
P. 1-7
Keyless entry system*
P. 1-5
Front fog lamps*
P. 3-37, 8-50 Side turn-signal lamps
P. 3-36, 8-49
Front turn-signal lamps
P. 3-36, 8-49
Bonnet P. 8-4
Fuel tank filler P. 3 Outside rear-view
mirrors P. 4-10
Windscreen wipers P. 3-39
Headlamps, high beam
P. 3-31, 8-46 Position lamps
P. 3-31, 8-48 Headlamps, low beam
P. 3-31, 8-44
3-door models

Overview
Electric window control
P. 1 - 1 8
Locking and unlocking
P. 1 - 7
Keyless entry system*
P. 1 - 5
Front fog lamps*
P. 3-37, 8-50 Side turn-signal lamps
P. 3-36, 8-49
Front turn-signal lamps
P. 3-36, 8-49
Bonnet P. 8-4
Fuel tank filler P. 3 Outside rear-view
mirrors P. 4-10
Windscreen wipers P.3-39
Headlamps, high beam
P. 3-31, 8-46 Position lamps
P. 3-31, 8-48 Headlamps, low beam
P. 3-31, 8-44
5-door models

1
Locking and unlocking
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 2
Electronic immobilizer (Anti-theft starting system). . . . . . . . . . . . . . . . .1- 3
Keyless entry system* . . . . . . . . . . . . . . . . . . . . . .1- 5
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 7
Central door locks* . . . . . . . . . . . . . . . . . . . . . . . .1- 9
Dead Lock System* . . . . . . . . . . . . . . . . . . . . . . . .1- 10
“Child-protection” rear doors (5-door models) . . .1- 13
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 14
Manual window control (5-door models, rear door window only)* . . . . .1- 17
Electric window control . . . . . . . . . . . . . . . . . . . . .1- 18

1-2 Locking and unlocking
1Keys
E00300101220
The keys fit all locks.
NOTE●
The key number is stamped on the tag as shown in the
illustration.
Make a record of the key number and store the key and
key number tag in separate places, so that you can order
new keys if the original keys are lost.
● The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent a malfunction.
• Do not leave in any place expo sed to direct sunlight, for
example the dashboard.
• Do not disassemble or modify.
• Do not excessively bend the key or subject it to a strong impact. • Do not expose to water.
• Keep away from magnetic key holders.
• Keep away from audio sy
stems, personal cumputers,
TVs, and any other equipment that generates a magnetic
field.
• Do not wash with ultrasonic cleaners or similar equip-
ment.
• Do not leave the key where it may be exposed to high temperature or high humidity.
● The engine is designed so that it will not start if the ID
code registered in the immobi lizer computer and the key’s
ID code do not match. Refer to the section “Electronic
immobilizer” for details and key usage.

Locking and unlocking1-3
1

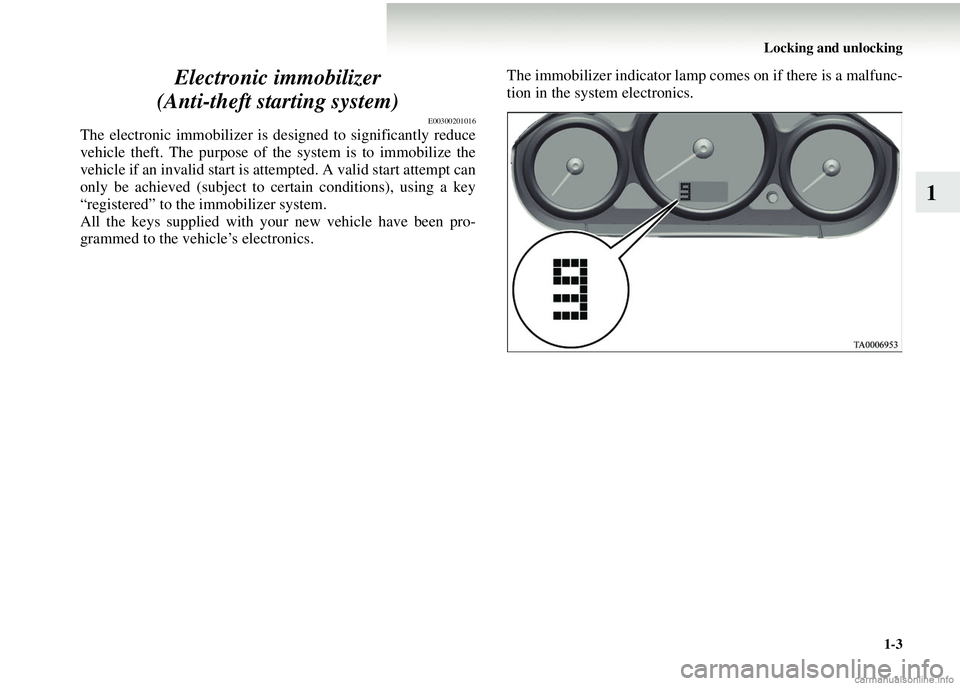

Electronic immobilizer
(Anti-theft starting system)
E00300201016
The electronic immobilizer is designed to significantly reduce
vehicle theft. The purpose of th e system is to immobilize the
vehicle if an invalid start is attempted. A valid start attempt can
only be achieved (subject to certain conditions), using a key
“registered” to the immobilizer system.
All the keys supplied with your new vehicle have been pro-
grammed to the vehicle’s electronics. The immobilizer indicator lamp
comes on if there is a malfunc-
tion in the system electronics.

1-4 Locking and unlocking
1
NOTE●In the following cases, the vehicle may not be able to
receive the registered ID co de from the key. This means
that the engine will not start even when the registered key
is turned to the “START” position.
• When the key contacts a key ring or other metallic or magnetic object (Type A)
• When the key grip contacts metal from another key (Type B)
• When the key contacts or is close to other immobilizing
keys (including keys of other vehicles) (Type C)
In such cases, remove the object or additional key from
the vehicle key. Then try to st art the engine again. If the
engine does not start, pl ease contact your MITSUBISHI
MOTORS Authorized Service Point.

Locking and unlocking1-5
1

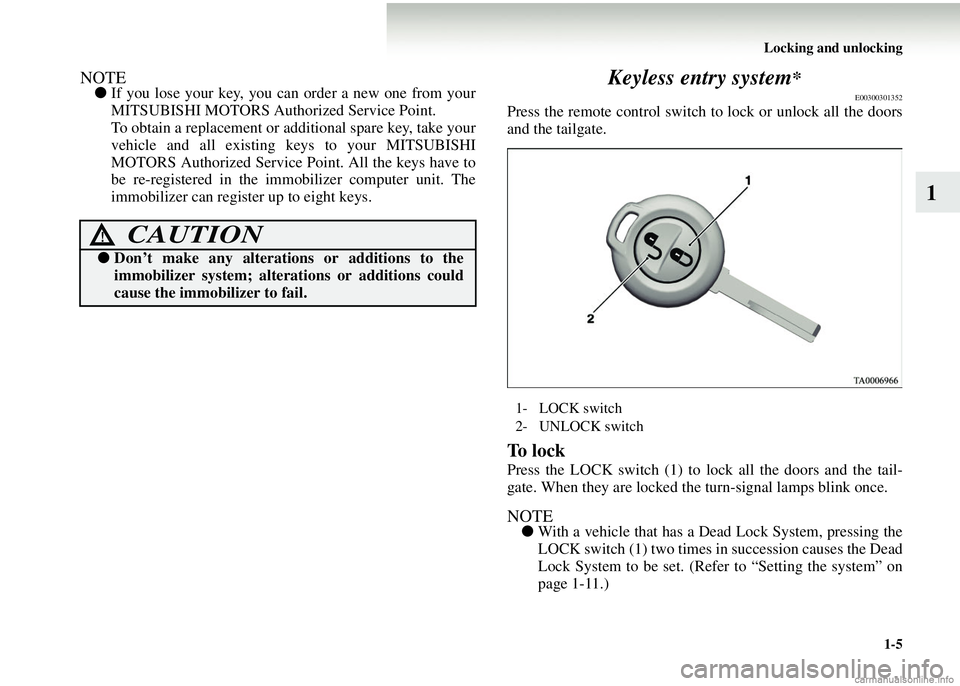

NOTE●If you lose your key, you can order a new one from your
MITSUBISHI MOTORS Authorized Service Point.
To obtain a replacement or additional spare key, take your
vehicle and all existing keys to your MITSUBISHI
MOTORS Authorized Service Point. All the keys have to
be re-registered in the immobilizer computer unit. The
immobilizer can register up to eight keys.Keyless entry system*
E00300301352
Press the remote control switch to lock or unlock all the doors
and the tailgate.
To l o c k
Press the LOCK switch (1) to lock all the doors and the tail-
gate. When they are locked th e turn-signal lamps blink once.
NOTE●With a vehicle that has a Dead Lock System, pressing the
LOCK switch (1) two times in succession causes the Dead
Lock System to be set. (Refer to “Setting the system” on
page 1-11.)
CAUTION!
●Don’t make any alterations or additions to the
immobilizer system; alterati ons or additions could
cause the immobilizer to fail.
1- LOCK switch
2- UNLOCK switch

1-6 Locking and unlocking
1

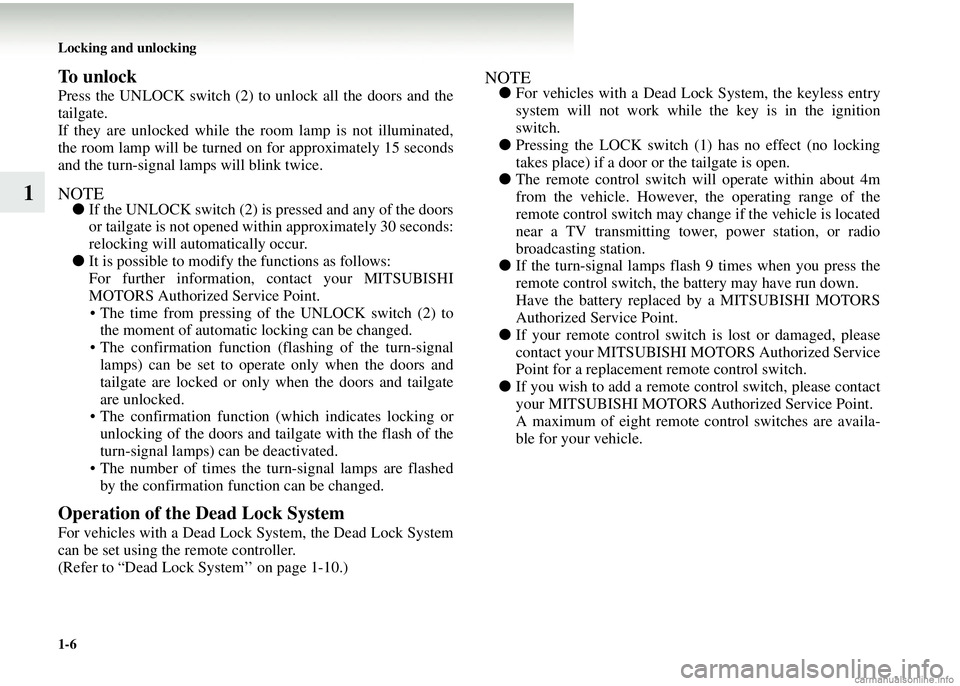

To unlock
Press the UNLOCK switch (2) to unlock all the doors and the
tailgate.
If they are unlocked while the room lamp is not illuminated,
the room lamp will be turned on for approximately 15 seconds
and the turn-signal lamps will blink twice.
NOTE● If the UNLOCK switch (2) is pressed and any of the doors
or tailgate is not opened within approximately 30 seconds:
relocking will automatically occur.
● It is possible to modify the functions as follows:
For further information, contact your MITSUBISHI
MOTORS Authorized Service Point.
• The time from pressing of the UNLOCK switch (2) to
the moment of automatic locking can be changed.
• The confirmation function (f lashing of the turn-signal
lamps) can be set to operate only when the doors and
tailgate are locked or only when the doors and tailgate
are unlocked.
• The confirmation function (which indicates locking or unlocking of the doors and ta ilgate with the flash of the
turn-signal lamps) can be deactivated.
• The number of times the turn-signal lamps are flashed by the confirmation function can be changed.
Operation of the Dead Lock System
For vehicles with a Dead Lock System, the Dead Lock System
can be set using the remote controller.
(Refer to “Dead Lock System’’ on page 1-10.)
NOTE● For vehicles with a Dead Lo ck System, the keyless entry
system will not work while the key is in the ignition
switch.
● Pressing the LOCK switch (1) has no effect (no locking
takes place) if a door or the tailgate is open.
● The remote control switch will operate within about 4m
from the vehicle. However, the operating range of the
remote control switch may chan ge if the vehicle is located
near a TV transmitting tower, power station, or radio
broadcasting station.
● If the turn-signal lamps flash 9 times when you press the
remote control switch, the battery may have run down.
Have the battery replaced by a MITSUBISHI MOTORS
Authorized Service Point.
● If your remote control switch is lost or damaged, please
contact your MITSUBISHI MOTORS Authorized Service
Point for a replacement remote control switch.
● If you wish to add a remote control switch, please contact
your MITSUBISHI MOTORS Authorized Service Point.
A maximum of eight remote control switches are availa-
ble for your vehicle.

Locking and unlocking1-7
1

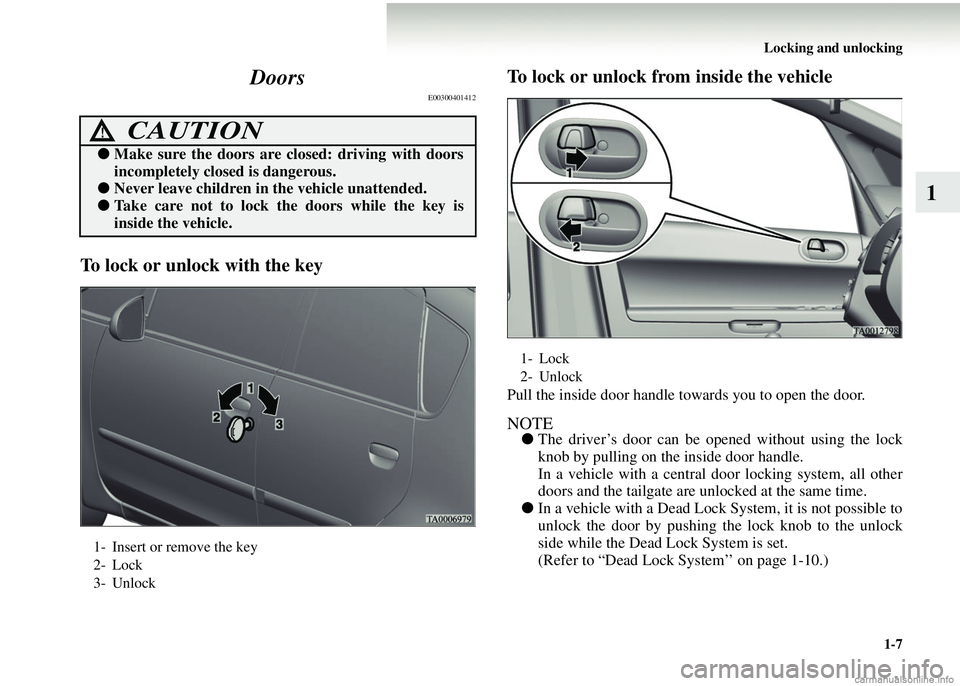

Doors
E00300401412
To lock or unlock with the key To lock or unlock from
inside the vehicle
Pull the inside door handle towards you to open the door.
NOTE●The driver’s door can be op ened without using the lock
knob by pulling on the inside door handle.
In a vehicle with a central do or locking system, all other
doors and the tailgate are unlocked at the same time.
● In a vehicle with a Dead Lock System, it is not possible to
unlock the door by pushing the lock knob to the unlock
side while the Dead Lock System is set.
(Refer to “Dead Lock Sy stem’’ on page 1-10.)
CAUTION!
●Make sure the doors are closed: driving with doors
incompletely closed is dangerous.
●Never leave children in the vehicle unattended.
●Take care not to lock the doors while the key is
inside the vehicle.
1- Insert or remove the key
2- Lock
3- Unlock
1- Lock
2- Unlock

1-8 Locking and unlocking
1

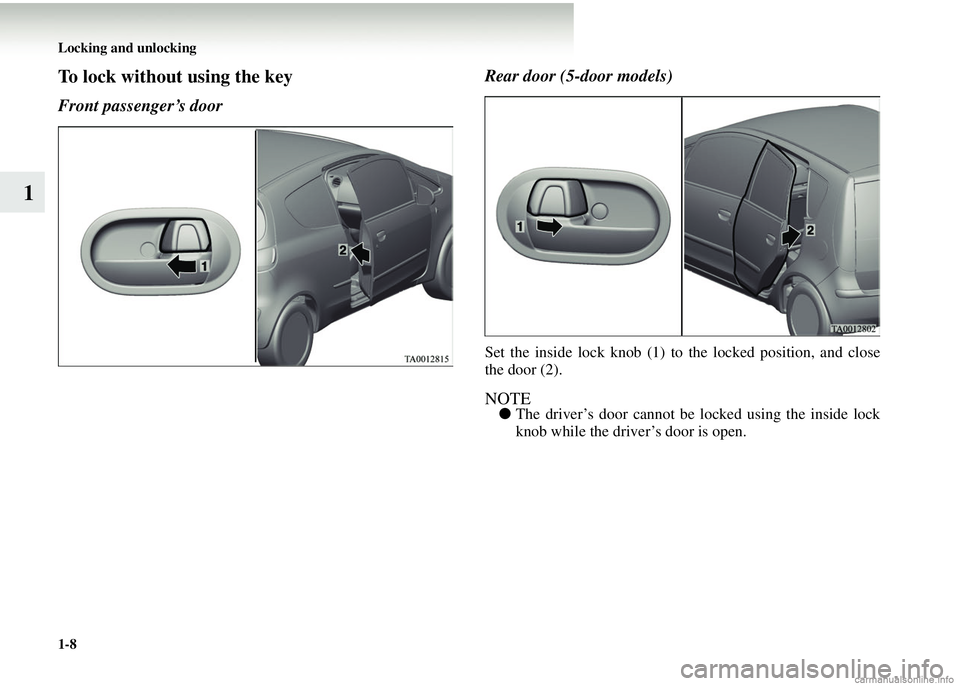

To lock without using the key
Front passenger’s doorRear door (5-door models)
Set the inside lock knob (1) to the locked position, and close
the door (2).
NOTE●
The driver’s door cannot be locked using the inside lock
knob while the driver’s door is open.
