MITSUBISHI COLT 2008 Owner's Manual (in English)

Specifications9-19
9

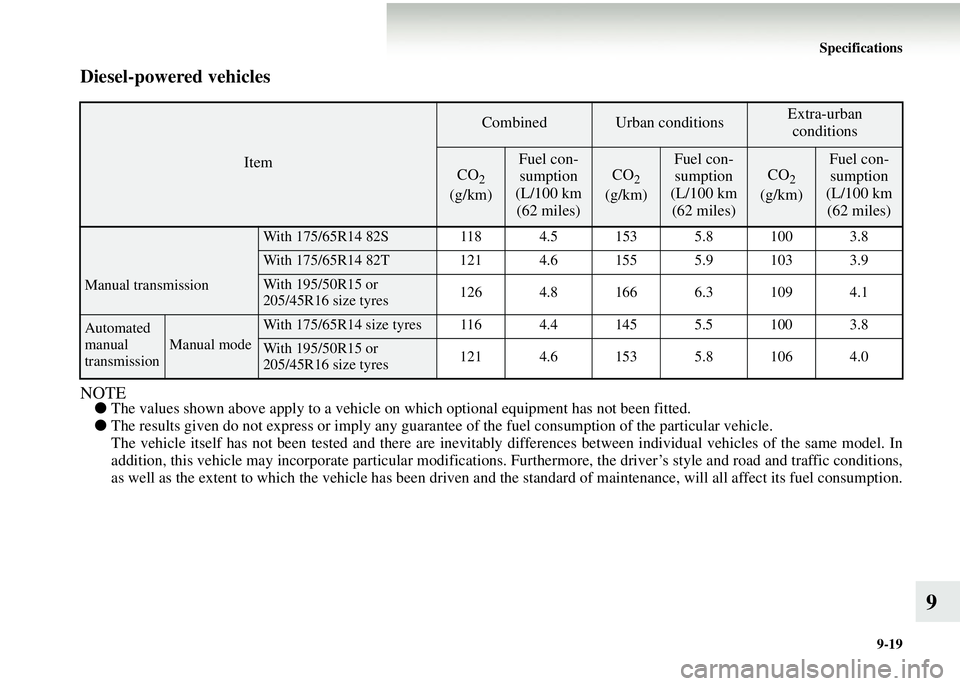

Diesel-powered vehicles
NOTE●The values shown above apply to a vehicle on which optional equipment has not been fitted.
● The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested an d there are inevitably differences between in dividual vehicles of the same model. In
addition, this vehicle may incorporate part icular modifications. Furthermore, the driv er’s style and road and traffic conditions,
as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its fuel consumption.
Item
CombinedUrban conditionsExtra-urban
conditions
CO2
(g/km)
Fuel con- sumption
(L/100 km
(62 miles)
CO2
(g/km)
Fuel con- sumption
(L/100 km
(62 miles)
CO2
(g/km)
Fuel con- sumption
(L/100 km
(62 miles)
Manual transmission
With 175/65R14 82S 118 4.5 153 5.8 100 3.8
With 175/65R14 82T 121 4.6 155 5.9 103 3.9
With 195/50R15 or
205/45R16 size tyres 126 4.8 166 6.3 109 4.1
Automated
manual
transmission
Manual mode
With 175/65R14 size tyres 116 4.4 145 5.5 100 3.8
With 195/50R15 or
205/45R16 size tyres
121 4.6 153 5.8 106 4.0

9-20 Specifications

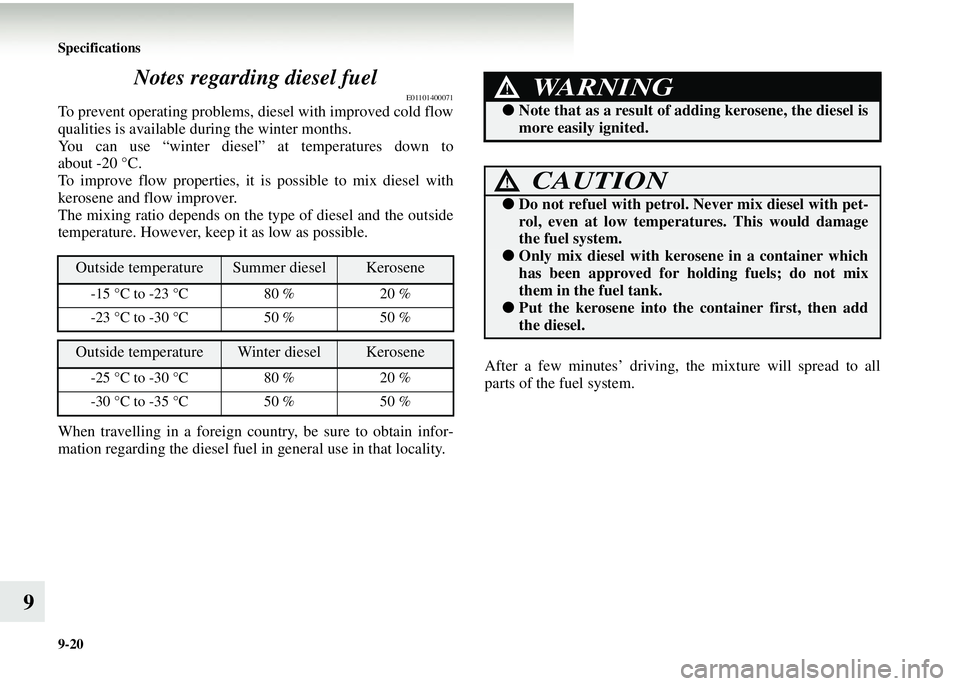

9Notes regarding diesel fuel
E01101400071
To prevent operating problems, diesel with improved cold flow
qualities is available during the winter months.
You can use “winter diesel”
at temperatures down to
about -20 °C.
To improve flow properties, it is possible to mix diesel with
kerosene and flow improver.
The mixing ratio depends on the type of diesel and the outside
temperature. However, keep it as low as possible.
When travelling in a foreign country, be sure to obtain infor-
mation regarding the diesel fuel in general use in that locality. After a few minutes’ driving, the mixture will spread to all
parts of the fuel system.
Outside temperatureSummer dieselKerosene
-15 °C to -23 °C
80 %20 %
-23 °C to -30 °C 50 %50 %
Outside temperatureWinter dieselKerosene
-25 °C to -30 °C 80 %20 %
-30 °C to -35 °C 50 %50 %
WARNING!
●Note that as a result of adding kerosene, the diesel is
more easily ignited.
CAUTION!
●Do not refuel with petrol. Never mix diesel with pet-
rol, even at low tempera tures. This would damage
the fuel system.
● Only mix diesel with kero sene in a container which
has been approved for holding fuels; do not mix
them in the fuel tank.
● Put the kerosene into the container first, then add
the diesel.

Specifications9-21
9

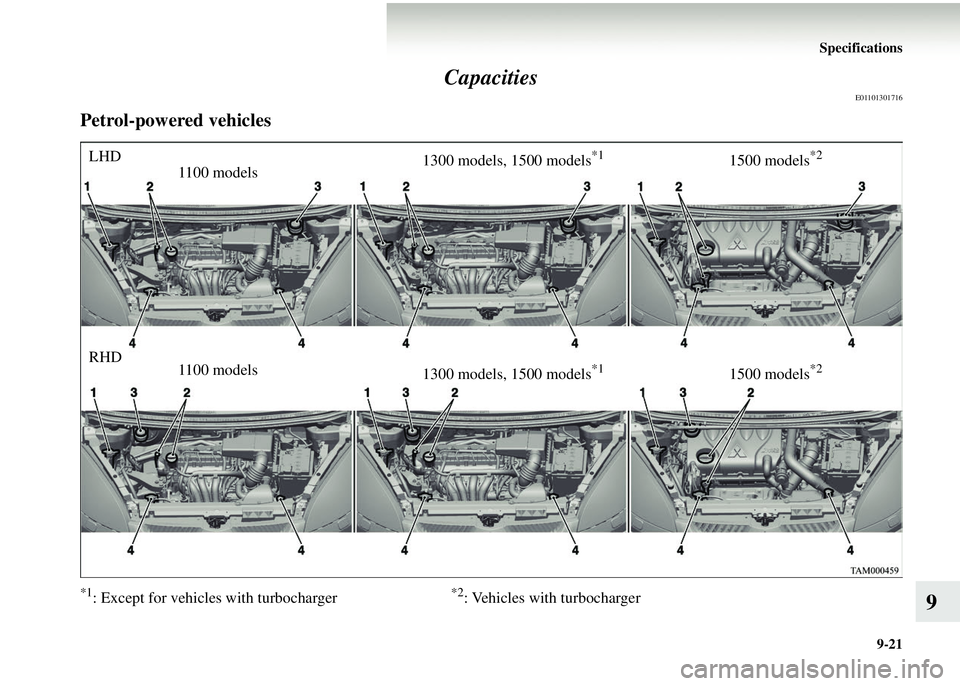

Capacities
E01101301716
Petrol-powered vehicles
*1: Except for vehicles with turbocharger
*2: Vehicles with turbocharger
LHD
1100 models 1300 models, 1500 models*11500 models*2
RHD
1100 models 1300 models, 1500 models*11500 models*2

9-22 Specifications
9

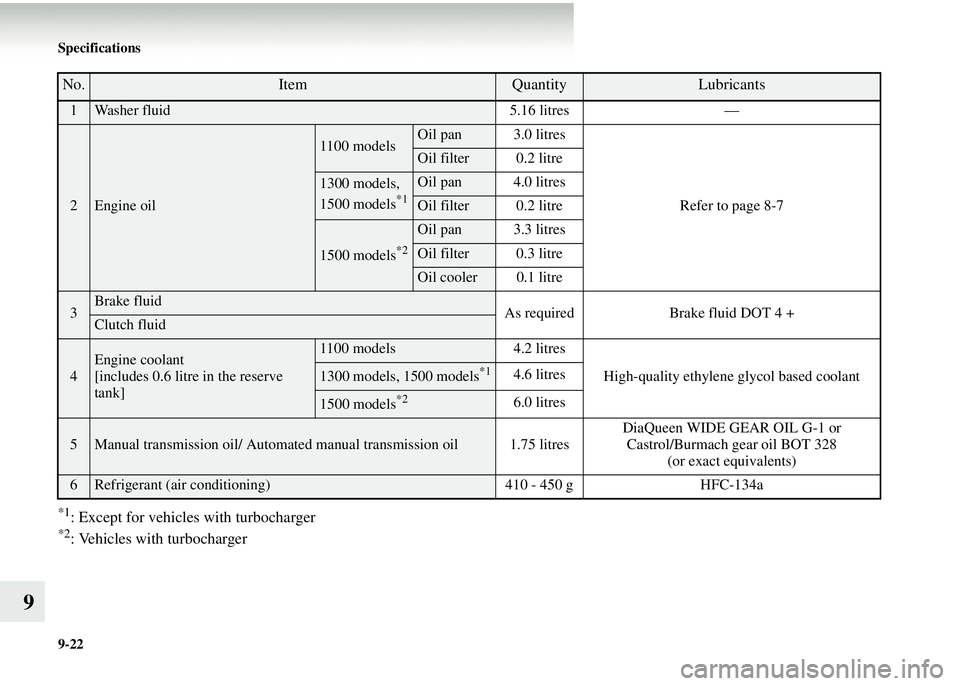

*1: Except for vehicles with turbocharger*2: Vehicles with turbocharger
No.ItemQuantityLubricants
1Washer fluid5.16 litres—
2Engine oil
1100 modelsOil pan 3.0 litres
Refer to page 8-7
Oil filter 0.2 litre
1300 models,
1500 models*1
Oil pan 4.0 litres
Oil filter 0.2 litre
1500 models*2
Oil pan 3.3 litres
Oil filter 0.3 litre
Oil cooler 0.1 litre
3Brake fluid As requiredBrake fluid DOT 4 +
Clutch fluid
4
Engine coolant
[includes 0.6 litre in the reserve
tank]1100 models 4.2 litres
High-quality ethylene glycol based coolant
1300 models, 1500 models*14.6 litres
1500 models*26.0 litres
5Manual transmission oil/ Automated manual transmission oil 1.75 litres DiaQueen WIDE GEAR OIL G-1 or
Castrol/Burmach gear oil BOT 328 (or exact equivalents)
6Refrigerant (air conditioning) 410 - 450 gHFC-134a

Specifications9-23
9

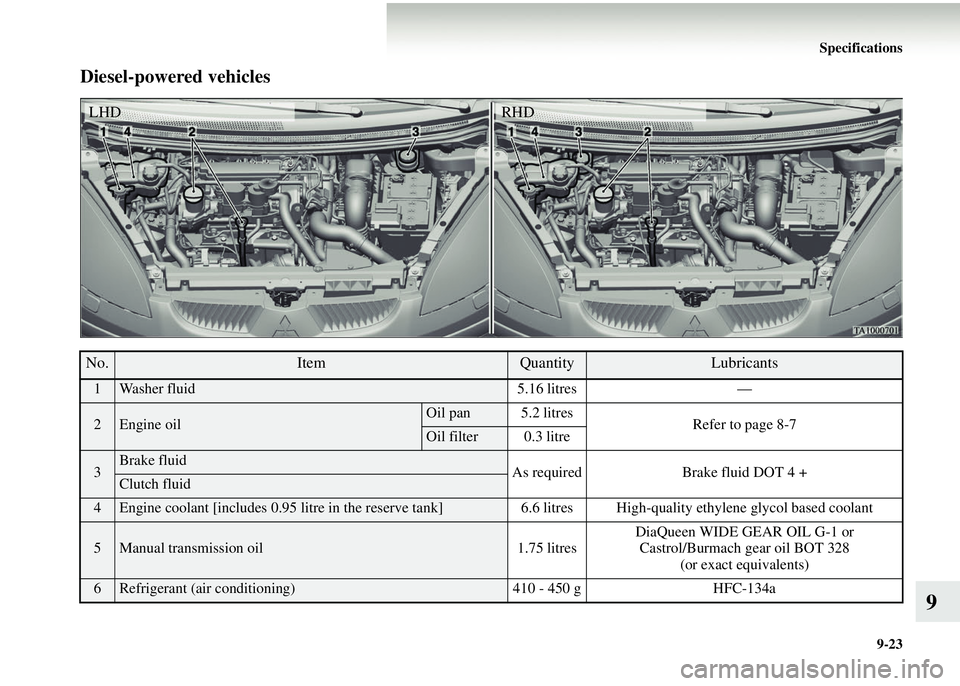

Diesel-powered vehicles
No.ItemQuantityLubricants
1Washer fluid 5.16 litres—
2Engine oilOil pan 5.2 litres
Refer to page 8-7
Oil filter 0.3 litre
3Brake fluid
As requiredBrake fluid DOT 4 +
Clutch fluid
4Engine coolant [includes 0.95 litre in the reserve tank] 6.6 litres High-quality ethylene glycol based coolant
5Manual transmission oil1.75 litresDiaQueen WIDE GEAR OIL G-1 or
Castrol/Burmach gear oil BOT 328 (or exact equivalents)
6Refrigerant (air conditioning) 410 - 450 gHFC-134a
LHD RHD

Alphabetical index1
A
Accessory socket 5-60
Accessory (Installation) 5
Active stability control system (ASC) 4-42Indicator lamp 4-44
Additional equipment 8-29
Air bag 2-47
Air conditioning Automatic air conditioning 5-13
Important operation tips for the air conditioning 5-22
Air purifier 5-23
Antenna 5-59
Anti-lock brake system (ABS) 4-36 Warning lamp 4-38
Audio Error codes 5-54
Handling of compact discs 5-56
LW/MW/FM electronic tuning radio with CD player 5-24
Steering wheel remote control switch 5-52
Automated manual transmission 4-25 Oil 9-21
Automatic air conditioning 5-13
B
Battery 8-15 Charge warning lamp 3-12
Discharged battery (Emergency starting) 6-2
Specification 9-14 Bonnet 8-4
Brake
Anti-lock brake 4-36
Braking 4-35
Fluid 8-14, 9-21
Parking brake 4-6
Parking brake lever stroke 8-24
Power brakes 4-35
Warning lamp 3-9
Bulb capacity 8-41
C
Capacities 9-21
Cargo loads 4-45
Catalytic converter 8-3
Central door locks 1-9
Changing a fuse 8-35
Charge warning lamp 3-12
Chassis number 9-2
Check engine warning lamp 3-11
Child restraint 2-31
Child-protection rear doors 1-13
Cleaning Exterior of your vehicle 7-4
Genuine leather 7-3
Interior of your vehicle 7-3
Plastic, vinyl leather, etc 7-3
Clutch Fluid 8-14

Alphabetical index
2
Combination headlamps and dipper switch 3-31
Compact spare wheel 6-25
Cool box 5-66
Coolant (engine) 8-11, 9-21
Cup holder 5-69
D
Dead Lock System 1-10
Demister (rear window) 3-45
Diesel preheat indication lamp 3-9
Dipper (High/Low beam change) 3-33
Door-ajar warning lamp 3-13
Doors Central door locks 1-9
Child-protection 1-13
Dead Lock System 1-10
Lock and unlock 1-7
Driving, alcohol and drugs 4-3
E
Economical driving 4-2
Electric power steering system 4-40
Electric remote-controlled outside rear-view mirrors 4-12
Electric window control 1-18
Electrical system 9-14
Electronic immobilizer (Anti-theft starting system) 1-3
Emergency starting 6-2
Engine Coolant 8-11, 9-21 High coolant temperat
ure warning lamp 3-13
Number 9-4
Oil 8-7
Oil and oil filter 9-21
Overheating 6-6
Specifications 9-12
Used engine oils safety instructions and disposal
information 7
Error codes 5-54
Exterior and interior lamp operation 8-28
F
Fluid Brake fluid 8-14, 9-21
Clutch fluid 8-14, 9-21
Engine coolant 8-11, 9-21
Washer fluid 8-14, 9-21
Fluid capacities and lubricants 9-21
For cold and snow weather 8-29
Front fog lamps Bulb capacity 8-41
Indicator lamp 3-8
Replacement 8-50
Switch 3-37
Front seat 2-5
Front turn-signal lamps Bulb capacity 8-41
Replacement 8-49
Fuel

Alphabetical index3
Filling the fuel tank 3
Fuel gauge 3-6
Fuel selection 2
Fuel tank filler door release lever 3
Low fuel warning lamp 3-6
Modification/alterations to th e electrical or fuel systems 6
Tank capacity 3
Fuel consumption 9-17
Fuse links 8-30
Fuse load capacity 8-31
Fuse replacement 8-35
Fuses 8-30
G
Gauges 3-2, 3-7
General maintenance 8-28
Genuine parts 7
Glove box 5-65
H
Handling of compact discs 5-56
Hazard warning fl asher switch 3-37
Hazard warning i ndicator lamps 3-8
Head restraints 2-10
Headlamp levelling switch 3-34
Headlamps Bulb capacity 8-41
Headlamp flasher 3-34
Replacement 8-44 Switch 3-31
Heated mirror 4-13
Heated seats 2-7
Heater 5-7
High coolant temperature warning lamp 3-13
High-beam indicator lamp 3-8
High-mounted stop lamps Bulb capacity 8-41
Replacement 8-63
Hinges and latches lubrication 8-29
Horn switch 3-46
How to drive a vehicle with automated manual transmission 4-30
I
If the vehicle breaks down 6-2
Ignition switch 4-14
Indicator and warning lamps 3-7
Indicator lamps 3-8
Inside rear-view mirror 4-10
Installation of accessories 5
Instruments 3-2
Interior lamps 5-61
J
Jack 6-21Storage 6-10
Jacking up the vehicle 6-23
Jump starting (Emerg ency starting) 6-2

Alphabetical index
4
K
Keyless entry system 1-5
Keys 1-2
L
Labeling 9-2
Lamp monitor buzzer 3-33
Leakage (Fuel, engine coolant, oil and exhaust gas) 8-28
Licence plate lamps Bulb capacity 8-41
Replacement 8-67
Low fuel warning lamp 3-6
Lubricants 9-21
Luggage compartment lamp 5-63 Bulb capacity 8-43
Replacement 8-69
Luggage floor boxes 5-67
Luggage hooks 5-72
Luggage net 5-73
LW/MW/FM electronic tuning radio with CD player 5-24
M
Manual transmission 4-22
Oil 9-21
Map lamps 5-62
Mirror Inside rear-view mirror 4-10
Outside rear-view mirrors 4-10 Modification/alterations to th
e electrical or fuel systems 6
Multi-centre display 3-14
N
Notes regarding diesel fuel 9-20
O
Odometer 3-4
Oil Automated manual transmission oil 9-21
Engine oil 8-7
Manual transmission oil 9-21
Oil pressure warning lamp 3-12
Operation under adverse driving conditions 6-44
Other specifications 9-16
Outside rear-view mirrors 4-10 Electric remote-controlled outside rear-view mirrors 4-12
Manual remote-controlled outside rear-view mirrors 4-11
Overheating 6-6
P
Parking 4-8 Parking brake 4-6
Parking brake lever stroke 8-24
Position lamps Bulb capacity 8-41
Replacement 8-48
Power brakes 4-35
Power steering
