MITSUBISHI COLT 2008 Owner's Manual (in English)

Specifications9-9
9

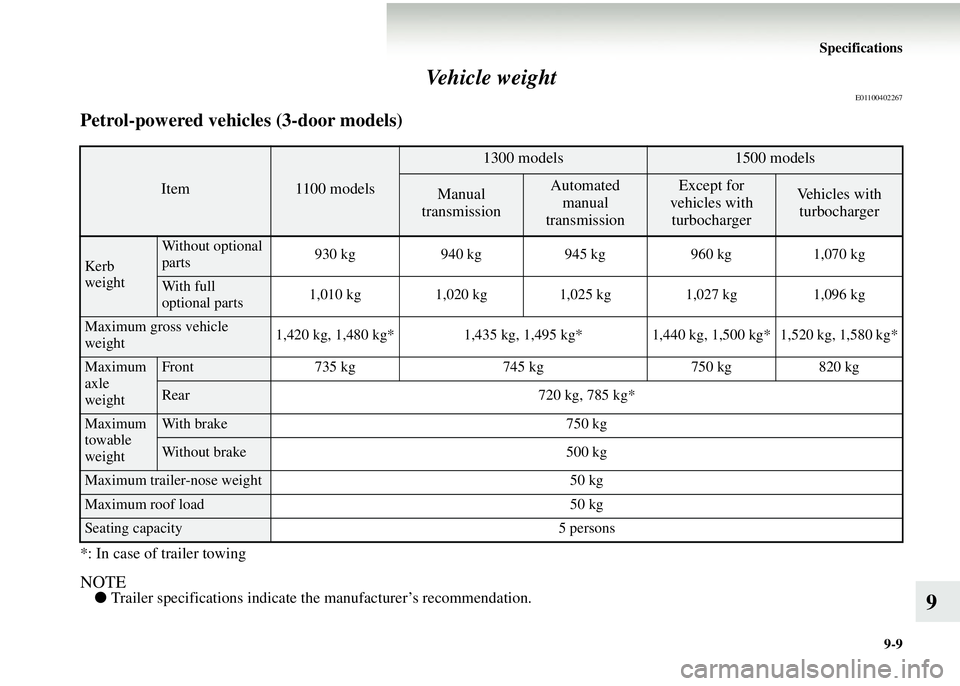

Vehicle weight
E01100402267
Petrol-powered vehicles (3-door models)
*: In case of trailer towing
NOTE●
Trailer specifications indicate th e manufacturer’s recommendation.
Item1100 models
1300 models1500 models
Manual
transmissionAutomated manual
transmissionExcept for
vehicles with
turbochargerVehicles with turbocharger
Kerb
weight
Without optional
parts 930 kg
940 kg945 kg 960 kg1,070 kg
With full
optional parts 1,010 kg 1,020 kg 1,025 kg 1,027 kg
1,096 kg
Maximum gross vehicle
weight1,420 kg, 1,480 kg* 1,435 kg, 1,495 kg* 1,440 kg, 1,500 kg* 1,520 kg, 1,580 kg*
Maximum
axle
weightFront
735 kg 745 kg750 kg820 kg
Rear 720 kg, 785 kg*
Maximum
towable
weightWith brake 750 kg
Without brake500 kg
Maximum trailer-nose weight 50 kg
Maximum roof load50 kg
Seating capacity5 persons

9-10 Specifications
9

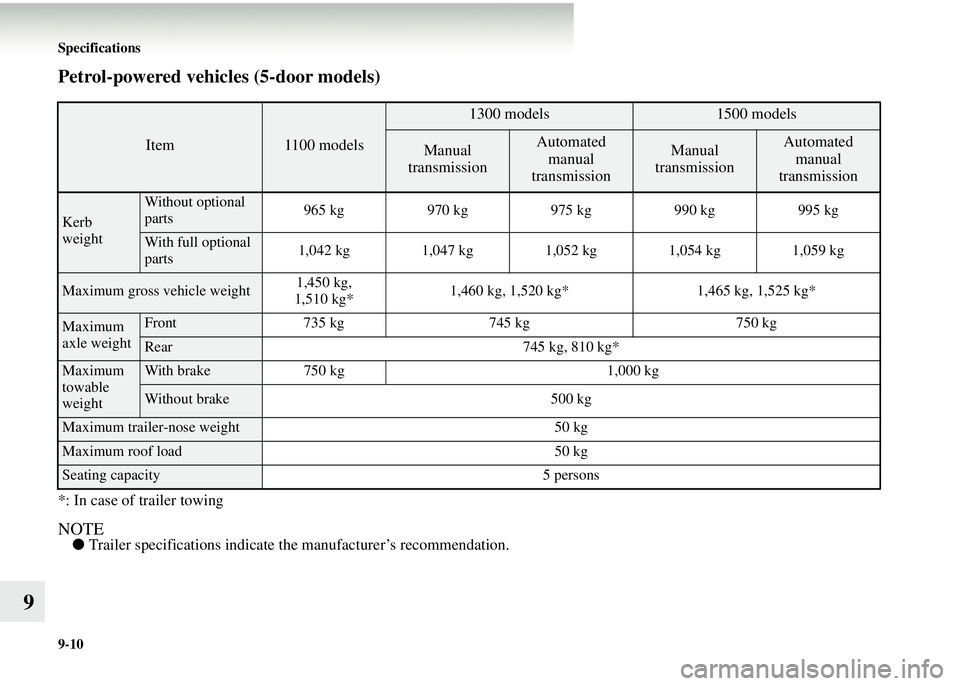

Petrol-powered vehicles (5-door models)
*: In case of trailer towing
NOTE●Trailer specifications indicate th e manufacturer’s recommendation.
Item1100 models
1300 models1500 models
Manual
transmissionAutomated
manual
transmissionManual
transmissionAutomated
manual
transmission
Kerb
weight
Without optional
parts 965 kg
970 kg975 kg990 kg995 kg
With full optional
parts 1,042 kg 1,047 kg 1,052 kg 1,054 kg 1,059 kg
Maximum gross vehicle weight 1,450 kg,
1,510 kg* 1,460 kg, 1,520 kg*
1,465 kg, 1,525 kg*
Maximum
axle weightFront735 kg 745 kg 750 kg
Rear 745 kg, 810 kg*
Maximum
towable
weightWith brake750 kg 1,000 kg
Without brake 500 kg
Maximum trailer-nose weight 50 kg
Maximum roof load50 kg
Seating capacity5 persons

Specifications9-11
9

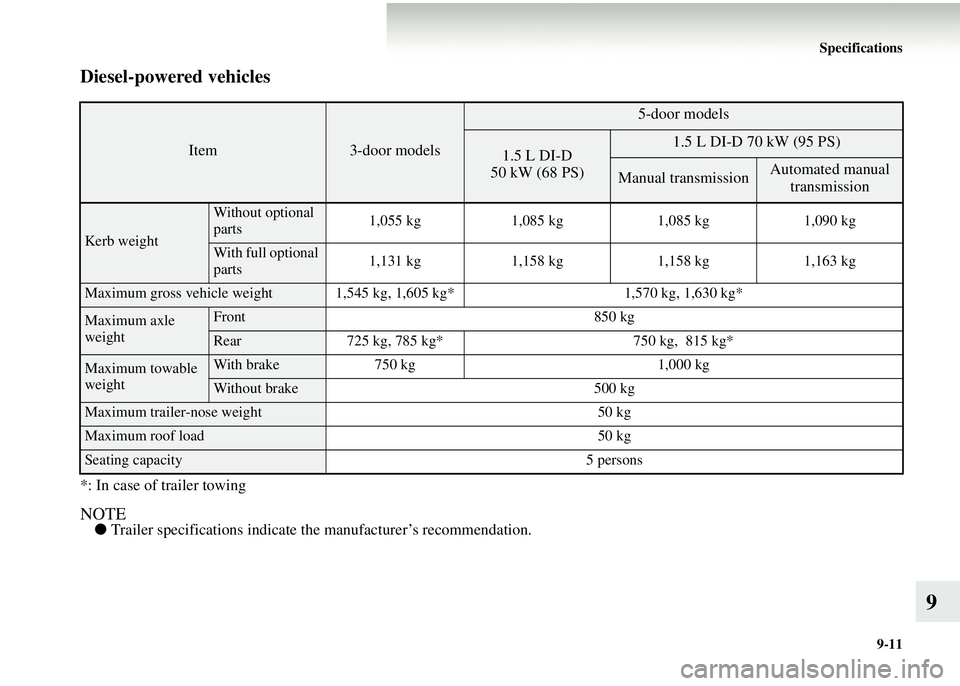

Diesel-powered vehicles
*: In case of trailer towing
NOTE●Trailer specifications indicate th e manufacturer’s recommendation.
Item3-door models
5-door models
1.5 L DI-D
50 kW (68 PS)1.5 L DI-D 70 kW (95 PS)
Manual transmissionAutomated manual transmission
Kerb weight
Without optional
parts 1,055 kg
1,085 kg 1,085 kg 1,090 kg
With full optional
parts 1,131 kg
1,158 kg 1,158 kg 1,163 kg
Maximum gross vehicle weight 1,545 kg, 1,605 kg* 1,570 kg, 1,630 kg*
Maximum axle
weightFront850 kg
Rear725 kg, 785 kg* 750 kg, 815 kg*
Maximum towable
weightWith brake750 kg 1,000 kg
Without brake 500 kg
Maximum trailer-nose weight 50 kg
Maximum roof load50 kg
Seating capacity5 persons

9-12 Specifications
9Engine specifications
E01100601363
Item
Petrol-powered vehiclesDiesel-powered vehicles
1100 models1300 models
1500 models
1.5L DI-D
50kW (68PS)1.5L DI-D
70kW (95PS)Except for vehi- cles with
turbochargerVehicles with turbocharger
Engine type Three-cylinder,
in line, water cooled four-
cycle, double
overhead cam- shaft Four-cylinder, in
line, water
cooled four-
cycle, double
overhead cam- shaft Four-cylinder, in
line, water
cooled four-
cycle, double
overhead cam- shaft Four-cylinder, in
line, water
cooled four-
cycle, double
overhead cam-
shaft with inter- cooler and
turbocharger Three-cylinder, in line, water
cooled four-cycle, double overhead camshaft
with intercooler and turbo- charger
Engine model
Total displacement
Bore
Stroke
Compression ratio 134910
1,124 cc
75.0 mm
84.8 mm 10.5 135930
1,332 cc
75.0 mm
75.4 mm 10.5 135950
1,499 cc
75.0 mm
84.8 mm 10.5 4G15
1,468 cc
75.5 mm
82.0 mm 9.0 639939
1,493 cc
83.0 mm
92.0 mm 18.0
Valve clearanceIntake 0.18 - 0.26 mm (cold) Automatically
Exhaust0.26 - 0.34 mm (cold) Automatically
Firing order1-3-2 1-3-4-2 —
Maximum output (EEC
net)55 kW/
6,000 r/min 70 kW/
6,000 r/min 80 kW/
6,000 r/min 110 kW/
6,000 r/min 50 kW/
4,000 r/min 70 kW/
4,000 r/min
Maximum torque (EEC
net) 100 Nm/
4,000 r/min 125 Nm/
4,000 r/min 145 Nm/
4,000 r/min 210 Nm/
3,500 r/min 160 Nm/
1,600 r/min 210 Nm/
1,800 r/min

Specifications9-13
9

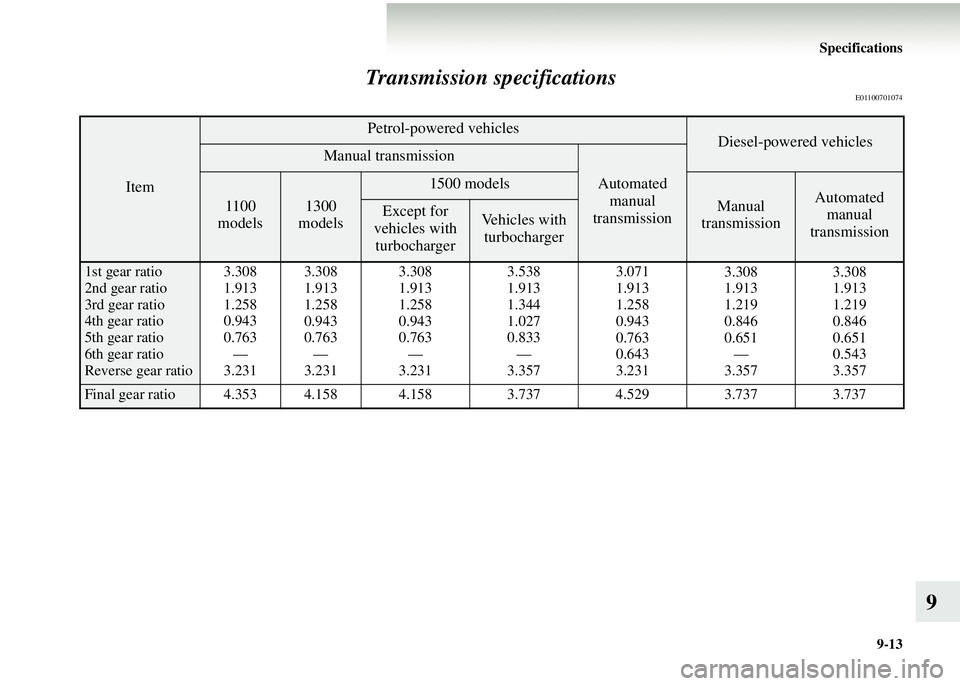

Transmission specifications
E01100701074
Item
Petrol-powered vehiclesDiesel-powered vehiclesManual transmission
Automated
manual
transmission
1100
models1300
models
1500 models
Manual
transmissionAutomated manual
transmissionExcept for
vehicles with turbochargerVehicles with turbocharger
1st gear ratio
2nd gear ratio
3rd gear ratio
4th gear ratio
5th gear ratio
6th gear ratio
Reverse gear ratio 3.308
1.913
1.258
0.943
0.763
—
3.231 3.308
1.913
1.258
0.943
0.763
—
3.231 3.308
1.913
1.258
0.943
0.763
—
3.231 3.538
1.913
1.344
1.027
0.833
—
3.357 3.071
1.913
1.258
0.943
0.763
0.643
3.231 3.308
1.913
1.219
0.846
0.651
—
3.357 3.308
1.913
1.219
0.846
0.651
0.543
3.357
Final gear ratio 4.353 4.158 4.158
3.7374.529 3.7373.737

9-14 Specifications

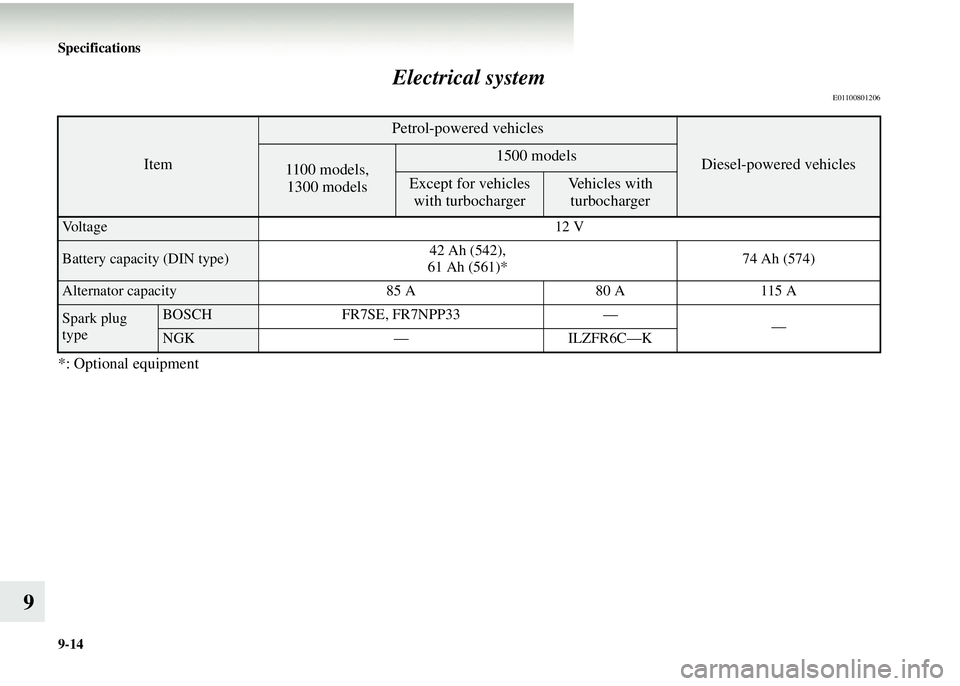

9Electrical system
E01100801206
*: Optional equipment
Item
Petrol-powered vehicles
Diesel-powered vehicles1100 models,
1300 models1500 models
Except for vehicles with turbochargerVehicles withturbocharger
Voltage 12 V
Battery capacity (DIN type)42 Ah (542),
61 Ah (561)* 74 Ah (574)
Alternator capacity
85 A80 A115 A
Spark plug
typeBOSCH FR7SE, FR7NPP33 —
—
NGK —ILZFR6C—K

Specifications9-15
9

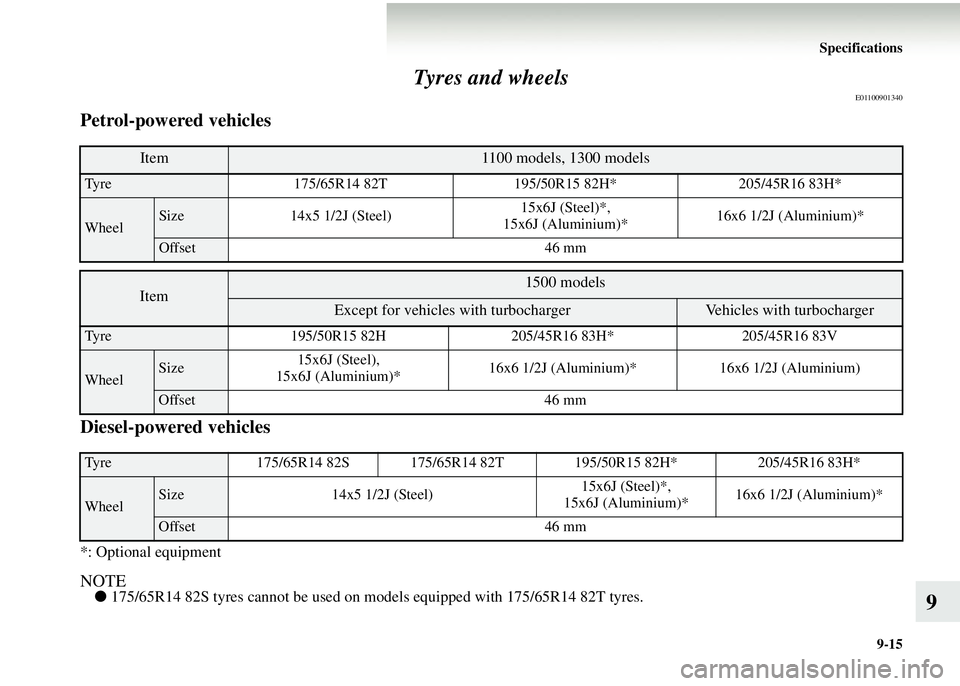

Tyres and wheels
E01100901340
Petrol-powered vehicles
Diesel-powered vehicles
*: Optional equipment
NOTE●
175/65R14 82S tyres cannot be used on models equipped with 175/65R14 82T tyres.
Item1100 models, 1300 models
Tyre 175/65R14 82T 195/50R15 82H* 205/45R16 83H*
WheelSize14x5 1/2J (Steel) 15x6J (Steel)*,
15x6J (Aluminium)* 16x6 1/2J (Aluminium)*
Offset
46 mm
Item1500 models
Except for vehicles with turbochargerVehicles with turbocharger
Tyre195/50R15 82H 205/45R16 83H* 205/45R16 83V
WheelSize15x6J (Steel),
15x6J (Aluminium)* 16x6 1/2J (Aluminium)*
16x6 1/2J (Aluminium)
Offset 46 mm
Tyre175/65R14 82S 175/65R14 82T 195/50R15 82H* 205/45R16 83H*
WheelSize14x5 1/2J (Steel) 15x6J (Steel)*,
15x6J (Aluminium)* 16x6 1/2J (Aluminium)*
Offset
46 mm

9-16 Specifications

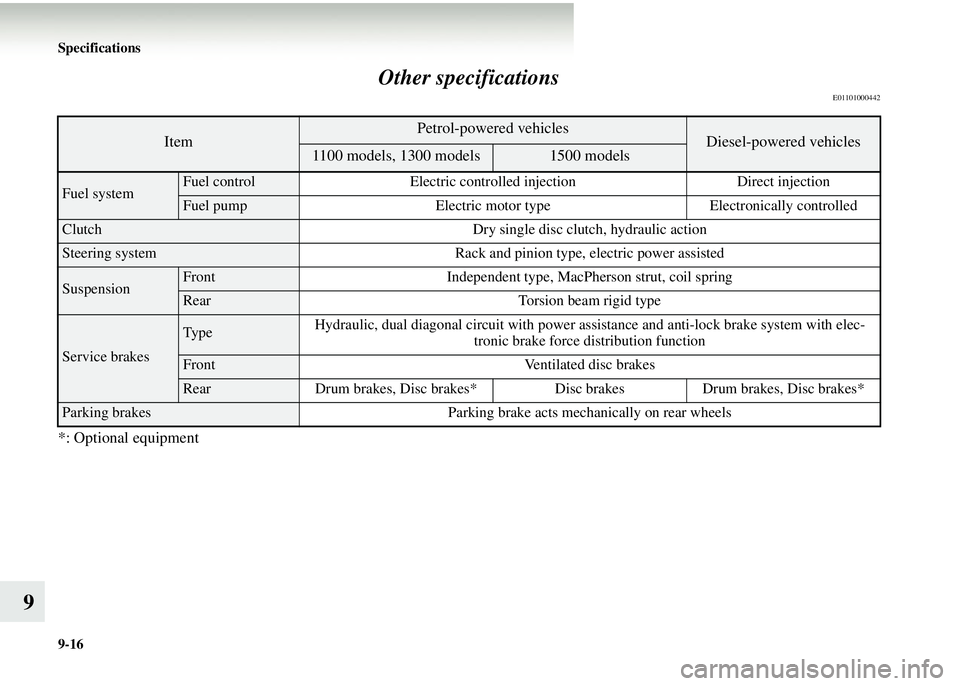

9Other specifications
E01101000442
*: Optional equipment
ItemPetrol-powered vehiclesDiesel-powered vehicles1100 models, 1300 models1500 models
Fuel systemFuel control
Electric controlled injection Direct injection
Fuel pumpElectric motor type Electronically controlled
Clutch Dry single disc clutch, hydraulic action
Steering systemRack and pinion type, electric power assisted
SuspensionFrontIndependent type, MacPherson strut, coil spring
Rear Torsion beam rigid type
Service brakes
TypeHydraulic, dual diagonal circuit with power assistance and anti-lock brake system with elec-
tronic brake force distribution function
Front Ventilated disc brakes
RearDrum brakes, Disc brakes* Disc brakesDrum brakes, Disc brakes*
Parking brakes Parking brake acts mechanically on rear wheels

Specifications9-17
9

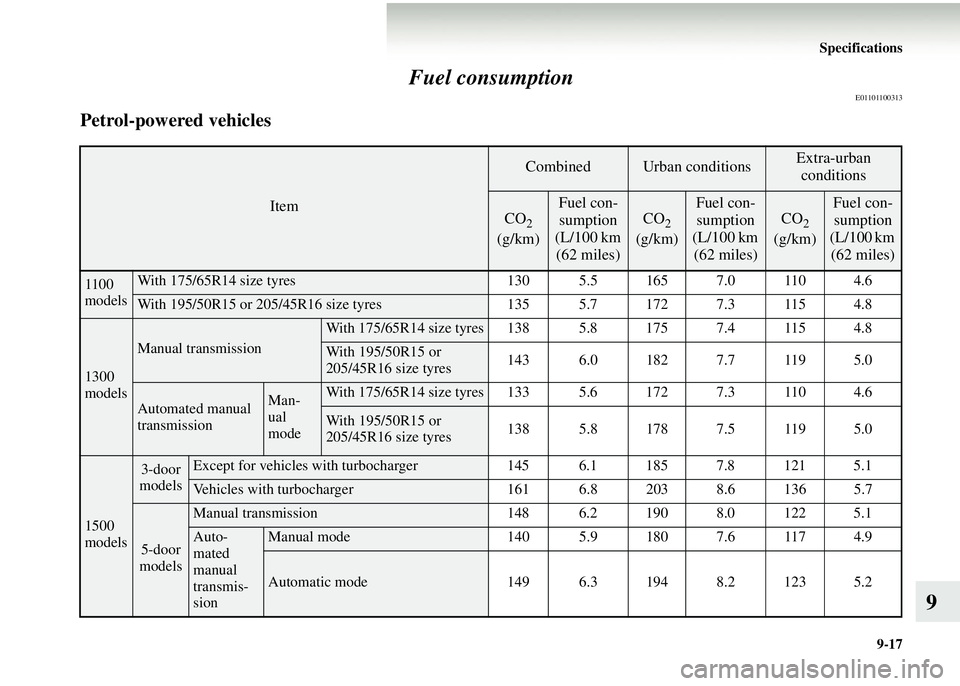

Fuel consumption
E01101100313
Petrol-powered vehicles
Item
CombinedUrban conditionsExtra-urban
conditions
CO2
(g/km)
Fuel con- sumption
(L/100 km (62 miles)
CO2
(g/km)
Fuel con- sumption
(L/100 km (62 miles)
CO2
(g/km)
Fuel con- sumption
(L/100 km (62 miles)
1100
modelsWith 175/65R14 size tyres 130 5.5 165 7.0 110 4.6
With 195/50R15 or 205/45R16 size tyres135 5.7 172 7.3 115 4.8
1300
models
Manual transmission
With 175/65R14 size tyres 138 5.8 175 7.4 115 4.8
With 195/50R15 or
205/45R16 size tyres143 6.0 182 7.7 119 5.0
Automated manual
transmissionMan-
ual
modeWith 175/65R14 size tyres 133 5.6 172 7.3 110 4.6
With 195/50R15 or
205/45R16 size tyres138 5.8 178 7.5 119 5.0
1500
models
3-door
modelsExcept for vehicles with turbocharger 145 6.1 185 7.8 121 5.1
Vehicles with turbocharger 161 6.8 203 8.6 136 5.7
5-door
models
Manual transmission 148 6.2 190 8.0 122 5.1
Auto-
mated
manual
transmis-
sionManual mode140 5.9 180 7.6 117 4.9
Automatic mode 149 6.3 194 8.2 123 5.2

9-18 Specifications
9

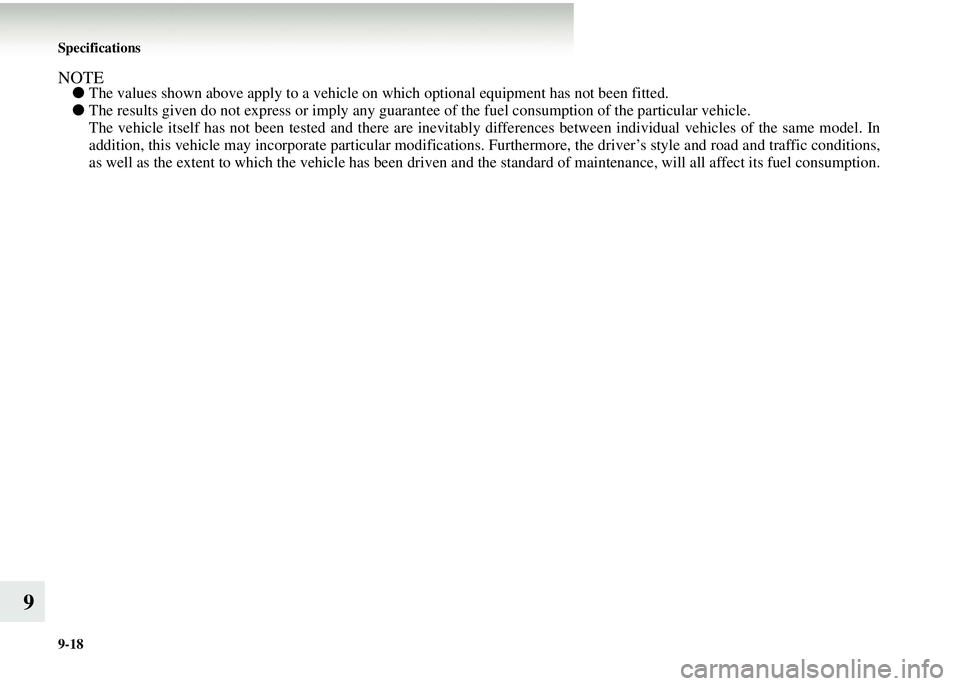

NOTE●The values shown above apply to a vehicle on which optional equipment has not been fitted.
● The results given do not express or imply any guarant ee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In
addition, this vehicle may incorporate particular modifications. Furthermore, the driver’s style and road and traffic conditions,
as well as the extent to which th e vehicle has been driven and th e standard of maintenance, will all affect its fuel consumption.
