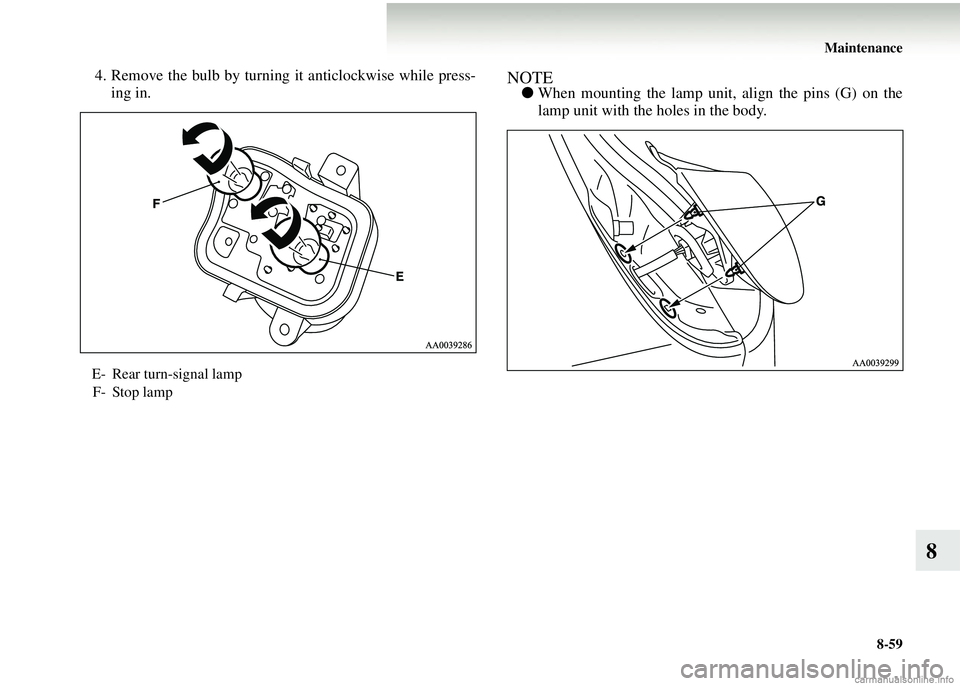

4. Remove the bulb by turning it anticlockwise while press-ing in.NOTE● When mounting the lamp unit, align the pins (G) on the
lamp unit with the holes in the body.
E- Rear turn-signal lamp
F- Stop lamp

8-60 Maintenance
8
5-door models

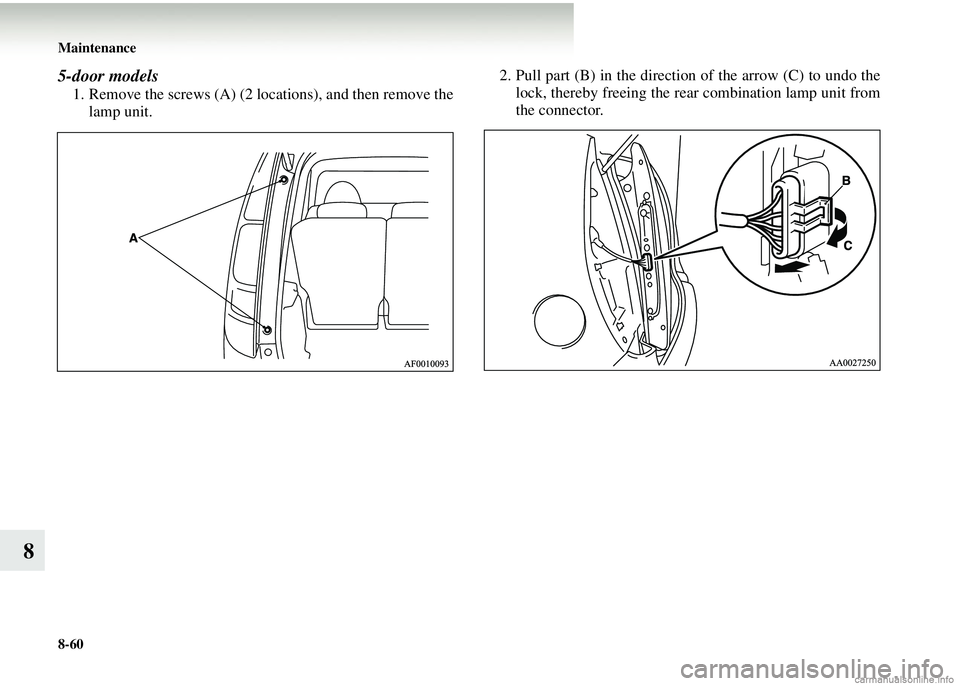

1. Remove the screws (A) (2 locations), and then remove thelamp unit. 2. Pull part (B) in the direction of the arrow (C) to undo the
lock, thereby freeing the rear combination lamp unit from
the connector.

Maintenance8-61
8

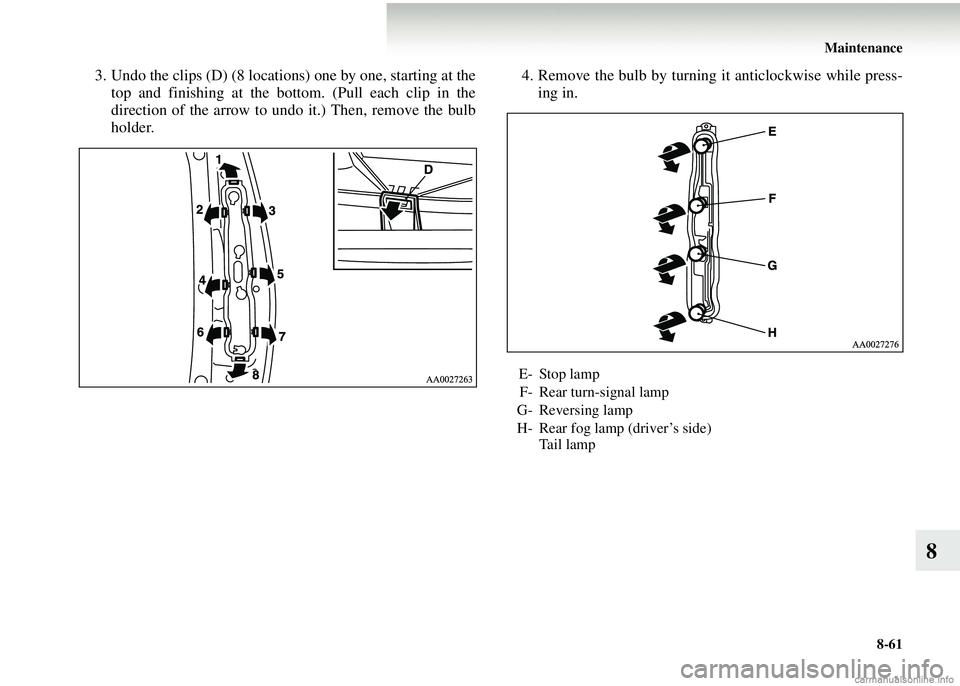

3. Undo the clips (D) (8 locations) one by one, starting at thetop and finishing at the bottom. (Pull each clip in the
direction of the arrow to undo it.) Then, remove the bulb
holder. 4. Remove the bulb by turning it anticlockwise while press-
ing in.
E- Stop lamp
F- Rear turn-signal lamp
G- Reversing lamp
H- Rear fog lamp (driver’s side) Tail lamp

8-62 Maintenance
8

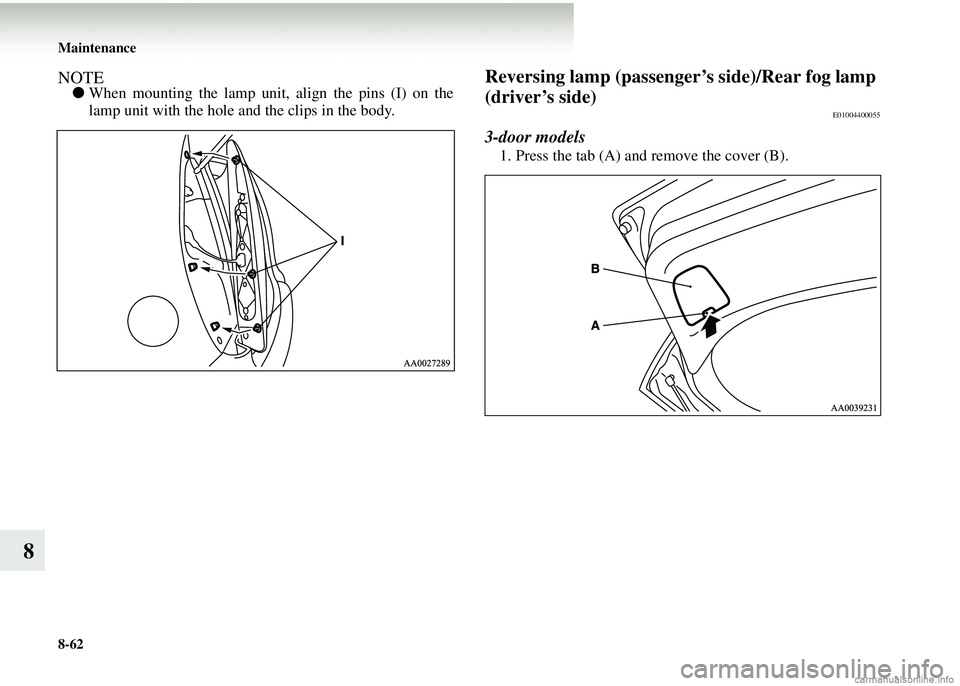

NOTE●When mounting the lamp unit, align the pins (I) on the
lamp unit with the hole and the clips in the body.Reversing lamp (passenger’s side)/Rear fog lamp
(driver’s side)
E01004400055
3-door models
1. Press the tab (A) and remove the cover (B).

Maintenance8-63
8

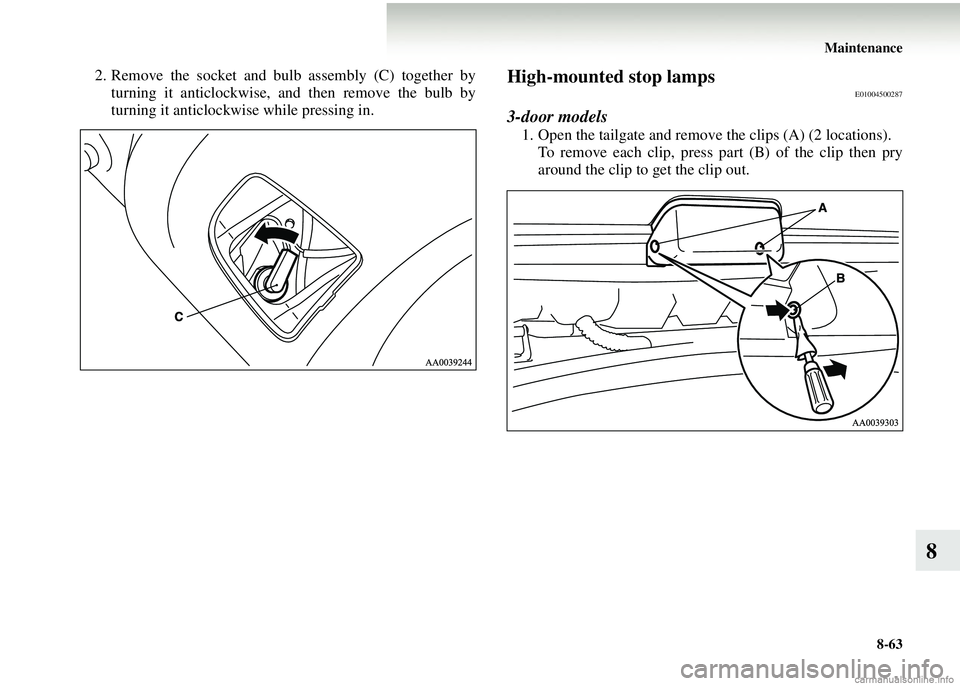

2. Remove the socket and bulb assembly (C) together byturning it anticlockwise, and then remove the bulb by
turning it anticlockwise while pressing in.High-mounted stop lampsE01004500287
3-door models
1. Open the tailgate and remove the clips (A) (2 locations).
To remove each clip, press part (B) of the clip then pry
around the clip to get the clip out.

8-64 Maintenance
8

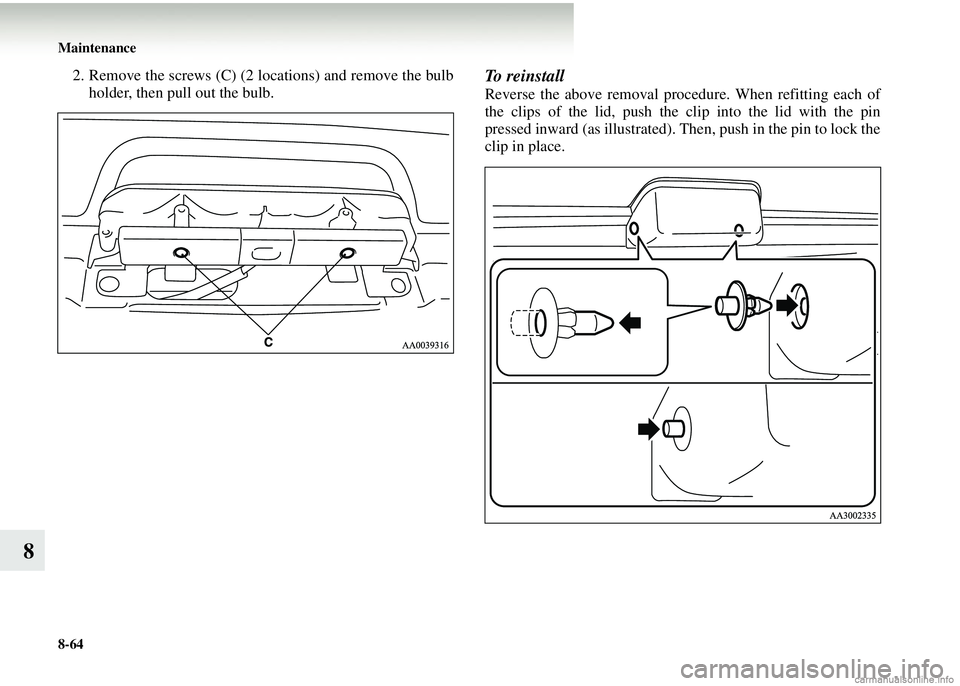

2. Remove the screws (C) (2 locations) and remove the bulbholder, then pull out the bulb.To r e i n s t a l l
Reverse the above removal procedure. When refitting each of
the clips of the lid, push the clip into the lid with the pin
pressed inward (as illustrated). Then, push in the pin to lock the
clip in place.

Maintenance8-65
8

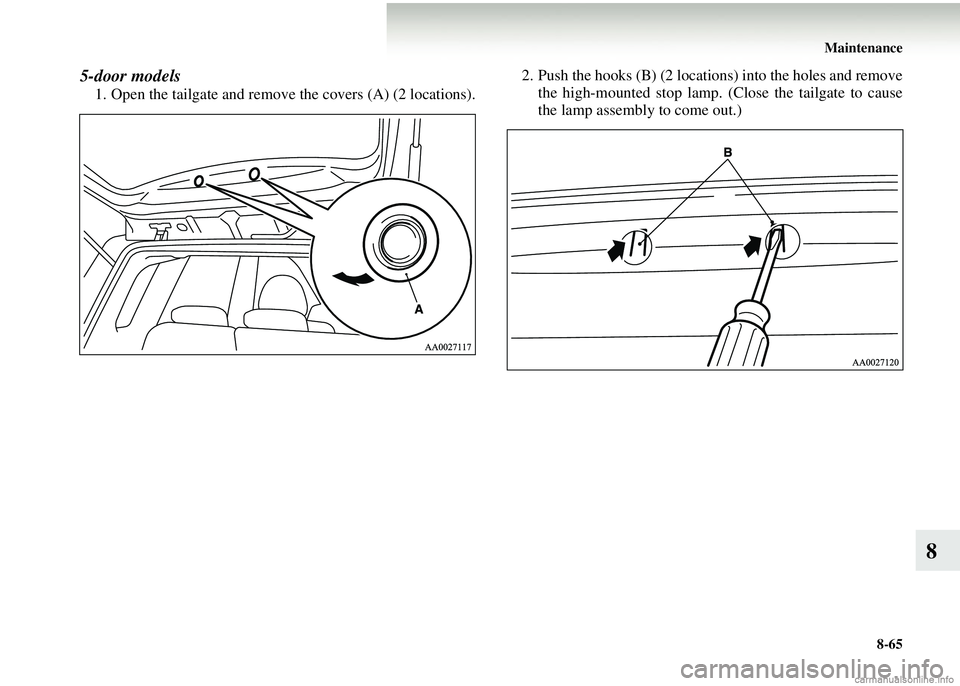

5-door models
1. Open the tailgate and remove the covers (A) (2 locations). 2. Push the hooks (B) (2 locations) into the holes and remove
the high-mounted stop lamp. (Close the tailgate to cause
the lamp assembly to come out.)

8-66 Maintenance
8

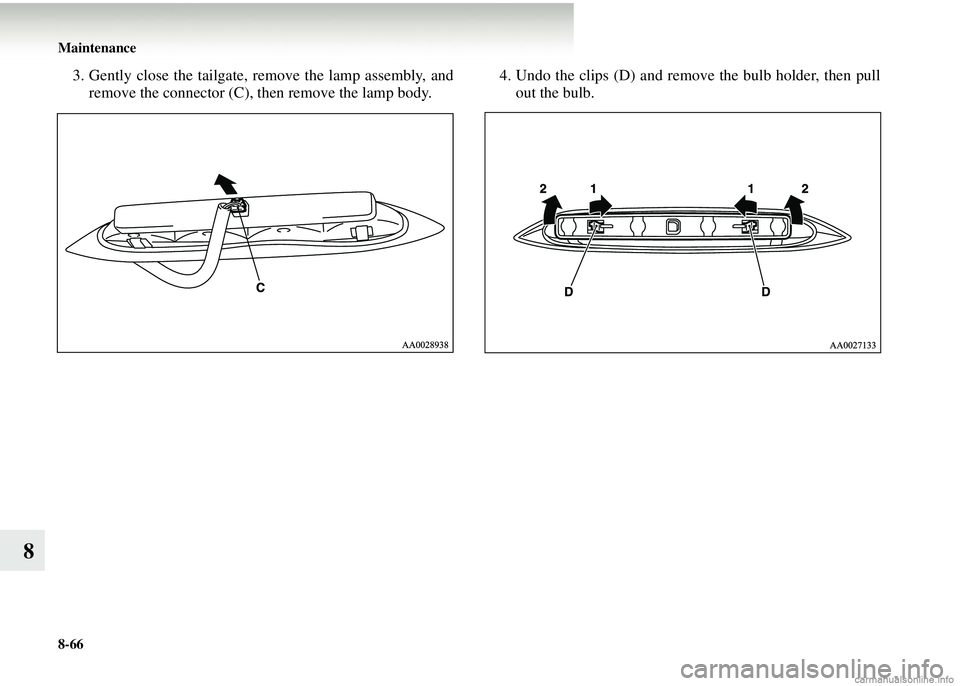

3. Gently close the tailgate, remove the lamp assembly, andremove the connector (C), then remove the lamp body. 4. Undo the clips (D) and remove the bulb holder, then pull
out the bulb.

Maintenance8-67
8

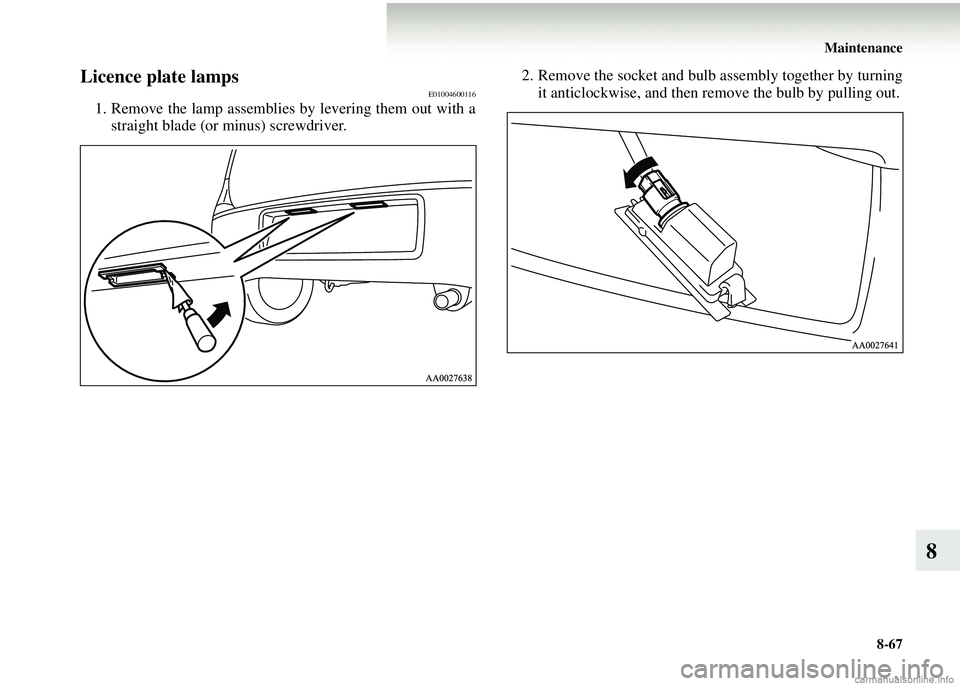

Licence plate lampsE01004600116
1. Remove the lamp assemblies by levering them out with astraight blade (or minus) screwdriver. 2. Remove the socket and bulb assembly together by turning
it anticlockwise, and then remo ve the bulb by pulling out.

8-68 Maintenance
8

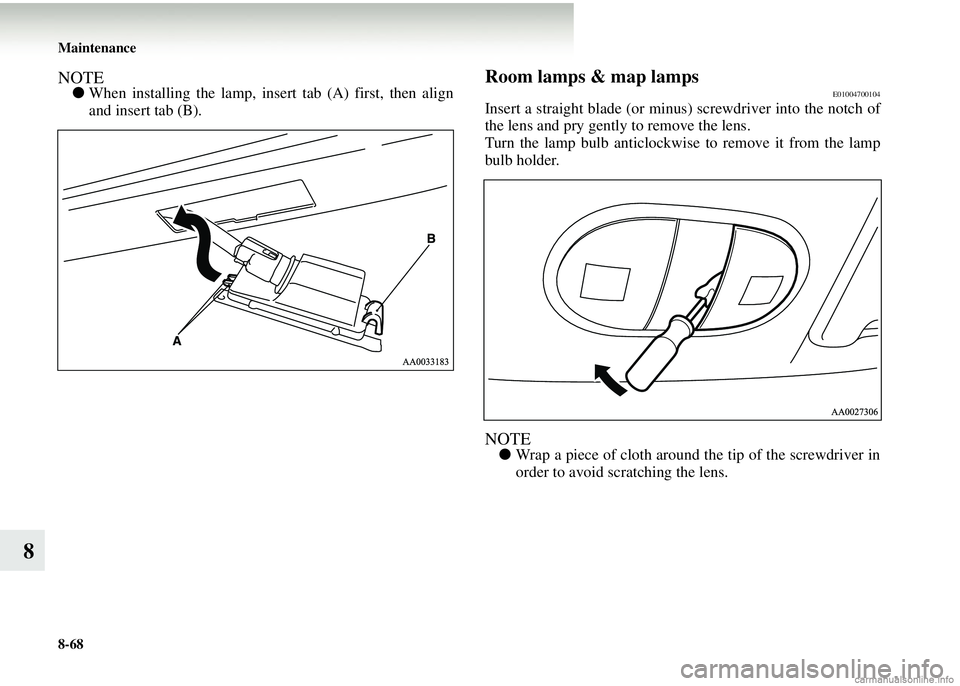

NOTE●When installing the lamp, insert tab (A) first, then align
and insert tab (B).Room lamps & map lampsE01004700104
Insert a straight blade (or minus) screwdriver into the notch of
the lens and pry gently to remove the lens.
Turn the lamp bulb anticlockwise to remove it from the lamp
bulb holder.
NOTE●Wrap a piece of cloth around th e tip of the screwdriver in
order to avoid scratching the lens.
