7-18 Vehicle care and maintenance
7
During cold weatherThe battery is weaker in cold temperatures. This has to do with
its chemical and physical properties and is why a very cold bat-
tery, especially one with a low charge, will have a hard time
starting your vehicle.
It is recommended that you have your battery and charging sys-
tem checked by an authorized Mitsubishi Motors dealer or a
repair facility of your choice before the start of cold weather. If
necessary, have it charged. This will guarantee more reliable
starting, and longer battery life.Disconnection and connectionTo disconnect the battery cable, stop the engine. Disconnect the
negative (-) terminal first, then the positive (+) terminal. To
reconnect the battery, first connect the positive (+) terminal and
then the negative (-) terminal, before starting the vehicle.
NOTE
Open the terminal cover (A) before disconnecting or con-
necting the positive (+) terminal of the battery.
BK0098300US.book 18 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-19
7
NOTE
Check each battery terminal for corrosion. You can stop
more corrosion by washing with a solution of baking soda
and water. Grease the posts and clamps after cleaning or
tightening them.

Check to see that the battery is securely installed and can-
not be moved. Also check each terminal for tightness.

If you will not be driving your vehicle for a long period of
time, remove the battery and store it in a place where the
battery fluid will not freeze. The battery only should be
stored with a full charge.
WA R N I N G
!
Never disconnect the battery while the engine is run-
ning, or you could damage the vehicle’s electrical
parts.
Never short-circuit the battery. This could cause it
to overheat and be damaged.
Keep sparks, cigarettes, and flames away from the
battery because the battery could explode.
Electrolyte (battery acid) is made of corrosive
diluted sulfuric acid. If it spills on nearby parts, it
can crack, stain, or discolor them. And if gets on
your skin or in your eyes, it can cause burns or
blindness. Please observe the following handling
instructions:
• If electrolyte gets on plastic parts or other nearby
parts, wipe it off with a soft cloth or chamois
soaked in a solution of water and neutral detergent
then immediately rinse the affected parts with
plenty of water.
• If electrolyte gets on your hands or clothes, rinse
thoroughly with water. If electrolyte gets in your
eyes, flush them with water immediately and get
immediate medical attention.

Open doors and windows in any closed space where
you may be charging or working with the battery.
Always wear protective clothing and goggles when
working with the battery, or have a skilled automo-
bile technician do it.
If you are quick-charging your battery, first discon-
nect the battery cables.

In order to prevent a short circuit, be sure to discon-
nect the negative (-) terminal first, and reconnect it
last.
If the electrolyte level is very low, have the battery
checked at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
Battery terminals and related accessories contain
lead and lead compounds. Wash hands after han-
dling.
WA R N I N G
!
BK0098300US.book 19 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-20 Vehicle care and maintenance
7Tires
N00939200478
It is important to familiarize yourself with the following terms:

Cold tire pressure:
• The measured pressure after the vehicle has been parked
for at least three hours,
or
• The measured pressure when the vehicle is driven less
than 1 mile (1.6 km) after having been parked for three
hours.

Maximum inflation pressure: the maximum permissible
cold tire inflation pressure for this tire.

Recommended inflation pressure: the inflation pressure
for optimum tire performance.
Intended outboard sidewall:
• The sidewall that contains a whitewall, bears white let-
tering or bears manufacturer, brand, and/or model name
molding that is higher or deeper than the same molding
on the other sidewall of the tire,
or
• The outward facing sidewall of an asymmetrical tire that
has a particular side that must always face outward
when mounted on a vehicle.

Passenger car tire: a tire intended for use on passenger
cars, multipurpose passenger vehicles, and trucks, that
have a gross vehicle weight rating (GVWR) of 10,000
pounds or less.

Light truck (LT) tire: a tire designated by its manufacturer
as primarily intended for use on lightweight trucks or mul-
tipurpose passenger vehicles.

Tread: portion of a tire that comes into contact with the
road.

Tread rib: a tread section running circumferentially
around a tire.

Tread separation: pulling away of the tread from the tire
carcass.

Carcass: the tire structure, except tread and sidewall rub-
ber which, when inflated, bears the load.

Sidewall: portion of a tire between the tread and bead.

Section width: the linear distance between the exteriors of
the sidewalls of an inflated tire, excluding elevations due
to labeling, decoration, or protective bands.

Bead: the part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is shaped to
fit the rim.

Ply: a layer of rubber-coated parallel cords.
WA R N I N G
!
Driving with tires that are worn, damaged or
improperly inflated is dangerous.
These type tire conditions will adversely affect vehi-
cle performance.
These type tire conditions can also cause a tread sep-
aration or blowout which may result in an accident
causing serious injury or death.
Tires, including spare tire, degrade over time with
age even when they are not being used. It is recom-
mended that tires over 6 years generally be replaced
even if damage is not obvious.
BK0098300US.book 20 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-21
7

Cord: the strands forming the plies in the tire.

Rim: a metal support for a tire or a tire and tube assembly
upon which the tire beads are seated.

Rim diameter: nominal diameter of the bead seat.

Groove: the space between two adjacent tread ribs.Tire Markings
Size Designation
EXAMPLE:P215/65R15

NOTE

European/Japanese metric tire sizing is based on
European/Japanese design standards. Tires designed
to these standards have the tire size molded into the
sidewall beginning with the section width. The letter
“P” is absent from this tire size designation. Exam-
ple: 215/65R15 96H.

LT (Light Truck) -metric tire sizing is based on
U.S.A. design standards. The size designation for
LT-metric tires is the same as for P-metric tires
except for the letters “LT” that are molded into the
sidewall preceding the size designation. Example:
LT235/85R16.


Temporary spare tires are high pressure compact
spares designed for temporary emergency use only.
Tires designed to this standard have the letter “T”
molded into the sidewall preceding the size designa-
tion. Example: T145/80D18 103M.
PPassenger car tire size based on U.S.A. design
standards
215 Section width in millimeters (MM.)
65Aspect ratio in percent (%)
Ratio of section height to section width of tire.
RConstruction code
• “R” means radial construction.
• “D” means diagonal or bias construction.
15 Rim diameter in inches (in)
BK0098300US.book 21 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-22 Vehicle care and maintenance
7
Service Description
EXAMPLE: 95H

Maximum Load
Maximum load indicates the maximum load this tire is
designed to carry.Maximum Pressure
Maximum Pressure indicates the maximum permissible
cold tire inflation pressure for this tire.
Tire Identification Number (TIN)
The TIN may be found on both sides of the tire but the
date code and optional code may only be on one side.
Look for the TIN on the outboard side of tires as mounted
on the vehicle. If the TIN is not found on the outboard
side then you will find it on the inboard side of the tire.
EXAMPLE: DOT MA L9 ABCD 1504
95Load index
A numerical code associated with the maxi-
mum load a tire can carry.
HSpeed symbol
A symbol indicating the range of speeds at
which a tire can carry a load corresponding to
its load index under certain operating condi-
tions.
The maximum speed corresponding to the
speed symbol should only be achieved under
specified operating conditions. (i.e. tire pres-
sure, vehicle loading, road conditions and
posted speed limits)
WA R N I N G
!

Overloading of your tire is dangerous. Over-
loading can cause tire failure, affect vehicle
handling, and increase your stopping distance.
Use tires of the recommended load capacity for
your vehicle. Never overload them.
DOTDepartment of Transportation
This symbol certifies that the tire is in compli-
ance with the U.S. Department of Transporta-
tion tire safety standards, and is approved for
highway use.
MACode representing the tire manufacturing
location. (2 digits)
L9
ABCDCode representing the tire size. (2 digits)
Code used by tire manufacturer. (1 to 4 digits)
15Number representing the week in which the
tire was manufactured. (2 digits)
04Number representing the year in which the
tire was manufactured. (2 digits)
BK0098300US.book 22 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-23
7
Treadwear, Traction and Temperature GradesTreadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded
150 would wear one and one-half (1
1/2) times as well on the
government course as a tire graded 100. The relative perfor-
mance of tires depends upon the actual conditions of their use,
however, and may depart significantly from the norm due to
variations in driving habits, service practices and differences in
road characteristics and climate.
Traction
The traction grades, from highest to lowest, are AA, A, B and
C. Those grades represent the tire’s ability to stop on wet pave-
ment as measured under controlled conditions on specified
government test surfaces of asphalt and concrete. A tire
marked C may have poor traction performance.
Temperature
The temperature grades are A (the highest), B and C, represent-
ing the tire’s resistance to the generation of heat and its ability
to dissipate heat when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained high tempera-
ture can cause the material of the tire to degenerate and reduce
tire life, and excessive temperature can lead to sudden tire fail-
ure. The grade C corresponds to a level of performance which
all passenger car tires must meet under the Federal Motor Vehi-
cle Safety Standard No. 109. Grades B and A represent higher
levels of performance on the laboratory test wheel than the
minimum required by law.
Tire inflation pressures
N00939300105
Proper tire inflation pressure is essential for the safe and satis-
factory operation of your vehicle. The wrong tire pressure will
cause problems in three major areas:

Safety
Too little pressure increases flexing in the tire and can
cause tire failure. Too much pressure can cause a tire to
lose its ability to cushion shock. Objects on the road and
potholes could then cause tire damage that may result in
tire failure.

Economy
The wrong tire pressure can cause uneven wear patterns in
the tire tread. These abnormal wear patterns will reduce
the tread life, and the tire will have to be replaced sooner.
Too little pressure also makes it harder for the tire to roll,
and this uses up more fuel.

Ride comfort and vehicle stability
The superior riding experience built into your vehicle
partly depends on the correct tire pressure. Too much
pressure gives an uncomfortable and jarring ride. Too lit-
tle pressure feels as if your vehicle is slow to respond.
Unequal tire pressures can make steering your vehicle
uneven and unpredictable.
The correct tire pressure for your vehicle is listed on the plac-
ard attached to the sill of the driver’s door.
(Refer to “Tire and loading information placard” on page 9-4.)
BK0098300US.book 23 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-24 Vehicle care and maintenance
7
The recommended inflation pressures should be used for the
tires listed below.
Tire pressures should be checked, and adjusted if necessary, at
least once a month.
Pressures should be checked more often whenever weather
temperatures change severely, because tire pressures change
with outdoor temperatures. The pressures listed on the placard
are always “cold inflation pressure”.
Cold inflation pressure is measured after the vehicle has been
parked for at least three hours or is driven less than 1 mile
(1.6 km) after having been parked for three hours.
Cold inflation pressure must not go above the maximum values
molded into the tire sidewall. After driving several miles, your
tire inflation pressure may increase 14 to 41 KPA, 2 to 6 PSI
from the cold inflation pressure. Do not let air out of the tires to
get back to the specified cold pressure, or your tire pressure
will be too low.
Check your tires each time you refuel. If one tire looks lower
than the others, check the pressure for all of them.
You should also take the following safety precautions:

Keep your tires inflated to the recommended pressures.
(See the tire and loading information placard attached to
the sill of the driver’s door.)

Stay within the recommended load limits.

Make sure that the weight of any load in your vehicle is
evenly distributed.
Drive at safe speeds.

After filling your tires to the correct pressure, check them
for damage and air leaks. Be sure to replace the caps on
the valve stems.
Item
Tire size
Front
Rear
Normal tireP225/50R17
P235/45R18220 KPA,
32 PSI220 KPA,
32 PSI
Compact spare tire T125/70D16 420 KPA, 60 PSI
BK0098300US.book 24 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-25
7
Replacing tires and wheels
N00939600296
Tire maintenance
N00939700167
The following maintenance steps are recommended:

Check tire pressures regularly.

Have regular maintenance done on the wheel balance and
front and rear suspension alignment.

Rotate your tires regularly as described in the “Tire rota-
tion” section on page 7-26.
CAUTION
!
Avoid using different size tires and wheels from the
ones listed, and avoid the combined use of different
types of tires and wheels. Using different size or type
tires and wheels may affect driving safety.
Refer to “Tires and wheels” on page 9-9.
Even if a wheel has the same rim size and offset as
the specified type of wheel, its shape may prevent it
from being fitted correctly. Consult an authorized
Mitsubishi Motors dealer or a repair facility of your
choice before using wheels that you have.
As your vehicle is equipped with a tire pressure
monitoring system, use only Mitsubishi genuine
wheels.
Other wheels do not permit correct installation of
tire inflation pressure sensors and can cause air
leakage and sensor failure, which would not be cov-
ered by your vehicle’s warranty.
See an authorized Mitsubishi Motors dealer when
you replace a tire or wheel.
BK0098300US.book 25 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-26 Vehicle care and maintenance
7
Tread wear indicators
N00939800054
Tread wear indicators are built into the original equipment tires
on your vehicle to help you know when your tires should be
replaced. Many states have laws requiring that you replace
your tires at this point.
These indicators are molded into the bottom of the tread
grooves and will appear when the tire tread is worn down to
1/16 inch (1.6 mm).
When the bands appear next to one another in two or more
places, replace your tires. NOTE
Tire wear indicators can have different marks and loca-
tions depending on the tire manufacturer.
Tire rotation
N00939900390
To even out the wear on your tires and make them last longer,
Mitsubishi Motors Corporation recommends that you rotate
your tires at the mileage listed in the “WARRANTY AND
MAINTENANCE MANUAL”.
However, the timing for tire rotation may vary according to
your vehicle condition, road surface conditions, and your own
personal driving habits. Any time you notice unusual wear,
rotate your tires as soon as possible.
When rotating tires, check for uneven wear, damage, and wheel
alignment. Abnormal wear is usually caused by a wrong tire
pressure, wheels that are not aligned properly, wheels that are
out-of-balance, or severe braking.
Check with an authorized Mitsubishi Motors dealer or a repair
facility of your choice to find out the reason for uneven tread
wear.
The first tire rotation is the most important one. It will allow all
your tires to wear evenly.
1- Location of the tread wear indicator
2- Tread wear indicator
BK0098300US.book 26 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-27
7
CAUTION
!
A compact spare tire can be installed temporarily in
place of a tire that has been removed during the tire
rotation. However, it must not be included in the

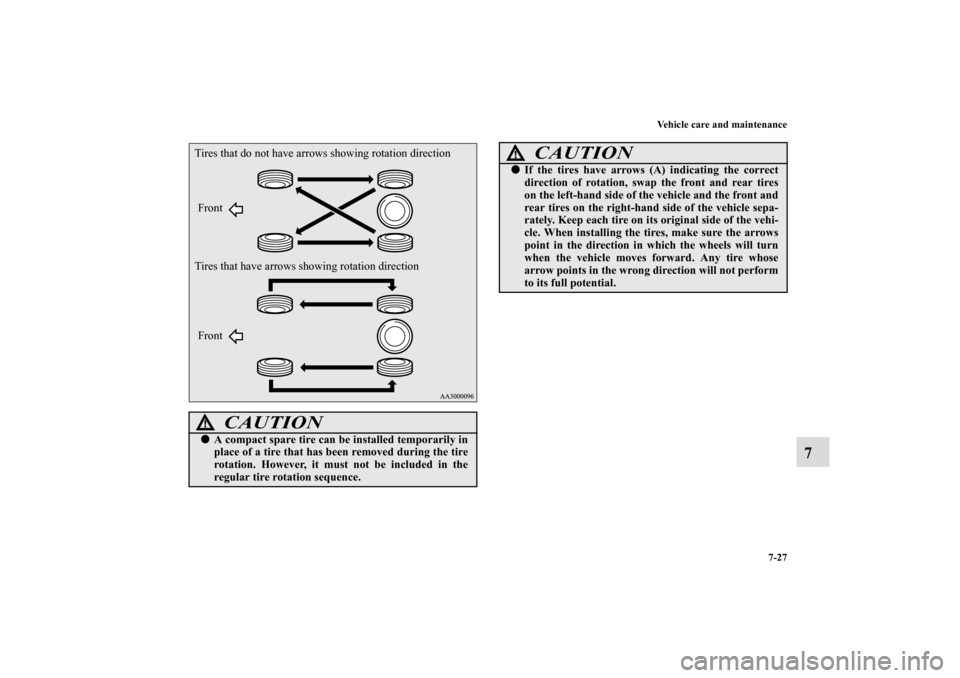

regular tire rotation sequence.Tires that do not have arrows showing rotation direction
Tires that have arrows showing rotation directionFront
Front
CAUTION
!
If the tires have arrows (A) indicating the correct
direction of rotation, swap the front and rear tires
on the left-hand side of the vehicle and the front and
rear tires on the right-hand side of the vehicle sepa-
rately. Keep each tire on its original side of the vehi-
cle. When installing the tires, make sure the arrows
point in the direction in which the wheels will turn
when the vehicle moves forward. Any tire whose
arrow points in the wrong direction will not perform
to its full potential.
BK0098300US.book 27 ページ ２００８年１２月８日　月曜日　午前１１時３７分
