MITSUBISHI ECLIPSE 2010 4.G Owners Manual

7-58 Vehicle care and maintenance
7

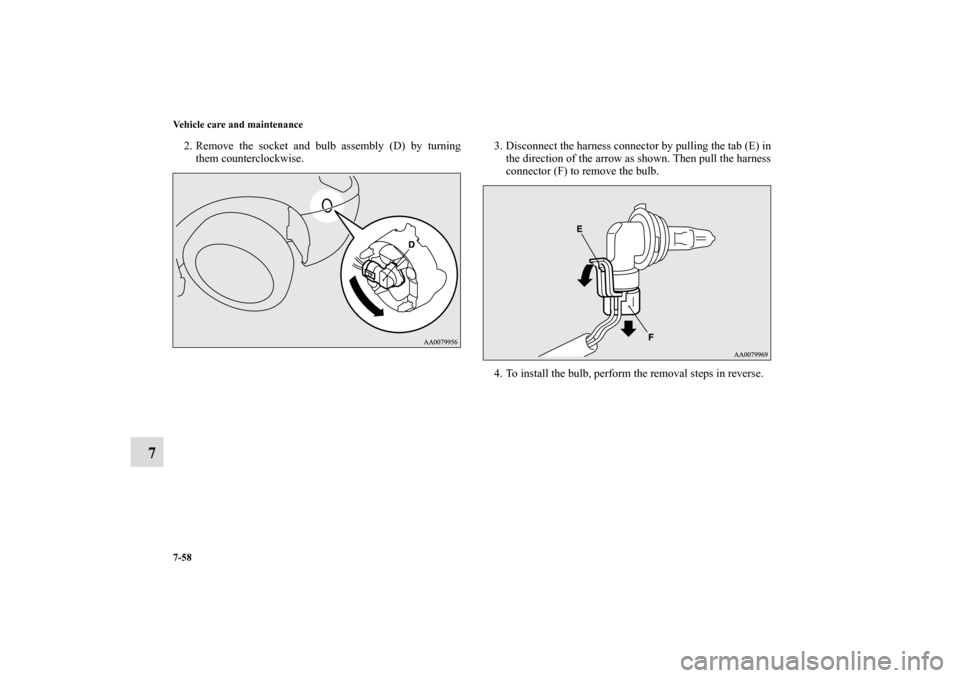

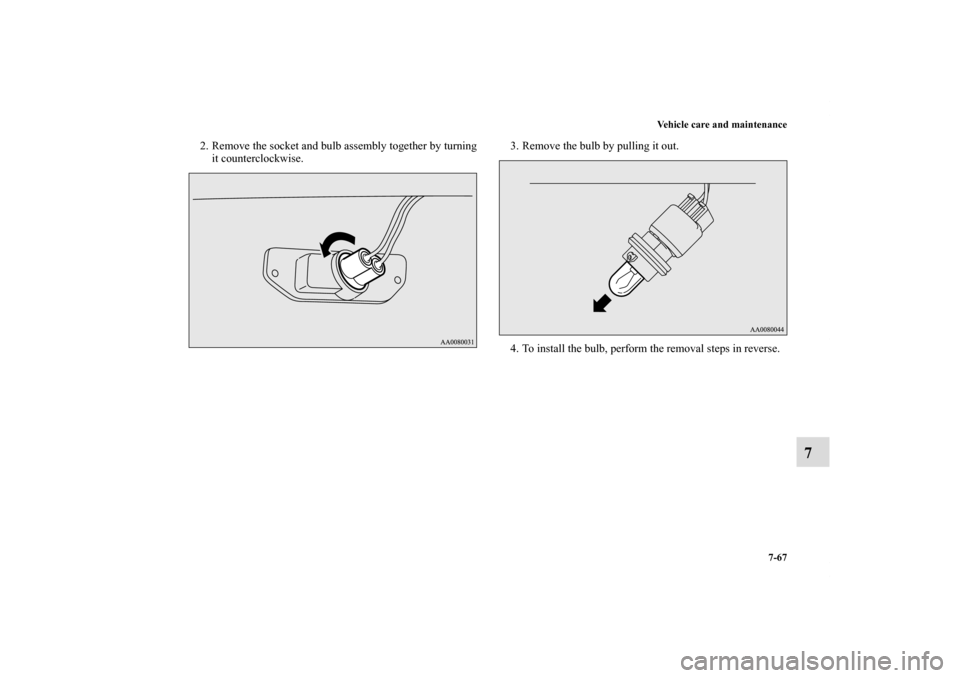

2. Remove the socket and bulb assembly (D) by turning
them counterclockwise.3. Disconnect the harness connector by pulling the tab (E) in
the direction of the arrow as shown. Then pull the harness
connector (F) to remove the bulb.
4. To install the bulb, perform the removal steps in reverse.
BK0098300US.book 58 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-59
7

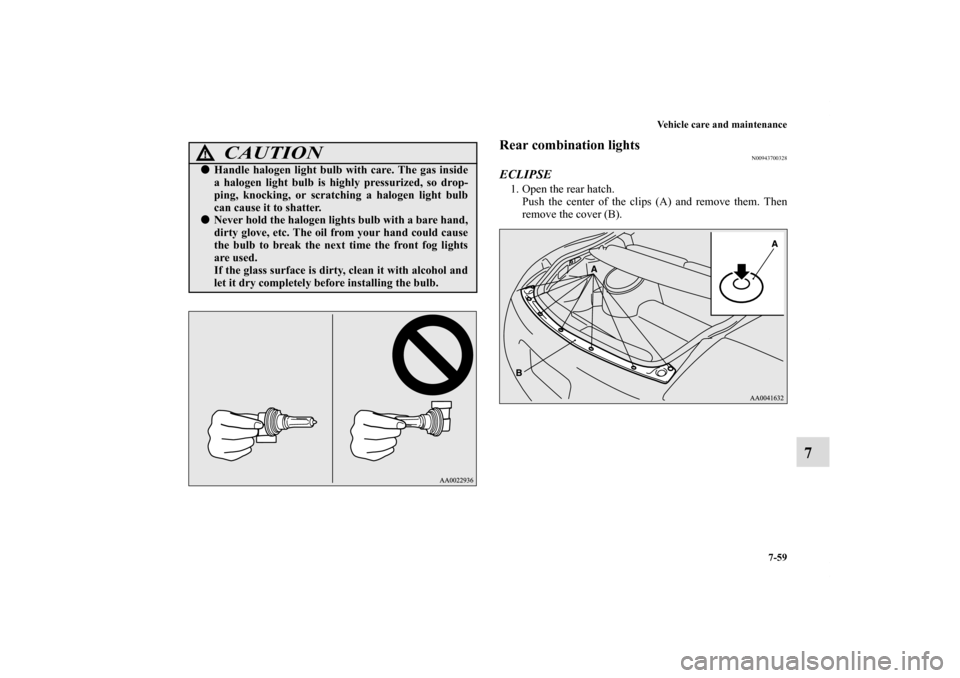

Rear combination lights
N00943700328
ECLIPSE1. Open the rear hatch.
Push the center of the clips (A) and remove them. Then
remove the cover (B).
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the front fog lights
are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0098300US.book 59 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-60 Vehicle care and maintenance
7

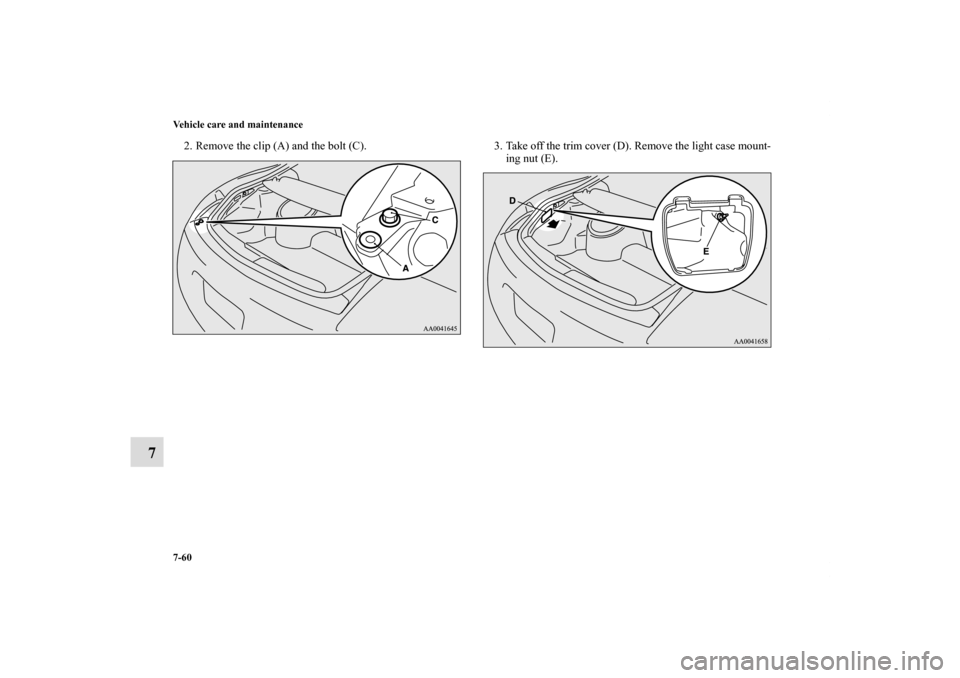

2. Remove the clip (A) and the bolt (C). 3. Take off the trim cover (D). Remove the light case mount-
ing nut (E).
BK0098300US.book 60 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-61
7
4. Insert the tip of the screwdriver at the edge of the light
unit, pry gently to remove the light unit.
Then move the light unit toward the rear of the vehicle
and remove the clip (F).NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.5. Remove the socket and bulb assemblies by turning them
counterclockwise.
Remove the bulb by pulling it out.
G- Back-up light
H- Rear turn signal light
I- Rear side-marker light
BK0098300US.book 61 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-62 Vehicle care and maintenance
7

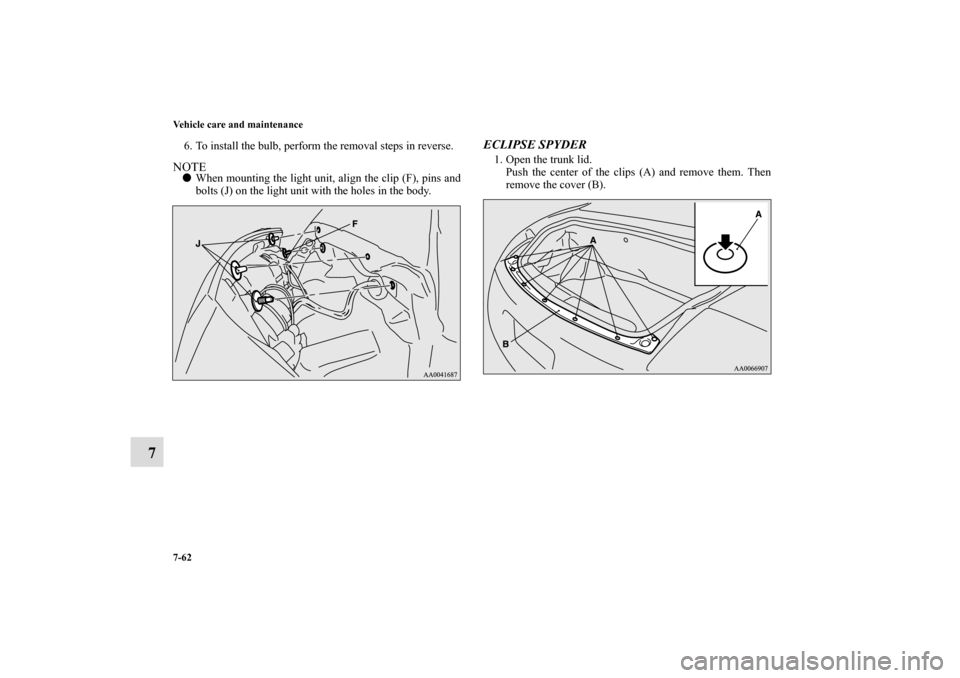

6. To install the bulb, perform the removal steps in reverse.NOTE
When mounting the light unit, align the clip (F), pins and
bolts (J) on the light unit with the holes in the body.
ECLIPSE SPYDER1. Open the trunk lid.
Push the center of the clips (A) and remove them. Then
remove the cover (B).
BK0098300US.book 62 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-63
7

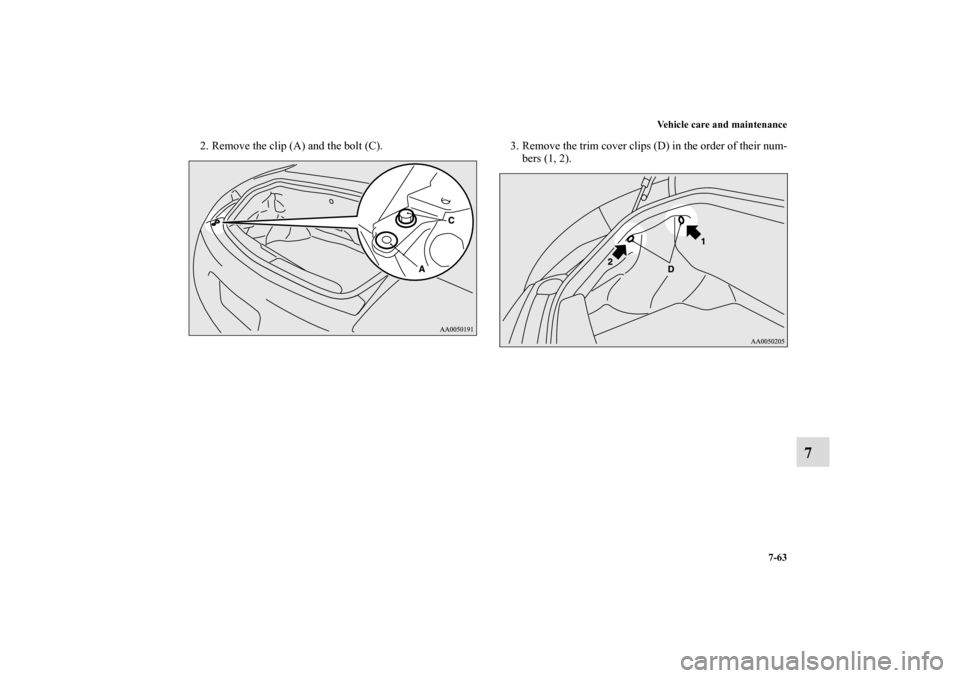

2. Remove the clip (A) and the bolt (C). 3. Remove the trim cover clips (D) in the order of their num-
bers (1, 2).
BK0098300US.book 63 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-64 Vehicle care and maintenance
7

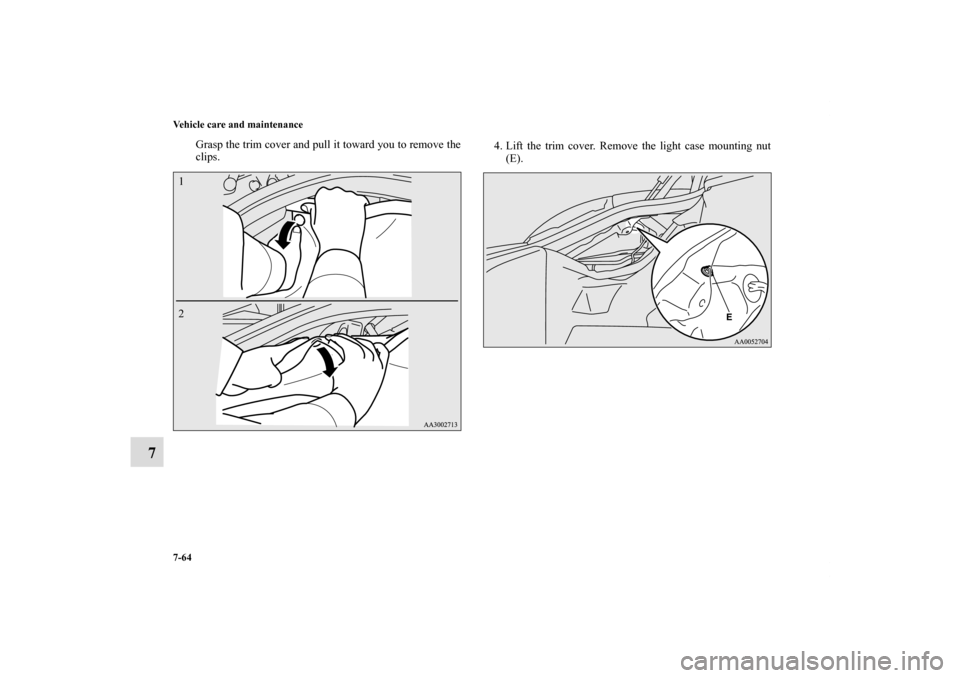

Grasp the trim cover and pull it toward you to remove the
clips.4. Lift the trim cover. Remove the light case mounting nut
(E).
1
2BK0098300US.book 64 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-65
7

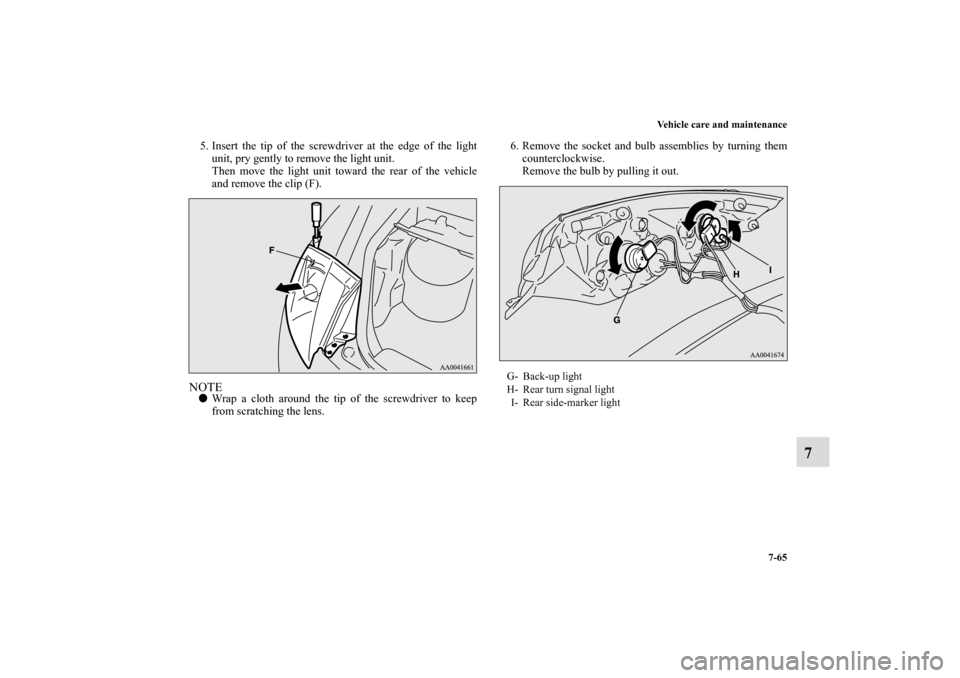

5. Insert the tip of the screwdriver at the edge of the light
unit, pry gently to remove the light unit.
Then move the light unit toward the rear of the vehicle
and remove the clip (F).NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.6. Remove the socket and bulb assemblies by turning them
counterclockwise.
Remove the bulb by pulling it out.
G- Back-up light
H- Rear turn signal light
I- Rear side-marker light
BK0098300US.book 65 ページ ２００８年１２月８日　月曜日　午前１１時３７分

7-66 Vehicle care and maintenance
7

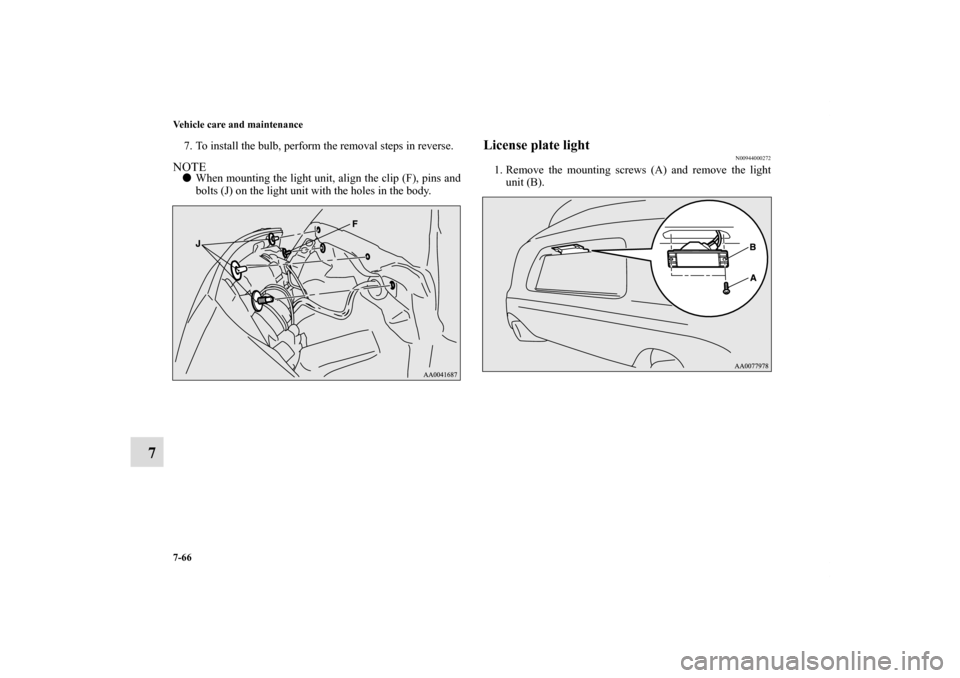

7. To install the bulb, perform the removal steps in reverse.NOTE
When mounting the light unit, align the clip (F), pins and
bolts (J) on the light unit with the holes in the body.
License plate light
N00944000272
1. Remove the mounting screws (A) and remove the light
unit (B).
BK0098300US.book 66 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Vehicle care and maintenance
7-67
7
2. Remove the socket and bulb assembly together by turning
it counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
BK0098300US.book 67 ページ ２００８年１２月８日　月曜日　午前１１時３７分
