2-56 Seat and restraint systems
2
Side impact in an area away from the passenger compartment
Motorcycle or other similar small vehicle collision with the
side of vehicle
Collision with a utility pole, tree or other narrow object
Oblique side impact
Vehicle rolls onto its side or roof
BK0115900US.book 56 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Seat and restraint systems
2-57
2

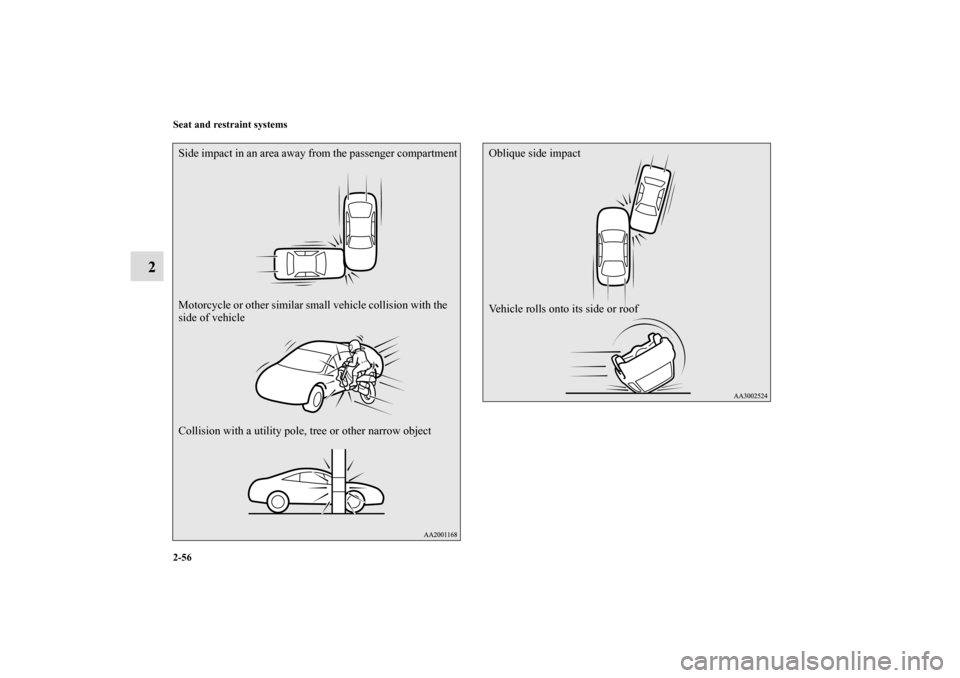

The side air bag and curtain air bag ARE NOT
DESIGNED TO DEPLOY when …The side air bag and curtain air bag are not designed to deploy
in situations where they cannot provide protection to the occu-
pants. Some typical situations are shown in the illustrations.
Because the side air bags and curtain air bags do not protect the
occupants in all types of collisions, be sure to always wear your
seat belts properly.
SRS servicing
N00408500627
Head-on collision
Rear end collision
WA R N I N G
!
Any maintenance performed on or near the compo-
nents of the SRS should be performed only by an
authorized Mitsubishi Motors dealer. Do not permit
anyone else to do any service, inspection, mainte-
nance or repair on any SRS components or wiring.
Similarly, no part of the SRS should ever be han-
dled, removed or disposed by anyone except an
authorized Mitsubishi Motors dealer.
Improper work methods on the SRS components or
wiring could result in an accidental air bag deploy-
ment or could make the SRS inoperable. Either of
these situations could result in serious injury or
death.
Do not modify your steering wheel or any other SRS
component or related vehicle part. For example,
replacement of the steering wheel, or modifications
to the front bumper or body structure can adversely
affect SRS performance and may lead to injury.
If your vehicle has received any damage, you should
have the SRS inspected by an authorized Mitsubishi
Motors dealer to make sure it is in proper working
order.
Do not modify your front seats, center pillar or cen-
ter console. Such modifications can adversely affect
SRS performance and may lead to injury.
Also, if you discover any tear or open seam in the
seat fabric near the side air bag, have the seat
inspected by an authorized Mitsubishi Motors
dealer.
BK0115900US.book 57 ページ ２００９年１０月２７日　火曜日　午後１２時１分

2-58 Seat and restraint systems
2
NOTE
When you transfer ownership of the vehicle to another
person, we urge you to alert the new owner that it is
equipped with the SRS and refer that owner to the applica-
ble sections in this owner’s manual.

If you decide to junk or scrap your vehicle, we urge you to
first take it to an authorized Mitsubishi Motors dealer so
that the SRS can be made safe for disposal.

If any of the following parts needs to be modified for use
by a handicapped person, the advanced air bag system
will be greatly affected. Please consult an authorized
Mitsubishi Motors dealer.
• Driver’s seat
• Front passenger seat
• Front seat belt
• Steering wheel
• Instrument panel
For ECLIPSE, if you find a crack in or damage to
the front pillar, rear pillar, or roof side rail where
the curtain air bag is located, have the SRS
inspected by an authorized Mitsubishi Motors
dealer.
WA R N I N G
!
[For vehicles sold in U.S.A.]
To contact Mitsubishi Motors North America, Inc.
call 1-888-648-7820 or write to:
Mitsubishi Motors North America, Inc.
Customer Relations Department
P. O. Box 6400
Cypress, CA 90630-0064
[For vehicles sold in Canada]
To contact Mitsubishi Motor Sales of Canada, Inc.
call 1-888-576-4878 or write to:
Mitsubishi Motor Sales of Canada, Inc.
Customer Relations Department
P.O. Box 41009
4141 Dixie Road
Mississauga, ON L4W 5C9
[For vehicles sold in Puerto Rico]
To contact Mitsubishi Motor Sales of Caribbean,
Inc.
call 1-800-981-0452 or write to:
Mitsubishi Motor Sales of Caribbean, Inc.
Customer Service Department
P.O. Box 192216
SAN JUAN PR 00919-2216
BK0115900US.book 58 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Seat and restraint systems
2-59
2
Warning labels
N00408600282

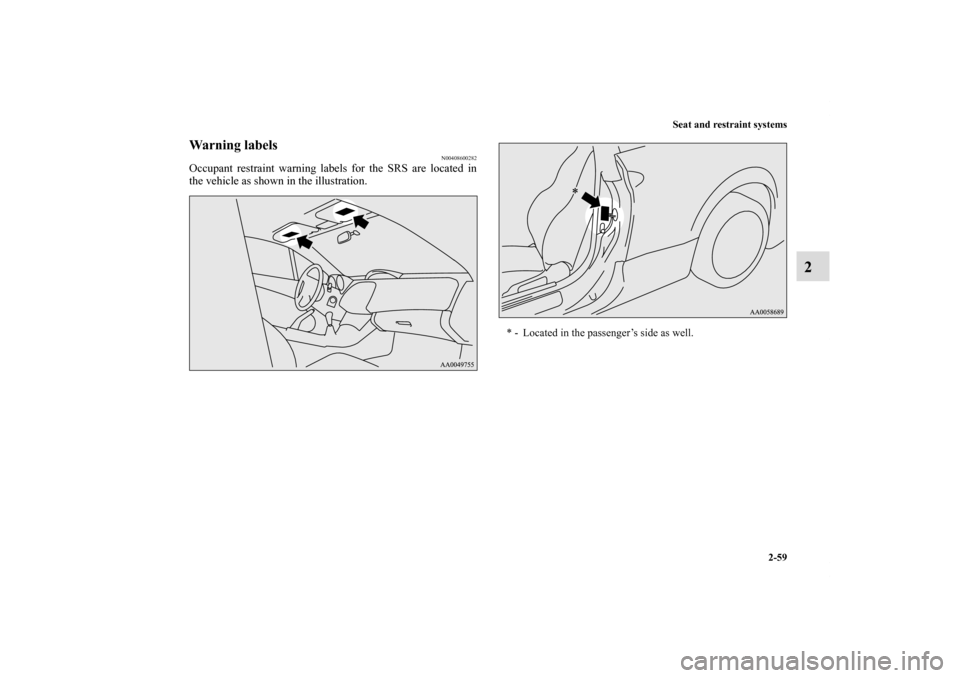

Occupant restraint warning labels for the SRS are located in
the vehicle as shown in the illustration.
* - Located in the passenger’s side as well.
BK0115900US.book 59 ページ ２００９年１０月２７日　火曜日　午後１２時１分

BK0115900US.book 60 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .3- 3
Keyless entry system . . . . . . . . . . . . . . . . . . . . . . .3- 7
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 13
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . .3- 15
Rear hatch (ECLIPSE)/
Trunk lid (ECLIPSE SPYDER) . . . . . . . . . . . . .3- 16
Inside rear hatch/trunk lid release . . . . . . . . . . . . .3- 18
Inside emergency trunk lid release
(ECLIPSE SPYDER) . . . . . . . . . . . . . . . . . . . . .3- 20
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . .3- 22
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 26
Sunroof (ECLIPSE only, if so equipped). . . . . . . .3- 28
Electric convertible top (ECLIPSE SPYDER) . . .3- 31
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 54
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . .3- 55
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . .3- 56
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . .3- 58
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 60
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . .3- 63
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 64
Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . . . .3- 67
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 80
Anti-lock braking system . . . . . . . . . . . . . . . . . . . .3- 82
Active stability control (ASC) . . . . . . . . . . . . . . . .3- 85
Power steering system . . . . . . . . . . . . . . . . . . . . . .3- 90Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 90
Tire pressure monitoring system . . . . . . . . . . . . . . 3- 97
Rear-view camera (if so equipped) . . . . . . . . . . . . 3- 102
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 3- 105
Indicator and warning light package . . . . . . . . . . . 3- 111
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 112
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 112
Multi center display. . . . . . . . . . . . . . . . . . . . . . . . 3- 115
Combination headlights and dimmer switch . . . . . 3- 126
Headlight levelling switch (if so equipped) . . . . . 3- 129
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 130
Hazard warning flasher switch . . . . . . . . . . . . . . . 3- 131
Front fog light switch . . . . . . . . . . . . . . . . . . . . . . 3- 132
Wiper and washer switch . . . . . . . . . . . . . . . . . . . 3- 133
Electric rear window defogger switch. . . . . . . . . . 3- 136
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 137
Hands-free Bluetooth
® cellular phone interface
system with voice recognition (if so equipped) . 3- 138
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 167
Vanity mirror (if so equipped) . . . . . . . . . . . . . . . . 3- 168
Power outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 169
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 170
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . 3- 175
Floor console box . . . . . . . . . . . . . . . . . . . . . . . . . 3- 176
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 178
Rear shelf panel (ECLIPSE only) . . . . . . . . . . . . . 3- 178
Coat hooks (ECLIPSE only, if so equipped) . . . . . 3- 180
Luggage hooks (ECLIPSE only) . . . . . . . . . . . . . . 3- 180
BK0115900US.book 1 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-2 Features and controls
3Break-in recommendations
N00508700226
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine.

Avoid rough driving such as fast starts, sudden accelera-
tion, prolonged high-speed driving and sudden braking.
These would have a detrimental effect on the engine and
also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
gear.

Do not overload the vehicle. Observe the seating capacity
(See “Cargo load precautions” on page 4-12).

Do not use this vehicle for trailer towing.
Keys
N00508800445
Two keys are provided.
The keys fit all locks. Keep one in a safe place as a spare key.
BK0115900US.book 2 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-3
3
NOTE
The key number (A) is stamped on the key number plate
as shown in the illustration.
Make a record of the key number and store the key and
key number plate in separate places, so that you can order
a key from your authorized Mitsubishi Motors dealer if
the original keys are lost.

The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent damage.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
• Do not take the remote control transmitter apart.
• Do not excessively bend the key or subject it to strong
impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as key holders.
• Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be exposed to high
temperature or high humidity.

As your vehicle is equipped with an electronic immobi-
lizer, the engine is designed so that it will not start if the
ID code registered in the immobilizer computer and the
key’s ID code do not match. Refer to the section entitled
“Electronic immobilizer” for details and key usage.
Electronic immobilizer
(Anti-theft starting system)
N00509100676
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions), using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
BK0115900US.book 3 ページ ２００９年１０月２７日　火曜日　午後１２時１分

3-4 Features and controls
3
NOTE
In the following cases, the vehicle may not be able to rec-
ognize the registered ID code from the key. This means
the engine will not start even when the registered key is
turned to the “START” position.
• When the key contacts a key ring or other metallic or
magnetic object (Type A)
• When the key grip contacts metal of another key
(Type B)
• When the key contacts or is close to other immobilizing
keys (including keys of other vehicles) (Type C)

In cases like the above, move the offending object(s) away
from the key and turn the key back to the “ACC” or
“LOCK” position. Then try to start the engine again. If the
engine does not start, contact an authorized Mitsubishi
Motors dealer.
BK0115900US.book 4 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Features and controls
3-5
3
NOTE
Electronic immobilizer is not compatible with commer-
cially available remote starting systems. Use of commer-
cially available remote starting systems may result in
vehicle starting problems and a loss of security protection.

A system failure is suspected when the ignition key is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.Replacement keysOnly keys that have been programmed to the vehicle electron-
ics can be used to start the vehicle.
If you lose a key, you can order a key from your authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to your authorized
Mitsubishi Motors dealer to have your ID code changed.
Additional keysTo add a key, you need to register the ID code to the vehicle.
Registering the ID code can be done by your authorized
Mitsubishi Motors dealer. Or it can be done by yourself (except
for vehicles sold in Canada).
For you to register the ID code yourself, follow the “Customer
key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and any remain-
ing keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 keys, but you may add up to 6
more keys.Customer key programming (Except for vehicles
sold in Canada)You can program new keys to the system if you have two valid
(already registered) keys and blank (not registered) immobi-
lizer key (specially cut for your vehicle at your Mitsubishi
Motors dealer) by doing the following:
1. Insert the first valid key into the ignition and turn the igni-
tion to the “ON” position for 5 seconds.
2. Turn the ignition to the “LOCK” position and remove the
first key.
3. Within 30 seconds of turning the first key to the “LOCK”
position, insert the second valid key into the ignition and
turn it to the “ON” position. About 10 seconds later, the
immobilizer indicator will start blinking.
CAUTION
!
Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0115900US.book 5 ページ ２００９年１０月２７日　火曜日　午後１２時１分
