Indicators 5-180 Features and controls
5
The rest time can be set.
N00519900127 N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turn signal lever is used. Both arrows will flas
h when the hazard warn-
ing flasher switch is pressed.
N00520100086
A blue light comes on when the headlightsare on high beam.
N00520201273
This indicator comes on while the front foglights are on.
N00551301094
This indicator light illuminates while theparking lights are on.
Screen
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide fo
r taking rests during a long drive.
The interval from the start of your trip un
til this message is displayed can be set.
Refer to “Changing the function settings” on page 5-152. The display and buzzer alert the driver when the set time is reached. If you continue to drive without having a rest, the buzzer sounds approx
imately every 5 minutes to encourage you to
take a rest.  In the following cases, the time driven is re
set and the display returns to the previous
display screen. After this, when the set time is reached again, the display and buzzer encourage you to take a rest. • The buzzer sounds three times. • The ignition switch is turned to the “OFF
” position or the operation mode is put in
OFF. • The multi-information display switches are held (for approximately 2 seconds or more).

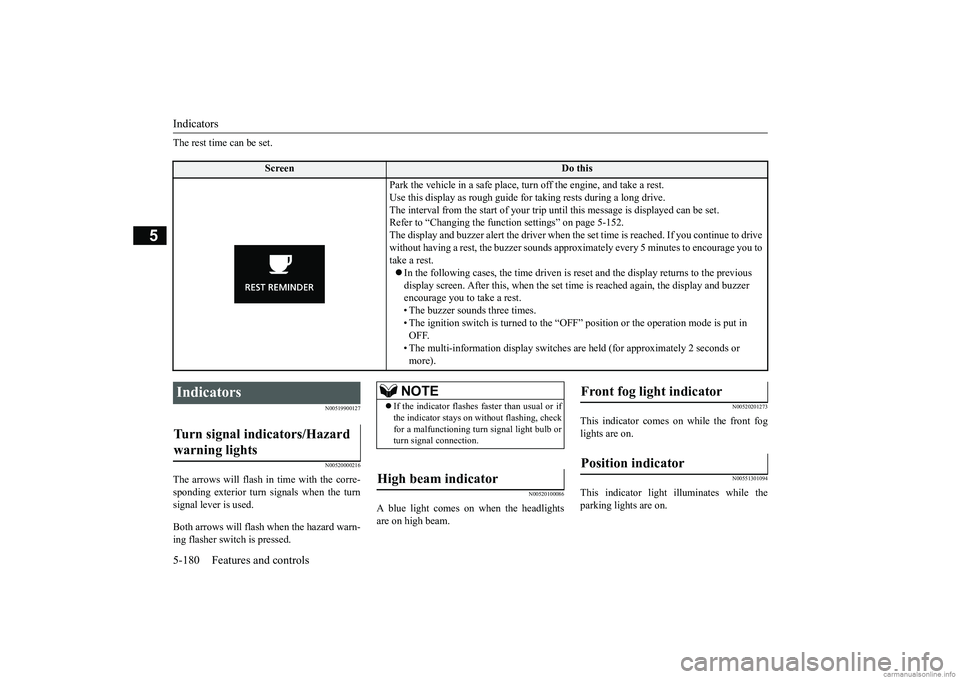

Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on without flashing, check for a malfunctioning turn signal light bulb orturn signal connection.
High beam indicator
Front fog light indicator Position indicator
BK0252700US.book
180 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Warning lights
Features and controls 5-181
5
N00520300147 N00520401565
This light comes on when the ignition switch is turned to the “ON” position (engine off) or the operation mode is put in ON. When the engine is started, the light shouldgo off a few seconds later. A warning is alsodisplayed in the multi-information display. The warning light also illuminates after start- ing the engine under the following condi-tions.  When the parking brake is still applied.  When the brake fluid level is low.  When the brake system circuit is not working properly.
When the vehicle is moving at more than 5 mph (8 km/h) and parking brake applied, a buzzer will sound to inform the driver that theparking brake is not properly release. Before driving, be sure that the parking brake is fully released and brake warning light is off.
N00591200043
This warning light will
illuminate when there
is a fault in the Electric parking brake system. Normally, this warning light illuminateswhen the operation mode is put in ON, and goes off in a few seconds.
Warning lights Brake warning light (red) and buzzer
CAUTION If the brake warning light and the Anti-lock braking system warning light are illuminated at the same time, the braking force distribu- tion function will not operate, so the vehicle may be destabilized during sudden brakingunder the following conditions.• When the brake warning light does not goout even when the parking brake is released.• When the brake warning light stays onwhile driving.• If the above occurs, avoid sudden brakingand high-speed driving. Park the vehicle in a safe place, and contact an authorizedMitsubishi Motors dealer or a repair facility of your choice as soon as possible.
 The vehicle should be brought to a halt in the following manner when brake performance is deteriorated.• Confirm that the vehicle slows down whenyou press down on the brake pedal harderthan usual. In some cases, the brake pedal may go all the way to the floor.
• Should the brakes fail, use engine brakingto reduce your speed and observe the fol- lowings. [Vehicles with the parking brake of the lever type]Carefully pull the parking brake lever. [Vehicles with the Electric parking brake] Keep pulling the Electric parking brakeswitch. Refer to “Electric parking brake” on page 5-47. Depress the brake pedal to illuminate the stop lights to alert the vehicles behind you.
Electric parking brake warning light (yellow)
(if so equipped)
CAUTION
BK0252700US.book
181 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Warning lights 5-182 Features and controls
5
N00520501856
This indicator is a part of the onboard diag- nostic (OBD) system which monitors the emissions, engine contro
l system or continu-
ously variable transmission (CVT) control system. If a problem is detected in one of these systems, this indicator illuminates orflashes. When the ignition switch is turned to the “ON” position or the operation mode is put in ON, this indicator normally comes onand goes off after the engine has started. This indicator will come on if the fuel tank filler cap is not properly tightened. If this
indicator comes on and stays on after refuel- ing, stop the engine an
d check that the cap is
properly tightened. (Turn the cap clockwise until you hear clicking sounds.)If this indicator does not go off after several seconds or lights up while driving, have the system checked as soon as possible at anauthorized Mitsubishi Motors dealer or a repair facility of your choice.
CAUTION When the warning light remains on or does not come on, there is the possibility that the parking brake cannot be operated or released. Immediately contact the nearest authorized Mitsubishi Motors dealer. Whenthe warning light comes on during driving, immediately stop the vehicle in a safe place, and contact an authorized Mitsubishi Motorsdealer. If you inevitably have to park, park the vehicle on level and stable ground, shift the selector lever in “P” (PARK) positionand place chocks or blocks.
Engine malfunction indicator (“SERVICE ENGINE SOON” or “Check engine light”)
CAUTION Driving for a long time with the engine mal- function indicator on may cause more dam- age to the emission control system. This could also affect fuel economy and drivabil-ity. If this indicator does not come on when the ignition switch is turned to the “ON” posi- tion or the operation mode is put in ON, have the system checked at an authorizedMitsubishi Motors dealer or a repair facility of your choice.
 If the engine malfunction indicator comes on while the engine is running, avoid driving at high speeds. During vehicle operation with the indicator on, the vehicle may not accelerate when youdepress the accelerator pedal. When the vehicle is stationary with the indi- cator on, you must depress the brake pedalmore firmly than usual since the engine idling speed is higher than usual and a vehi- cle with continuously variable transmission(CVT) has a stronger tendency to creep for- ward.NOTE
 Do not disconnect the battery cable when the engine malfunction indicator (“SERVICEENGINE SOON” or “Check engine light”) is on. The engine electronic control module storescritical OBD information (especially exhaust emission data), which may be lost if the bat- tery cable is disconnected while the enginemalfunction indicator is on. This will make it difficult to diagnose the cause of future prob- lems.CAUTION
BK0252700US.book
182 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Information screen display
Features and controls 5-183
5
N00520601349
This light comes on in the event of a malfunc- tion in the charging system or when the igni-tion switch is turned to the “ON” position (engine off) or the operation mode is put in ON. The warning is also displayed in themulti-information display. When the engine is started, the light should go out. Check to make sure that the light has gone out beforedriving.
N00558301077 N00558401182
This warning is displayed if the vehicle is being driven with the parking brake still applied. The brake warning light in the instru- ment cluster only comes on when the parkingbrake is applied. For details, refer to “Brake warning light (red) and buzzer” on page 5-181. When the ignition switch is turned to the “ON” position or the operation mode is put in ON, if the brake fluid is low, this warning isdisplayed. The brake warning light in the instrument cluster also illuminates.For details, refer to “Brake warning light (red) and buzzer” on page 5-181.

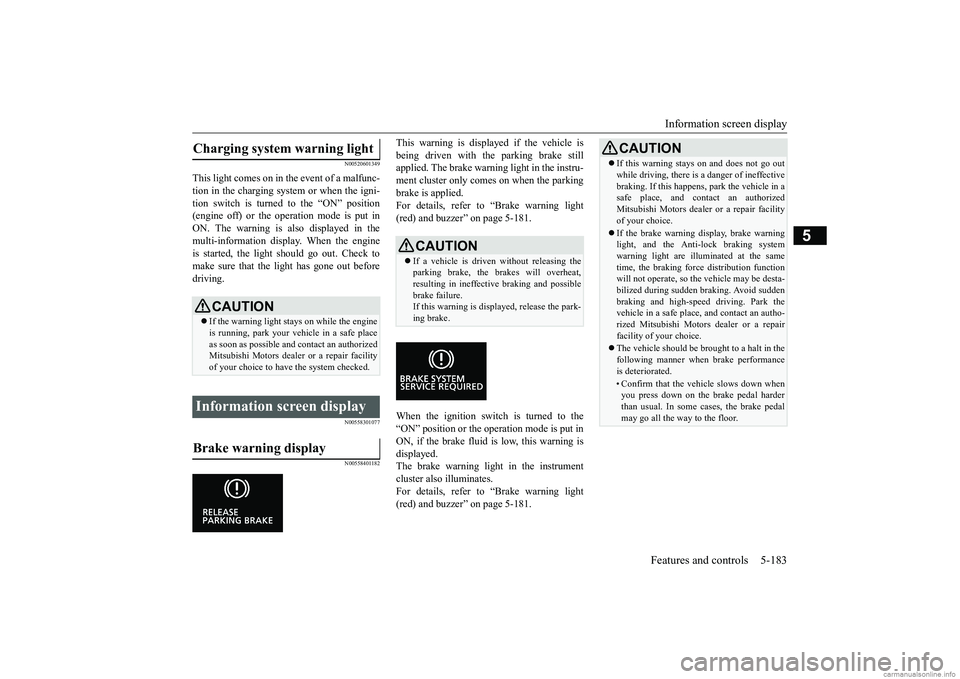

Charging system warning light
CAUTION If the warning light stays on while the engine is running, park your vehicle in a safe place as soon as possible and contact an authorizedMitsubishi Motors dealer or a repair facility of your choice to have the system checked.
Information screen display Brake warning display
CAUTION If a vehicle is driven without releasing the parking brake, the brakes will overheat,resulting in ineffective braking and possible brake failure. If this warning is displayed, release the park-ing brake.
CAUTION If this warning stays on and does not go out while driving, there is a danger of ineffective braking. If this happens, park the vehicle in a safe place, and contact an authorized Mitsubishi Motors dealer or a repair facilityof your choice. If the brake warning display, brake warning light, and the Anti-lock braking system warning light are illuminated at the same time, the braking force distribution functionwill not operate, so the vehicle may be desta- bilized during sudden braking. Avoid sudden braking and high-speed driving. Park thevehicle in a safe place, and contact an autho- rized Mitsubishi Motors dealer or a repair facility of your choice. The vehicle should be brought to a halt in the following manner when brake performanceis deteriorated.• Confirm that the vehicle slows down whenyou press down on the brake pedal harder than usual. In some cases, the brake pedal may go all the way to the floor.
BK0252700US.book
183 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Head Up Display (HUD) (if so equipped) 5-184 Features and controls
5
N00558601126
If there is a fault in
the charging system, the
warning display is displayed on the informa- tion screen in the multi-information display.The charge warning light in the instrument cluster also illuminates.
N00558701127
If the engine oil pressure drops while the engine is running, the warning display is dis- played on the information screen in the multi- information display.
N00594300029
The Head Up Display (HUD) shows informa-tion on a transparent display so that you can easily check the following information while looking ahead when driving. Displayed information: Vehicle speed  Auto-speed (cruise) control information  Speed limiter information  Adaptive Cruise Control System (ACC) information
• Should the brakes fail, use engine braking to reduce your speed and observe the fol- lowings. [Vehicles with the parking brake of the lever type]Carefully pull the parking brake lever. [Vehicles with the Electric parking brake] Keep pulling the Electric parking brakeswitch. (Refer to “Electric parking brake” on page 5-47.) Depress the brake pedal to illuminate the stop lights to alert the vehicles behind you.

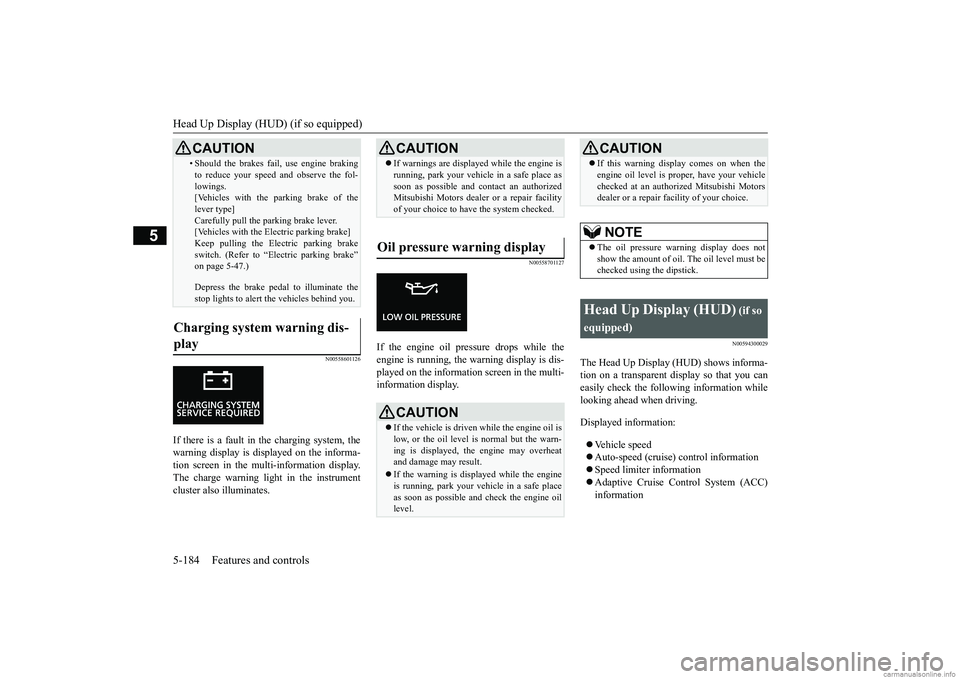

Charging system warning dis- play
CAUTION
CAUTION If warnings are displayed while the engine is running, park your vehicle in a safe place as soon as possible and contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
Oil pressure warning display
CAUTION If the vehicle is driven while the engine oil is low, or the oil level is normal but the warn- ing is displayed, the engine may overheat and damage may result. If the warning is displayed while the engine is running, park your vehicle in a safe place as soon as possible and check the engine oillevel.
 If this warning display comes on when the engine oil level is proper, have your vehicle checked at an authorized Mitsubishi Motors dealer or a repair facility of your choice.NOTE
 The oil pressure warning display does not show the amount of oil. The oil level must bechecked using the dipstick.
Head Up Display (HUD)
(if so
equipped)
CAUTION
BK0252700US.book
184 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch 5-188 Features and controls
5

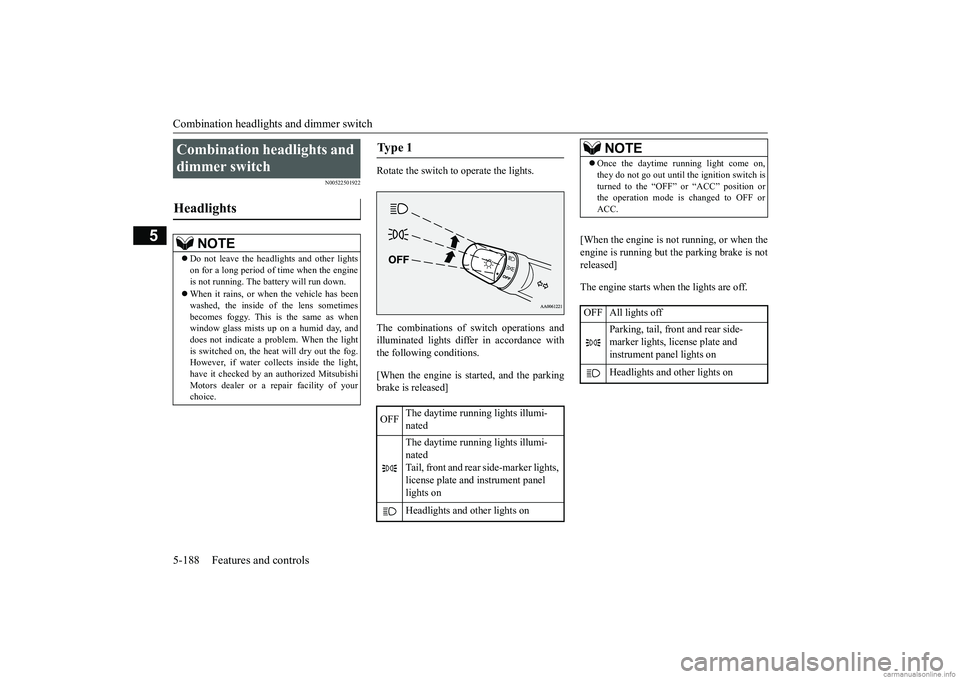

N00522501922
Rotate the switch to operate the lights. The combinations of switch operations and illuminated lights differ in accordance with the following conditions. [When the engine is started, and the parking brake is released]
[When the engine is not running, or when the engine is running but the parking brake is notreleased] The engine starts when the lights are off.
Combination headlights and dimmer switch Headlights
NOTE
 Do not leave the headlights and other lights on for a long period of time when the engine is not running. The battery will run down.  When it rains, or when the vehicle has been washed, the inside of the lens sometimes becomes foggy. This is the same as whenwindow glass mists up on a humid day, and does not indicate a problem. When the light is switched on, the heat will dry out the fog.However, if water collects inside the light, have it checked by an authorized Mitsubishi Motors dealer or a repair facility of yourchoice.
Ty p e 1 OFF
The daytime running lights illumi- nated The daytime running lights illumi- nated Tail, front and rear side-marker lights, license plate and instrument panel lights on Headlights and other lights on
NOTE
 Once the daytime running light come on, they do not go out until the ignition switch is turned to the “OFF” or “ACC” position or the operation mode is changed to OFF or ACC.
OFF All lights off
Parking, tail, front and rear side- marker lights, license plate and instrument panel lights on Headlights and other lights on
BK0252700US.book
188 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch
Features and controls 5-189
5
Rotate the switch to operate the lights. The combinations of switch operations and illuminated lights differ in accordance with the following conditions. [When the engine is started, and the parking brake is released]
[When the engine is not running, or when the engine is running but the parking brake is not released] The engine starts when the lights are off.
Ty p e 2 OFF
The daytime running lights illumi- nated
AUTO
The daytime running lights illumi- nated (when it is light outside the vehicle) Headlights and other lights turn on and off automatically in accor- dance with outside light level.
The daytime running lights illumi-nated Tail, front and rear side-marker lights, license plate and instrument panel lights on Headlights and other lights on
NOTE
 Once the daytime running light come on, they do not go out until the ignition switch is turned to the “OFF” or “ACC” position or the operation mode is changed to OFF orACC.OFF All lights off AUTO
Headlights and other lights turn on and off automatically in accor- dance with outside light level. Parking, tail, front and rear side- marker lights, license plate and instrument panel lights on Headlights and other lights on
NOTE
 The sensitivity of the automatic on/off con- trol can be adjusted. For further information, please contact your authorized Mitsubishi Motors dealer or a repair facility of your choice.As your vehicle is equipped with Smart- phone Link Display Audio, screen operations can be used to make the adjustment.Refer to the separate owner’s manual for details.  Do not cover the sensor (A) for the automatic on/off control by affixing a sticker or label to the windshield.  If the lights do not turn on or off with the switch in the “AUTO” position, manually operate the switch. Have the system checkedby an authorized Mitsubishi Motors dealer or a repair facility of your choice.
BK0252700US.book
189 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch 5-190 Features and controls
5
N00532601652
 If the following operation is performed with the combination headlights and dim- mer switch in the “ ” or “ ” position, the lights automatically turn off. [Except for vehicles equipped with the F. A . S . T. - k e y ] The ignition switch is turned to the “OFF”or “ACC” position or the key is removed from the ignition switch and the driver’s door is opened. [For vehicles equipped with the F.A.S.T.- key] The operation mode is changed to OFF or ACC and the driver’s door is opened.  If the following operation is performed with the combination headlights and dim- mer switch in the “ ” or “ ” position, the lights automatically turn off after approximately 3 minutes. [Except for vehicles equipped with the F. A . S . T. - k e y ] The ignition switch is turned to the “OFF” or “ACC” position or the key is removedfrom the ignition switch and the driver’sdoor is not opened.
[For vehicles equipped with the F.A.S.T.- key] The operation mode is changed to OFF or ACC and the driver’s door is not opened.
If the combination headlights and dimmer switch is turned to the “ ” or “ ” posi- tion again after the engine is turned off, theapproximately 3-minute auto-cutout function described above will not work. The lights (the parking lights, tail lights and license platelights) will stay on and will not turn off auto- matically.
N00584500044
This warning light will illuminate when thereis a malfunction in the LED headlights.
N00549801252
[When using a key to start the engine]If the driver’s door is opened with the key in the “OFF” or “ACC” position or removed

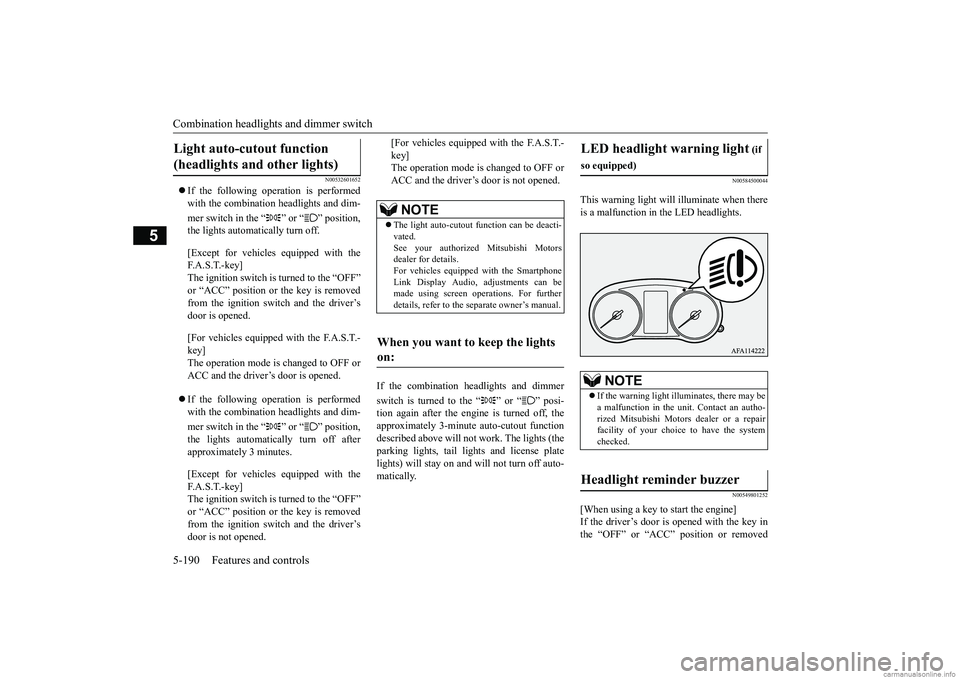

Light auto-cutout function (headlights and other lights)
NOTE
 The light auto-cutout function can be deacti- vated.See your authorized Mitsubishi Motors dealer for details. For vehicles equipped with the SmartphoneLink Display Audio, adjustments can be made using screen operations. For further details, refer to the separate owner’s manual.
When you want to keep the lights on:
LED headlight warning light
(if
so equipped)
NOTE
 If the warning light illuminates, there may be a malfunction in the unit. Contact an autho- rized Mitsubishi Motors dealer or a repairfacility of your choice to have the system checked.
Headlight reminder buzzer
BK0252700US.book
190 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch
Features and controls 5-191
5
from the ignition switch while the lights are on, the tone will sound to remind you to turn off the lights. [When using the F.A.S.T.-key to start the engine]If the driver’s door is opened with the opera- tion mode is put in OFF or ACC, or if the operation mode is changed to OFF while thelights are on, the tone will sound to remind you to turn off the lights. In either case, the lights will turn off automat- ically and so will the tone. Or you can turn the light switch to the
“OFF” position to stop
the tone.
N00549901178
To change the headlights from high beam to low beam and vice versa, pull the turn signal lever to (1). Switch the headlights to lowbeam as a courtesy whenever there are oncoming vehicles, or when there is traffic moving ahead of you. An illuminated bluelight in the instrument cluster indicates when the headlights are on high beam.
N00550001225
You can flash the high beams by pulling the lever gently toward you (2). The lights willgo back to normal when you let go. While the high beam is on, you will see a blue light on the instrument panel.
N00591300060
The Automatic High Beam (AHB) turns the high beam light on or off automatically according to surrounding light conditions.The sensor (A) detects lights, such as the lights of an oncoming vehicle, a vehicle ahead or street lights.
Dimmer (high/low beam change)
Headlight flasher
NOTE
 You can flash the high beams by pulling the lever toward you, even if the light switch isoff.  If you turn the lights off with the head lights set to high beam illumination, the headlights are automatically returned to their low beam setting.
Automatic High Beam (AHB)
(if
so equipped)
WA R N I N G Do not rely solely on the AHB. Always observe surrounding traffic and light con- ditions. If necessary, manually turn the high beams on or off.Refer to “Dimmer (high/low beam change)” on page 5-191.
BK0252700US.book
191 ページ ２０１７年１０月４日　水曜日　午後４時５４分

Combination headlights and dimmer switch 5-192 Features and controls
5
N00593600054
1. Rotate the light switch to “ ” position or “AUTO” position when the engine is running. 2. Press the AHB switch. The AHB is activated and the indicator is illuminated.If the AHB switch is pressed again, the AHB will be deactivated and AHB indica- tor will go off.
1. Pull the turn signal lever toward you. 2. The AHB indicator will go off.
3. The AHB switch is pressed again, the AHB will be activated. 1. Pull the turn signal lever toward you. 2. The AHB indicator will go off and the high beam indicator illuminates.3. The AHB switch is pressed again, the AHB will be activated.
N00593700055
The high beam headlights illuminate when all of the following conditions are met:  Your vehicle speed exceeds approxi- mately 33 mph (53 km/h).  It is dark ahead of your vehicle.  There are no vehicles
in front or oncom-
ing vehicles, or none of their exterior lights are illuminating.
The low beam headlights illuminate when any of the following conditions occur:  Your vehicle speed does not exceed approximately 28 mph (45 km/h).  It is bright ahead of your vehicle.  An exterior light of a vehicle in front or oncoming vehicle is illuminating.

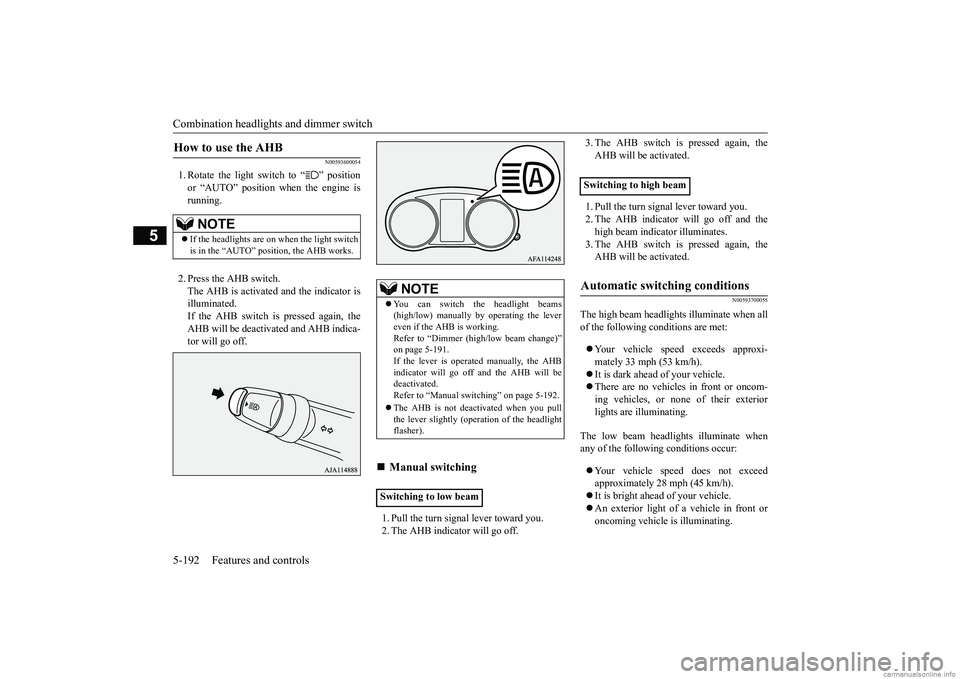

How to use the AHB

NOTE
 If the headlights are on when the light switch is in the “AUTO” position, the AHB works.
NOTE
 You can switch the headlight beams (high/low) manually by operating the lever even if the AHB is working. Refer to “Dimmer (high/low beam change)”on page 5-191. If the lever is operated manually, the AHB indicator will go off and the AHB will bedeactivated. Refer to “Manual switching” on page 5-192.  The AHB is not deactivated when you pull the lever slightly (operation of the headlight flasher).

Manual switching

Switching to low beam
Switching to high beamAutomatic switching conditions

BK0252700US.book
