Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped) Features and controls 5-107
5
N00592200082
The Blind Spot Warning (BSW) is a driving aid system that alerts
the driver when another
vehicle which may not be visible through theoutside rearview mirror is traveling in the next lane behind your vehicle. When a vehicle in the next lane is traveling atsame speed or faster in the detection areas, the BSW light in the corresponding outside rearview mirror will illuminate. If the turnsignal lever is operated to the side where the

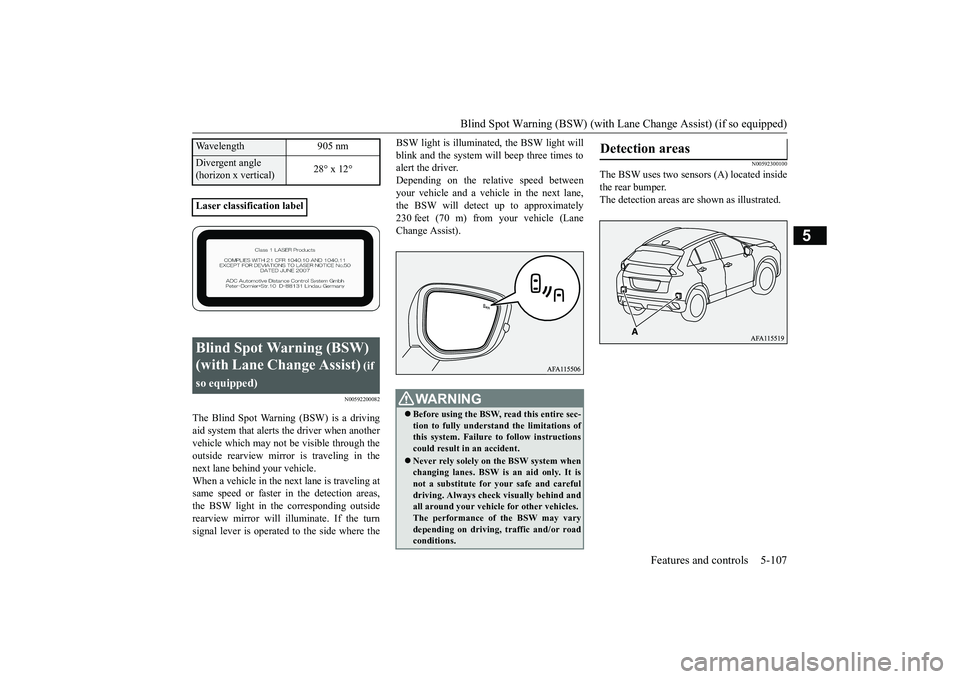

BSW light is illuminated, the BSW light will blink and the system will beep three times to alert the driver. Depending on the relative speed betweenyour vehicle and a vehicle in the next lane, the BSW will detect up to approximately 230 feet (70 m) from your vehicle (LaneChange Assist).
N00592300100
The BSW uses two sensors (A) located insidethe rear bumper.The detection areas are shown as illustrated.
Wavelength 905 nmDivergent angle (horizon x vertical)
28° x 12°
Laser classification labelBlind Spot Warning (BSW) (with Lane Change Assist)
(if
so equipped)
WA R N I N G Before using the BSW, read this entire sec- tion to fully understand the limitations ofthis system. Failure to follow instructions could result in an accident. Never rely solely on the BSW system when changing lanes. BSW is an aid only. It is not a substitute for your safe and carefuldriving. Always check visually behind and all around your vehicle for other vehicles. The performance of the BSW may varydepending on driving, traffic and/or road conditions.
Detection areas

BK0266800US.book
107 ページ ２０１８年６月２７日　水曜日　午後５時６分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped)
5-108 Features and controls
5
N00593500112
When the ignition switch is turned to the “ON” position or the operation mode is put in

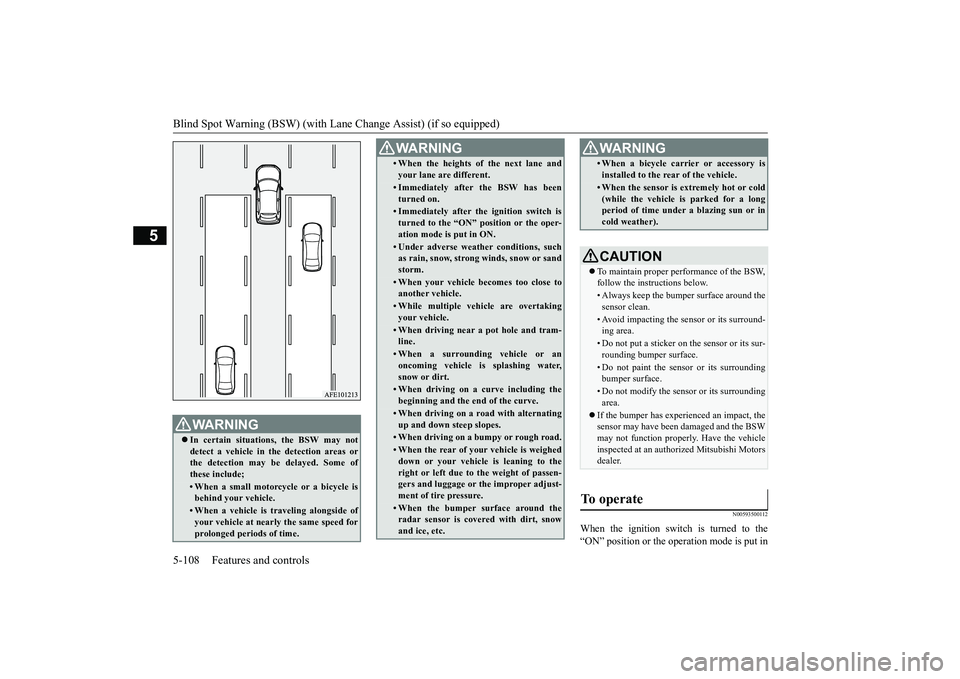

WA R N I N G In certain situations, the BSW may not detect a vehicle in the detection areas orthe detection may be delayed. Some of these include;• When a small motorcycle or a bicycle isbehind your vehicle.• When a vehicle is traveling alongside ofyour vehicle at nearly the same speed for prolonged periods of time.
• When the heights of the next lane and your lane are different.• Immediately after the BSW has been turned on.• Immediately after the ignition switch isturned to the “ON” position or the oper-ation mode is put in ON.• Under adverse weather conditions, suchas rain, snow, strong winds, snow or sand storm.• When your vehicle becomes too close toanother vehicle.• While multiple vehicle are overtakingyour vehicle.• When driving near a pot hole and tram-line.• When a surrounding vehicle or anoncoming vehicle is splashing water, snow or dirt.• When driving on a curve including thebeginning and the end of the curve.• When driving on a road with alternatingup and down steep slopes.• When driving on a bumpy or rough road.• When the rear of your vehicle is weighed down or your vehicle is leaning to the right or left due to the weight of passen- gers and luggage or the improper adjust- ment of tire pressure. • When the bumper surface around theradar sensor is covered with dirt, snowand ice, etc.WA R N I N G
• When a bicycle carrier or accessory is installed to the rear of the vehicle.• When the sensor is extremely hot or cold (while the vehicle is parked for a longperiod of time under a blazing sun or in cold weather).CAUTION To maintain proper performance of the BSW, follow the instructions below.• Always keep the bumper surface around thesensor clean.• Avoid impacting the sensor or its surround-ing area.• Do not put a sticker on the sensor or its sur-rounding bumper surface.• Do not paint the sensor or its surroundingbumper surface.• Do not modify the sensor or its surroundingarea.
 If the bumper has experienced an impact, the sensor may have been damaged and the BSWmay not function properly. Have the vehicle inspected at an authorized Mitsubishi Motors dealer.
To operate

WA R N I N G
BK0266800US.book
108 ページ ２０１８年６月２７日　水曜日　午後５時６分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped) Features and controls 5-109
5

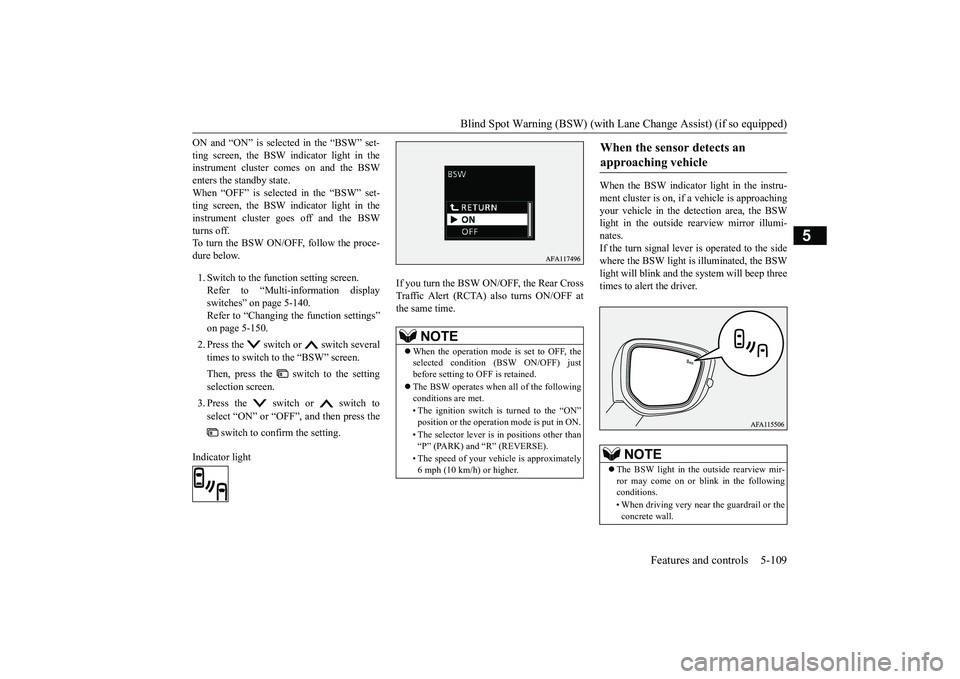

ON and “ON” is selected in the “BSW” set- ting screen, the BSW indicator light in the instrument cluster comes on and the BSW enters the standby state.When “OFF” is selected in the “BSW” set- ting screen, the BSW indicator light in the instrument cluster goes off and the BSWturns off. To turn the BSW ON/OFF, follow the proce- dure below. 1. Switch to the function setting screen. Refer to “Multi-information displayswitches” on page 5-140. Refer to “Changing the function settings” on page 5-150. 2. Press the switch or switch several times to switch to the “BSW” screen. Then, press the switch to the setting selection screen. 3. Press the switch or switch to select “ON” or “OFF”, and then press the
switch to confirm the setting.
Indicator light
If you turn the BSW ON
/OFF, the Rear Cross
Traffic Alert (RCTA) also turns ON/OFF at the same time.
When the BSW indicator light in the instru- ment cluster is on, if a vehicle is approaching your vehicle in the detection area, the BSW light in the outside rearview mirror illumi-nates. If the turn signal lever is operated to the side where the BSW light is
illuminated, the BSW
light will blink and the system will beep threetimes to alert the driver.
NOTE
 When the operation mode is set to OFF, the selected condition (BSW ON/OFF) justbefore setting to OFF is retained.  The BSW operates when all of the following conditions are met. • The ignition switch is turned to the “ON” position or the operation mode is put in ON. • The selector lever is in positions other than “P” (PARK) and “R” (REVERSE). • The speed of your vehicle is approximately 6 mph (10 km/h) or higher.
When the sensor detects an approaching vehicle

NOTE
 The BSW light in the outside rearview mir- ror may come on or blink in the following conditions. • When driving very near the guardrail or the concrete wall.
BK0266800US.book
109 ページ ２０１８年６月２７日　水曜日　午後５時６分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped)
5-110 Features and controls
5
N00592400042

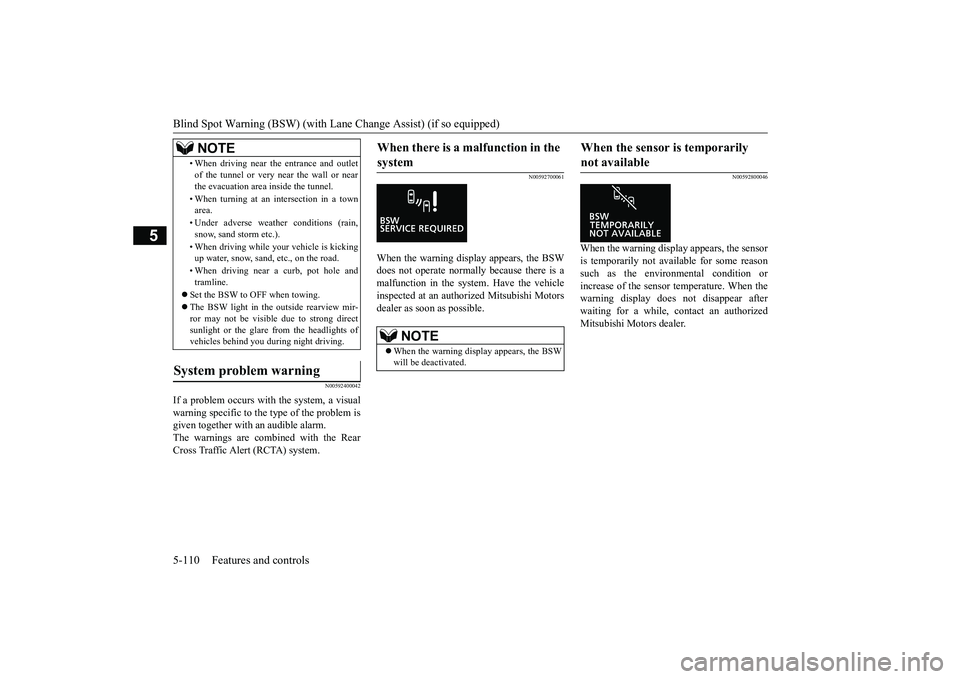

If a problem occurs with the system, a visual warning specific to the type of the problem is given together with an audible alarm. The warnings are combined with the RearCross Traffic Alert (RCTA) system.
N00592700061
When the warning display appears, the BSW does not operate normally because there is a malfunction in the system. Have the vehicleinspected at an authorized Mitsubishi Motorsdealer as soon as possible.
N00592800046
When the warning display appears, the sensoris temporarily not available for some reasonsuch as the environmental condition orincrease of the sensor temperature. When the warning display does not disappear after waiting for a while, contact an authorizedMitsubishi Motors dealer.
• When driving near the entrance and outlet of the tunnel or very near the wall or near the evacuation area inside the tunnel. • When turning at an
intersection in a town
area. • Under adverse weather conditions (rain, snow, sand storm etc.). • When driving while your vehicle is kicking up water, snow, sand, etc., on the road. • When driving near a curb, pot hole and tramline.
 Set the BSW to OFF when towing.  The BSW light in the outside rearview mir- ror may not be visible due to strong directsunlight or the glare from the headlights of vehicles behind you during night driving.
System problem warning

NOTE
When there is a malfunction in the system

NOTE
 When the warning display appears, the BSW will be deactivated.
When the sensor is temporarily not available

BK0266800US.book
110 ページ ２０１８年６月２７日　水曜日　午後５時６分

Blind Spot Warning (BSW) (with Lane
Change Assist) (if so equipped) Features and controls 5-111
5
N00592900092

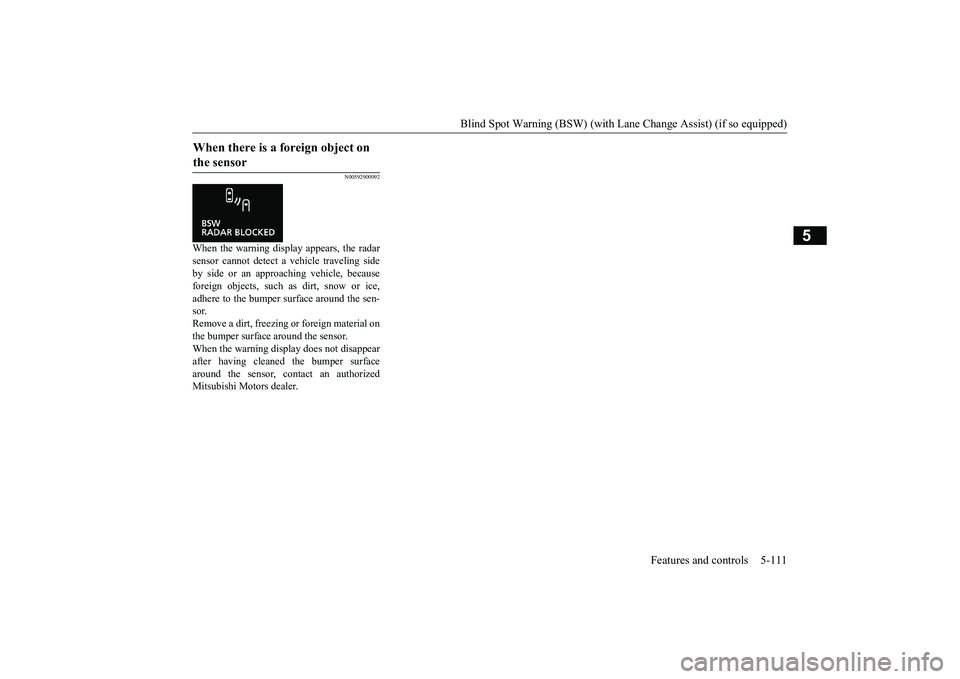

When the warning display appears, the radar sensor cannot detect a vehicle traveling sideby side or an approaching vehicle, because foreign objects, such as dirt, snow or ice, adhere to the bumper surface around the sen-sor. Remove a dirt, freezing or foreign material on the bumper surface around the sensor.When the warning display does not disappear after having cleaned the bumper surface around the sensor, contact an authorizedMitsubishi Motors dealer.When there is a foreign object on the sensor

BK0266800US.book
111 ページ ２０１８年６月２７日　水曜日　午後５時６分

Rear Cross Traffic Alert (RCTA) (if so equipped) 5-114 Features and controls
5

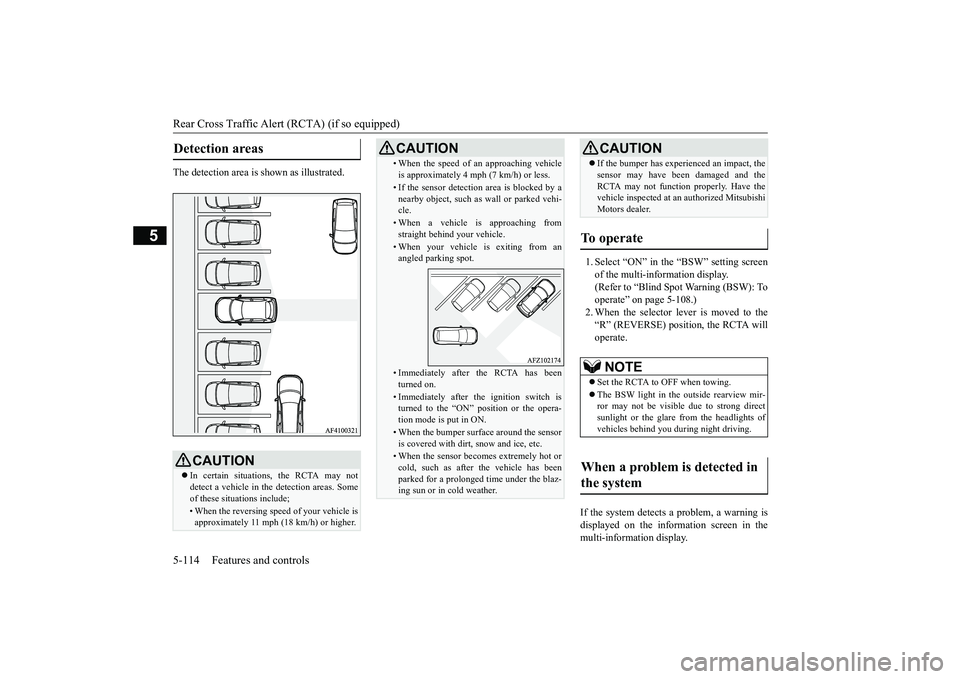

The detection area is shown as illustrated.
1. Select “ON” in the “BSW” setting screen of the multi-information display.(Refer to “Blind Spot Warning (BSW): Tooperate” on page 5-108.) 2. When the selector lever is moved to the “R” (REVERSE) position, the RCTA willoperate.
If the system detects a problem, a warning is displayed on the information screen in themulti-information display.
Detection areas

CAUTION In certain situations, the RCTA may not detect a vehicle in the detection areas. Some of these situations include;• When the reversing speed of your vehicle is approximately 11 mph (18 km/h) or higher.
• When the speed of an approaching vehicle is approximately 4 mph (7 km/h) or less.• If the sensor detection area is blocked by a nearby object, such as wall or parked vehi-cle.• When a vehicle is approaching fromstraight behind your vehicle.• When your vehicle is exiting from anangled parking spot.• Immediately after the RCTA has beenturned on.• Immediately after the ignition switch isturned to the “ON” position or the opera- tion mode is put in ON.• When the bumper surface around the sensoris covered with dirt, snow and ice, etc.• When the sensor becomes extremely hot orcold, such as after the vehicle has been parked for a prolonged time under the blaz- ing sun or in cold weather.CAUTION
 If the bumper has experienced an impact, the sensor may have been damaged and the RCTA may not function properly. Have the vehicle inspected at an authorized Mitsubishi Motors dealer.
To operate

NOTE
 Set the RCTA to OFF when towing.  The BSW light in the outside rearview mir- ror may not be visible due to strong directsunlight or the glare from the headlights of vehicles behind you during night driving.
When a problem is detected in the system

CAUTION
BK0266800US.book
114 ページ ２０１８年６月２７日　水曜日　午後５時６分

Lane Departure Warning (LDW) (if so equipped)
Features and controls 5-117
5
For vehicles sold in Canada Applicable law: Canada 310 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2) This device must accept any interference, including interference that may cause unde-sired operation of the device. Frequency bands: 24.05 - 24.25 GHz Output power: less than 20 milliwatts
N00577900062

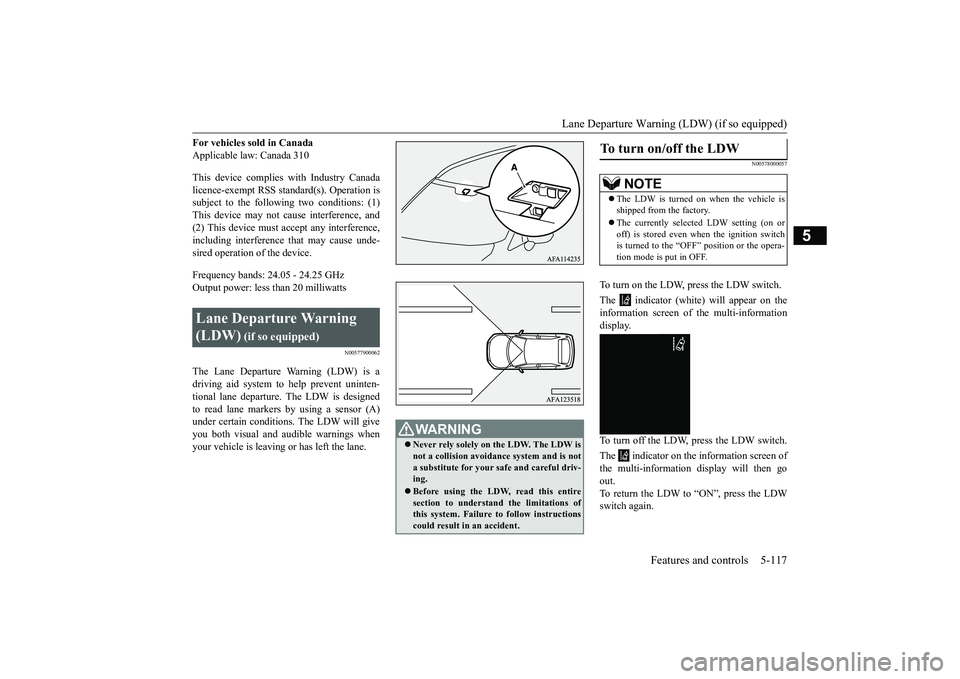

The Lane Departure Warning (LDW) is a driving aid system to help prevent uninten- tional lane departure. The LDW is designedto read lane markers by using a sensor (A) under certain conditions. The LDW will give you both visual and audible warnings whenyour vehicle is leaving or has left the lane.
N00578000057
To turn on the LDW,
press the LDW switch.
The indicator (white) will appear on the information screen of the multi-information display. To turn off the LDW, press the LDW switch. The indicator on the information screen of the multi-information display will then go out.To return the LDW to “ON”, press the LDW switch again.
Lane Departure Warning (LDW)
(if so equipped)
WA R N I N G Never rely solely on the LDW. The LDW is not a collision avoidance system and is nota substitute for your safe and careful driv- ing. Before using the LDW, read this entire section to understand the limitations of this system. Failure to follow instructionscould result in an accident.
To turn on/off the LDW

NOTE
 The LDW is turned on when the vehicle is shipped from the factory.  The currently selected LDW setting (on or off) is stored even when the ignition switch is turned to the “OFF” position or the opera- tion mode is put in OFF.
BK0266800US.book
117 ページ ２０１８年６月２７日　水曜日　午後５時６分

Lane Departure Warning (LDW) (if so equipped)
Features and controls 5-119
5
N00578100058

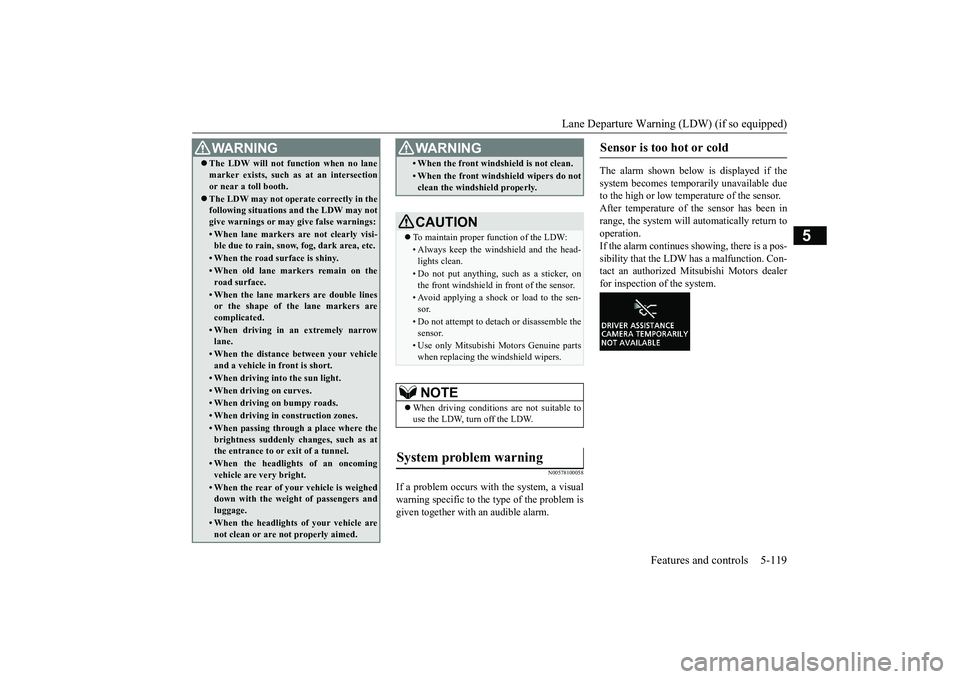

If a problem occurs with the system, a visual warning specific to the type of the problem isgiven together with an audible alarm.
The alarm shown below is displayed if the system becomes temporarily unavailable due to the high or low temperature of the sensor.After temperature of the sensor has been in range, the system will automatically return to operation.If the alarm continues showing, there is a pos- sibility that the LDW has a malfunction. Con- tact an authorized Mitsubishi Motors dealerfor inspection of the system.
WA R N I N G The LDW will not function when no lane marker exists, such as at an intersection or near a toll booth. The LDW may not operate correctly in the following situations and the LDW may not give warnings or may give false warnings:• When lane markers are not clearly visi-ble due to rain, snow, fog, dark area, etc.• When the road surface is shiny.• When old lane markers remain on the road surface.• When the lane markers are double linesor the shape of the lane markers are complicated.• When driving in an extremely narrowlane.• When the distance between your vehicleand a vehicle in front is short.• When driving into the sun light.• When driving on curves.• When driving on bumpy roads.• When driving in construction zones.• When passing through a place where the brightness suddenly changes, such as at the entrance to or exit of a tunnel.• When the headlights of an oncomingvehicle are very bright. • When the rear of your vehicle is weighed down with the weight of passengers andluggage.• When the headlights of your vehicle arenot clean or are not properly aimed.
• When the front windshield is not clean.• When the front windshield wipers do not clean the windshield properly.CAUTION To maintain proper function of the LDW:• Always keep the windshield and the head- lights clean.• Do not put anything, such as a sticker, onthe front windshield in front of the sensor.• Avoid applying a shock or load to the sen-sor.• Do not attempt to detach or disassemble thesensor.• Use only Mitsubishi Motors Genuine partswhen replacing the windshield wipers.NOTE
 When driving conditions are not suitable to use the LDW, turn off the LDW.
System problem warning

WA R N I N G
Sensor is too hot or cold

BK0266800US.book
119 ページ ２０１８年６月２７日　水曜日　午後５時６分

Tire pressure monitoring system (TPMS) 5-120 Features and controls
5

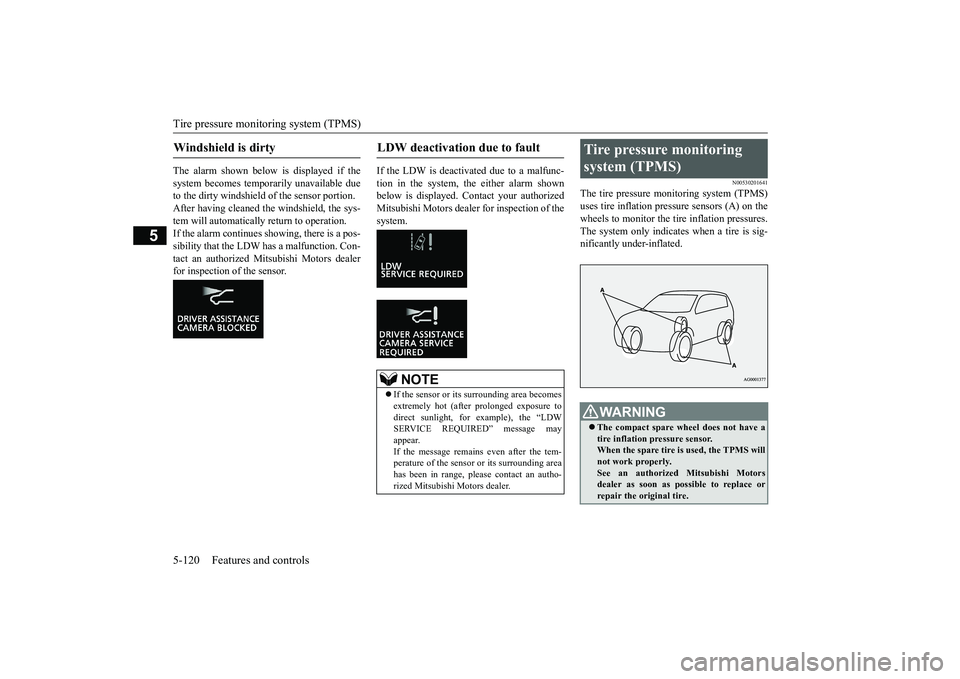

The alarm shown below is displayed if the system becomes temporarily unavailable due to the dirty windshield of the sensor portion.After having cleaned the windshield, the sys- tem will automatically return to operation. If the alarm continues showing, there is a pos-sibility that the LDW has a malfunction. Con- tact an authorized Mitsubishi Motors dealer for inspection of the sensor.
If the LDW is deactivated due to a malfunc- tion in the system, the either alarm shown below is displayed. Contact your authorizedMitsubishi Motors dealer for inspection of the system.
N00530201641
The tire pressure monitoring system (TPMS) uses tire inflation pressure sensors (A) on thewheels to monitor the tire inflation pressures. The system only indicates when a tire is sig- nificantly under-inflated.
Windshield is dirty

LDW deactivation due to fault

NOTE
 If the sensor or its surrounding area becomes extremely hot (after prolonged exposure to direct sunlight, for example), the “LDW SERVICE REQUIRED” message mayappear. If the message remains even after the tem- perature of the sensor or its surrounding areahas been in range, please contact an autho- rized Mitsubishi Motors dealer.
Tire pressure monitoring system (TPMS)
WA R N I N G The compact spare wheel does not have a tire inflation pressure sensor. When the spare tire is
used, the TPMS will
not work properly. See an authorized Mitsubishi Motors dealer as soon as possible to replace orrepair the original tire.
BK0266800US.book
120 ページ ２０１８年６月２７日　水曜日　午後５時６分

Tire pressure monitoring system (TPMS)
Features and controls 5-121
5
N00532701389

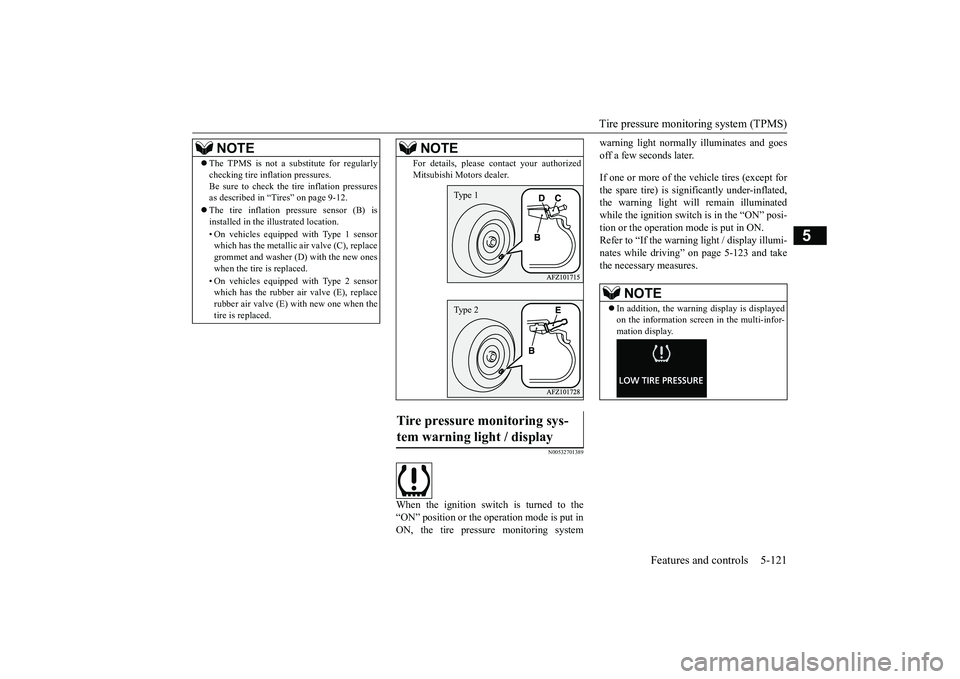

When the ignition switch is turned to the “ON” position or the operation mode is put inON, the tire pressure monitoring system
warning light normally illuminates and goes off a few seconds later. If one or more of the vehicle tires (except for the spare tire) is significantly under-inflated, the warning light will remain illuminatedwhile the ignition switch is in the “ON” posi- tion or the operation mode is put in ON. Refer to “If the warning light / display illumi-nates while driving” on page 5-123 and take the necessary measures.
NOTE
 The TPMS is not a substitute for regularly checking tire inflation pressures. Be sure to check the tire inflation pressures as described in “Tires” on page 9-12.  The tire inflation pressure sensor (B) is installed in the illustrated location. • On vehicles equipped with Type 1 sensor which has the metallic air valve (C), replace grommet and washer (D) with the new oneswhen the tire is replaced. • On vehicles equipped with Type 2 sensor which has the rubber air valve (E), replace rubber air valve (E) with new one when the tire is replaced.
For details, please contact your authorized Mitsubishi Motors dealer.
Tire pressure monitoring sys- tem warning light / display
NOTE
Type 1Type 2
NOTE
 In addition, the warning display is displayed on the information screen in the multi-infor- mation display.
BK0266800US.book
121 ページ ２０１８年６月２７日　水曜日　午後５時６分
