Replacement of light bulbs
Vehicle care and maintenance 9-29
9
N00950401829
N00901801229
1. Turn the cap (A) counterclockwise to remove it. 2. While pulling the tab (B), pull out the socket (C).
NOTE
 The following lights use an LED type bulb. Check with an authorized Mitsubishi Motors dealer or a repair
facility of your choice
when either light needs to be repaired or replaced. • High-mounted stop light • Tail light • Stop light• Rear side-marker light
Inside
Item
Wattage
1 - Vanity mirror lights (if so
equipped)
2 W
2 - Dome light (front)/Read-
ing light
10 W
3 - LED interior illumination
(Smartphone tray)
—
4 - Dome light (rear) 8 W 5 - Cargo room light 5 W6 - LED interior illumination
(Front drink holder)
—
NOTE
 The following lights use an LED type bulb. Check with an authorized Mitsubishi Motorsdealer or a repair facility of your choice when the light needs to be repaired or replaced. • LED interior illumination (Smartphone tray) • LED interior illumination (Front drink holder)
Headlights (halogen bulb type)
NOTE
 When replacing a bulb on the right side of the vehicle, make sure that the removed parts do not contact the coolant reserve tank.
* : Front of the vehicle
BK0277700US.bo
ok 29 ページ ２０１９年３月８日　金曜日　午前９時２３分

Replacement of light bulbs 9-30 Vehicle care and maintenance
9

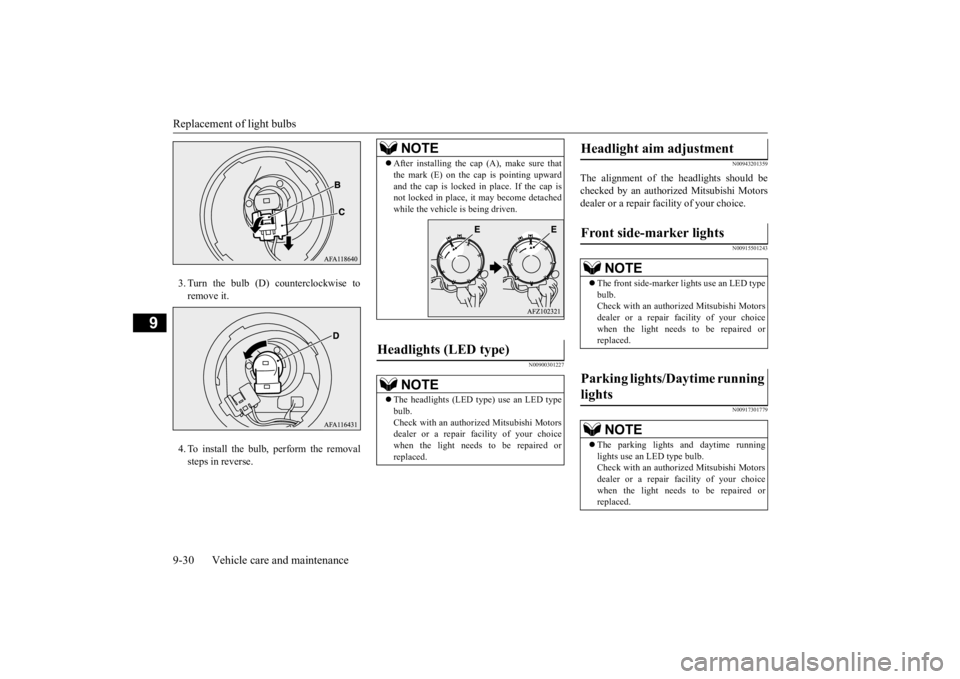

3. Turn the bulb (D) counterclockwise to remove it. 4. To install the bulb, perform the removal steps in reverse.
N00900301227
N00943201359
The alignment of the headlights should be checked by an authorized Mitsubishi Motorsdealer or a repair facility of your choice.
N00915501243 N00917301779
NOTE
 After installing the cap (A), make sure that the mark (E) on the cap is pointing upward and the cap is locked in place. If the cap is not locked in place, it may become detached while the vehicle is being driven.
Headlights (LED type)
NOTE
 The headlights (LED type) use an LED type bulb. Check with an authorized Mitsubishi Motors dealer or a repair
facility of your choice
when the light needs to be repaired or replaced.
Headlight aim adjustment Front side-marker lights
NOTE
 The front side-marker lights use an LED type bulb.Check with an authorized Mitsubishi Motors dealer or a repair
facility of your choice
when the light needs to be repaired orreplaced.
Parking lights/Daytime running lights
NOTE
 The parking lights and daytime running lights use an LED type bulb.Check with an authorized Mitsubishi Motors dealer or a repair
facility of your choice
when the light needs to be repaired orreplaced.
BK0277700US.bo
ok 30 ページ ２０１９年３月８日　金曜日　午前９時２３分

Replacement of light bulbs
Vehicle care and maintenance 9-31
9
N00943401508

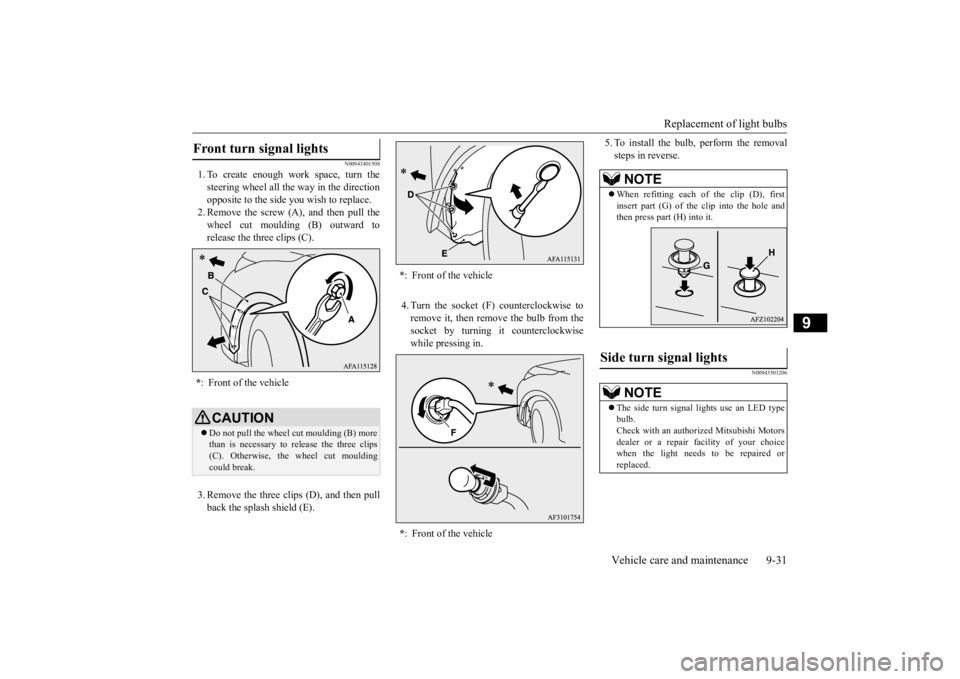

1. To create enough work space, turn the steering wheel all the way in the directionopposite to the side you wish to replace. 2. Remove the screw (A), and then pull the wheel cut moulding (B) outward torelease the three clips (C). 3. Remove the three clips (D), and then pull back the splash shield (E).
4. Turn the socket (F) counterclockwise to remove it, then remove the bulb from thesocket by turning it counterclockwise while pressing in.
5. To install the bulb, perform the removal steps in reverse.
N00943501206
Front turn signal lights * : Front of the vehicleCAUTIONDo not pull the wheel cut moulding (B) more than is necessary to release the three clips(C). Otherwise, the wheel cut moulding could break.
* : Front of the vehicle * : Front of the vehicle
NOTE
When refitting each of the clip (D), first insert part (G) of the clip into the hole andthen press part (H) into it.
Side turn signal lights
NOTE
 The side turn signal lights use an LED type bulb. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when the light needs to be repaired or replaced.
BK0277700US.bo
ok 31 ページ ２０１９年３月８日　金曜日　午前９時２３分

Replacement of light bulbs 9-32 Vehicle care and maintenance
9
N00943601991

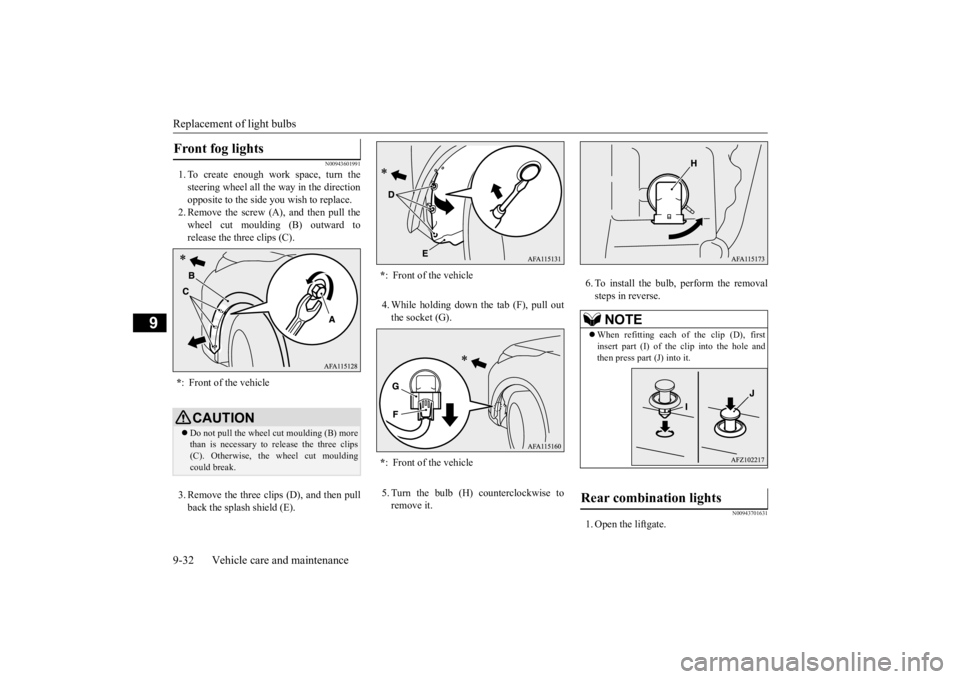

1. To create enough work space, turn the steering wheel all the way in the directionopposite to the side you wish to replace. 2. Remove the screw (A), and then pull the wheel cut moulding (B) outward torelease the three clips (C). 3. Remove the three clips (D), and then pull back the splash shield (E).
4. While holding down the tab (F), pull out the socket (G). 5. Turn the bulb (H) counterclockwise to remove it.
6. To install the bulb, perform the removal steps in reverse.
N00943701631
1. Open the liftgate.
Front fog lights * : Front of the vehicleCAUTIONDo not pull the wheel cut moulding (B) more than is necessary to release the three clips(C). Otherwise, the wheel cut moulding could break.
* : Front of the vehicle * : Front of the vehicle
NOTE
When refitting each of the clip (D), first insert part (I) of the clip into the hole and then press part (J) into it.
Rear combination lights
BK0277700US.bo
ok 32 ページ ２０１９年３月８日　金曜日　午前９時２３分

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
2. After removing the two screws (A), move the light unit rearward and remove the three light unit pins (B).
3. Turn the rear turn-signal light socket counterclockwise and remove it, and then pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
N00929101093
1. Remove the three clips (A), and then pullback the splash shield (B).
2. Turn the socket (C) counterclockwise to remove it, and then pull the bulb out of the socket. 3. To install the bulb, perform the removal steps in reverse.
NOTE
 It will be easier to remove the light unit if you insert a minus screwdriver with the end covered with a cloth or
other object into the
space under the light unit and remove thehighest pin, and then pull the light unit at an upward angle.
C- Rear turn-signal light D- Stop light (LED) - cannot be replaced
NOTE
 The rear side-marker light, tail light and stop light use an LED type bulb. Check with an authorized Mitsubishi Motors dealer or a repair facility of your choicewhen the light needs to be repaired or replaced.
Back-up lights
* : Rear of the vehicle
