Malfunction of the hydraulic unit (integrated with ABS-ECU)
PAST TROUBLE
Carry out diagnosis with particular emphasis on connector(s) or wiring harness
in the power supply circuit (terminal 1) to the ABS-ECU solenoid valve or
ground circuit (terminal 18). For diagnosis procedures, refer to HOW TO TREAT PAST TROUBLE
.
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
MB991970: ABS Check Harness
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
1. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Fig. 58: Connecting Scan Tool MB991958 To Data Link Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

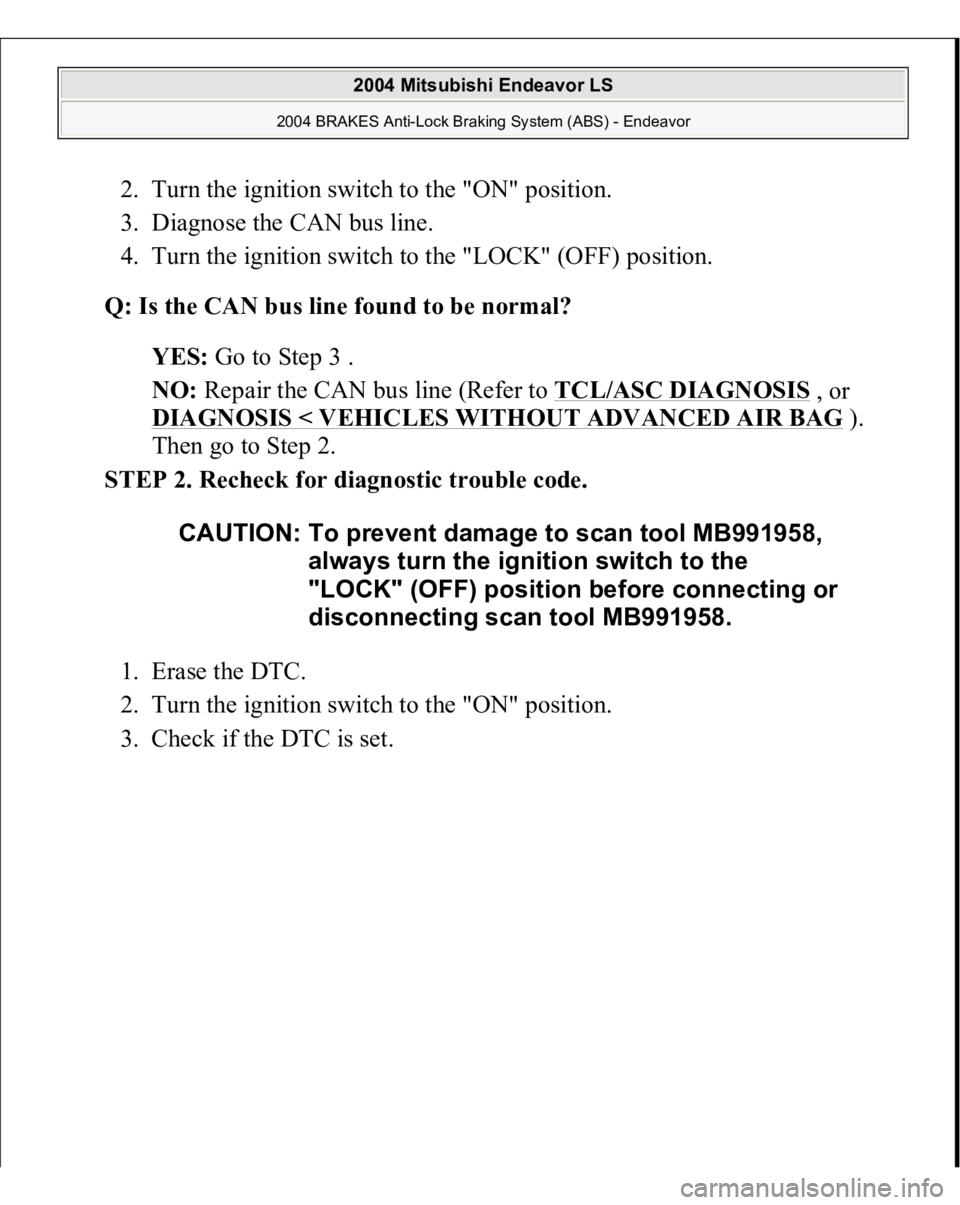

2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 3 .
NO: Repair the CAN bus line (Refer to TCL/ASC DIAGNOSIS
, or
DIAGNOSIS < VEHICLES WITHOUT ADVANCED AIR BAG
).
Then go to Step 2.
STEP 2. Recheck for diagnostic trouble code.
1. Erase the DTC.
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

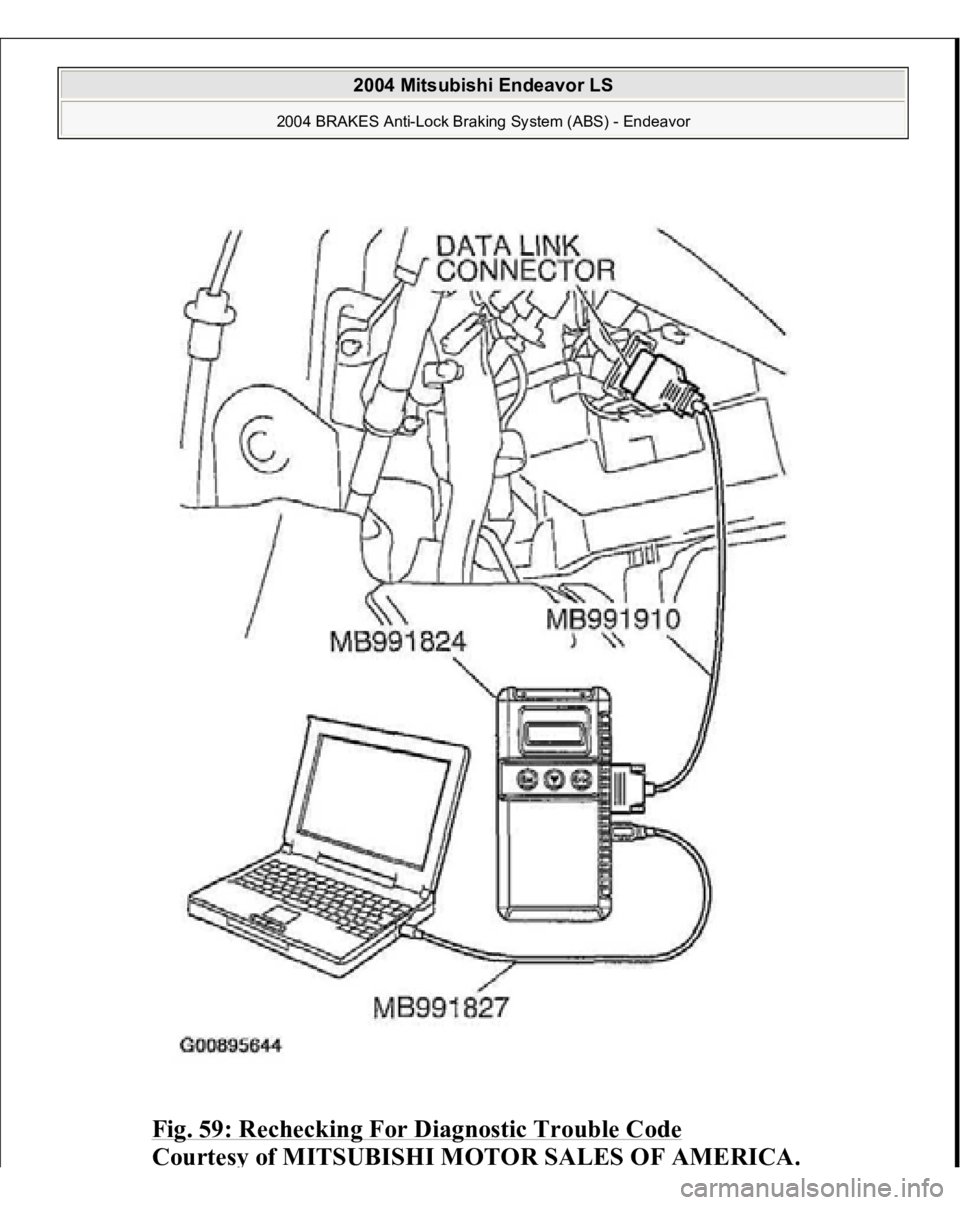

Fig. 59: Rechecking For Diagnostic Trouble Code

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1226, C1231, C1236, C1241, C1246, C1251, C1256 or C1261
set?
YES: Go to Step 3.
NO: The procedure is complete.
STEP 3. Measure the voltage at ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal 1 and ground. It should be
approximately 12 volts (battery positive voltage). NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

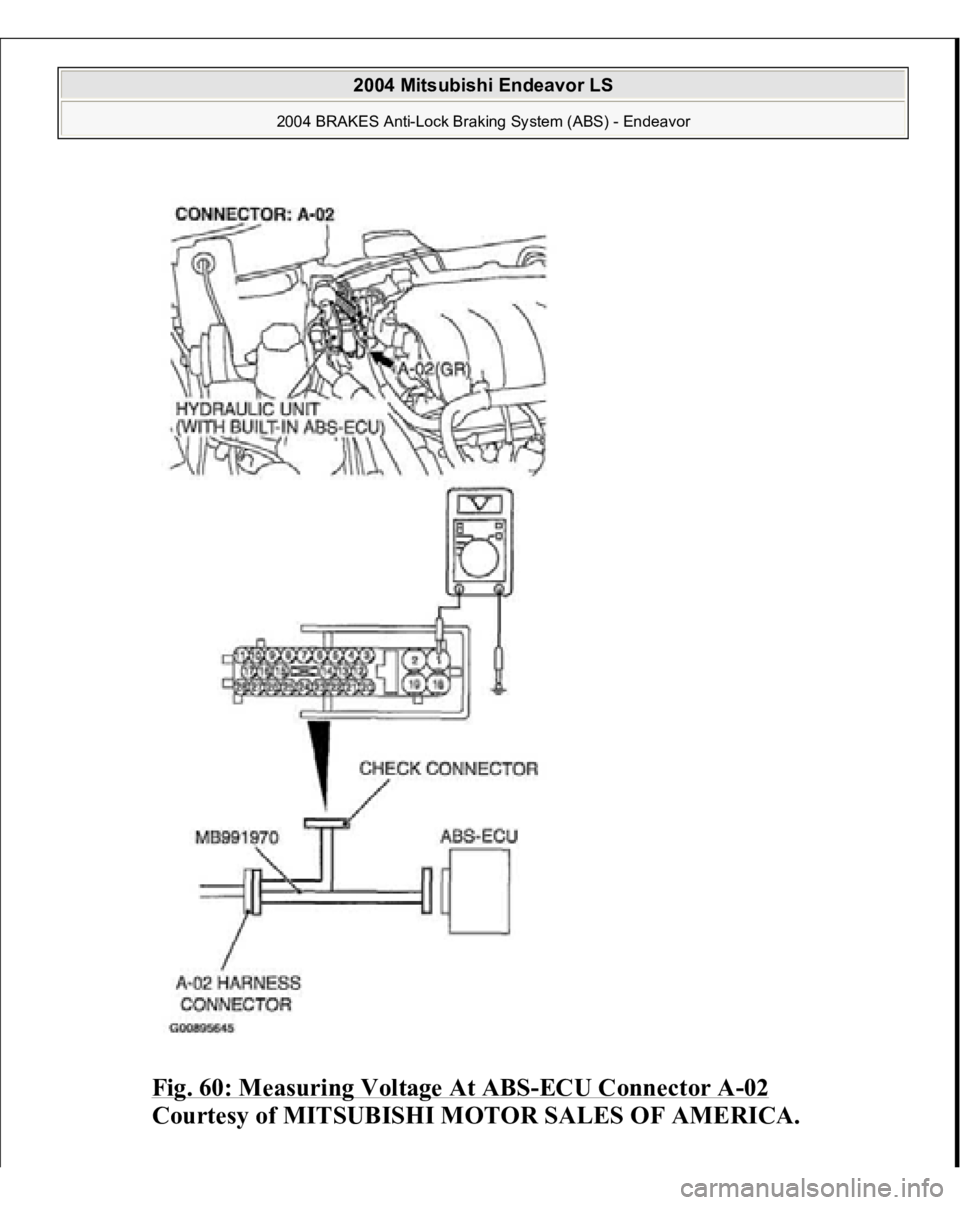

Fig. 60: Measuring Voltage At ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Q: Is the voltage approximately 12 volts (battery positive voltage)?
YES: Go to Step 5 .
NO: Go to Step 4.
STEP 4. Check ABS-ECU connector A-02 for loose, corroded or damaged
terminals, or terminals
pushed back in the connector
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

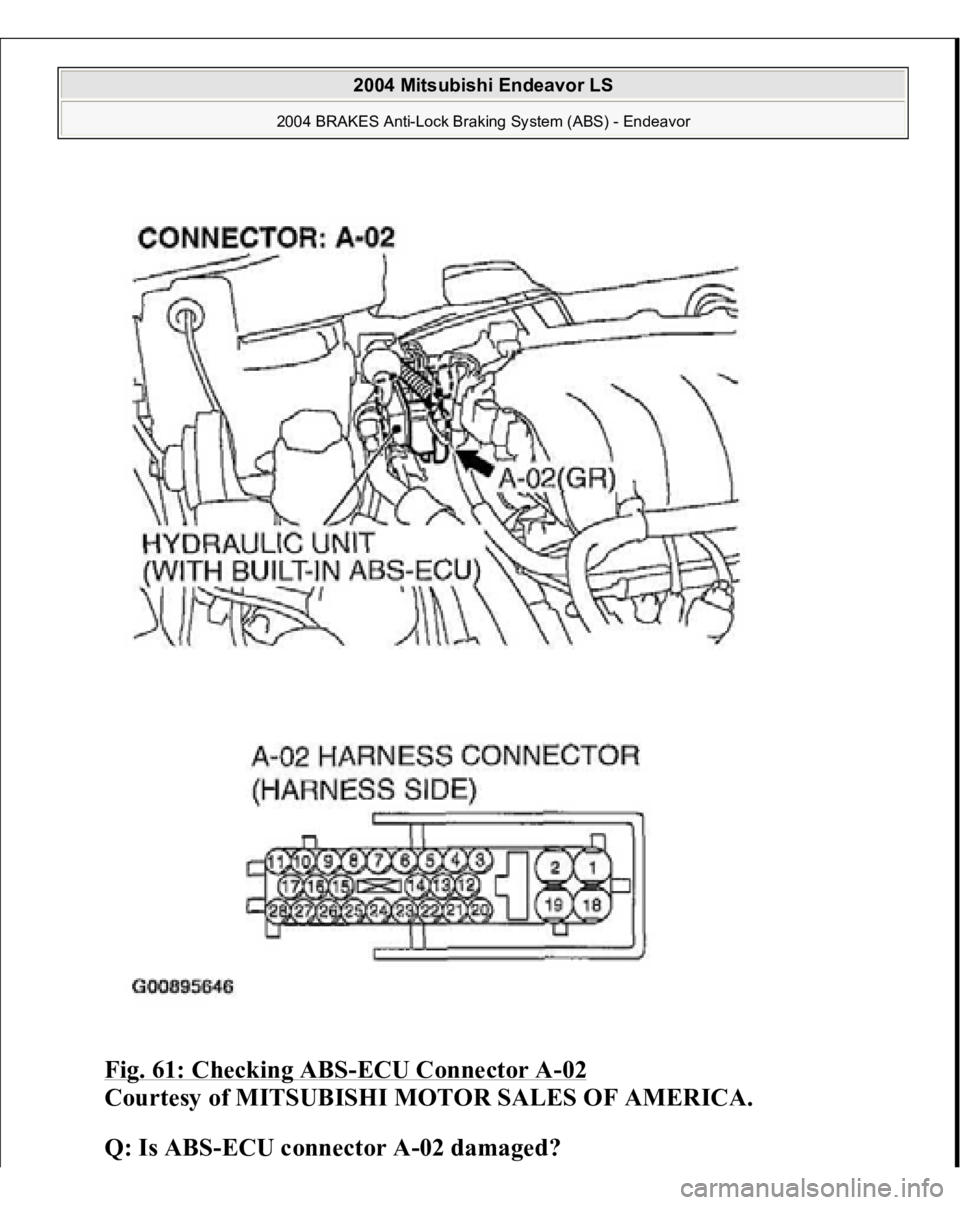

Fig. 61: Checking ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is ABS-ECU connector A-02 damaged?

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

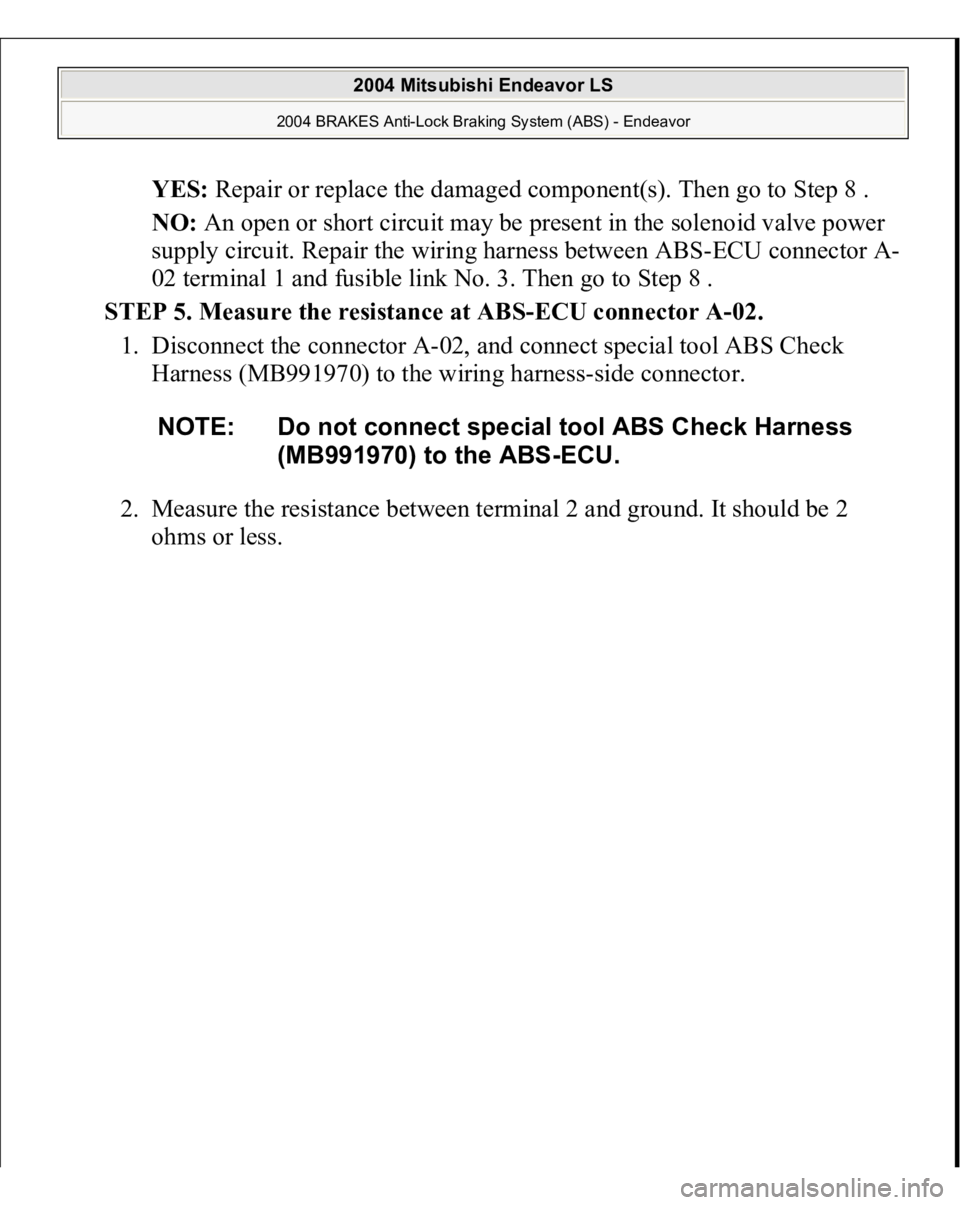

YES: Repair or replace the damaged component(s). Then go to Step 8 .
NO: An open or short circuit may be present in the solenoid valve power
supply circuit. Repair the wiring harness between ABS-ECU connector A-
02 terminal 1 and fusible link No. 3. Then go to Step 8 .
STEP 5. Measure the resistance at ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
2. Measure the resistance between terminal 2 and ground. It should be 2
ohms or less. NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

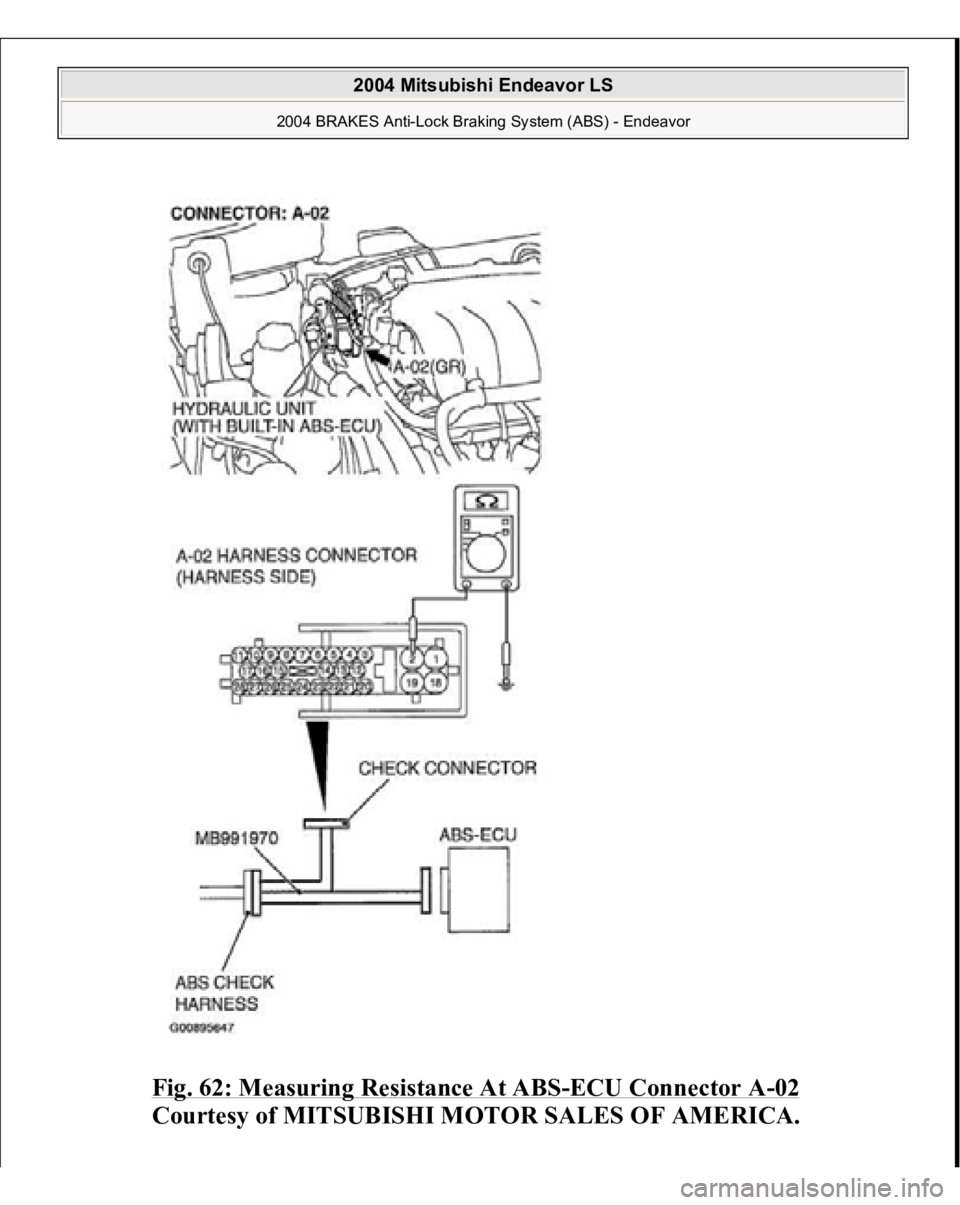

Fig. 62: Measuring Resistance At ABS
-ECU Connector A
-02
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
