MITSUBISHI ENDEAVOR 2004 Service Manual PDF

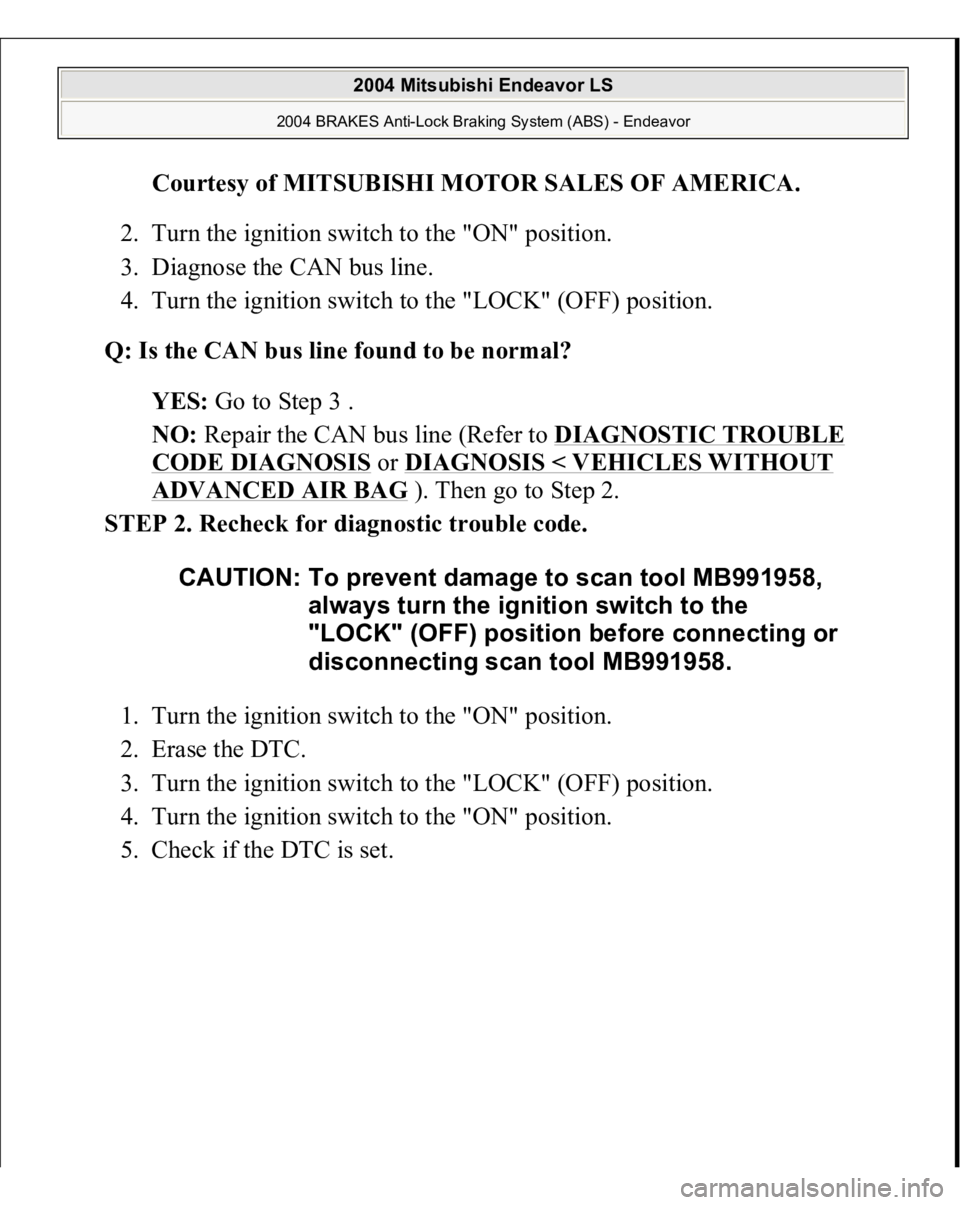

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?
YES: Go to Step 3 .
NO: Repair the CAN bus line (Refer to DIAGNOSTIC TROUBLE
CODE DIAGNOSIS
or DIAGNOSIS < VEHICLES WITHOUT
ADVANCED AIR BAG
). Then go to Step 2.
STEP 2. Recheck for diagnostic trouble code.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

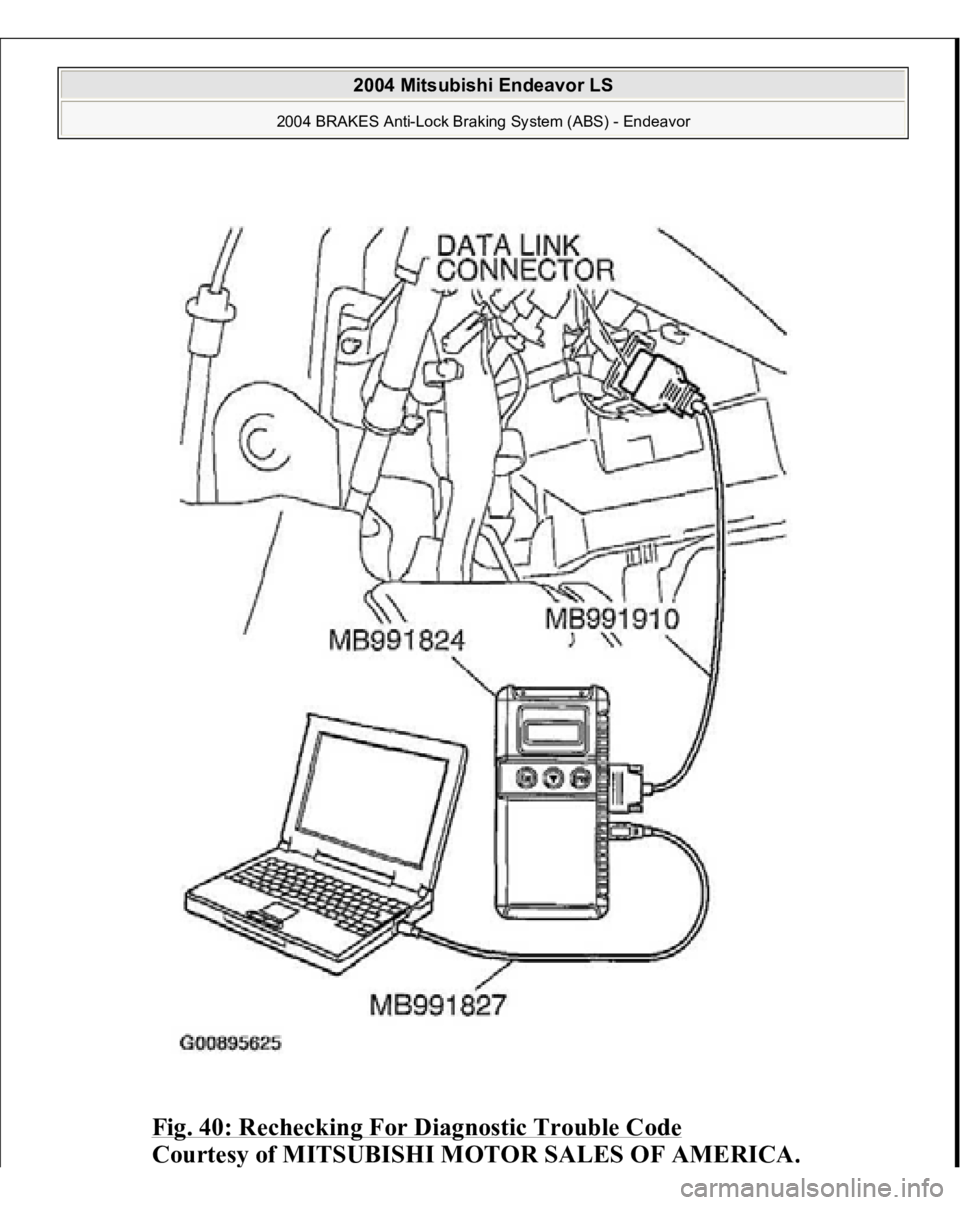

Fig. 40: Rechecking For Diagnostic Trouble Code

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

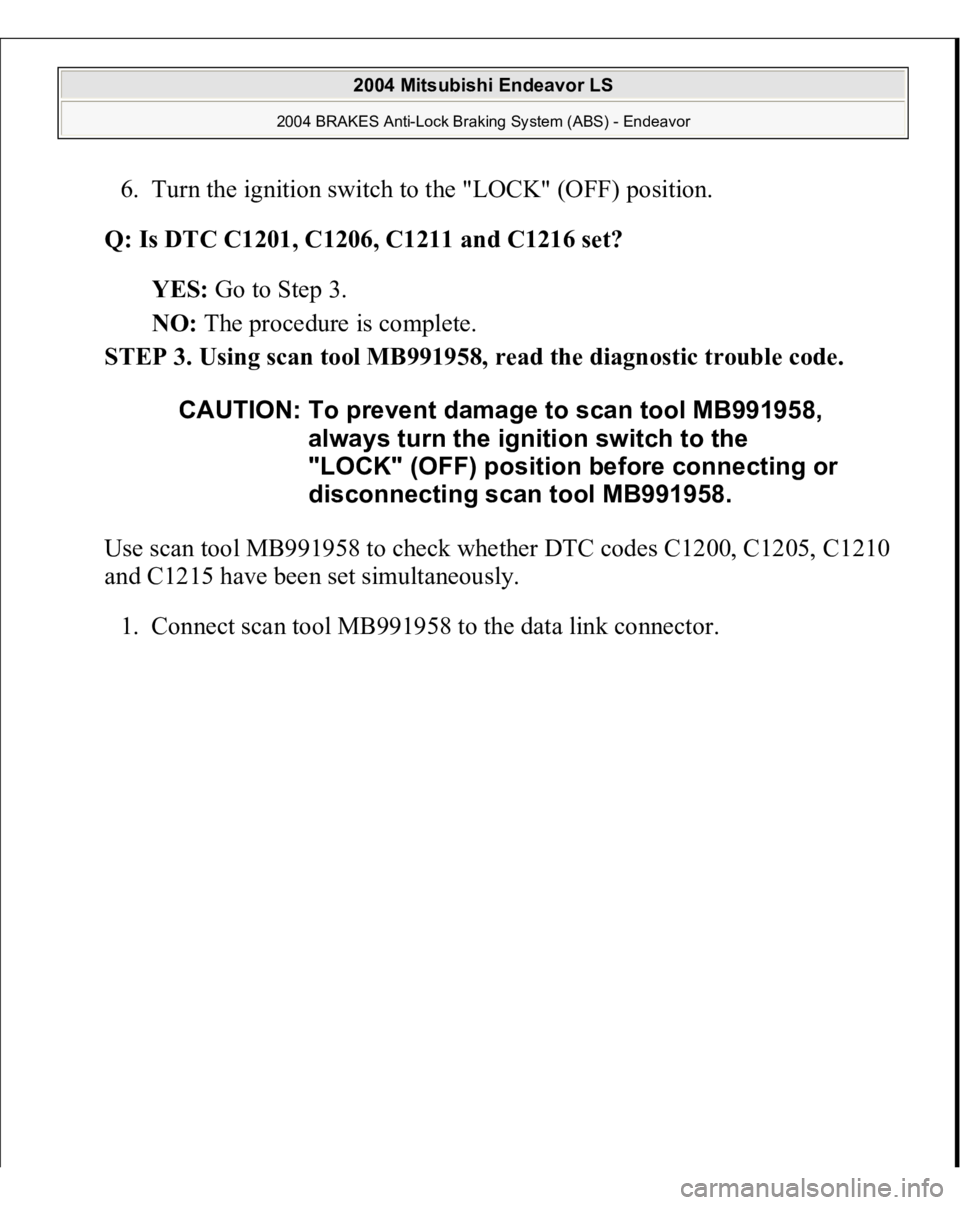

6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1201, C1206, C1211 and C1216 set?
YES: Go to Step 3.
NO: The procedure is complete.
STEP 3. Using scan tool MB991958, read the diagnostic trouble code.
Use scan tool MB991958 to check whether DTC codes C1200, C1205, C1210
and C1215 have been set simultaneously.
1. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

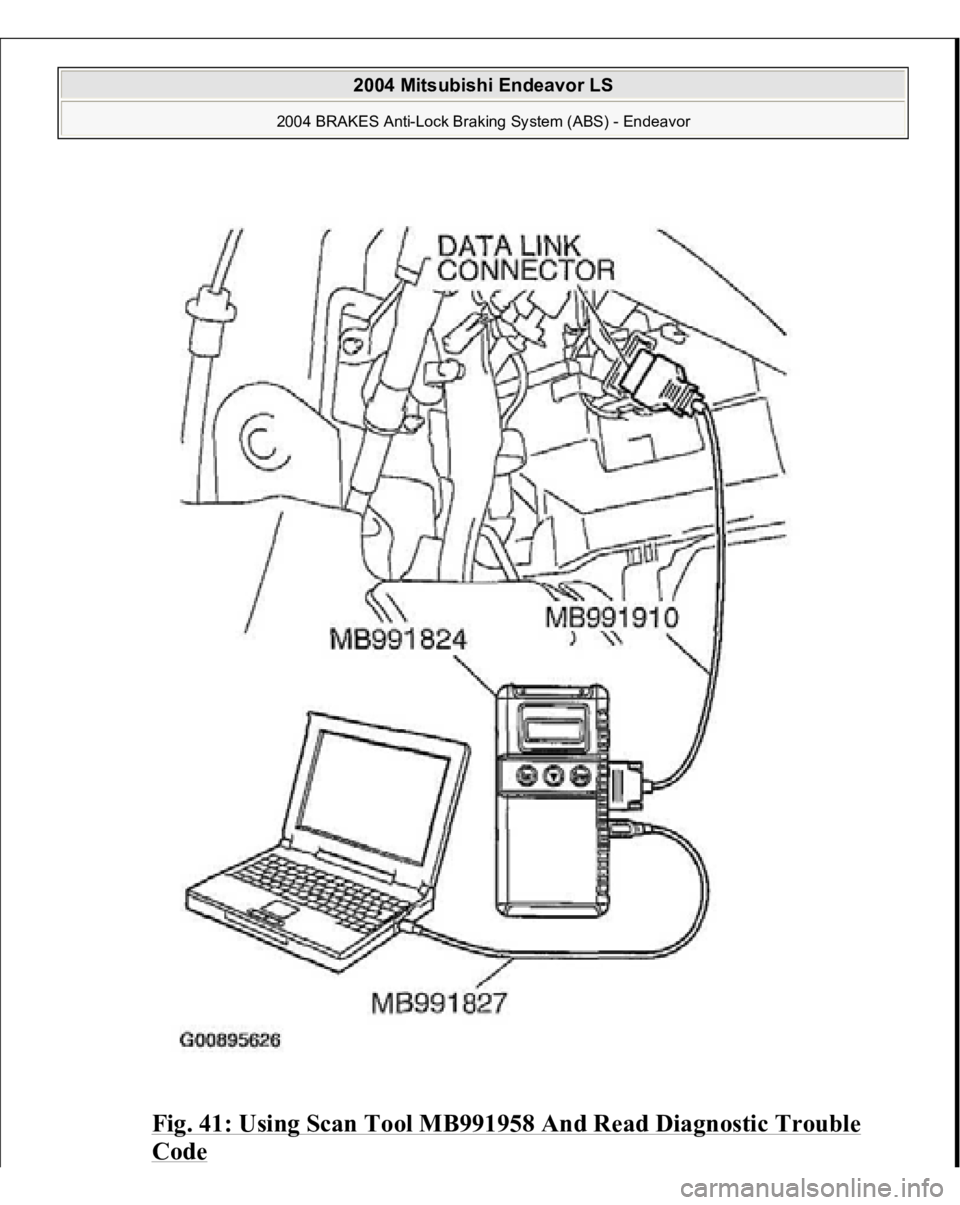

Fig. 41: Using Scan Tool MB991958 And Read Diagnostic Trouble Code


2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

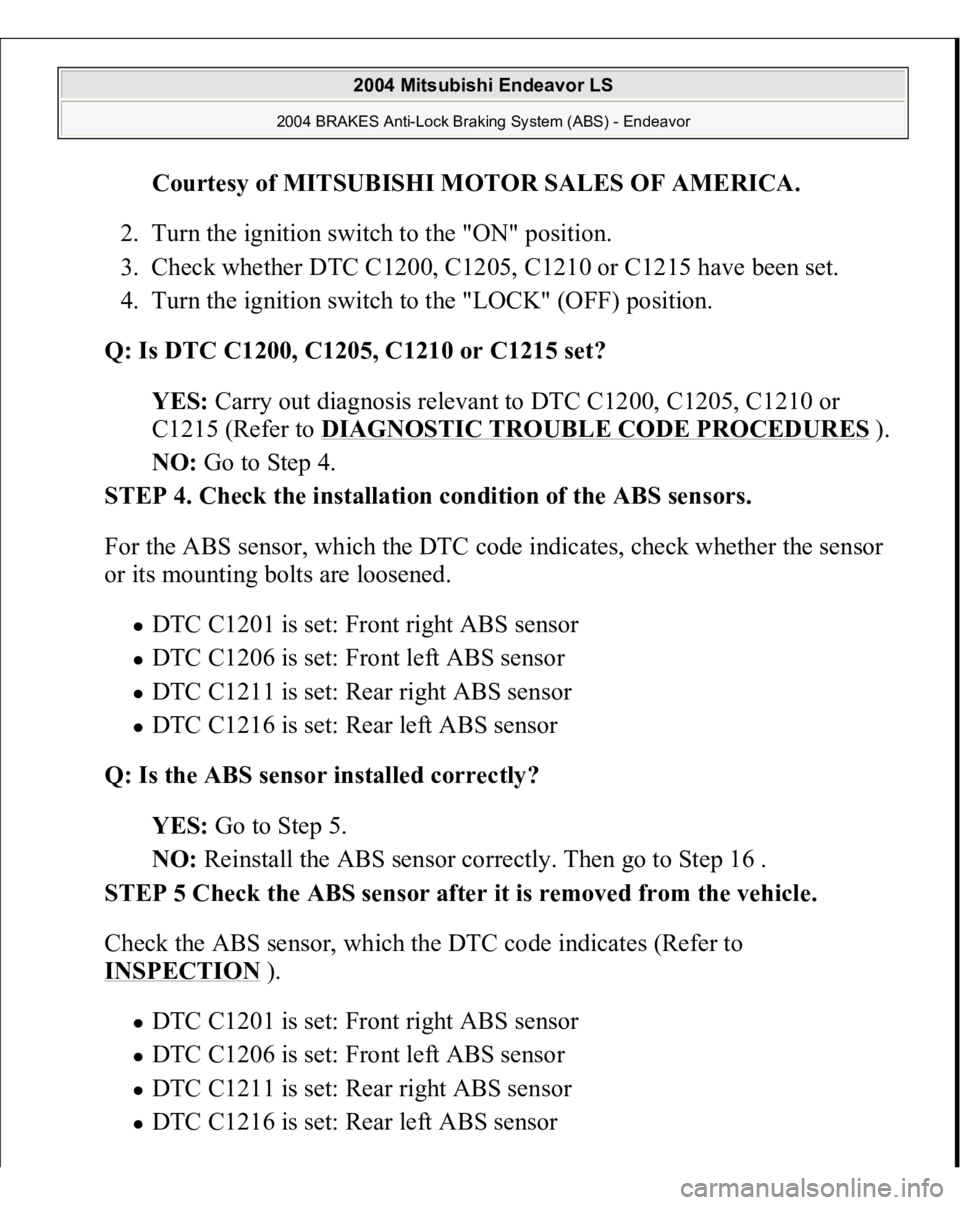

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch to the "ON" position.
3. Check whether DTC C1200, C1205, C1210 or C1215 have been set.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1200, C1205, C1210 or C1215 set?
YES: Carry out diagnosis relevant to DTC C1200, C1205, C1210 or
C1215 (Refer to DIAGNOSTIC TROUBLE CODE PROCEDURES
).
NO: Go to Step 4.
STEP 4. Check the installation condition of the ABS sensors.
For the ABS sensor, which the DTC code indicates, check whether the sensor
or its mounting bolts are loosened.
DTC C1201 is set: Front right ABS sensor DTC C1206 is set: Front left ABS sensor DTC C1211 is set: Rear right ABS sensor DTC C1216 is set: Rear left ABS sensor
Q: Is the ABS sensor installed correctly?
YES: Go to Step 5.
NO: Reinstall the ABS sensor correctly. Then go to Step 16 .
STEP 5 Check the ABS sensor after it is removed from the vehicle.
Check the ABS sensor, which the DTC code indicates (Refer to
INSPECTION
).
DTC C1201 is set: Front right ABS sensor DTC C1206 is set: Front left ABS sensor DTC C1211 is set: Rear right ABS sensor DTC C1216 is set: Rear left ABS sensor

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

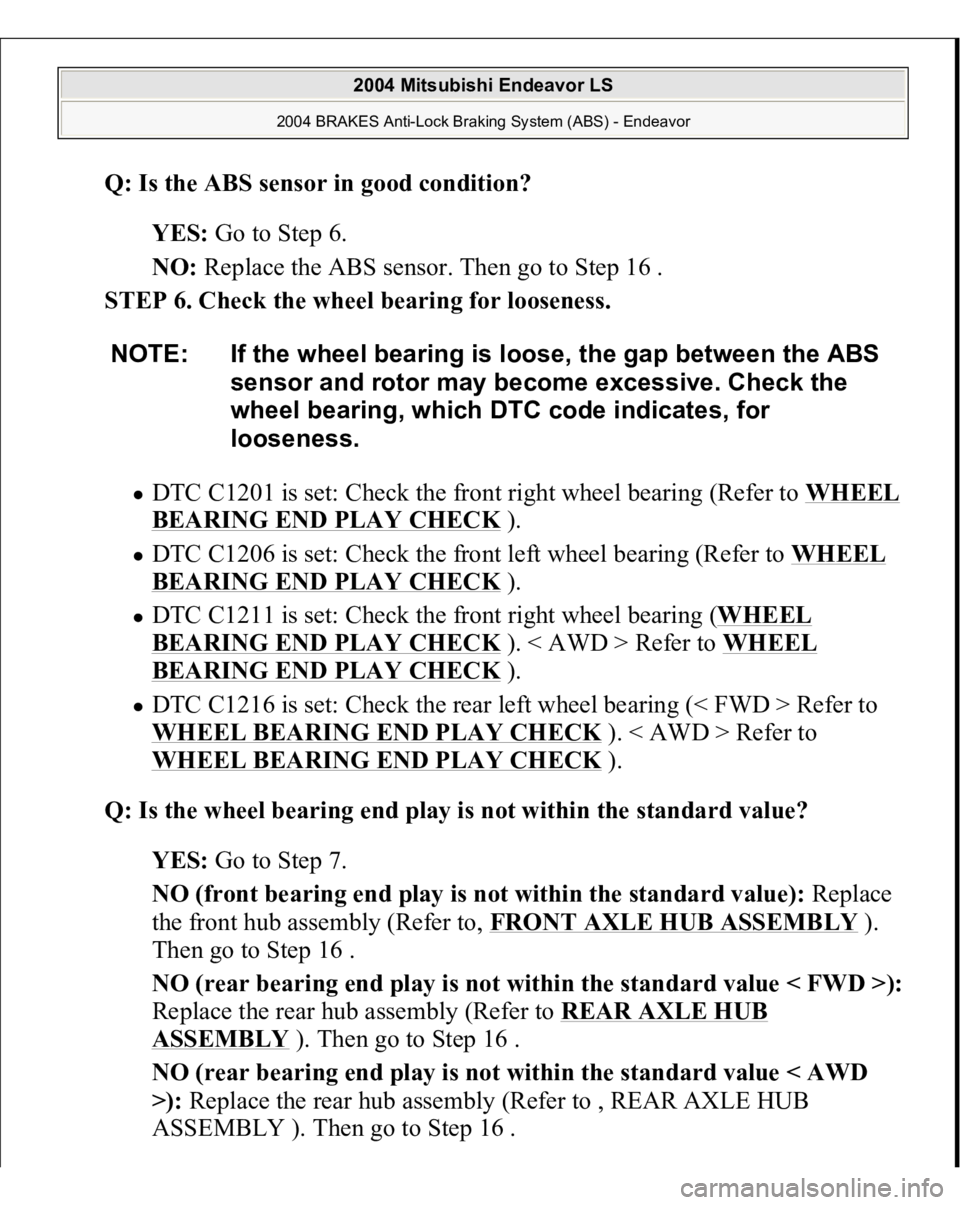

Q: Is the ABS sensor in good condition?
YES: Go to Step 6.
NO: Replace the ABS sensor. Then go to Step 16 .
STEP 6. Check the wheel bearing for looseness.
DTC C1201 is set: Check the front right wheel bearing (Refer to WHEEL BEARING END PLAY CHECK
).
DTC C1206 is set: Check the front left wheel bearing (Refer to WHEEL BEARING END PLAY CHECK
).
DTC C1211 is set: Check the front right wheel bearing (WHEEL BEARING END PLAY CHECK
). < AWD > Refer to WHEEL
BEARING END PLAY CHECK
).
DTC C1216 is set: Check the rear left wheel bearing (< FWD > Refer to
WHEEL BEARING END PLAY CHECK
). < AWD > Refer to
WHEEL BEARING END PLAY CHECK ).
Q: Is the wheel bearing end play is not within the standard value?
YES: Go to Step 7.
NO (front bearing end play is not within the standard value): Replace
the front hub assembly (Refer to, FRONT AXLE HUB ASSEMBLY
).
Then go to Step 16 .
NO (rear bearing end play is not within the standard value < FWD >):
Replace the rear hub assembly (Refer to REAR AXLE HUB
ASSEMBLY
). Then go to Step 16 .
NO (rear bearing end play is not within the standard value < AWD
>): Replace the rear hub assembly (Refer to , REAR AXLE HUB
ASSEMBLY ). Then
go to Ste
p 16. NOTE: If the wheel bearing is loose, the gap between the ABS
sensor and rotor may become excessive. Check the
wheel bearing, which DTC code indicates, for
looseness.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

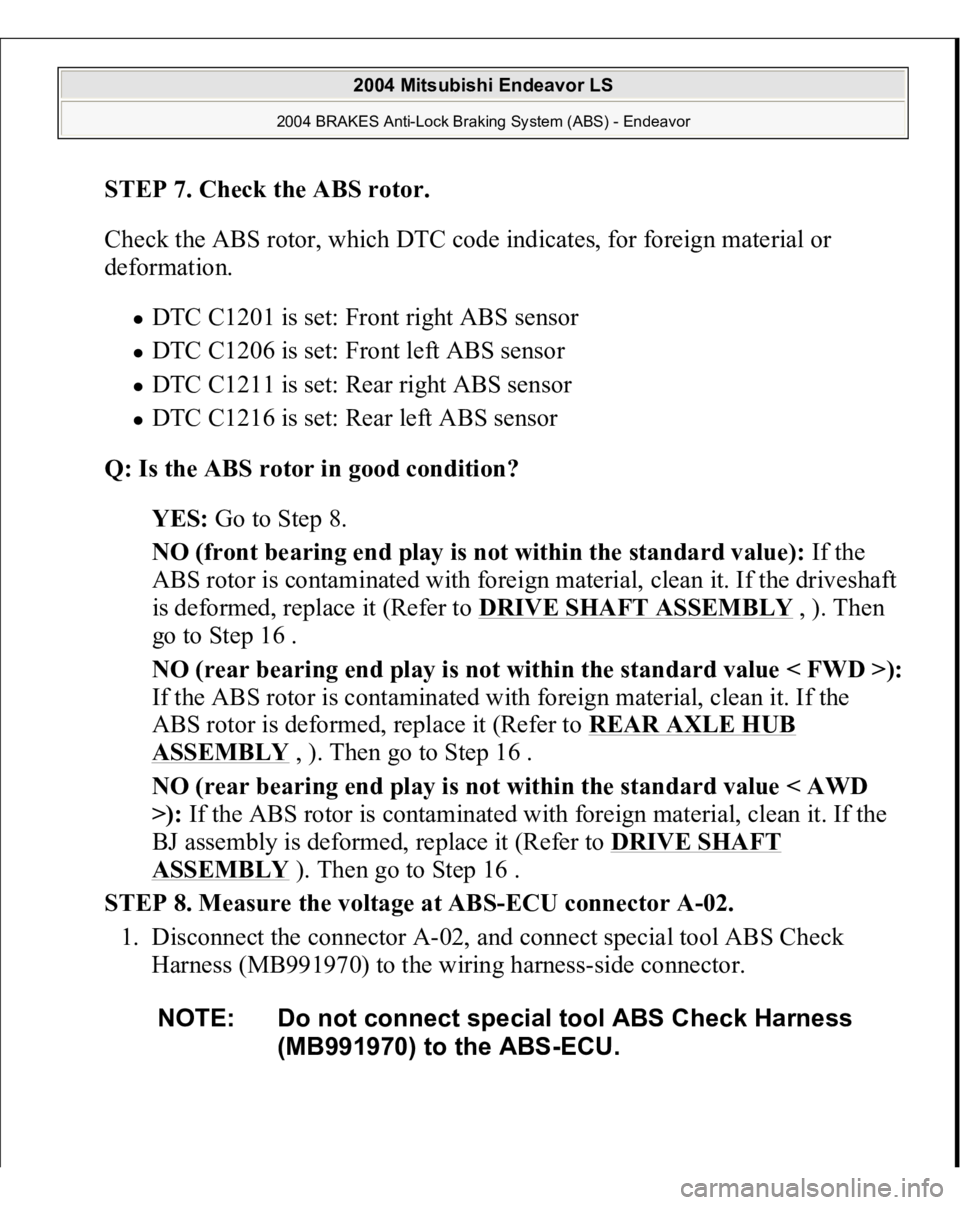

STEP 7. Check the ABS rotor.
Check the ABS rotor, which DTC code indicates, for foreign material or
deformation.
DTC C1201 is set: Front right ABS sensor DTC C1206 is set: Front left ABS sensor DTC C1211 is set: Rear right ABS sensor DTC C1216 is set: Rear left ABS sensor
Q: Is the ABS rotor in good condition?
YES: Go to Step 8.
NO (front bearing end play is not within the standard value): If the
ABS rotor is contaminated with foreign material, clean it. If the driveshaft
is deformed, replace it (Refer to DRIVE SHAFT ASSEMBLY
, ). Then
go to Step 16 .
NO (rear bearing end play is not within the standard value < FWD >):
If the ABS rotor is contaminated with foreign material, clean it. If the
ABS rotor is deformed, replace it (Refer to REAR AXLE HUB
ASSEMBLY
, ). Then go to Step 16 .
NO (rear bearing end play is not within the standard value < AWD
>): If the ABS rotor is contaminated with foreign material, clean it. If the
BJ assembly is deformed, replace it (Refer to DRIVE SHAFT
ASSEMBLY
). Then go to Step 16 .
STEP 8. Measure the voltage at ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

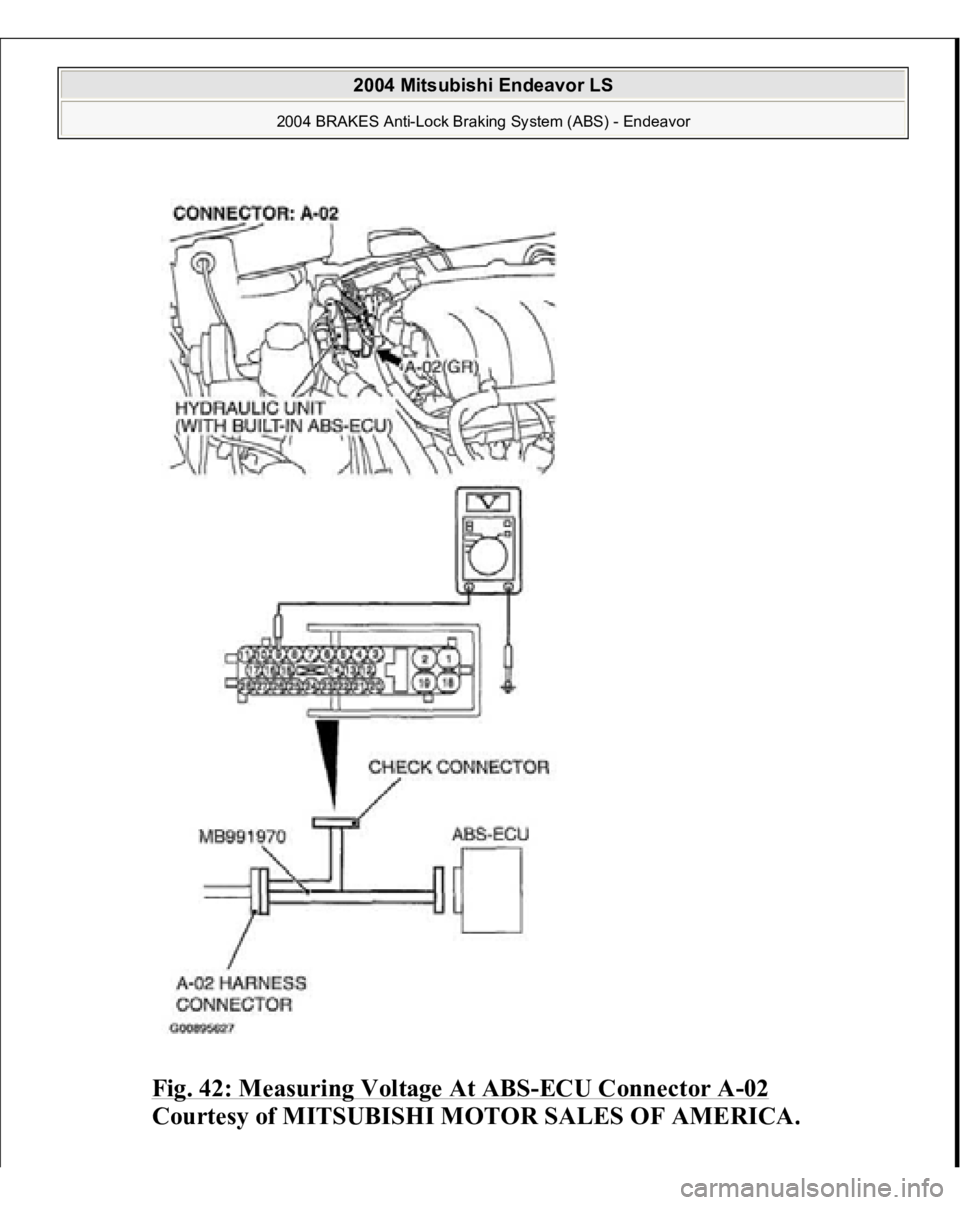

Fig. 42: Measuring Voltage At ABS
-ECU Connector A
-02
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

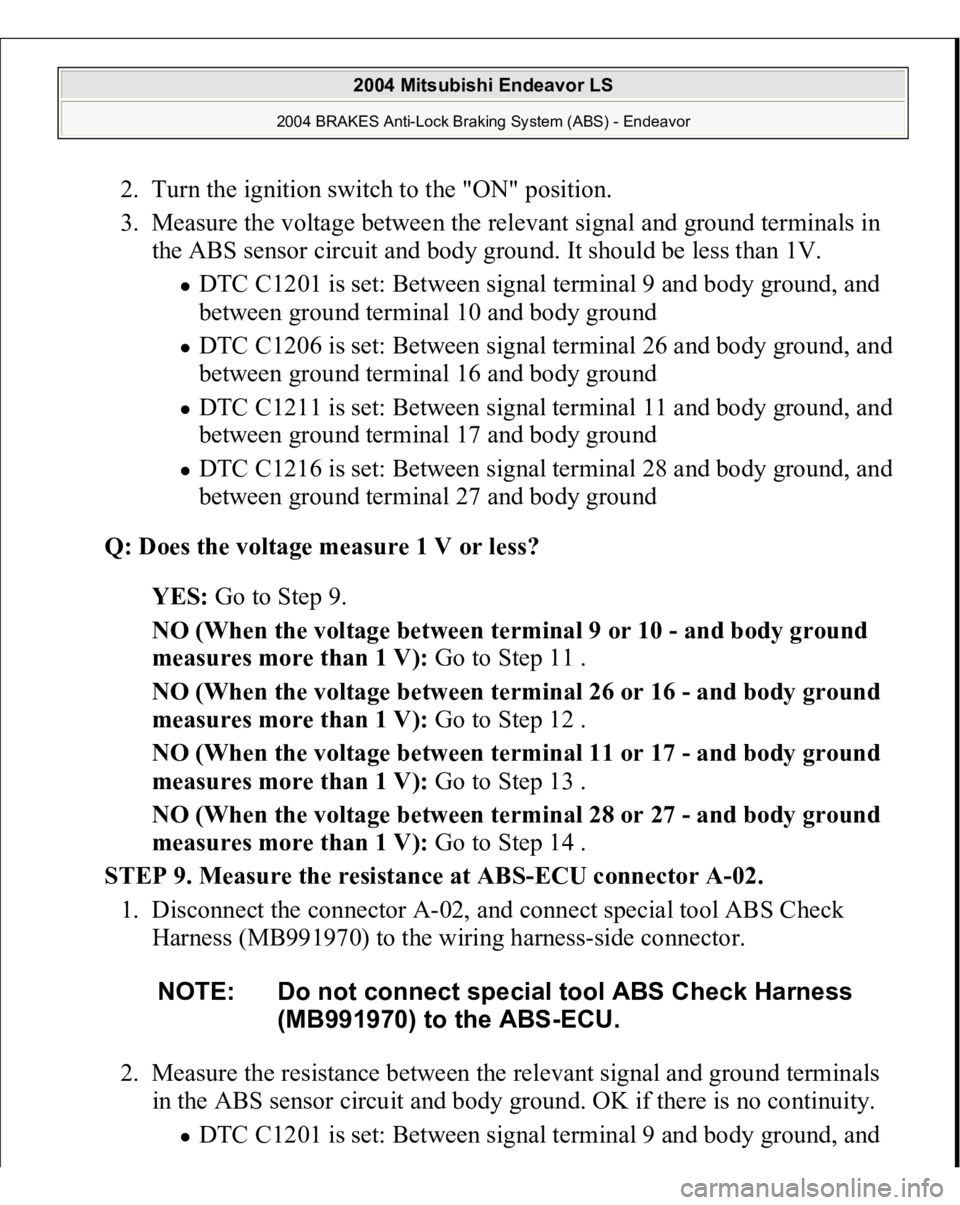

2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between the relevant signal and ground terminals in
the ABS sensor circuit and body ground. It should be less than 1V.
DTC C1201 is set: Between signal terminal 9 and body ground, and
between ground terminal 10 and body ground DTC C1206 is set: Between signal terminal 26 and body ground, and
between ground terminal 16 and body ground DTC C1211 is set: Between signal terminal 11 and body ground, and
between ground terminal 17 and body ground DTC C1216 is set: Between signal terminal 28 and body ground, and
between ground terminal 27 and body ground
Q: Does the voltage measure 1 V or less?
YES: Go to Step 9.
NO (When the voltage between terminal 9 or 10 - and body ground
measures more than 1 V): Go to Step 11 .
NO (When the voltage between terminal 26 or 16 - and body ground
measures more than 1 V): Go to Step 12 .
NO (When the voltage between terminal 11 or 17 - and body ground
measures more than 1 V): Go to Step 13 .
NO (When the voltage between terminal 28 or 27 - and body ground
measures more than 1 V): Go to Step 14 .
STEP 9. Measure the resistance at ABS-ECU connector A-02.
1. Disconnect the connector A-02, and connect special tool ABS Check
Harness (MB991970) to the wiring harness-side connector.
2. Measure the resistance between the relevant signal and ground terminals
in the ABS sensor circuit and body ground. OK if there is no continuity. DTC C1201 is set: Between signal terminal 9 and bo
dy ground, and NOTE: Do not connect special tool ABS Check Harness
(MB991970) to the ABS-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

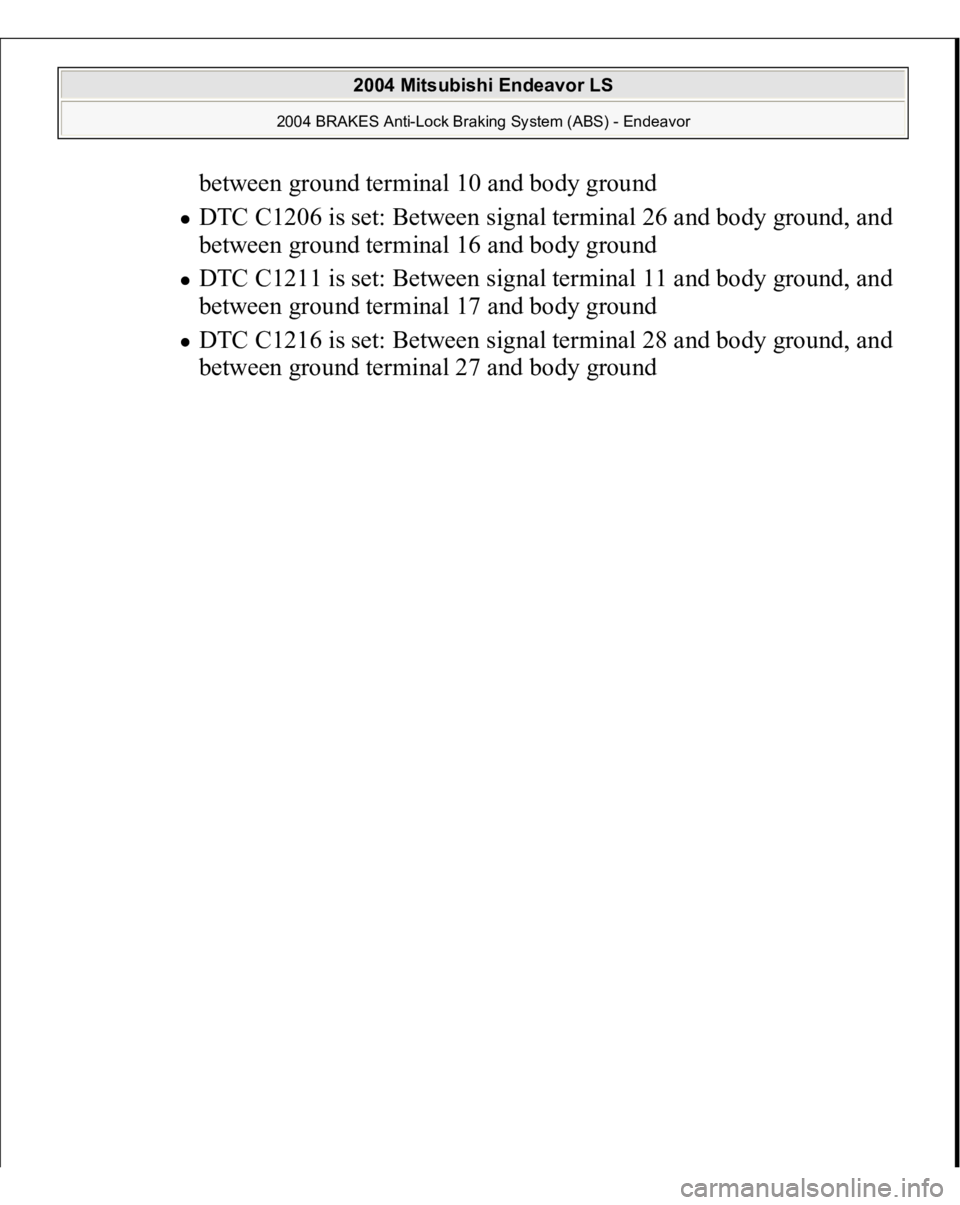

between ground terminal 10 and body ground DTC C1206 is set: Between signal terminal 26 and body ground, and
between ground terminal 16 and body ground DTC C1211 is set: Between signal terminal 11 and body ground, and
between ground terminal 17 and body ground DTC C1216 is set: Between signal terminal 28 and body ground, and between
ground terminal 27 and bod
y ground
