MITSUBISHI ENDEAVOR 2004 Service Repair Manual

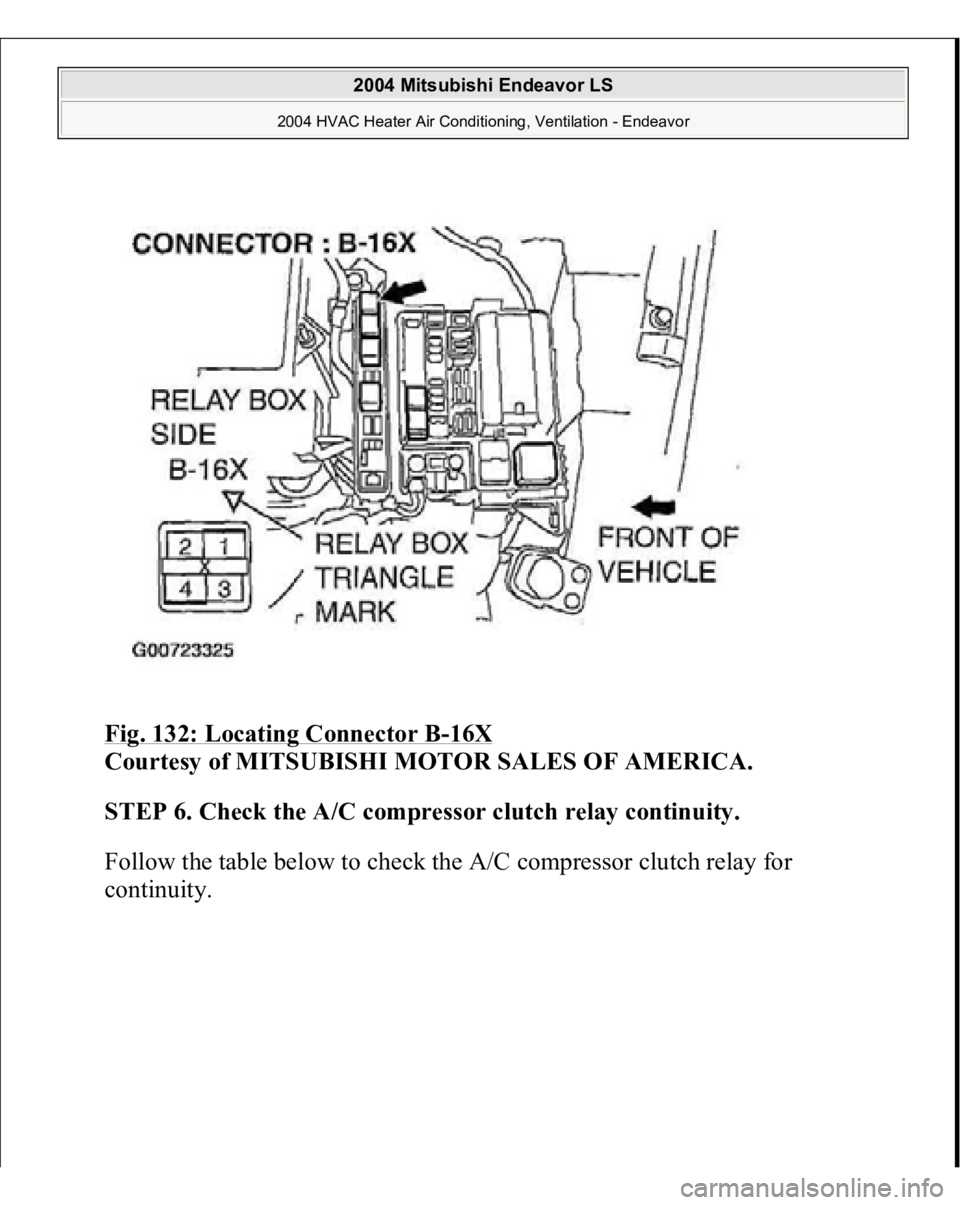

Fig. 132: Locating Connector B
-16X

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

STEP 6. Check the A/C compressor clutch relay continuity.

Follow the table below to check the A/C compressor clutch relay for
continuit
y.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

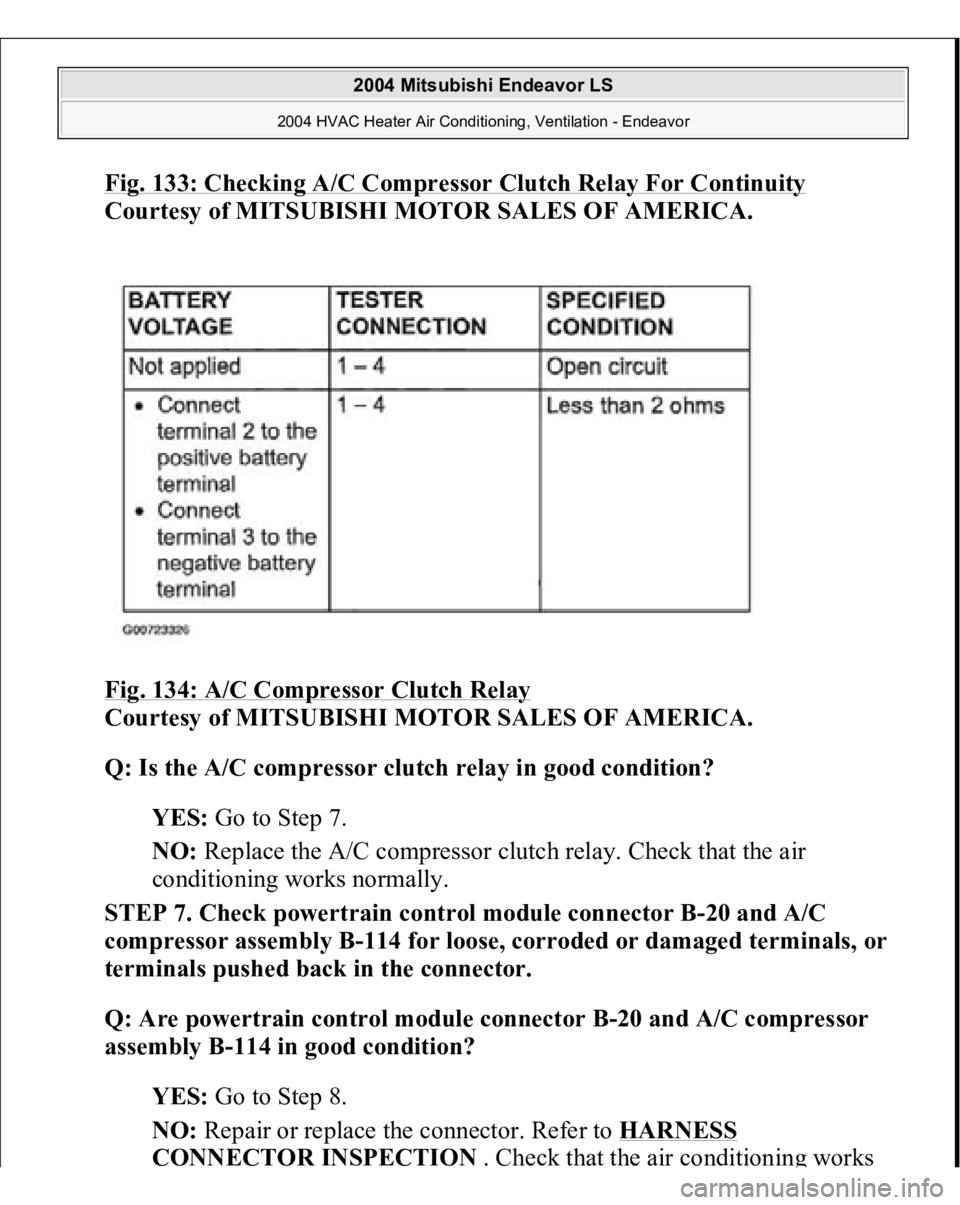

Fig. 133: Checking A/C Compressor Clutch Relay For Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

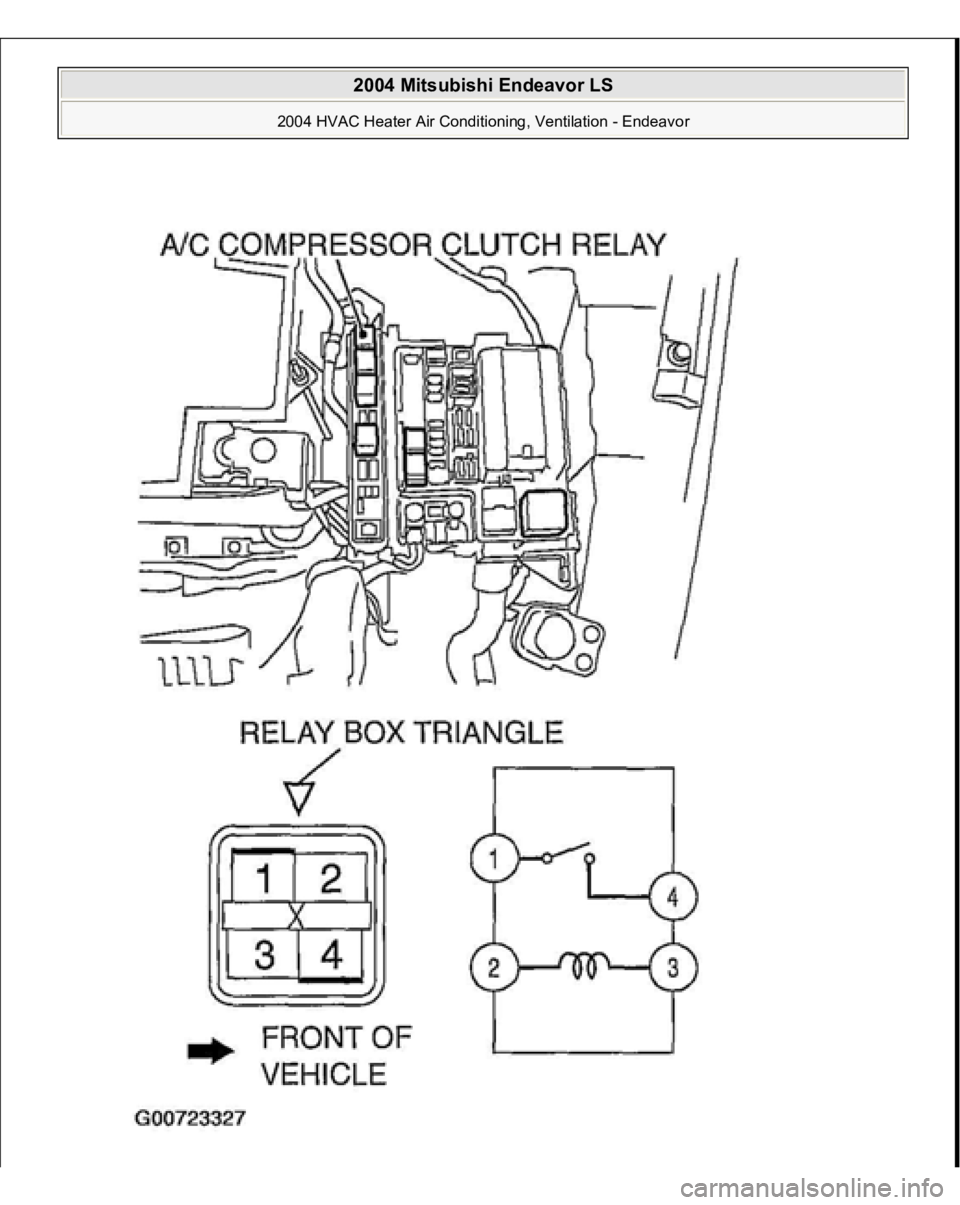

Fig. 134: A/C Compressor Clutch Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Q: Is the A/C compressor clutch relay in good condition?

YES:
Go to Step 7.
NO:
Replace the A/C compressor clutch relay. Check that the air
conditioning works normally.
STEP 7. Check powertrain control module connector B-20 and A/C
compressor assembly B-114 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

Q: Are powertrain control module connector B-20 and A/C compressor
assembly B-114 in good condition?

YES:
Go to Step 8.
NO:
Repair or replace the connector. Refer to
HARNESS
CONNECTOR INSPECTION
. Check that the air conditionin
g works

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

normally.

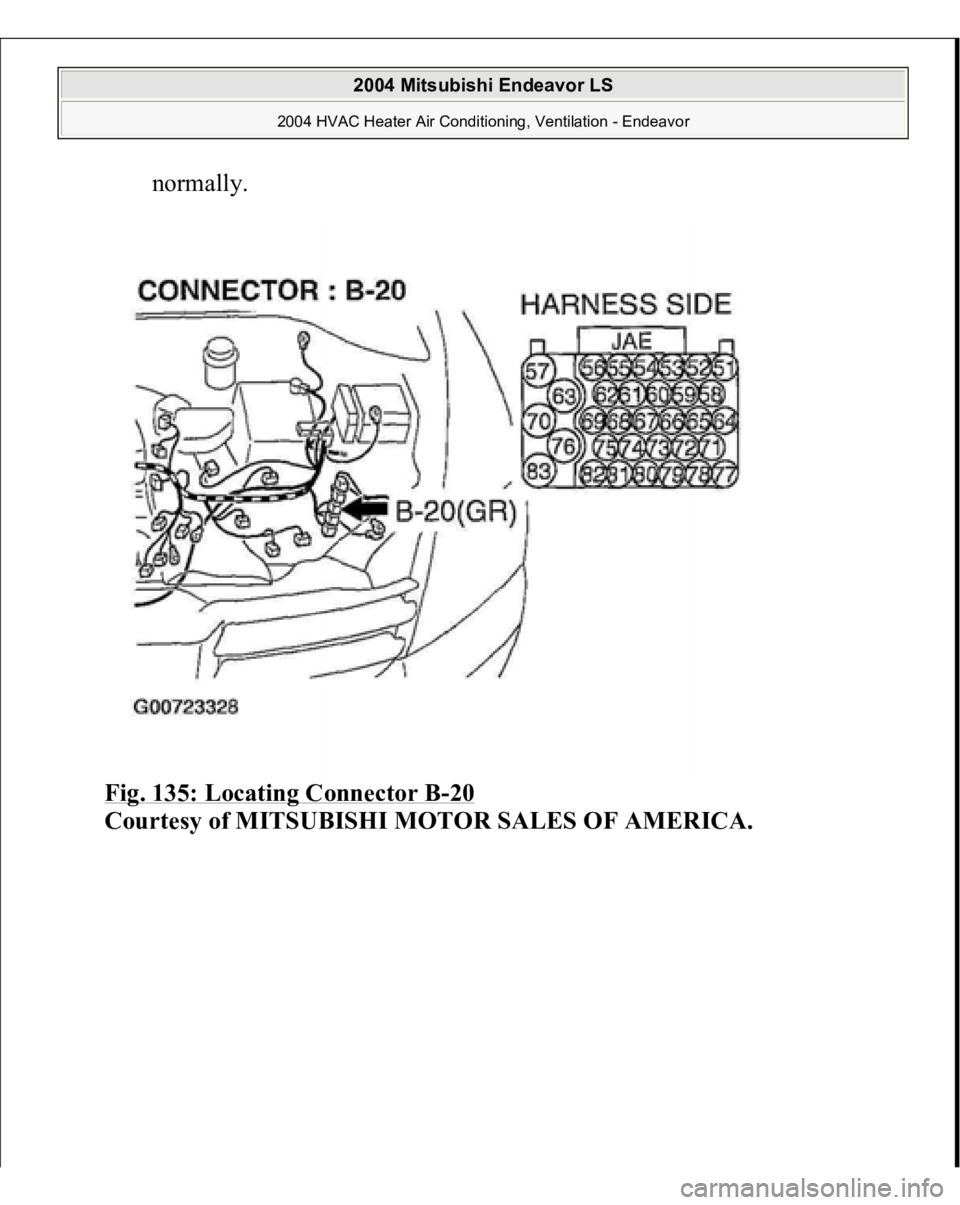

Fig. 135: Locating Connector B
-20
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

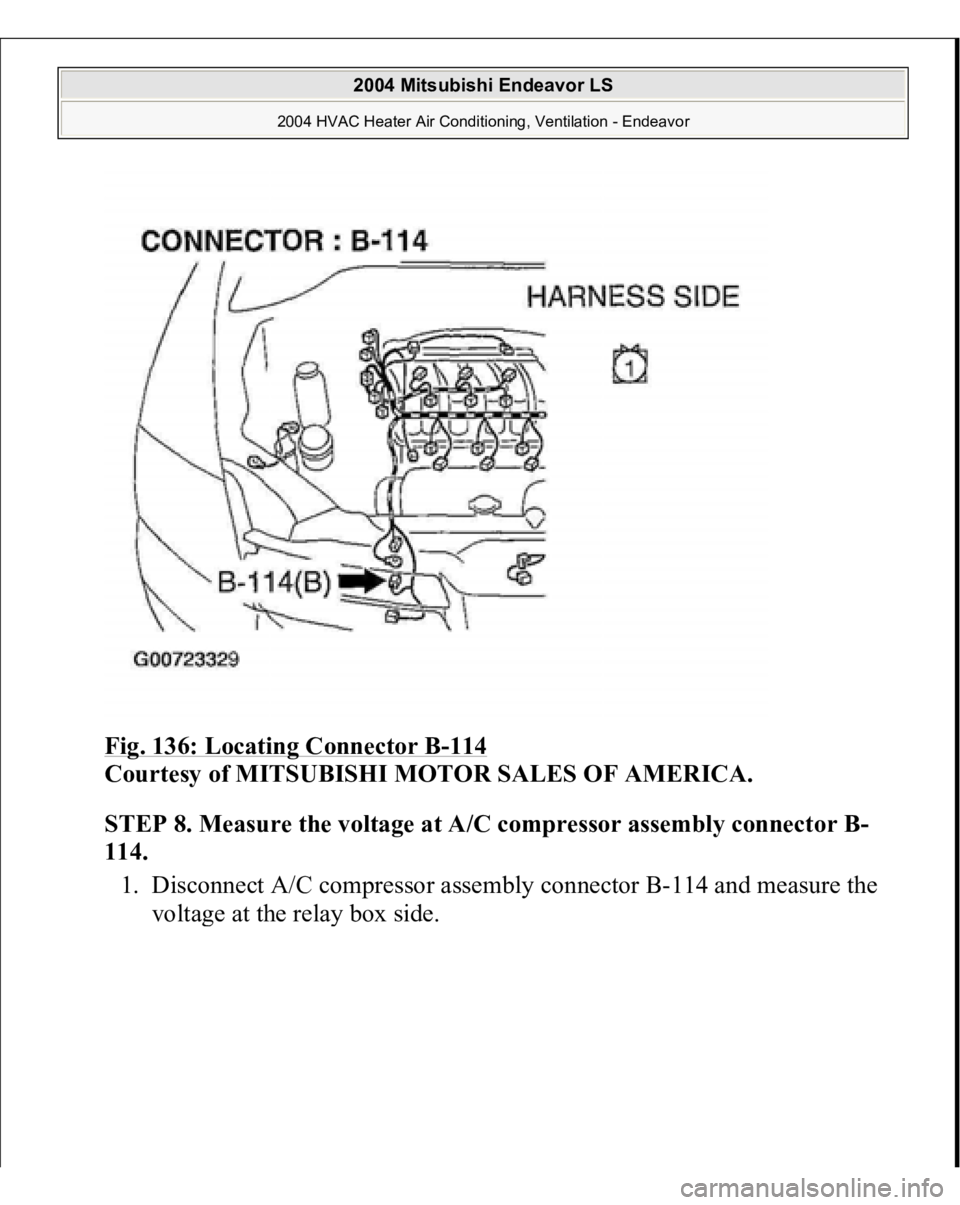

Fig. 136: Locating Connector B
-114

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

STEP 8. Measure the voltage at A/C compressor assembly connector B-
114.

1. Disconnect A/C compressor assembly connector B-114 and measure the
volta
ge at the rela
y box side.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

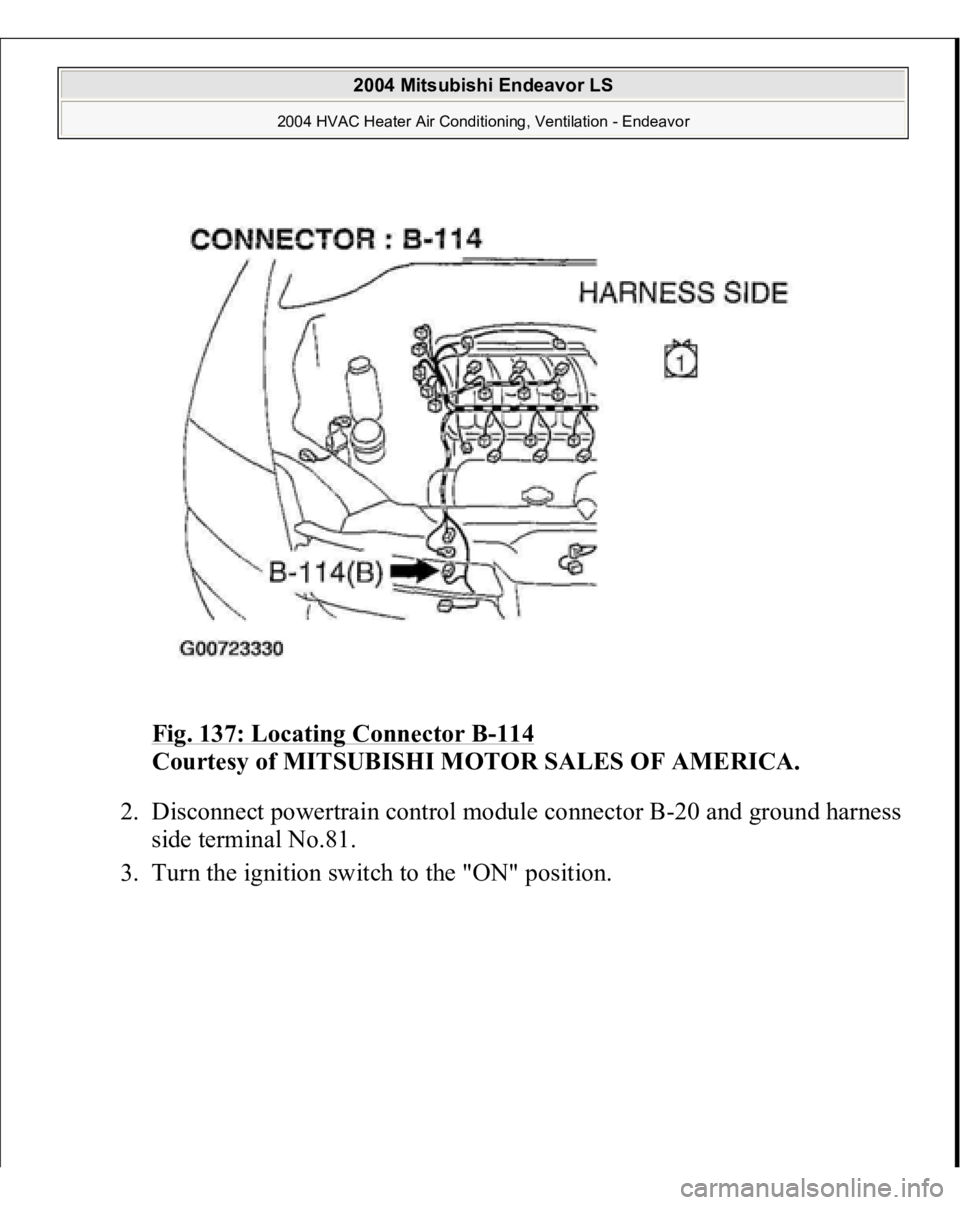

Fig. 137: Locating Connector B
-114

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2. Disconnect powertrain control module connector B-20 and ground harness
side terminal No.81.
3. Turn the i
gnition switch to the "ON"
position.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

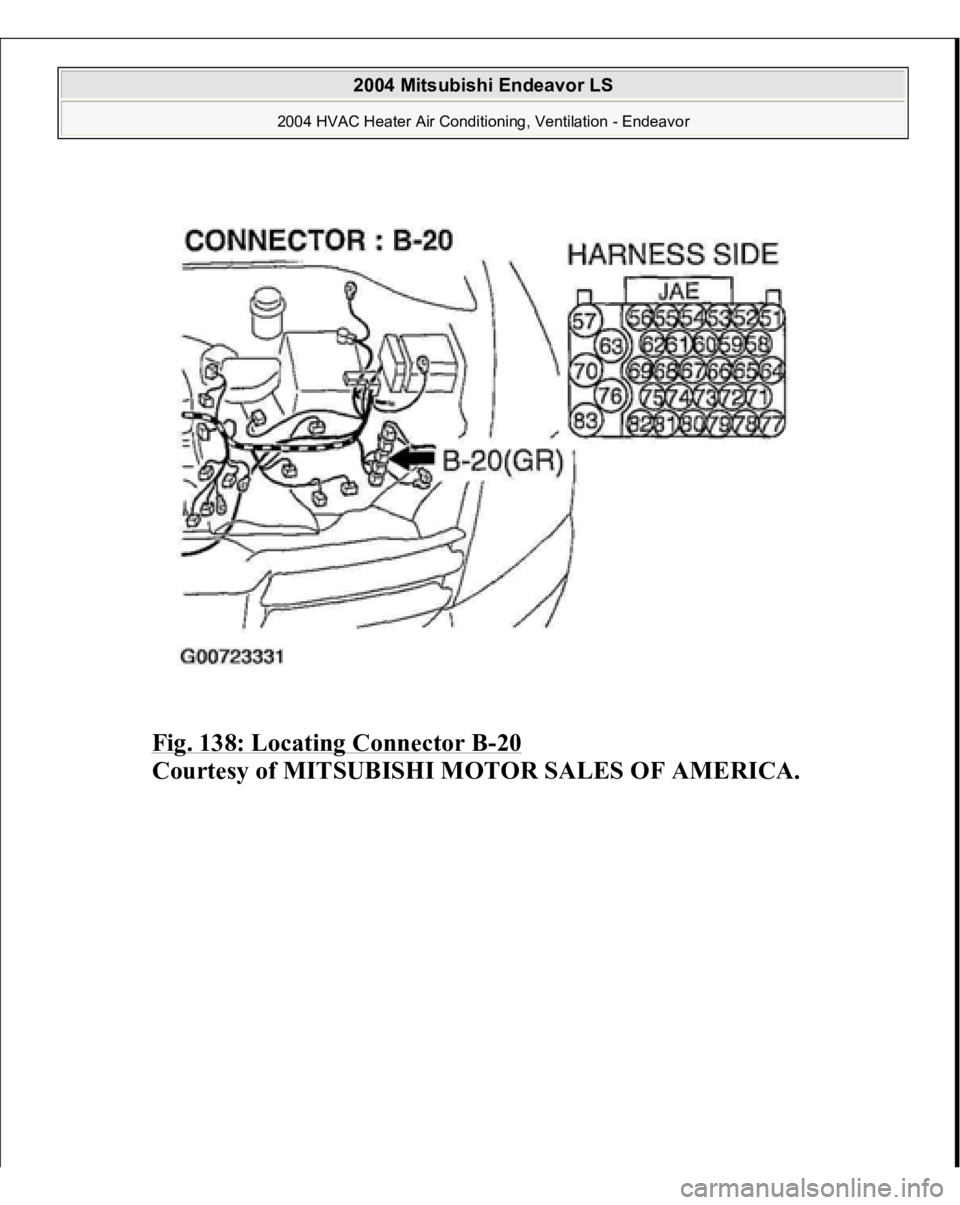

Fig. 138: Locating Connector B
-20
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

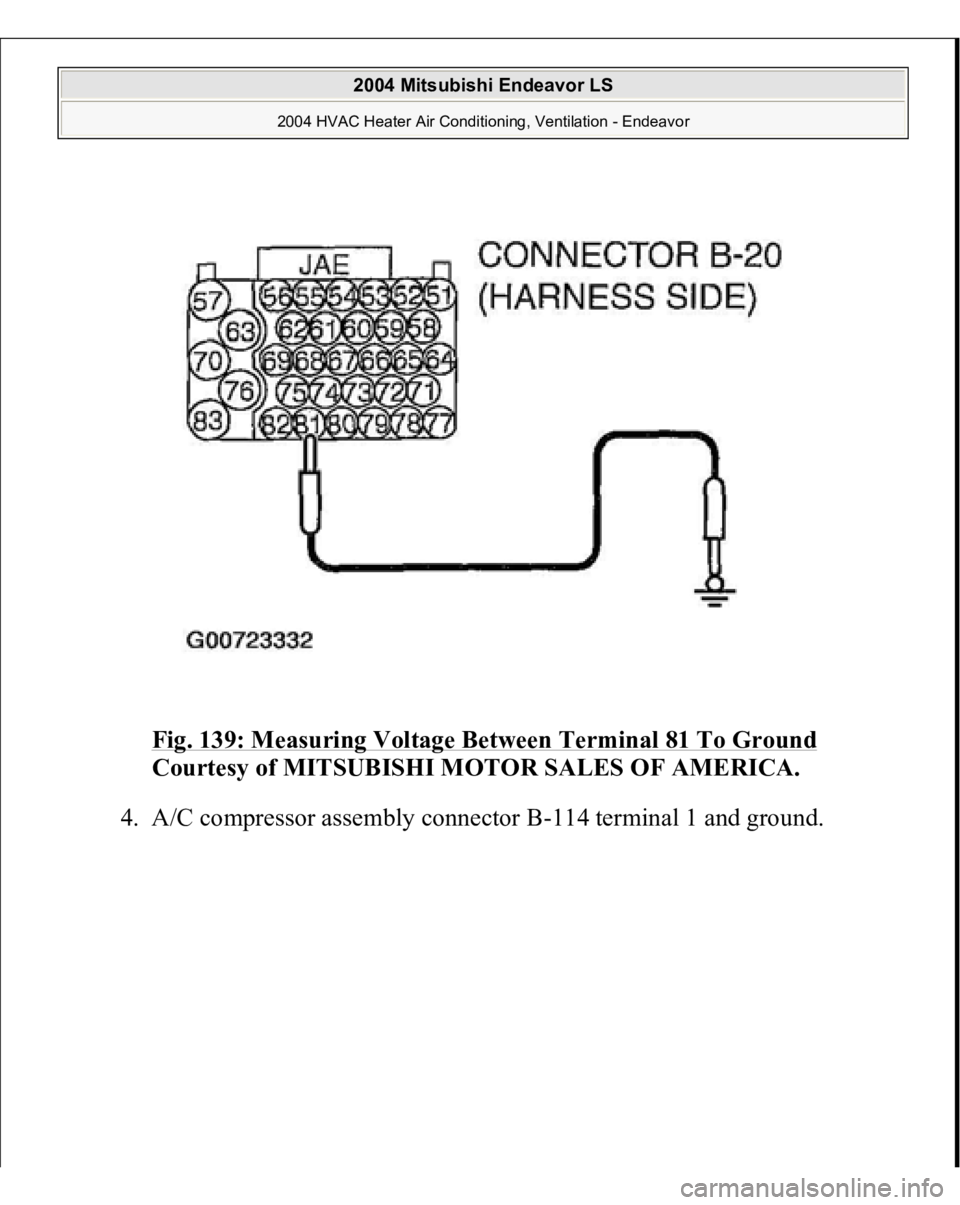

Fig. 139: Measuring Voltage Between Terminal 81 To Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

4. A/C com
pressor assembl
y connector
B-114 terminal 1 and
ground.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

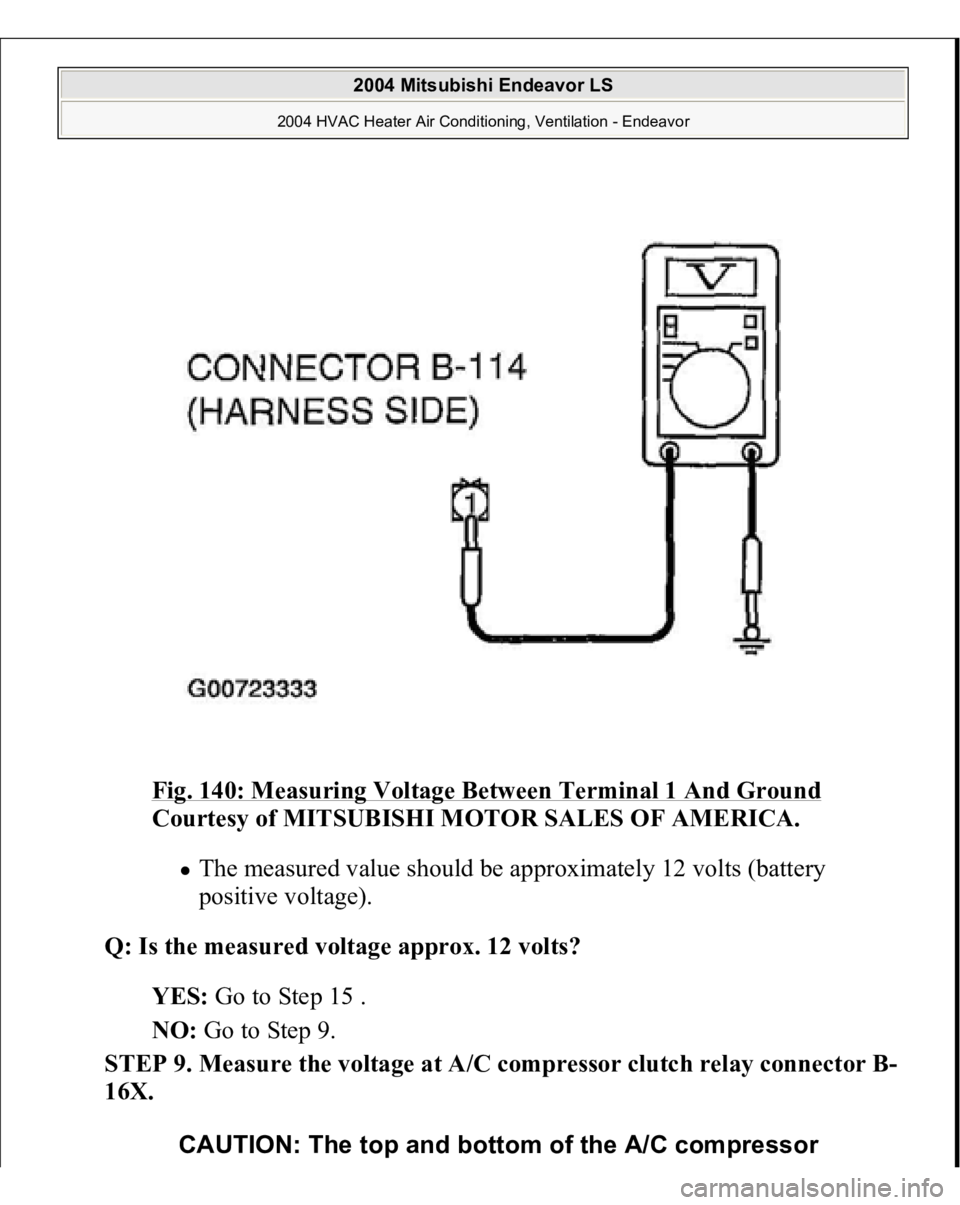

Fig. 140: Measuring Voltage Between Terminal 1 And Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The measured value should be approximately 12 volts (battery
positive voltage).
Q: Is the measured voltage approx. 12 volts?

YES:
Go to Step 15 .
NO:
Go to Step 9.
STEP 9. Measure the voltage at A/C compressor clutch relay connector B-
16X.
CAUTION: The top and bottom of the A/C compressor

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

1. Disconnect A/C compressor connector B-16X and measure the voltage at
the relay box side.
2. Turn the ignition switch to the "ON" position.

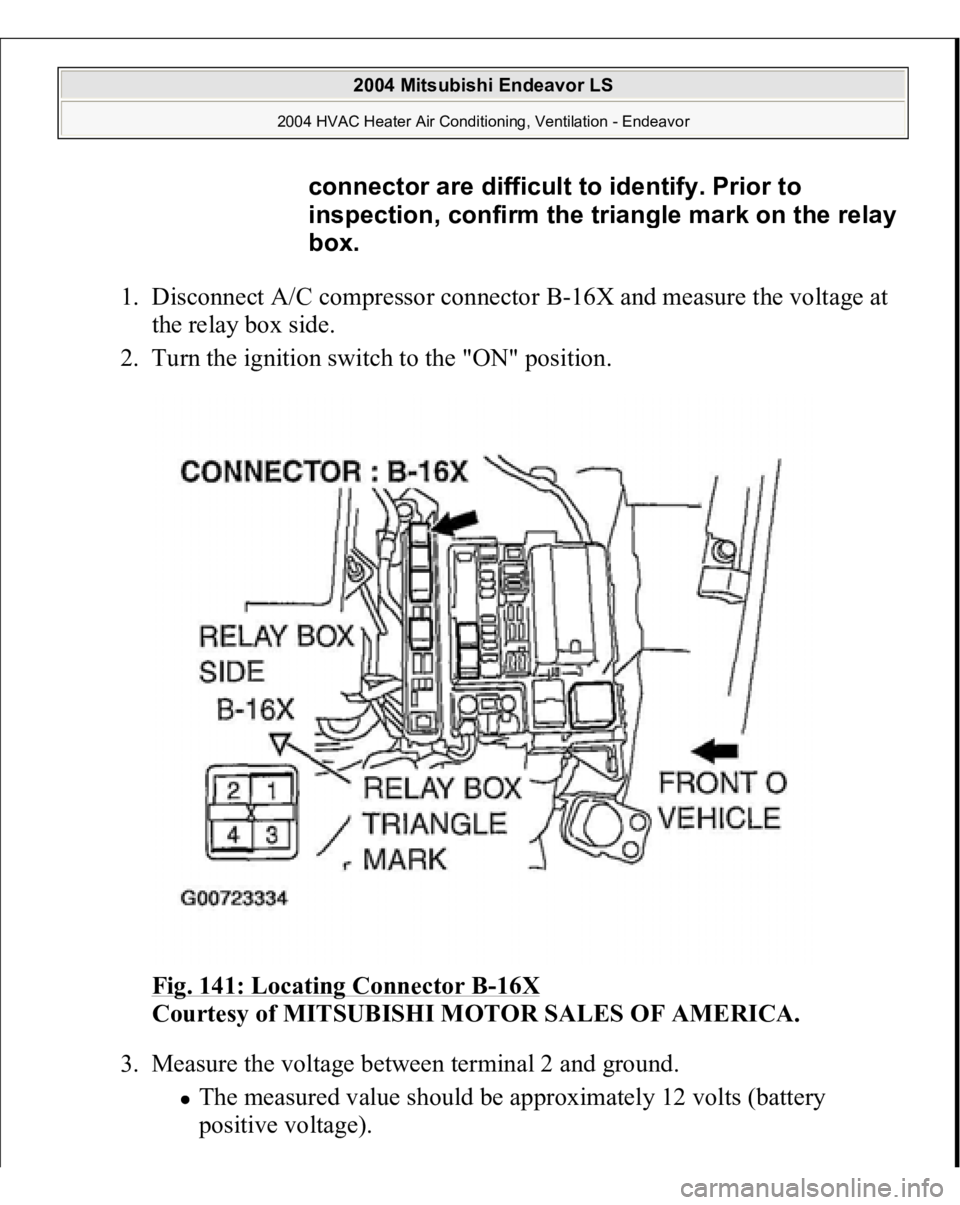

Fig. 141: Locating Connector B
-16X

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

3. Measure the voltage between terminal 2 and ground.
The measured value should be approximately 12 volts (battery
positive voltage).
connector are difficult to identify. Prior to
inspection, confirm the trian
gle mark on the rela
y
box.
