cable routing. Then go to Step 5 .
STEP 2. Check the parking brake cable for sticking.
Q: Is the parking brake cable stuck?
YES: Replace the cable. Then go to Step 5 .
NO: Go to Step 3.
STEP 3. Check the brake lining and brake drum for wear.
Refer to INSPECTION
.
Q: Is the brake lining thickness or brake drum inside diameter outside of
specification?
YES: Replace the rear brake shoe assembly or rear brake disc (Refer to
>>B<< PARKING BRAKE LEVER NUTS/PARKING BRAKE
CABLE CLIP INSTALLATION
). Then go to Step 5 .
NO: Go to Step 4.
STEP 4. Check for oil, water, etc., on the lining contact surfaces.
Q: Is oil, water etc., on the lining contact surface?
YES: Replace the part and determine and repair source/cause of foreign
material. Then go to Step 5.
NO: Carry out the parking brake lining seating (Refer to PARKING
BRAKE SWITCH CHECK
) and then go to Step 5.
STEP 5. Retest the system.
Q: Is the malfunction eliminated?
YES: The procedure is complete.
NO: Recheck from Step 1 .
ON-VEHICLE SERVICE PARKING BRAKE PEDAL STROKE CHECK AND ADJUSTMENT
2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

Fig. 8: Parking Brake Switch Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
PARKING BRAKE LINING SEATING PROCEDURE Perform lining seating by the following procedure when replacing the parking brake
shoe assemblies or the rear brake discs, or when brake performance is insufficient.
1. Adjust the parking brake pedal stroke to the standard value (Refer to ON
-
VEHICLE SERVICE
).
2. Depress the parking brake pedal with a force of 100 - 150 N (23 - 34 pounds).
3. Drive the vehicle at a constant speed of 35 - 50 km/h (22 - 31 mph) for 100
meters (328 feet).
4. Release the parking brake and let the brakes cool for five to ten minutes.
5. Repeat the procedure in steps 2. to 4. four to five times.
PARKING BRAKE PEDAL REMOVAL AND INSTALLATION Post-installation Operation
Parking Brake Pedal Stroke Check and Adjustment (Refer to ON
-VEHICLE
SERVICE
.)
CAUTION: Perform lining seating in a place with good visibility,
and pay careful attention to safety.

2004 Mitsubishi Endeavor LS 2004 BRAKES Parking Brakes - Endeavor

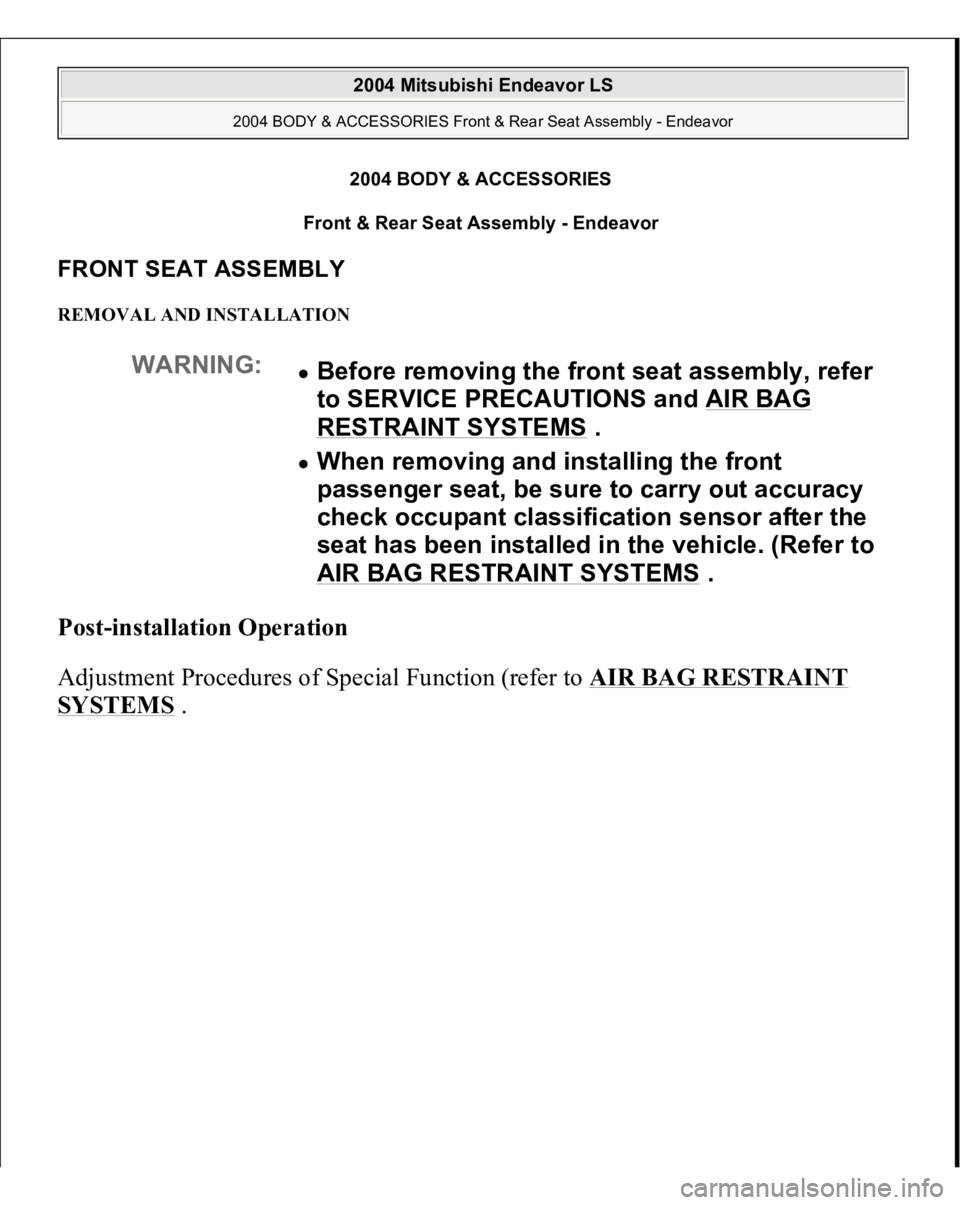

2004 BODY & ACCESSORIES
Front & Rear Seat Assembly - Endeavor
FRONT SEAT ASSEMBLY REMOVAL AND INSTALLATION Post-installation Operation
Adjustment Procedures of Special Function (refer to AIR BAG RESTRAINT SYSTEMS
.
WARNING:
Before removing the front seat assembly, refer
to SERVICE PRECAUTIONS and AIR BAG RESTRAINT SYSTEMS
.
When removing and installing the front
passenger seat, be sure to carry out accuracy
check occupant classification sensor after the
seat has been installed in the vehicle. (Refer to
AIR BAG RESTRAINT SYSTEMS
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Front & Rear Seat Assembly - Endeavor
