3-2 Features and controls

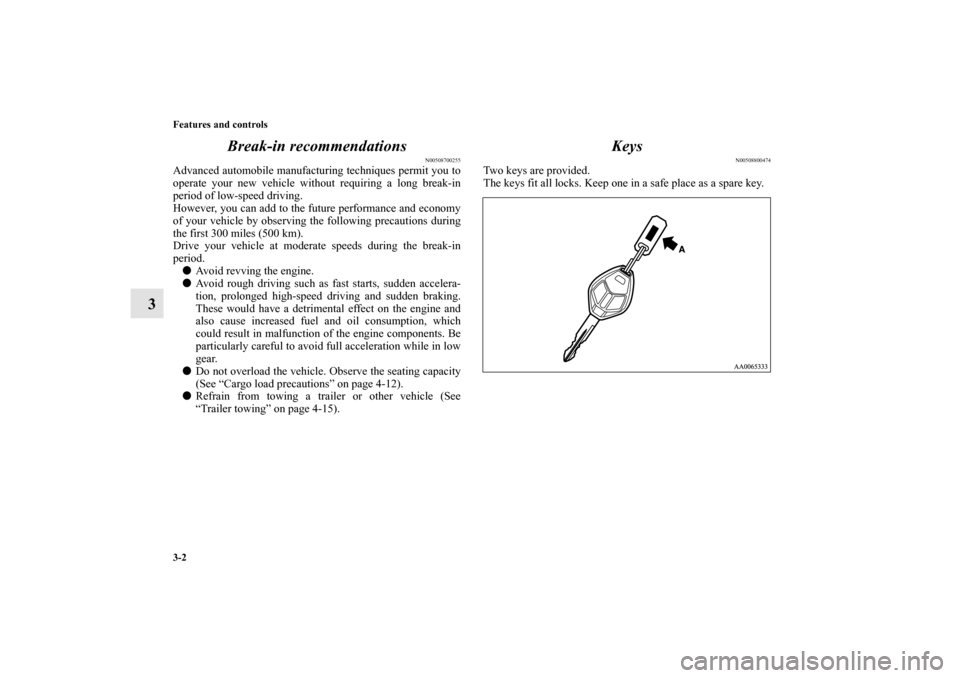

3Break-in recommendations
N00508700255
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine.

Avoid rough driving such as fast starts, sudden accelera-
tion, prolonged high-speed driving and sudden braking.
These would have a detrimental effect on the engine and
also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
gear.

Do not overload the vehicle. Observe the seating capacity
(See “Cargo load precautions” on page 4-12).

Refrain from towing a trailer or other vehicle (See
“Trailer towing” on page 4-15).
Keys
N00508800474
Two keys are provided.
The keys fit all locks. Keep one in a safe place as a spare key.
BK0121600US.book 2 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-3
3
NOTE
The key number (A) is stamped on the key number plate
as shown in the illustration.
Make a record of the key number and store the key and
key number plate in separate places, so that you can order
a key from your authorized Mitsubishi Motors dealer if
the original keys are lost.

The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent damage.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
• Do not take the remote control transmitter apart.
• Do not excessively bend the key or subject it to strong
impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as key holders.
• Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be exposed to high
temperature or high humidity.

As your vehicle is equipped with an electronic immobi-
lizer, the engine is designed so that it will not start if the
ID code registered in the immobilizer computer and the
key’s ID code do not match. Refer to the section entitled
“Electronic immobilizer” for details and key usage.
Electronic immobilizer (Anti-theft starting
system)
N00509100618
The electronic immobilizer is designed to significantly reduce
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions), using a key “registered” to the immobilizer system.
All of the keys provided with your new vehicle have been pro-
grammed to the vehicle’s electronics.
BK0121600US.book 3 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-4 Features and controls
3

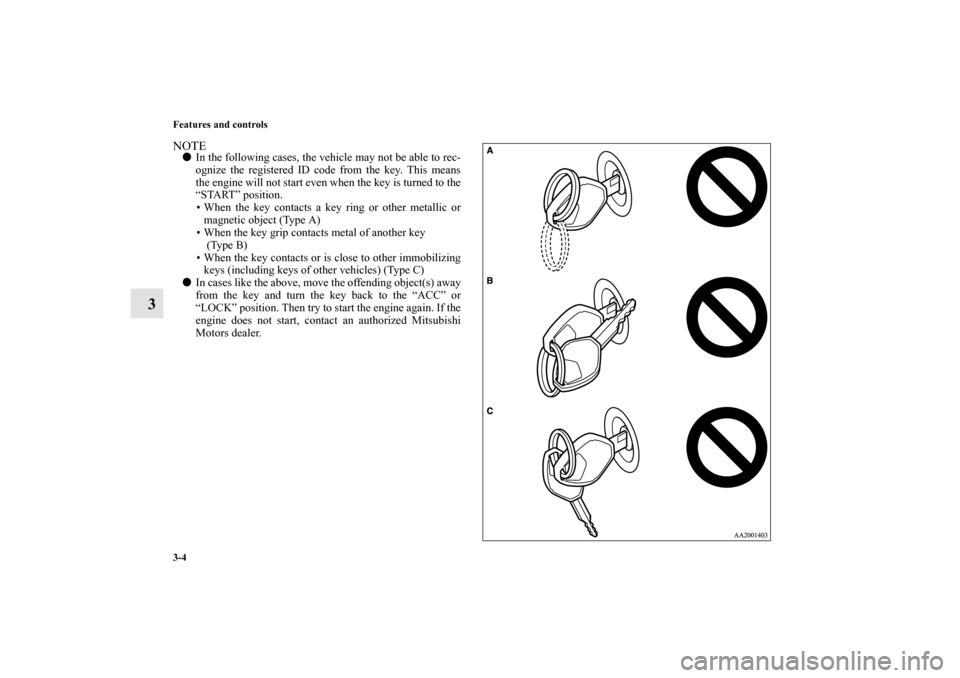

NOTE
In the following cases, the vehicle may not be able to rec-
ognize the registered ID code from the key. This means
the engine will not start even when the key is turned to the
“START” position.
• When the key contacts a key ring or other metallic or
magnetic object (Type A)
• When the key grip contacts metal of another key
(Type B)
• When the key contacts or is close to other immobilizing
keys (including keys of other vehicles) (Type C)

In cases like the above, move the offending object(s) away
from the key and turn the key back to the “ACC” or
“LOCK” position. Then try to start the engine again. If the
engine does not start, contact an authorized Mitsubishi
Motors dealer.
BK0121600US.book 4 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-5
3

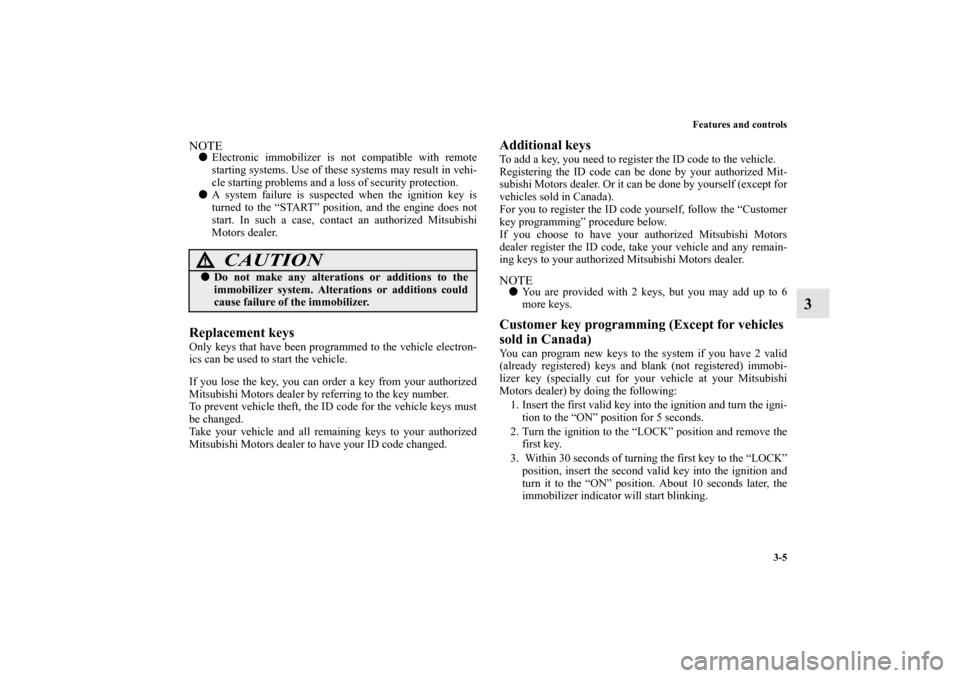

NOTE
Electronic immobilizer is not compatible with remote
starting systems. Use of these systems may result in vehi-
cle starting problems and a loss of security protection.

A system failure is suspected when the ignition key is
turned to the “START” position, and the engine does not
start. In such a case, contact an authorized Mitsubishi
Motors dealer.Replacement keysOnly keys that have been programmed to the vehicle electron-
ics can be used to start the vehicle.
If you lose the key, you can order a key from your authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to your authorized
Mitsubishi Motors dealer to have your ID code changed.
Additional keysTo add a key, you need to register the ID code to the vehicle.
Registering the ID code can be done by your authorized Mit-
subishi Motors dealer. Or it can be done by yourself (except for
vehicles sold in Canada).
For you to register the ID code yourself, follow the “Customer
key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and any remain-
ing keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 keys, but you may add up to 6
more keys.Customer key programming (Except for vehicles
sold in Canada)You can program new keys to the system if you have 2 valid
(already registered) keys and blank (not registered) immobi-
lizer key (specially cut for your vehicle at your Mitsubishi
Motors dealer) by doing the following:
1. Insert the first valid key into the ignition and turn the igni-
tion to the “ON” position for 5 seconds.
2. Turn the ignition to the “LOCK” position and remove the
first key.
3. Within 30 seconds of turning the first key to the “LOCK”
position, insert the second valid key into the ignition and
turn it to the “ON” position. About 10 seconds later, the
immobilizer indicator will start blinking.
CAUTION
!
Do not make any alterations or additions to the
immobilizer system. Alterations or additions could
cause failure of the immobilizer.
BK0121600US.book 5 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-6 Features and controls
3

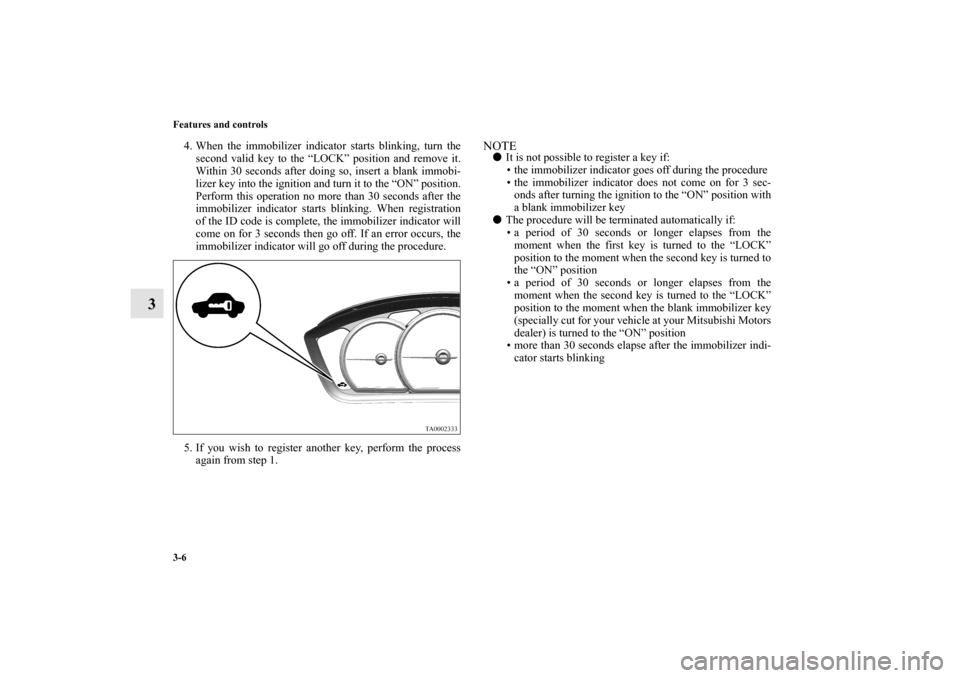

4. When the immobilizer indicator starts blinking, turn the
second valid key to the “LOCK” position and remove it.
Within 30 seconds after doing so, insert a blank immobi-
lizer key into the ignition and turn it to the “ON” position.
Perform this operation no more than 30 seconds after the
immobilizer indicator starts blinking. When registration
of the ID code is complete, the immobilizer indicator will
come on for 3 seconds then go off. If an error occurs, the
immobilizer indicator will go off during the procedure.
5. If you wish to register another key, perform the process
again from step 1.
NOTE
It is not possible to register a key if:
• the immobilizer indicator goes off during the procedure
• the immobilizer indicator does not come on for 3 sec-
onds after turning the ignition to the “ON” position with
a blank immobilizer key

The procedure will be terminated automatically if:
• a period of 30 seconds or longer elapses from the
moment when the first key is turned to the “LOCK”
position to the moment when the second key is turned to
the “ON” position
• a period of 30 seconds or longer elapses from the
moment when the second key is turned to the “LOCK”
position to the moment when the blank immobilizer key
(specially cut for your vehicle at your Mitsubishi Motors
dealer) is turned to the “ON” position
• more than 30 seconds elapse after the immobilizer indi-
cator starts blinking
BK0121600US.book 6 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-7
3

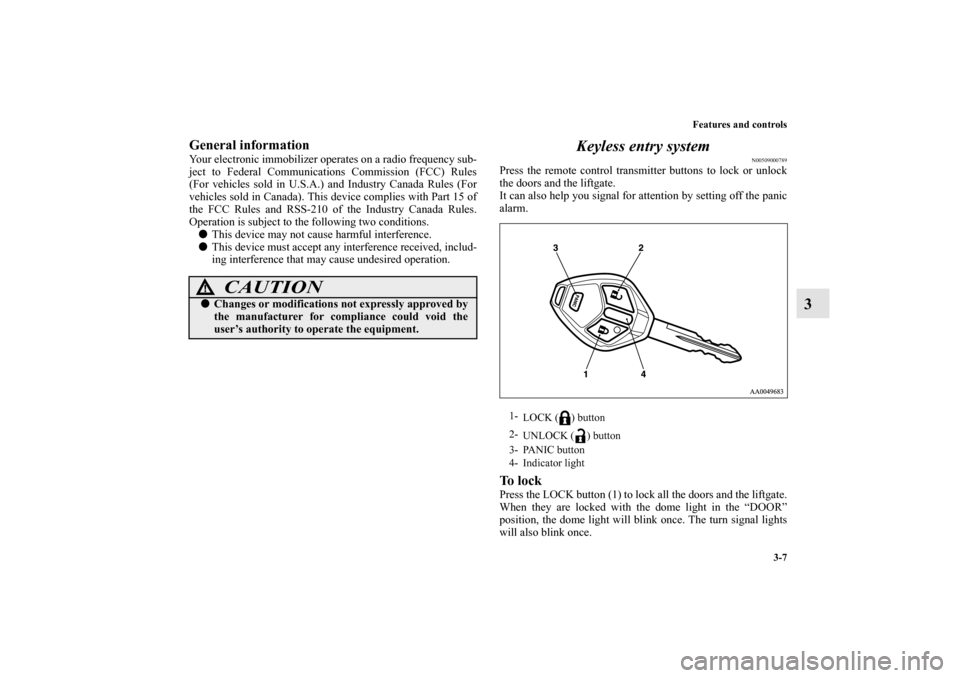

General informationYour electronic immobilizer operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Keyless entry system
N00509000789
Press the remote control transmitter buttons to lock or unlock
the doors and the liftgate.
It can also help you signal for attention by setting off the panic
alarm. To l o c k Press the LOCK button (1) to lock all the doors and the liftgate.
When they are locked with the dome light in the “DOOR”
position, the dome light will blink once. The turn signal lights
will also blink once.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button
4- Indicator light
BK0121600US.book 7 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-8 Features and controls
3
NOTE
If you press the LOCK button (1) after locking the doors
and the liftgate, the horn will sound once to confirm that
they are locked.To unlock Press the UNLOCK button (2) to unlock the driver’s door only.
Press the UNLOCK button one more time to unlock all the
doors and the liftgate.
When the driver’s door only or all doors and the liftgate are
unlocked with the dome light in the “DOOR” position, the
dome light will turn on for 15 seconds. The turn signal lights
will also blink twice.NOTE
In a vehicle with a multi center display, the multi center
display can be used to change the settings for unlocking
the doors with the remote control transmitter. For details,
refer to “Setting and customization” on page 3-108.Answerback function The keyless entry system answerback functions from the horn
and turn signal lights can each be turned on or off as desired.
This is done with the key removed from the ignition switch. NOTE
The answerback function is not provided when the key is
in the ignition switch.
Horn deactivation/reactivation The answerback function can be set in the following three
ways.
Each time the answerback function is set, a tone will sound to
tell you the condition of the answerback function.
1. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
2. Release the LOCK and UNLOCK buttons within 10 sec-
onds of pressing the UNLOCK button in step 1.NOTE
In a vehicle with a multi center display, the multi center
display can be used to change the answerback function
provided by the horn. For details, refer to “Setting and
customization” on page 3-108.One chime: The horn will sound if the doors and the liftgate
are locked with the keyless entry system.
Two chimes: The horn will not sound, even if the doors and
the liftgate are locked with the keyless entry sys-
tem.
Three chimes: The horn will sound if the doors and the liftgate
are already locked and the keyless entry system
is used.
In this mode, the horn will only sound when the
keyless entry LOCK button is pressed again to
reconfirm that the doors and the liftgate are
locked.
BK0121600US.book 8 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-9
3

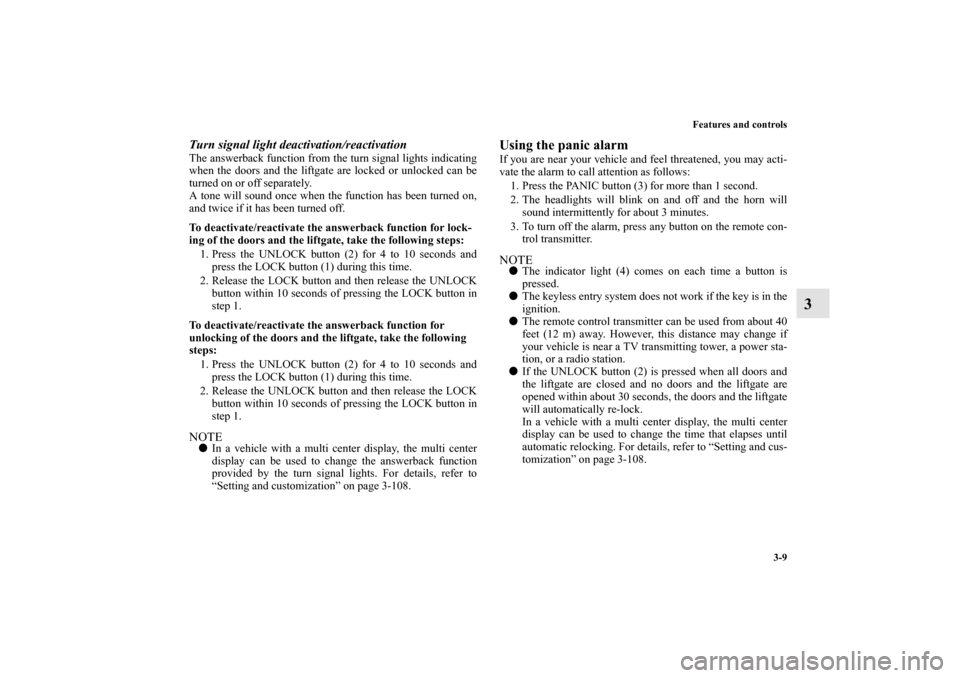

Turn signal light deactivation/reactivation The answerback function from the turn signal lights indicating
when the doors and the liftgate are locked or unlocked can be
turned on or off separately.
A tone will sound once when the function has been turned on,
and twice if it has been turned off.
To deactivate/reactivate the answerback function for lock-
ing of the doors and the liftgate, take the following steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the LOCK button and then release the UNLOCK
button within 10 seconds of pressing the LOCK button in
step 1.
To deactivate/reactivate the answerback function for
unlocking of the doors and the liftgate, take the following
steps:
1. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
2. Release the UNLOCK button and then release the LOCK
button within 10 seconds of pressing the LOCK button in
step 1.NOTE
In a vehicle with a multi center display, the multi center
display can be used to change the answerback function
provided by the turn signal lights. For details, refer to
“Setting and customization” on page 3-108.
Using the panic alarmIf you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.NOTE
The indicator light (4) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors and
the liftgate are closed and no doors and the liftgate are
opened within about 30 seconds, the doors and the liftgate
will automatically re-lock.
In a vehicle with a multi center display, the multi center
display can be used to change the time that elapses until
automatic relocking. For details, refer to “Setting and cus-
tomization” on page 3-108.
BK0121600US.book 9 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-10 Features and controls
3

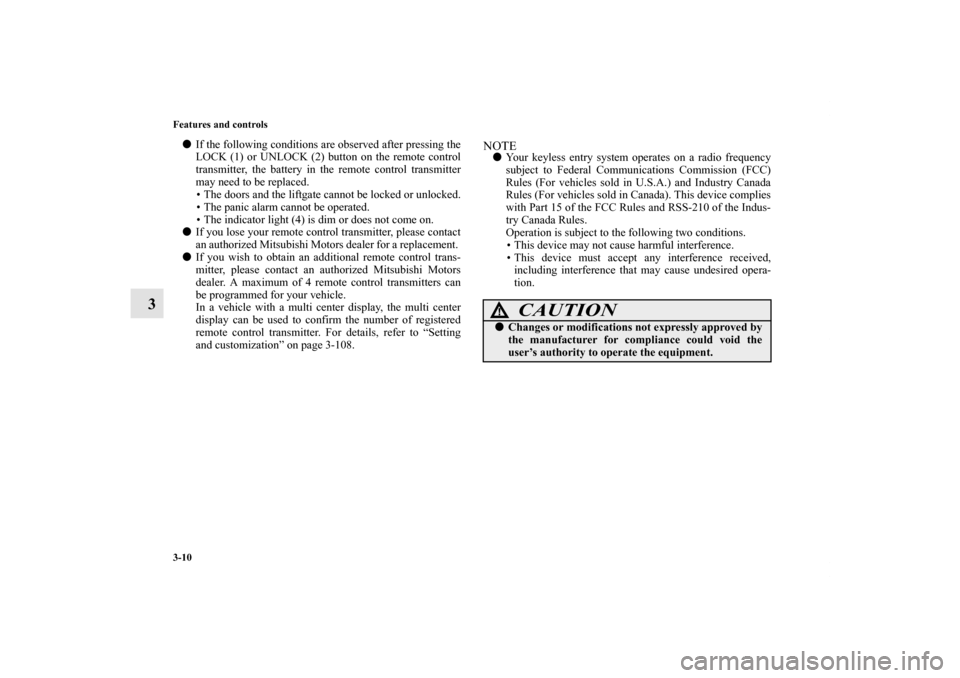

If the following conditions are observed after pressing the
LOCK (1) or UNLOCK (2) button on the remote control
transmitter, the battery in the remote control transmitter
may need to be replaced.
• The doors and the liftgate cannot be locked or unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of 4 remote control transmitters can
be programmed for your vehicle.
In a vehicle with a multi center display, the multi center
display can be used to confirm the number of registered
remote control transmitter. For details, refer to “Setting
and customization” on page 3-108.
NOTE
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies
with Part 15 of the FCC Rules and RSS-210 of the Indus-
try Canada Rules.
Operation is subject to the following two conditions.
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired opera-
tion.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0121600US.book 10 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-11
3

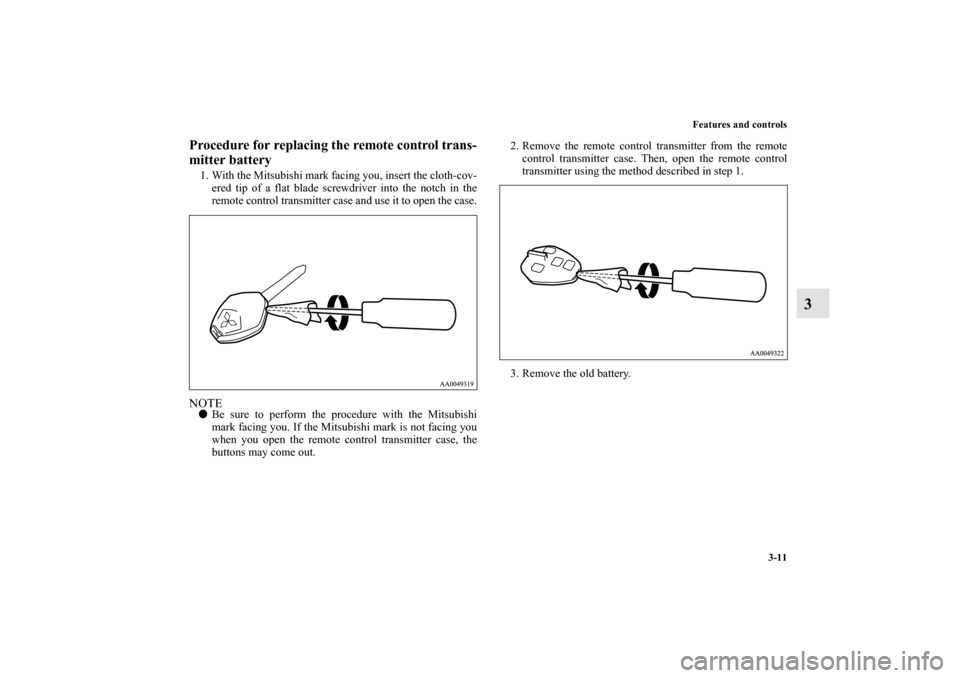

Procedure for replacing the remote control trans-
mitter battery1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.2. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 1.
3. Remove the old battery.
BK0121600US.book 11 ページ ２０１０年４月１２日　月曜日　午前１０時３９分
