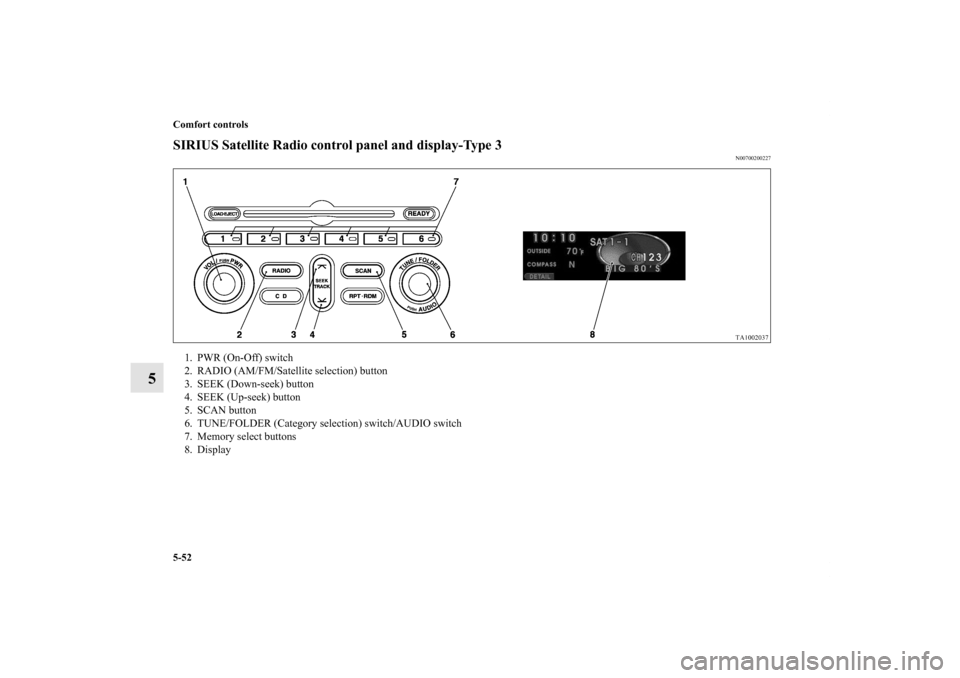

5-52 Comfort controls
5
SIRIUS Satellite Radio control panel and display-Type 3
N00700200227
1. PWR (On-Off) switch
2. RADIO (AM/FM/Satellite selection) button
3. SEEK (Down-seek) button
4. SEEK (Up-seek) button
5. SCAN button
6. TUNE/FOLDER (Category selection) switch/AUDIO switch
7. Memory select buttons
8. Display
BK0121600US.book 52 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

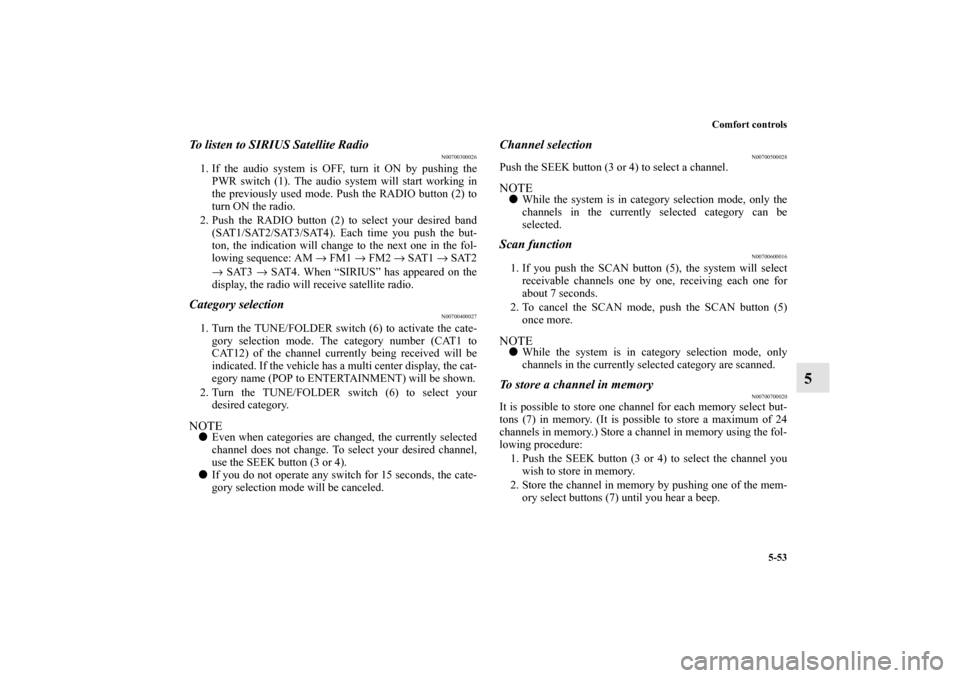

Comfort controls
5-53
5
To listen to SIRIUS Satellite Radio
N00700300026
1. If the audio system is OFF, turn it ON by pushing the
PWR switch (1). The audio system will start working in
the previously used mode. Push the RADIO button (2) to
turn ON the radio.
2. Push the RADIO button (2) to select your desired band
(SAT1/SAT2/SAT3/SAT4). Each time you push the but-
ton, the indication will change to the next one in the fol-
lowing sequence: AM → FM1 → FM2 → SAT1 → SAT2
→ SAT3 → SAT4. When “SIRIUS” has appeared on the
display, the radio will receive satellite radio.Category selection
N00700400027
1. Turn the TUNE/FOLDER switch (6) to activate the cate-
gory selection mode. The category number (CAT1 to
CAT12) of the channel currently being received will be
indicated. If the vehicle has a multi center display, the cat-
egory name (POP to ENTERTAINMENT) will be shown.
2. Turn the TUNE/FOLDER switch (6) to select your
desired category.NOTE
Even when categories are changed, the currently selected
channel does not change. To select your desired channel,
use the SEEK button (3 or 4).

If you do not operate any switch for 15 seconds, the cate-
gory selection mode will be canceled.
Channel selection
N00700500028
Push the SEEK button (3 or 4) to select a channel.NOTE
While the system is in category selection mode, only the
channels in the currently selected category can be
selected.Scan function
N00700600016
1. If you push the SCAN button (5), the system will select
receivable channels one by one, receiving each one for
about 7 seconds.
2. To cancel the SCAN mode, push the SCAN button (5)
once more.NOTE
While the system is in category selection mode, only
channels in the currently selected category are scanned.To store a channel in memory
N00700700020
It is possible to store one channel for each memory select but-
tons (7) in memory. (It is possible to store a maximum of 24
channels in memory.) Store a channel in memory using the fol-
lowing procedure:
1. Push the SEEK button (3 or 4) to select the channel you
wish to store in memory.
2. Store the channel in memory by pushing one of the mem-
ory select buttons (7) until you hear a beep.
BK0121600US.book 53 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

5-54 Comfort controls
5
NOTE
Once you have stored channels in memory, you can
instantly call up a desired channel by just pushing the cor-

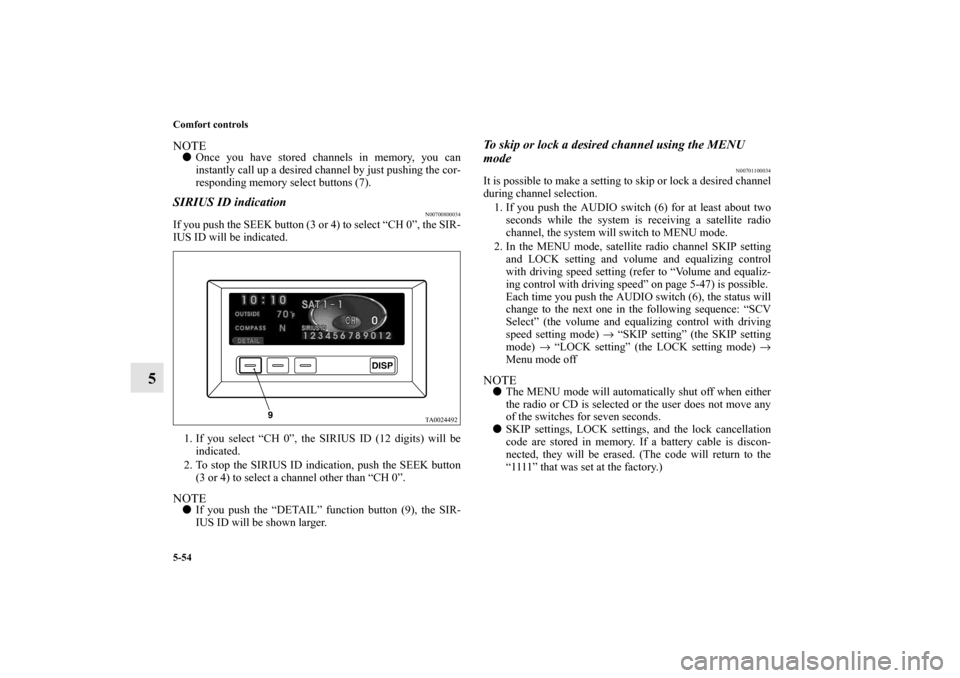

responding memory select buttons (7).SIRIUS ID indication
N00700800034
If you push the SEEK button (3 or 4) to select “CH 0”, the SIR-
IUS ID will be indicated.
1. If you select “CH 0”, the SIRIUS ID (12 digits) will be
indicated.
2. To stop the SIRIUS ID indication, push the SEEK button
(3 or 4) to select a channel other than “CH 0”.NOTE
If you push the “DETAIL” function button (9), the SIR-
IUS ID will be shown larger.
To skip or lock a desired channel using the MENU
mode
N00701100034
It is possible to make a setting to skip or lock a desired channel
during channel selection.
1. If you push the AUDIO switch (6) for at least about two
seconds while the system is receiving a satellite radio
channel, the system will switch to MENU mode.
2. In the MENU mode, satellite radio channel SKIP setting
and LOCK setting and volume and equalizing control
with driving speed setting (refer to “Volume and equaliz-
ing control with driving speed” on page 5-47) is possible.
Each time you push the AUDIO switch (6), the status will
change to the next one in the following sequence: “SCV
Select” (the volume and equalizing control with driving
speed setting mode) → “SKIP setting” (the SKIP setting
mode) → “LOCK setting” (the LOCK setting mode) →
Menu mode offNOTE
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for seven seconds.

SKIP settings, LOCK settings, and the lock cancellation
code are stored in memory. If a battery cable is discon-
nected, they will be erased. (The code will return to the
“1111” that was set at the factory.)
BK0121600US.book 54 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

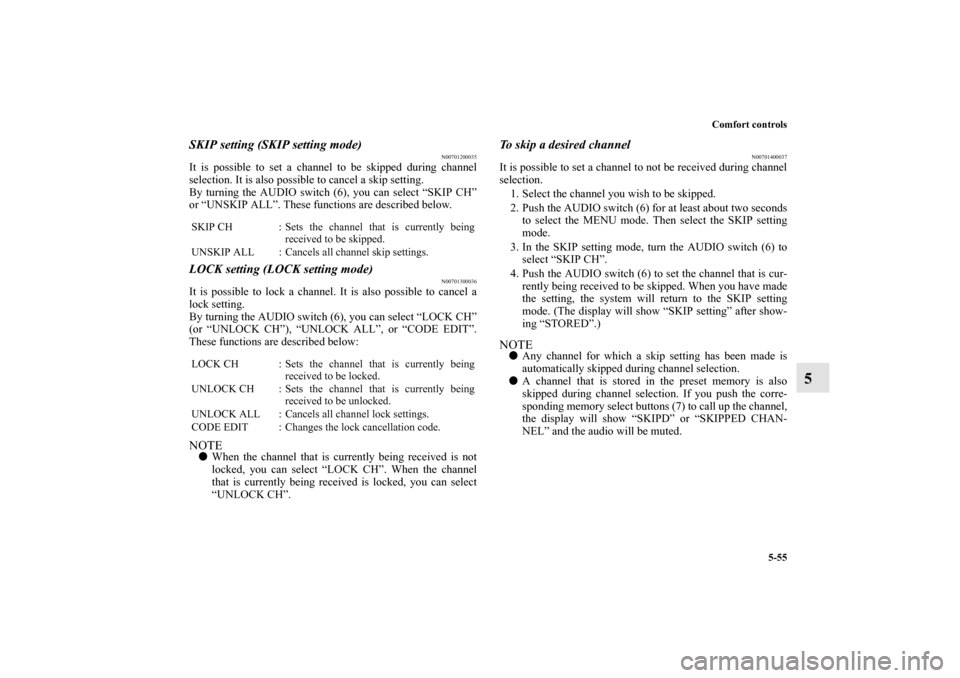

Comfort controls
5-55
5
SKIP setting (SKIP setting mode)
N00701200035
It is possible to set a channel to be skipped during channel
selection. It is also possible to cancel a skip setting.
By turning the AUDIO switch (6), you can select “SKIP CH”
or “UNSKIP ALL”. These functions are described below.LOCK setting (LOCK setting mode)
N00701300036
It is possible to lock a channel. It is also possible to cancel a
lock setting.
By turning the AUDIO switch (6), you can select “LOCK CH”
(or “UNLOCK CH”), “UNLOCK ALL”, or “CODE EDIT”.
These functions are described below:NOTE
When the channel that is currently being received is not
locked, you can select “LOCK CH”. When the channel
that is currently being received is locked, you can select
“UNLOCK CH”.
To skip a desired channel
N00701400037
It is possible to set a channel to not be received during channel
selection.
1. Select the channel you wish to be skipped.
2. Push the AUDIO switch (6) for at least about two seconds
to select the MENU mode. Then select the SKIP setting
mode.
3. In the SKIP setting mode, turn the AUDIO switch (6) to
select “SKIP CH”.
4. Push the AUDIO switch (6) to set the channel that is cur-
rently being received to be skipped. When you have made
the setting, the system will return to the SKIP setting
mode. (The display will show “SKIP setting” after show-
ing “STORED”.)NOTE
Any channel for which a skip setting has been made is
automatically skipped during channel selection.

A channel that is stored in the preset memory is also
skipped during channel selection. If you push the corre-
sponding memory select buttons (7) to call up the channel,
the display will show “SKIPD” or “SKIPPED CHAN-
NEL” and the audio will be muted.
SKIP CH : Sets the channel that is currently being
received to be skipped.
UNSKIP ALL : Cancels all channel skip settings.
LOCK CH : Sets the channel that is currently being
received to be locked.
UNLOCK CH : Sets the channel that is currently being
received to be unlocked.
UNLOCK ALL : Cancels all channel lock settings.
CODE EDIT : Changes the lock cancellation code.
BK0121600US.book 55 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

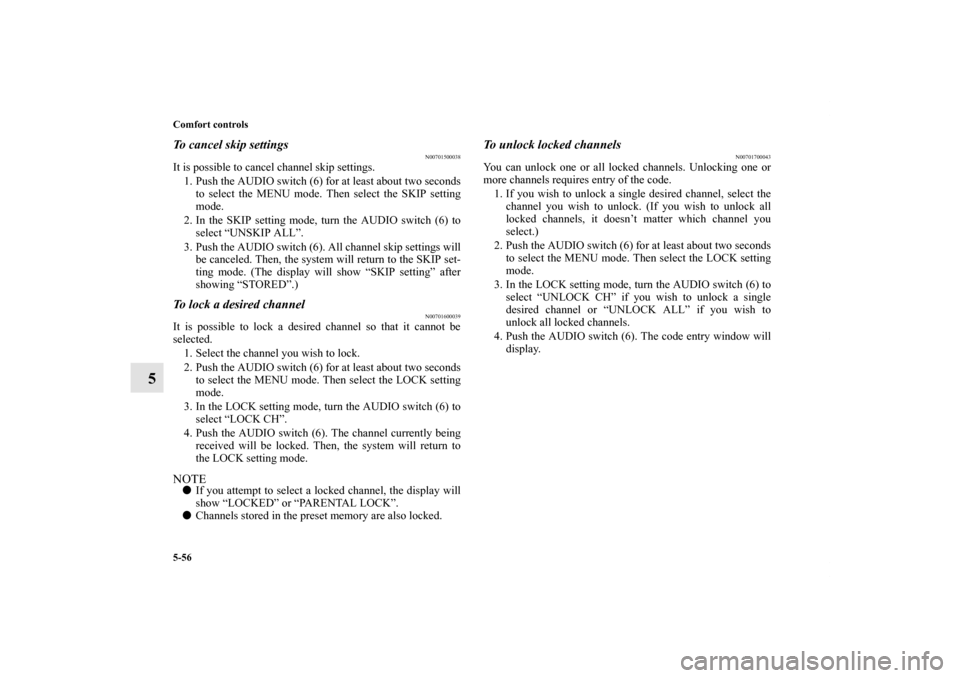

5-56 Comfort controls
5
To cancel skip settings
N00701500038
It is possible to cancel channel skip settings.
1. Push the AUDIO switch (6) for at least about two seconds
to select the MENU mode. Then select the SKIP setting
mode.
2. In the SKIP setting mode, turn the AUDIO switch (6) to
select “UNSKIP ALL”.
3. Push the AUDIO switch (6). All channel skip settings will
be canceled. Then, the system will return to the SKIP set-
ting mode. (The display will show “SKIP setting” after
showing “STORED”.)To lock a desired channel
N00701600039
It is possible to lock a desired channel so that it cannot be
selected.
1. Select the channel you wish to lock.
2. Push the AUDIO switch (6) for at least about two seconds
to select the MENU mode. Then select the LOCK setting
mode.
3. In the LOCK setting mode, turn the AUDIO switch (6) to
select “LOCK CH”.
4. Push the AUDIO switch (6). The channel currently being
received will be locked. Then, the system will return to
the LOCK setting mode.NOTE
If you attempt to select a locked channel, the display will
show “LOCKED” or “PARENTAL LOCK”.

Channels stored in the preset memory are also locked.
To unlock locked channels
N00701700043
You can unlock one or all locked channels. Unlocking one or
more channels requires entry of the code.
1. If you wish to unlock a single desired channel, select the
channel you wish to unlock. (If you wish to unlock all
locked channels, it doesn’t matter which channel you
select.)
2. Push the AUDIO switch (6) for at least about two seconds
to select the MENU mode. Then select the LOCK setting
mode.
3. In the LOCK setting mode, turn the AUDIO switch (6) to
select “UNLOCK CH” if you wish to unlock a single
desired channel or “UNLOCK ALL” if you wish to
unlock all locked channels.
4. Push the AUDIO switch (6). The code entry window will
display.
BK0121600US.book 56 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

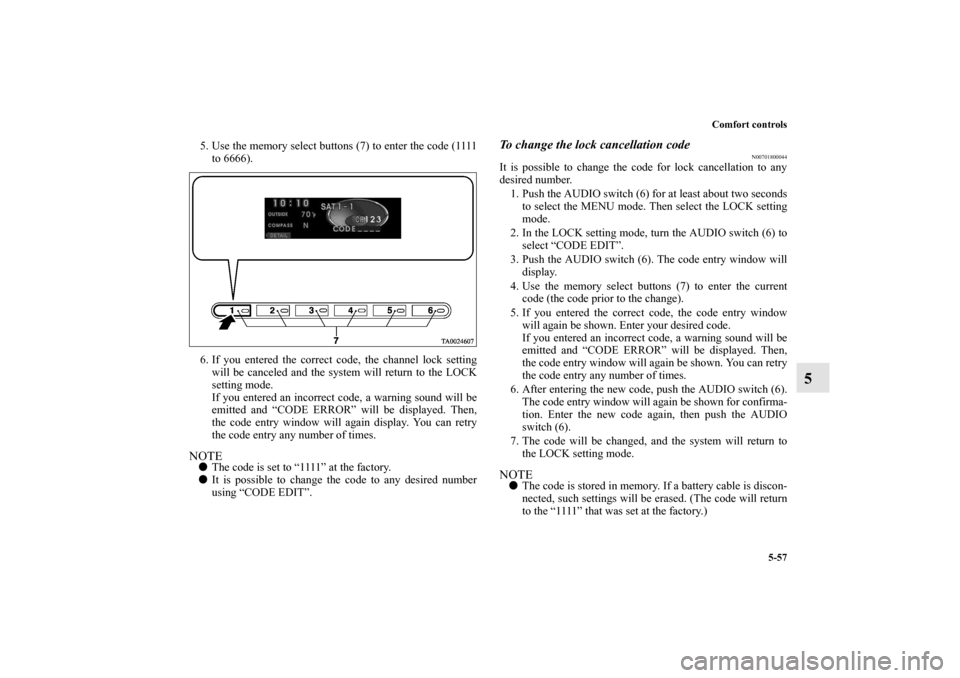

Comfort controls
5-57
5
5. Use the memory select buttons (7) to enter the code (1111
to 6666).
6. If you entered the correct code, the channel lock setting
will be canceled and the system will return to the LOCK
setting mode.
If you entered an incorrect code, a warning sound will be
emitted and “CODE ERROR” will be displayed. Then,
the code entry window will again display. You can retry
the code entry any number of times.NOTE
The code is set to “1111” at the factory.

It is possible to change the code to any desired number
using “CODE EDIT”.
To change the lock cancellation code
N00701800044
It is possible to change the code for lock cancellation to any
desired number.
1. Push the AUDIO switch (6) for at least about two seconds
to select the MENU mode. Then select the LOCK setting
mode.
2. In the LOCK setting mode, turn the AUDIO switch (6) to
select “CODE EDIT”.
3. Push the AUDIO switch (6). The code entry window will
display.
4. Use the memory select buttons (7) to enter the current
code (the code prior to the change).
5. If you entered the correct code, the code entry window
will again be shown. Enter your desired code.
If you entered an incorrect code, a warning sound will be
emitted and “CODE ERROR” will be displayed. Then,
the code entry window will again be shown. You can retry
the code entry any number of times.
6. After entering the new code, push the AUDIO switch (6).
The code entry window will again be shown for confirma-
tion. Enter the new code again, then push the AUDIO
switch (6).
7. The code will be changed, and the system will return to
the LOCK setting mode.NOTE
The code is stored in memory. If a battery cable is discon-
nected, such settings will be erased. (The code will return
to the “1111” that was set at the factory.)
BK0121600US.book 57 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

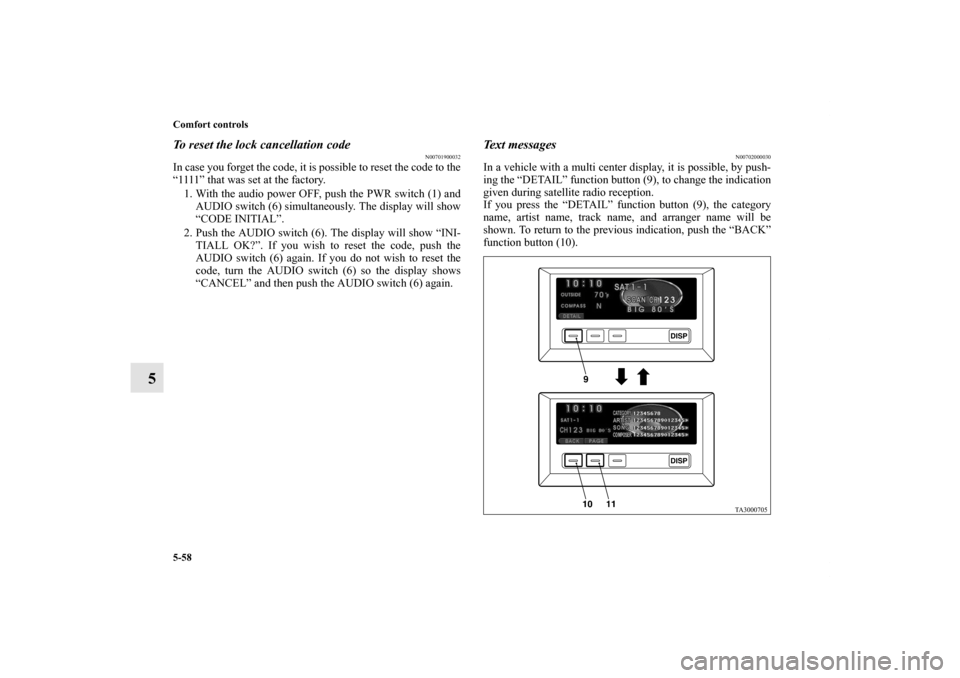

5-58 Comfort controls
5
To reset the lock cancellation code
N00701900032
In case you forget the code, it is possible to reset the code to the
“1111” that was set at the factory.
1. With the audio power OFF, push the PWR switch (1) and
AUDIO switch (6) simultaneously. The display will show
“CODE INITIAL”.
2. Push the AUDIO switch (6). The display will show “INI-
TIALL OK?”. If you wish to reset the code, push the
AUDIO switch (6) again. If you do not wish to reset the
code, turn the AUDIO switch (6) so the display shows
“CANCEL” and then push the AUDIO switch (6) again.
Text messages
N00702000030
In a vehicle with a multi center display, it is possible, by push-
ing the “DETAIL” function button (9), to change the indication
given during satellite radio reception.
If you press the “DETAIL” function button (9), the category
name, artist name, track name, and arranger name will be
shown. To return to the previous indication, push the “BACK”
function button (10).
BK0121600US.book 58 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Comfort controls
5-59
5

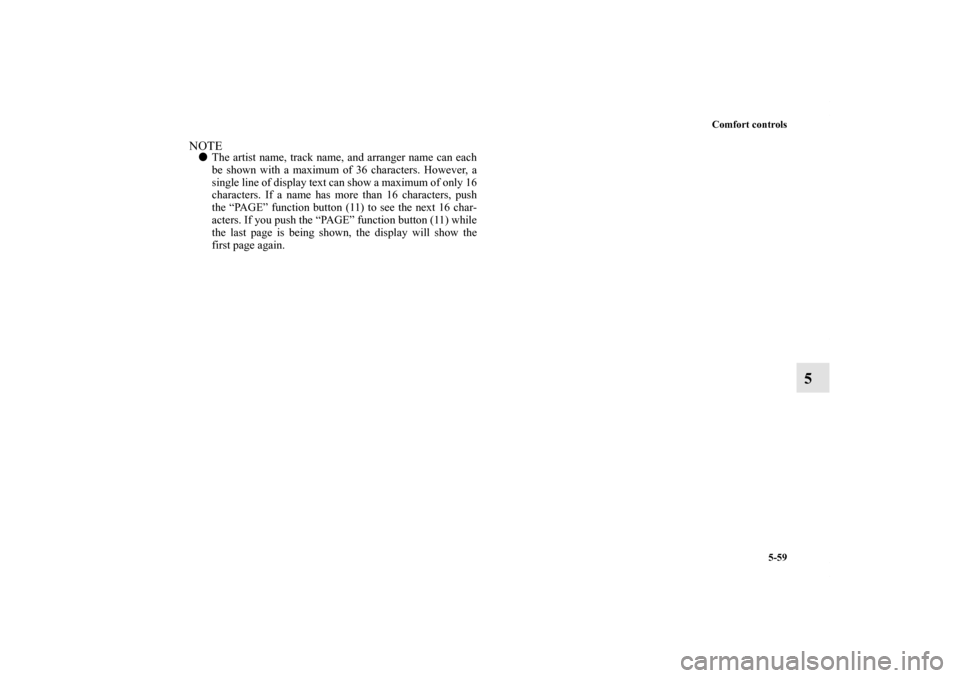

NOTE
The artist name, track name, and arranger name can each
be shown with a maximum of 36 characters. However, a
single line of display text can show a maximum of only 16
characters. If a name has more than 16 characters, push
the “PAGE” function button (11) to see the next 16 char-
acters. If you push the “PAGE” function button (11) while
the last page is being shown, the display will show the
first page again.
BK0121600US.book 59 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

5-60 Comfort controls
5

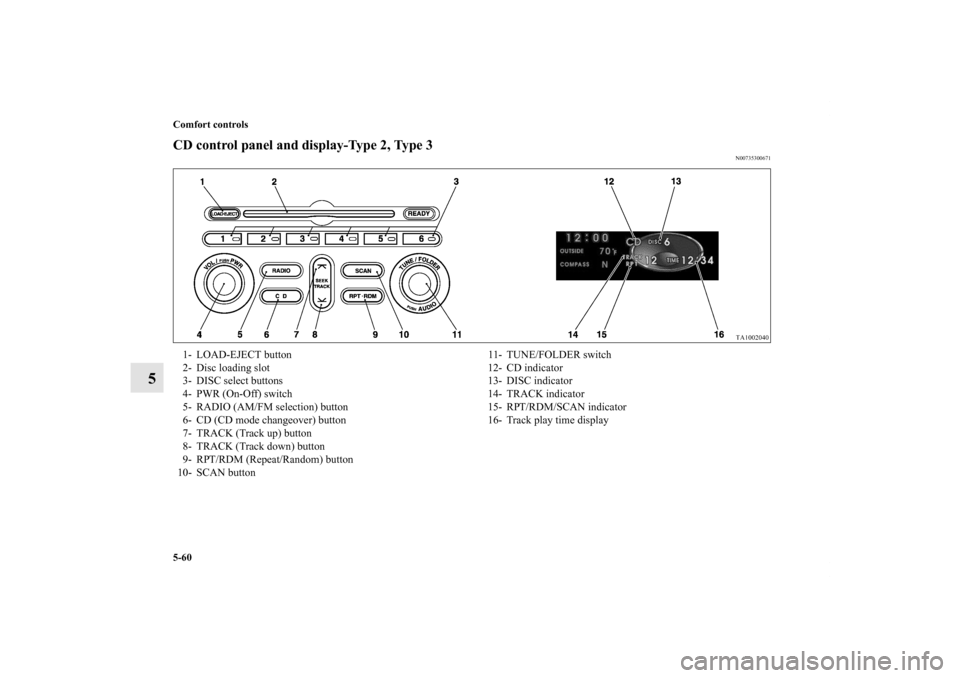

CD control panel and display-Type 2, Type 3
N00735300671
1- LOAD-EJECT button
2- Disc loading slot
3- DISC select buttons
4- PWR (On-Off) switch
5- RADIO (AM/FM selection) button
6- CD (CD mode changeover) button
7- TRACK (Track up) button
8- TRACK (Track down) button
9- RPT/RDM (Repeat/Random) button
10- SCAN button11- TUNE/FOLDER switch
12- CD indicator
13- DISC indicator
14- TRACK indicator
15- RPT/RDM/SCAN indicator
16- Track play time display
BK0121600US.book 60 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Comfort controls
5-61
5

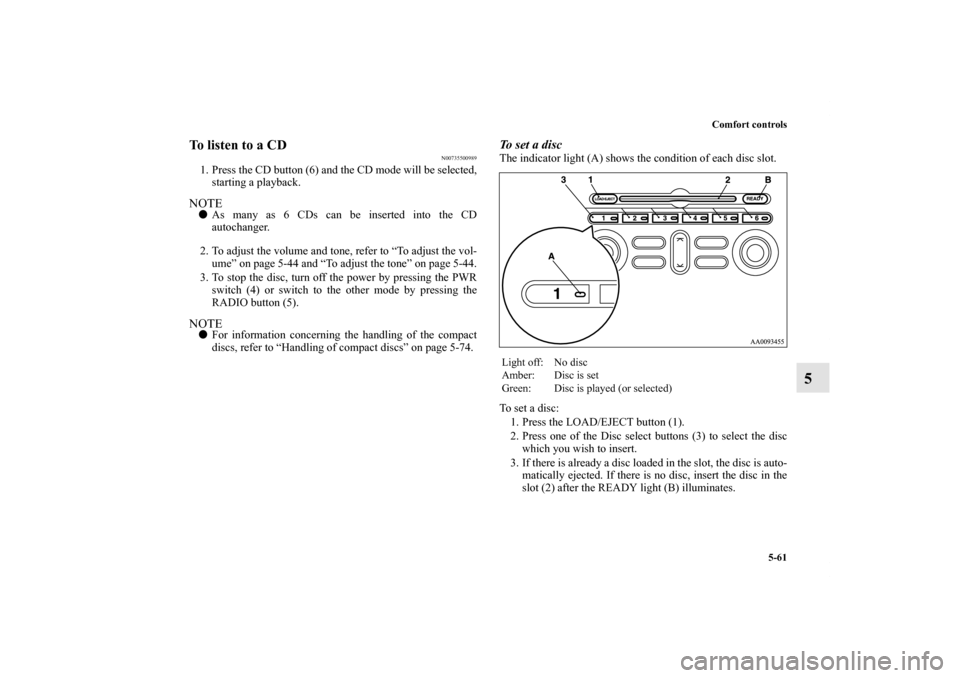

To listen to a CD
N00735500989
1. Press the CD button (6) and the CD mode will be selected,
starting a playback.NOTE
As many as 6 CDs can be inserted into the CD
autochanger.
2. To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-44 and “To adjust the tone” on page 5-44.
3. To stop the disc, turn off the power by pressing the PWR
switch (4) or switch to the other mode by pressing the
RADIO button (5).NOTE
For information concerning the handling of the compact
discs, refer to “Handling of compact discs” on page 5-74.
To s e t a d i s cThe indicator light (A) shows the condition of each disc slot.
To set a disc:
1. Press the LOAD/EJECT button (1).
2. Press one of the Disc select buttons (3) to select the disc
which you wish to insert.
3. If there is already a disc loaded in the slot, the disc is auto-
matically ejected. If there is no disc, insert the disc in the
slot (2) after the READY light (B) illuminates.Light off: No disc
Amber: Disc is set
Green: Disc is played (or selected)
BK0121600US.book 61 ページ ２０１０年４月１２日　月曜日　午前１０時３９分
