5-12 Comfort controls
5
Combination of unheated air and heated air
N00731300149
Select the mode selection dial to the positions shown in the
illustration and set the air selection switch (A) to the outside
position.
The air flow will be directed to the leg area and the upper part
of the passenger compartment. Select the desired blower speed.
Warm air flows to the leg area and unheated or slightly warm
air (depending upon temperature setting) flows to the upper
part of the passenger compartment.
Defrosting or defogging the windshield and door win-
dows
N00731400414
To remove frost or fog from the windshield and door windows,
use the mode selection dial (“ ” or “ ”).
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0121600US.book 12 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Comfort controls
5-13
5
For ordinary defrosting
Use this setting to keep the windshield and door windows clear,
and to keep the leg area heated (when driving in rain or snow).
1. Set the mode selection dial to the “ ” position.
2. Select your desired blower speed by turning the blower
speed selection dial.
3. Select your desired temperature by turning the tempera-
ture control dial.For quick defrosting

1. Set the mode selection dial to the “ ” position.
2. Set the blower to the maximum speed.
3. Set the temperature to the highest position.
NOTE
When the mode selection dial is set to the “ ” or “ ”
position, the air conditioning compressor runs automati-
cally. The outside air position will also be selected auto-
matically. (In this case, the air conditioning indicator light
will not change.)

When the “ ” or “ ” position is selected, you cannot
turn the air conditioning off or use the recirculation posi-
tion. This prevents the windows from fogging up.

When defrosting, do not set the temperature control dial
near the “MAX A/C” position. This would blow cool air
on the window glass and fog it up.
BK0121600US.book 13 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

5-14 Comfort controls
5Automatic air conditioning
(if so equipped)
N00731500082
The air conditioning can only be used while the engine is run-

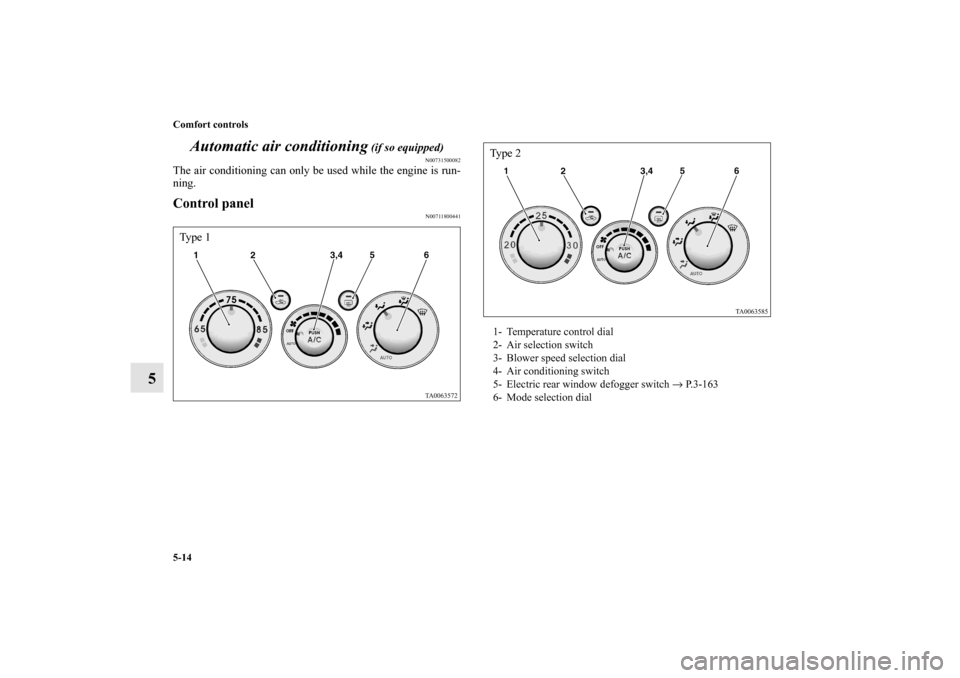

ning.Control panel
N00711800441
Ty p e 1
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Air conditioning switch
5- Electric rear window defogger switch → P.3-163
6- Mode selection dialTy p e 2
BK0121600US.book 14 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Comfort controls
5-15
5
NOTE
There is an interior air temperature sensor (A) in the illus-
trated position.
Never place anything over the sensor, since doing so will
prevent it from functioning properly.

The multi center display automatically switches to an air
conditioning display whenever an air conditioning control
is adjusted manually. The display automatically reverts to
its original display about 10 seconds after the adjustment
is made.
Blower speed selection dial
N00736900010
When the ignition key is in the ON position, select the blower
speed by turning the blower speed selection dial. The blower
speed will gradually increase as the dial is turned to the right.
When the blower speed selection dial is set to the “OFF” posi-
tion, all fan-driven airflow will stop.
BK0121600US.book 15 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

5-16 Comfort controls
5

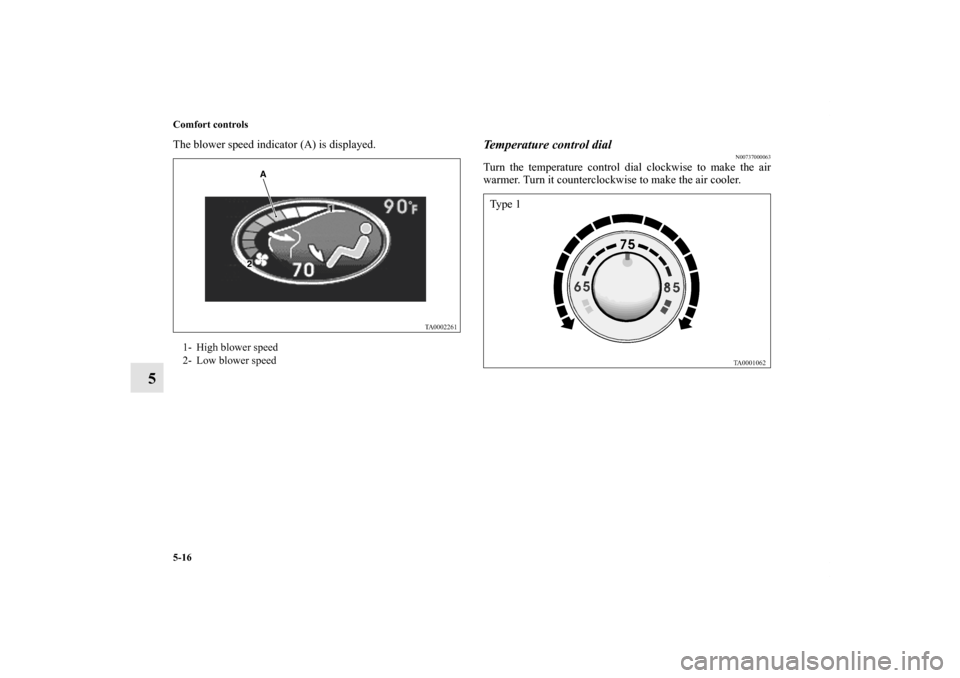

The blower speed indicator (A) is displayed.
Temperature control dial
N00737000063
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.
1- High blower speed
2- Low blower speed
Ty p e 1
BK0121600US.book 16 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Comfort controls
5-17
5

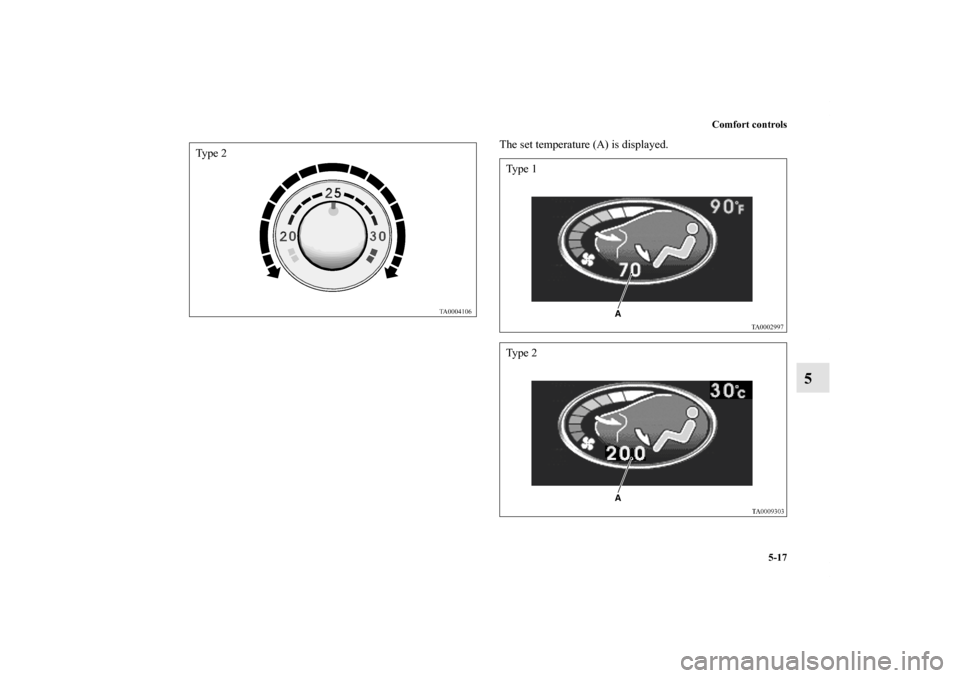

The set temperature (A) is displayed.
Ty p e 2
Ty p e 1Ty p e 2
BK0121600US.book 17 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

5-18 Comfort controls
5
NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

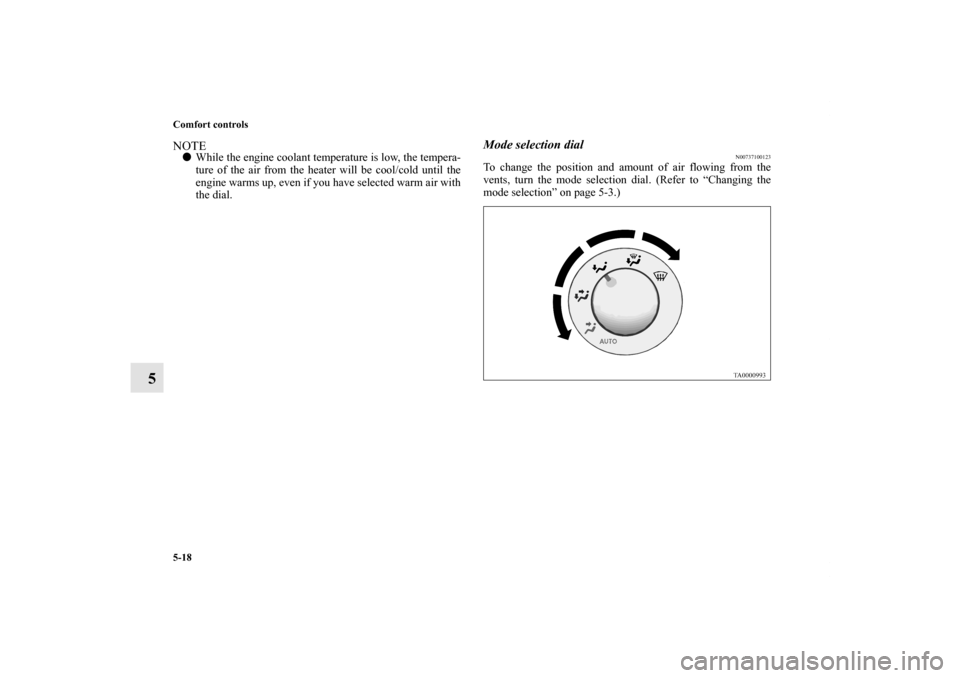

Mode selection dial
N00737100123
To change the position and amount of air flowing from the
vents, turn the mode selection dial. (Refer to “Changing the
mode selection” on page 5-3.)
BK0121600US.book 18 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Comfort controls
5-19
5

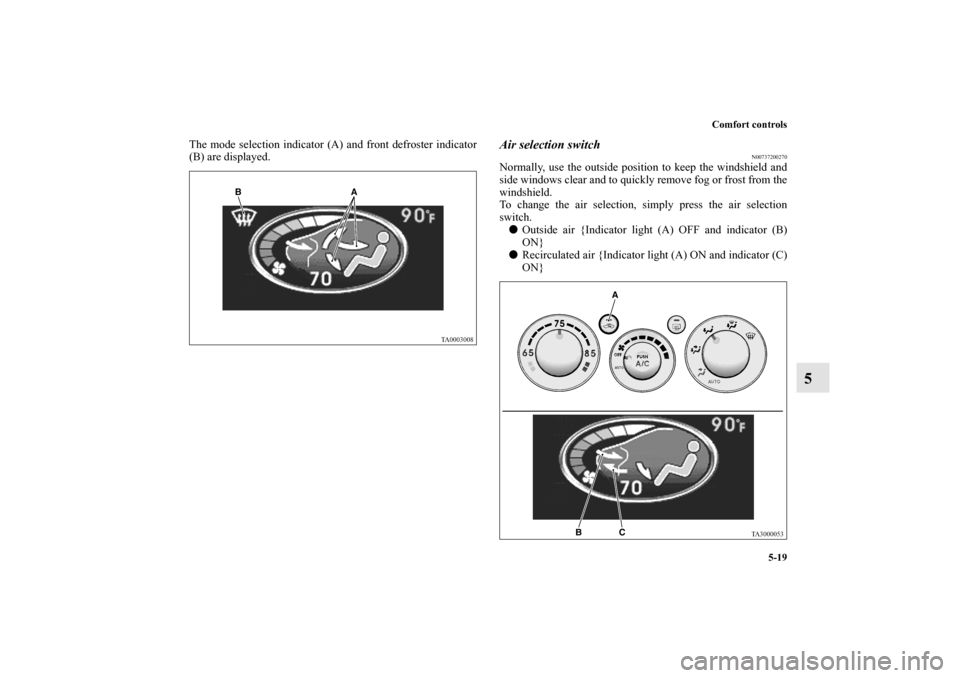

The mode selection indicator (A) and front defroster indicator
(B) are displayed.
Air selection switch
N00737200270
Normally, use the outside position to keep the windshield and
side windows clear and to quickly remove fog or frost from the
windshield.
To change the air selection, simply press the air selection
switch.

Outside air {Indicator light (A) OFF and indicator (B)
ON}

Recirculated air {Indicator light (A) ON and indicator (C)
ON}
BK0121600US.book 19 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

5-20 Comfort controls
5
When the air conditioning turns on, the air selection will be
controlled automatically. When the air conditioning turns off,
the air selection automatically goes back to the outside posi-
tion. The air selection indicator shows the selected position.
If high cooling performance is desired, or if the outside air is
dusty or contaminated in some way, use the recirculation posi-
tion. Switch to the outside position every now and then to keep
the windows from fogging up.NOTE
When the “ ” or “ ” position is selected, you cannot
turn the air conditioning off or select the recirculation
position.
This prevents the windows from fogging up.

When the mode selection dial or the blower speed selec-
tion dial is set to the “AUTO” position again after manual
operation, the air selection switch will also be automati-
cally controlled.

When the coolant temperature rises above a certain point
the air selection is automatically switched to the recircula-
tion position and the indicator light (A) turns on. When
this occurs the system will not switch to the outside posi-
tion even if the selection switch is pushed.

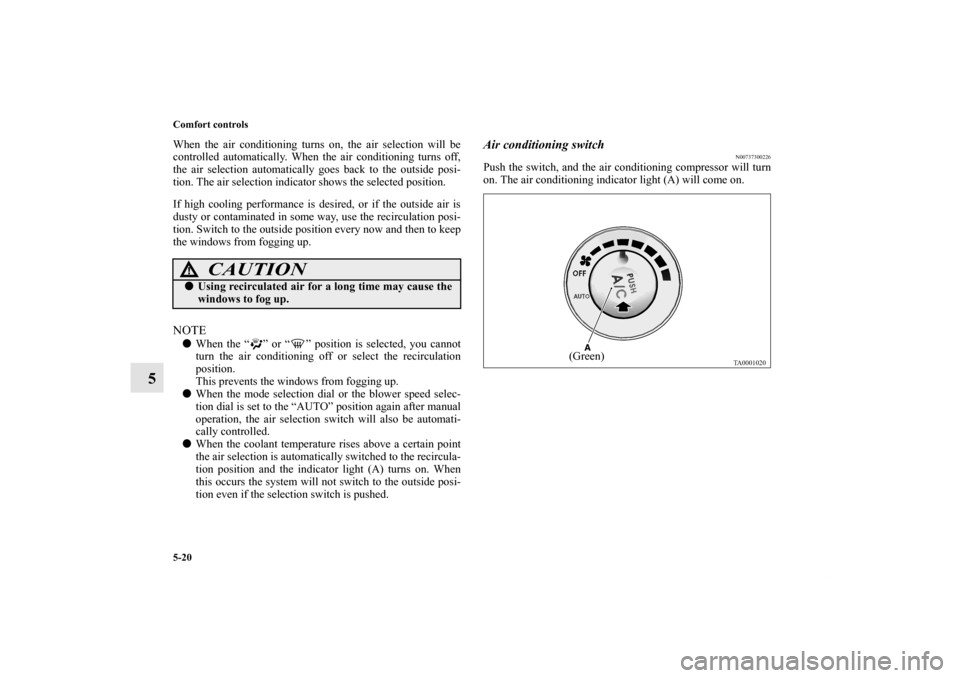

Air conditioning switch
N00737300226
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
CAUTION
!
Using recirculated air for a long time may cause the
windows to fog up.
(Green)
BK0121600US.book 20 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Comfort controls
5-21
5

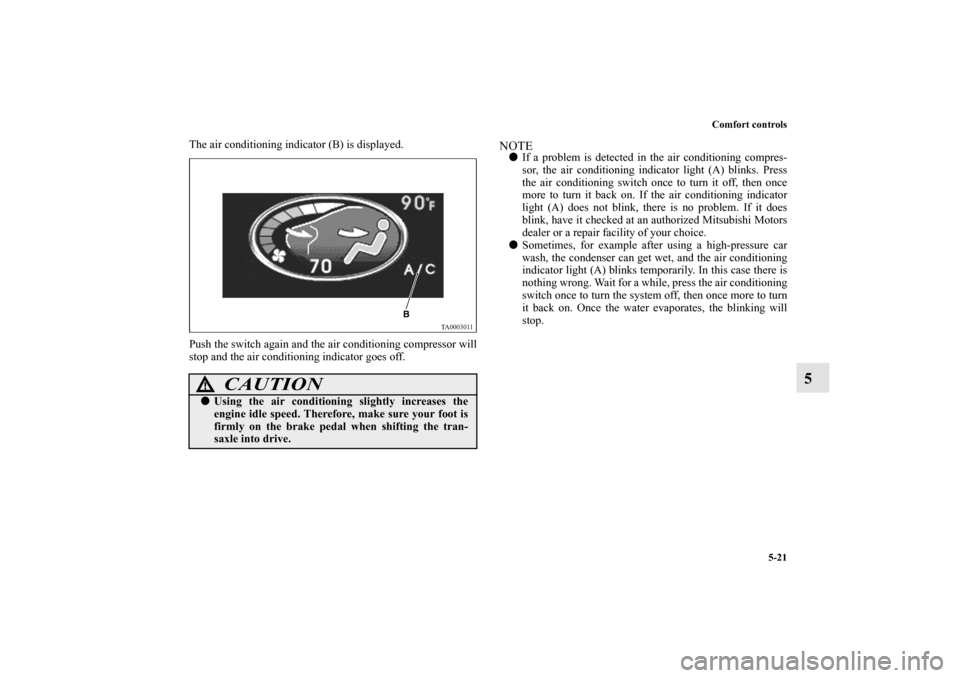

The air conditioning indicator (B) is displayed.
Push the switch again and the air conditioning compressor will
stop and the air conditioning indicator goes off.
NOTE
If a problem is detected in the air conditioning compres-
sor, the air conditioning indicator light (A) blinks. Press
the air conditioning switch once to turn it off, then once
more to turn it back on. If the air conditioning indicator
light (A) does not blink, there is no problem. If it does
blink, have it checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice.

Sometimes, for example after using a high-pressure car
wash, the condenser can get wet, and the air conditioning
indicator light (A) blinks temporarily. In this case there is
nothing wrong. Wait for a while, press the air conditioning
switch once to turn the system off, then once more to turn
it back on. Once the water evaporates, the blinking will
stop.
CAUTION
!
Using the air conditioning slightly increases the
engine idle speed. Therefore, make sure your foot is
firmly on the brake pedal when shifting the tran-
saxle into drive.
