MITSUBISHI GALANT 2011 9.G Owners Manual

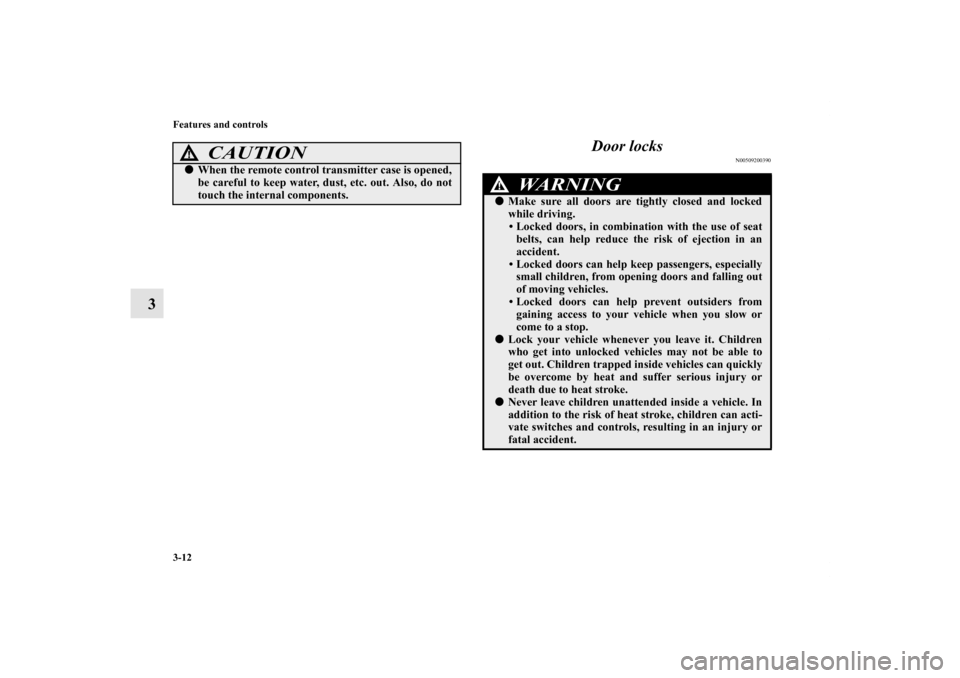

3-12 Features and controls
3Door locks
N00509200390
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
WA R N I N G
!
Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.

Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.
Never leave children unattended inside a vehicle. In
addition to the risk of heat stroke, children can acti-
vate switches and controls, resulting in an injury or
fatal accident.
BK0121200US.book 12 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

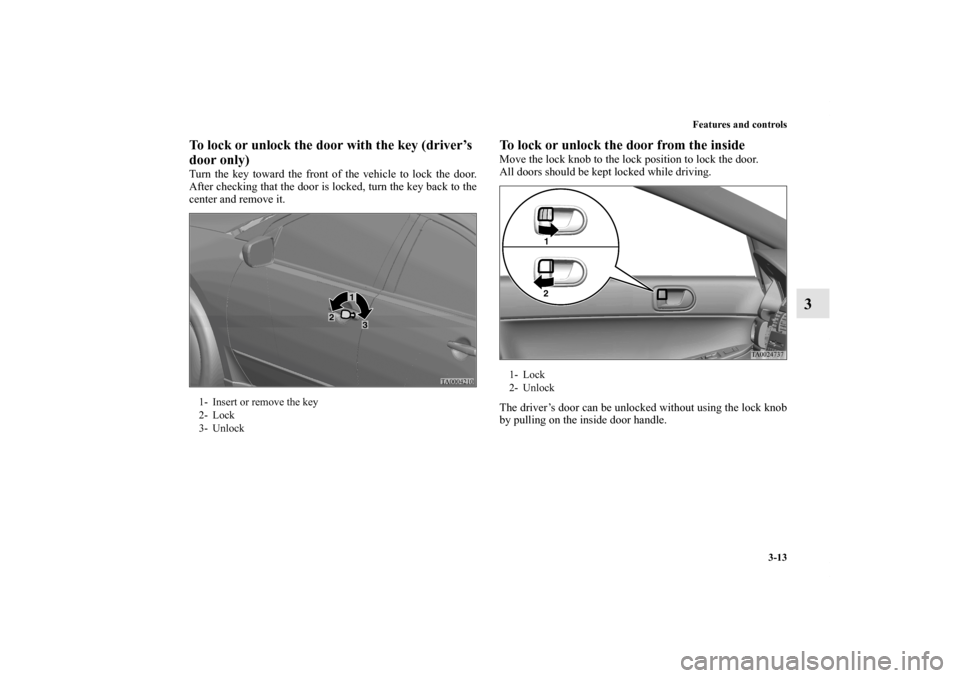

Features and controls
3-13
3
To lock or unlock the door with the key (driver’s
door only)Turn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.
To lock or unlock the door from the inside Move the lock knob to the lock position to lock the door.
All doors should be kept locked while driving.
The driver’s door can be unlocked without using the lock knob
by pulling on the inside door handle.
1- Insert or remove the key
2- Lock
3- Unlock
1- Lock
2- Unlock
BK0121200US.book 13 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

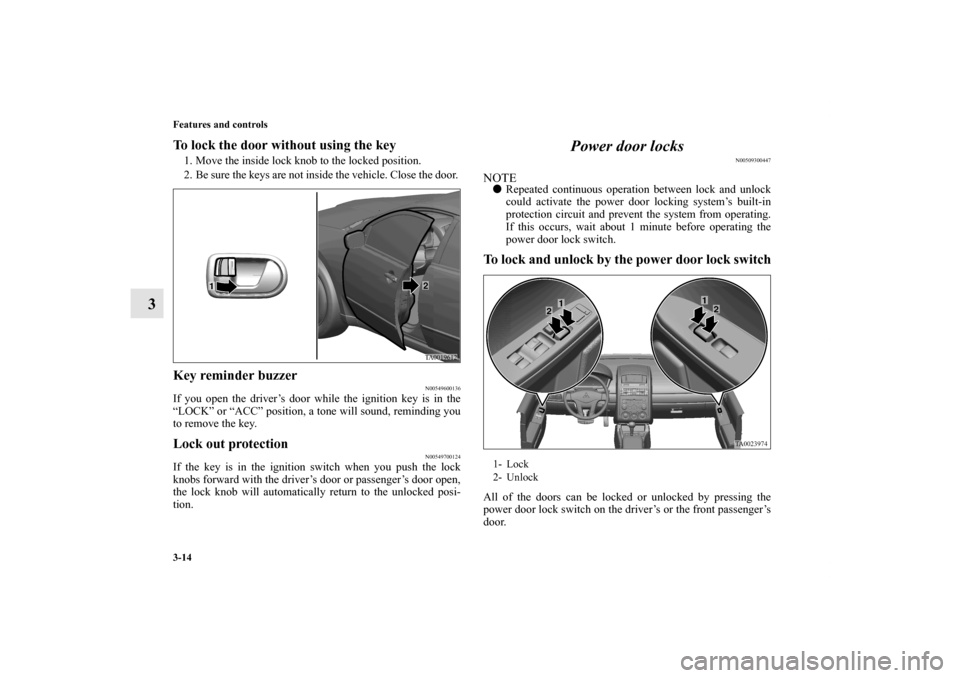

3-14 Features and controls
3
To lock the door without using the key 1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door. Key reminder buzzer
N00549600136
If you open the driver’s door while the ignition key is in the
“LOCK” or “ACC” position, a tone will sound, reminding you
to remove the key. Lock out protection
N00549700124
If the key is in the ignition switch when you push the lock
knobs forward with the driver’s door or passenger’s door open,
the lock knob will automatically return to the unlocked posi-
tion.
Power door locks
N00509300447
NOTE
Repeated continuous operation between lock and unlock
could activate the power door locking system’s built-in
protection circuit and prevent the system from operating.
If this occurs, wait about 1 minute before operating the
power door lock switch.To lock and unlock by the power door lock switchAll of the doors can be locked or unlocked by pressing the
power door lock switch on the driver’s or the front passenger’s
door. 1- Lock
2- Unlock
BK0121200US.book 14 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

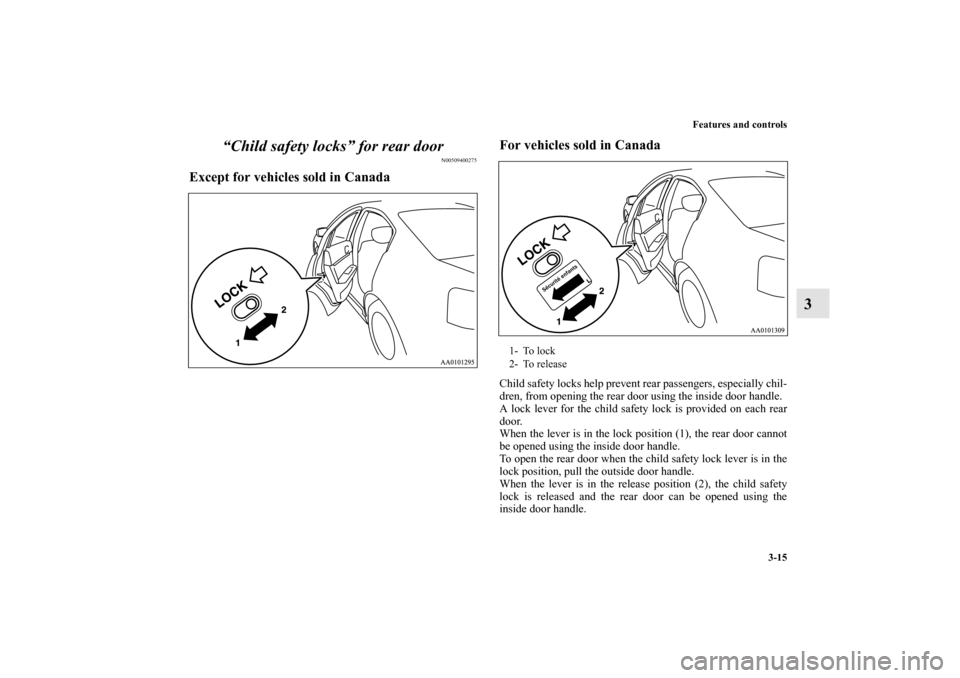

Features and controls
3-15
3 “Child safety locks” for rear door
N00509400275
Except for vehicles sold in CanadaFor vehicles sold in Canada
Child safety locks help prevent rear passengers, especially chil-
dren, from opening the rear door using the inside door handle.
A lock lever for the child safety lock is provided on each rear
door.
When the lever is in the lock position (1), the rear door cannot
be opened using the inside door handle.
To open the rear door when the child safety lock lever is in the
lock position, pull the outside door handle.
When the lever is in the release position (2), the child safety
lock is released and the rear door can be opened using the
inside door handle.1- To lock
2- To release
BK0121200US.book 15 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-16 Features and controls
3Trunk lid
N00509500120
WA R N I N G
!
Always keep the doors tightly closed and locked
when driving. An unlocked door may be acciden-
tally opened by a passenger, especially by a child
who could fall out. Also, if the doors are not locked,
there is a greater risk of someone being thrown from
the vehicle in an accident.
WA R N I N G
!
It is dangerous to drive with the trunk lid open since
carbon monoxide (CO) gas can enter the cabin. CO
is an invisible, odorless gas that can cause uncon-
sciousness and even death.
Do not allow children to have access to the trunk,
either by climbing into the trunk from outside or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. If
trapped in the trunk, it is possible to escape from the
trunk by using the inside emergency trunk release
handle. (See “Inside emergency trunk lid release” on
page 3-18.)
CAUTION
!
Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
BK0121200US.book 16 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-17
3
To open
N00545200020
Operation from outside the vehicleUse the remote control transmitter to open. Press the trunk but-
ton. (See “Keyless entry system” on page 3-7.)
The trunk lid will pop up slightly. Lift it to open the trunk.Operation from inside the vehiclePull the trunk lid release lever, located to the left of the driver’s
seat, up to open the trunk.
NOTE
The trunk light comes on when the trunk lid is opened,
and goes out when it is closed.To close
N00545300034
If your vehicle is equipped with a trunk lid grip, pull the trunk
lid grip (A) downward as illustrated and let it go before the
trunk lid closes completely.
Gently close the trunk lid from the outside so that it is com-
pletely closed.
CAUTION
!
Do not use the trunk lid release lever while the vehi-
cle is moving. If the trunk lid is opened, objects in
the trunk could fall onto the road and cause an acci-
dent.
CAUTION
!
To avoid injuring your hand or arm, do not attempt
to close the trunk lid without letting go of the trunk
lid grip.
BK0121200US.book 17 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-18 Features and controls
3Inside emergency trunk lid release
N00509800123
The emergency trunk lid release is designed to provide a way
to open the trunk lid from inside the trunk. It was developed to
help prevent death and serious injuries, to children who might
become locked inside a vehicle trunk.
The luminous “T” shaped yellow emergency trunk lid release
handle (see illustration) is mounted near the latch inside the
trunk.
The handle glows in the dark after exposure to sunlight.

Before starting the vehicle, be sure to confirm that
the trunk lid is closed. If the trunk lid opens while
driving the vehicle, objects stored in the trunk could
fall out onto the road.
CAUTION
!
BK0121200US.book 18 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-19
3
You and your family should familiarize yourselves with the
location and operation of the emergency trunk lid release han-
dle. Children should be taught not to play in or around vehi-
cles.To open the trunk from the inside, pull the handle in the direc-
tion of the arrow on the handle. Push up on the trunk lid to
open the trunk and climb out.
WA R N I N G
!
Children should never be left unsupervised in or
around vehicles.
Unsupervised children could lock themselves in an
open vehicle or trunk.
People trapped inside a vehicle or trunk, even if only
for a short period of time, can quickly die from suf-
focation or heat stroke, especially on hot days. Inte-
rior temperatures in vehicles can rise in minutes.
Keep your vehicle doors locked and the trunk lid
closed when not in use. Keep your vehicle keys away
from children.
CAUTION
!
When loading the trunk, place your things so that
they will not touch the emergency trunk lid release
handle when you close the trunk. Otherwise you
could damage the handle and make it unusable.
Always keep the handle in its holder when driving so
that your cargo cannot accidentally bump it and
open the trunk.
Handle
Holder
BK0121200US.book 19 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

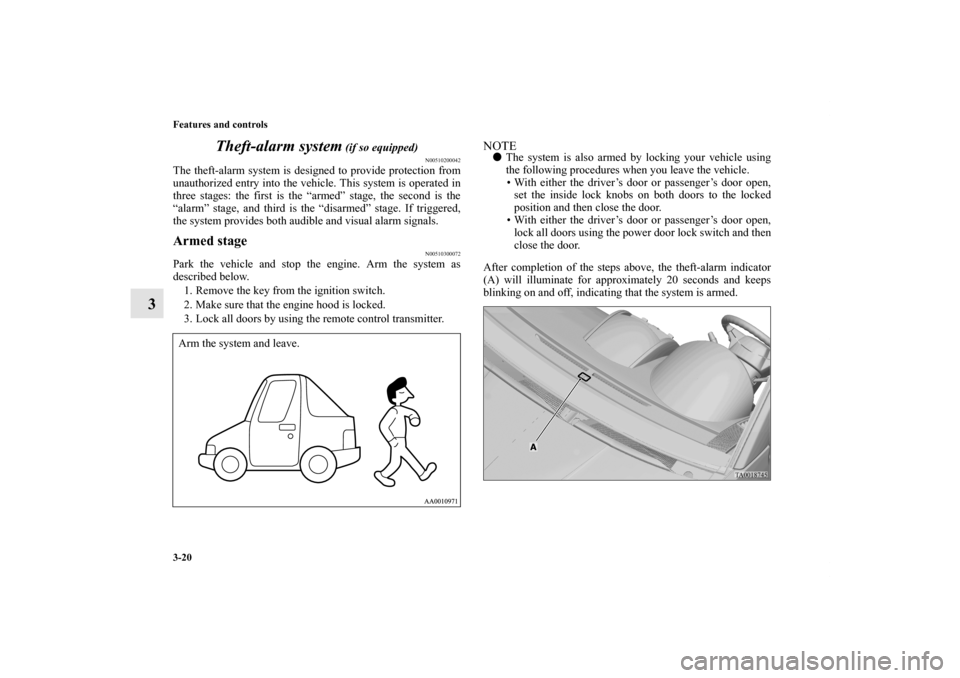

3-20 Features and controls
3Theft-alarm system
(if so equipped)
N00510200042
The theft-alarm system is designed to provide protection from
unauthorized entry into the vehicle. This system is operated in
three stages: the first is the “armed” stage, the second is the
“alarm” stage, and third is the “disarmed” stage. If triggered,
the system provides both audible and visual alarm signals.Armed stage
N00510300072
Park the vehicle and stop the engine. Arm the system as
described below.
1. Remove the key from the ignition switch.
2. Make sure that the engine hood is locked.
3. Lock all doors by using the remote control transmitter.
NOTE
The system is also armed by locking your vehicle using
the following procedures when you leave the vehicle.
• With either the driver’s door or passenger’s door open,
set the inside lock knobs on both doors to the locked
position and then close the door.
• With either the driver’s door or passenger’s door open,
lock all doors using the power door lock switch and then
close the door.
After completion of the steps above, the theft-alarm indicator
(A) will illuminate for approximately 20 seconds and keeps
blinking on and off, indicating that the system is armed.
Arm the system and leave.BK0121200US.book 20 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

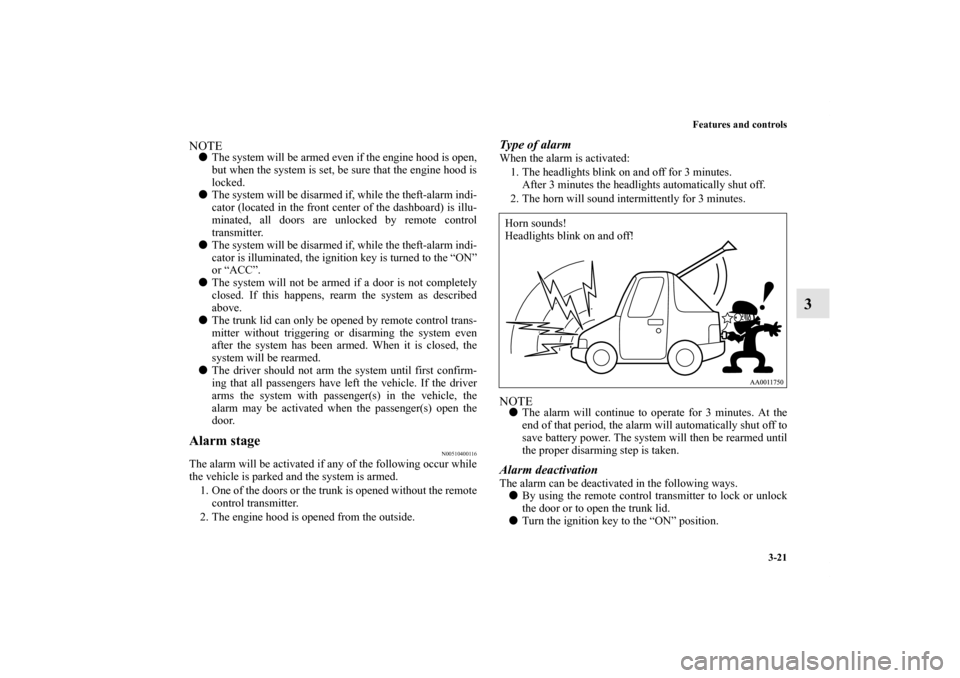

Features and controls
3-21
3
NOTE
The system will be armed even if the engine hood is open,
but when the system is set, be sure that the engine hood is
locked.

The system will be disarmed if, while the theft-alarm indi-
cator (located in the front center of the dashboard) is illu-
minated, all doors are unlocked by remote control
transmitter.

The system will be disarmed if, while the theft-alarm indi-
cator is illuminated, the ignition key is turned to the “ON”
or “ACC”.

The system will not be armed if a door is not completely
closed. If this happens, rearm the system as described
above.

The trunk lid can only be opened by remote control trans-
mitter without triggering or disarming the system even
after the system has been armed. When it is closed, the
system will be rearmed.

The driver should not arm the system until first confirm-
ing that all passengers have left the vehicle. If the driver
arms the system with passenger(s) in the vehicle, the
alarm may be activated when the passenger(s) open the
door.Alarm stage
N00510400116
The alarm will be activated if any of the following occur while
the vehicle is parked and the system is armed.
1. One of the doors or the trunk is opened without the remote
control transmitter.
2. The engine hood is opened from the outside.
Type of alarmWhen the alarm is activated:
1. The headlights blink on and off for 3 minutes.
After 3 minutes the headlights automatically shut off.
2. The horn will sound intermittently for 3 minutes.NOTE
The alarm will continue to operate for 3 minutes. At the
end of that period, the alarm will automatically shut off to
save battery power. The system will then be rearmed until
the proper disarming step is taken.Alarm deactivationThe alarm can be deactivated in the following ways.

By using the remote control transmitter to lock or unlock
the door or to open the trunk lid.

Turn the ignition key to the “ON” position.Horn sounds!
Headlights blink on and off!
