3-42 Features and controls
3

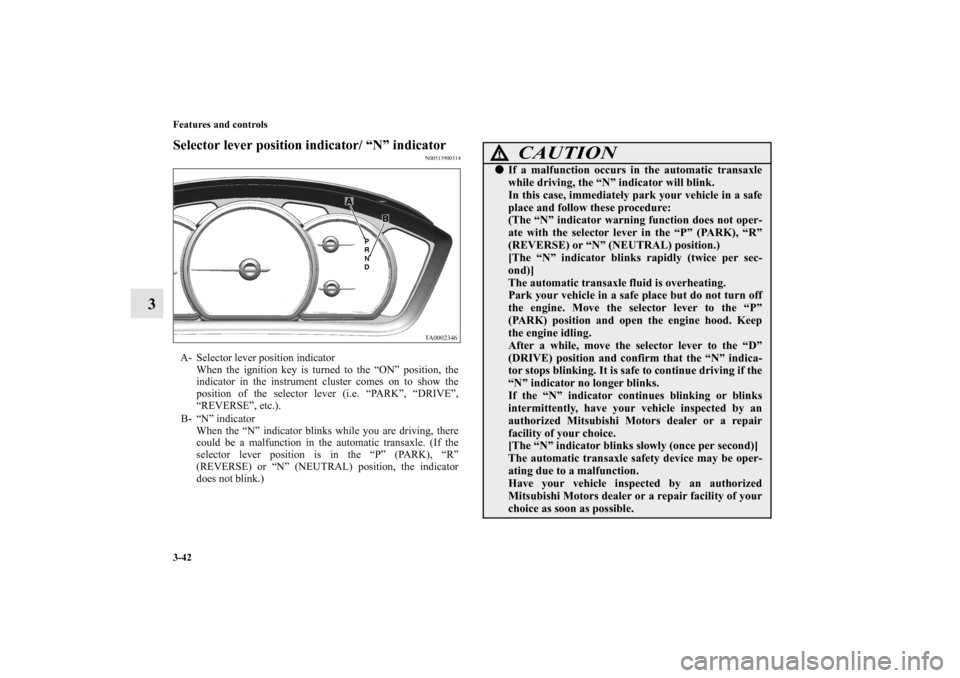

Selector lever position indicator/ “N” indicator
N00513900314
A- Selector lever position indicator
When the ignition key is turned to the “ON” position, the
indicator in the instrument cluster comes on to show the
position of the selector lever (i.e. “PARK”, “DRIVE”,
“REVERSE”, etc.).
B- “N” indicator
When the “N” indicator blinks while you are driving, there
could be a malfunction in the automatic transaxle. (If the
selector lever position is in the “P” (PARK), “R”
(REVERSE) or “N” (NEUTRAL) position, the indicator
does not blink.)
CAUTION
!
If a malfunction occurs in the automatic transaxle
while driving, the “N” indicator will blink.
In this case, immediately park your vehicle in a safe
place and follow these procedure:
(The “N” indicator warning function does not oper-
ate with the selector lever in the “P” (PARK), “R”
(REVERSE) or “N” (NEUTRAL) position.)
[The “N” indicator blinks rapidly (twice per sec-
ond)]
The automatic transaxle fluid is overheating.
Park your vehicle in a safe place but do not turn off
the engine. Move the selector lever to the “P”
(PARK) position and open the engine hood. Keep
the engine idling.
After a while, move the selector lever to the “D”
(DRIVE) position and confirm that the “N” indica-
tor stops blinking. It is safe to continue driving if the
“N” indicator no longer blinks.
If the “N” indicator continues blinking or blinks
intermittently, have your vehicle inspected by an
authorized Mitsubishi Motors dealer or a repair
facility of your choice.
[The “N” indicator blinks slowly (once per second)]
The automatic transaxle safety device may be oper-
ating due to a malfunction.
Have your vehicle inspected by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.
BK0121200US.book 42 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-43
3

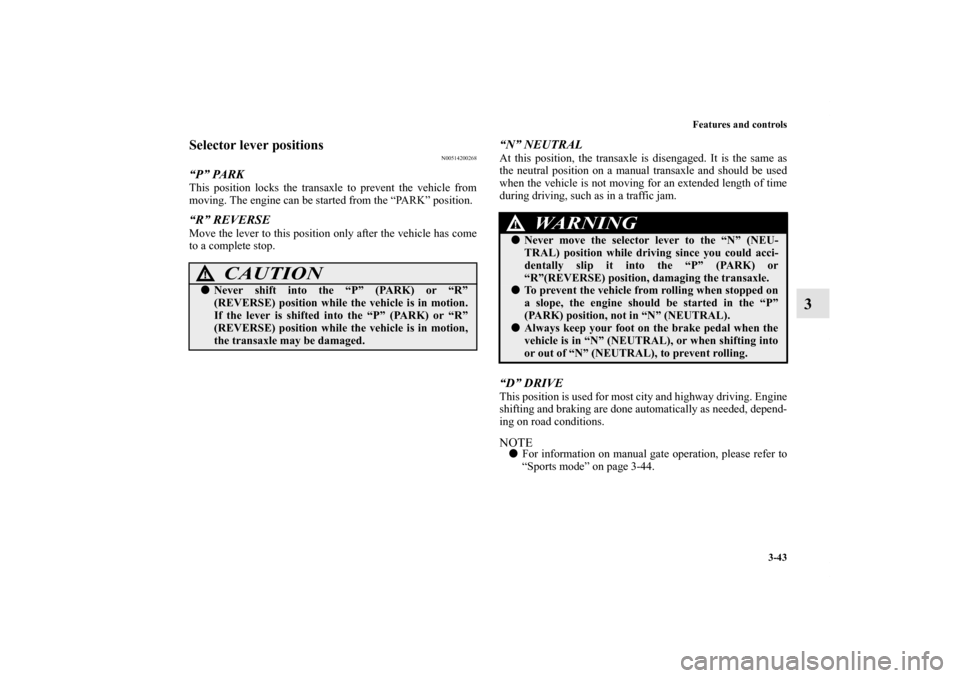

Selector lever positions
N00514200268
“P” PARKThis position locks the transaxle to prevent the vehicle from
moving. The engine can be started from the “PARK” position.“R” REVERSEMove the lever to this position only after the vehicle has come
to a complete stop.
“N” NEUTRALAt this position, the transaxle is disengaged. It is the same as
the neutral position on a manual transaxle and should be used
when the vehicle is not moving for an extended length of time
during driving, such as in a traffic jam.“D” DRIVEThis position is used for most city and highway driving. Engine
shifting and braking are done automatically as needed, depend-
ing on road conditions.NOTE
For information on manual gate operation, please refer to
“Sports mode” on page 3-44.
CAUTION
!
Never shift into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion.
If the lever is shifted into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion,
the transaxle may be damaged.
WA R N I N G
!
Never move the selector lever to the “N” (NEU-
TRAL) position while driving since you could acci-
dentally slip it into the “P” (PARK) or
“R”(REVERSE) position, damaging the transaxle.
To prevent the vehicle from rolling when stopped on
a slope, the engine should be started in the “P”
(PARK) position, not in “N” (NEUTRAL).
Always keep your foot on the brake pedal when the
vehicle is in “N” (NEUTRAL), or when shifting into
or out of “N” (NEUTRAL), to prevent rolling.
BK0121200US.book 43 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-44 Features and controls
3

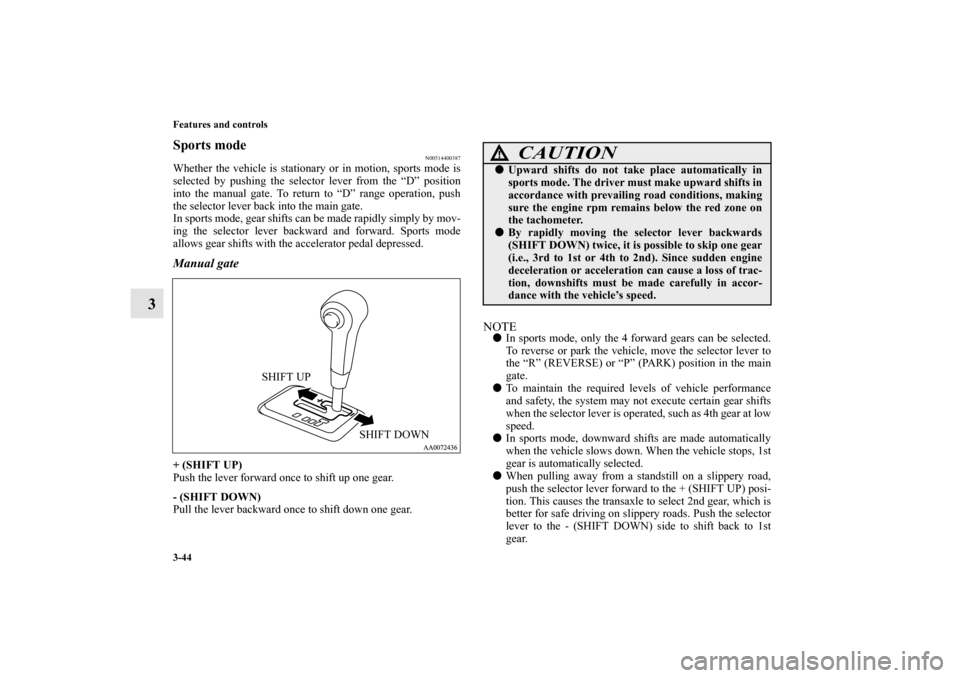

Sports mode
N00514400387
Whether the vehicle is stationary or in motion, sports mode is
selected by pushing the selector lever from the “D” position
into the manual gate. To return to “D” range operation, push
the selector lever back into the main gate.
In sports mode, gear shifts can be made rapidly simply by mov-
ing the selector lever backward and forward. Sports mode
allows gear shifts with the accelerator pedal depressed.Manual gate+ (SHIFT UP)
Push the lever forward once to shift up one gear.
- (SHIFT DOWN)
Pull the lever backward once to shift down one gear.
NOTE
In sports mode, only the 4 forward gears can be selected.
To reverse or park the vehicle, move the selector lever to
the “R” (REVERSE) or “P” (PARK) position in the main
gate.

To maintain the required levels of vehicle performance
and safety, the system may not execute certain gear shifts
when the selector lever is operated, such as 4th gear at low
speed.

In sports mode, downward shifts are made automatically
when the vehicle slows down. When the vehicle stops, 1st
gear is automatically selected.

When pulling away from a standstill on a slippery road,
push the selector lever forward to the + (SHIFT UP) posi-
tion. This causes the transaxle to select 2nd gear, which is
better for safe driving on slippery roads. Push the selector
lever to the - (SHIFT DOWN) side to shift back to 1st
gear.
SHIFT DOWN SHIFT UP
CAUTION
!
Upward shifts do not take place automatically in
sports mode. The driver must make upward shifts in
accordance with prevailing road conditions, making
sure the engine rpm remains below the red zone on
the tachometer.
By rapidly moving the selector lever backwards
(SHIFT DOWN) twice, it is possible to skip one gear
(i.e., 3rd to 1st or 4th to 2nd). Since sudden engine
deceleration or acceleration can cause a loss of trac-
tion, downshifts must be made carefully in accor-
dance with the vehicle’s speed.
BK0121200US.book 44 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-45
3

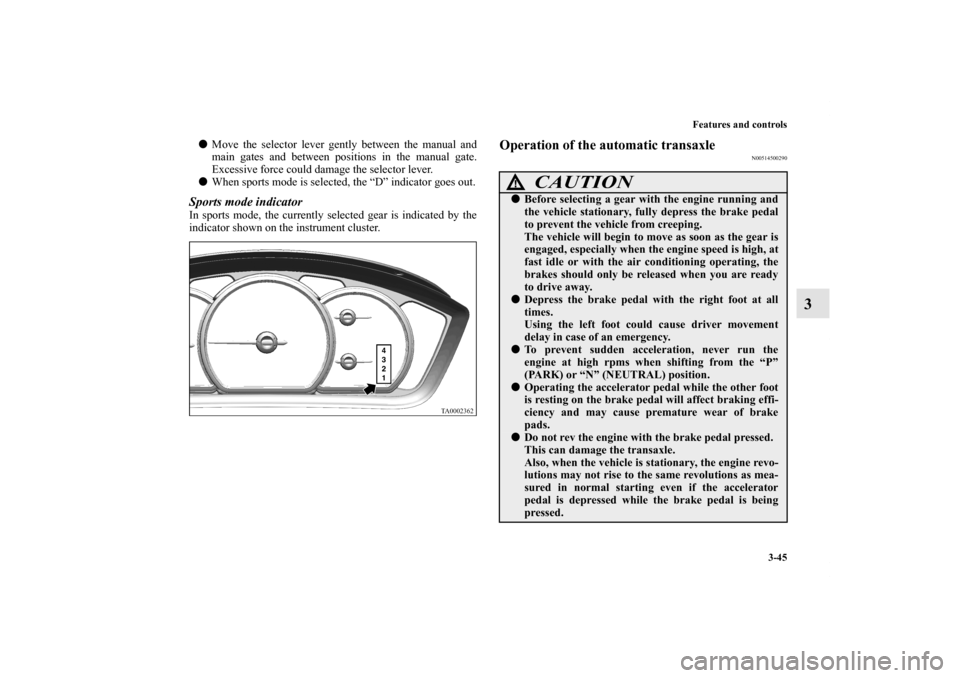

Move the selector lever gently between the manual and
main gates and between positions in the manual gate.
Excessive force could damage the selector lever.

When sports mode is selected, the “D” indicator goes out.Sports mode indicatorIn sports mode, the currently selected gear is indicated by the
indicator shown on the instrument cluster.
Operation of the automatic transaxle
N00514500290
CAUTION
!
Before selecting a gear with the engine running and
the vehicle stationary, fully depress the brake pedal
to prevent the vehicle from creeping.
The vehicle will begin to move as soon as the gear is
engaged, especially when the engine speed is high, at
fast idle or with the air conditioning operating, the
brakes should only be released when you are ready
to drive away.
Depress the brake pedal with the right foot at all
times.
Using the left foot could cause driver movement
delay in case of an emergency.
To prevent sudden acceleration, never run the
engine at high rpms when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.
Operating the accelerator pedal while the other foot
is resting on the brake pedal will affect braking effi-
ciency and may cause premature wear of brake
pads.
Do not rev the engine with the brake pedal pressed.
This can damage the transaxle.
Also, when the vehicle is stationary, the engine revo-
lutions may not rise to the same revolutions as mea-
sured in normal starting even if the accelerator
pedal is depressed while the brake pedal is being
pressed.
BK0121200US.book 45 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-46 Features and controls
3

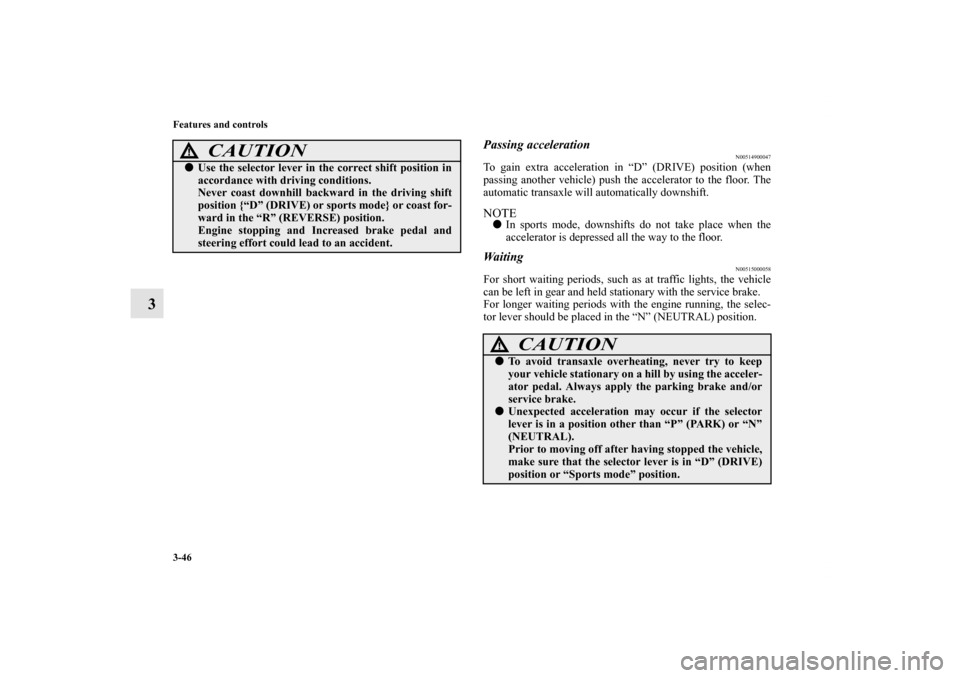

Passing acceleration
N00514900047
To gain extra acceleration in “D” (DRIVE) position (when
passing another vehicle) push the accelerator to the floor. The
automatic transaxle will automatically downshift.NOTE
In sports mode, downshifts do not take place when the
accelerator is depressed all the way to the floor.Waiting
N00515000058
For short waiting periods, such as at traffic lights, the vehicle
can be left in gear and held stationary with the service brake.
For longer waiting periods with the engine running, the selec-
tor lever should be placed in the “N” (NEUTRAL) position.

Use the selector lever in the correct shift position in
accordance with driving conditions.
Never coast downhill backward in the driving shift
position {“D” (DRIVE) or sports mode} or coast for-
ward in the “R” (REVERSE) position.
Engine stopping and Increased brake pedal and
steering effort could lead to an accident.
CAUTION
!
CAUTION
!
To avoid transaxle overheating, never try to keep
your vehicle stationary on a hill by using the acceler-
ator pedal. Always apply the parking brake and/or
service brake.
Unexpected acceleration may occur if the selector
lever is in a position other than “P” (PARK) or “N”
(NEUTRAL).
Prior to moving off after having stopped the vehicle,
make sure that the selector lever is in “D” (DRIVE)
position or “Sports mode” position.
BK0121200US.book 46 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-47
3

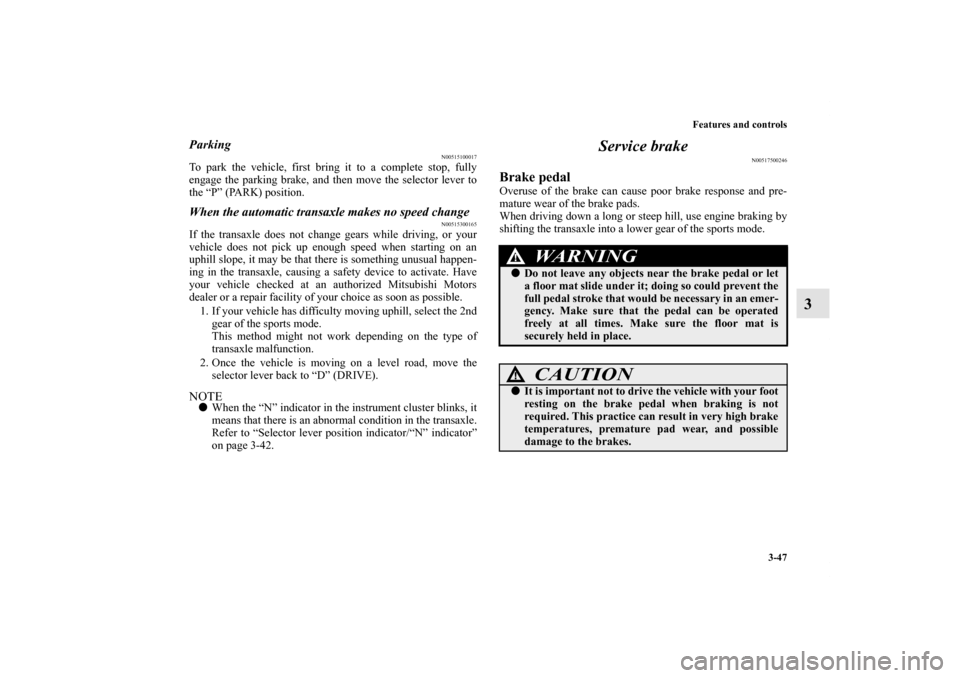

Parking
N00515100017
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.When the automatic transaxle makes no speed change
N00515300165
If the transaxle does not change gears while driving, or your
vehicle does not pick up enough speed when starting on an
uphill slope, it may be that there is something unusual happen-
ing in the transaxle, causing a safety device to activate. Have
your vehicle checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.
1. If your vehicle has difficulty moving uphill, select the 2nd
gear of the sports mode.
This method might not work depending on the type of
transaxle malfunction.
2. Once the vehicle is moving on a level road, move the
selector lever back to “D” (DRIVE).NOTE
When the “N” indicator in the instrument cluster blinks, it
means that there is an abnormal condition in the transaxle.
Refer to “Selector lever position indicator/“N” indicator”
on page 3-42.
Service brake
N00517500246
Brake pedalOveruse of the brake can cause poor brake response and pre-
mature wear of the brake pads.
When driving down a long or steep hill, use engine braking by
shifting the transaxle into a lower gear of the sports mode.
WA R N I N G
!
Do not leave any objects near the brake pedal or let
a floor mat slide under it; doing so could prevent the
full pedal stroke that would be necessary in an emer-
gency. Make sure that the pedal can be operated
freely at all times. Make sure the floor mat is
securely held in place.
CAUTION
!
It is important not to drive the vehicle with your foot
resting on the brake pedal when braking is not
required. This practice can result in very high brake
temperatures, premature pad wear, and possible
damage to the brakes.
BK0121200US.book 47 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-48 Features and controls
3

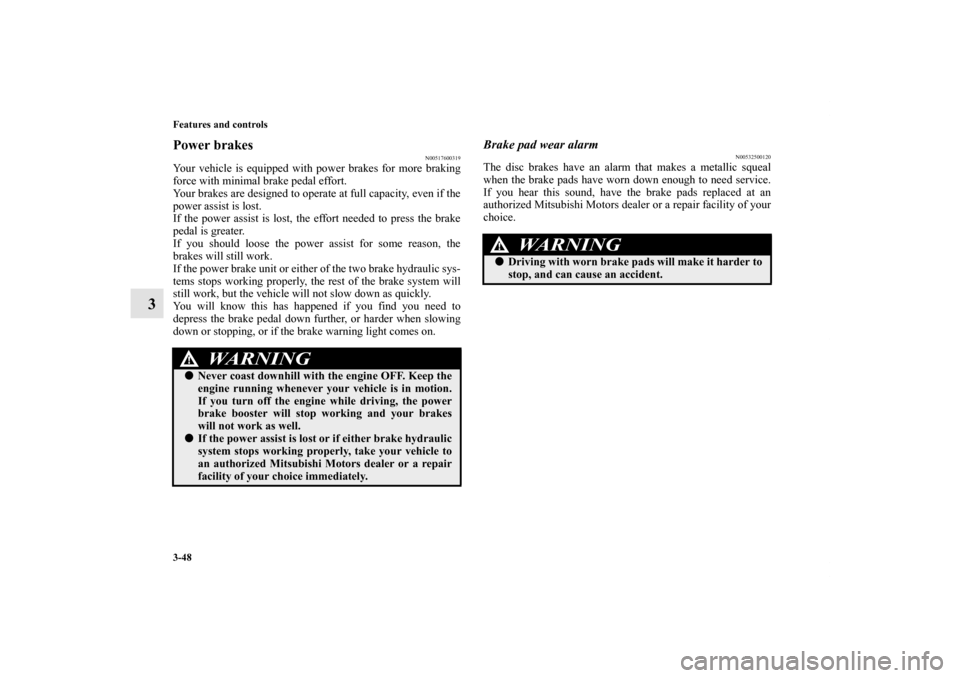

Power brakes
N00517600319
Your vehicle is equipped with power brakes for more braking
force with minimal brake pedal effort.
Your brakes are designed to operate at full capacity, even if the
power assist is lost.
If the power assist is lost, the effort needed to press the brake
pedal is greater.
If you should loose the power assist for some reason, the
brakes will still work.
If the power brake unit or either of the two brake hydraulic sys-
tems stops working properly, the rest of the brake system will
still work, but the vehicle will not slow down as quickly.
You will know this has happened if you find you need to
depress the brake pedal down further, or harder when slowing
down or stopping, or if the brake warning light comes on.
Brake pad wear alarm
N00532500120
The disc brakes have an alarm that makes a metallic squeal
when the brake pads have worn down enough to need service.
If you hear this sound, have the brake pads replaced at an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
WA R N I N G
!
Never coast downhill with the engine OFF. Keep the
engine running whenever your vehicle is in motion.
If you turn off the engine while driving, the power
brake booster will stop working and your brakes
will not work as well.
If the power assist is lost or if either brake hydraulic
system stops working properly, take your vehicle to
an authorized Mitsubishi Motors dealer or a repair
facility of your choice immediately.
WA R N I N G
!
Driving with worn brake pads will make it harder to
stop, and can cause an accident.
BK0121200US.book 48 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

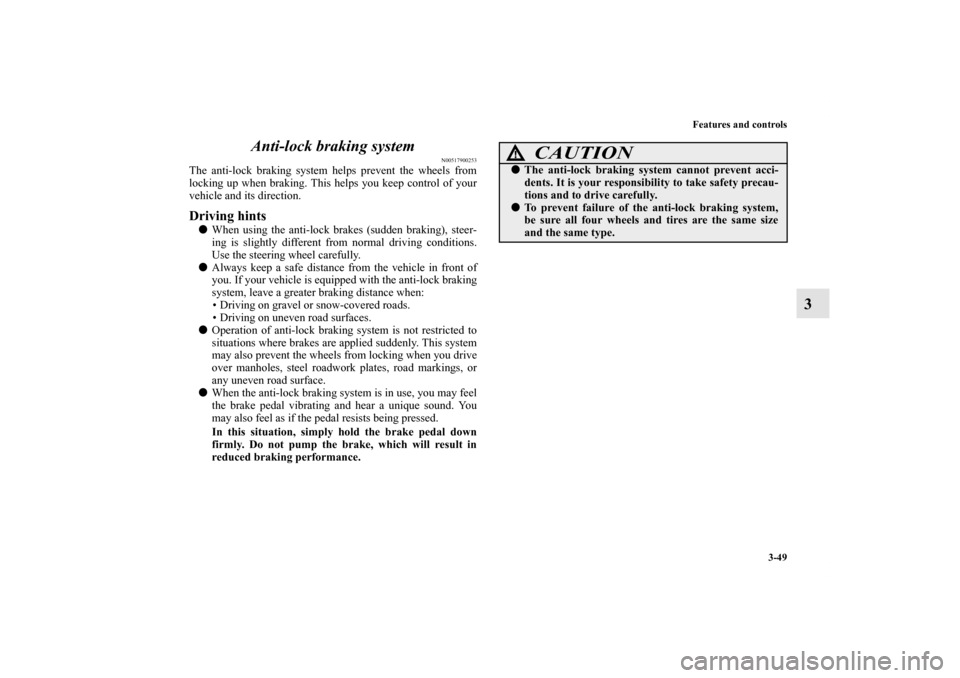

Features and controls
3-49
3 Anti-lock braking system
N00517900253
The anti-lock braking system helps prevent the wheels from
locking up when braking. This helps you keep control of your
vehicle and its direction. Driving hints
When using the anti-lock brakes (sudden braking), steer-
ing is slightly different from normal driving conditions.
Use the steering wheel carefully.

Always keep a safe distance from the vehicle in front of
you. If your vehicle is equipped with the anti-lock braking
system, leave a greater braking distance when:
• Driving on gravel or snow-covered roads.
• Driving on uneven road surfaces.

Operation of anti-lock braking system is not restricted to
situations where brakes are applied suddenly. This system
may also prevent the wheels from locking when you drive
over manholes, steel roadwork plates, road markings, or
any uneven road surface.

When the anti-lock braking system is in use, you may feel
the brake pedal vibrating and hear a unique sound. You
may also feel as if the pedal resists being pressed.
In this situation, simply hold the brake pedal down
firmly. Do not pump the brake, which will result in
reduced braking performance.
CAUTION
!
The anti-lock braking system cannot prevent acci-
dents. It is your responsibility to take safety precau-
tions and to drive carefully.
To prevent failure of the anti-lock braking system,
be sure all four wheels and tires are the same size
and the same type.
BK0121200US.book 49 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

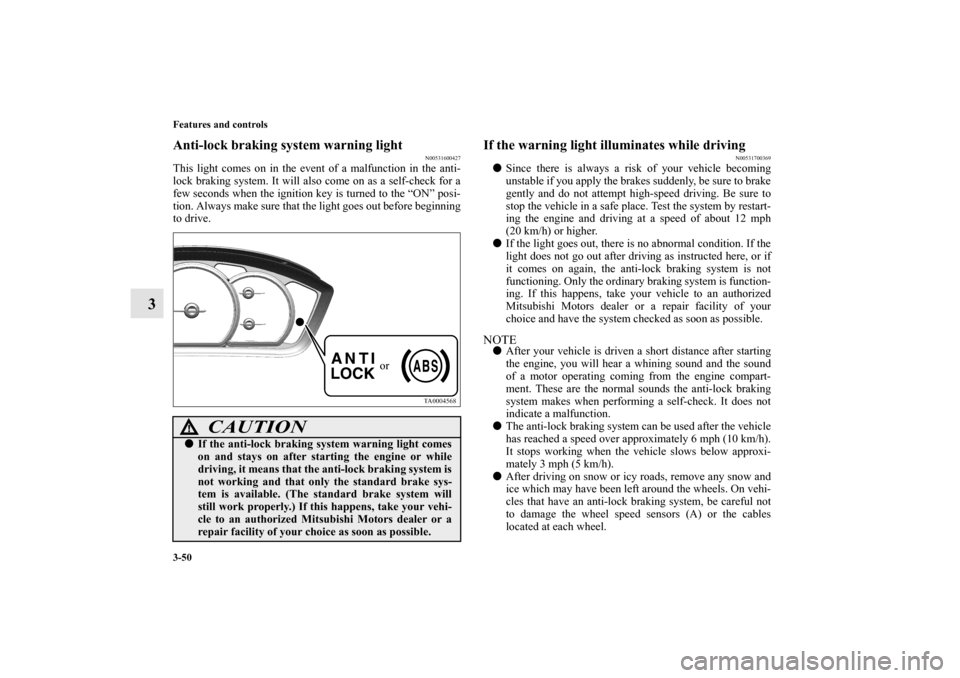

3-50 Features and controls
3
Anti-lock braking system warning light
N00531600427
This light comes on in the event of a malfunction in the anti-
lock braking system. It will also come on as a self-check for a
few seconds when the ignition key is turned to the “ON” posi-
tion. Always make sure that the light goes out before beginning
to drive.
If the warning light illuminates while driving
N00531700369

Since there is always a risk of your vehicle becoming
unstable if you apply the brakes suddenly, be sure to brake
gently and do not attempt high-speed driving. Be sure to
stop the vehicle in a safe place. Test the system by restart-
ing the engine and driving at a speed of about 12 mph
(20 km/h) or higher.

If the light goes out, there is no abnormal condition. If the
light does not go out after driving as instructed here, or if
it comes on again, the anti-lock braking system is not
functioning. Only the ordinary braking system is function-
ing. If this happens, take your vehicle to an authorized
Mitsubishi Motors dealer or a repair facility of your
choice and have the system checked as soon as possible.NOTE
After your vehicle is driven a short distance after starting
the engine, you will hear a whining sound and the sound
of a motor operating coming from the engine compart-
ment. These are the normal sounds the anti-lock braking
system makes when performing a self-check. It does not
indicate a malfunction.

The anti-lock braking system can be used after the vehicle
has reached a speed over approximately 6 mph (10 km/h).
It stops working when the vehicle slows below approxi-
mately 3 mph (5 km/h).

After driving on snow or icy roads, remove any snow and
ice which may have been left around the wheels. On vehi-
cles that have an anti-lock braking system, be careful not
to damage the wheel speed sensors (A) or the cables
located at each wheel.
CAUTION
!
If the anti-lock braking system warning light comes
on and stays on after starting the engine or while
driving, it means that the anti-lock braking system is
not working and that only the standard brake sys-
tem is available. (The standard brake system will
still work properly.) If this happens, take your vehi-
cle to an authorized Mitsubishi Motors dealer or a
repair facility of your choice as soon as possible.
or
BK0121200US.book 50 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

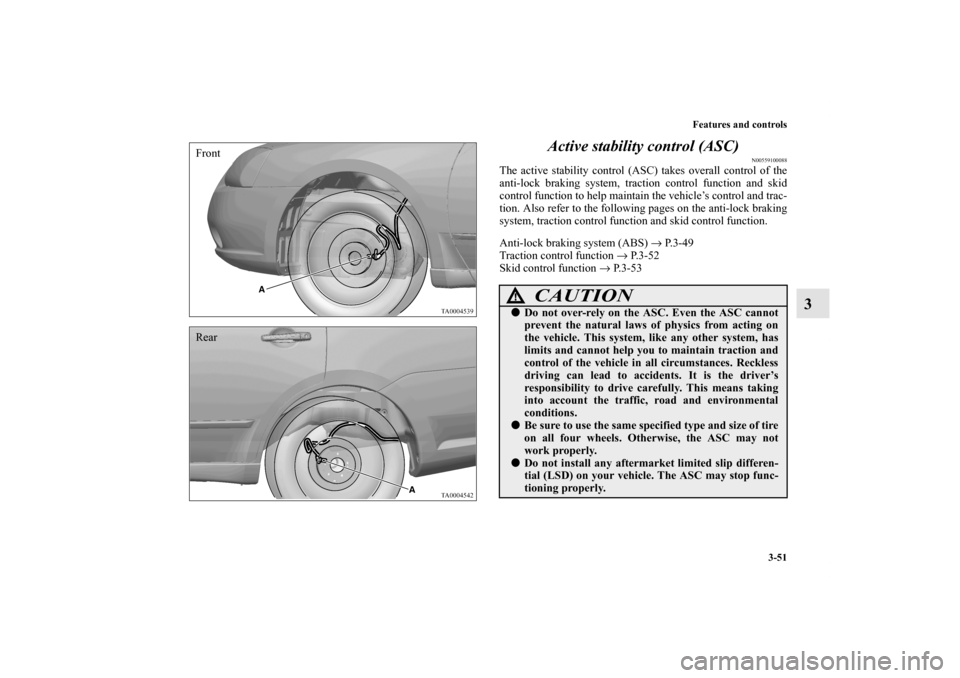

Features and controls
3-51
3 Active stability control (ASC)
N00559100088
The active stability control (ASC) takes overall control of the
anti-lock braking system, traction control function and skid
control function to help maintain the vehicle’s control and trac-
tion. Also refer to the following pages on the anti-lock braking
system, traction control function and skid control function.
Anti-lock braking system (ABS) → P. 3 - 4 9
Traction control function → P. 3 - 5 2
Skid control function → P. 3 - 5 3
FrontRear
CAUTION
!
Do not over-rely on the ASC. Even the ASC cannot
prevent the natural laws of physics from acting on
the vehicle. This system, like any other system, has
limits and cannot help you to maintain traction and
control of the vehicle in all circumstances. Reckless
driving can lead to accidents. It is the driver’s
responsibility to drive carefully. This means taking
into account the traffic, road and environmental
conditions.
Be sure to use the same specified type and size of tire
on all four wheels. Otherwise, the ASC may not
work properly.
Do not install any aftermarket limited slip differen-
tial (LSD) on your vehicle. The ASC may stop func-
tioning properly.
BK0121200US.book 51 ページ ２０１０年４月１４日　水曜日　午前１１時２４分
