MITSUBISHI GALANT 2011 9.G Owners Manual

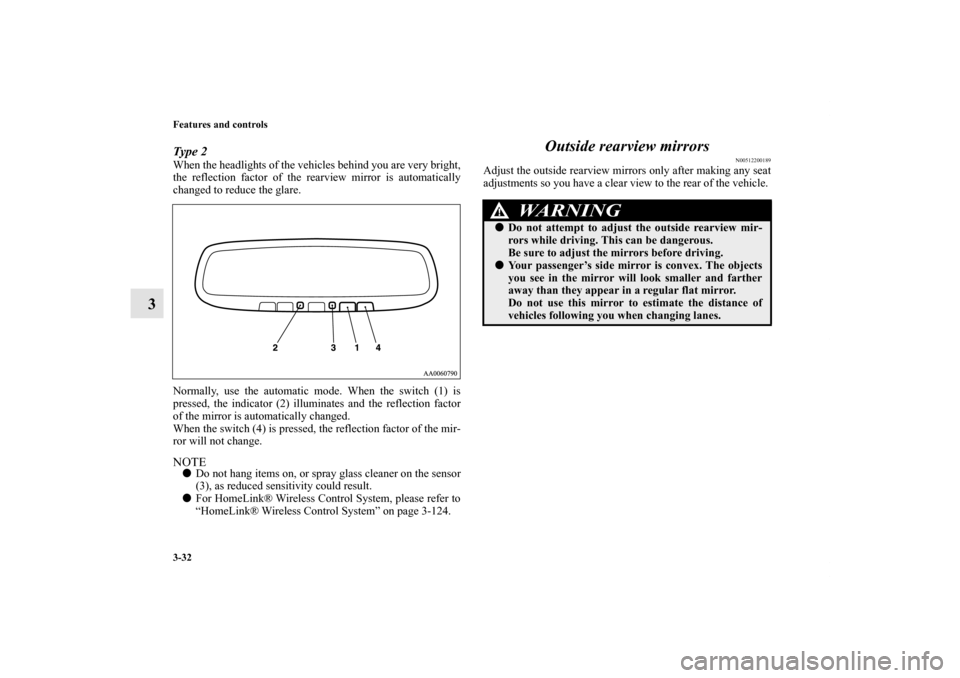

3-32 Features and controls
3
Type 2When the headlights of the vehicles behind you are very bright,
the reflection factor of the rearview mirror is automatically
changed to reduce the glare.
Normally, use the automatic mode. When the switch (1) is
pressed, the indicator (2) illuminates and the reflection factor
of the mirror is automatically changed.
When the switch (4) is pressed, the reflection factor of the mir-
ror will not change.NOTE
Do not hang items on, or spray glass cleaner on the sensor
(3), as reduced sensitivity could result.

For HomeLink® Wireless Control System, please refer to
“HomeLink® Wireless Control System” on page 3-124.
Outside rearview mirrors
N00512200189
Adjust the outside rearview mirrors only after making any seat
adjustments so you have a clear view to the rear of the vehicle.
WA R N I N G
!
Do not attempt to adjust the outside rearview mir-
rors while driving. This can be dangerous.
Be sure to adjust the mirrors before driving.
Your passenger’s side mirror is convex. The objects
you see in the mirror will look smaller and farther
away than they appear in a regular flat mirror.
Do not use this mirror to estimate the distance of
vehicles following you when changing lanes.
BK0121200US.book 32 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

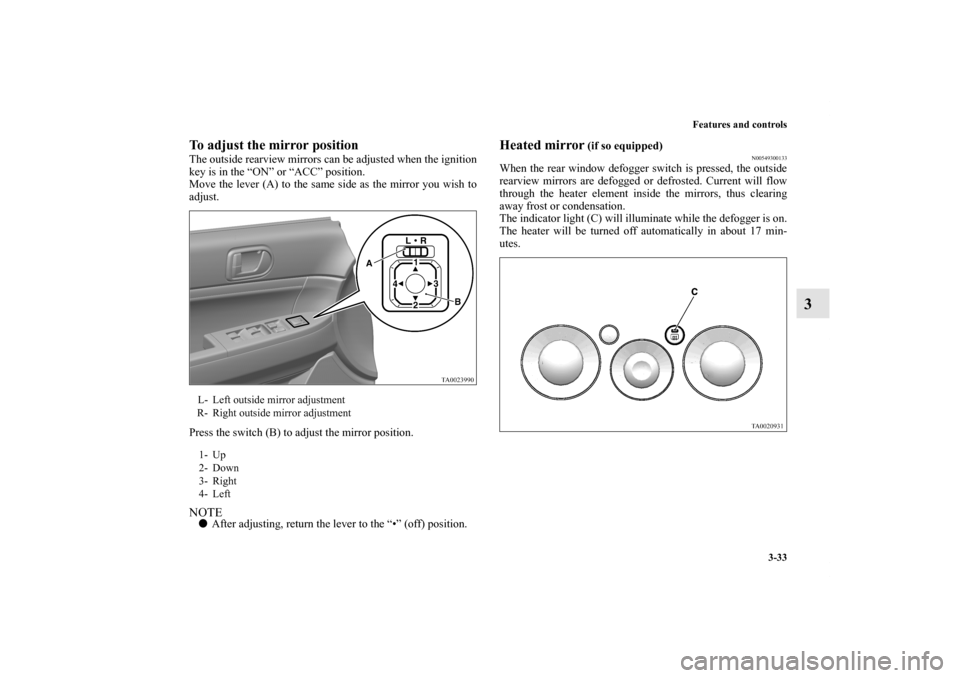

Features and controls
3-33
3
To adjust the mirror positionThe outside rearview mirrors can be adjusted when the ignition
key is in the “ON” or “ACC” position.
Move the lever (A) to the same side as the mirror you wish to
adjust.
Press the switch (B) to adjust the mirror position. NOTE
After adjusting, return the lever to the “•” (off) position.
Heated mirror
(if so equipped)
N00549300133
When the rear window defogger switch is pressed, the outside
rearview mirrors are defogged or defrosted. Current will flow
through the heater element inside the mirrors, thus clearing
away frost or condensation.
The indicator light (C) will illuminate while the defogger is on.
The heater will be turned off automatically in about 17 min-
utes.
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
BK0121200US.book 33 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

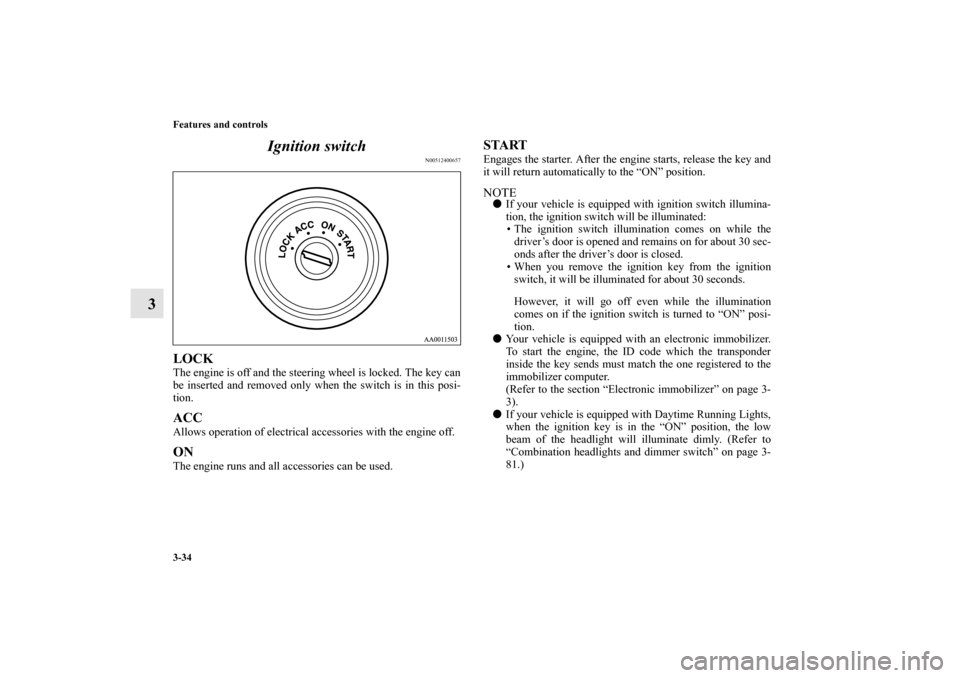

3-34 Features and controls
3Ignition switch
N00512400657
LOCKThe engine is off and the steering wheel is locked. The key can
be inserted and removed only when the switch is in this posi-
tion. ACCAllows operation of electrical accessories with the engine off. ON The engine runs and all accessories can be used.
START Engages the starter. After the engine starts, release the key and
it will return automatically to the “ON” position.NOTE
If your vehicle is equipped with ignition switch illumina-
tion, the ignition switch will be illuminated:
• The ignition switch illumination comes on while the
driver’s door is opened and remains on for about 30 sec-
onds after the driver’s door is closed.
• When you remove the ignition key from the ignition
switch, it will be illuminated for about 30 seconds.
However, it will go off even while the illumination
comes on if the ignition switch is turned to “ON” posi-
tion.

Your vehicle is equipped with an electronic immobilizer.
To start the engine, the ID code which the transponder
inside the key sends must match the one registered to the
immobilizer computer.
(Refer to the section “Electronic immobilizer” on page 3-
3).

If your vehicle is equipped with Daytime Running Lights,
when the ignition key is in the “ON” position, the low
beam of the headlight will illuminate dimly. (Refer to
“Combination headlights and dimmer switch” on page 3-
81.)
BK0121200US.book 34 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-35
3
To remove the keyFirst set the selector lever to the “P” (PARK) position, and then
turn the key to the “LOCK” position and remove it.NOTE
The key cannot be removed unless the selector lever is set
in the “P” (PARK) position.
Key reminder buzzer
N00551000078
If you open the driver’s door while the ignition key is in the
“LOCK” or “ACC” position, a tone will sound, reminding you
to remove the key.
CAUTION
!
If the engine is turned off while driving, the power
brake booster will stop functioning and braking effi-
ciency will be reduced. Also, the power steering sys-
tem will not function and it will require greater
effort to manually steer the vehicle.
Do not leave the key in the “ON” position for a long
time when the engine is not running. This will cause
the battery to run down.

Do not turn the key to the “START” position when
the engine is running. It will damage the starter
motor.
CAUTION
!
BK0121200US.book 35 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

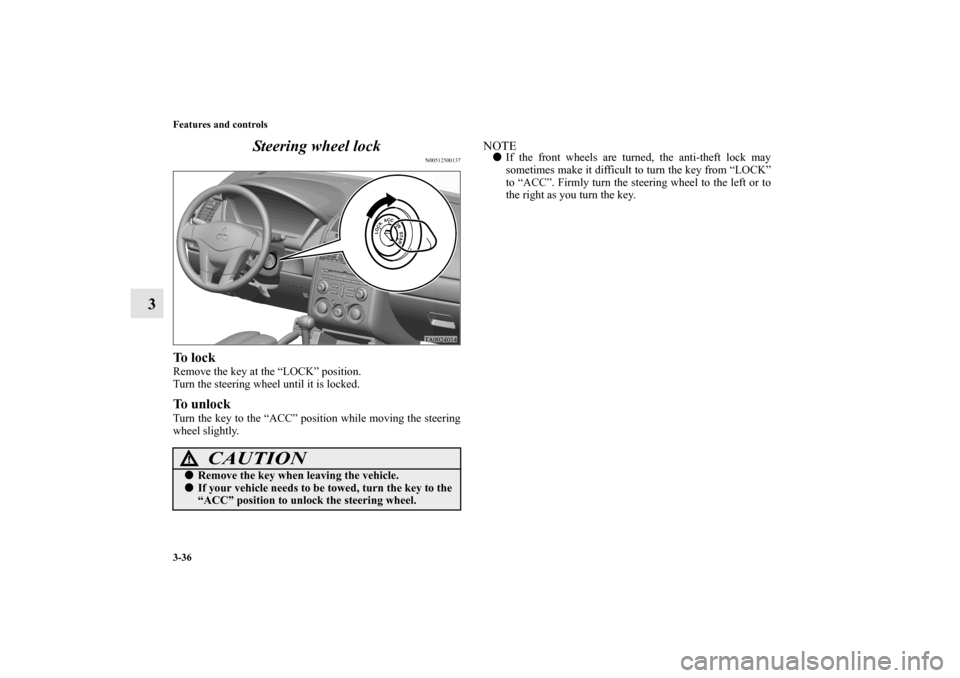

3-36 Features and controls
3Steering wheel lock
N00512500137
To l o c kRemove the key at the “LOCK” position.
Turn the steering wheel until it is locked.To unlockTurn the key to the “ACC” position while moving the steering
wheel slightly.
NOTE
If the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the key from “LOCK”
to “ACC”. Firmly turn the steering wheel to the left or to
the right as you turn the key.
CAUTION
!
Remove the key when leaving the vehicle.
If your vehicle needs to be towed, turn the key to the
“ACC” position to unlock the steering wheel.
BK0121200US.book 36 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

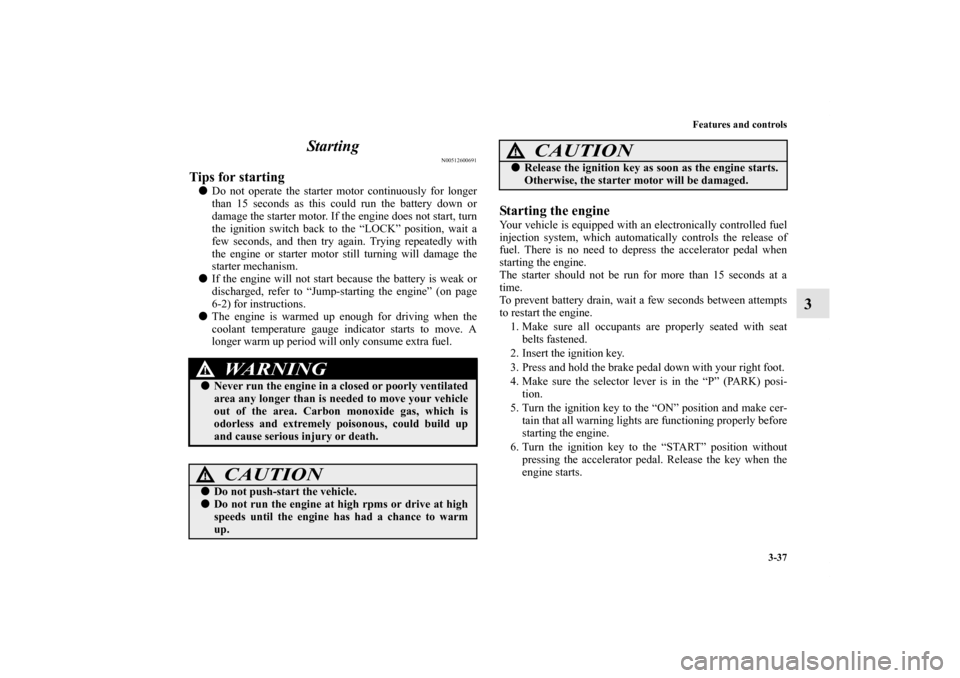

Features and controls
3-37
3 Starting
N00512600691
Tips for starting
Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “LOCK” position, wait a
few seconds, and then try again. Trying repeatedly with
the engine or starter motor still turning will damage the
starter mechanism.

If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.

The engine is warmed up enough for driving when the
coolant temperature gauge indicator starts to move. A
longer warm up period will only consume extra fuel.
Starting the engineYour vehicle is equipped with an electronically controlled fuel
injection system, which automatically controls the release of
fuel. There is no need to depress the accelerator pedal when
starting the engine.
The starter should not be run for more than 15 seconds at a
time.
To prevent battery drain, wait a few seconds between attempts
to restart the engine.
1. Make sure all occupants are properly seated with seat
belts fastened.
2. Insert the ignition key.
3. Press and hold the brake pedal down with your right foot.
4. Make sure the selector lever is in the “P” (PARK) posi-
tion.
5. Turn the ignition key to the “ON” position and make cer-
tain that all warning lights are functioning properly before
starting the engine.
6. Turn the ignition key to the “START” position without
pressing the accelerator pedal. Release the key when the
engine starts.
WA R N I N G
!
Never run the engine in a closed or poorly ventilated
area any longer than is needed to move your vehicle
out of the area. Carbon monoxide gas, which is
odorless and extremely poisonous, could build up
and cause serious injury or death.
CAUTION
!
Do not push-start the vehicle.
Do not run the engine at high rpms or drive at high
speeds until the engine has had a chance to warm
up.

Release the ignition key as soon as the engine starts.
Otherwise, the starter motor will be damaged.
CAUTION
!
BK0121200US.book 37 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

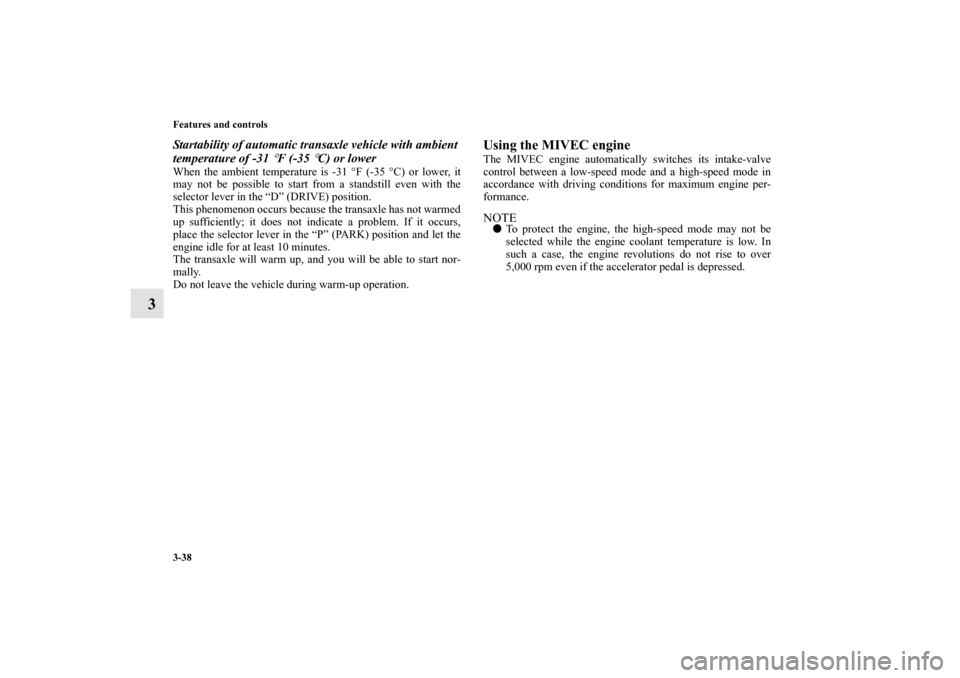

3-38 Features and controls
3
Startability of automatic transaxle vehicle with ambient
temperature of -31
°F (-35
°C) or lower
When the ambient temperature is -31 °F (-35 °C) or lower, it
may not be possible to start from a standstill even with the
selector lever in the “D” (DRIVE) position.
This phenomenon occurs because the transaxle has not warmed
up sufficiently; it does not indicate a problem. If it occurs,
place the selector lever in the “P” (PARK) position and let the
engine idle for at least 10 minutes.
The transaxle will warm up, and you will be able to start nor-
mally.
Do not leave the vehicle during warm-up operation.
Using the MIVEC engineThe MIVEC engine automatically switches its intake-valve
control between a low-speed mode and a high-speed mode in
accordance with driving conditions for maximum engine per-
formance.NOTE
To protect the engine, the high-speed mode may not be
selected while the engine coolant temperature is low. In
such a case, the engine revolutions do not rise to over
5,000 rpm even if the accelerator pedal is depressed.
BK0121200US.book 38 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-39
3 Automatic transaxle
N00513200098
Designed for the most efficient control and equipped with self-
adapting capabilities, the electronically controlled transaxle
used in your vehicle selects the most favorable gear for each
type of driving and road condition.DRIVING UPHILLThe transaxle may not shift to a higher gear if the computer
determines your current speed would be affected.
For smoother operation, the transaxle may not shift if you
release the throttle while climbing a steep hill. This is normal
because the computer controls the shifting. After reaching the
top of the hill, your normal gear shift function will resume.DRIVING DOWNHILLWhen traveling down steep grades and using the brakes, the
computer may automatically select a lower gear. This helps
engine braking efforts, reducing your need to use the brakes.
NOTE
During the break-in period or immediately after recon-
necting the battery, your vehicle may not shift smoothly.
This does not indicate a problem in the transaxle. Shifting
will become smoother once the transaxle has been shifted
several times by the electronic control system.Selector lever operation
N00513800355
As an additional safety precaution, models equipped with an
automatic transaxle have a shift-lock device that holds the
selector lever in the “P” (PARK) position. To move the selector
lever from the “P” (PARK) position to another position, follow
the steps below.
1. Press and hold the brake pedal down.
2. Move the selector lever to the desired position.NOTE
The selector lever cannot be moved from “P” (PARK) to
another position if the ignition key is at the “LOCK” posi-
tion, or has been removed, or if the brake pedal is not
pressed and held down.
CAUTION
!
The electronically controlled transaxle system is
strictly intended to provide supplementary func-
tions. When driving downhill under certain condi-
tions, when the automatic transaxle is cold
immediately after starting, no automatic downshift
may be made. The driver should move the selector
lever to shift down to a lower gear (3rd gear or 2nd
gear), which will permit the engine to begin braking.
BK0121200US.book 39 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

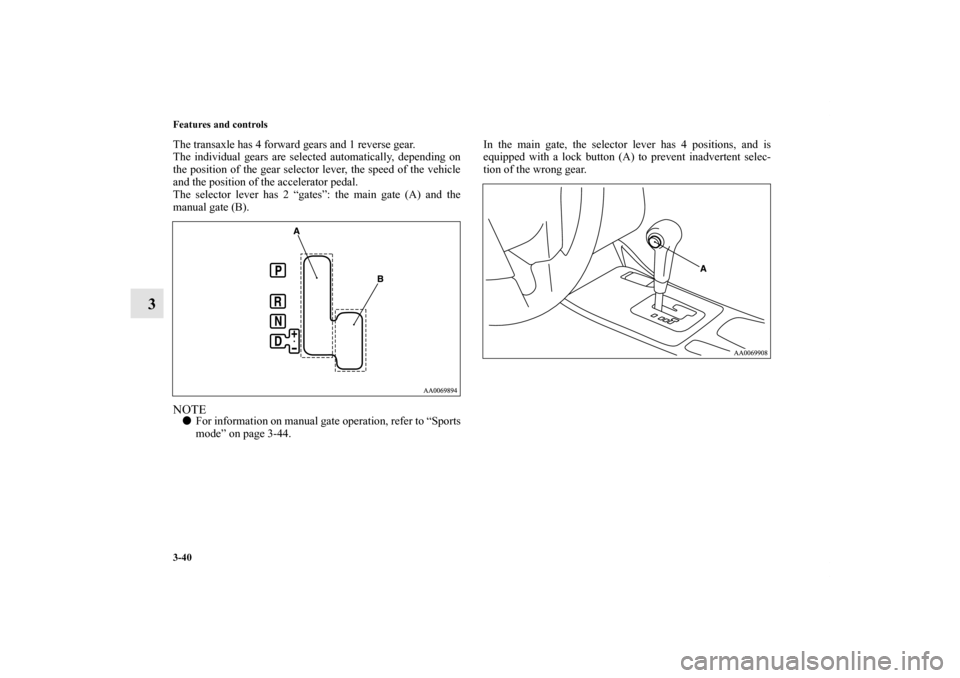

3-40 Features and controls
3
The transaxle has 4 forward gears and 1 reverse gear.
The individual gears are selected automatically, depending on
the position of the gear selector lever, the speed of the vehicle
and the position of the accelerator pedal.
The selector lever has 2 “gates”: the main gate (A) and the
manual gate (B). NOTE
For information on manual gate operation, refer to “Sports
mode” on page 3-44.In the main gate, the selector lever has 4 positions, and is
equipped with a lock button (A) to prevent inadvertent selec-
tion of the wrong gear.
BK0121200US.book 40 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-41
3
NOTE
If the brake pedal is not depressed and held, the shift-lock
device activates to prevent the selector lever from being
moved from the “P” (PARK) position.
The lock button must be pushed while the brake pedal is
depressed to move the selector lever.
The selector lever will move without pushing the lock
button.
The lock button must be pushed to move the selector
lever. WA R N I N G
!
If the lock button is always pressed when using the
selector lever, the lever may be accidentally shifted
into the “P” (PARK) or “R” (REVERSE) position.
Do not press the lock button when making shifts
shown by in the illustration.

Always depress the brake pedal when shifting the
selector lever into a gear from the “N” (NEUTRAL)
position. When beginning to drive, do not shift the
selector lever from the “N” (NEUTRAL) position
while depressing the accelerator pedal. This will
cause the vehicle to “jump” forward or backward.
WA R N I N G
!
BK0121200US.book 41 ページ ２０１０年４月１４日　水曜日　午前１１時２４分
