MITSUBISHI GALANT 2011 9.G Owners Manual

3-62 Features and controls
3

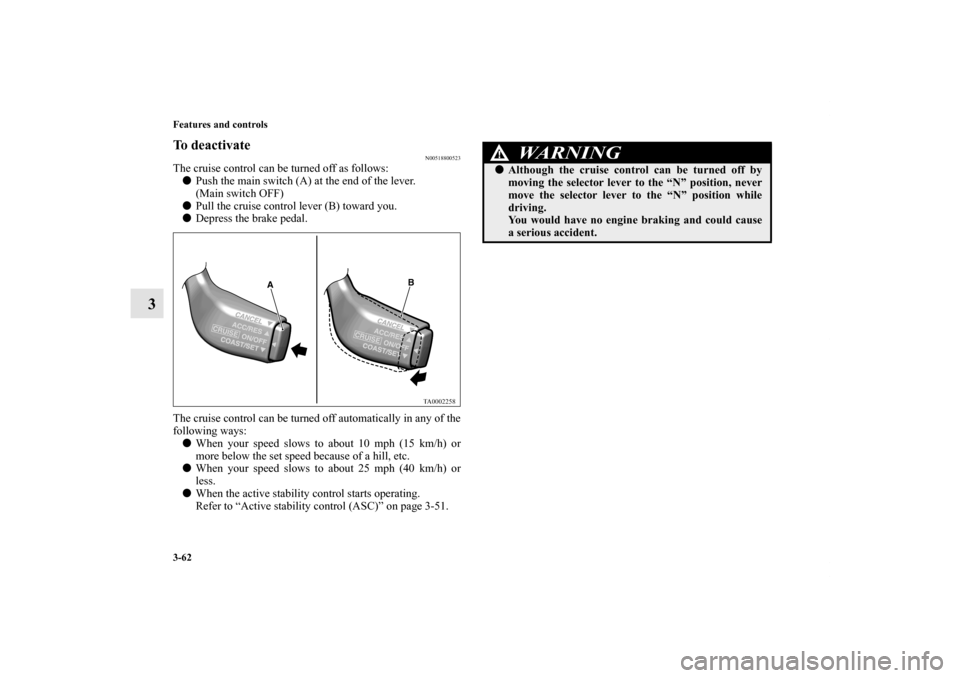

To deactivate
N00518800523
The cruise control can be turned off as follows:

Push the main switch (A) at the end of the lever.
(Main switch OFF)

Pull the cruise control lever (B) toward you.

Depress the brake pedal.
The cruise control can be turned off automatically in any of the
following ways:

When your speed slows to about 10 mph (15 km/h) or
more below the set speed because of a hill, etc.

When your speed slows to about 25 mph (40 km/h) or
less.

When the active stability control starts operating.
Refer to “Active stability control (ASC)” on page 3-51.
WA R N I N G
!
Although the cruise control can be turned off by
moving the selector lever to the “N” position, never
move the selector lever to the “N” position while
driving.
You would have no engine braking and could cause
a serious accident.
BK0121200US.book 62 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-63
3

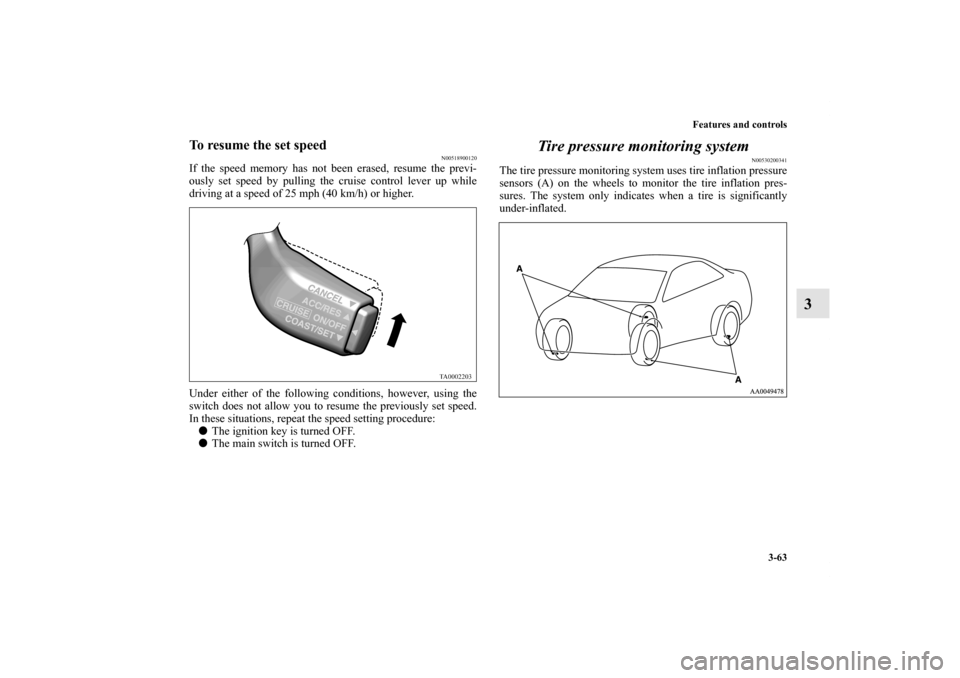

To resume the set speed
N00518900120
If the speed memory has not been erased, resume the previ-
ously set speed by pulling the cruise control lever up while
driving at a speed of 25 mph (40 km/h) or higher.
Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:

The ignition key is turned OFF.

The main switch is turned OFF.
Tire pressure monitoring system
N00530200341
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
BK0121200US.book 63 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

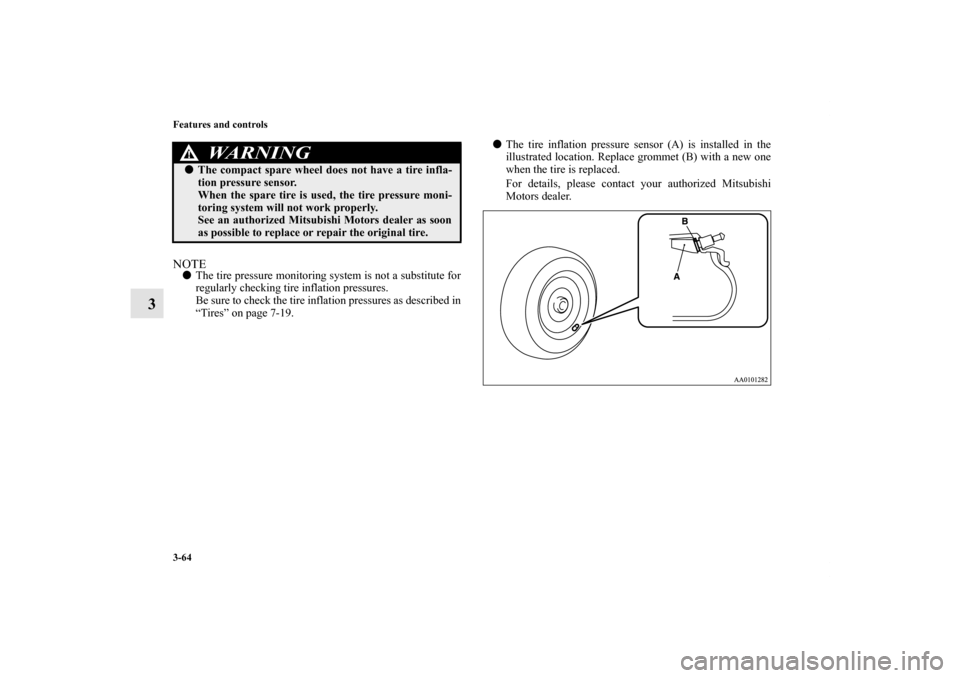

3-64 Features and controls
3
NOTE
The tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-19.
The tire inflation pressure sensor (A) is installed in the
illustrated location. Replace grommet (B) with a new one
when the tire is replaced.
For details, please contact your authorized Mitsubishi
Motors dealer.
WA R N I N G
!
The compact spare wheel does not have a tire infla-
tion pressure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
BK0121200US.book 64 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-65
3

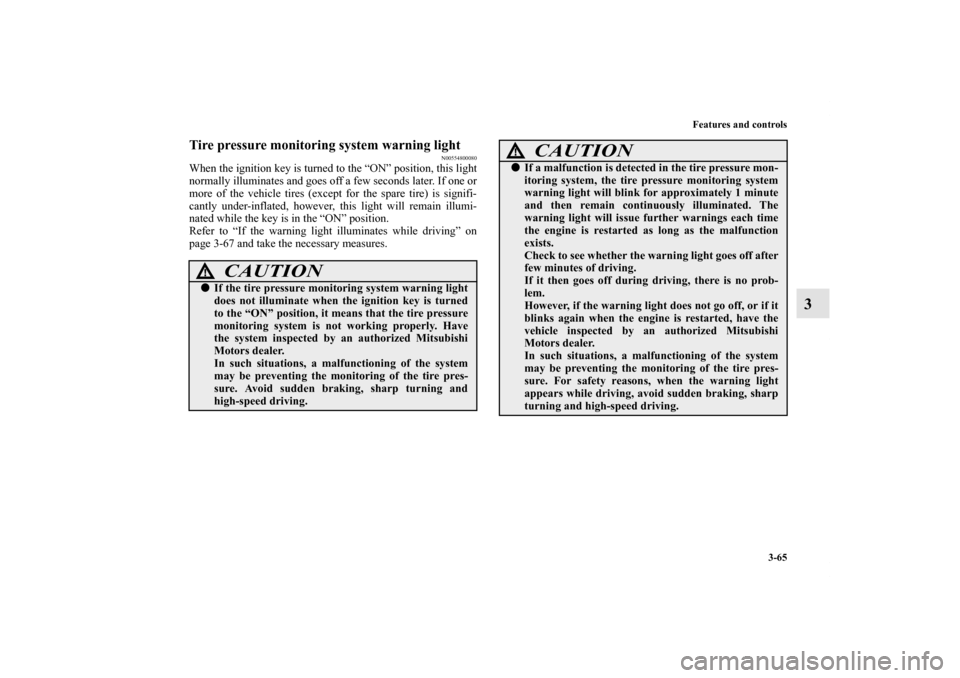

Tire pressure monitoring system warning light
N00554800080
When the ignition key is turned to the “ON” position, this light
normally illuminates and goes off a few seconds later. If one or
more of the vehicle tires (except for the spare tire) is signifi-
cantly under-inflated, however, this light will remain illumi-
nated while the key is in the “ON” position.
Refer to “If the warning light illuminates while driving” on
page 3-67 and take the necessary measures.
CAUTION
!
If the tire pressure monitoring system warning light
does not illuminate when the ignition key is turned
to the “ON” position, it means that the tire pressure
monitoring system is not working properly. Have
the system inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. Avoid sudden braking, sharp turning and
high-speed driving.

If a malfunction is detected in the tire pressure mon-
itoring system, the tire pressure monitoring system
warning light will blink for approximately 1 minute
and then remain continuously illuminated. The
warning light will issue further warnings each time
the engine is restarted as long as the malfunction
exists.
Check to see whether the warning light goes off after
few minutes of driving.
If it then goes off during driving, there is no prob-
lem.
However, if the warning light does not go off, or if it
blinks again when the engine is restarted, have the
vehicle inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. For safety reasons, when the warning light
appears while driving, avoid sudden braking, sharp
turning and high-speed driving.
CAUTION
!
BK0121200US.book 65 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-66 Features and controls
3

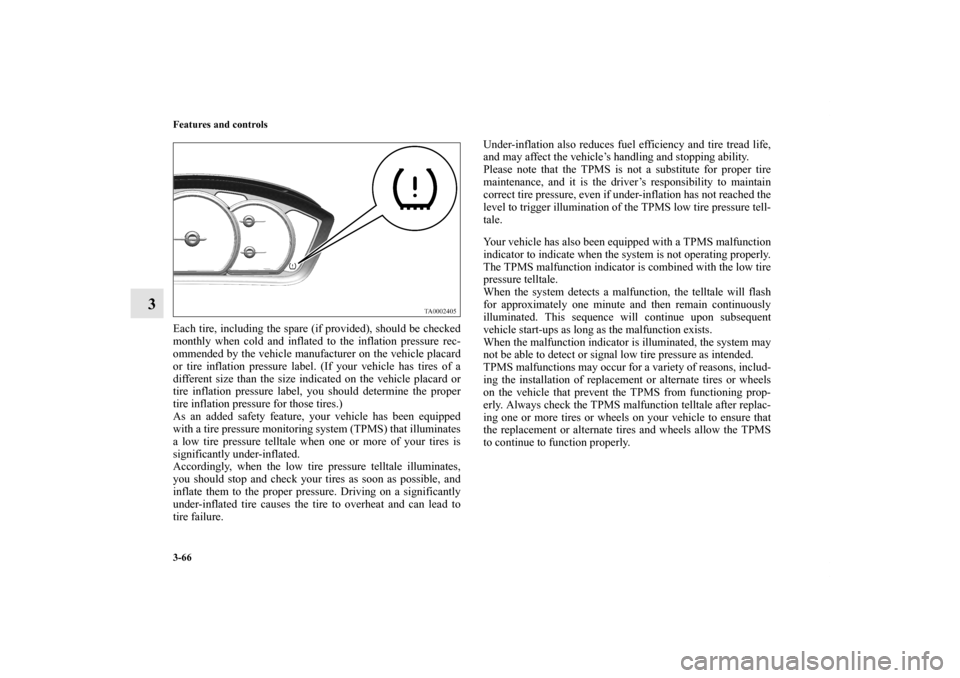

Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure rec-
ommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label. (If your vehicle has tires of a
different size than the size indicated on the vehicle placard or
tire inflation pressure label, you should determine the proper
tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped
with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates,
you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat and can lead to
tire failure.Under-inflation also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure tell-
tale.
Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale.
When the system detects a malfunction, the telltale will flash
for approximately one minute and then remain continuously
illuminated. This sequence will continue upon subsequent
vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, includ-
ing the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to ensure that
the replacement or alternate tires and wheels allow the TPMS
to continue to function properly.BK0121200US.book 66 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-67
3

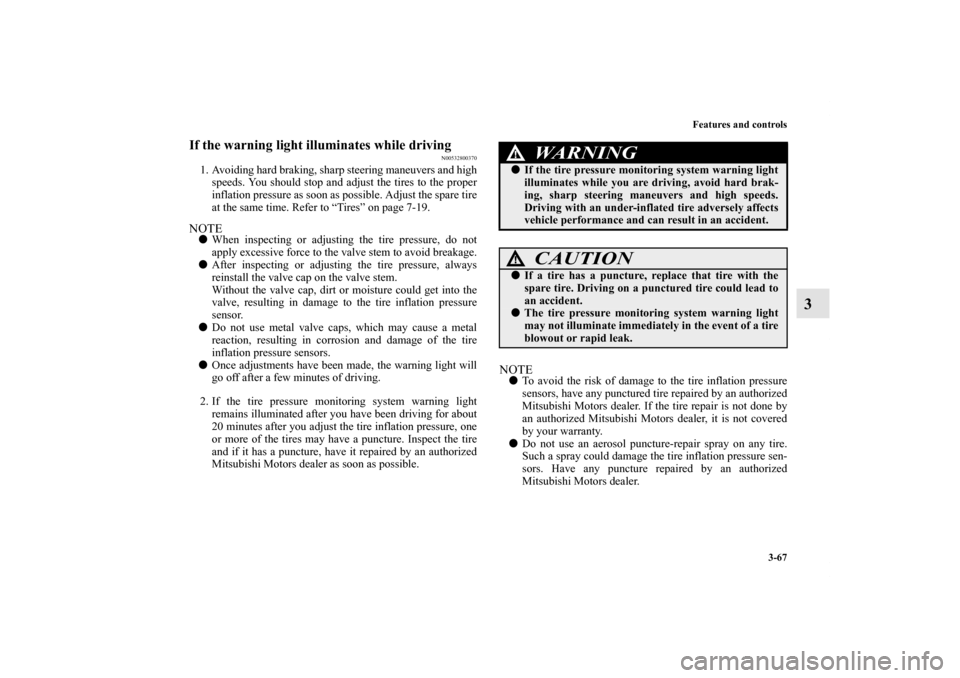

If the warning light illuminates while driving
N00532800370
1. Avoiding hard braking, sharp steering maneuvers and high
speeds. You should stop and adjust the tires to the proper
inflation pressure as soon as possible. Adjust the spare tire
at the same time. Refer to “Tires” on page 7-19.NOTE
When inspecting or adjusting the tire pressure, do not
apply excessive force to the valve stem to avoid breakage.

After inspecting or adjusting the tire pressure, always
reinstall the valve cap on the valve stem.
Without the valve cap, dirt or moisture could get into the
valve, resulting in damage to the tire inflation pressure
sensor.

Do not use metal valve caps, which may cause a metal
reaction, resulting in corrosion and damage of the tire
inflation pressure sensors.

Once adjustments have been made, the warning light will
go off after a few minutes of driving.
2. If the tire pressure monitoring system warning light
remains illuminated after you have been driving for about
20 minutes after you adjust the tire inflation pressure, one
or more of the tires may have a puncture. Inspect the tire
and if it has a puncture, have it repaired by an authorized
Mitsubishi Motors dealer as soon as possible.
NOTE
To avoid the risk of damage to the tire inflation pressure
sensors, have any punctured tire repaired by an authorized
Mitsubishi Motors dealer. If the tire repair is not done by
an authorized Mitsubishi Motors dealer, it is not covered
by your warranty.

Do not use an aerosol puncture-repair spray on any tire.
Such a spray could damage the tire inflation pressure sen-
sors. Have any puncture repaired by an authorized
Mitsubishi Motors dealer.
WA R N I N G
!
If the tire pressure monitoring system warning light
illuminates while you are driving, avoid hard brak-
ing, sharp steering maneuvers and high speeds.
Driving with an under-inflated tire adversely affects
vehicle performance and can result in an accident.
CAUTION
!
If a tire has a puncture, replace that tire with the
spare tire. Driving on a punctured tire could lead to
an accident.
The tire pressure monitoring system warning light
may not illuminate immediately in the event of a tire
blowout or rapid leak.
BK0121200US.book 67 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-68 Features and controls
3

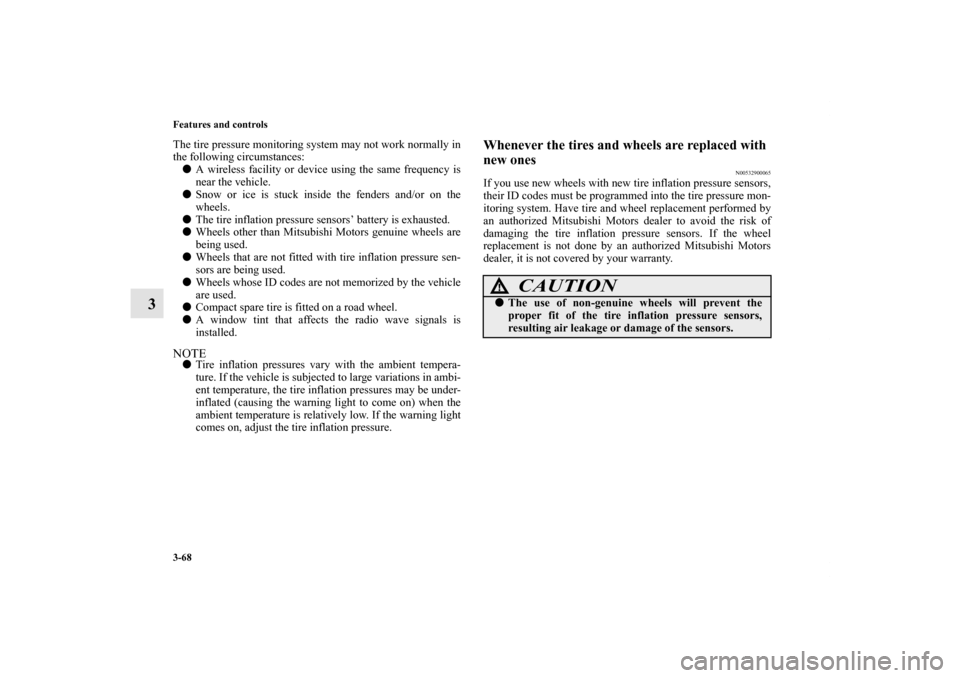

The tire pressure monitoring system may not work normally in
the following circumstances:

A wireless facility or device using the same frequency is
near the vehicle.

Snow or ice is stuck inside the fenders and/or on the
wheels.

The tire inflation pressure sensors’ battery is exhausted.

Wheels other than Mitsubishi Motors genuine wheels are
being used.

Wheels that are not fitted with tire inflation pressure sen-
sors are being used.

Wheels whose ID codes are not memorized by the vehicle
are used.

Compact spare tire is fitted on a road wheel.

A window tint that affects the radio wave signals is
installed.NOTE
Tire inflation pressures vary with the ambient tempera-
ture. If the vehicle is subjected to large variations in ambi-
ent temperature, the tire inflation pressures may be under-
inflated (causing the warning light to come on) when the
ambient temperature is relatively low. If the warning light
comes on, adjust the tire inflation pressure.
Whenever the tires and wheels are replaced with
new ones
N00532900065
If you use new wheels with new tire inflation pressure sensors,
their ID codes must be programmed into the tire pressure mon-
itoring system. Have tire and wheel replacement performed by
an authorized Mitsubishi Motors dealer to avoid the risk of
damaging the tire inflation pressure sensors. If the wheel
replacement is not done by an authorized Mitsubishi Motors
dealer, it is not covered by your warranty.
CAUTION
!
The use of non-genuine wheels will prevent the
proper fit of the tire inflation pressure sensors,
resulting air leakage or damage of the sensors.
BK0121200US.book 68 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-69
3

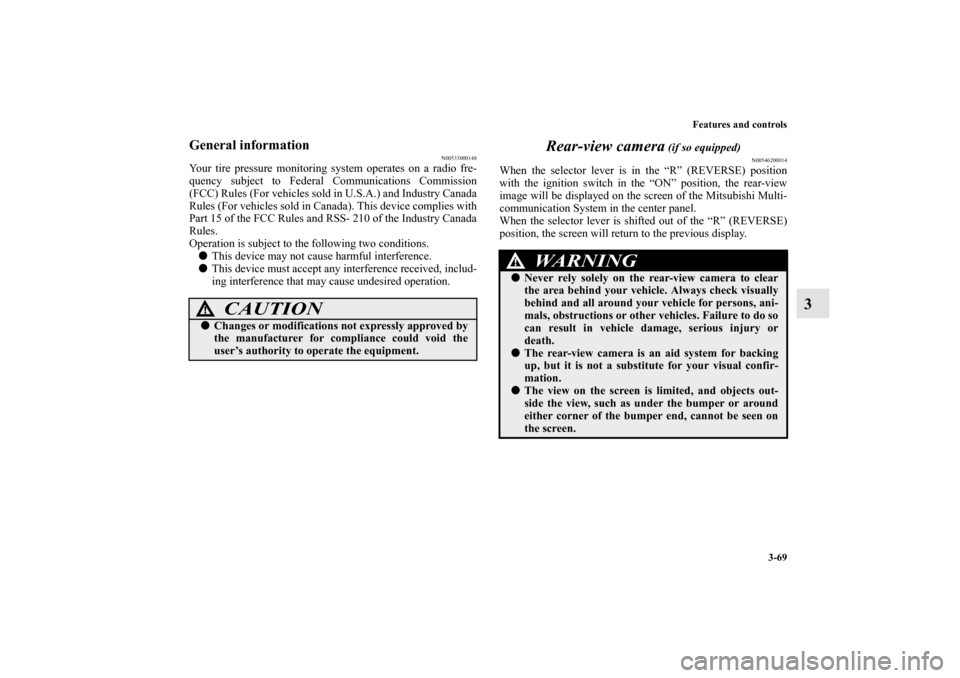

General information
N00533000148
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS- 210 of the Industry Canada
Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Rear-view camera
(if so equipped)
N00546200014
When the selector lever is in the “R” (REVERSE) position
with the ignition switch in the “ON” position, the rear-view
image will be displayed on the screen of the Mitsubishi Multi-
communication System in the center panel.
When the selector lever is shifted out of the “R” (REVERSE)
position, the screen will return to the previous display.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
WA R N I N G
!
Never rely solely on the rear-view camera to clear
the area behind your vehicle. Always check visually
behind and all around your vehicle for persons, ani-
mals, obstructions or other vehicles. Failure to do so
can result in vehicle damage, serious injury or
death.
The rear-view camera is an aid system for backing
up, but it is not a substitute for your visual confir-
mation.
The view on the screen is limited, and objects out-
side the view, such as under the bumper or around
either corner of the bumper end, cannot be seen on
the screen.
BK0121200US.book 69 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-70 Features and controls
3

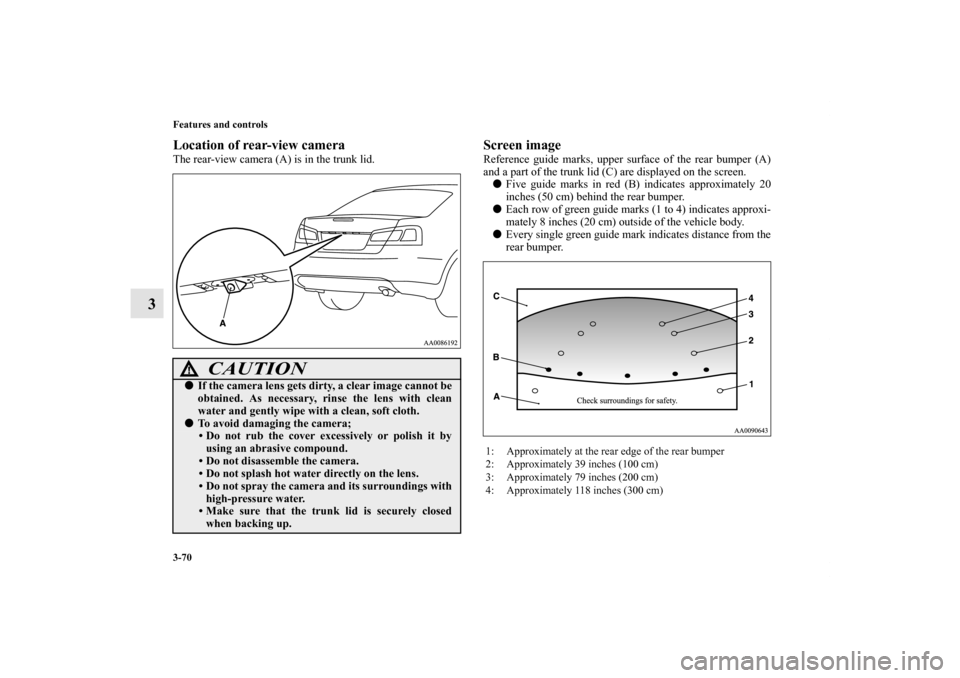

Location of rear-view cameraThe rear-view camera (A) is in the trunk lid.
Screen imageReference guide marks, upper surface of the rear bumper (A)
and a part of the trunk lid (C) are displayed on the screen.

Five guide marks in red (B) indicates approximately 20
inches (50 cm) behind the rear bumper.

Each row of green guide marks (1 to 4) indicates approxi-
mately 8 inches (20 cm) outside of the vehicle body.

Every single green guide mark indicates distance from the
rear bumper.
CAUTION
!
If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.
To avoid damaging the camera;
• Do not rub the cover excessively or polish it by
using an abrasive compound.
• Do not disassemble the camera.
• Do not splash hot water directly on the lens.
• Do not spray the camera and its surroundings with
high-pressure water.
• Make sure that the trunk lid is securely closed
when backing up.
1: Approximately at the rear edge of the rear bumper
2: Approximately 39 inches (100 cm)
3: Approximately 79 inches (200 cm)
4: Approximately 118 inches (300 cm)
BK0121200US.book 70 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-71
3

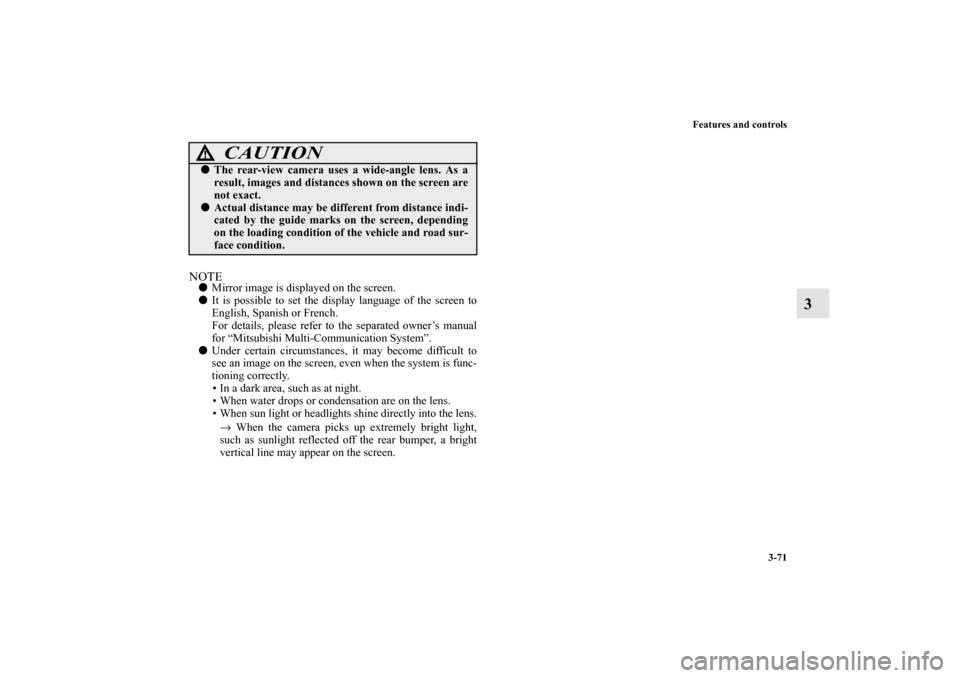

NOTE
Mirror image is displayed on the screen.

It is possible to set the display language of the screen to
English, Spanish or French.
For details, please refer to the separated owner’s manual
for “Mitsubishi Multi-Communication System”.

Under certain circumstances, it may become difficult to
see an image on the screen, even when the system is func-
tioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens.
→ When the camera picks up extremely bright light,
such as sunlight reflected off the rear bumper, a bright
vertical line may appear on the screen.
CAUTION
!
The rear-view camera uses a wide-angle lens. As a
result, images and distances shown on the screen are
not exact.
Actual distance may be different from distance indi-
cated by the guide marks on the screen, depending
on the loading condition of the vehicle and road sur-
face condition.
BK0121200US.book 71 ページ ２０１０年４月１４日　水曜日　午前１１時２４分
