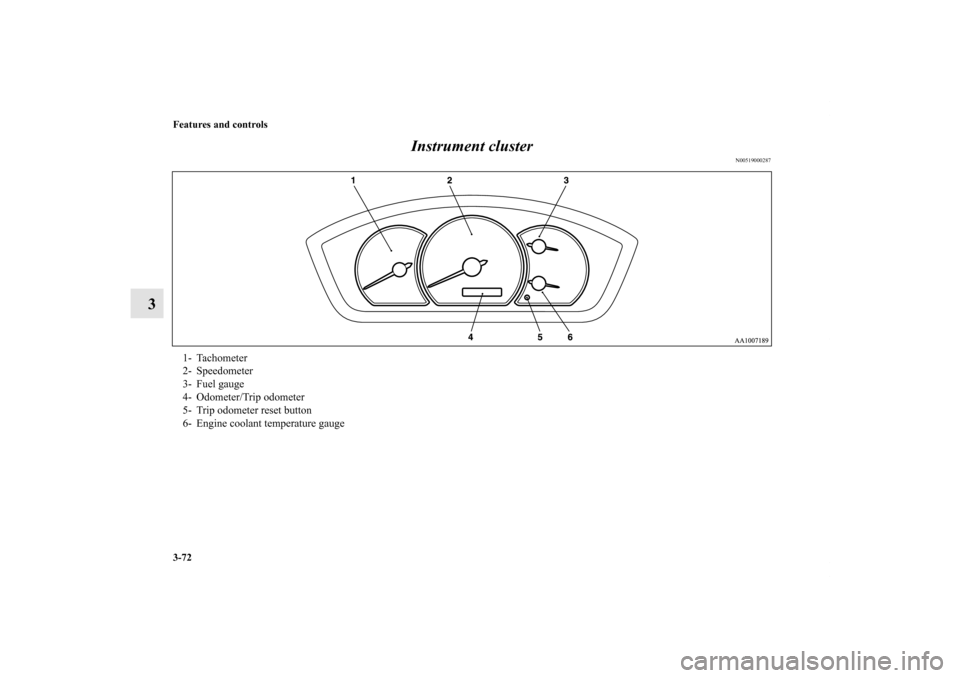

3Instrument cluster
N00519000287
1- Tachometer
2- Speedometer
3- Fuel gauge
4- Odometer/Trip odometer
5- Trip odometer reset button
6- Engine coolant temperature gauge
BK0121200US.book 72 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-73
3

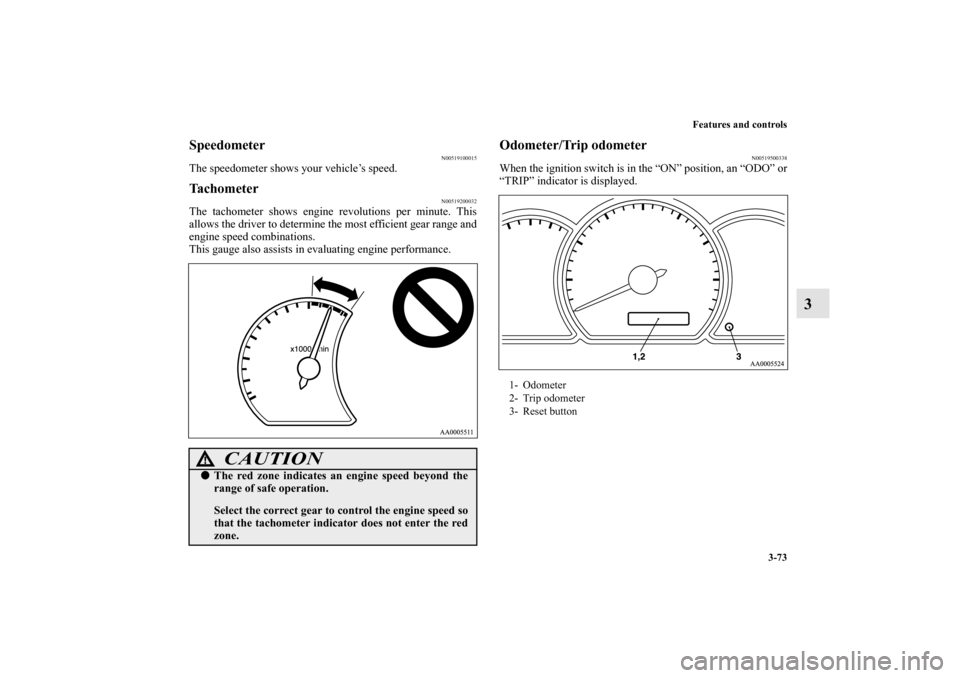

Speedometer
N00519100015
The speedometer shows your vehicle’s speed.Tachometer
N00519200032
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient gear range and
engine speed combinations.
This gauge also assists in evaluating engine performance.
Odometer/Trip odometer
N00519500338
When the ignition switch is in the “ON” position, an “ODO” or
“TRIP” indicator is displayed.
CAUTION
!
The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct gear to control the engine speed so
that the tachometer indicator does not enter the red
zone.
1- Odometer
2- Trip odometer
3- Reset button
BK0121200US.book 73 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-74 Features and controls
3

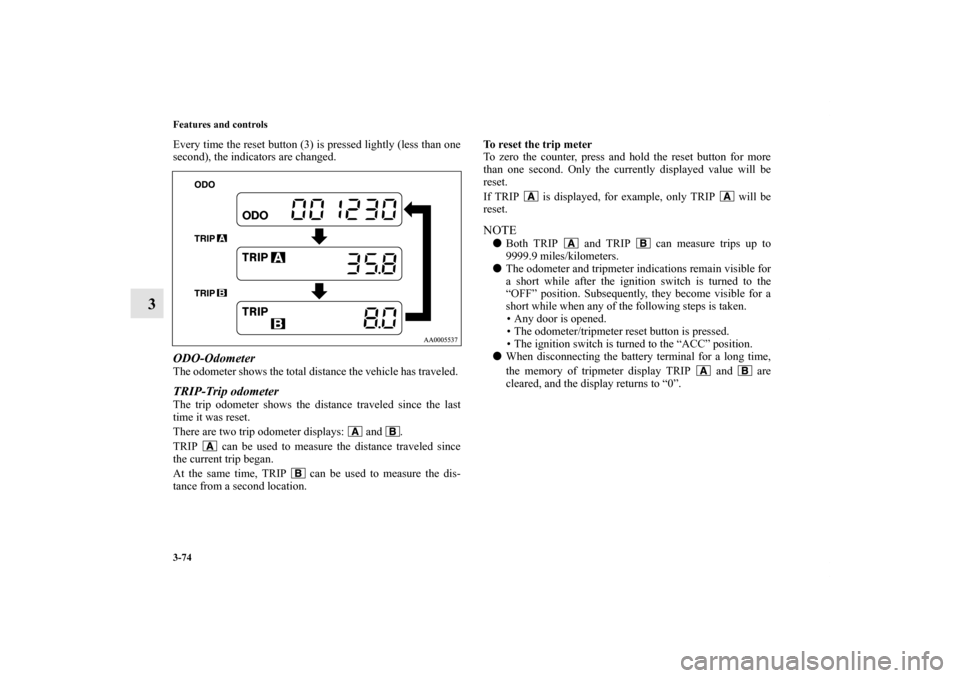

Every time the reset button (3) is pressed lightly (less than one
second), the indicators are changed. ODO-OdometerThe odometer shows the total distance the vehicle has traveled. TRIP-Trip odometerThe trip odometer shows the distance traveled since the last
time it was reset.
There are two trip odometer displays: and .
TRIP can be used to measure the distance traveled since
the current trip began.
At the same time, TRIP can be used to measure the dis-
tance from a second location.To reset the trip meter
To zero the counter, press and hold the reset button for more
than one second. Only the currently displayed value will be
reset.
If TRIP is displayed, for example, only TRIP will be
reset.
NOTE
Both TRIP and TRIP can measure trips up to
9999.9 miles/kilometers.

The odometer and tripmeter indications remain visible for
a short while after the ignition switch is turned to the
“OFF” position. Subsequently, they become visible for a
short while when any of the following steps is taken.
• Any door is opened.
• The odometer/tripmeter reset button is pressed.
• The ignition switch is turned to the “ACC” position.

When disconnecting the battery terminal for a long time,
the memory of tripmeter display TRIP and are
cleared, and the display returns to “0”.
BK0121200US.book 74 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-75
3

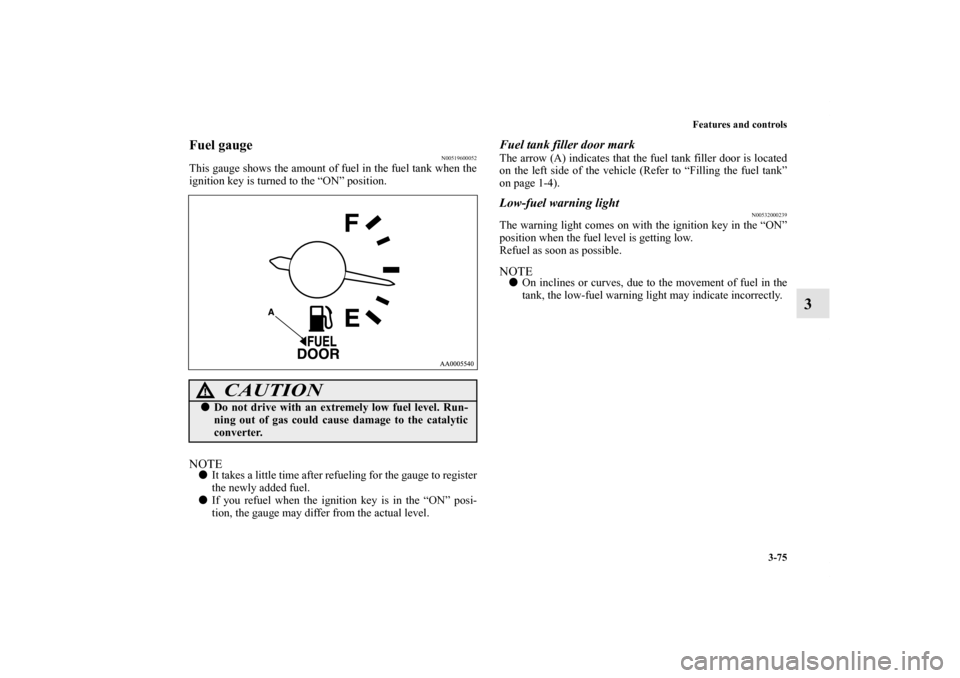

Fuel gauge
N00519600052
This gauge shows the amount of fuel in the fuel tank when the
ignition key is turned to the “ON” position.NOTE
It takes a little time after refueling for the gauge to register
the newly added fuel.

If you refuel when the ignition key is in the “ON” posi-
tion, the gauge may differ from the actual level.
Fuel tank filler door markThe arrow (A) indicates that the fuel tank filler door is located
on the left side of the vehicle (Refer to “Filling the fuel tank”
on page 1-4).Low-fuel warning light
N00532000239
The warning light comes on with the ignition key in the “ON”
position when the fuel level is getting low.
Refuel as soon as possible.NOTE
On inclines or curves, due to the movement of fuel in the
tank, the low-fuel warning light may indicate incorrectly.
CAUTION
!
Do not drive with an extremely low fuel level. Run-
ning out of gas could cause damage to the catalytic
converter.
BK0121200US.book 75 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-76 Features and controls
3

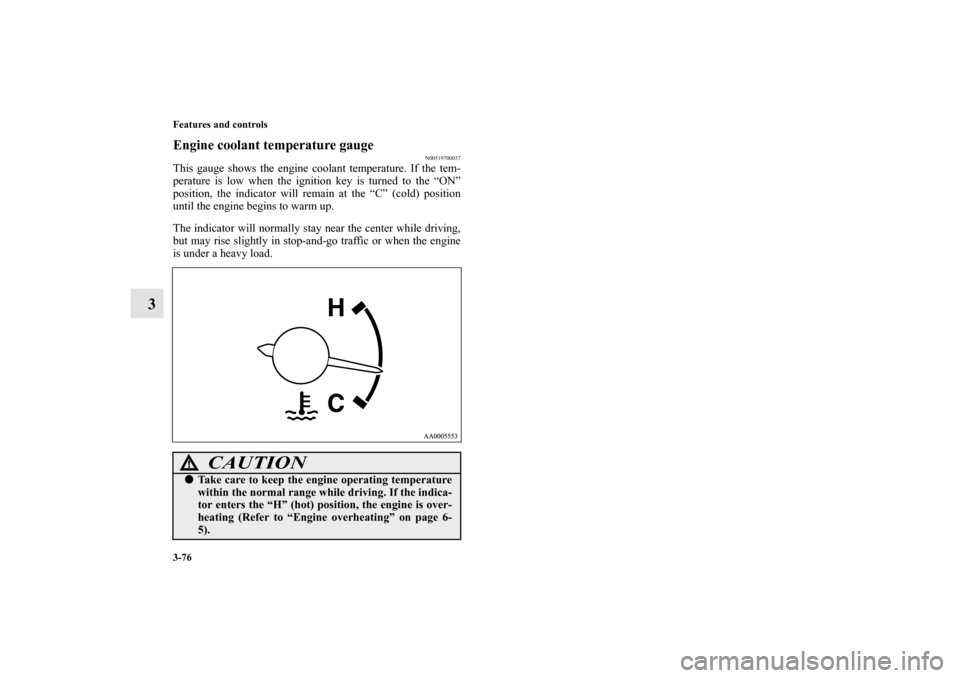

Engine coolant temperature gauge
N00519700037
This gauge shows the engine coolant temperature. If the tem-
perature is low when the ignition key is turned to the “ON”
position, the indicator will remain at the “C” (cold) position
until the engine begins to warm up.
The indicator will normally stay near the center while driving,
but may rise slightly in stop-and-go traffic or when the engine
is under a heavy load.
CAUTION
!
Take care to keep the engine operating temperature
within the normal range while driving. If the indica-
tor enters the “H” (hot) position, the engine is over-
heating (Refer to “Engine overheating” on page 6-
5).
BK0121200US.book 76 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-77

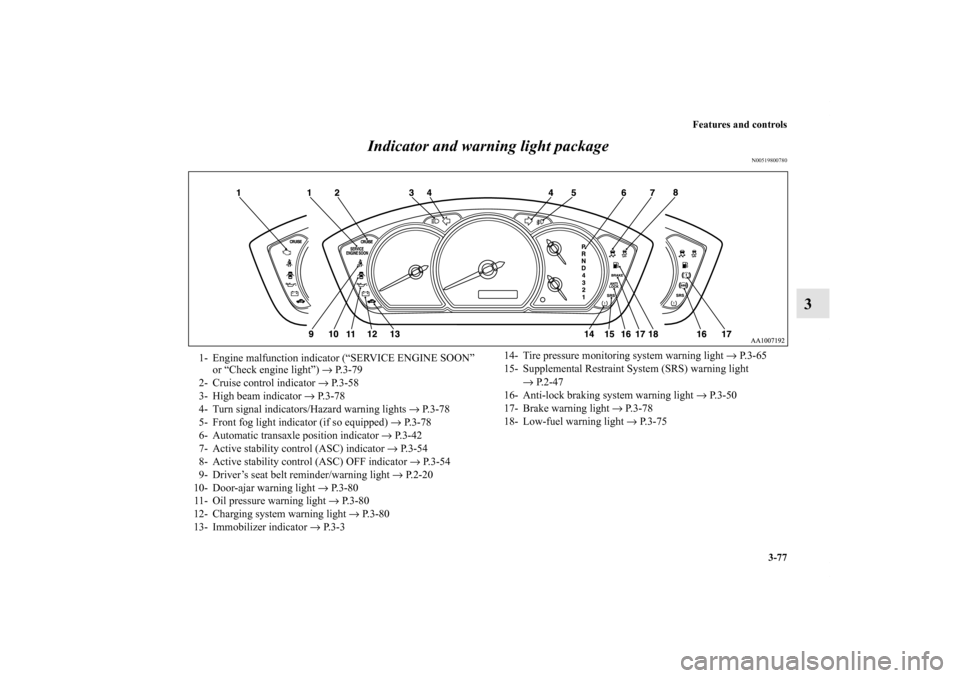

3 Indicator and warning light package
N00519800780
1- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-79
2- Cruise control indicator → P.3-58
3- High beam indicator → P.3-78
4- Turn signal indicators/Hazard warning lights → P.3-78
5- Front fog light indicator (if so equipped) → P.3-78
6- Automatic transaxle position indicator → P.3-42
7- Active stability control (ASC) indicator → P. 3 - 5 4
8- Active stability control (ASC) OFF indicator → P.3-54
9- Driver’s seat belt reminder/warning light → P. 2 - 2 0
10- Door-ajar warning light → P. 3 - 8 0
11- Oil pressure warning light → P.3-80
12- Charging system warning light → P.3-80
13- Immobilizer indicator → P. 3 - 314- Tire pressure monitoring system warning light → P.3-65
15- Supplemental Restraint System (SRS) warning light
→ P. 2 - 4 7
16- Anti-lock braking system warning light → P.3-50
17- Brake warning light → P.3-78
18- Low-fuel warning light → P.3-75
BK0121200US.book 77 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-78 Features and controls

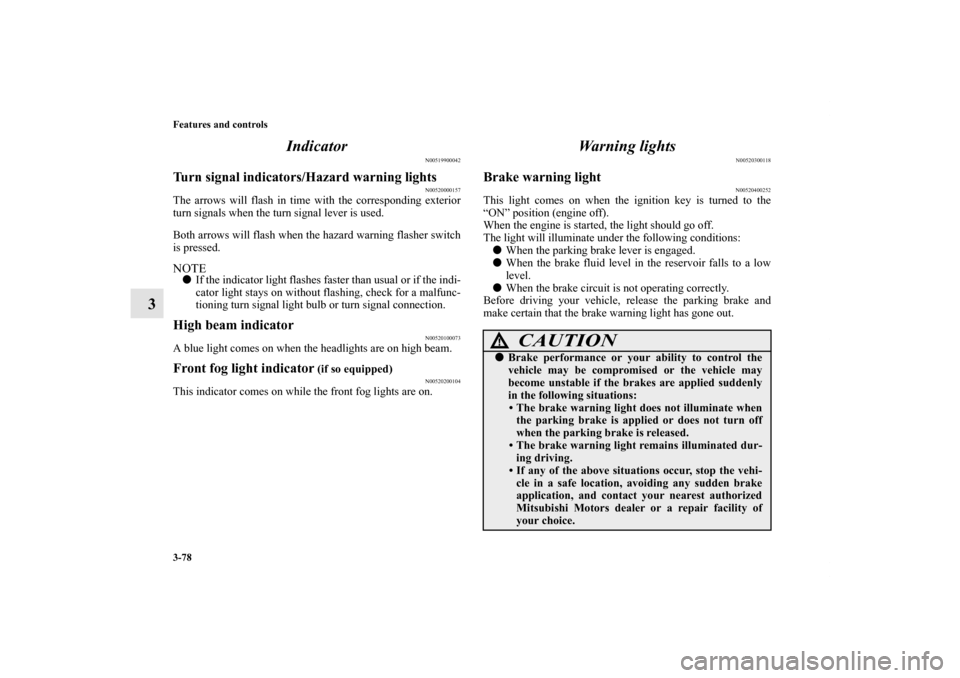

3Indicator
N00519900042
Turn signal indicators/Hazard warning lights
N00520000157
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed. NOTE
If the indicator light flashes faster than usual or if the indi-
cator light stays on without flashing, check for a malfunc-
tioning turn signal light bulb or turn signal connection.High beam indicator
N00520100073
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200104
This indicator comes on while the front fog lights are on.
Warning lights
N00520300118
Brake warning light
N00520400252
This light comes on when the ignition key is turned to the
“ON” position (engine off).
When the engine is started, the light should go off.
The light will illuminate under the following conditions:

When the parking brake lever is engaged.

When the brake fluid level in the reservoir falls to a low
level.

When the brake circuit is not operating correctly.
Before driving your vehicle, release the parking brake and
make certain that the brake warning light has gone out.
CAUTION
!
Brake performance or your ability to control the
vehicle may be compromised or the vehicle may
become unstable if the brakes are applied suddenly
in the following situations:
• The brake warning light does not illuminate when
the parking brake is applied or does not turn off
when the parking brake is released.
• The brake warning light remains illuminated dur-
ing driving.
• If any of the above situations occur, stop the vehi-
cle in a safe location, avoiding any sudden brake
application, and contact your nearest authorized
Mitsubishi Motors dealer or a repair facility of
your choice.
BK0121200US.book 78 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-79
3

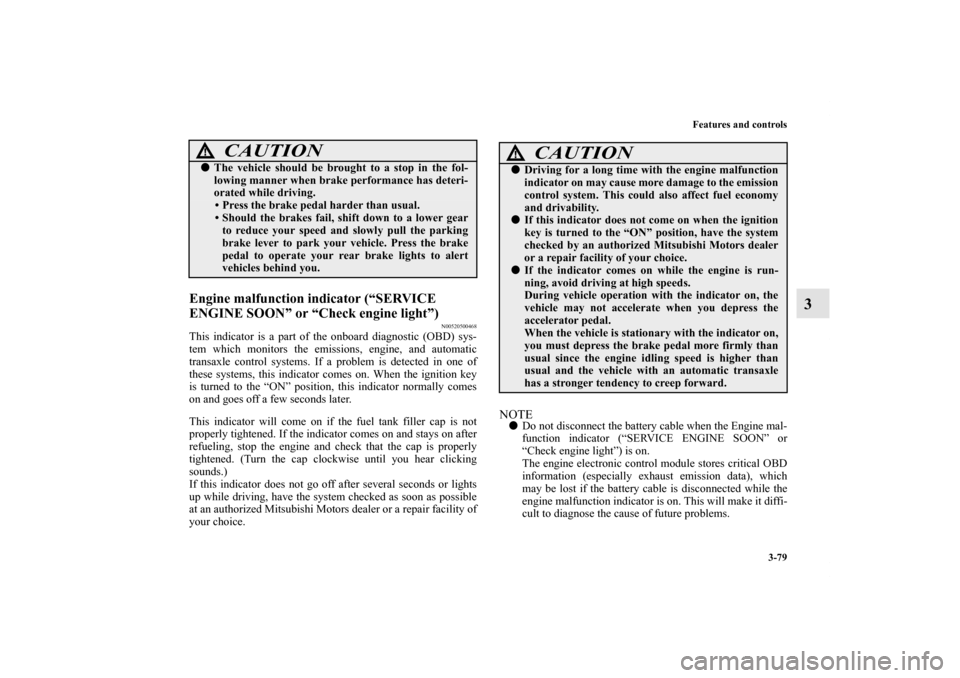

Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500468
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine, and automatic
transaxle control systems. If a problem is detected in one of
these systems, this indicator comes on. When the ignition key
is turned to the “ON” position, this indicator normally comes
on and goes off a few seconds later.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If the indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.
NOTE
Do not disconnect the battery cable when the Engine mal-
function indicator (“SERVICE ENGINE SOON” or
“Check engine light”) is on.
The engine electronic control module stores critical OBD
information (especially exhaust emission data), which
may be lost if the battery cable is disconnected while the
engine malfunction indicator is on. This will make it diffi-
cult to diagnose the cause of future problems.

The vehicle should be brought to a stop in the fol-
lowing manner when brake performance has deteri-
orated while driving.
• Press the brake pedal harder than usual.
• Should the brakes fail, shift down to a lower gear
to reduce your speed and slowly pull the parking
brake lever to park your vehicle. Press the brake
pedal to operate your rear brake lights to alert
vehicles behind you.CAUTION
!
CAUTION
!
Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.
If this indicator does not come on when the ignition
key is turned to the “ON” position, have the system
checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
If the indicator comes on while the engine is run-
ning, avoid driving at high speeds.
During vehicle operation with the indicator on, the
vehicle may not accelerate when you depress the
accelerator pedal.
When the vehicle is stationary with the indicator on,
you must depress the brake pedal more firmly than
usual since the engine idling speed is higher than
usual and the vehicle with an automatic transaxle
has a stronger tendency to creep forward.
BK0121200US.book 79 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

3-80 Features and controls
3

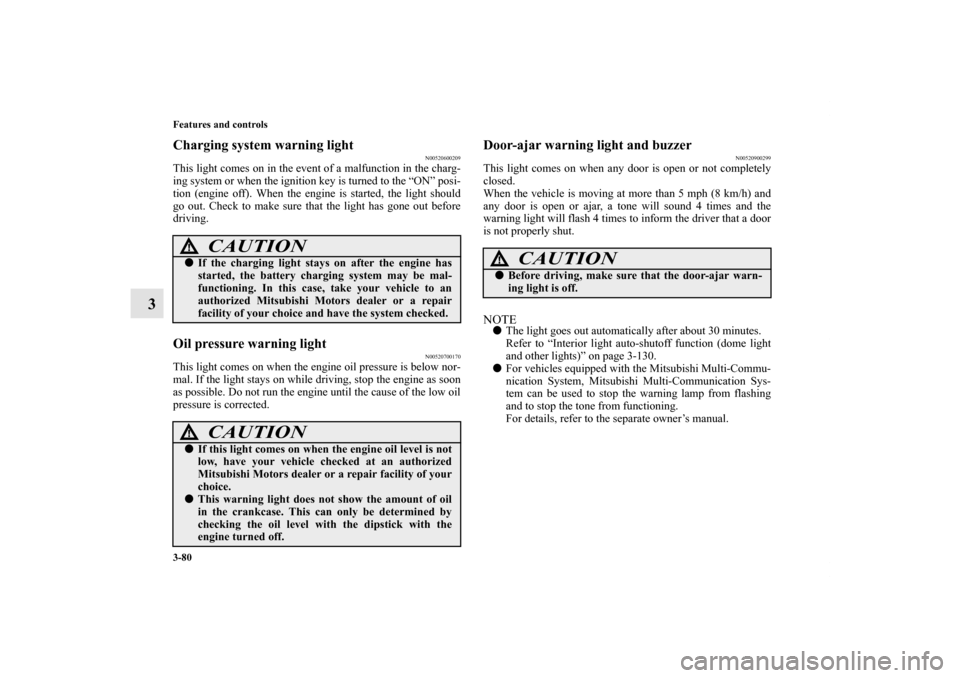

Charging system warning light
N00520600209
This light comes on in the event of a malfunction in the charg-
ing system or when the ignition key is turned to the “ON” posi-
tion (engine off). When the engine is started, the light should
go out. Check to make sure that the light has gone out before
driving.Oil pressure warning light
N00520700170
This light comes on when the engine oil pressure is below nor-
mal. If the light stays on while driving, stop the engine as soon
as possible. Do not run the engine until the cause of the low oil
pressure is corrected.
Door-ajar warning light and buzzer
N00520900299
This light comes on when any door is open or not completely
closed.
When the vehicle is moving at more than 5 mph (8 km/h) and
any door is open or ajar, a tone will sound 4 times and the
warning light will flash 4 times to inform the driver that a door
is not properly shut.NOTE
The light goes out automatically after about 30 minutes.
Refer to “Interior light auto-shutoff function (dome light
and other lights)” on page 3-130.

For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, Mitsubishi Multi-Communication Sys-
tem can be used to stop the warning lamp from flashing
and to stop the tone from functioning.
For details, refer to the separate owner’s manual.
CAUTION
!
If the charging light stays on after the engine has
started, the battery charging system may be mal-
functioning. In this case, take your vehicle to an
authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
CAUTION
!
If this light comes on when the engine oil level is not
low, have your vehicle checked at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
This warning light does not show the amount of oil
in the crankcase. This can only be determined by
checking the oil level with the dipstick with the
engine turned off.
CAUTION
!
Before driving, make sure that the door-ajar warn-
ing light is off.
BK0121200US.book 80 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Features and controls
3-81

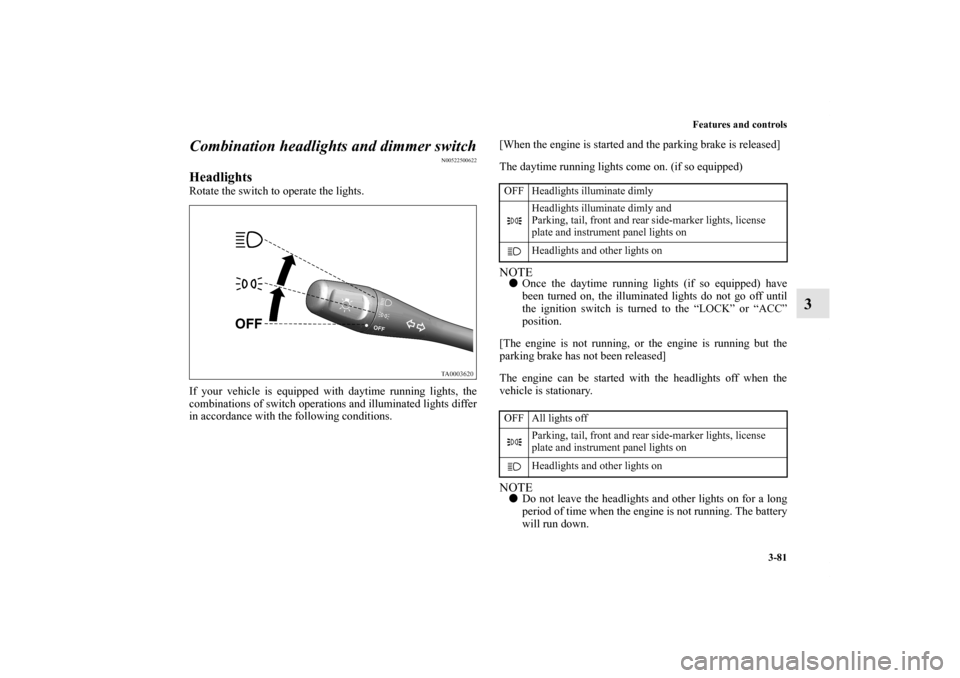

3 Combination headlights and dimmer switch
N00522500622
Headlights Rotate the switch to operate the lights.
If your vehicle is equipped with daytime running lights, the
combinations of switch operations and illuminated lights differ
in accordance with the following conditions.[When the engine is started and the parking brake is released]
The daytime running lights come on. (if so equipped)
NOTE
Once the daytime running lights (if so equipped) have
been turned on, the illuminated lights do not go off until
the ignition switch is turned to the “LOCK” or “ACC”
position.
[The engine is not running, or the engine is running but the
parking brake has not been released]
The engine can be started with the headlights off when the
vehicle is stationary.NOTE
Do not leave the headlights and other lights on for a long
period of time when the engine is not running. The battery
will run down. OFF Headlights illuminate dimly
Headlights illuminate dimly and
Parking, tail, front and rear side-marker lights, license
plate and instrument panel lights on
Headlights and other lights on
OFF All lights off
Parking, tail, front and rear side-marker lights, license
plate and instrument panel lights on
Headlights and other lights on
BK0121200US.book 81 ページ ２０１０年４月１４日　水曜日　午前１１時２４分
