MITSUBISHI GRANDIS 2008 (in English) Owner's Guide

General information
7

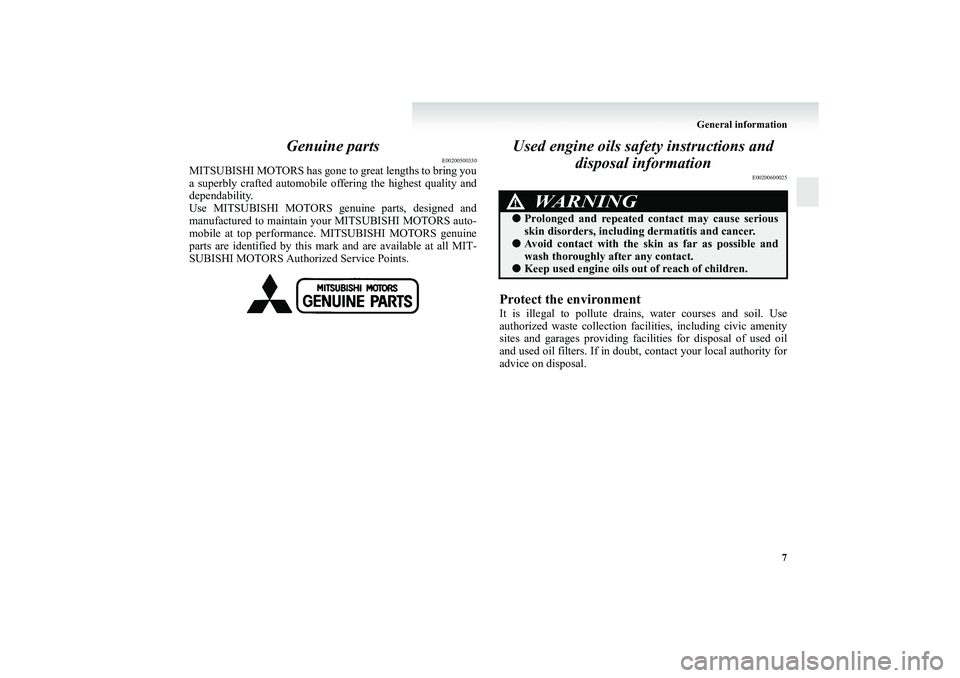

Genuine parts
E00200500330
MITSUBISHI MOTORS has gone to great lengths to bring you
a superbly crafted automobile offering the highest quality and
dependability.
Use MITSUBISHI MOTORS genuine parts, designed and
manufactured to maintain your MITSUBISHI MOTORS auto-
mobile at top performance. MITSUBISHI MOTORS genuine
parts are identified by this mark and are available at all MIT-
SUBISHI MOTORS Authorized Service Points.
Used engine oils safety instructions and
disposal information
E00200600025
Protect the environmentIt is illegal to pollute drains, water courses and soil. Use
authorized waste collection facilities, including civic amenity
sites and garages providing facilities for disposal of used oil
and used oil filters. If in doubt, contact your local authority for
advice on disposal.
WARNING
!●Prolonged and repeated contact may cause serious
skin disorders, including dermatitis and cancer.●Avoid contact with the skin as far as possible and
wash thoroughly after any contact.●Keep used engine oils out of reach of children.
BK-XP08E1ENUK.en-uk.book Page 7 Monday, August 13, 2007 2:20 PM

BK-XP08E1ENUK.en-uk.book Page 8 Monday, August 13, 2007 2:20 PM

1

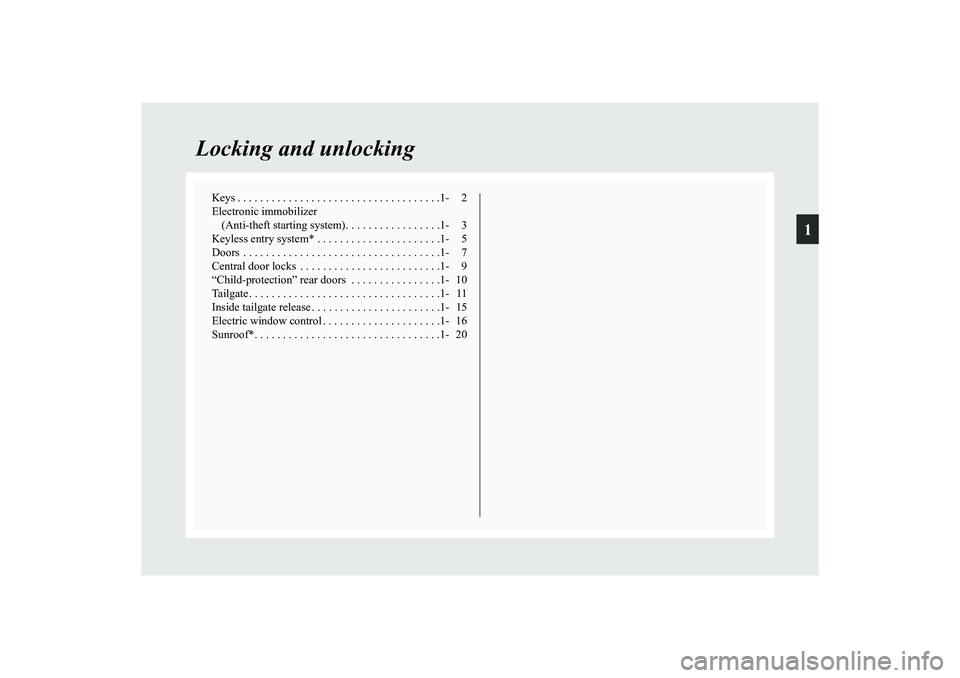

Locking and unlocking
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 2
Electronic immobilizer
(Anti-theft starting system). . . . . . . . . . . . . . . . .1- 3
Keyless entry system* . . . . . . . . . . . . . . . . . . . . . .1- 5
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 7
Central door locks . . . . . . . . . . . . . . . . . . . . . . . . .1- 9
“Child-protection” rear doors . . . . . . . . . . . . . . . .1- 10
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 11
Inside tailgate release . . . . . . . . . . . . . . . . . . . . . . .1- 15
Electric window control . . . . . . . . . . . . . . . . . . . . .1- 16
Sunroof*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 20
BK-XP08E1ENUK.en-uk.book Page 1 Monday, August 13, 2007 2:20 PM

1-2 Locking and unlocking

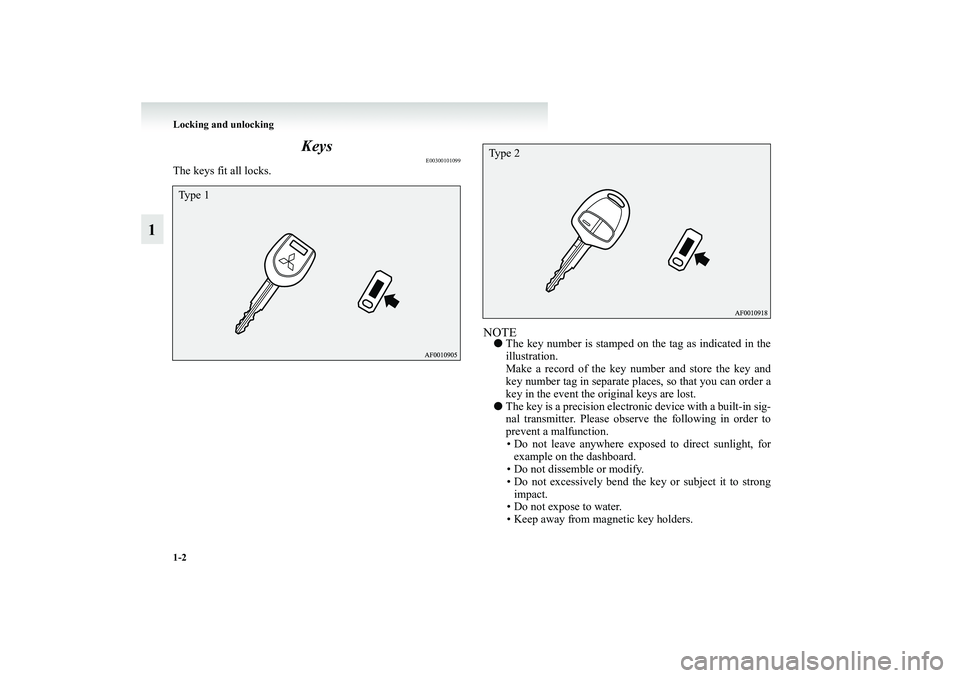

1Keys
E00300101099
The keys fit all locks.
NOTE●The key number is stamped on the tag as indicated in the
illustration.
Make a record of the key number and store the key and
key number tag in separate places, so that you can order a
key in the event the original keys are lost.
●The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent a malfunction.
• Do not leave anywhere exposed to direct sunlight, for
example on the dashboard.
• Do not dissemble or modify.
• Do not excessively bend the key or subject it to strong
impact.
• Do not expose to water.
• Keep away from magnetic key holders.
Type 1
Type 2
BK-XP08E1ENUK.en-uk.book Page 2 Monday, August 13, 2007 2:20 PM

Locking and unlocking
1-3
1
• Keep away from audio systems, personal computers,
TVs, and any other equipment that generates a magnetic
field.
• Do not wash with ultrasonic cleaners or similar equip-
ment.
• Do not leave the key where it may be exposed to high
temperature or high humidity.
●The engine is designed so that it will not start if the ID
code registered in the immobilizer computer and the key’s
ID code do not match. Refer to the section entitled “Elec-
tronic immobilizer” for details and key usage.
Keys should never be placed in areas which contain mag-
netic or metal objects as this may interfere with the trans-
ponder.

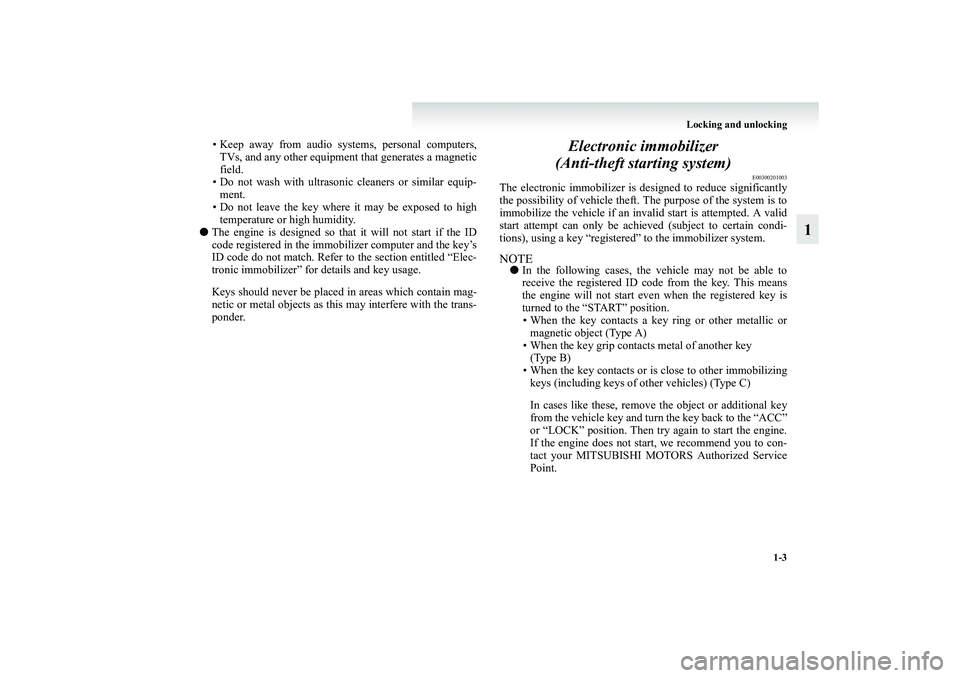

Electronic immobilizer
(Anti-theft starting system)
E00300201003
The electronic immobilizer is designed to reduce significantly
the possibility of vehicle theft. The purpose of the system is to
immobilize the vehicle if an invalid start is attempted. A valid
start attempt can only be achieved (subject to certain condi-
tions), using a key “registered” to the immobilizer system.NOTE●In the following cases, the vehicle may not be able to
receive the registered ID code from the key. This means
the engine will not start even when the registered key is
turned to the “START” position.

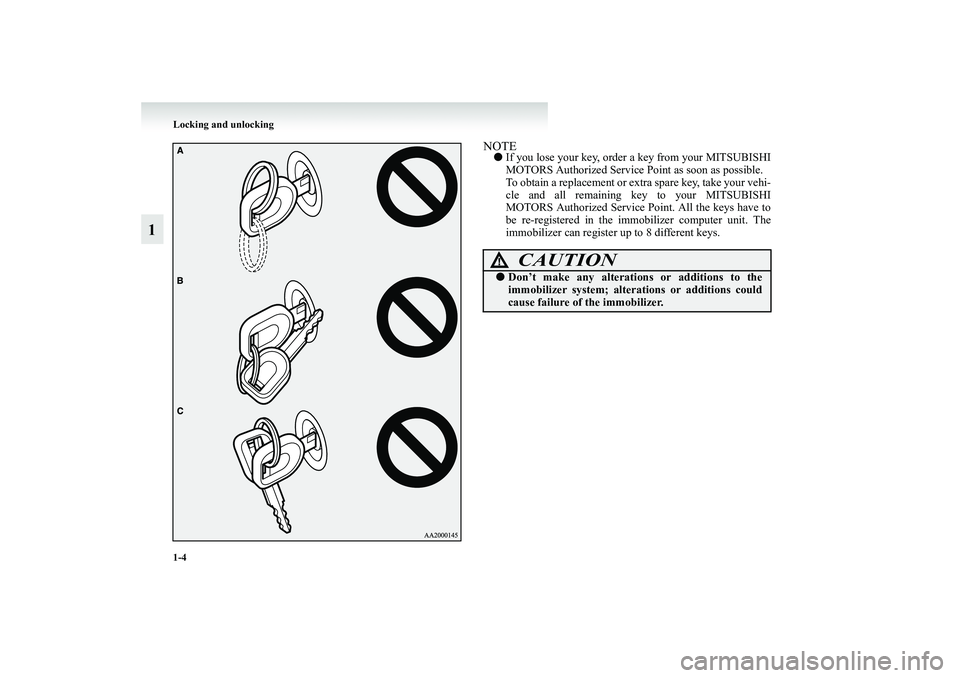

• When the key contacts a key ring or other metallic or
magnetic object (Type A)
• When the key grip contacts metal of another key
(Type B)
• When the key contacts or is close to other immobilizing
keys (including keys of other vehicles) (Type C)
In cases like these, remove the object or additional key
from the vehicle key and turn the key back to the “ACC”
or “LOCK” position. Then try again to start the engine.
If the engine does not start, we recommend you to con-
tact your MITSUBISHI MOTORS Authorized Service
Point.
BK-XP08E1ENUK.en-uk.book Page 3 Monday, August 13, 2007 2:20 PM

1-4 Locking and unlocking
1
NOTE●If you lose your key, order a key from your MITSUBISHI
MOTORS Authorized Service Point as soon as possible.
To obtain a replacement or extra spare key, take your vehi-
cle and all remaining key to your MITSUBISHI
MOTORS Authorized Service Point. All the keys have to
be re-registered in the immobilizer computer unit. The
immobilizer can register up to 8 different keys.
CAUTION
!●Don’t make any alterations or additions to the
immobilizer system; alterations or additions could
cause failure of the immobilizer.
BK-XP08E1ENUK.en-uk.book Page 4 Monday, August 13, 2007 2:20 PM

Locking and unlocking
1-5

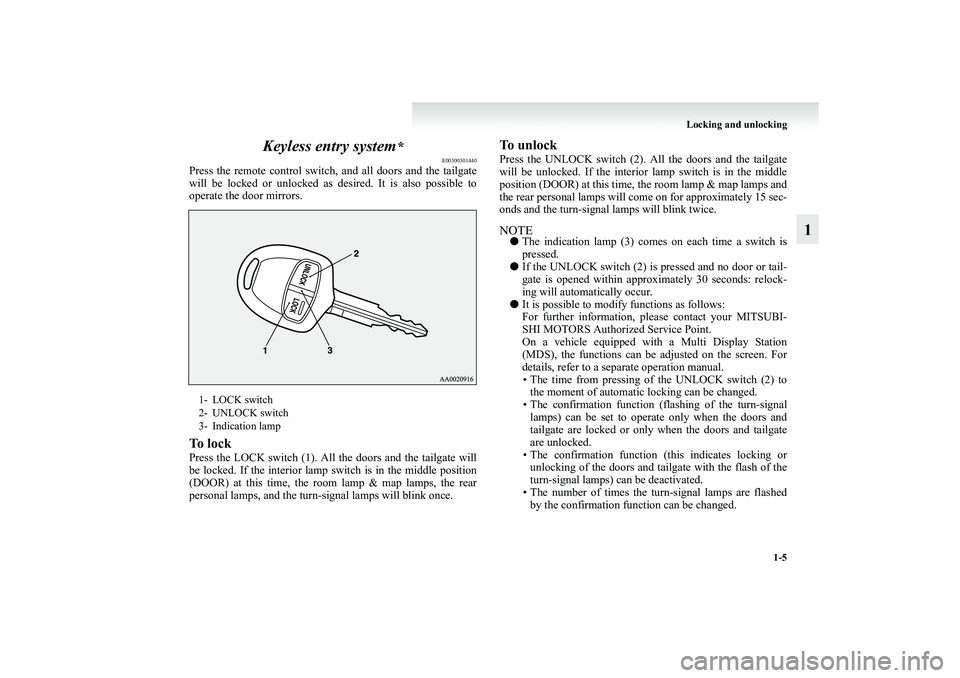

1 Keyless entry system
*
E00300301440
Press the remote control switch, and all doors and the tailgate
will be locked or unlocked as desired. It is also possible to
operate the door mirrors.To l o c kPress the LOCK switch (1). All the doors and the tailgate will
be locked. If the interior lamp switch is in the middle position
(DOOR) at this time, the room lamp & map lamps, the rear
personal lamps, and the turn-signal lamps will blink once.
To unlockPress the UNLOCK switch (2). All the doors and the tailgate
will be unlocked. If the interior lamp switch is in the middle
position (DOOR) at this time, the room lamp & map lamps and
the rear personal lamps will come on for approximately 15 sec-
onds and the turn-signal lamps will blink twice.NOTE●The indication lamp (3) comes on each time a switch is
pressed.
●If the UNLOCK switch (2) is pressed and no door or tail-
gate is opened within approximately 30 seconds: relock-
ing will automatically occur.
●It is possible to modify functions as follows:
For further information, please contact your MITSUBI-
SHI MOTORS Authorized Service Point.
On a vehicle equipped with a Multi Display Station
(MDS), the functions can be adjusted on the screen. For
details, refer to a separate operation manual.
• The time from pressing of the UNLOCK switch (2) to
the moment of automatic locking can be changed.
• The confirmation function (flashing of the turn-signal
lamps) can be set to operate only when the doors and
tailgate are locked or only when the doors and tailgate
are unlocked.
• The confirmation function (this indicates locking or
unlocking of the doors and tailgate with the flash of the
turn-signal lamps) can be deactivated.
• The number of times the turn-signal lamps are flashed
by the confirmation function can be changed.
1- LOCK switch
2- UNLOCK switch
3- Indication lamp
BK-XP08E1ENUK.en-uk.book Page 5 Monday, August 13, 2007 2:20 PM

1-6 Locking and unlocking
1

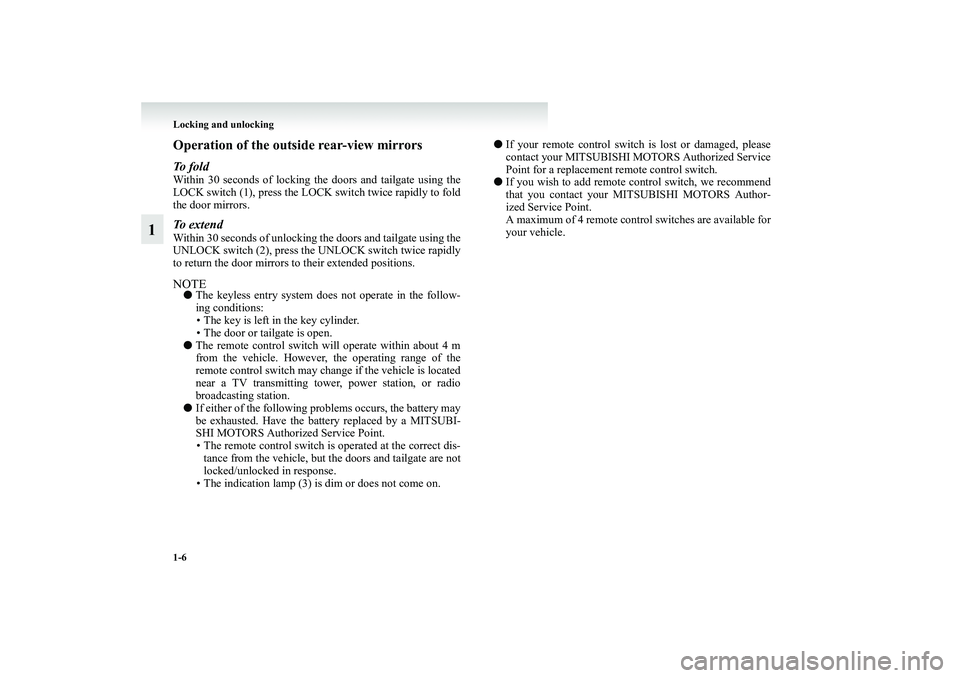

Operation of the outside rear-view mirrorsTo f o l dWithin 30 seconds of locking the doors and tailgate using the
LOCK switch (1), press the LOCK switch twice rapidly to fold
the door mirrors.To e x t e n dWithin 30 seconds of unlocking the doors and tailgate using the
UNLOCK switch (2), press the UNLOCK switch twice rapidly
to return the door mirrors to their extended positions.NOTE●The keyless entry system does not operate in the follow-
ing conditions:
• The key is left in the key cylinder.
• The door or tailgate is open.
●The remote control switch will operate within about 4 m
from the vehicle. However, the operating range of the
remote control switch may change if the vehicle is located
near a TV transmitting tower, power station, or radio
broadcasting station.
●If either of the following problems occurs, the battery may
be exhausted. Have the battery replaced by a MITSUBI-
SHI MOTORS Authorized Service Point.
• The remote control switch is operated at the correct dis-
tance from the vehicle, but the doors and tailgate are not
locked/unlocked in response.
• The indication lamp (3) is dim or does not come on.●If your remote control switch is lost or damaged, please
contact your MITSUBISHI MOTORS Authorized Service
Point for a replacement remote control switch.
●If you wish to add remote control switch, we recommend
that you contact your MITSUBISHI MOTORS Author-
ized Service Point.
A maximum of 4 remote control switches are available for
your vehicle.
BK-XP08E1ENUK.en-uk.book Page 6 Monday, August 13, 2007 2:20 PM

Locking and unlocking
1-7

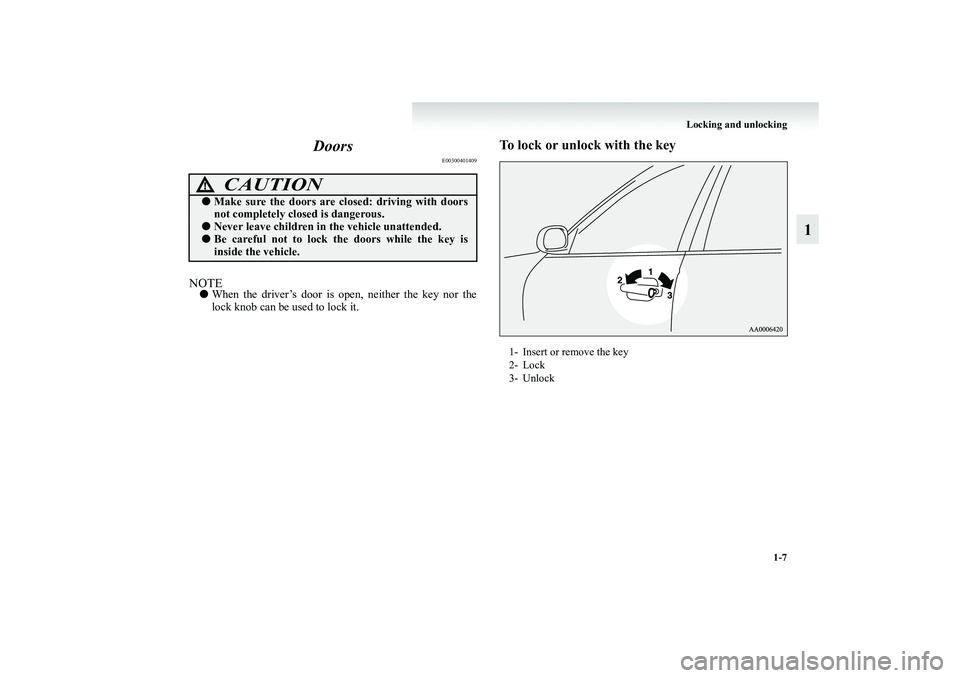

1 Doors
E00300401409
NOTE●When the driver’s door is open, neither the key nor the
lock knob can be used to lock it.
To lock or unlock with the key
CAUTION
!●Make sure the doors are closed: driving with doors
not completely closed is dangerous.●Never leave children in the vehicle unattended.●Be careful not to lock the doors while the key is
inside the vehicle.
1- Insert or remove the key
2- Lock
3- Unlock
BK-XP08E1ENUK.en-uk.book Page 7 Monday, August 13, 2007 2:20 PM

1-8 Locking and unlocking
1

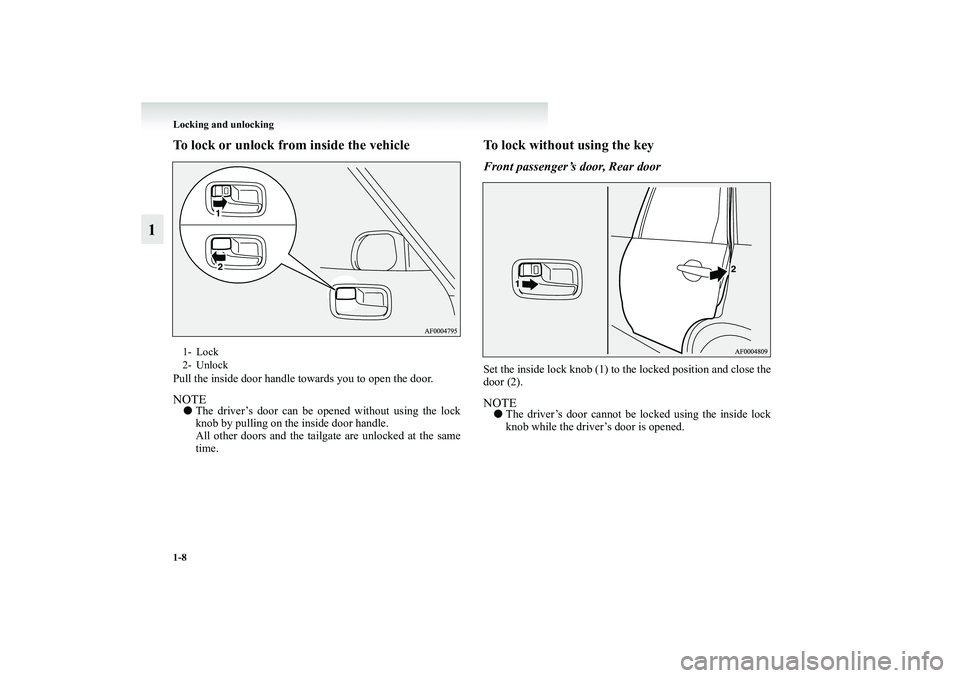

To lock or unlock from inside the vehiclePull the inside door handle towards you to open the door.NOTE●The driver’s door can be opened without using the lock
knob by pulling on the inside door handle.
All other doors and the tailgate are unlocked at the same
time.
To lock without using the keyFront passenger’s door, Rear doorSet the inside lock knob (1) to the locked position and close the
door (2).NOTE●The driver’s door cannot be locked using the inside lock
knob while the driver’s door is opened.
1- Lock
2- Unlock
BK-XP08E1ENUK.en-uk.book Page 8 Monday, August 13, 2007 2:20 PM
